2.1. Spectral analysis

It is well-known that cCH equation (Equation 1.3) admits the following Lax pair

(2.1)\begin{align} \phi_{x}=U\phi,\quad \phi_{t}=V\phi, \end{align}

where $U=U(x,t;\lambda)$ and $V=V(x,t;\lambda)$ are $2\times2$ matrices defined by

(2.2)\begin{align} U=\left(\begin{array}{cc} -\frac{Q}{2} & \frac{\lambda m}{2} \\ -\frac{\lambda m}{2} & \frac{Q}{2} \end{array}\right),\quad V=\left(\begin{array}{cc} \frac{Q}{\lambda^{2}}+\frac{QR}{2} & -\frac{u-Qu_x}{\lambda}-\frac{\lambda Rm}{2} \\ \frac{u+Qu_x}{\lambda}+\frac{\lambda Rm}{2} & -\frac{Q}{\lambda^{2}}-\frac{QR}{2} \end{array}\right), \end{align}

with

(2.3)\begin{equation} Q=Q(\nu,\lambda)=\sqrt{1-\frac{\nu\lambda^2}{2}},\ \ \ \ \ \ \ R=u^2-u_x^2. \end{equation}

It can be seen that under the following transformations

(2.4)\begin{equation} x=\tilde{x}, \quad t=\frac{2}{\nu}\tilde{t}, \quad u(x,t)=\sqrt{\frac{\nu}{2}}\tilde{u}(\tilde{x},\tilde{t}), \end{equation}

Eq. (Equation 1.3) turns to

(2.5)\begin{equation} \tilde{m}_{\tilde{t}}+(\tilde{m} \tilde{R})_{\tilde{x}}+2\tilde{u}_{\tilde{x}}=0, \quad \tilde{m}=\tilde{u}-\tilde{u}_{\tilde{x} \tilde{x}}, \quad \tilde{R}=\tilde{u}^2-\tilde{u}_{\tilde{x}}^2. \end{equation}

Without loss of generality, we pick ν = 2. To get rid of the multi-value problem of square roots, we introduce a new transformation

(2.6)\begin{equation} Q=\frac{i}{2}(\mu-\frac{1}{\mu}), \quad \lambda=\frac{1}{2}(\mu+\frac{1}{\mu}). \end{equation}

After doing a gauge transformation

(2.7)\begin{equation} \psi=P^{-1}\phi e^{J}, \end{equation}

with

(2.8)\begin{equation} P=P(x,t)=\sqrt{\frac{q+1}{2q}} \left(\begin{array}{cc} 1 & -\frac{im}{q+1} \\ -\frac{im}{q+1} & 1 \end{array}\right), \end{equation}

(2.9)\begin{equation} \delta=x-\int_{x}^{+\infty}(q-1)dy-\frac{2t}{\lambda^2}, \quad q=\sqrt{m^2+1}, \end{equation}

where we define $J=\frac{1}{2}Q\delta\sigma_3$. The asymptotic condition is shown as follows

\begin{align*} \psi(x,t,\mu)\sim I,\quad x\rightarrow\pm\infty. \end{align*}

Equation (Equation 1.3) has the following form Lax pair

(2.10a)\begin{align} &\psi_x+[J_x,\psi]=X\psi, \end{align}

(2.10b)\begin{align} &\psi_t+[J_t,\psi]=T\psi, \end{align}

where

\begin{equation*} X=\frac{im_x}{2q^2}\sigma_1+\frac{m}{2\mu q} \left(\begin{array}{cc} -im & 1 \\ -1 & im \end{array}\right),\nonumber \end{equation*}

\begin{equation*} \begin{split} T=&\frac{im_t}{2q^2}\sigma_1-\frac{mR}{2\mu q} \left(\begin{array}{cc} -im & 1 \\ -1 & im \end{array}\right) +\frac{(\mu^2-1)u_x}{\mu^2+1}\sigma_1-\frac{2 \mu u}{(\mu^2+1)q} \left(\begin{array}{cc} -im & 1 \\ -1 & im \end{array}\right) \\ &+\frac{2i\mu(\mu^2-1)}{(\mu^2+1)^2} \left(\begin{array}{cc} \frac{1}{q}-1 & -\frac{im}{q} \\ \frac{im}{q} & 1-\frac{1}{q} \end{array}\right),\nonumber \end{split} \end{equation*}

there $[A,B]=AB-BA$ and the notations $J=J(x,t,\mu)$, $X=X(x,t,\mu)$, $T=T(x,t,\mu)$ are $2\times2$ matrices. The σ ₁ is Pauli matrix and the Pauli matrices are that

\begin{equation*} \sigma_1= \left(\begin{array}{cc} 0 & 1 \\ 1 & 0 \end{array}\right),\quad \sigma_2= \left(\begin{array}{cc} 0 & -i \\ i & 0 \end{array}\right),\quad \sigma_3= \left(\begin{array}{cc} 1 & 0 \\ 0 & -1 \end{array}\right). \nonumber \end{equation*}

The two Jost solutions of (Equation 2.10a) are completely determined by Volterra integrable equations

(2.11)\begin{equation} \psi_\pm(x,t,\mu)=I+\int_{\pm\infty}^{x}e^{-\frac{i}{4}(\mu-\frac{1}{\mu}) \int_{y}^{x}qd\tau \hat{\sigma}_3}\left[X(y,t,\mu)\psi_\pm(y,t,\mu)\right]dy, \end{equation}

where $e^{A\hat{\sigma}_{3}}B=e^{A\sigma_{3}}Be^{-A\sigma_{3}}$. They have the analytic properties, symmetry properties, and asymptotic properties shown in the following three propositions.

Proposition 2.2. The Jost eigenfunctions $\psi_{\pm}(x,t,\mu)$ have the following symmetry conditions

(2.12)\begin{equation} \psi_{\pm}(\mu)=\sigma_1\psi_{\pm}^{*} (-\frac{1}{\mu^{*}})\sigma_1=\sigma_2\psi_{\pm}^{*} (\mu^{*})\sigma_2=\frac{1}{P^{2}}\sigma_2\psi_{\pm}(-\frac{1}{\mu})\sigma_2. \end{equation}

Proposition 2.3. The Jost eigenfunctions $\psi_{\pm}(x,t,\mu)$ possess asymptotic behaviour in the µ-plane

(2.13)\begin{equation} \psi_{\pm}(x,t,\mu)=I+\mathcal {O}(\frac{1}{\mu}),\quad \mu\rightarrow\pm\infty, \end{equation}

and according to the symmetry relations of $\psi_{\pm}(x,t,\mu)$, there are the same relations when $\mu\rightarrow 0$.

It can be seen that $\phi_{\pm}(x,t,\mu)$ are two fundamental matrix solutions of Lax pair (Equation 2.1). As a result, there exists a matrix $S(\mu)$ which independent of variables x and t satisfies

(2.14)\begin{equation} \phi_-(x,t,\mu)=\phi_+(x,t,\mu)S(\mu), \end{equation}

then on the basis of transformation (Equation 2.7), the relation (Equation 2.14) can be written in the following form

(2.15)\begin{equation} \psi_-(x,t,\mu)e^{-J(x,t,\mu)}=\psi_+(x,t,\mu)e^{-J(x,t,\mu)}S(\mu), \end{equation}

where $S(\mu)$ is a $2\times2$ matrix. We can derive the symmetries of $S(\mu)$ from proposition 2.2 as follows

(2.16)\begin{equation} S(\mu)=S^{*}(\frac{1}{\mu^{*}})=\sigma_3S(-\frac{1}{\mu})\sigma_3 =\sigma_{2}S^{*}(\mu^{*})\sigma_{2}. \end{equation}

According to symmetry relation (Equation 2.12), we can define the matrix $S(\mu)$ as the following form

(2.17)\begin{equation} S(\mu)=\left(\begin{array}{cc} a(\mu) & -b^{*}(\mu^{*}) \\ b(\mu) & a^{*}(\mu^{*}) \end{array}\right). \end{equation}

Because $tr(U)=0$, based on Abel theorem, we have $\det(\psi_{\pm})=1$, then $\det(S(\mu))=1$. By directly calculating Eq. (Equation 2.15), $a(\mu)$ and $b(\mu)$ can be expressed as

(2.18)\begin{equation} a(\mu)=Wr(\psi_{-1},\psi_{+2}), \quad b(\mu)=Wr(\psi_{+1},\psi_{-1}). \end{equation}

We define the reflection coefficient

(2.19)\begin{equation} \rho(\mu)=\frac{b(\mu)}{a(\mu)}. \end{equation}

Taking into account the properties of the Jost eigenfunctions $\psi_{\pm}(x,t,\mu)$, we obtain the corresponding properties to the elements $a(\mu)$ and $b(\mu)$ of the scattering matrix $S(\mu)$ as follows.

It is noticed that, since the branch cut points $\mu=\pm i$ exist in the extended complex µ-plane, the asymptotic behaviour of eigenfunctions $\psi_{\pm}(x,t,\mu)$ ought to be considered as $\mu\rightarrow \pm i$. Introducing a new Jost function

(2.21)\begin{equation} \tilde{\psi}_{\pm}(x,t,\mu)=\phi_{\pm}(x,t,\mu) e^{(\frac{Q}{2}x-\frac{Q}{\lambda^{2}}t)\sigma_{3}}, \end{equation}

then we have

(2.22)\begin{equation} \tilde{\psi}_{\pm}(x,t,\mu)\sim I,\quad x\rightarrow\pm \infty. \end{equation}

The Lax pair (Equation 2.1) can be converted to

(2.23a)\begin{align} &(\tilde{\psi}_{\pm})_{x}=-\frac{Q}{2}[\sigma_{3},\tilde{\psi}_{\pm}] +\tilde{X}\tilde{\psi}_{\pm}, \end{align}

(2.23b)\begin{align} &(\tilde{\psi}_{\pm})_{t}=\frac{Q}{\lambda^{2}}[\sigma_{3},\tilde{\psi}_{\pm}] +\tilde{T}\tilde{\psi}_{\pm}, \end{align}

with

\begin{align*} &\tilde{X}= \left(\begin{array}{cc} 0 & \frac{\lambda m}{2} \\ -\frac{\lambda m}{2} & 0 \end{array}\right),\\ &\tilde{T}=\frac{R}{2} \left(\begin{array}{cc} Q & -\lambda m \\ \lambda m & -Q \end{array}\right)+\frac{u-Qu_{x}}{\lambda} \left(\begin{array}{cc} 0 & -1 \\ 1 & 0 \end{array}\right). \end{align*}

Taking into account the asymptotic expansion of $\tilde{\psi}$ at $\mu\rightarrow i$, we have

(2.24)\begin{equation} \tilde{\psi}=I+\tilde{\psi}_{1}(\mu-i)+\mathcal {O}((\mu-i)^{2}), \quad \mu\rightarrow i, \end{equation}

with

(2.25)\begin{equation} \tilde{\psi}_{1}= \left(\begin{array}{cc} 0 & -\frac{1}{2}(u+u_{x}) \\ -\frac{1}{2}(u-u_{x}) & 0 \end{array}\right). \end{equation}

According to the transformations (Equation 2.7) and (Equation 2.21), we have

(2.26)\begin{equation} \psi_{\pm}(x,t,\mu)=P^{-1}(x,t)\tilde{\psi}_{\pm}(x,t,\mu) e^{\frac{1}{2}Q(\mu)\int_{\pm\infty}^{x}(q-1)dy}. \end{equation}

Taking the limits of (Equation 2.26) as $\mu \rightarrow i $, we obtain the asymptotic of $a(\mu)$

(2.27)\begin{equation} a(\mu)=e^{-\frac{1}{2}\int_{-\infty}^{+\infty}(q-1)dx}(1+\mathcal {O}((\mu-i)^{2})), \quad \mu\rightarrow i. \end{equation}

The analytic properties of $\psi_{\pm}(x,t,\mu)$ stated above allow rewriting the relation (Equation 2.15) as a sectionally meromorphic matrix.

2.2. RH problem

Define a piecewise meromorphic $2\times2$-matrix valued function

(2.28)\begin{align} M(\mu)=M(x,t;\mu):=\left\{\begin{array}{ll} \left( \frac{\psi_{-,1}(x,t;\mu)}{a(\mu)}, \psi_{+,2}(x,t;\mu)\right), &\text{as } \mu\in \mathbb{C}^+,\\[12pt] \left( \psi_{+,1}(x,t;\mu),\frac{\psi_{-,2}(x,t;\mu)}{a^{*}(\mu^{*})}\right) , &\text{as }\mu\in \mathbb{C}^-. \end{array}\right. \end{align}

Since the function $\delta(x,t,\mu)$ has integral term, which directly lead to the difficulty to solve Eq. (Equation 1.3), a new space variable is introduced as follows

(2.33)\begin{equation} y(x,t)=x-\int_{x}^{+\infty}(q(s,t)-1)ds. \end{equation}

Defining the function $\tilde{M}(\mu)$ and phase function $\theta(\mu)$ on the new scale $y(x,t)$

(2.34)\begin{equation} \tilde{M}(\mu)=\tilde{M}(y,t,\mu)=M(x(y,t),t,\mu), \end{equation}

(2.35)\begin{equation} \theta(\mu)=\frac{1}{2}iQ(\mu)\left(\frac{y}{t}-\frac{2}{\lambda^{2}(\mu)}\right), \end{equation}

then, the RH problem 2.5 is transformed as follows.

Using the asymptotic property of function $\tilde{M}(\mu)$ as $\mu\rightarrow i$, the relationship between the solution of cCH equation and the RH problem is obtained

(2.40)\begin{equation} u(x,t)=\lim_{\mu \to i}\frac{1}{\mu-i}\left(1-\frac{(\tilde{M}_{11}(\mu)+\tilde{M}_{21}(\mu)) (\tilde{M}_{12}(\mu)+\tilde{M}_{22}(\mu))} {(\tilde{M}_{11}(i)+\tilde{M}_{21}(i))(\tilde{M}_{12}(i)+\tilde{M}_{22}(i))}\right), \end{equation}

with

(2.41)\begin{equation} x(y,t)= y-\ln\left(\frac{\tilde{M}_{12}(i)+\tilde{M}_{22}(i)}{\tilde{M}_{11}(i)+\tilde{M}_{21}(i)}\right), \end{equation}

where $\tilde{M}_{ij}(\mu)$ $(i,j=1,2)$ represents the element in raw i and column j of $\tilde{M}(\mu)$.

2.3. Single high-order pole solutions

In order to obtain a pure soliton solution, this section we will consider the reflectionless situation, i.e., $b(\mu)=0$. Then $V(\mu)=0$ for $\mu\in\mathbb{R}$. We assume that $\mu_{0}\in\mathbb{C}^{+}$ is the only one N-order zero point of the scattering data $a(\mu)$, then the N-order zero points $\left\{-\mu^{*}_{0}, -\frac{1}{\mu_{0}}, \frac{1}{\mu^{*}_{0}}\right\}\in \mathbb{C}^{+}$ are also obtained from the symmetry of $a(\mu)$. Additionally, $\left\{\mu^{*}_{0}, -\mu_{0}, -\frac{1}{\mu^{*}_{0}}, \frac{1}{\mu_{0}}\right\}\in\mathbb{C} ^{-}$ are the N-order zero points of the scattering data $a^{*}(\mu^{*})$.

The discrete spectrum is the set $\mathcal{Z}=\left\{\pm\mu_{0}, \pm\mu^{*}_{0}, \pm\frac{1}{\mu_{0}}, \pm\frac{1}{\mu^{*}_{0}}\right\}$, which can be shown in Figure 1. After taking $v_{1}=\mu_{0}$, $v_{2}=\frac{1}{\mu^{*}_{0}}$, the scattering data $a(\mu)$ can be expressed as

(2.42)\begin{equation} a(\mu)=\prod_{j=1}^{2}(\mu-v_{j})^{N}(\mu+v^{*}_{j})^{N}a_{0}(\mu), \end{equation}

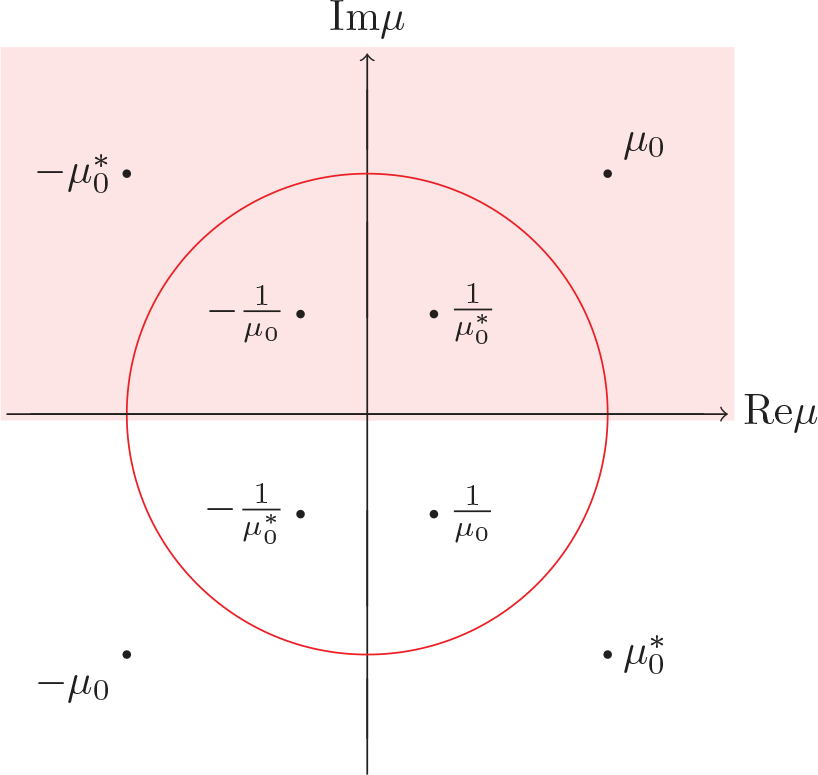

Figure 1. Distribution of the discrete spectrum $\mathcal{\mu}$.

where $a_{0}(\mu)\neq0$ for all $\mu\in\mathbb{C}^{+}$. Therefore, from the definition of $\tilde{M}(y,t,\mu)$, it can be seen that $\mu=v_{j}$ and $\mu=-v^{*}_{j}$ $(j=1,2)$ are N-order pole points of $\tilde{M}_{11}$. Simultaneously, $\mu=v^{*}_{j}$ and $\mu=-v_{j}$ $(j=1,2)$ are N-order pole points of $\tilde{M}_{12}$.

Based on the definitions of (Equation 2.14) and (Equation 2.15), under the new scale $y(x,t)$, we define $\breve{\phi}_{\pm}(y,t,\mu)=\phi_{\pm}(x,t,\mu)$ and $\breve{\psi}_{\pm}(y,t,\mu)=\psi_{\pm}(x,t,\mu)$ and obtain the following relationships

(2.43)\begin{equation} \breve{\phi}_-(y,t,\mu)=\breve{\phi}_+(y,t,\mu)S(\mu), \end{equation}

and

(2.44)\begin{equation} \breve{\psi}_-(y,t,\mu)e^{it\theta(\mu)\sigma_{3}}=\breve{\psi}_+(y,t,\mu)e^{it\theta(\mu)\sigma_{3}}S(\mu), \end{equation}

where $\theta(\mu)$ is defined in (Equation 2.35). Under the assumption that $\mu=v_{j}$ $(j=1,2)$ are N-order zero points of $a(\mu)$, from the following two relations, $a(\mu)$ can be represented as a Wronskian of analytic Jost solutions

(2.45)\begin{equation} a(\mu)=Wr(\breve{\phi}_{-1},\breve{\phi}_{+2}), \end{equation}

then at zero points v_j $(j=1,2)$, $a(\mu)$ vanishes to N-order, there exist complex constants $b_{j,s}$ $(j=1,2)$ $(s=1,2,\cdots,N)$ satisfy the follows

(2.46)\begin{equation} \frac{\partial^{m}[\breve{\phi}_+(y,t,v_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b_{j,m-l+1}\frac{\partial^{l}[\breve{\phi}_-(y,t,v_{j})]_{1}}{\partial\mu^{l}}, \end{equation}

and

(2.47)\begin{equation} \frac{\partial^{m}[\breve{\psi}_+(y,t,v_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b_{j,m-l+1}\frac{\partial^{l}[\breve{\psi}_-(y,t,v_{j})]_{1}e^{2it\theta(v_{j})}}{\partial\mu^{l}}, \end{equation}

with $m=0,1,\cdots,N-1$.

On the basis of the definition of $M(\mu)$ defined by (Equation 2.28) and the asymptotic behaviour in RH problem 2.6, we set

(2.48a)\begin{align} &\tilde{M}_{11}(y,t,\mu)=1+\sum_{j=1}^{2}\sum_{s=1}^{N} \left(\frac{1}{(\mu-v_{j})^{s}}+\frac{(-1)^{s}}{(\mu+v^{*}_{j})^{s}}\right)F_{j,s}(y,t), \end{align}

(2.48b)\begin{align} &\tilde{M}_{12}(y,t,\mu)=\sum_{j=1}^{2}\sum_{s=1}^{N} \left(\frac{1}{(\mu-v^{*}_{j})^{s}}+\frac{(-1)^{s+1}}{(\mu+v_{j})^{s}}\right)G_{j,s}(y,t), \end{align}

where $F_{j,s}(y,t)$ and $G_{j,s}(y,t)$ are undetermined functions. Making use of Taylor series expansion, one can obtain the following relationships

(2.49)\begin{align} &e^{-2it\theta(\mu)}=\sum_{l=0}^{+\infty}\zeta_{j,l}(y,t)(\mu-v_{j})^{l},\quad e^{2it\theta(\mu)}=\sum_{l=0}^{+\infty}\zeta^{*}_{j,l}(y,t)(\mu-v^{*}_{j})^{l}, \end{align}

where the element $\zeta_{j,l}(y,t)$ is

\begin{align*} \zeta_{j,l}(y,t)=\lim_{\mu\rightarrow v_{j}}\frac{1}{l!}\frac{\partial^{l}}{\partial \mu^{l}}e^{-2it\theta(\mu)},\quad \zeta^{*}_{j,l}(y,t)=\lim_{\mu\rightarrow v^{*}_{j}}\frac{1}{l!}\frac{\partial^{l}}{\partial \mu^{l}}e^{2it\theta(\mu)}. \end{align*}

It can be obtained that the coefficient of item $(\mu-v_{j})^{-s}$ of function $\tilde{M}_{11}(y,t,\mu)$ is $F_{j,s}(y,t)$. Now we extend the residue theorem by combining (Equation 2.44) and (Equation 2.47) and obtain the following relations

(2.50)\begin{align} \begin{split} F_{j,s}&=\sum_{l=s}^{N}\sum_{m=0}^{l-s}\sum_{p=1}^{2}\sum_{q=1}^{N} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) \times \\ &r_{j,l}\zeta_{j,l-s-m} \left\{\frac{(-1)^{m}}{(v_{j}-v^{*}_{p})^{q+m}} +\frac{(-1)^{m+q+1}}{(v_{j}+v_{p})^{q+m}}\right\}G_{p,q}, \end{split} \end{align}

where

(2.51)\begin{align} r_{j,l}=\lim_{\mu\rightarrow v_{j}}\frac{b_{j,l}}{(N-l)!}\frac{\partial^{N-l}}{\partial(\mu-v_{j})^{N-l}} \frac{(\mu-v_{j})^{N}}{a(\mu)}. \end{align}

Likewise, the coefficient of item $(\mu-v^{*}_{j})^{-s}$ of function $\tilde{M}_{12}(y,t,\mu)$ is $G_{j,s}(y,t)$. Through the same method, we have

(2.52)\begin{align} \begin{split} G_{j,s}&=-\sum_{l=s}^{N}r^{*}_{j,l}\zeta^{*}_{j,l-s} -\sum_{l=s}^{N}\sum_{m=0}^{l-s}\sum_{p=1}^{2}\sum_{q=1}^{N} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right)\times\\ &r^{*}_{j,l}\zeta^{*}_{j,l-s-m}\left\{\frac{(-1)^{m}} {(v^{*}_{j}-v_{p})^{q+m}} +\frac{(-1)^{m+q}}{(v^{*}_{j}+v^{*}_{p})^{q+m}}\right\}F_{p,q}. \end{split} \end{align}

Introducing the new notations for $j,p=1,2$

(2.53)\begin{align} |\eta_{j}\rangle&=(\eta_{j1},\cdots,\eta_{jN})^{T},\quad \eta_{js}=-\sum_{l=s}^{N}r^{*}_{j,l}\zeta^{*}_{j,l-s}(y,t), \end{align}

then defining the N × N matrices $\vartheta_{j,p}=[\vartheta_{j,p}]_{s,q}$ and $\tilde{\vartheta}_{j,p}=[\tilde{\vartheta}_{j,p}]_{s,q}$ for $s,q=1,2,\cdots,N$ as follows

(2.54)\begin{align} \begin{split} \vartheta_{j,p}=\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r_{j,l}\zeta_{j,l-s-m}\left\{\frac{(-1)^{m}}{(v_{j}-v^{*}_{p})^{q+m}} +\frac{(-1)^{m+q+1}}{(v_{j}+v_{p})^{q+m}}\right\}, \end{split} \end{align}

(2.55)\begin{align} \begin{split} \tilde{\vartheta}_{j,p}=\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r^{*}_{j,l}\zeta^{*}_{j,l-s-m}\left\{\frac{(-1)^{m}} {(v^{*}_{j}-v_{p})^{q+m}} +\frac{(-1)^{m+q}}{(v^{*}_{j}+v^{*}_{p})^{q+m}}\right\}, \end{split} \end{align}

(2.56)\begin{align} |F_{p}\rangle=(F_{p,1},\cdots,F_{p,N})^{T},\quad |G_{p}\rangle=(G_{p,1},\cdots,G_{p,N})^{T}, \end{align}

(2.57)\begin{align} \vartheta= \left(\begin{array}{cc} \vartheta_{1,1} & \vartheta_{1,2} \\ \vartheta_{2,1} & \vartheta_{2,2} \end{array}\right),\quad \tilde{\vartheta}= \left(\begin{array}{cc} \tilde{\vartheta}_{1,1} & \tilde{\vartheta}_{1,2} \\ \tilde{\vartheta}_{2,1} & \tilde{\vartheta}_{2,2} \end{array}\right),\quad I_{\sigma}= \left(\begin{array}{cc} I & 0 \\ 0 & I \end{array}\right), \end{align}

where I is a N × N identity matrix. Equations (Equation 2.50)–(Equation 2.52) can be written as a system of linear equations

(2.58)\begin{equation} \begin{aligned} &I|F_{p}\rangle-\vartheta_{j,p}|G_{p}\rangle=0,\\ &\tilde{\vartheta}_{j,p}|F_{p}\rangle+ I|G_{p}\rangle=|\eta_{j}\rangle. \end{aligned} \end{equation}

Then taking

(2.59)\begin{align} |F\rangle=(|F_{1}\rangle,|F_{2}\rangle)^{T},\quad |G\rangle=(|G_{1}\rangle,|G_{2}\rangle)^{T}, \end{align}

(2.60)\begin{align} |\eta\rangle=(|\eta_{1}\rangle,|\eta_{2}\rangle)^{T}. \end{align}

The system (Equation 2.58) has the following solution

(2.61)\begin{align} |F\rangle=(I_{\sigma}+\vartheta\tilde{\vartheta})^{-1}\vartheta|\eta\rangle,\quad |G\rangle=(I_{\sigma}+\tilde{\vartheta}\vartheta)^{-1}|\eta\rangle. \end{align}

The new expression of (Equation 2.48a) is derived as

(2.62)\begin{align} \tilde{M}_{11}(y,t,\mu)&=\frac{\det(I_{\sigma}+\vartheta\tilde{\vartheta}+|\eta\rangle\langle\Upsilon(\mu)|\vartheta)} {\det(I_{\sigma}+\vartheta\tilde{\vartheta})}, \end{align}

(2.63)\begin{align} \tilde{M}_{12}(y,t,\mu)&=\frac{\det(I_{\sigma}+\tilde{\vartheta}\vartheta+|\eta\rangle\langle\tilde{\Upsilon}(\mu)|)} {\det(I_{\sigma}+\tilde{\vartheta}\vartheta)}-1, \end{align}

with

(2.64)\begin{equation} \begin{split} &\langle\Upsilon(\mu)|=(\langle\Upsilon_{1}(\mu)|,\langle\Upsilon_{2}(\mu)|),\quad \langle\Upsilon_{j}(\mu)|=(\Upsilon_{j1},\ldots,\Upsilon_{jN}),\\ &\langle\tilde{\Upsilon}(\mu)| =(\langle\tilde{\Upsilon}_{1}(\mu)|,\langle\tilde{\Upsilon}_{2}(\mu)|),\quad \langle\tilde{\Upsilon}_{j}(\mu)|=(\tilde{\Upsilon}_{j1},\ldots,\tilde{\Upsilon}_{jN}),\\ &\langle\Upsilon^{\prime}(\mu)|= (\langle\Upsilon^{\prime}_{1}(\mu)|,\langle\Upsilon^{\prime}_{2}(\mu)|),\quad \langle\Upsilon^{\prime}_{j}(\mu)|=(\Upsilon^{\prime}_{j1},\ldots,\Upsilon^{\prime}_{jN}),\\ &\langle\tilde{\Upsilon}^{\prime}(\mu)| =(\langle\tilde{\Upsilon}^{\prime}_{1}(\mu)|,\langle\tilde{\Upsilon}^{\prime}_{2}(\mu)|),\quad \langle\tilde{\Upsilon}^{\prime}_{j}(\mu)|=(\tilde{\Upsilon}^{\prime}_{j1},\ldots,\tilde{\Upsilon}^{\prime}_{jN}), \end{split} \end{equation}

\begin{align*} &\Upsilon_{js}=\frac{1}{(\mu-v_{j})^{s}}+\frac{(-1)^{s}}{(\mu+v^{*}_{j})^{s}},\quad \tilde{\Upsilon}_{js}=\frac{1}{(\mu-v^{*}_{j})^{s}}+\frac{(-1)^{s+1}}{(\mu+v_{j})^{s}},\\ &\Upsilon^{\prime}_{js}=\frac{-s}{(\mu-v_{j})^{s+1}}+\frac{s(-1)^{s+1}}{(\mu+v^{*}_{j})^{s+1}},\quad \tilde{\Upsilon}^{\prime}_{js}=\frac{-s}{(\mu-v^{*}_{j})^{s+1}}+\frac{s(-1)^{s}}{(\mu+v_{j})^{s+1}}, \end{align*}

where we differentiate the components of vector $\langle\Upsilon(\mu)|$ from variable µ to obtain vector $\langle\Upsilon^{\prime}(\mu)|$, the vector $\langle\tilde{\Upsilon}^{\prime}(\mu)|$ can also be gained from the same way. In the following content, we will continue to use this definition. On the basis of the symmetry of $\tilde{M}(\mu)=\sigma_2\tilde{M}^{*}(\mu^{*})\sigma_2$, we have

(2.65)\begin{align} \tilde{M}_{22}(y,t,\mu)&=\frac{\det(I_{\sigma}+\tilde{\vartheta}^{*}\vartheta^{*}+|\eta^{*}\rangle\langle\Upsilon^{*}(\mu^{*})|\vartheta^{*})} {\det(I_{\sigma}+\tilde{\vartheta}^{*}\vartheta^{*})}, \end{align}

(2.66)\begin{align} \tilde{M}_{21}(y,t,\mu)&=-\frac{\det(I_{\sigma}+\vartheta^{*}\tilde{\vartheta}^{*}+|\eta^{*}\rangle\langle\tilde{\Upsilon}^{*}(\mu^{*})|)} {\det(I_{\sigma}+\vartheta^{*}\tilde{\vartheta}^{*})}+1. \end{align}

Hence the precise expression formula for the solution of cCH equation with single high-order pole under the ZBCs can be obtained in theorem 2.7.

Theorem 2.7

The solution of cCH equation with single high-order pole under the ZBCs can be obtained as follows

(2.67)\begin{align} u(x,t)=-\left( \frac{\tilde{M}^{\prime}_{11}(i)+\tilde{M}^{\prime}_{21}(i)}{\tilde{M}_{11}(i)+\tilde{M}_{21}(i)}+ \frac{\tilde{M}^{\prime}_{12}(i)+\tilde{M}^{\prime}_{22}(i)}{\tilde{M}_{12}(i)+\tilde{M}_{22}(i)} \right), \end{align}

with

\begin{align*} &\tilde{M}_{11}(i)=\frac{\det(I_{\sigma}+\vartheta\tilde{\vartheta}+|\eta\rangle\langle\Upsilon(i)|\vartheta)} {\det(I_{\sigma}+\vartheta\tilde{\vartheta})},\\ &\tilde{M}_{21}(i)=-\frac{\det(I_{\sigma}+\vartheta^{*}\tilde{\vartheta}^{*}+|\eta^{*}\rangle\langle\tilde{\Upsilon}^{*}(-i)|)} {\det(I_{\sigma}+\vartheta^{*}\tilde{\vartheta}^{*})}+1,\\ &\tilde{M}_{12}(i)=\frac{\det(I_{\sigma}+\tilde{\vartheta}\vartheta+|\eta\rangle\langle\tilde{\Upsilon}(i)|)} {\det(I_{\sigma}+\tilde{\vartheta}\vartheta)}-1\\ &\tilde{M}_{22}(i)=\frac{\det(I_{\sigma}+\tilde{\vartheta}^{*}\vartheta^{*}+|\eta^{*}\rangle\langle\Upsilon^{*}(-i)|\vartheta^{*})} {\det(I_{\sigma}+\tilde{\vartheta}^{*}\vartheta^{*})},\\ &\tilde{M}^{\prime}_{11}(i)=\frac{\det(I_{\sigma}+\vartheta\tilde{\vartheta}+|\eta\rangle\langle\Upsilon^{\prime}(i)|\vartheta)} {\det(I_{\sigma}+\vartheta\tilde{\vartheta})}-1,\\ &\tilde{M}^{\prime}_{21}(i)=-\frac{\det(I_{\sigma}+\vartheta^{*}\tilde{\vartheta}^{*}+|\eta^{*}\rangle\langle\tilde{\Upsilon}^{\prime *}(-i)|)} {\det(I_{\sigma}+\vartheta^{*}\tilde{\vartheta}^{*})}+1,\\ &\tilde{M}^{\prime}_{12}(i)=\frac{\det(I_{\sigma}+\tilde{\vartheta}\vartheta+|\eta\rangle\langle\tilde{\Upsilon}^{\prime}(i)|)} {\det(I_{\sigma}+\tilde{\vartheta}\vartheta)}-1,\\ &\tilde{M}^{\prime}_{22}(i)=\frac{\det(I_{\sigma}+\tilde{\vartheta}^{*}\vartheta^{*}+|\eta^{*}\rangle\langle\Upsilon^{\prime *}(-i)|\vartheta^{*})} {\det(I_{\sigma}+\tilde{\vartheta}^{*}\vartheta^{*})}-1, \end{align*}

where $x=x(y,t)$ is defined in (Equation 2.41), and the elements $|\eta\rangle$, I_σ, ϑ, $\tilde{\vartheta}$, $\langle\Upsilon(i)|$, $\langle\tilde{\Upsilon}(i)|$, $\langle\Upsilon^{\prime}(i)|$, and $\langle\tilde{\Upsilon}^{\prime}(i)|$ are respectively defined in (Equation 2.53), (Equation 2.57), and (Equation 2.64).

2.3.1. One-soliton solution

Next, we construct the simple one-soliton solution and compare the expressions of the solutions obtained by RH approach and Hirota’s bilinear method. In this case, the zero points of scattering data are one-order, and there is no need to calculate the high-order derivative formula of the Jost eigenfunctions and the complex Taylor expansions, which degenerates into the residue conditions of RH matrix. In order to compare with the solution obtained by bilinear method, we need to process the RH matrix and use the above construction process to obtain the simplest expression of solution.

For one-soliton solution, we have N = 1. Supposing $v_{1}=\mu_{0}$ is a first-order zero point of the scattering data $a(\mu)$, then the symmetrical relationships indicate that $\left\{-\mu^{*}_{0}, -\frac{1}{\mu_{0}}, \frac{1}{\mu^{*}_{0}}\right\}\in\mathbb{C}^{+}$ also are zero points of $a(\mu)$. Then from Eqs. (Equation 2.44), (Equation 2.45), and (Equation 2.47), we use the symmetry relationships in RH problem 2.6 to calculate the following residue conditions

(2.68)\begin{align} \begin{split} \mathop{\operatorname{Res}}_{\mu=\mu_{0}}\tilde{M}^{(1)}(y,t,\mu)&=c_{0}e^{-2it\theta(\mu_{0})}\tilde{M}^{(2)}(y,t,\mu_{0}),\\ \mathop{\operatorname{Res}}_{\mu=\frac{1}{\mu^{*}_{0}}}\tilde{M}^{(1)}(y,t,\mu)&=-\frac{c^{*}_{0}} {\mu^{*2}_{0}}e^{2it\theta^{*}(\mu_{0})}\tilde{M}^{(2)}(y,t,\frac{1}{\mu^{*}_{0}}),\\ \mathop{\operatorname{Res}}_{\mu=-\mu^{*}_{0}}\tilde{M}^{(1)}(y,t,\mu)&=-\frac{c_{0}} {\mu^{2}_{0}}e^{2it\theta^{*}(\mu_{0})}\tilde{M}^{(2)}(y,t,-\mu^{*}_{0}),\\ \mathop{\operatorname{Res}}_{\mu=-\frac{1}{\mu_{0}}}\tilde{M}^{(1)}(y,t,\mu)&=-\frac{c_{0}}{\mu^{2}_{0}} e^{-2it\theta(\mu_{0})}\tilde{M}^{(2)}(y,t,-\frac{1}{\mu_{0}}). \end{split} \end{align}

To simplify the calculation process, we redefine the RH matrix as

(2.69)\begin{align} \tilde{N}_{1}(\mu)=\tilde{M}_{11}(\mu)+\tilde{M}_{21}(\mu),\quad \tilde{N}_{2}(\mu)=\tilde{M}_{12}(\mu)+\tilde{M}_{22}(\mu). \end{align}

The characteristic function satisfies $\psi_{\pm}(\mu)=\sigma_1\psi_{\pm}(-\mu)\sigma_1$, which means that $\tilde{M}(\mu)=\sigma_1\tilde{M}(-\mu)\sigma_1$, then $\tilde{N}_{1}(\mu)=\tilde{N}_{2}(-\mu)$. Calculating from formulas (Equation 2.48a) and combining with the symmetries of matrix $\tilde{M}(\mu)$, we obtain

(2.70)\begin{align} \begin{split} \tilde{N}_{1}(\mu)=&1+\frac{c_{0}e^{-2it\theta(\mu_{0})}}{\mu-\mu_{0}}\tilde{N}_{1}(-\mu_{0})+ \frac{c^{*}_{0}e^{2it\theta^{*}(\mu_{0})}}{\mu+\mu^{*}_{0}}\tilde{N}_{1}(\mu^{*}_{0})+\\ &\frac{-\frac{c_{0}}{\mu^{2}_{0}}e^{-2it\theta(\mu_{0})}}{\mu+\frac{1}{\mu_{0}}}\tilde{N}_{1}(\frac{1}{\mu_{0}})+ \frac{-\frac{c^{*}_{0}}{\mu^{*2}_{0}}e^{2it\theta^{*}(\mu_{0})}}{\mu-\frac{1}{\mu^{*}_{0}}}\tilde{N}_{1}(-\frac{1}{\mu^{*}_{0}}), \end{split} \end{align}

there $c_{0}=\frac{b_{0}}{\dot{a}(\mu)}$ is some complex number, we can set $c_{0}=|c_{0}|e^{i\phi}$ $(\phi\in(0,\pi))$. The linear equation system shown in formula (Equation 2.58) can be simplified as

(2.71)\begin{align} \begin{split} \tilde{N}_{1}(-\mu_{0})=&1+\frac{c_{0}e^{-2it\theta(\mu_{0})}}{-\mu_{0}-\mu_{0}}\tilde{N}_{1}(-\mu_{0})+ \frac{c^{*}_{0}e^{2it\theta^{*}(\mu_{0})}}{-\mu_{0}+\mu^{*}_{0}}\tilde{N}_{1}(\mu^{*}_{0})+\\ &\frac{-\frac{c_{0}}{\mu^{2}_{0}}e^{-2it\theta(\mu_{0})}}{-\mu_{0}+\frac{1}{\mu_{0}}}\tilde{N}_{1}(\frac{1}{\mu_{0}})+ \frac{-\frac{c^{*}_{0}}{\mu^{*2}_{0}}e^{2it\theta^{*}(\mu_{0})}}{-\mu_{0}-\frac{1}{\mu^{*}_{0}}}\tilde{N}_{1}(-\frac{1}{\mu^{*}_{0}}), \end{split} \end{align}

(2.72)\begin{align} \begin{split} \tilde{N}_{1}(\mu^{*}_{0})=&1+\frac{c_{0}e^{-2it\theta(\mu_{0})}}{\mu^{*}_{0}-\mu_{0}}\tilde{N}_{1}(-\mu_{0})+ \frac{c^{*}_{0}e^{2it\theta^{*}(\mu_{0})}}{\mu^{*}_{0}+\mu^{*}_{0}}\tilde{N}_{1}(\mu^{*}_{0})+\\ &\frac{-\frac{c_{0}}{\mu^{2}_{0}}e^{-2it\theta(\mu_{0})}}{\mu^{*}_{0}+\frac{1}{\mu_{0}}}\tilde{N}_{1}(\frac{1}{\mu_{0}})+ \frac{-\frac{c^{*}_{0}}{\mu^{*2}_{0}}e^{2it\theta^{*}(\mu_{0})}}{\mu^{*}_{0}-\frac{1}{\mu^{*}_{0}}}\tilde{N}_{1}(-\frac{1}{\mu^{*}_{0}}), \end{split} \end{align}

(2.73)\begin{align} \begin{split} \tilde{N}_{1}(\frac{1}{\mu_{0}})=&1+\frac{c_{0}e^{-2it\theta(\mu_{0})}}{\frac{1}{\mu_{0}}-\mu_{0}}\tilde{N}_{1}(-\mu_{0})+ \frac{c^{*}_{0}e^{2it\theta^{*}(\mu_{0})}}{\frac{1}{\mu_{0}}+\mu^{*}_{0}}\tilde{N}_{1}(\mu^{*}_{0})+\\ &\frac{-\frac{c_{0}}{\mu^{2}_{0}}e^{-2it\theta(\mu_{0})}}{\frac{1}{\mu_{0}}+\frac{1}{\mu_{0}}}\tilde{N}_{1}(\frac{1}{\mu_{0}})+ \frac{-\frac{c^{*}_{0}}{\mu^{*2}_{0}}e^{2it\theta^{*}(\mu_{0})}}{\frac{1}{\mu_{0}}-\frac{1}{\mu^{*}_{0}}}\tilde{N}_{1}(-\frac{1}{\mu^{*}_{0}}), \end{split} \end{align}

(2.74)\begin{align} \begin{split} \tilde{N}_{1}(-\frac{1}{\mu^{*}_{0}})=&1+\frac{c_{0}e^{-2it\theta(\mu_{0})}}{-\frac{1}{\mu^{*}_{0}}-\mu_{0}}\tilde{N}_{1}(-\mu_{0})+ \frac{c^{*}_{0}e^{2it\theta^{*}(\mu_{0})}}{-\frac{1}{\mu^{*}_{0}}+\mu^{*}_{0}}\tilde{N}_{1}(\mu^{*}_{0})+\\ &\frac{-\frac{c_{0}}{\mu^{2}_{0}}e^{-2it\theta(\mu_{0})}}{-\frac{1}{\mu^{*}_{0}}+\frac{1}{\mu_{0}}}\tilde{N}_{1}(\frac{1}{\mu_{0}})+ \frac{-\frac{c^{*}_{0}}{\mu^{*2}_{0}}e^{2it\theta^{*}(\mu_{0})}}{-\frac{1}{\mu^{*}_{0}}-\frac{1}{\mu^{*}_{0}}}\tilde{N}_{1}(-\frac{1}{\mu^{*}_{0}}). \end{split} \end{align}

After solving this linear system, inputting the results into formula (Equation 2.70), we can obtain the solution of $\tilde{N}_{1}(\mu)$, then substituting it into the following formula

(2.75)\begin{align} u(x,t)=-\left( \frac{\tilde{N}^{\prime}_{1}(i)}{\tilde{N}_{1}(i)}+ \frac{\tilde{N}^{\prime}_{1}(-i)}{\tilde{N}_{1}(-i)} \right), \end{align}

where

(2.76)\begin{align} x(y,t)= y-\ln\left(\frac{\tilde{N}_{1}(-i)}{\tilde{N}_{1}(i)}\right), \end{align}

we can obtain the solution of the cCH equation.

Next, we discuss the solution when scattering data $a(\mu)$ has only two zero points through two examples, where the discrete spectrum has four points.

Case 1: Supposing $v_{1}=\mu_{0}=e^{i\tau}\in\mathbb{C}^{+}$ $(\tau\in(0,\pi))$, $v_{2}=\frac{1}{\mu^{*}_{0}}=v_{1}$. Then $|v_{1}|=1$, and we further assume that $\mu_{0}=r_{1}+ir_{2}$. It can be obtained that $\theta(e^{i\tau})=\theta(-e^{-i\tau})$. Next we define $\chi_{1}\triangleq\theta(e^{i\tau})=-\frac{i\sin\tau y}{2t}+\frac{i\sin\tau}{\cos^{2}\tau}$, hence $e^{-2it\chi_{1}}$ is a real number about variables y and t. Thus algebraic system (Equation 2.70)–(Equation 2.74) have the following forms

(2.77)\begin{align} \tilde{N}_{1}(\mu)=1+\frac{|c_{0}|e^{i\phi}e^{\chi_{1}}}{\mu-e^{i\tau}}\tilde{N}_{1}(-e^{i\tau})+ \frac{|c_{0}|e^{-i\phi}e^{\chi_{1}}}{\mu+e^{-i\tau}}\tilde{N}_{1}(e^{-i\tau}), \end{align}

(2.78)\begin{align} \begin{split} \tilde{N}_{1}(-e^{i\tau})=&1+\frac{|c_{0}|e^{i\phi}e^{\chi_{1}}}{-2e^{i\tau}}\tilde{N}_{1}(-e^{i\tau})+ \frac{|c_{0}|e^{-i\phi}e^{\chi_{1}}}{e^{-i\tau}-e^{i\tau}}\tilde{N}_{1}(e^{-i\tau}),\\ \tilde{N}_{1}(e^{-i\tau})=&1+\frac{|c_{0}|e^{i\phi}e^{\chi_{1}}}{e^{-i\tau}-e^{i\tau}}\tilde{N}_{1}(-e^{i\tau})+ \frac{|c_{0}|e^{-i\phi}e^{\chi_{1}}}{2e^{-i\tau}}\tilde{N}_{1}(e^{-i\tau}), \end{split} \end{align}

then we have the solutions

(2.79)\begin{align} \begin{split} \tilde{N}_{1}(-e^{i\tau})=&\frac{1}{H_{1}}(1-\frac{r_{1}}{2ir_{2}}|c_{0}|e^{\chi_{1}-i\phi+i\tau}),\\ \tilde{N}_{1}(e^{-i\tau})=&\frac{1}{H_{1}}(1-\frac{r_{1}}{2ir_{2}}|c_{0}|e^{\chi_{1}+i\phi-i\tau}), \end{split} \end{align}

where

(2.80)\begin{align} H_{1}=1+\frac{r^{2}_{1}}{4r^{2}_{2}}|c_{0}|e^{2\chi_{1}}+i|c_{0}|e^{\chi_{1}}\sin(\phi-\tau), \end{align}

then we have

(2.81)\begin{align} \begin{split} \tilde{N}_{1}(\mu)=1+\frac{1}{H_{1}}\left(\frac{|c_{0}|e^{\phi+\chi_{1}}- \frac{r_{1}|c_{0}|^{2}e^{2\chi_{1}+\phi}}{2ir_{2}e^{-i(\tau-\phi)}}}{\mu-e^{i\tau}}+ \frac{|c_{0}|e^{\chi_{1}-\phi}-\frac{r_{1}|c_{0}|^{2}e^{2\chi_{1}-\phi}}{2ir_{2}e^{i\tau}}}{\mu+e^{i(\tau-\phi)}}\right), \end{split} \end{align}

after assuming the parameter values are $|c_{0}|=\frac{2r_{2}\,\mathrm{sgn}\,(r_{1})}{r_{1}}$ and $\phi-\tau=\frac{\pi}{2}$, the expression of solution can be obtained as follows

(2.82)\begin{align} u(x,t)=-\frac{4r_{2}}{r^{3}_{1}}\,\mathrm{sgn}\,(r_{1})\frac{\cosh(\chi_{1})}{cosh(2\chi_{1})+\frac{1+r^{2}_{2}}{r^{2}_{1}}}, \end{align}

with

(2.83)\begin{align} x=x(y,t)=y-\ln\left(\frac{1+\frac{1+r_{2}}{1-r_{2}}e^{2\chi_{1}}}{1+\frac{1-r_{2}}{1+r_{2}}e^{2\chi_{1}}}\right). \end{align}

Remark 2.8. By comparing with the soliton solution of cCH equation obtained in reference [Reference Matsuno31], it can be seen that the solution constructed by the RH method is exactly the same as the solution obtained by Hirota’s bilinear method after special parameter selection. Both of the above methods are used to study the construction of soliton solution for cCH equation under ZBCs. The difference is that [Reference Matsuno31] constructs multiple soliton solutions, while our article constructs arbitrary-order pole solutions. Similarly, when the orders of the zero points degenerate to one, the expressions of solutions obtained in these two articles are the same for multiple zero points case.

Remark 2.9. According to the detailed analysis of literature [Reference Matsuno31], it can be seen that when the parameters take different values, we can obtain smooth soliton solutions and symmetric singular soliton solutions. When the selected zero point µ ₀ is complex and its modulus is not equal to zero, the breather solutions can be obtained.

From expression (Equation 2.83), it can be seen that when $x\rightarrow\pm\infty$, there exists $y\rightarrow\pm\infty$. The solution (Equation 2.82) indicates that $r_{1}=0$ $(\tau=\frac{\pi}{2})$ is a singularity point and $cosh(2\chi_{1})+\frac{1+r^{2}_{2}}{r^{2}_{1}}$ has no zero point; otherwise, the following relationship will presence

(2.84)\begin{align} r^{2}_{1}(e^{-2yr_{2}+\frac{2tr_{2}}{r^{2}_{1}}}+e^{2yr_{2}-\frac{2tr_{2}}{r^{2}_{1}}})=-2(1+r^{2}_{2}), \end{align}

since the point $\mu_{0}\in\mathbb{C}^{+}$, the right-hand side of the equation is always negative and the left-hand side is always positive, which leads to a contradiction. According to our analysis of constructing the RH problem, the points $\mu=0,\pm i$ are singularities which corresponding to the obtained solution. There $\mu_{0}\in\mathbb{C}^{+}$ and it has only one singularity point $\mu_{0}=i$.

To demonstrate the characteristics of solitons, we present wave propagations including images of local structure, density, and intensity distribution in figures 2–4 after selecting different parameters. It can be seen that the single smooth soliton solutions are obtained at these values. Specifically, figure 2(a) shows a Hump soliton solution. figure 3(a) is a critical situation where the soliton exhibits a top horizontal characteristic. Finally, figure 4(a) shows the M-shape soliton solution. From these figures, it can be seen that as the values of τ increasing, the peak of the soliton first appears in a horizontal state and then sinks inward.

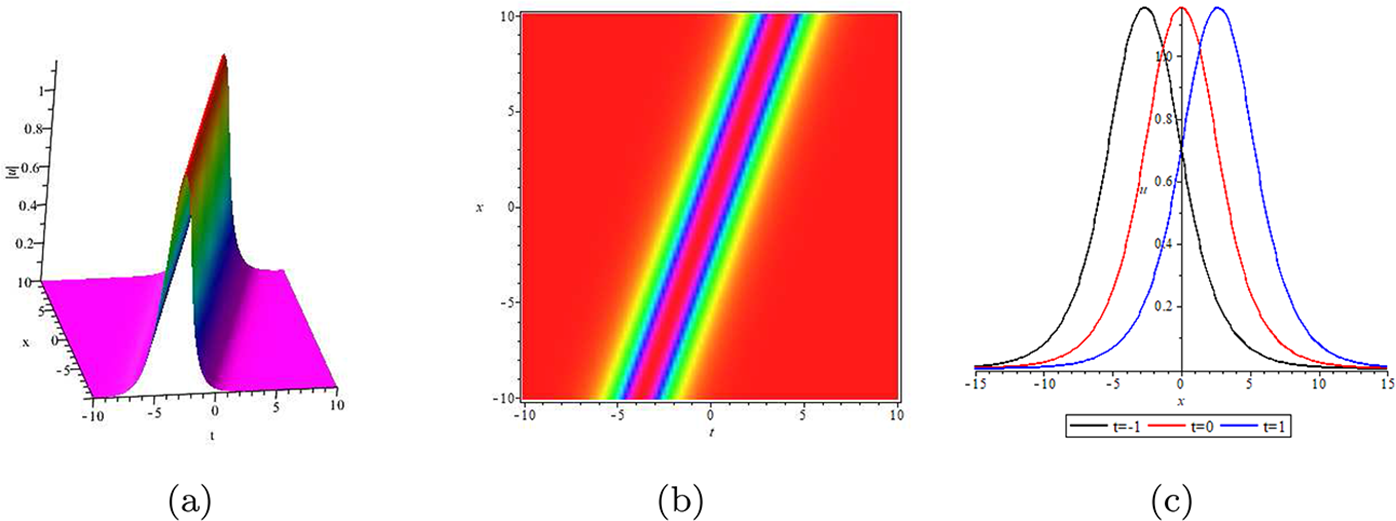

Figure 2. (a)–(c) describe the local structure, density, and intensity profiles with different times of one-soliton solution $|u|$. Parameters $r_{1}=\frac{\sqrt{3}}{2}$, $r_{2}=\frac{1}{2}$, $\tau=\frac{\pi}{6}$.

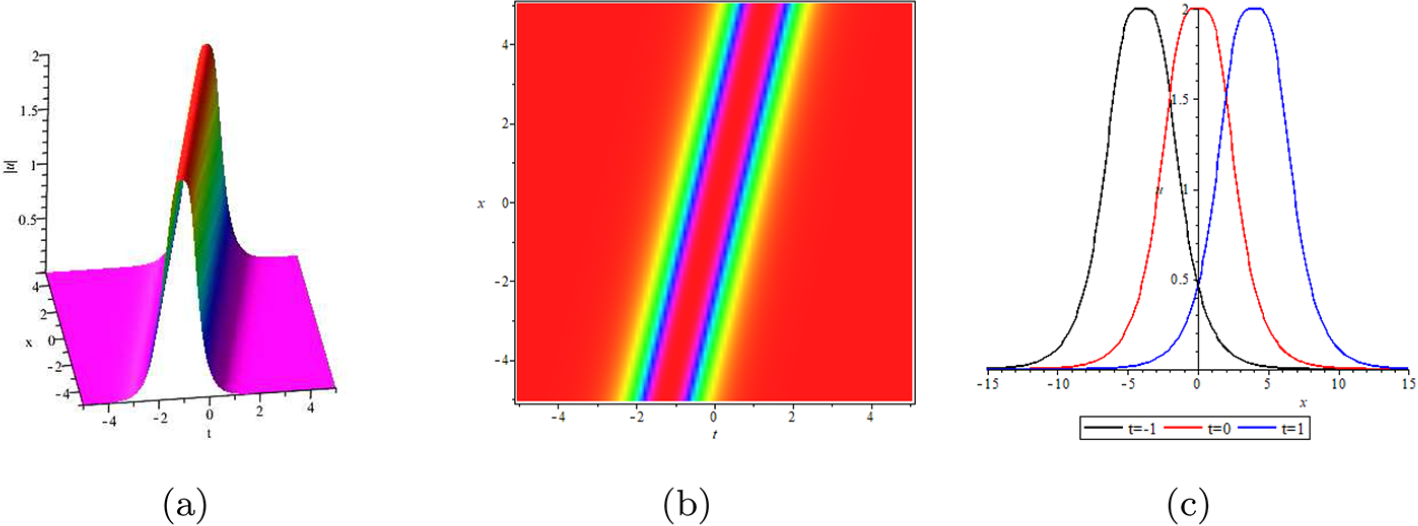

Figure 3. (a)–(c) describe the local structure, density, and intensity profiles with different times of one-soliton solution $|u|$. Parameters $r_{1}=\frac{\sqrt{2}}{2}$, $r_{2}=\frac{\sqrt{2}}{2}$, $\tau=\frac{\pi}{4}$.

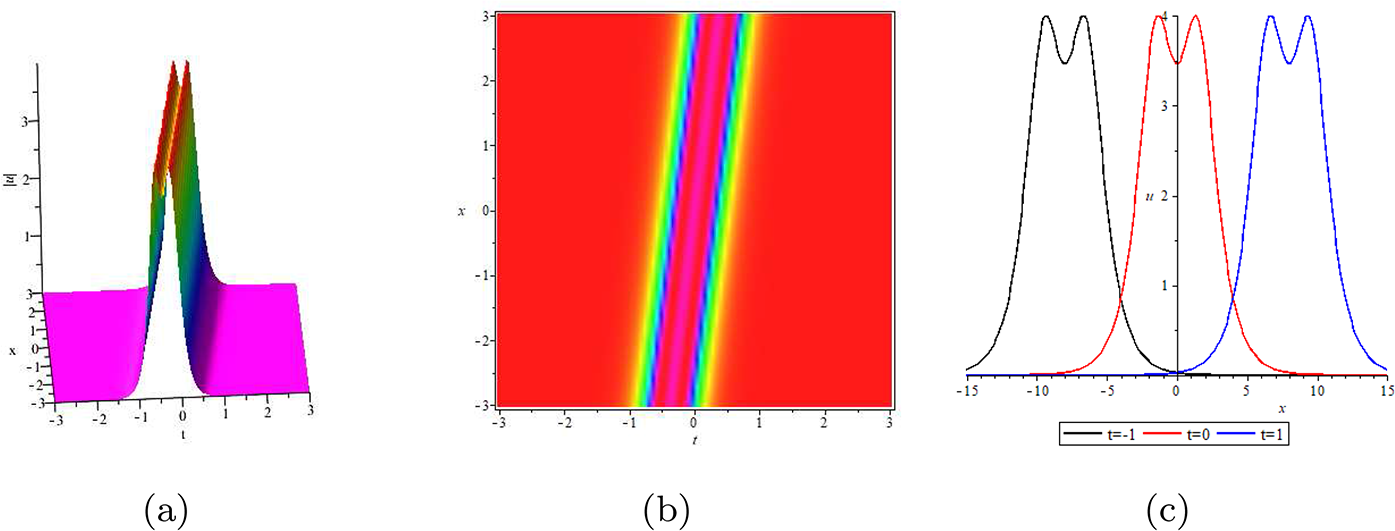

Figure 4. (a)–(c) describe the local structure, density, and intensity profiles with different times of one-soliton solution $|u|$. Parameters $r_{1}=\frac{1}{2}$, $r_{2}=\frac{\sqrt{3}}{2}$, $\tau=\frac{\pi}{3}$.

Case 2: Supposing $v_{1}=\mu_{0}=ir\in i\mathbb{R}$, $v_{2}=\frac{1}{\mu^{*}_{0}}$. It can be obtained that $\theta(\mu_{0})=\theta(\frac{1}{\mu^{*}_{0}})$. Next we define $\chi_{2}\triangleq\theta(\mu_{0})=-\frac{i}{4}\frac{r^{2}+1}{r}\left(\frac{y}{t}+\frac{8r^{2}}{(r^{2}-1)^{2}}\right)$, hence $e^{-2it\chi_{2}}$ is a real number about variables y and t. Thus algebraic system (Equation 2.70)–(Equation 2.74) have the following forms

(2.85)\begin{align} \tilde{N}_{1}(\mu)=1+\frac{|c_{0}|e^{i\phi}e^{\chi_{2}}}{\mu-ir}\tilde{N}_{1}(-ir)+ \frac{\frac{|c_{0}|}{r^{2}}e^{-i\phi}e^{\chi_{2}}}{\mu+\frac{1}{ir}}\tilde{N}_{1}(\frac{1}{ir}), \end{align}

(2.86)\begin{align} \begin{split} \tilde{N}_{1}(-ir)=&1+\frac{|c_{0}|e^{i\phi}e^{\chi_{2}}}{-2ir}\tilde{N}_{1}(-ir)+ \frac{\frac{|c_{0}|}{r^{2}}e^{-i\phi}e^{\chi_{2}}}{-ir+\frac{1}{ir}}\tilde{N}_{1}(\frac{1}{ir}),\\ \tilde{N}_{1}(\frac{1}{ir})=&1+\frac{|c_{0}|e^{i\phi}e^{\chi_{2}}}{\frac{1}{ir}-ir}\tilde{N}_{1}(-ir)+ \frac{\frac{|c_{0}|}{r^{2}}e^{-i\phi}e^{\chi_{2}}}{\frac{2}{ir}}\tilde{N}_{1}(\frac{1}{ir}), \end{split} \end{align}

the solutions are

(2.87)\begin{align} \begin{split} \tilde{N}_{1}(-ir)=&\frac{1}{H_{2}}(1-\frac{1-r^2}{2ir(1+r^2)}|c_{0}|e^{\chi_{2}+\phi}),\\ \tilde{N}_{1}(\frac{1}{ir})=&\frac{1}{H_{2}}(1+\frac{1-r^2}{2ir(1+r^2)}|c_{0}|e^{\chi_{2}+\phi}), \end{split} \end{align}

with

(2.88)\begin{align} H_{2}=1-\frac{(r^{2}-1)^{2}}{4r^{2}(r^{2}+1)^{2}}|c_{0}|^{2}e^{2\chi_{2}}-\frac{i|c_{0}|e^{\chi_{2}+\phi}}{r}. \end{align}

Substitute formula (Equation 2.87) into (Equation 2.85) and take an appropriate value for c ₀ to calculate the solution as follows

(2.89)\begin{align} u(x,t)=\frac{16r^2(1+r^2)}{(1-r^2)^3}\frac{\sinh(\chi_{2})}{cosh(2\chi_{2})+\frac{(1+r^{2})^2+4r^2}{(1-r^2)^2}}, \end{align}

with

(2.90)\begin{align} x=x(y,t)=y-\ln\left(\frac{1+\frac{(1+r)^2}{(1-r)^2}e^{2\chi_{2}}}{1+\frac{(1-r)^2}{(1+r)^2}e^{2\chi_{2}}}\right). \end{align}

The solution (Equation 2.89) indicates that r = 1 is a singularity point and $cosh(2\chi_{2})+\frac{(1+r^{2})^2+4r^2}{(1-r^2)^2}$ has no zero point; otherwise, the following relationship will presence

(2.91)\begin{align} (1-r^2)^2(e^{2\chi_{2}}+e^{-2\chi_{2}})=-2(1+r^2)^2-8r^4, \end{align}

this is clearly impossible.

Remark 2.10. After comparison, when selecting appropriate parameters, the expression of solution (Equation 2.89) solved by RH approach is the same as the solution (3.9a) solved by Hirota’s bilinear method in reference [Reference Matsuno31]. Then the antisymmetric singular soliton can be obtained.

2.3.2. Two-order pole solution

For the N = 2 case, it corresponds to the solution with a two-order pole. The expression of $u(x,t)$ defined in theorem 2.7.

Case 3: Assuming that $v_{1}=\mu_{0}=e^{i\tau}$ be one two-order zero point of the scattering data $a(\mu)$, then $v_{2}=e^{i\tau}=v_{1}$ is also the two-order zero point of $a(\mu)$. The discrete spectrum is the set $\mathcal{Z}=\left\{e^{i\tau}, -e^{-i\tau}, e^{-i\tau}, -e^{i\tau}\right\}$. We choose some parameters to simulate the solution, then the different dynamic models can be obtained in Figures (5)–(6).

Figure 5. (a)–(c) describe the local structure, density, and intensity profiles with different times of the soliton solutions $|u|$ with one two-order pole. Parameters $r_{1,1}=2$, $r_{1,2}=1$, $r_{2,1}=1$, $r_{2,2}=2$, $\tau=\frac{\pi}{6}$.

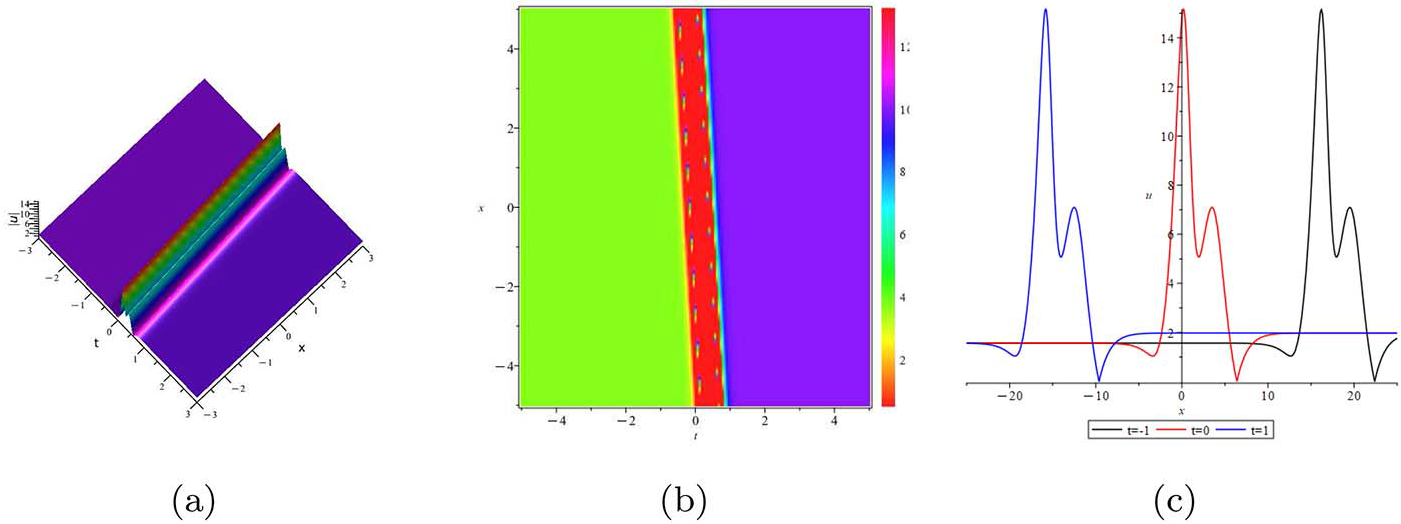

Figure 6. (a)–(c) describe the local structure, density, and intensity profiles with different times of the soliton solutions $|u|$ with one two-order pole. Parameters $r_{1,1}=2$, $r_{1,2}=1$, $r_{2,1}=1$, $r_{2,2}=2$, $\tau=\frac{3\pi}{4}$.

Setting $\tau=\frac{\pi}{6}$ and $\left\{r_{1,1}=2, r_{1,2}=1, r_{2,1}=1, r_{2,2}=2\right\}$. On the basis of the construction process of single high-order pole solutions, the following relationships are calculated.

\begin{align*} \zeta_{1,0}=\zeta_{2,0}=e^{\frac{4t}{3}-\frac{y}{2}},\quad \zeta_{1,1}=\zeta_{2,1}=\frac{-8i(40t-9y)e^{\frac{4t}{3}-\frac{y}{2}}(i\sqrt{3}-1)} {(i\sqrt{3}+3)^3(\sqrt{3}+i)^2}, \end{align*}

\begin{align*} \vartheta_{1,1}=\vartheta_{1,3}=\frac{5\sqrt{3}e^{\frac{4t}{3}-\frac{y}{2}}}{9} \left(\sqrt{3}\left(\frac{21+27y}{40}-\frac{3i}{2}-3t\right)+it-\frac{9i(y-1)}{40}+\frac{9}{10}\right), \end{align*}

\begin{align*} \vartheta_{1,2}=\vartheta_{1,4}=-\frac{2880e^{\frac{4t}{3}-\frac{y}{2}}}{(i\sqrt{3}+3)^3(\sqrt{3}+i)^4} \left(\sqrt{3}\left(\frac{6-y}{40}-\frac{i}{10}+\frac{t}{9}\right)+it-\frac{9i(y+1)}{40}-\frac{1}{2}\right), \end{align*}

\begin{align*} \vartheta_{3,1}=\vartheta_{3,3}=\frac{10\sqrt{3}e^{\frac{4t}{3}-\frac{y}{2}}}{9} \left(\sqrt{3}\left(\frac{21+27y}{40}-\frac{3i}{8}-3t\right)+it-\frac{9i(y-1)}{40}+\frac{9}{40}\right), \end{align*}

\begin{align*} \vartheta_{3,2}=\vartheta_{3,4}=-\frac{5760e^{\frac{4t}{3}-\frac{y}{2}}}{(i\sqrt{3}+3)^3(\sqrt{3}+i)^4} \left(\sqrt{3}\left(\frac{6-y}{40}-\frac{i}{40}+\frac{t}{9}\right)+it-\frac{9i(y+2)}{40}-\frac{1}{8}\right), \end{align*}

\begin{align*} \vartheta_{2,1}=\vartheta_{2,3}=-\frac{e^{\frac{4t}{3}-\frac{y}{2}}(i\sqrt{3}-2)}{\sqrt{3}+i},\quad \vartheta_{2,2}=\vartheta_{2,4}=-\frac{e^{\frac{4t}{3}-\frac{y}{2}}(2i\sqrt{3}+3)}{(\sqrt{3}+i)^{2}}, \end{align*}

\begin{align*} \vartheta_{4,1}=\vartheta_{4,3}=-\frac{e^{\frac{4t}{3}-\frac{y}{2}}(2i\sqrt{3}-4)}{\sqrt{3}+i},\quad \vartheta_{4,2}=\vartheta_{4,4}=-\frac{e^{\frac{4t}{3}-\frac{y}{2}}(4i\sqrt{3}+6)}{(\sqrt{3}+i)^{2}}, \end{align*}

\begin{align*} \eta_{11}=-2e^{\frac{4t}{3}-\frac{y}{2}}-\frac{8ie^{\frac{4t}{3}-\frac{y}{2}}(1+i\sqrt{3})(40t-9y)}{(i\sqrt{3}-3)^3(i-\sqrt{3})^2},\quad \eta_{12}=-e^{\frac{4t}{3}-\frac{y}{2}}, \end{align*}

\begin{align*} \eta_{21}=-e^{\frac{4t}{3}-\frac{y}{2}}-\frac{16ie^{\frac{4t}{3}-\frac{y}{2}}(1+i\sqrt{3})(40t-9y)}{(i\sqrt{3}-3)^3(i-\sqrt{3})^2},\quad \eta_{22}=-2e^{\frac{4t}{3}-\frac{y}{2}}. \end{align*}

Substitute the above results into the expression of solution (Equation 2.67) to obtain the two-order pole solution, and the propagation phenomenon of soliton is shown in figure 5. It can be seen that the energies of two waves for solution decrease after collision; thus, it is not an elastic collision that occurs. According to the previous analysis, the singularity of the solution is $\mu_{0}=i$.

Using a similar analysis, when the value is set to $\mu_{0}=\frac{3\pi}{4}$, the soliton dynamics behaviour shown in figure 6. figure 6(b) presents the density image of the wave propagation process, while figure 6(c) shows the intensity distribution at different times.

2.4. Multiple high-order pole solutions

Now the general circumstance that $a(\mu)$ has N high-order zero points $\mu_{1},\mu_{2},\ldots,\mu_{N}$, $\mu_{k}\in\mathbb{C}^{+}$ for $k=1,2,\ldots,N$ and the corresponding powers are $n_{1},n_{2},\ldots,n_{N}$, respectively. Assume that $v^{k}_{1}=\mu_{k}$ and $v^{k}_{2}=\frac{1}{\mu^{*}_{k}}$. Similar to the case of one high-order pole, from the definition of $\tilde{M}(y,t,\mu)$, it can be seen that $\mu=v^{k}_{j}$ and $\mu=-v^{k*}_{j}$ $(j=1,2)$ are n_k-order pole points of $\tilde{M}_{11}$. Simultaneously, $\mu=v^{k*}_{j}$ and $\mu=-v^{k}_{j}$ $(j=1,2)$ are n_k-order pole points of $\tilde{M}_{12}$.

Under the assumption that $\mu=v^{k}_{j}$ $(j=1,2)$ are n_k-order zero points of $a(\mu)$ for $k=1,2,\ldots,N$, utilizing the Wronskian $a(\mu)=Wr(\breve{\phi}_{-1},\breve{\phi}_{+2})$, there exist complex constants $b^{k}_{j,s}$ $(s=1,2,\cdots,n_N)$ satisfy the follows

(2.92)\begin{equation} \frac{\partial^{m}[\tilde{\phi}_+(y,t,v^{k}_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b^{k}_{j,m-l+1}\frac{\partial^{l}[\tilde{\phi}_-(y,t,v^{k}_{j})]_{1}}{\partial\mu^{l}}, \end{equation}

and

(2.93)\begin{equation} \frac{\partial^{m}[\tilde{\psi}_+(y,t,v^{k}_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b^{k}_{j,m-l+1}\frac{\partial^{l}[\tilde{\psi}_-(y,t,v^{k}_{j})]_{1}e^{2it\theta(v^{k}_{j})}}{\partial\mu^{l}}, \end{equation}

with $m=0,1,\ldots,n_{N-1}$. Utilizing the parallel approach in above, we define the $n_k\times n_k$ matrices $\Theta^{j,p}_{kd}=[\Theta^{j,p}_{kd}]_{s,q}$ and $\tilde{\Theta}^{j,p}_{kd}=[\tilde{\Theta}^{j,p}_{kd}]_{s,q}$ for $s,q=1,2,\cdots,n_{k}$ and introduce the following notations for $j,p=1,2$

(2.94)\begin{align} |\eta^{k}_{j}\rangle=(\eta^{k}_{j1},\cdots,\eta^{k}_{jn_{k}})^{T},\quad \eta^{k}_{js}=-\sum_{l=s}^{n_{k}}r^{k*}_{j,l}\zeta^{k*}_{j,l-s}(y,t), \end{align}

(2.95)\begin{align} r^{k}_{j,l}=\lim_{\mu\rightarrow v^{k}_{j}}\frac{b^{k}_{j,l}}{(n_{k}-l)!}\frac{\partial^{n_{k}-l}}{\partial(\mu-v^{k}_{j})^{n_{k}-l}} \frac{(\mu-v^{k}_{j})^{n_{k}}}{a(\mu)}, \end{align}

(2.96)\begin{align} |\Gamma\rangle=(|\Gamma^{1}\rangle,\cdots,|\Gamma^{N}\rangle)^{T},\quad |\Gamma^{k}\rangle=(|\eta^{k}_{1}\rangle,|\eta^{k}_{2}\rangle)^{T}, \end{align}

(2.97)\begin{align} \begin{split} \Theta^{j,p}_{kd}=\sum_{l=s}^{n_k}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r^{k}_{j,l}\zeta^{k}_{j,l-s-m}\left\{\frac{(-1)^{m}}{(v^{k}_{j}-v^{k*}_{p})^{q+m}} +\frac{(-1)^{m+q+1}}{(v^{k}_{j}+v^{k}_{p})^{q+m}}\right\}, \end{split} \end{align}

(2.98)\begin{align} \begin{split} \tilde{\Theta}^{j,p}_{kd}=\sum_{l=s}^{n_k}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r^{k*}_{j,l}\zeta^{k*}_{j,l-s-m}\left\{\frac{(-1)^{m}} {(v^{k*}_{j}-v^{k}_{p})^{q+m}} +\frac{(-1)^{m+q}}{(v^{k*}_{j}+v^{k*}_{p})^{q+m}}\right\}, \end{split} \end{align}

(2.99)\begin{align} \Theta= \begin{pmatrix} [\Theta^{j,p}_{11}] & \cdots & [\Theta^{j,p}_{1N}] \\ \vdots & \ddots & \vdots \\ [\Theta^{j,p}_{N1}] & \cdots & [\Theta^{j,p}_{NN}] \\ \end{pmatrix},\quad \tilde{\Theta}= \begin{pmatrix} [\tilde{\Theta}^{j,p}_{11}] & \cdots & [\tilde{\Theta}^{j,p}_{1N}] \\ \vdots & \ddots & \vdots \\ [\tilde{\Theta}^{j,p}_{N1}] & \cdots & [\tilde{\Theta}^{j,p}_{NN}] \\ \end{pmatrix}, \end{align}

(2.100)\begin{align} I_{\epsilon}= \begin{pmatrix} I_{\epsilon_{1}} & & \\ & \ddots & \\ & & I_{\epsilon_{N}} \\ \end{pmatrix},\quad I_{\epsilon_{k}}= \begin{pmatrix} I & \\ & I \\ \end{pmatrix}_{2n_{k}\times2n_{k}} k=1,\cdots,N, \end{align}

(2.101)\begin{equation} \begin{split} &\langle Y(\mu)|=(\langle Y^{1}_{1}(\mu)|,\langle Y^{1}_{2}(\mu)|,\cdots,\langle Y^{N}_{1}(\mu)|,\langle Y^{N}_{2}(\mu)|),\\ &\langle\tilde{Y}(\mu)| =(\langle\tilde{Y}^{1}_{1}(\mu)|,\langle\tilde{Y}^{1}_{2}(\mu)|,\cdots, \langle\tilde{Y}^{N}_{1}(\mu)|,\langle\tilde{Y}^{N}_{2}(\mu)|),\\ &\langle Y^{\prime}(\mu)|= (\langle Y^{1\prime}_{1}(\mu)|,\langle Y^{1\prime}_{2}(\mu)|,\cdots, \langle Y^{N\prime}_{1}(\mu)|,\langle Y^{N\prime}_{2}(\mu)|),\\ &\langle\tilde{Y}^{\prime}(\mu)| =(\langle\tilde{Y}^{1\prime}_{1}(\mu)|,\langle\tilde{Y}^{1\prime}_{2}(\mu)|,\cdots, \langle\tilde{Y}^{N\prime}_{1}(\mu)|,\langle\tilde{Y}^{N\prime}_{2}(\mu)|), \end{split} \end{equation}

\begin{align*} &\langle Y^{k}_{j}(\mu)|=(Y^{k}_{j1},\cdots,Y^{k}_{jn_k}),\quad Y^{k}_{js}=\frac{1}{(\mu-v^{k}_{j})^{s}}+\frac{(-1)^{s}}{(\mu+v^{k*}_{j})^{s}},\\ &\langle\tilde{Y}^{k}_{j}(\mu)|=(\tilde{Y}^{k}_{j1},\cdots,\tilde{Y}^{k}_{jn_k}),\quad \tilde{Y}^{k}_{js}=\frac{1}{(\mu-v^{k*}_{j})^{s}}+\frac{(-1)^{s+1}}{(\mu+v^{k}_{j})^{s}},\\ &\langle Y^{k\prime}_{j}(\mu)|=(Y^{k\prime}_{j1},\cdots,Y^{k\prime}_{jn_k}),\quad Y^{k\prime}_{js}=\frac{-s}{(\mu-v^{k}_{j})^{s+1}}+\frac{s(-1)^{s+1}}{(\mu+v^{k*}_{j})^{s+1}},\\ &\langle\tilde{Y}^{k\prime}_{j}(\mu)|=(\tilde{Y}^{k\prime}_{j1},\cdots,\tilde{Y}^{k\prime}_{jn_k}),\quad \tilde{Y}^{k\prime}_{js}=\frac{-s}{(\mu-v^{k*}_{j})^{s+1}}+\frac{s(-1)^{s}}{(\mu+v^{k}_{j})^{s+1}}. \end{align*}

Similar to the theorem 2.7, we give the solution of cCH equation with multiple high-order poles as follows.

Theorem 2.11

The solution of cCH equation with multiple high-order poles under the ZBCs can be obtained as follows

(2.102)\begin{align} u(x,t)=-\left( \frac{\tilde{M}^{\prime}_{11}(i)+\tilde{M}^{\prime}_{21}(i)}{\tilde{M}_{11}(i)+\tilde{M}_{21}(i)}+ \frac{\tilde{M}^{\prime}_{12}(i)+\tilde{M}^{\prime}_{22}(i)}{\tilde{M}_{12}(i)+\tilde{M}_{22}(i)} \right), \end{align}

with

\begin{align*} &\tilde{M}_{11}(i)=\frac{\det(I_{\epsilon}+\Theta\tilde{\Theta}+|\Gamma\rangle\langle Y(i)|\Theta)} {\det(I_{\epsilon}+\Theta\tilde{\Theta})},\\ &\tilde{M}_{21}(i)=-\frac{\det(I_{\epsilon}+\Theta^{*}\tilde{\Theta}^{*}+|\Gamma^{*}\rangle\langle\tilde{Y}^{*}(-i)|)} {\det(I_{\epsilon}+\Theta^{*}\tilde{\Theta}^{*})}+1,\\ &\tilde{M}_{12}(i)=\frac{\det(I_{\epsilon}+\tilde{\Theta}\Theta+|\Gamma\rangle\langle\tilde{Y}(i)|)} {\det(I_{\epsilon}+\tilde{\Theta}\Theta)}-1,\\ &\tilde{M}_{22}(i)=\frac{\det(I_{\epsilon}+\tilde{\Theta}^{*}\Theta^{*}+|\Gamma^{*}\rangle\langle Y^{*}(-i)|\Theta^{*})} {\det(I_{\epsilon}+\tilde{\Theta}^{*}\Theta^{*})},\\ &\tilde{M}^{\prime}_{11}(i)=\frac{\det(I_{\epsilon}+\Theta\tilde{\Theta}+|\Gamma\rangle\langle Y^{\prime}(i)|\Theta)} {\det(I_{\epsilon}+\Theta\tilde{\Theta})}-1,\\ &\tilde{M}^{\prime}_{21}(i)=-\frac{\det(I_{\epsilon}+\Theta^{*}\tilde{\Theta}^{*}+|\Gamma^{*}\rangle\langle\tilde{Y}^{\prime *}(-i)|)} {\det(I_{\epsilon}+\Theta^{*}\tilde{\Theta}^{*})}+1,\\ &\tilde{M}^{\prime}_{12}(i)=\frac{\det(I_{\epsilon}+\tilde{\Theta}\Theta+|\Gamma\rangle\langle\tilde{Y}^{\prime}(i)|)} {\det(I_{\epsilon}+\tilde{\Theta}\Theta)}-1,\\ &\tilde{M}^{\prime}_{22}(i)=\frac{\det(I_{\epsilon}+\tilde{\Theta}^{*}\Theta^{*}+|\Gamma^{*}\rangle\langle Y^{\prime *}(-i)|\Theta^{*})} {\det(I_{\epsilon}+\tilde{\Theta}^{*}\Theta^{*})}-1, \end{align*}

and $x=x(y,t)$ can be obtained by (Equation 2.41), the elements $|\Gamma\rangle$, I_ϵ, Θ, $\tilde{\Theta}$, $\langle Y(i)|$, $\langle\tilde{Y}(i)|$, $\langle Y^{\prime}(i)|$ and $\langle \tilde{Y}^{\prime}(i)|$ are defined in (Equation 2.96), (Equation 2.99), (Equation 2.100), and (Equation 2.101).

3.1. Spectral analysis

After doing the transformations $u(x,t)=\hat{u}(x-t,t)+1$, $\hat{m}=\hat{u}-\hat{u}_{xx}+1$ and $\hat{R}=\hat{u}^{2}-\hat{u}^{2}_{x}+2\hat{u}$, the Lax pair (Equation 2.1) admits the forms

(3.1)\begin{align} \hat{\phi}_{x}=\hat{U}\hat{\phi},\quad \hat{\phi}_{t}=\hat{V}\hat{\phi}, \end{align}

(3.2)\begin{align} \hat{U}=\left(\begin{array}{cc} -\frac{Q}{2} & \frac{\lambda \hat{m}}{2} \\ -\frac{\lambda \hat{m}}{2} & \frac{Q}{2} \end{array}\right), \hat{V}=\left(\begin{array}{cc} \frac{Q}{\lambda^{2}}+\frac{Q\hat{R}}{2} & -\frac{\hat{u}-Q\hat{u}_x+1}{\lambda}-\frac{\lambda \hat{R}\hat{m}}{2} \\ \frac{\hat{u}+Q\hat{u}_x+1}{\lambda}+\frac{\lambda \hat{R}\hat{m}}{2} & -\frac{Q}{\lambda^{2}}-\frac{Q\hat{R}}{2} \end{array}\right). \end{align}

Using the similar approach with ZBCs, we have the gauge transformation

(3.3)\begin{align} \hat{\psi}=F^{-1}\hat{\phi} e^{\hat{J}}, \end{align}

with

\begin{align*} F=\left(\begin{array}{cc} 1 & \frac{\lambda}{\sqrt{Q^{2}-\lambda^{2}}+Q} \\ \frac{\lambda}{\sqrt{Q^{2}-\lambda^{2}}+Q} & 1 \end{array}\right), \end{align*}

where we define $\hat{J}=p\sigma_{3}$. $\hat{\psi}$ satisfies the asymptotic conditions

\begin{align*} \hat{\psi}(x,t,\lambda)\sim I,\quad x\rightarrow\pm\infty. \end{align*}

The parameter $p(x,t,\lambda)$ is defined as follows

(3.4)\begin{align} p=\frac{\sqrt{1-2\lambda^{2}}}{2}\left(x-\int_{x}^{+\infty}(\hat{m}(\xi,t)-1)d\xi -\frac{2}{\lambda^{2}}t\right). \end{align}

Equation (Equation 1.3) admits the following form Lax pair

(3.5a)\begin{align} &\hat{\psi}_x+[\hat{J}_x,\hat{\psi}]=\hat{X}\hat{\psi}, \end{align}

(3.5b)\begin{align} &\hat{\psi}_t+[\hat{J}_t,\hat{\psi}]=\hat{T}\hat{\psi}, \end{align}

with

\begin{align*} \hat{X}=\frac{\lambda(\hat{m}-1)Q}{2\sqrt{1-2\lambda^{2}}} \left(\begin{array}{cc} 0 & 1 \\ -1 & 0 \end{array}\right)+ \frac{(\hat{m}-1)Q^{2}}{2\sqrt{1-2\lambda^{2}}} \left(\begin{array}{cc} 1 & 0 \\ 0 & -1 \end{array}\right), \end{align*}

\begin{align*} \hat{T}=&\frac{1}{2\sqrt{1-2\lambda^{2}}}\left(\lambda\hat{R}(\hat{m}-1)+\frac{2\hat{u}}{\lambda}\right) Q\left(\begin{array}{cc} 0 & -1 \\ 1 & 0 \end{array}\right)+ \frac{\hat{u}_{x}Q}{\lambda} \left(\begin{array}{cc} 0 & 1 \\ 1 & 0 \end{array}\right) \\ &-\frac{1}{\sqrt{1-2\lambda^{2}}}\left(\hat{u}+\frac{1}{2}((\hat{m}-1)\hat{R}+2\hat{u})Q^{2}-\lambda^{2}\hat{u}\right)\sigma_{3}, \end{align*}

where $\hat{J}=\hat{J}(x,t,\lambda)$, $\hat{X}=\hat{X}(x,t,\lambda)$, $\hat{T}=\hat{T}(x,t,\lambda)$ are $2\times2$ matrices.

A new spectral parameter k satisfied $2\lambda^{2}=4k^{2}+1$ is introduced, and to avoid multi-value problem, we define

(3.6)\begin{equation} \lambda=-\frac{1}{2\sqrt{2}}\left(\mu+\frac{1}{\mu}\right),\quad k=\frac{1}{4}\left(\mu-\frac{1}{\mu}\right), \end{equation}

then we have

(3.7)\begin{equation} p=-\frac{i(\mu^{2}-1)}{4\mu}\left(\int_{x}^{+\infty}(\hat{m}(\xi,t)-1)d\xi-x+ \frac{16\mu^{2}}{(\mu^{2}+1)^{2}}t\right), \end{equation}

and

\begin{align*} \hat{X}(x,t,\mu)&=\frac{i((\mu^{2}+1)^{2}-8\mu^{2})(\hat{m}-1)}{8\mu(\mu^{2}-1)}\sigma_{3}\\ &+\frac{i(\mu^{2}+1)\sqrt{8\mu^{2}-(\mu^{2}+1)^{2}}(\hat{m}-1)}{8|\mu|(\mu^{2}-1)} \left(\begin{array}{cc} 0 & 1 \\ -1 & 0 \end{array}\right), \end{align*}

the two Jost solutions of (Equation 3.5a) with the parameter µ are completely determined by Volterra integrable equations

(3.8)\begin{align} \hat{\psi}_{\pm}(x,t,\mu)=I+\int_{\pm\infty}^{x}e^{\frac{i(\mu^{2}-1)}{4\mu}\int_{x}^{\xi}\hat{m}(\tau,t)d\tau\hat{\sigma}_{3}} \left[\hat{X}(\xi,t,\mu)\hat{\psi}_{\pm}(\xi,t,\mu)\right]d\xi. \end{align}

The Jost eigenfunctions $\hat{\psi}_{\pm}(x,t,\mu)$ have the analytic properties, symmetry properties, and asymptotic properties shown in the following three propositions.

Proposition 3.2. The Jost eigenfunctions $\hat{\psi}_{\pm}(x,t,\mu)$ have the following symmetry conditions

(3.9)\begin{align} \hat{\psi}_{\pm}(\mu)=\sigma_{1}\hat{\psi}^{*}_{\pm}(\mu^{*})\sigma_{1}= \sigma_{2}\hat{\psi}_{\pm}(-\mu)\sigma_{2}=\sigma_{1}\hat{\psi}_{\pm}(\frac{1}{\mu})\sigma_{1}. \end{align}

Proposition 3.3. The Jost eigenfunctions $\hat{\psi}_{\pm}(x,t,\mu)$ possess asymptotic behaviour in the µ-plane

(3.10)\begin{align} \begin{split} \hat{\psi}_{\pm}(x,t,\mu)&=I+\mathcal {O}(\frac{1}{\mu}),\quad \mu\rightarrow\infty,\\ \hat{\psi}_{\pm}(x,t,\mu)&=I+\mathcal {O}(\mu),\quad \mu\rightarrow0,\\ \hat{\psi}_{\pm}(x,t,\mu)&= \frac{i}{4(\mu-1)}\alpha_{\pm}(x,t)\Sigma_{1}+\mathcal {O}(1),\quad \mu\rightarrow1,\\ \hat{\psi}_{\pm}(x,t,\mu)&= -\frac{i}{4(\mu+1)}\alpha_{\pm}(x,t)\Sigma_{2}+\mathcal {O}(1),\quad \mu\rightarrow-1, \end{split} \end{align}

there $\alpha_{\pm}(x,t)\in\mathbb{R}$, $$\Sigma_{1}=\left(\begin{array}{cc} -1 & 1 \\ -1 & 1 \end{array}\right)$$ and $$\Sigma_{2}=\left(\begin{array}{cc} 1 & 1 \\ -1 & -1 \end{array}\right)$$.

Because $\hat{\phi}_{\pm}(x,t,\mu)$ are two fundamental matrix solutions of the Lax pair (Equation 3.1), there exists a linear relation between them.

(3.11)\begin{align} \hat{\phi}_{-}(x,t,\mu)=\hat{\phi}_{+}(x,t,\mu)S(\mu), \end{align}

using the transformation (Equation 3.3), matrix $S(\mu)$ can be introduced as follows

(3.12)\begin{align} \hat{\psi}_{-}(x,t,\mu)=\hat{\psi}_{+}(x,t,\mu)e^{-p(x,t,\mu)\sigma_{3}}S(\mu)e^{p(x,t,\mu)\sigma_{3}}, \end{align}

there $\mu\in\mathbb{R},\mu\neq\pm1$. On the basis of symmetry conditions of $\hat{\psi}_{\pm}(x,t,\mu)$, the matrix $S(\mu)$ can be expressed as

(3.13)\begin{align} S(\mu)=\left(\begin{array}{cc} a(\mu) & b^{*}(\mu^{*}) \\ b(\mu) & a^{*}(\mu^{*}) \end{array}\right). \end{align}

Taking into account the properties of the Jost eigenfunctions $\hat{\psi}_{\pm}(x,t,\mu)$, we obtain the corresponding properties to the elements $a(\mu)$ and $b(\mu)$ of the scattering matrix $S(\mu)$ as follows.

The analytic properties of $\hat{\psi}_{\pm}(x,t,\mu)$ stated above allow rewriting the relation (Equation 3.12) as a sectionally meromorphic matrix.

3.2. RH problem

A piecewise meromorphic $2\times2$-matrix valued function $M(x,t,\mu)$ is introduced as follows

(3.14)\begin{align} M(x,t;\mu)=\left\{\begin{array}{ll} \left( \frac{\hat{\psi}_{-,1}(x,t;\mu)}{a(\mu)}, \hat{\psi}_{+,2}(x,t;\mu)\right), &\text{as } Im\mu \gt 0,\\[12pt] \left( \hat{\psi}_{+,1}(x,t;\mu),\frac{\hat{\psi}_{-,2}(x,t;\mu)}{a^{*}(\mu^{*})}\right) , &\text{as } Im\mu \lt 0.\\ \end{array}\right. \end{align}

At the same time, we define the reflection coefficient

(3.15)\begin{align} r(\mu)=\frac{b(\mu)}{a(\mu)},\quad \mu\in\mathbb{R}. \end{align}

We substitute Eqs. (Equation 3.6) into Lax pair (Equation 3.5a) and take the new transformation

(3.23)\begin{align} \hat{\psi}_{0}=\hat{\varphi}e^{\hat{J}_{0}}, \end{align}

with

(3.24)\begin{align} p_{0}=\frac{i(\mu^{2}-1)}{4\mu}x-\frac{4i(\mu^{2}-1)\mu}{(\mu^{2}+1)^{2}}t, \end{align}

there $\hat{J}_{0}=p_{0}\sigma_{3}$, the Lax pair can be converted to

(3.25a)\begin{align} &\hat{\psi}_{0x}+[\hat{J}_{0x},\hat{\psi}_{0}]=\hat{X}_{0}\hat{\psi}_{0}, \end{align}

(3.25b)\begin{align} &\hat{\psi}_{0t}+[\hat{J}_{0t},\hat{\psi}_{0}]=\hat{T}_{0}\hat{\psi}_{0}, \end{align}

with

\begin{align*} \hat{X_{0}}(x,t,\mu)&=-\frac{(\mu^{2}+1)\sqrt{8\mu^{2}-(\mu^{2}+1)^{2}}(\hat{m}-1)}{8|\mu|(\mu^{2}-1)}\sigma_{2}\\ &+\left(\frac{i((\mu^{2}+1)^{2}-8\mu^{2})(\hat{m}-1)}{8\mu(\mu^{2}-1)}-\frac{i(\hat{m}-1)(\mu^{2}-1)}{4\mu} \right)\sigma_{3}, \end{align*}

\begin{align*} \hat{T_{0}}(x,t,\mu)=\frac{i(\mu^{2}-1)}{4\mu}\hat{R}\hat{m}\sigma_{3} +\frac{i(\mu^{2}-1)}{2\mu}\hat{u}\sigma_{3}+\hat{T}(x,t,\mu). \end{align*}

Then the Jost solutions of Equation 3.25a are expressed as

(3.26)\begin{align} \hat{\psi}_{0\pm}(x,t,\mu)=I+\int_{\pm\infty}^{x}e^{-\frac{i(\mu^{2}-1)}{4\mu}(x-\xi)\hat{\sigma}_{3}} \left[\hat{X}_{0}(\xi,t,\mu)\hat{\psi}_{0\pm}(\xi,t,\mu)\right]d\xi. \end{align}

Utilizing the transformation (Equation 3.23), there exist matrices $r_{\pm}(\mu)$ satisfying

(3.27)\begin{align} \hat{\psi}_{\pm}(x,t,\mu)=\hat{\psi}_{0\pm}(x,t,\mu)e^{-\hat{J}_{0}}r_{\pm}(\mu)e^{\hat{J}}. \end{align}

Thus $r_{\pm}(\mu)=e^{\hat{J}_{0}(\pm\infty,t,\mu)-\hat{J}(\pm\infty,t,\mu)}$. On the basis of (Equation 3.7) and (Equation 3.24),

(3.28)\begin{align} r_{+}(\mu)=I, \quad r_{-}(\mu)=e^{\frac{i(\mu^{2}-1)}{4\mu}\int_{-\infty}^{+\infty}(\hat{m}(\xi,t)-1)d\xi\sigma_{3}}. \end{align}

Because $\hat{X}_{0}(x,t,\pm i)\equiv0$, making use of (Equation 3.26) and $a(\mu)=\det(\hat{\psi}_{-,1},\hat{\psi}_{+,2})$, we have

(3.29)\begin{align} M(x,t,i)=\left(\begin{array}{cc} e^{\frac{1}{2}\int_{x}^{+\infty}(\hat{m}(\xi,t)-1)d\xi} & 0 \\ 0 & e^{-\frac{1}{2}\int_{x}^{+\infty}(\hat{m}(\xi,t)-1)d\xi} \end{array}\right), \end{align}

with symmetry of $M(x,t,\mu)$, we can obtain $M(x,t,-i)$. Besides, the symmetry conditions (Equation 3.22) indicate M(i) is a diagonal matrix with real entries, taking into account $\det M\equiv1$, there exists $f(x,t)\in\mathbb{R}$ such that $M_{11}(x,t,i)=f(x,t)$ and $M_{22}(x,t,i)=\frac{1}{f(x,t)}$.

Based on the new space variable $y(x,t)=x-\int_{x}^{+\infty}(\hat{m}(\xi,t)-1)d\xi$ and $\tilde{M}(y,t,\mu)=M(x,t,\mu)$, we have a new RH problem.

The implicit expression of the potential function u under NZBCs is constructed by using the solution of RH problem.

Theorem 3.9

Consider that $\tilde{M}(y,t,\mu)$ is a solution of RH problem 3.8, according to the definition of $\tilde{M}(y,t,\mu)$ at $\mu=i$, we make $\hat{\Phi}_{1}(x(y,t),t)=\tilde{\Phi}_{1}(y,t)=\tilde{M}_{11}(y,t,i)+\tilde{M}_{21}(y,t,i)$ and $\hat{\Phi}_{2}(x(y,t),t)=\tilde{\Phi}_{2}(y,t)=\tilde{M}_{12}(y,t,i)+\tilde{M}_{22}(y,t,i)$, then the solution $\hat{u}(x,t)$ of Cauchy problem (Equation 1.3) has the following representation

(3.36)\begin{align} \left(\hat{R}+\frac{2\hat{u}}{\hat{m}}\right)(\hat{m}+1)=\partial_{t}\ln\frac{\tilde{\Phi}_{1}(y,t)}{\tilde{\Phi}_{2}(y,t)}, \end{align}

with

\begin{align*} \hat{R}=\hat{u}^{2}-\hat{u}^{2}_{x}+2\hat{u},\quad \hat{m}=\hat{u}-\hat{u}_{xx}+1. \end{align*}

Proof. Considering the new notations $\tilde{R}(y,t)=\hat{R}(x(y,t),t)$, $\tilde{m}(y,t)=\hat{m}(x(y,t),t)$, $\tilde{u}(y,t)=\hat{u}(x(y,t),t)$ and $\tilde{u}_{x}(y,t)=\hat{u}_{x}(x(y,t),t)$, with regard to $x(y(x,t),t)=x$, we have

(3.37)\begin{align} \partial_{t}(x(y(x,t),t))=x_{y}(y,t)y_{t}(x,t)+x_{t}(y,t)=0. \end{align}

Since $y(x,t)=x-\int_{x}^{+\infty}(\hat{m}(\xi,t)-1)d\xi$, then

(3.38)\begin{align} x_{y}(y,t)=\frac{1}{\tilde{m}(y,t)}. \end{align}

Based on $\hat{m}_{t}=-(\hat{m} \hat{R})_{x}-2\hat{u}_{x}$ and unite (Equation 3.37)–(Equation 3.38), we have

(3.39)\begin{align} x_{t}(y,t)=\tilde{R}(y,t)+\frac{2\tilde{u}(y,t)}{\tilde{m}(y,t)}. \end{align}

By (Equation 3.29), we have

(3.40)\begin{align} \hat{\Phi}_{1}(x,t)=e^{\frac{1}{2}\int_{x}^{+\infty}(\tilde{m}(\xi,t)-1)d\xi},\quad \hat{\Phi}_{2}(x,t)=e^{-\frac{1}{2}\int_{x}^{+\infty}(\tilde{m}(\xi,t)-1)d\xi}, \end{align}

then

(3.41)\begin{align} x=y(x,t)+\ln\frac{\tilde{\Phi}_{1}(y,t)}{\tilde{\Phi}_{2}(y,t)}. \end{align}

Differential equation (Equation 3.41) with respect to t,

(3.42)\begin{align} x_{t}=-(\tilde{R}(y,t)\tilde{m}(y,t)+2\tilde{u}(y,t))+\partial_{t}\ln\frac{\tilde{\Phi}_{1}(y,t)}{\tilde{\Phi}_{2}(y,t)}, \end{align}

making further calculation, we can get (Equation 3.36), then the theorem 3.9 can be proved.

Next, in order to obtain the solution of Lax pair (Equation 3.1) represented by the new variable $y(x,t)$, using the gauge transformation $\hat{\varphi}=F^{-1}\hat{\phi}$, there we have $\tilde{\varphi}(y,t,\lambda)=\hat{\varphi}(x,t,\lambda)$. Taking (Equation 3.38) and (Equation 3.39) into consideration, the Lax pair (Equation 3.1) turns into

(3.43)\begin{align} \tilde{\varphi}_{y}=\tilde{U}\tilde{\varphi},\quad \tilde{\varphi}_{t}=\tilde{V}\tilde{\varphi}, \end{align}

there $\tilde{U}=\tilde{X}-ik\sigma_{3}$ and $\tilde{V}=\tilde{T}+\frac{2ik}{\lambda^{2}}\sigma_{3}$. Then we change the parameters to µ and expanding $\tilde{X}$ and $\tilde{T}$ at the singularities $\mu=\pm1, \pm i$

(3.44a)\begin{align} &\tilde{\varphi}_{y}+\frac{i(\mu^{2}-1)}{4\mu}\sigma_{3}\tilde{\varphi}=\tilde{X}_{1}\tilde{\varphi}, \end{align}

(3.44b)\begin{align} &\tilde{\varphi}_{t}-\frac{4i(\mu^{2}-1)\mu}{(\mu^{2}+1)^{2}}\sigma_{3}\tilde{\varphi}=\tilde{T}_{1}\tilde{\varphi}, \end{align}

with

\begin{align*} \tilde{X}_{1}=-\frac{iv_{1}}{\mu-1}\Sigma_{1}+\frac{iv_{1}}{\mu+1}\Sigma_{2}+v_{1}\sigma_{2}, \end{align*}

\begin{align*} \tilde{T}_{1}=-\frac{iv_{2}}{\mu-1}\Sigma_{1}+\frac{iv_{2}}{\mu+1}\Sigma_{2} +\frac{v_{3}\Delta_{1}+v_{4}\Delta_{2}}{\mu-i}+ \frac{v_{3}\Delta_{2}+v_{4}\Delta_{1}}{\mu+i}, \end{align*}

where $$\Delta_{1}=\left(\begin{array}{cc} 0 & 1 \\ 0 & 0 \end{array}\right)$$, $$\Delta_{2}=\left(\begin{array}{cc} 0 & 0 \\ 1 & 0 \end{array}\right)$$, Σ₁ and Σ₂ are shown in proposition 3.3. Besides, we also have $v_{1}(y,t)=-\frac{\tilde{m}-1}{2\tilde{m}}$, $v_{2}(y,t)=\tilde{u}$, $v_{3}(y,t)=-\tilde{u}-\tilde{u}_{x}$, and $v_{4}(y,t)=\tilde{u}-\tilde{u}_{x}$.

Proposition 3.10. Assume $\tilde{M}(y,t,\mu)$ is a solution of RH problem 3.8, then

(3.45)\begin{align} \tilde{\varphi}(y,t,\mu)=\tilde{M}(y,t,\mu)e^{-\tilde{p}(y,t,\mu)\sigma_{3}} \end{align}

satisfies the Lax pair (Equation 3.44a), there $\tilde{p}(y,t,\mu)$ is shown in (Equation 3.32).

For the sake of testifying the compatibility conditions $\tilde{U}_{t}-\tilde{V}_{y}+[\tilde{U},\tilde{V}]=0$ of Lax pair (Equation 3.43) can be deduced Eq. (Equation 1.3) with variables (y, t), we have the theorem 3.11 and theorem 3.12.

Theorem 3.11

Equation (Equation 1.3) with variables (y, t) can be shown as follows

(3.54)\begin{align} \tilde{m}^{-1}_{t}(y,t)=2\tilde{u}_{x}(y,t)-\frac{2\tilde{u}\tilde{m}_{x}}{\tilde{m}^{3}}(y,t) +\frac{2\tilde{u}_{x}}{\tilde{m}^{2}}(y,t), \end{align}

with

\begin{align*} \tilde{m}(y,t)=\tilde{u}(y,t)-\tilde{u}_{xx}(y,t)+1,\quad x_{y}(y,t)=\tilde{m}^{-1}(y,t). \end{align*}

Proof. According to equations $\hat{m}_{t}=-(\hat{m} \hat{R})_{x}-2\hat{u}_{x}$, $x_{t}(y,t)=\tilde{R}(y,t)+\frac{2\tilde{u}(y,t)}{\tilde{m}(y,t)}$ and $\tilde{R}_{x}=2\tilde{m}\tilde{u}_{x}$,

\begin{align*} \tilde{m}_{t}(y,t)&=\tilde{m}_{x}(x(y,t),t)x_{t}(y,t)+\tilde{m}_{t}(x(y,t),t)\\ &=\left(-\frac{2\tilde{u}\tilde{m}_{x}}{\tilde{m}^{3}}+\frac{2\tilde{u}_{x}}{\tilde{m}^{2}}\right) (-\tilde{m}^{2})+2\tilde{u}_{x}(-\tilde{m}^{2}), \end{align*}

then we have Eq. (Equation 3.54), and the theorem 3.11 can be proved.

Theorem 3.12

It can be demonstrable that the functions $\alpha_{1}(y,t)$, $\alpha_{2}(y,t)$, $g_{1}(y,t)$, and $g_{2}(y,t)$ of proposition 3.10 content the following algebraic system

(3.55a)\begin{align} &\alpha_{1t}+(g_{1}+g_{2})=0, \end{align}

(3.55b)\begin{align} &\alpha_{2}+(g_{1}-g_{2})=0, \end{align}

(3.55c)\begin{align} &(g_{1}-g_{2})_{y}-(1+2\alpha_{1})(g_{1}+g_{2})=0, \end{align}

(3.55d)\begin{align} &(g_{1}+g_{2})_{y}+2\alpha_{1}-(1+2\alpha_{1})(g_{1}-g_{2})=0, \end{align}

then the compatibility conditions of Lax pair (Equation 3.43) can be satisfied.

Proposition 3.13. In compliance with proposition 3.10 and theorem 3.11, the relations of $\tilde{m}$ and $\tilde{\mu}$ with notations $\left\{\alpha_{1}, \alpha_{2}, g_{1}, g_{2}\right\}$ can be available as follows

(3.56)\begin{align} \tilde{m}=\frac{1}{1+2\alpha_{1}},\quad \tilde{u}=\alpha_{2}, \end{align}

with the conditions $x_{y}=1+2\alpha_{1}$ and $(\alpha_{1}\alpha_{2})_{x}=-\frac{\alpha_{2x}}{2}$, we can derive Eq. (Equation 3.54) from (Equation 3.55a)–(Equation 3.55d).

Proof. Actually, (Equation 3.55a) can be obtained by (Equation 3.54), and from (Equation 3.55c) we have

\begin{align*} \tilde{u}_{x}=\tilde{u}_{y}x^{-1}_{y}=-(g_{1}+g_{2}). \end{align*}

According to

\begin{align*} \tilde{m}=\tilde{u}-(\tilde{u}_{x})_{y}\tilde{m}+1, \end{align*}

we have

\begin{align*} \frac{1}{1+2\alpha_{1}}=-(g_{1}-g_{2})+(g_{1}+g_{2})_{y}\frac{1}{1+2\alpha_{1}}+1, \end{align*}

which is Eq. (Equation 3.55d).

Combining Eqs. (Equation 3.56) and (Equation 3.55b), we can further obtain the relationship between the solution of cCH equation and the RH problem as shown in (Equation 3.82).

3.3. Single high-order pole solutions

In order to obtain a pure soliton solution, this section we will consider the reflectionless situation, i.e., $b(\mu)=0$ $(\mu\in\mathbb{R})$. Then $\tilde{G}(\mu)=0$ for $\mu\in\mathbb{R}$. Let $z_{0}\in\mathbb{C}^{+}$ be the N-order zero point of the scattering data $a(\mu)$, then $\left\{-z_{0}^{*}, -\frac{1}{z_{0}}, \frac{1}{z_{0}^{*}}\right\}\in\mathbb{C}^{+}$ are also the N-order zero points of the scattering data $a(\mu)$. Furthermore, $\left\{z_{0}^{*}, -z_{0}, -\frac{1}{z_{0}^{*}}, \frac{1}{z_{0}}\right\}\in\mathbb{C}^{-}$ are the N-order zero points of the scattering data $a^{*}(\mu^{*})$. The discrete spectrum is the set $\mathcal{X}=\left\{\pm z_{0}, \pm z^{*}_{0}, \pm\frac{1}{z_{0}}, \pm\frac{1}{z^{*}_{0}}\right\}$, which is same as the case in figure 1. Taking $w_{1}=z_{0}$, $w_{2}=\frac{1}{z^{*}_{0}}$, the scattering data $a(\mu)$ has the following form

(3.57)\begin{align} a(\mu)=\prod_{j=1}^{2}(\mu-w_{j})^{N}(\mu+w^{*}_{j})^{N}a_{0}(\mu), \end{align}

where $a_{0}(\mu)\neq0$ for all $\mu\in\mathbb{C}^{+}$. Therefore, from the definition of $\tilde{M}(y,t,\mu)$, it can be seen that $\mu=w_{j}$ and $\mu=-w^{*}_{j}$ $(j=1,2)$ are N-order pole points of $\tilde{M}_{11}$. Simultaneously, $\mu=w^{*}_{j}$ and $\mu=-w_{j}$ $(j=1,2)$ are N-order pole points of $\tilde{M}_{12}$. According to the definitions of (Equation 3.11) and (Equation 3.12), under the new scale $y(x,t)$, we define $\check{\phi}_{\pm}(y,t,\mu)=\hat{\phi}_{\pm}(x,t,\mu)$ and $\check{\psi}_{\pm}(y,t,\mu)=\hat{\psi}_{\pm}(x,t,\mu)$ and obtain the following relationships

(3.58)\begin{equation} \check{\phi}_-(y,t,\mu)=\check{\phi}_+(y,t,\mu)S(\mu), \end{equation}

and

(3.59)\begin{equation} \check{\psi}_-(y,t,\mu)e^{-it\theta(\mu)\sigma_{3}}=\check{\psi}_+(y,t,\mu)e^{-it\theta(\mu)\sigma_{3}}S(\mu), \end{equation}

there we redefine relation $\tilde{p}(\mu)=it\theta(\mu)$, $\tilde{p}(\mu)$ is shown in (Equation 3.32). Under the assumption that $\mu=w_{j}$ $(j=1,2)$ are N-order zero points of $a(\mu)$, from the following two relations, we have a Wronskian form

(3.60)\begin{equation} a(\mu)=Wr(\check{\phi}_{-1},\check{\phi}_{+2}), \end{equation}

then $a(\mu)$ vanishes to N-order at zero points w_j $(j=1,2)$, there exist complex constants $b_{j,s}$ $(j=1,2)$ $(s=1,2,\cdots,N)$ satisfy the follows

(3.61)\begin{equation} \frac{\partial^{m}[\check{\phi}_+(y,t,w_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b_{j,m-l+1}\frac{\partial^{l}[\check{\phi}_-(y,t,w_{j})]_{1}}{\partial\mu^{l}}, \end{equation}

and

(3.62)\begin{equation} \frac{\partial^{m}[\check{\psi}_+(y,t,w_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b_{j,m-l+1}\frac{\partial^{l}[\check{\psi}_-(y,t,w_{j})]_{1}e^{2it\theta(w_{j})}}{\partial\mu^{l}}, \end{equation}

with $m=0,1,\ldots,N-1$. From the normalization condition of RH problem 3.8, one can set

(3.63a)\begin{align} &\tilde{M}_{11}=1+\sum_{j=1}^{2}\sum_{s=1}^{N} \left(\frac{1}{(\mu-w_{j})^{s}}+\frac{(-1)^{s}}{(\mu+w^{*}_{j})^{s}}\right)F_{j,s} -\frac{i\tilde{\alpha}_{+}(y,t)}{4(\mu-1)}D-\frac{i\tilde{\alpha}_{+}(y,t)}{4(\mu+1)}D, \end{align}

(3.63b)\begin{align} &\tilde{M}_{12}=\sum_{j=1}^{2}\sum_{s=1}^{N} \left(\frac{1}{(\mu-w^{*}_{j})^{s}}+\frac{(-1)^{s+1}}{(\mu+w_{j})^{s}}\right)G_{j,s} +\frac{i\tilde{\alpha}_{+}(y,t)}{4(\mu-1)}-\frac{i\tilde{\alpha}_{+}(y,t)}{4(\mu+1)}, \end{align}

where D is shown in (Equation 3.21) and $\tilde{\alpha}_{+}(y,t)\in\mathbb{R}$. Besides, $F_{j,s}=F_{j,s}(y,t)$ and $G_{j,s}=G_{j,s}(y,t)$ are undetermined functions. Once these functions are solved, the solution of cCH equation will be acquired. To address this problem, making use of Taylor series expansion, one has

(3.64)\begin{align} &e^{2it\theta(\mu)}=\sum_{l=0}^{+\infty}\zeta_{j,l}(y,t)(\mu-w_{j})^{l}, \end{align}

(3.65)\begin{align} \zeta_{j,l}(y,t)=\lim_{\mu\rightarrow w_{j}}\frac{1}{l!}\frac{\partial^{l}}{\partial \mu^{l}}e^{2it\theta(\mu)}. \end{align}

It can be obtained that the coefficient of item $(\mu-w_{j})^{-s}$ of function $\tilde{M}_{11}(y,t,\mu)$ is $F_{j,s}(y,t)$. Now we extend the residue theorem by combining (Equation 3.59) and (Equation 3.62) and obtain the following relations

(3.66)\begin{align} \begin{split} F_{j,s}&=(-1)^{m}\frac{i\tilde{\alpha}_{+}(y,t)}{4}\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left(\frac{r_{j,l}\zeta_{j,l-s-m}}{(w_{j}-1)^{m+1}}-\frac{r_{j,l}\zeta_{j,l-s-m}}{(w_{j}+1)^{m+1}}\right)\\ &+\sum_{l=s}^{N}\sum_{m=0}^{l-s}\sum_{p=1}^{2}\sum_{q=1}^{N} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r_{j,l}\zeta_{j,l-s-m}\times\\ &\left\{\frac{(-1)^{m}}{(w_{j}-w^{*}_{p})^{q+m}} +\frac{(-1)^{m+q+1}}{(w_{j}+w_{p})^{q+m}}\right\}G_{p,q}, \end{split} \end{align}

where

(3.67)\begin{align} r_{j,l}=\lim_{\mu\rightarrow v_{j}}\frac{b_{j,l}}{(N-l)!}\frac{\partial^{N-l}}{\partial(\mu-w_{j})^{N-l}} \frac{(\mu-w_{j})^{N}}{a(\mu)}. \end{align}

Likewise, the coefficient of item $(\mu-w^{*}_{j})^{-s}$ of function $\tilde{M}_{12}(y,t,\mu)$ is $G_{j,s}(y,t)$. Through the same method, we have

(3.68)\begin{align} \begin{split} G_{j,s}&=(-1)^{m+1}\frac{i\tilde{\alpha}_{+}(y,t)}{4}D\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left(\frac{r^{*}_{j,l}\zeta^{*}_{j,l-s-m}}{(w^{*}_{j}-1)^{m+1}}+ \frac{r^{*}_{j,l}\zeta^{*}_{j,l-s-m}}{(w^{*}_{j}+1)^{m+1}}\right)\\ &+\sum_{l=s}^{N}\sum_{m=0}^{l-s} +\sum_{l=s}^{N}\sum_{m=0}^{l-s}\sum_{p=1}^{2}\sum_{q=1}^{N} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right)\times\\ &r^{*}_{j,l}\zeta^{*}_{j,l-s-m}\left\{\frac{(-1)^{m}} {(w^{*}_{j}-w_{p})^{q+m}} +\frac{(-1)^{m+q}}{(w^{*}_{j}+w^{*}_{p})^{q+m}}\right\}F_{p,q}, \end{split} \end{align}

The system (Equation 2.58) has the following solution For the sake of convenience, selecting the suitable notations for $j,p=1,2,$

(3.69)\begin{align} |\eta^{1}_{j}\rangle=(\eta^{1}_{j1},\ldots,\eta^{1}_{jN})^{T},\quad |\eta^{2}_{j}\rangle=(\eta^{2}_{j1},\ldots,\eta^{2}_{jN})^{T}, \end{align}

\begin{align*} \eta^{1}_{js}&=\frac{i\tilde{\alpha}_{+}(y,t)}{4}\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left(\frac{(-1)^{m}}{(w_{j}-1)^{m+1}}-\frac{(-1)^{m}}{(w_{j}+1)^{m+1}} \right)r_{j,l}\zeta_{j,l-s-m},\\ \eta^{2}_{js}&=\sum_{l=s}^{N}\sum_{m=0}^{l-s}r^{*}_{j,l}\zeta^{*}_{j,l-s-m}\\ &-\frac{i\tilde{\alpha}_{+}(y,t)}{4}D\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left(\frac{(-1)^{m}}{(w^{*}_{j}-1)^{m+1}}+\frac{(-1)^{m}}{(w^{*}_{j}+1)^{m+1}} \right)r^{*}_{j,l}\zeta^{*}_{j,l-s-m}, \end{align*}

then defining the N × N matrices $\Omega_{j,p}=[\Omega_{j,p}]_{s,q}$ and $\tilde{\Omega}_{j,p}=[\tilde{\Omega}_{j,p}]_{s,q}$ for $s,q=1,2,\cdots,N$ as follows

(3.70)\begin{align} \begin{split} \Omega_{j,p}=\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r_{j,l}\zeta_{j,l-s-m}\left\{\frac{(-1)^{m}}{(w_{j}-w^{*}_{p})^{q+m}} +\frac{(-1)^{m+q+1}}{(w_{j}+w_{p})^{q+m}}\right\}, \end{split} \end{align}

(3.71)\begin{align} \begin{split} \tilde{\Omega}_{j,p}=\sum_{l=s}^{N}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r^{*}_{j,l}\zeta^{*}_{j,l-s-m}\left\{\frac{(-1)^{m}} {(w^{*}_{j}-w_{p})^{q+m}} +\frac{(-1)^{m+q}}{(w^{*}_{j}+w^{*}_{p})^{q+m}}\right\}, \end{split} \end{align}

(3.72)\begin{align} |A_{1}\rangle=(|\eta^{1}_{1}\rangle, |\eta^{1}_{2}\rangle)^{T},\quad |A_{2}\rangle=(-|\eta^{2}_{1}\rangle, -|\eta^{2}_{2}\rangle)^{T}, \end{align}

(3.73)\begin{align} |F_{p}\rangle=(F_{p,1},\ldots,F_{p,N})^{T},\quad |G_{p}\rangle=(G_{p,1},\ldots,G_{p,N})^{T}, \end{align}

(3.74)\begin{align} \Omega= \left(\begin{array}{cc} \Omega_{1,1} & \Omega_{1,2} \\ \Omega_{2,1} & \Omega_{2,2} \end{array}\right),\quad \tilde{\Omega}= \left(\begin{array}{cc} \tilde{\Omega}_{1,1} & \tilde{\Omega}_{1,2} \\ \tilde{\Omega}_{2,1} & \tilde{\Omega}_{2,2} \end{array}\right),\quad I_{\varepsilon}= \left(\begin{array}{cc} -I & 0 \\ 0 & -I \end{array}\right), \end{align}

where I is a N × N identity matrix and the definition of Ω matrix and $\tilde{\Omega}$ matrix is the same. Combining functions (Equation 3.66)–(Equation 3.68), we have

(3.75)\begin{equation} \begin{aligned} &I|F_{p}\rangle-\Omega_{j,p}|G_{p}\rangle=|\eta^{1}_{j}\rangle,\\ &\tilde{\Omega}_{j,p}|F_{p}\rangle-I|G_{p}\rangle=-|\eta^{2}_{j}\rangle. \end{aligned} \end{equation}

After taking

(3.76)\begin{align} |K_1\rangle=(|F_{1}\rangle,|F_{2}\rangle)^{T},\quad |K_2\rangle=(|G_{1}\rangle,|G_{2}\rangle)^{T}, \end{align}

by straight calculation, we have

(3.77)\begin{align} \begin{split} &|K_{1}\rangle=(I_{\varepsilon}+\Omega\tilde{\Omega})^{-1}\Omega|A_{2}\rangle- (I_{\varepsilon}+\Omega\tilde{\Omega})^{-1}|A_{1}\rangle,\\ &|K_{2}\rangle=-(I_{\varepsilon}+\tilde{\Omega}\Omega)^{-1}\tilde{\Omega}|A_{1}\rangle+ (I_{\varepsilon}+\tilde{\Omega}\Omega)^{-1}|A_{2}\rangle. \end{split} \end{align}

The new expression of Equation 3.63a are derived as

(3.78)\begin{equation} \begin{split} \tilde{M}_{11} &=1-\frac{i\tilde{\alpha}_{+}(y,t)}{4}D\left(\frac{1}{\mu-1}+\frac{1}{\mu+1}\right)\\ &+\frac{\det(I_{\varepsilon}+\Omega\tilde{\Omega}+\Omega|A_{2}\rangle\langle E(\mu)|)- \det(I_{\varepsilon}+\Omega\tilde{\Omega}+|A_{1}\rangle\langle E(\mu)|)} {\det(I_{\varepsilon}+\Omega\tilde{\Omega})}, \end{split} \end{equation}

(3.79)\begin{equation} \begin{split} \tilde{M}_{12}&=\frac{i\tilde{\alpha}_{+}(y,t)}{4}\left(\frac{1}{\mu-1}-\frac{1}{\mu+1}\right)\\ &+\frac{\det(I_{\varepsilon}+\tilde{\Omega}\Omega+|A_{2}\rangle\langle\tilde{E}(\mu)|)- \det(I_{\varepsilon}+\tilde{\Omega}\Omega+\tilde{\Omega}|A_{1}\rangle\langle\tilde{E}(\mu)|)} {\det(I_{\varepsilon}+\tilde{\Omega}\Omega)}, \end{split} \end{equation}

with

(3.80)\begin{equation} \begin{split} &\langle E(\mu)|=(\langle E_{1}(\mu)|,\langle E_{2}(\mu)|),\quad \langle E_{j}(\mu)| =(E_{j1},\ldots,E_{jN}),\\ &\langle\tilde{E}(\mu)|=(\langle\tilde{E}_{1}(\mu)|,\langle\tilde{E}_{2}(\mu)|),\quad \langle\tilde{E}_{j}(\mu)| =(\tilde{E}_{j1},\ldots,\tilde{E}_{jN}),\\ &\langle E^{\prime}(\mu)|= (\langle E^{\prime}_{1}(\mu)|,\langle E^{\prime}_{2}(\mu)|),\quad \langle E^{\prime}_{j}(\mu)|= (E^{\prime}_{j1},\ldots,E^{\prime}_{jN}),\\ &\langle\tilde{E}^{\prime}(\mu)| =(\langle\tilde{E}^{\prime}_{1}(\mu)|,\langle\tilde{E}^{\prime}_{2}(\mu)|),\quad \langle\tilde{E}^{\prime}_{j}(\mu)|= (\tilde{E}^{\prime}_{j1},\ldots,\tilde{E}^{\prime}_{jN}), \end{split} \end{equation}

\begin{align*} &E_{js}=\frac{1}{(\mu-w_{j})^{s}}+\frac{(-1)^{s}}{(\mu+w^{*}_{j})^{s}},\quad \tilde{E}_{js}=\frac{1}{(\mu-w^{*}_{j})^{s}}+\frac{(-1)^{s+1}}{(\mu+w_{j})^{s}},\\ &E^{\prime}_{js}=\frac{-s}{(\mu-w_{j})^{s+1}}+\frac{s(-1)^{s+1}}{(\mu+w^{*}_{j})^{s+1}},\quad \tilde{E}^{\prime}_{js}=\frac{-s}{(\mu-w^{*}_{j})^{s+1}}+\frac{s(-1)^{s}}{(\mu+w_{j})^{s+1}}. \end{align*}

According to the symmetry conditions (Equation 3.22), we get that

(3.81)\begin{align} \begin{split} \tilde{M}_{21}&=-\frac{i\tilde{\alpha}_{+}(y,t)}{4}\left(\frac{1}{\mu-1}-\frac{1}{\mu+1}\right)\\ &+\frac{\det(I_{\varepsilon}+\Omega^{*}\tilde{\Omega}^{*}+|A^{*}_{2}\rangle\langle \tilde{E}^{*}(\mu^{*})|)- \det(I_{\varepsilon}+\Omega^{*}\tilde{\Omega}^{*}+\tilde{\Omega}^{*}|A^{*}_{1}\rangle\langle \tilde{E}^{*}(\mu^{*})|)} {\det(I_{\varepsilon}+\Omega^{*}\tilde{\Omega}^{*})}. \end{split} \end{align}

Hence the precise expression formula for the solution of cCH equation with single high-order pole under the NZBCs can be obtained in theorem 3.14.

Theorem 3.14

The solution of cCH equation with single high-order pole under the nonzero condition can be derived as the form

(3.82)\begin{align} \hat{u}(x,t)=-2(\tilde{M}^{\prime}_{12}(i)\tilde{M}_{11}(i) +\tilde{M}^{\prime}_{21}(i)\tilde{M}^{-1}_{11}(i)), \end{align}

\begin{align*} x=x(y,t)=y+2\ln\tilde{M}_{11}(i), \end{align*}

with

\begin{align*} \tilde{M}_{11}(i)&=1-\frac{\tilde{\alpha}_{+}(y,t)D}{4}+ \frac{\det(I_{\varepsilon}+\Omega\tilde{\Omega}+\Omega|A_{2}\rangle\langle E(i)|)- \det(I_{\varepsilon}+\Omega\tilde{\Omega}+|A_{1}\rangle\langle E(i)|)}{\det(I_{\varepsilon}+\Omega\tilde{\Omega})},\\ \tilde{M}^{\prime}_{12}(i)&=\frac{\tilde{\alpha}_{+}(y,t)}{4}+ \frac{\det(I_{\varepsilon}+\tilde{\Omega}\Omega+|A_{2}\rangle\langle\tilde{E}^{\prime}(i)|)- \det(I_{\varepsilon}+\tilde{\Omega}\Omega+\tilde{\Omega}|A_{1}\rangle\langle\tilde{E}^{\prime}(i)|)} {\det(I_{\varepsilon}+\tilde{\Omega}\Omega)},\\ \tilde{M}^{\prime}_{21}(i)& =-\frac{\tilde{\alpha}_{+}(y,t)}{4}\\ &\quad+\frac{\det(I_{\varepsilon}+\Omega^{*}\tilde{\Omega}^{*}+|A^{*}_{2}\rangle\langle \tilde{E}^{\prime*}(-i)|)- \det(I_{\varepsilon}+\Omega^{*}\tilde{\Omega}^{*}+\tilde{\Omega}^{*}|A^{*}_{1}\rangle\langle \tilde{E}^{\prime*}(-i)|)} {\det(I_{\varepsilon}+\Omega^{*}\tilde{\Omega}^{*})}, \end{align*}

where D is shown in (Equation 3.21), $\tilde{\alpha}_{+}(y,t)\in\mathbb{R}$, and the elements $|A_{1}\rangle$, $|A_{2}\rangle$, I_ɛ, Ω, $\tilde{\Omega}$, $\langle E(i)|$, $\langle\tilde{E}(i)|$, $\langle E^{\prime}(i)|$, $\langle \tilde{E}^{\prime}(i)|$ are defined in (Equation 3.72), (Equation 3.74), and (Equation 3.80).

3.3.1. One-soliton solution

Next, to construct the simple one-soliton solution of cCH equation under NZBCs, we consider the specific data as follows.

Case 4: For this case, we consider the situation N = 1, Assuming $w_{1}=z_{0}=e^{i\lambda}\in\mathbb{C}^{+}$, $(\lambda\in(0,\pi))$ is one-order pole of scattering data $a(\mu)$, then we have $w_{2}=\frac{1}{z^{*}_{0}}=w_{1}$. It can be obtained that $\theta(e^{i\lambda})=\theta(-e^{-i\lambda})$. Next we define $\theta_{1}\triangleq\theta(e^{i\lambda})=\frac{i\sin\lambda y}{2t}-\frac{2i\sin\lambda}{\cos^{2}\lambda}$, hence $e^{2it\theta_{2}}$ is real. Suppose that D = 1, $\tilde{\alpha}_{+}=1$, $r_{1,1}=2$, $r_{2,1}=1$. Then the parameters satisfy the following relationships, there $\Omega_{1,1}=\Omega_{1,2}=\Omega_{2,1}=\Omega_{2,2}$, $\tilde{\Omega}_{1,1}=\tilde{\Omega}_{1,2}=\tilde{\Omega}_{2,1}=\tilde{\Omega}_{2,2}$, $\eta^{1}_{21}=\frac{1}{2}\eta^{1}_{11}$, $\eta^{2}_{21}=\frac{1}{2}\eta^{2}_{11}$, $\zeta_{1,0}=\zeta_{2,0}$.

\begin{align*} \zeta_{1,0}=e^{-\frac{4\sin\lambda}{\cos^{2}\lambda e^{2i\lambda}}\left(\left(t+\frac{y}{8}\right)e^{2i\lambda}+\frac{y}{16}(e^{4i\lambda}+1)\right)}, \end{align*}

\begin{align*} \Omega_{1,1}=2e^{-\frac{4\sin\lambda}{\cos^{2}\lambda e^{2i\lambda}}\left(\left(t+\frac{y}{8}\right)e^{2i\lambda}+\frac{y}{16}(e^{4i\lambda}+1)\right)} \left(\frac{1}{e^{i\lambda}-e^{-i\lambda}+\frac{1}{2e^{i\lambda}}}\right), \end{align*}

\begin{align*} \tilde{\Omega}_{1,1}=2e^{-\frac{((16t+2y)e^{-2i\lambda}+y(e^{-4i\lambda}+1))\sin\lambda}{4\cos^{2}\lambda e^{2i\lambda}}}\left(\frac{1}{e^{-i\lambda}-e^{i\lambda}-\frac{1}{2e^{-i\lambda}}}\right), \end{align*}

\begin{align*} \eta^{1}_{11}=\frac{i}{2}\left(\frac{1}{e^{i\lambda}-1}-\frac{1}{e^{i\lambda}+1}\right) e^{-\frac{4\sin\lambda}{\cos^{2}\lambda e^{2i\lambda}}\left(\left(t+\frac{y}{8}\right)e^{2i\lambda}+\frac{y}{16}(e^{4i\lambda}+1)\right)}, \end{align*}

\begin{align*} \eta^{2}_{11}=\left(2-\frac{i}{2}\left(\frac{1}{e^{i\lambda}-1}+\frac{1}{e^{i\lambda}+1}\right)\right)e^{-\frac{4\sin\lambda}{\cos^{2}\lambda e^{2i\lambda}}\left(\left(t+\frac{y}{8}\right)e^{2i\lambda}+\frac{y}{16}(e^{4i\lambda}+1)\right)}, \end{align*}

substituting the above results into the formula (Equation 3.82) we can obtain the one-soliton solution of cCH equation under NZBCs.

Supposing $\lambda=\frac{\pi}{6}$, the expression for the solution is

(3.83)\begin{align} \hat{u}(x,t)=-2\left(T^{1}_{2}T^{1}_{1}+\frac{T^{1}_{3}}{T^{1}_{1}}\right), \end{align}

\begin{align*} x=x(y,t)=y+2\ln T^{1}_{1}, \end{align*}

\begin{align*} T^{1}_{1}=\frac{12ie^{-\frac{8t}{3}-\frac{y}{2}}+153i\sqrt{3}e^{-\frac{16t}{3}-y}+20i\sqrt{3}-246e^{-\frac{16t}{3}-y}-20} {(i\sqrt{3}-1)\left(27e^{-\frac{16t}{3}-\frac{y}{2}}+18ie^{-\frac{16t}{3}-\frac{y}{2}}\sqrt{3}+4\right)}, \end{align*}

\begin{align*} T^{1}_{2}=\frac{141ie^{-\frac{16t}{3}-\frac{y}{2}}\sqrt{3}-6e^{-\frac{8t}{3}-\frac{y}{2}}+216e^{-\frac{16t}{3}-\frac{y}{2}}+32} {27e^{-\frac{16t}{3}-\frac{y}{2}}+18ie^{-\frac{16t}{3}-\frac{y}{2}}\sqrt{3}+4}, \end{align*}

\begin{align*} T^{1}_{3}=-\frac{18(i\sqrt{3}-1)e^{-\frac{8t}{3}-\frac{y}{2}}-(351i\sqrt{3}+189)e^{-\frac{16t}{3}-\frac{y}{2}}-32i\sqrt{3}+32} {(i\sqrt{3}-1)\left(18ie^{-\frac{16t}{3}-\frac{y}{2}}-27e^{-\frac{16t}{3}-\frac{y}{2}}-4\right)}. \end{align*}

In accordance with the construction process of the RH problem, it can be known that there are singularities $\left\{0,\pm1,\pm i\right\}$ of the spectral parameter z. Since we choose $z_{0}\in\mathbb{C}^{+}$ here and $|z_{0}|=1$, $z_{0}=i$ is the singularity of solution $\hat{u}$. From the propagation of waves in figure 7, the bright soliton solution is the hump-kink interacted solution. Based on the intensity distribution figure captured at various time points, when the wave peaks and then drops a certain height, it continues to propagate but does not return to the same height as before.

Figure 7. (a)–(c) describe the local structure, density, and intensity profiles with different times of one-soliton solution $|u|$. Parameters $r_{1,1}=2$, $r_{2,1}=1$, $\lambda=\frac{\pi}{6}$.

Supposing $\lambda=\frac{\pi}{3}$, the solution can be obtained as follows

(3.84)\begin{align} \hat{u}(x,t)=-2\left(T^{2}_{2}T^{2}_{1}+\frac{T^{2}_{3}}{T^{2}_{1}}\right), \end{align}

\begin{align*} x=x(y,t)=y+2\ln T^{2}_{1}, \end{align*}

\begin{align*} T^{2}_{1}=&\frac{1}{\varpi^{2}_{1}}\left((5520-696i+(1080-816i)\sqrt{3})e^{(-16t-y)\sqrt{3}}\right)+\\ &\frac{1}{\varpi^{2}_{1}}\left(320e^{-\frac{\sqrt{3}(16t+y)}{2}}\sqrt{3}+64-96i+(64i-32)\sqrt{3}\right), \end{align*}

\begin{align*} T^{2}_{2}=&\frac{1}{\varpi^{2}_{2}}\left((-1056-1728i-(192+1248i)\sqrt{3})e^{(-16t-y)\sqrt{3}}+896-1536i+512\sqrt{3}\right)+\\ &\frac{1}{\varpi^{2}_{2}}\left((-15360+28800i+(-9600+15360i)\sqrt{3})e^{-\frac{\sqrt{3}(16t+y)}{2}}-896i\sqrt{3}\right), \end{align*}

\begin{align*} T^{2}_{3}=&\frac{1}{\varpi^{2}_{3}}\left((1056+1728i-(192+1248i)\sqrt{3})e^{(-16t-y)\sqrt{3}}-896+1536i+512\sqrt{3}\right)+\\ &\frac{1}{\varpi^{2}_{3}}\left((-7680+17280i+(5760-7680i)\sqrt{3})e^{-\frac{\sqrt{3}(16t+y)}{2}}-896i\sqrt{3}\right), \end{align*}

\begin{align*} \varpi^{2}_{1}&=80(1+i\sqrt{3})(2-\sqrt{3})((3+6i\sqrt{3})e^{(-16t-y)\sqrt{3}})+4,\\ \varpi^{2}_{2}&=-40(3+2\sqrt{3})(i\sqrt{3}-1)((3+6i)e^{-\frac{\sqrt{3}(16t+y)}{2}}+4),\\ \varpi^{2}_{3}&=-320(2-\sqrt{3})^{2}(i\sqrt{3}+1)((6i\sqrt{3}-3)e^{-\frac{\sqrt{3}(16t+y)}{2}}-4). \end{align*}

From figure 8, it can be seen that the peak of soliton does not immediately propagate smoothly when it falls from the highest point but rather fluctuates and appears as a smaller peak.

Figure 8. (a)–(c) describe the local structure, density, and intensity profiles with different times of one-soliton solutions $|u|$. Parameters $r_{1,1}=2$, $r_{2,1}=1$, $\lambda=\frac{\pi}{3}$.

3.3.2. Two-order pole solution

In an effort to construct the two-order pole solution of cCH equation under NZBCs, we consider the specific data as follows. This is for N = 2 case, and the expression of $u(x,t)$ defined in theorem 3.14.

Case 5: Assuming that $w_{1}=z_{0}=e^{i\lambda}\in\mathbb{C}^{+}$ be the two-order zero point of the scattering data $a(\mu)$, then $w_{2}=w_{1}$ is also the two-order zero point of $a(\mu)$. The discrete spectrum is the set $\mathcal{X}=\left\{e^{i\lambda}, -e^{-i\lambda}, e^{-i\lambda}, -e^{i\lambda}\right\}$. For the purpose of displaying characteristics of soliton propagations more clearly, we select some appropriate parameters to construct the two-order pole solutions of cCH equation. The dynamic behaviours of solitons are shown in Figures (9)–(10).

Figure 9. (a)–(c) describe the local structure, density, and intensity profiles with different times of the soliton solutions $|u|$ with one two-order pole. Parameters $r_{1,1}=1$, $r_{1,2}=1$, $r_{2,1}=1$, $r_{2,2}=1$, $\lambda=\frac{\pi}{6}$.

Figure 10. (a)–(c) describe the local structure, density, and intensity profiles with different times of the soliton solutions $|u|$ with one two-order pole. Parameters $r_{1,1}=1$, $r_{1,2}=1$, $r_{2,1}=1$, $r_{2,2}=1$, $\lambda=\frac{5\pi}{6}$.

Setting $\lambda=\frac{\pi}{6}$, $\left\{r_{1,1}=1, r_{1,2}=1, r_{2,1}=1, r_{2,2}=1\right\}$, D = 1, $\tilde{\alpha}_{+}=1$. Besides, $\Omega_{1,1}=\Omega_{1,3}=\Omega_{3,1}=\Omega_{3,3}$, $\Omega_{1,2}=\Omega_{1,4}=\Omega_{3,2}=\Omega_{3,4}$, $\Omega_{2,1}=\Omega_{2,3}=\Omega_{4,1}=\Omega_{4,3}$, $\Omega_{2,2}=\Omega_{2,4}=\Omega_{4,2}=\Omega_{4,4}$, $\tilde{\Omega}_{1,1}=\tilde{\Omega}_{1,3}=\tilde{\Omega}_{3,1}=\tilde{\Omega}_{3,3}$, $\tilde{\Omega}_{1,2}=\tilde{\Omega}_{1,4}=\tilde{\Omega}_{3,2}=\tilde{\Omega}_{3,4}$, $\tilde{\Omega}_{2,1}=\tilde{\Omega}_{2,3}=\tilde{\Omega}_{4,1}=\tilde{\Omega}_{4,3}$, $\tilde{\Omega}_{2,2}=\tilde{\Omega}_{2,4}=\tilde{\Omega}_{4,2}=\tilde{\Omega}_{4,4}$. In view of the construction process for simple high-order pole solutions under NZBCs and the parameter expressions of obtained solutions in theorem 3.14, we further obtain

\begin{align*} \zeta_{1,0}=\zeta_{2,0}=e^{-\frac{2t}{3}-\frac{y}{2}}, \end{align*}

\begin{align*} \zeta_{1,1}=\zeta_{2,1}=\frac{8i(20t+9y)e^{-\frac{2t}{3}-\frac{y}{2}}(i\sqrt{3}-1)} {(i\sqrt{3}+3)^3(\sqrt{3}+i)^2}, \end{align*}

\begin{align*} \Omega_{1,1}=\frac{5\sqrt{3}}{18}\left(\left(-\frac{21+27y}{20}+\frac{3i}{2}-3t\right)\sqrt{3} +it+\frac{9i(y-1)}{20}-\frac{9}{10}\right)e^{-\frac{2t}{3}-\frac{y}{2}}, \end{align*}

\begin{align*} \Omega_{1,2}=\frac{1440e^{-\frac{2t}{3}-\frac{y}{2}}}{(i\sqrt{3}+3)^3(\sqrt{3}+i)^4} \left(\sqrt{3}\left(\frac{y-6}{20}+\frac{i}{10}+\frac{t}{9}\right)+it+\frac{9i(y+1)}{20}+\frac{1}{2}\right), \end{align*}

\begin{align*} \Omega_{2,1}=-\frac{e^{-\frac{2t}{3}-\frac{y}{2}}(-2+i\sqrt{3})}{\sqrt{3}+i},\quad \Omega_{2,2}=\frac{e^{-\frac{2t}{3}-\frac{y}{2}}(-3-2i\sqrt{3})}{(\sqrt{3}+i)^2}, \end{align*}

\begin{align*} \tilde{\Omega}_{1,1}=\frac{1}{24}\left((-6+3i+20it+9iy)\sqrt{3}+27+18i+20t+9y\right) e^{-\frac{2t}{3}-\frac{y}{2}}, \end{align*}

\begin{align*} \tilde{\Omega}_{1,2}=\frac{1120\left(\left(\frac{3}{10}+\frac{3i}{14}+\frac{t}{7}+\frac{9y}{140}\right)\sqrt{3} +it+\frac{9iy}{20}-\frac{27}{70}+\frac{9i}{10}\right)e^{-\frac{2t}{3}-\frac{y}{2}}}{(i\sqrt{3}-3)^3(i-\sqrt{3})^4}, \end{align*}

\begin{align*} \tilde{\Omega}_{2,1}=\frac{-i\sqrt{3}e^{-\frac{2t}{3}-\frac{y}{2}}}{i-\sqrt{3}},\quad \tilde{\Omega}_{2,2}=\frac{(2i\sqrt{3}-1)e^{-\frac{2t}{3}-\frac{y}{2}}}{(i-\sqrt{3})^2}, \end{align*}

\begin{align*} \eta^{1}_{11}=\eta^{1}_{21}=\frac{-1280i\left(\left(-\frac{6}{5}+\frac{3i}{5}-t-\frac{9y}{20}\right) \sqrt{3}+it+\frac{9iy}{20}\right)e^{-\frac{2t}{3}-\frac{y}{2}}} {4(i\sqrt{3}-1)^2(i\sqrt{3}+3)^3(\sqrt{3}+i)^2}, \end{align*}

\begin{align*} \eta^{2}_{11}=\eta^{2}_{21}=\frac{(-1920i\sqrt{3}-7680it-3456iy+5760-2304i)e^{-\frac{2t}{3}-\frac{y}{2}}} {4(i\sqrt{3}+1)^2(i\sqrt{3}-3)^3(i-\sqrt{3})^2}, \end{align*}

\begin{align*} \eta^{1}_{12}=\eta^{1}_{22}=\frac{ie^{-\frac{2t}{3}-\frac{y}{2}}}{i\sqrt{3}-1},\quad \eta^{2}_{12}=\eta^{2}_{22}=-\frac{3e^{-\frac{2t}{3}-\frac{y}{2}}}{2}, \end{align*}

then substituting the above results into the expression of solution (Equation 3.82), we can obtain the two-order pole solution of cCH equation, Figure 9 shows the dynamic behaviour of soliton propagation, with three images presenting the local structure, density, and intensity profiles at different times of two-order pole solutions with the above parameters.

In addition, we select parameter $\lambda=\frac{5\pi}{6}$ and use the same process to obtain the dynamic propagation of the solution shown in Figure 10. From these two Figures 9–10, it can be seen that when the two waves collide at the centre, a larger peak is generated, and then they continue to propagate along the previous trajectory, but the energy decreases.

3.4. Multiple high-order pole solutions

The general circumstance that scattering data $a(\mu)$ has N high-order poles $z_{1},z_{2},\cdots,z_{N}$ will be considered, there $z_{k}\in\mathbb{C}^{+}$ for all $k=1,2,\ldots,N$, and their powers are $n_{1},n_{2},\ldots,n_{N}$, respectively. Let $w^{k}_{1}=z_{k}$ and $w^{k}_{2}=\frac{1}{z^{*}_{k}}$, $k=1,2,\ldots,N$, just like the case of one high-order pole, from the definition of $\tilde{M}(y,t,\mu)$, it can be seen that $\mu=w^{k}_{j}$ and $\mu=-w^{k*}_{j}$ $(j=1,2)$ are N-order pole points of $\tilde{M}_{11}$. Simultaneously, $\mu=w^{k*}_{j}$ and $\mu=-w^{k}_{j}$ $(j=1,2)$ are N-order pole points of $\tilde{M}_{12}$.

Under the assumption that $\mu=w^{k}_{j}$ $(j=1,2)$ are n_k-order zero points of $a(\mu)$ for $k=1,2,\ldots,N$, by the Wronskian $a(\mu)=Wr(\check{\phi}_{-1},\check{\phi}_{+2})$, there exist complex constants $b^{k}_{j,s}$ $(s=1,2,\ldots,n_N)$ satisfy the follows

(3.85)\begin{equation} \frac{\partial^{m}[\check{\phi}_+(y,t,w^{k}_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b^{k}_{j,m-l+1}\frac{\partial^{l}[\check{\phi}_-(y,t,w^{k}_{j})]_{1}}{\partial\mu^{l}}, \end{equation}

and

(3.86)\begin{equation} \frac{\partial^{m}[\check{\psi}_+(y,t,w^{k}_{j})]_{2}}{\partial\mu^{m}}=\sum^{m}_{l=0}\left(\begin{array}{c} m \\ l \end{array}\right) b^{k}_{j,m-l+1}\frac{\partial^{l}[\check{\psi}_-(y,t,w^{k}_{j})]_{1}e^{2it\theta(w^{k}_{j})}}{\partial\mu^{l}}, \end{equation}

with $m=0,1,\ldots,n_{N-1}$. Utilizing the parallel approach in above, we define the $n_k\times n_k$ matrices $\Xi^{j,p}_{kd}=[\Xi^{j,p}_{kd}]_{s,q}$ and $\tilde{\Xi}^{j,p}_{kd}=[\tilde{\Xi}^{j,p}_{kd}]_{s,q}$ for $s,q=1,2,\ldots,n_{k}$ and introduce the following notations for $j,p=1,2$

(3.87)\begin{align} &|\eta^{1k}_{j}\rangle=(\eta^{1k}_{j1},\cdots,\eta^{1k}_{jN})^{T},\quad |\eta^{2k}_{j}\rangle=(\eta^{2k}_{j1},\cdots,\eta^{2k}_{jN})^{T}, \end{align}

\begin{align*} \eta^{1k}_{js}=\frac{i\tilde{\alpha}_{+}(y,t)}{4}\sum_{l=s}^{n_{k}}\sum_{m=0}^{l-s} \left(\frac{(-1)^{m}}{(w^{k}_{j}-1)^{m+1}}-\frac{(-1)^{m}}{(w^{k}_{j}+1)^{m+1}} \right)r^{k}_{j,l}\zeta^{k}_{j,l-s-m}, \end{align*}

\begin{align*} \eta^{2k}_{js}&=\sum_{l=s}^{n_{k}}\sum_{m=0}^{l-s}r^{k*}_{j,l}\zeta^{k*}_{j,l-s-m}\\ &-\frac{i\tilde{\alpha}_{+}(y,t)}{4}D\sum_{l=s}^{n_{k}}\sum_{m=0}^{l-s} \left(\frac{(-1)^{m}}{(w^{k*}_{j}-1)^{m+1}}+\frac{(-1)^{m}}{(w^{k*}_{j}+1)^{m+1}} \right)r^{k*}_{j,l}\zeta^{k*}_{j,l-s-m}, \end{align*}

(3.88)\begin{align} r^{k}_{j,l}=\lim_{\mu\rightarrow w^{k}_{j}}\frac{b^{k}_{j,l}}{(n_{k}-l)!}\frac{\partial^{n_{k}-l}}{\partial(\mu-w^{k}_{j})^{n_{k}-l}} \frac{(\mu-w^{k}_{j})^{n_{k}}}{a(\mu)}, \end{align}

(3.89)\begin{align} \begin{split} &|B_{1}\rangle=(|A^{1}_{1}\rangle, |A^{2}_{1}\rangle, \cdots, |A^{N}_{1}\rangle)^{T},\quad |A^{k}_{1}\rangle=(|\eta^{1k}_{1}\rangle, |\eta^{1k}_{2}\rangle)^{T},\\ &|B_{2}\rangle=(|A^{1}_{2}\rangle, |A^{2}_{2}\rangle, \cdots, |A^{N}_{2}\rangle)^{T},\quad |A^{k}_{2}\rangle=(-|\eta^{2k}_{1}\rangle, -|\eta^{2k}_{2}\rangle)^{T}, \end{split} \end{align}

(3.90)\begin{align} \begin{split} \Xi^{j,p}_{k,d}=\sum_{l=s}^{n_{k}}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r^{k}_{j,l}\zeta^{k}_{j,l-s-m}\left\{\frac{(-1)^{m}}{(w^{k}_{j}-w^{k*}_{p})^{q+m}} +\frac{(-1)^{m+q+1}}{(w^{k}_{j}+w^{k}_{p})^{q+m}}\right\}, \end{split} \end{align}

(3.91)\begin{align} \begin{split} \tilde{\Xi}^{j,p}_{k,d}=\sum_{l=s}^{n_{k}}\sum_{m=0}^{l-s} \left( \begin{array}{c} q+m-1\\ m \\ \end{array} \right) r^{k*}_{j,l}\zeta^{k*}_{j,l-s-m}\left\{\frac{(-1)^{m}} {(w^{k*}_{j}-w^{k}_{p})^{q+m}} +\frac{(-1)^{m+q}}{(w^{k*}_{j}+w^{k*}_{p})^{q+m}}\right\}, \end{split} \end{align}

(3.92)\begin{align} \Xi= \begin{pmatrix} [\Xi^{j,p}_{11}] & \cdots & [\Xi^{j,p}_{1N}] \\ \vdots & \ddots & \vdots \\ [\Xi^{j,p}_{N1}] & \cdots & [\Xi^{j,p}_{NN}] \\ \end{pmatrix},\quad \tilde{\Xi}= \begin{pmatrix} [\tilde{\Xi}^{j,p}_{11}] & \cdots & [\tilde{\Xi}^{j,p}_{1N}] \\ \vdots & \ddots & \vdots \\ [\tilde{\Xi}^{j,p}_{N1}] & \cdots & [\tilde{\Xi}^{j,p}_{NN}] \\ \end{pmatrix}, \end{align}

(3.93)\begin{align} I_{\delta}= \begin{pmatrix} I_{\delta_{1}} & & \\ & \ddots & \\ & & I_{\delta_{N}} \\ \end{pmatrix},\quad I_{\delta_{k}}= \begin{pmatrix} -I & \\ & -I \\ \end{pmatrix}_{2n_{k}\times2n_{k}} k=1,\ldots,N, \end{align}

(3.94)\begin{equation} \begin{split} &\langle \Lambda(\mu)|=(\langle \Lambda^{1}_{1}(\mu)|,\langle \Lambda^{1}_{2}(\mu)|,\ldots,\langle \Lambda^{N}_{1}(\mu)|,\langle \Lambda^{N}_{2}(\mu)|),\\ &\langle \tilde{\Lambda}(\mu)|=(\langle \tilde{\Lambda}^{1}_{1}(\mu)|,\langle \tilde{\Lambda}^{1}_{2}(\mu)|,\ldots,\langle \tilde{\Lambda}^{N}_{1}(\mu)|,\langle \tilde{\Lambda}^{N}_{2}(\mu)|),\\ &\langle \Lambda^{\prime}(\mu)|=(\langle \Lambda^{1\prime}_{1}(\mu)|,\langle \Lambda^{1\prime}_{2}(\mu)|,\ldots,\langle \Lambda^{N\prime}_{1}(\mu)|,\langle \Lambda^{N\prime}_{2}(\mu)|),\\ &\langle \tilde{\Lambda}^{\prime}(\mu)|=(\langle \tilde{\Lambda}^{1\prime}_{1}(\mu)|,\langle \tilde{\Lambda}^{1\prime}_{2}(\mu)|,\ldots,\langle \tilde{\Lambda}^{N\prime}_{1}(\mu)|,\langle \tilde{\Lambda}^{N\prime}_{2}(\mu)|), \end{split} \end{equation}

with

\begin{align*} &\langle\Lambda^{k}_{j}(\mu)|=(\Lambda^{k}_{j1},\ldots,\Lambda^{k}_{jn_k}),\quad \Lambda^{k}_{js}=\frac{1}{(\mu-w^{k}_{j})^{s}}+\frac{(-1)^{s}}{(\mu+w^{k*}_{j})^{s}},\\ &\langle\tilde{\Lambda}^{k}_{j}(\mu)|=(\tilde{\Lambda}^{k}_{j1},\ldots,\tilde{\Lambda}^{k}_{jn_k}),\quad \tilde{\Lambda}^{k}_{js}=\frac{1}{(\mu-w^{k*}_{j})^{s}}+\frac{(-1)^{s+1}}{(\mu+w^{k}_{j})^{s}},\\ &\langle\Lambda^{k\prime}_{j}(\mu)|=(\Lambda^{k\prime}_{j1},\ldots,\Lambda^{k\prime}_{jn_k}),\quad \Lambda^{k\prime}_{js}=\frac{-s}{(\mu-w^{k}_{j})^{s+1}}+\frac{s(-1)^{s+1}}{(\mu+w^{k*}_{j})^{s+1}},\\ &\langle\tilde{\Lambda}^{k\prime}_{j}(\mu)|=(\tilde{\Lambda}^{k\prime}_{j1},\ldots,\tilde{\Lambda}^{k\prime}_{jn_k}),\quad \tilde{\Lambda}^{k\prime}_{js}=\frac{-s}{(\mu-w^{k*}_{j})^{s+1}}+\frac{s(-1)^{s}}{(\mu+w^{k}_{j})^{s+1}}. \end{align*}

Similar to theorem 3.14, we give the solution of cCH equation with multiple high-order poles as follows.

Theorem 3.15

The multiple high-order pole solutions of cCH equation under the nonzero condition can be obtained as follows

(3.95)\begin{align} \hat{u}(x,t)=-2(\tilde{M}^{\prime}_{12}(i)\tilde{M}_{11}(i) +\tilde{M}^{\prime}_{21}(i)\tilde{M}^{-1}_{11}(i)), \end{align}

\begin{align*} x=x(y,t)=y+2\ln\tilde{M}_{11}(i), \end{align*}

with

\begin{align*} \tilde{M}_{11}(i)& =1-\frac{\tilde{\alpha}_{+}(y,t)D}{4}+ \frac{\det(I_{\delta}+\Xi\tilde{\Xi}+\Xi|B_{2}\rangle\langle\Lambda(i)|)- \det(I_{\delta}+\Xi\tilde{\Xi}+|B_{1}\rangle\langle\Lambda(i)|)}{\det(I_{\delta}+\Xi\tilde{\Xi})},\\ \tilde{M}^{\prime}_{12}(i)& =\frac{\tilde{\alpha}_{+}(y,t)}{4}+ \frac{\det(I_{\delta}+\tilde{\Xi}\Xi+|B_{2}\rangle\langle\tilde{\Lambda}^{\prime}(i)|)- \det(I_{\delta}+\tilde{\Xi}\Xi+\tilde{\Xi}|B_{1}\rangle\langle\tilde{\Lambda}^{\prime}(i)|)} {\det(I_{\delta}+\tilde{\Xi}\Xi)},\\ \tilde{M}^{\prime}_{21}(i)& =-\frac{\tilde{\alpha}_{+}(y,t)}{4}\\ & \quad +\frac{\det(I_{\delta}+\Xi^{*}\tilde{\Xi}^{*}+|\Lambda^{*}_{2}\rangle\langle \tilde{\Lambda}^{\prime*}(-i)|)- \det(I_{\delta}+\Xi^{*}\tilde{\Xi}^{*}+\tilde{\Xi}^{*}|\Lambda^{*}_{1}\rangle\langle \tilde{\Lambda}^{\prime*}(-i)|)} {\det(I_{\delta}+\Xi^{*}\tilde{\Xi}^{*})}, \end{align*}

where D is shown in (Equation 3.21), $\tilde{\alpha}_{+}(y,t)\in\mathbb{R}$, the elements $|B_{1}\rangle$, $|B_{2}\rangle$, I_δ, Ξ, $\tilde{\Xi}$, $\langle\Lambda(i)|$, $\langle\tilde{\Lambda}(i)|$, $\langle \Lambda^{\prime}(i)|$, and $\langle \tilde{\Lambda}^{\prime}(i)|$ are defined in (Equation 3.89), (Equation 3.92), (Equation 3.93), and (Equation 3.94).
