1. Introduction

The south Patagonian Andes contain a variety of ice masses of different types and sizes which together comprise the largest glacierized area in the Southern Hemisphere outside Antarctica. The Northern and Southern Patagonia Icefields (NPI and SPI, respectively) are the largest ice masses in this region and have historically been the subject of most glaciological studies in southern South America. In Argentina, numerous studies have focused on the large outlet glaciers draining the eastern side of the SPI, but few studies have targeted the neighboring valley and mountain glaciers outside the icefield (e.g. Reference LliboutryLliboutry, 1953; Reference BertoneBertone, 1960; Reference MercerMercer, 1965; Reference RöthlisbergerRöthlisberger, 1986; Reference Popovnin, Danilova and PetrakovPopovnin and others, 1999; Reference Masiokas, Luckman, Villalba, Delgado, Skvarca and RipaltaMasiokas and others, 2009a,b; Reference Falaschi, Bravo, Masiokas, Villalba and RiveraFalaschi and others, 2013). As a result, currently there is little specific information on the location, current state or other important glaciological characteristics of these medium- to small-size glaciers, which together cover hundreds of square kilometers and a wide range of climatological conditions.

In this paper we report an inventory and analysis of recent changes of the glaciers of the Río de las Vueltas and Río Túnel hydrological basins (1435 km², hereafter VT basins) in the south Patagonian Andes (Fig. 1). These basins are adjacent to and immediately to the east of the SPI between Lago Viedma and Lago San Martín/O’Higgins, and contain a large number of glaciers that are two to three orders of magnitude smaller than their SPI outlet neighbors to the west. Although many of these glaciers are easily accessible from the town of El Chaltén, few detailed glaciological studies exist in the study area. We identified and mapped the glaciers in the VT basins using an excellent-quality midsummer 2005 Advanced Spaceborne Thermal Emission and Reflection Radiometer (ASTER) mosaic which has no clouds and minimum seasonal snow cover (Fig. 1). We then assessed the changes in glacier extent since 1979 using a photograph taken by the US KH-9 Hexagon spy satellite (USGS, 2008; Reference Fowler, Hanson and OlteanFowler, 2013). Interestingly, despite its great potential, the procedure for orthorectifying and co-registering these recently declassified satellite photographs has barely been used for the study of glacier changes (e.g. Reference Pieczonka, Bolch, Junfeng and ShiyinPieczonka and others, 2013). The technique produced strikingly accurate co-registration of the ASTER and Hexagon images and presents promising perspectives given the medium to high spatial resolution (∼10 m), extensive coverage (almost the entire SPI and adjacent areas are covered by one scene) and excellent quality of the KH-9 satellite photographs.

Fig. 1. (a) Mosaic (false-color composite of bands 4-3-2) of two Landsat Thematic Mapper scenes acquired on 19 February 2005 showing the location of the study area (green) on the northeastern margin of the Southern Patagonia Icefield (SPI). The limits of the upper Santa Cruz river basin (orange) and the lakes San Martín/O’Higgins (LSM), Viedma (LVI) and Argentino (LAR) are also shown. Collectively, this portion of the Andes contains the largest glaciated area in Argentina. (b) Closer view of the study area as observed on a mosaic (false-color composite of bands 3-2-1) of two Terra ASTER scenes acquired on 20 February 2005. The glaciers Chico and Viedma are shown to illustrate the differences between these large SPI outlet glaciers and the significantly smaller ice masses analyzed in this study. The town El Chaltén and the location of the Torre temperature data logger (TOR) and the Estancia Los Huemules precipitation station (HUE) are also indicated.

To explore the possible climatic forcings behind the glacier changes observed over the 1979–2005 period, we also analyzed local and regional monthly temperature and precipitation records together with gridded European Centre for Medium-Range Weather Forecasts ERA-Interim reanalysis data (Reference DeeDee and others, 2011). Some of the surface climate records are short and/or incomplete but were included in the analyses because they provide direct, previously unpublished climatic information from this data-poor region. The analyses were carried out as part of the ongoing National Glacier Inventory project, which aims to develop a complete and well-documented inventory of glaciers and ice-rich periglacial features (rock glaciers) in the Argentinian portion of the Andes, with regular updates every 5 years. The results provide important new data for this area that could be useful for regional and larger-scale assessments of glacier–climate linkages and glacier variations throughout the Andes.

2. Previous Studies

Reference BertoneBertone (1960) presented preliminary information on the area and state of 356 glaciers in the Argentinian Andes between 47°30′ S and 51° S based on aerial photographs from 1944–45 and field surveys conducted in the 1950s. Unfortunately, the reported glacier areas have large uncertainties which are not particularly useful for comparison with current glacier extents. Subsequent studies have reported more accurate inventory information for the glaciers in this region, but, as mentioned above, they have focused on the larger outlet glaciers draining the Patagonian icefields (e.g. Reference AniyaAniya, 1988; Reference Aniya, Sato, Naruse, Skvarca and CasassaAniya and others, 1996; Reference Skvarca and De AngelisSkvarca and De Angelis, 2003). Recently, Reference PfefferPfeffer and others (2014) presented the Randolph Glacier Inventory (RGI; available through the Global Land Ice Measurements from Space (GLIMS) website www.glims.org/RGI/randolph.html), the first global glacier inventory developed through the coordinated effort of a large number of glaciologists. Although the RGI includes outlines of thousands of glaciers in the southern Andes, many smaller-scale features and debriscovered sectors of glaciers may remain poorly represented until more accurate local or regional inventories become available and are incorporated into the database (Reference PfefferPfeffer and others, 2014).

Reference Davies and GlasserDavies and Glasser (2012) presented a comprehensive assessment of glacier changes in the Patagonian Andes since the peak of the Little Ice Age (LIA) using trimlines and moraines. In agreement with several previous studies (e.g. Reference Masiokas, Rivera, Espizua, Villalba, Delgado and AravenaMasiokas and others 2009b and references therein), Reference Davies and GlasserDavies and Glasser (2012) showed that the vast majority of glaciers in the Patagonian Andes have experienced a noticeable ice mass loss since the LIA, with a possible increase in the retreat rates in recent years (see also Reference Rignot, Rivera and CassasaRignot and others, 2003; Reference Willis, Melkonian, Pritchard and RiveraWillis and others, 2012).

Unfortunately, the sparse distribution of meteorological stations and the unknown quality and uneven temporal coverage of available records hamper detailed assessments of recent climatic trends and glacier–climate interactions in southern Patagonia. Earlier studies interested in the spatio-temporal climatic variability in this region usually relied on a similar, small set of stations containing the longest and most complete records (e.g. Reference Rosenblüth, Casassa and FuenzalidaRosenblüth and others, 1995, Reference Rosenblüth, Fuenzalida and Aceituno1997; Reference Carrasco, Casassa, Rivera, Casassa, Sepúlveda and SinclairCarrasco and others, 2002; Reference VillalbaVillalba and others, 2003; Reference Aravena and LuckmanAravena and Luckman, 2009). These studies indicate an overall 20th-century warming and varying precipitation trends for different stations in southern Patagonia, providing useful but limited evidence for a proper assessment of the climatic causes behind the glacier shrinkage observed in recent decades. Recently, the integration of reanalysis datasets with regional and local downscaling exercises has substantially improved the spatial coverage and temporal resolution of the climatic information available for Patagonian glaciers (e.g. Reference Rasmussen, Conway and RaymondRasmussen and others, 2007; Reference Garreaud, Lopez, Minivielle and RojasGarreaud and others, 2013; Reference Schaefer, Machguth, Falvey and CasassaSchaefer and others, 2013, Reference Schaefer, Machguth, Flavey, Casassa and Rignot2015; Reference LenaertsLenaerts and others, 2014). These newer datasets have allowed, for example, the calculation of surface mass-balance estimates for the entire SPI since the mid- to late 1970s, and will likely represent a crucial resource in future studies of glacier–climate interactions and glacier dynamics in this data-poor region (Reference LenaertsLenaerts and others, 2014; Reference Schaefer, Machguth, Flavey, Casassa and RignotSchaefer and others, 2015). However, in order to validate the results and reduce the uncertainties associated with these large-scale, promising modeling exercises, localized glaciological and meteorological measurements together with detailed assessments of recent glacier changes are still needed in many sectors of the Patagonian Andes.

3. Data and Methods

4. Results

We identified 248 ice masses with a total area of 187.2 ± 7.4 km² in the VT basins in 2005 (Fig. 2a). This represents ∼13% of the total area (1435 km²) of these hydrological basins. The glaciers range from 0.01 km² to almost 25 km² in area, with an average size of 0.75 km². The largest glaciers (Glaciar Torre (24.66 km²), Glaciar Gorra Blanca (17.12 km²) and Glaciar Túnel (16.99 km²)) and most of the glaciated area inventoried here are located in the western portion of the study area, with the size of the ice masses decreasing markedly towards the eastern, drier sectors of the VT basins (Fig. 2b). The predominance of clean-ice glaciers is apparent in Figure 3a: almost 95% of the inventoried area was classified as clean ice, with debris-covered ice and permanent snowfields/glacierets accounting for the remaining 3% and 2%, respectively. Only three small rock glaciers, with ∼0.35 km² of total surface area (0.18% of the inventory), were identified in these basins. The frequency distribution of glacier sizes is dominated by small ice masses (Fig. 3b). Two hundred and eighteen units (87.9% of the total) are <1 km² in size, 19 glaciers (7.6%) are between 1 and 5 km², and only 11 glaciers (4.4%) are >5 km² in surface area. The smaller (<1 km²) units are by far the most numerous but account for only 13% (24.45 km²) of the total glaciated area, whereas the 30 largest (>1 km²) glaciers represent ∼87% (162.74 km²) of the inventoried surface (Fig. 3b).

Fig. 2. (a) Map showing the glacier inventory of the VT hydrological basins based on an ASTER mosaic from 20 February 2005 (map projection UTM 18S, datum WGS84). The town of El Chaltén is located at ∼49°19′44″ S, 72°55′48″ W (450 m a.s.l.). (b) Distribution of glaciated area vs longitude in the study area. Note the concentration of glaciers towards the western, most humid sectors adjacent to the SPI.

Fig. 3. (a) Percentage of total inventoried area of the different types of geoforms identified in this study. (b) Number of units and surface area covered by these units, grouped by size. Note that the smallest units are the most numerous but cover a relatively small surface area, whereas the largest glaciers are only a few but occupy the bulk of the area. (c) Hypsometry of the different surface types inventoried in the study area. Note the predominance of clean ice, mostly concentrated between 1300 and 2000 m, and the existence of debris-covered ice only at low elevations. (d) Orientation of the units inventoried in the VT basins.

The glaciers in the study area cover an altitudinal range of ∼2300 m, with the highest point at 2868 m a.s.l. and the lowest glacier terminus at 600 m a.s.l. (Fig. 3c). Within this range, the largest concentration of glacier ice occurs between 1300 and 2000 m a.s.l. Clean ice surfaces cover the widest altitudinal range, between 600 and 2844 m a.s.l. Although covering a relatively small surface area, glacierets and permanent snowfields are also distributed along a wide altitudinal range, between 1164 and 2868 m a.s.l. In contrast, debris-covered ice is only found at lower elevations (between 606 and 1440 m a.s.l.) on the snouts of some glaciers (Figs 2 and 3c). The few rock glaciers identified in this area occupy a limited altitudinal range, between 1323 and 1722 m a.s.l. The majority of the glaciers have a southeastern orientation, with a smaller proportion of units oriented towards the south, east, southwest and northeast (Fig. 3d). This pattern is consistent with glaciers being located on the colder and less illuminated slopes in the Southern Hemisphere. Very few glaciers are oriented towards the north, northwest and west. The position of the transient snowline was easily identifiable in ∼25% of the inventoried units (64 glaciers; figure not shown). On these glaciers, the 20 February 2005 snowline ranges from 1250 to 1950 m a.s.l., with an arithmetic mean of 1600 m a.s.l. and a standard deviation of 160 m.

Using the KH-9 photograph as a reference, we identified 229 ice masses covering a total area of 220.89 ± 7.41 km² and with an average size of 0.99 km². Comparison with the 2005 values indicates that the total areal reduction between 1979 and 2005 is ∼33.7 km² (15.2%). Figure 4a shows an oblique three-dimensional (3-D) view of part of the KH-9 image with the position of the glacier margins in 1979 and 2005. An analysis of areal changes vs elevation (Fig. 4b) indicates that the larger ice losses occurred at around 1200–1600 m a.s.l. Area losses observed below these elevation bands are only marginally lower and can also be observed at higher elevations, indicating a generalized glacier reduction throughout the altitudinal range (Fig. 4b). Within the overall pattern of glacier recession observed during the 1979–2005 interval, we find that the relative reduction of the different units is highly dependent on glacier size and location (Fig. 5). In terms of areal change, the smaller units show a much wider range of variability than the larger glaciers, with some small units losing 100% of their 1979 area by 2005 and others showing virtually no change over this interval (Fig. 5a). The 1979–2005 relative reduction of the units ≥1 km² is more homogeneous and ranges between 10% and 30%. Length changes of mountain and valley glaciers (97 units in total) display a similar pattern. The smaller glaciers show a wider spread ranging between 0 and 40% of shortening with respect to their length in 1979. The longer units (≥2000 m) show a more homogeneous pattern with ∼10% of relative reduction between 1979 and 2005 (Fig. 5b). In relative terms, the largest areal losses are concentrated in the eastern sector of the study area (Fig. 5c). Several of the small ice masses identified in 1979 in this drier sector had disappeared by 2005, and in general the percent reduction is substantially larger than that observed towards the more humid western sector of the VT basins.

Fig. 4. (a) Oblique view of a portion of study area showing the glacier margins in 1979 and 2005 (blue and red, respectively). The 3-D effect was created by overlaying the KH-9 image on the GDEM. Some of the best-studied glaciers are indicated: Torre (GTo), Túnel (GTu), de los Tres (G3) and Piedras Blancas (GPB). (b) Changes of glaciated area vs elevation between 1979 and 2005 (blue and red bars, respectively).

Fig. 5. (a) Changes in area of the glaciers inventoried in the VT basins between 1979 and 2005. The changes are indicated as a percent reduction using the 1979 areas as a reference. (b) Same as (a), but for the length of 97 mountain and valley glaciers identified in the study area. Note that the smaller units show a larger variability in both areal and frontal changes. (c) Same as (a), but showing the relative areal changes of glaciers based on the longitude. The complete disintegration (100% reduction) of ice masses only occurred in the eastern half of the study area.

Mean monthly temperature variations at TOR show strong positive correlations with local and regional gridded ERA-Interim surface temperatures between 2002 and 2012 (Fig. 6a). On a local scale, the highly significant correlation between TOR and the ERA-Interim gridcell centered at the study area (gridcell centered at 49° S, 73° W; Fig. 6b) provides solid evidence of the reliability of these independent datasets. The strong correlation between these records also offers the opportunity to reconstruct the short TOR series using the longer gridded reanalysis data. The result of this analysis is depicted in Figure 6c, where the 2002–12 TOR mean monthly temperature data are estimated through simple linear regression using the 1979–2014 local gridcell reanalysis series as predictor. On a regional scale, the pattern of strong positive correlations between TOR and ERA-Interim data extends to all land areas south of 44° S and also towards the southeast Pacific Ocean several hundreds of kilometers from the continent (Fig. 6a). All of the official surface temperature stations listed in Table 2 are located within this extensive area of positive correlations, suggesting an important percentage of common variance in these south Patagonian records. This is corroborated in Figure 7a, which includes a regionally averaged series of October–March (ablation season) mean temperatures of the seven stations in Table 2, together with observed and predicted October–March mean temperatures at TOR (Fig. 6b). Evaluated in a longer-term context, between 1931 and 2005 the regional temperature record shows a gradual warming trend interrupted by at least two clear cooling periods in the early to mid-1970s and in the first years of the 21st century (Fig. 7a). Between 1979 and 2005 the study area experienced relatively warm conditions in the 1980s and early 1990s, much cooler years between 2000 and 2003, and a marked jump towards higher temperatures in 2004–05 (Fig. 7a). The conditions in 2005 are among the warmest recorded and predicted for this area, and likely influenced the (minimal) snow coverage observed in the 20 February 2005 ASTER image used to inventory glaciers in this study.

Fig. 6. (a) Field correlations between gridded ERA-Interim mean monthly surface temperature data and the records collected at the Glaciar Torre data logger (TOR) between 2002 and 2012. Only statistically significant correlations (p < 0.05) are shown. Prior to computing the correlations, the series were converted to temperature anomalies by subtracting their seasonal cycle. The extent covered by Figure 1a is shown by a rectangle, and the location of other temperature stations in southern Patagonia is also indicated (see Table 2). (b) Scatter plot showing the strong positive correlation between mean monthly surface temperature anomalies at the ERA-Interim gridcell centered at 49° S, 73° W and those observed at TOR. (c) Mean monthly temperature variations recorded and predicted at TOR (light and dark blue, respectively). TOR monthly temperature anomalies over the 1979–2014 period were first estimated through simple linear regression using the 49° S, 73° W ERA-Interim gridcell values as predictors, and then converted back to mean monthly values using the seasonal cycle observed at TOR between 2002 and 2012.

Fig. 7. (a) October–March mean temperature variations as recorded and predicted for TOR (light and dark blue, respectively). A regionally averaged October–March mean temperature series derived from the seven longest station records available in southern Patagonia (light green; Table 2) is also included for comparison. Prior to computing this regional composite series, monthly records from these stations were averaged into October–March seasonal values and expressed as anomalies from the mean of the 1970–2000 period common to all series. The series starts in 1931 when at least three station records are available to compute the regional series. Missing values were excluded from the computation of this regional average. Five-year moving averages plotted at the latest year of each moving window are shown to emphasize the low-frequency patterns in this record. (b) April–March precipitation totals observed and predicted for HUE (brown and orange, respectively; see Fig. 9). The 5 year moving averages of the predicted HUE series are shown in red. The April–March precipitation totals for Estancia Entre Ríos (EER, black) are also shown for comparison. This record starts in 1980, but prior to 1992 it contains a large percentage of missing data that precluded the calculation of annual precipitation totals.

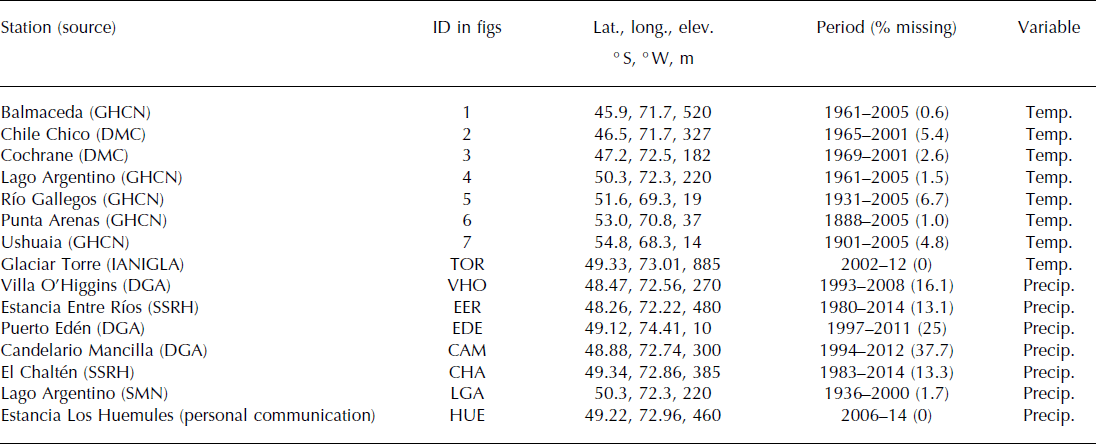

The field correlations between the monthly total precipitation series in Table 2 and the gridded ERA-Interim data indicate that most station records are strongly and positively correlated with local reanalysis gridcells (Figs 8 and 9a). These figures show that in general the areas of strongest co-variability are restricted to few adjacent gridcells and tend to extend to the north and northwest of the stations’ locations. The low correlations observed in the case of the El Chaltén series (a potentially useful record as it is the longest precipitation series available in the study area) suggest that this record contains errors (Fig. 8e). In contrast, the precipitation record from Lago Argentino near El Calafate shows relatively strong correlations with local reanalysis gridcells (Fig. 8f), but this association concentrates on the Patagonian steppe and does not extend towards the west where glaciers are located. In Figure 9a we focus on the relationship between ERA-Interim precipitation data and monthly precipitation totals from Estancia Los Huemules (HUE; Table 2; Fig. 1). The HUE record covers a significantly shorter period than other stations listed in Table 2 but has the advantage of being located only a few kilometers from the glaciers in the VT basins. Based on the strong positive correlation between this series and the monthly precipitation data in the ERA-Interim gridcell centered at 49° S, 73° W (Fig. 9b), we developed a simple linear regression model and estimated monthly precipitation variations at HUE back to January 1979 (Fig. 9c). The aggregated April–March (glaciological year) totals derived from this reconstructed series (Fig. 7b) show a gradual decrease in precipitation until 2002 followed by an increasing trend which has continued up to the present. The series from Estancia Entre Ríos (EER; Table 2; Fig. 8b) is the only complete, well-correlated station record longer than a decade in the vicinity of the VT basins. Aggregated into April–March totals (Fig. 7b), the EER and HUE series (observed and predicted) show a similar pattern of variations which indicates that these records can be considered representative of recent precipitation variations in the study area.

Fig. 8. Field correlations between gridded ERA-Interim monthly surface precipitation data and selected station records (see Table 2). Only statistically significant correlations (p < 0.05) are shown. Prior to computing the correlations, all gridded and station series were converted to precipitation anomalies by subtracting their seasonal cycles. Missing values were not considered in the correlations. In each panel the extent covered by Figure 1a is shown by a rectangle together with the location of the station and its period of overlap with the reanalysis data.

Fig. 9. (a) Field correlations between monthly precipitation anomalies between gridded ERA-Interim data and the precipitation recorded at Estancia Los Huemules (HUE) between 2006 and 2014. Only statistically significant correlations (p < 0.05) are shown. (b) Scatter plot showing the positive correlation between the precipitation anomalies of the HUE series and those of the ERA-Interim gridcell centered at 49° S, 73° W. (c) Monthly total variations recorded and predicted for HUE (dark red and orange, respectively). HUE monthly precipitation anomalies back to 1979 were first estimated through simple linear regression using the 49° S, 73° W ERA-Interim gridcell values as predictors, and then converted back to monthly total values by adding the seasonal cycle observed at HUE.

5. Discussion

In this contribution we provide new inventory information for 248 ice masses (ranging between 0.01 and 25 km² in size and covering a total area of 187.2 ± 7.4 km²) located in the VT hydrological basins on the northeast margin of the SPI (Figs 1 and 2). These basins are part of the Río Santa Cruz hydrological system, the largest river draining to the Atlantic in Patagonia. The inventory information was obtained following well-documented international guidelines for mapping glacier ice from satellite imagery, adapted and expanded to conform to the particular requirements of the ongoing National Glacier Inventory in Argentina. In addition to the inventory data for each glacier, we also determine their hypsometry and several other parameters to contribute to the understanding of the glaciated area in these basins. Although glacier ice is found at elevations ranging between 600 and 2780 m a.s.l., the glaciated area in these basins is largely concentrated within the 1300–2000 m a.s.l. altitudinal range (Fig. 3). A clear predominance of clean-ice surfaces (covering almost 95% of the inventoried area) is a salient characteristic of this inventory. Glaciers in the study area show a remarkable contrast in size and distribution, with large adjacent glaciers in the west and small, disperse snowfields and glacierets only a few km to the east (Fig. 2). These differences are largely determined by a steep precipitation gradient which ranges from several meters of annual precipitation on the SPI to 100–200 mm on the Patagonian steppe (Reference Carrasco, Casassa, Rivera, Casassa, Sepúlveda and SinclairCarrasco and others, 2002; Reference VillalbaVillalba and others, 2003; Reference LenaertsLenaerts and others, 2014). We only identified a few debris-covered sectors (∼3% of the total area) on the lower, terminal portions of some glaciers (Figs 2 and 3), and three small rock glaciers (the largest has an area of 0.18 km² and is ∼700 m long) in the drier sector of the VT basins. This is markedly different to the results of similar studies performed farther north in the drier, central Andes of Argentina (∼32° S), where debris-covered glaciers and rock glaciers constitute a large proportion (>50%) of the inventoried surfaces (e.g. Reference Zalazar and ZempZalazar and others, 2012). Although not important in terms of total area, the existence of rock glaciers (Reference BarschBarsch, 1996) so far south in the Andes provides interesting new evidence for comparison with other drier areas farther north and contributes to a more comprehensive understanding of the glacial and periglacial environments in this region.

Between 1979 and 2005, the VT glaciers lost ∼15.2% (33.7 km²) of their surface area. The magnitude of recession is, however, quite variable and depends on the size and location of the units, with smaller glaciers showing a rather wide range of shrinkage (0–100%) and the larger units a more consistent pattern varying around 10–20% of areal reduction since 1979 (Fig. 5a). The analyses also show that all the ice masses that disappeared between 1979 and 2005 were concentrated in the eastern drier half of the study area (Fig. 5c). During field surveys we have observed that some glaciers which have experienced relatively small areal reductions over recent decades (e.g. Glaciar Torre; Fig. 4a) have shown nonetheless a clearly visible downwasting of the glacier surface. This suggests that glacier mass losses are proportionally greater than the areal estimates discussed here indicate. We also note a different number of units identified in 1979 and 2005 (229 vs 248 units, respectively), which results from the disintegration of some ice masses into a group of smaller units. This represents further evidence of the generalized glacier wastage reported for this area over this 26 year period.

Surface temperature variations throughout southern Patagonia share a large percentage of common variance and show a long-term warming trend that could be partly responsible for the generalized glacier retreat observed in the region (Figs 6 and 7a). The local and regional records developed here suggest, however, that temperatures in this region have not increased monotonically. Prior to 2005, the warming tendency is largely driven by higher than normal temperatures between the late 1970s and the early 1990s and also in 2004–05, when local ablation season temperatures probably reached one of the highest levels in recent decades (Fig. 7a). Cooler than normal conditions apparently dominated this region in the early to mid-1970s and also in the first 2–3 years of the 21st century. The similarities in south Patagonian precipitation records are not as strong as in the case of temperature records, and there is no long, regionally representative precipitation series to evaluate the variations of the last three to four decades in a 20th-century context. Based on the relationship between local precipitation and the ERA-Interim data, we reconstructed annual (April–March) total precipitation values since 1979 for Estancia Los Huemules, at the heart of the study area (Figs 1 and 9). This series shows that annual precipitation probably decreased over most of the 1979–2005 period, with only a minor recovery starting in 2002 (Fig. 7b). Although this pattern is also consistent with the glacier reduction observed since 1979, it is clear that more detailed attribution assessments are needed to elucidate not only the climatic reasons for the observed glacier wastage but also to determine the relative influence of temperature vs precipitation on the long-term behavior of these glaciers (e.g. Reference Marzeion, Hofer, Jarosch, Kaser and MolgMarzeion and others, 2012).

6. Conclusions

Detailed, well-documented information on areal extent and measures of recent glacier changes in the south Patagonian Andes constitute important elements for the proper understanding of the current status of the cryosphere in this remote region. This information is relevant for studies of past and present glacier–climate relationships and complements current efforts for mapping and monitoring glaciers through national and international initiatives. In Argentina, the identification and inventory of Andean ice masses is currently well underway under the auspices of the National Glacier Inventory project. The results discussed in this paper are part of this project. Similar initiatives to inventory the Chilean glaciers are also being developed for adjacent basins in the Andes. Once completed, these initiatives (which include clean-ice but also debris-covered glaciers and rock glaciers) will constitute a major improvement and a historic landmark for the study and understanding of the cryospheric system in the southern Andes.

So far, most quantitative assessments of recent glacier changes in the southern Andes have relied on early aerial photographs and/or archived Landsat satellite scenes as base images (e.g. Reference AniyaAniya 1988; Reference Aniya, Naruse, Shizukuishi, Skvarca and CasassaAniya and others, 1992, Reference Aniya, Sato, Naruse, Skvarca and Casassa1997; Reference López, Chevallier, Favier, Pouyaud, Ordenes and OerlemansLópez and others, 2010). In this contribution we report promising results using declassified satellite photographs acquired by the Hexagon KH-9 US satellite (USGS, 2008; Reference Fowler, Hanson and OlteanFowler, 2013). These photographs cover significantly larger areas, and have substantially smaller inherent distortions, than traditional aerial photographs, requiring relatively little processing work and producing good co-registration with mid-resolution satellite scenes such as the ASTER images used here. Moreover, the pixel resolution (∼10 m) of the KH-9 photographs is markedly smaller than contemporaneous Landsat images also available for this area, greatly improving the accuracy of the inventory maps that could eventually be developed using these photographs (e.g. Reference Surazakov and AizenSurazakov and Aizen, 2010).

The attribution of the possible climatic forcings behind the recent glacier shrinkage in the Patagonian Andes remains unclear. This is at least partly due to the lack of long, detailed glacio-meteorological measurements, which are difficult to obtain and maintain over long periods of time in this remote region. In this context, the identification and evaluation of new meteorological series from sites near glaciated areas in Patagonia is still highly relevant not only for testing climatic trends and patterns locally, but also for comparison and validation of larger-scale assessments of glacier variations derived from gridded datasets and modeling approaches (e.g. Reference Willis, Melkonian, Pritchard and RiveraWillis and others, 2012; Reference LenaertsLenaerts and others, 2014; Reference Schaefer, Machguth, Flavey, Casassa and RignotSchaefer and others, 2015). In this study we show that ablation-season (October–March) temperatures measured between 2002 and 2012 in the study area are strongly and positively correlated with gridded reanalysis surface temperature data in southern Patagonia and also with the few official records available in this region (Fig. 6a). This is promising evidence that supports the use of gridded reanalysis data and/or distant station records to estimate and extend back in time the monthly and seasonal temperature variations in this and other glaciated areas in southern Patagonia. Unfortunately, precipitation records in this region are significantly shorter than temperature records and show more restricted areas of co-variability with gridded reanalysis data. This complicates the development of reliable precipitation records to estimate changes in accumulation in south Patagonian glaciers, and highlights the need to improve the network of glaciological and meteorological measurements in this remote region.
