A) Definition of engagement

The engagement was originally defined in a sociology study [Reference Goffman24]. This concept has been extended and variously defined in the context of dialogue research [Reference Glas and Pelachaud25]. We categorize the definitions into two types as follows. The first type focuses on cues to start and end the dialogue. Example definitions are “the process by which two (or more) participants establish, maintain, and end their perceived connection” [Reference Sidner, Lee, Kidd, Lesh and Rich17] and “the process subsuming the joint, coordinated activities by which participants initiate, maintain, join, abandon, suspend, resume, or terminate an interaction” [Reference Bohus and Horvitz26]. This type of engagement is related to attention and involvement [Reference Peters27]. The focus of studies based on these definitions was when and how the conversation starts and also ends. For example, one of the tasks was to detect the engaged person who wants to start the conversation with a situated robot [Reference Yu, Bohus and Horvitz28,Reference Bohus, Andrist and Horvitz29]. The second type of definition is about the quality of the connection between participants during the dialogue. For example, the engagement was defined as “how much a participant is interested in and attentive to a conversation” [Reference Yu, Aoki and Woodruff30] and “the value that a participant in an interaction attributes to the goal of being together with the other participant(s) and of continuing the interaction” [Reference Poggi31]. This type of engagement is related to interest and rapport. The focus of studies based on these definitions was how the user state changes during the dialogue. Both types of definitions are important for dialogue systems to accomplish a high quality of dialogue. In this study, we focus on the latter type of engagement, so that the purpose of our recognition model is to understand the user state during the dialogue.

B) Engagement recognition

A considerable number of studies have been made on engagement recognition over the last decade. Engagement recognition has been generally formulated as a binary classification problem: engaged or not (disengaged), or a category classification problem like no interest or following the conversation or managing the conversation [Reference Bednarik, Eivazi and Hradis32]. The useful features for engagement recognition have been investigated and identified from a multi-modal perspective. Non-linguistic behaviors are commonly used as the clue to recognize engagement because verbal information like linguistic features is specific to the dialogue domain and content, and speech recognition is error-prone. A series of studies on human–agent interaction found that user engagement was related to several features such as spatial information of the human (e.g. location, trajectory, distance to the robot) [Reference Xu, Li and Wang18,Reference Bohus and Horvitz26,Reference Michalowski, Sabanovic and Simmons33], eye-gaze behaviors (e.g. looking at the agent, mutual gaze) [Reference Xu, Li and Wang18,Reference Nakano and Ishii22, Reference Castellano, Pereira, Leite, Paiva and McOwan34–Reference Yu, Ramanarayanan, Lange and Suendermann-Oeft36], facial information (e.g. facial movement, expression, head pose) [Reference Castellano, Pereira, Leite, Paiva and McOwan34,Reference Yu, Ramanarayanan, Lange and Suendermann-Oeft36], conversational behaviors (e.g. voice activity, adjacency pair, backchannel, turn length) [Reference Xu, Li and Wang18,Reference Rich, Ponsler, Holroyd and Sidner35,Reference Chiba, Nose and Ito37], laughing [Reference Türker, Buçinca, Erzin, Yemez and Sezgin38], and posture [Reference Sanghvi, Castellano, Leite, Pereira, McOwan and Paiva39]. Engagement recognition modules based on the multi-modal features were implemented in agent systems and empirically tested with real users [Reference Yu, Ramanarayanan, Lange and Suendermann-Oeft36]. For human–human interaction, it was also revealed that the effective features in dyadic conversations were acoustic information [Reference Yu, Aoki and Woodruff30,Reference Chiba and Ito40,Reference Huang, Gilmartin and Campbell41], facial information [Reference Chiba and Ito40,Reference Huang, Gilmartin and Campbell41], and low-level image features (e.g. local pattern, RGB data) [Reference Huang, Gilmartin and Campbell41]. Furthermore, the investigation was extended to multi-party conversations. They analyzed features including audio and visual backchannels [Reference Oertel, Mora, Gustafson and Odobez23], eye-gaze behaviors [Reference Oertel, Mora, Gustafson and Odobez23,Reference Bednarik, Eivazi and Hradis32], and upper body joints [Reference Frank, Tofighi, Gu and Fruchter42]. The recognition models using the features mentioned above were initially based on heuristic approaches [Reference Peters27,Reference Michalowski, Sabanovic and Simmons33,Reference Sidner and Lee43]. Recent methods are based on machine learning techniques such as support vector machines (SVM) [Reference Xu, Li and Wang18,Reference Oertel, Mora, Gustafson and Odobez23,Reference Yu, Ramanarayanan, Lange and Suendermann-Oeft36,Reference Frank, Tofighi, Gu and Fruchter42], hidden Markov models [Reference Yu, Aoki and Woodruff30], and convolutional neural networks [Reference Huang, Gilmartin and Campbell41]. In this study, we focus on behaviors when the user is listening to system speech, such as backchannels, laughing, head nodding, and eye-gaze.

We also find a problem of subjectivity in the annotation process of user engagement. Since the perception of engagement is subjective, it is difficult to define the annotation criteria objectively. Therefore, most of the previous studies conducted the annotation of engagement with multiple annotators. One approach is to train a few annotators to avoid disagreement among annotators [Reference Xu, Li and Wang18,Reference Bednarik, Eivazi and Hradis32,Reference Yu, Ramanarayanan, Lange and Suendermann-Oeft36,Reference Huang, Gilmartin and Campbell41]. However, when we consider natural interaction, the annotation becomes more complicated and challenging to be consistent among annotators. In this case, another approach is based on ‘wisdom of crowds’ where many annotators are recruited. Eventually, the annotations were integrated using methods such as majority labels, averaged scores, and agreed labels [Reference Xu, Li and Wang18,Reference Nakano and Ishii22,Reference Oertel, Mora, Gustafson and Odobez23]. In our proposed method, the different views of the annotators are taken into account. It is expected that we can understand the difference among the annotators. Our work is novel, in that the difference in annotation form the basis of our engagement recognition model.

C) Adaptive behavior generation according to engagement

Some attempts were made to generate system behaviors after recognizing user engagement. These works are essential to clarify the significance of engagement recognition. Although this is beyond this paper, our purpose of engagement recognition is similar to those of the studies.

Turn-taking behaviors are fine-grained and could be reflective of user engagement. An interactive robot was implemented to adjust its turn-taking behavior according to user engagement [Reference Xu, Li and Wang18]. For example, if a user was engaged, the robot behaved to start a conversation with the user and give the floor to the user. As a result, subjective evaluations of both the effectiveness of communication and user experience were improved by this behavior strategy. Besides, in our preliminary study with a remote conversation, the analysis result implied that if a participant was engaged in the conversation, the duration of the participant's turn became longer than the case of not engaged, and the frequency of backchannels given by the counterpart was also higher [Reference Inoue, Lala, Nakamura, Takanashi and Kawahara44].

Dialogue strategy can also be adapted to user engagement. Topic selection based on user engagement was proposed [Reference Glas, Prepin and Pelachaud45]. The system was designed to predict user engagement on each topic, and select the next topic which maximizes both user engagement and the system's preference. A chatbot system was implemented to select a dialogue module according to user engagement [Reference Yu, Nicolich-Henkin, Black and Rudnicky19]. For example, when the user was not engaged in the conversation, the system switched the current dialogue module into another one. Consequently, subjective evaluations such as the appropriateness of the system utterance were improved. Another system was designed to react to user disengagement [Reference Yu, Ramanarayanan, Lange and Suendermann-Oeft36]. In an interview dialogue, when the user (interviewee) was disengaged, the system said positive feedbacks to elicit more self-disclosure from the user. Another research group investigated how to handle user disengagement in a human–robot interaction [Reference Sun, Zhao and Ma20]. They compared two kinds of system feedback: explicit and implicit. The result of a subject experiment suggested that the implicit strategy of inserting fillers was preferred by the users than the explicit one where the system directly asks a question such as “Are you listening?”.

A) Human–robot interaction corpus

We have collected a human–robot interaction corpus in which the humanoid robot ERATO intelligent conversational android (ERICA) [Reference Glas, Minaot, Ishi, Kawahara and Ishiguro46,Reference Inoue, Milhorat, Lala, Zhao, Kawahara, Talking with ERICA and autonomous android47] interacted with human subjects. ERICA was operated by another human subject, called an operator, who was in a remote room. The dialogue was one-on-one, and the subject and ERICA sat on chairs facing each other. Figure 2 shows a snapshot of the dialogue. The dialogue scenario was as follows. ERICA works in a laboratory as a secretary, and the subject visited the professor. Since the professor was absent for a while, the subject talked with ERICA until the professor would come back.

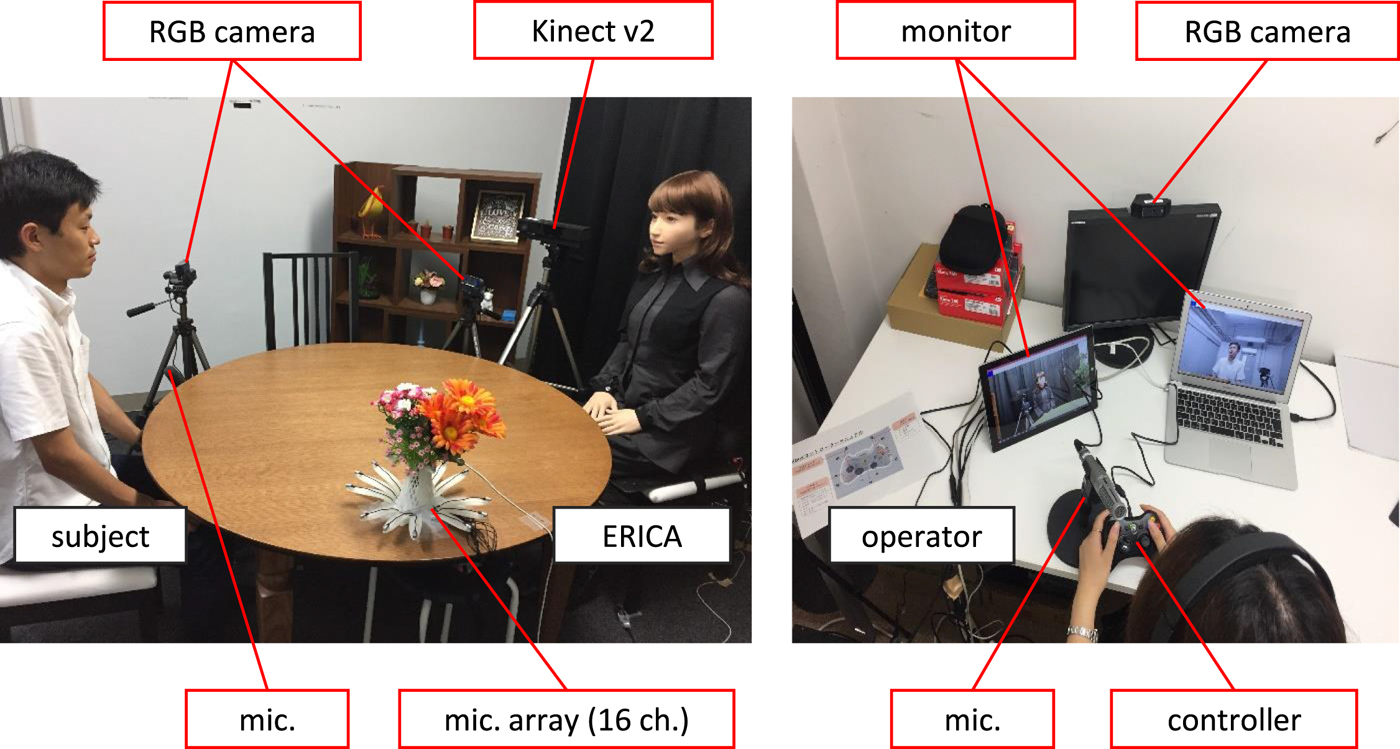

Fig. 2. Setup for dialogue collection.

The voice uttered by the operator was directly played with a speaker placed on ERICA in real time. When the operator spoke, the lip and head motions of ERICA were automatically generated from the prosodic information [Reference Ishi, Ishiguro and Hagita48,Reference Sakai, Ishi, Minato and Ishiguro49]. The operator also manually controlled the head and eye-gaze motions of ERICA to express some behaviors such as eye-contact and head nodding. We recorded the dialogue with directed microphones, a 16-channel microphone array, RGB cameras, and a Kinect v2 sensor. After the recording, we manually annotated the conversation data including utterances, turn units, dialogue acts, backchannels, laughing, fillers, head nodding, and eye gaze (the object at which the participant is looking).

We use 20 dialogue sessions for an annotation of subject engagement in this paper. The subjects were 12 females and 8 males, with ages ranging from teenagers to over 70 years old. The operators were six amateur actresses in their 20 and 30 s. Whereas each subject participated in only one session, each operator was assigned several sessions. Each dialogue lasted about 10 minutes. All participants were native Japanese speakers.

B) Annotation of engagement

There are several choices to annotate ground-truth labels of the subject engagement. The intuitive method is to ask the subject to evaluate his/her own engagement right after the dialogue session. However, in practice, we can obtain only one evaluation on the whole dialogue due to time constraints. It is difficult to obtain evaluations on fine-grained phenomena such as every conversational turn. Furthermore, we sometimes observe a bias where subjects tend to give positive evaluations of themselves. This kind of bias was observed in other works [Reference Ramanarayanan, Leong and Suendermann-Oeft50,Reference Ramanarayanan, Leong, Suendermann-Oeft and Evanini51]. Another method is to ask the ERICA's operators to evaluate the subject engagement. However, it was difficult to let the actresses participate in this annotation work due to time constraints. Similar to the first method, we would obtain only one evaluation on the whole dialogue, but this is not useful for the current recognition task. This problem often happens in other studies for building corpora because the dialogue recording and the annotation work are done separately. Most of the previous studies adopted a practical approach where they asked third-party people (annotators) to evaluate engagement. This approach is categorized into two types: training a small number of annotators [Reference Xu, Li and Wang18,Reference Bednarik, Eivazi and Hradis32,Reference Yu, Ramanarayanan, Lange and Suendermann-Oeft36,Reference Huang, Gilmartin and Campbell41] and making use of the wisdom of crowds [Reference Nakano and Ishii22,Reference Oertel, Mora, Gustafson and Odobez23]. The former type is valid when the annotation criterion is objective. On the other hand, the latter type is better when the criterion is subjective and when a large amount of data is needed. We took the latter approach in this study.

We recruited 12 females who had not participated in the dialogue data collection. Their gender was set to be same as those of the ERICA's operators. We instructed the annotators to take the point of view of the operator. Each dialogue session was randomly assigned to five annotators. The definition of engagement was presented as “How much the subject is interested in and willing to continue the current dialogue with ERICA”. We asked the annotators to annotate the subject engagement based on its behaviors while the subject was listening to ERICA's talk. Therefore, the subject engagement can be interpreted as listener engagement. It also means that the annotators observe listener behaviors expressed by the subject. We showed a list of listener behaviors that could be related to engagement, with example descriptions. This list included facial expression, laughing, eye gaze, backchannels, head nodding, body pose, moving of shoulders, and moving of arms or hands. We instructed the annotators to watch the dialogue video by standing in the viewpoint of the ERICA's operator, and to press a button when all the following conditions were being met: (1) ERICA was holding the turn, (2) the subject was expressing any listener behaviors, and (3) the behavior means the high level of subject engagement. For condition (1), the annotators were notified of auxiliary information which showed the timing of when the conversational turn was changed between the subject and ERICA.

C) Analysis of annotation result

Across all annotators and sessions, the average number of button presses per session was 18.13 with a standard deviation of 12.88. Since each annotator was assigned some of the 20 sessions randomly, we tested one-way ANOVA for both inter-annotator and inter-session, respectively. As a result, we could see significant differences of the average numbers of button presses among both the annotators (F(11, 88)=4.64, p=1.51×10⁻⁵) and the sessions (F(19, 80)=2.56, p=1.92×10^-3). There was a variation among not only sessions but also annotators.

In this study, we use ERICA's conversational turn as a unit for engagement recognition. The conversational turn is useful for spoken dialogue systems to utilize the result of engagement recognition because the systems typically make a decision on their behaviors on a turn basis. If an annotator pressed the button more than once in a turn, we regarded that the turn was annotated as engaged by the annotator. We excluded short turns whose durations are smaller than 3 seconds, and also some turns corresponding to the greeting. As a result, the total number of ERICA's turns was 433 over 20 dialogue sessions. The numbers of engaged and not engaged turns from all annotators were 894 and 1271, respectively.

We investigated the agreement level among the annotators. The average value of Cohen's kappa coefficients on every pair of two annotators was 0.291 with a standard deviation of 0.229. However, as Fig. 3 shows, some pairs showed coefficients higher than the moderate agreement (larger than 0.400). The result suggests that the annotators can be clustered into some groups based on their tendencies to annotate engagement similarly. Each group regarded different behaviors as important and had different thresholds to accept the behaviors as engaged events.

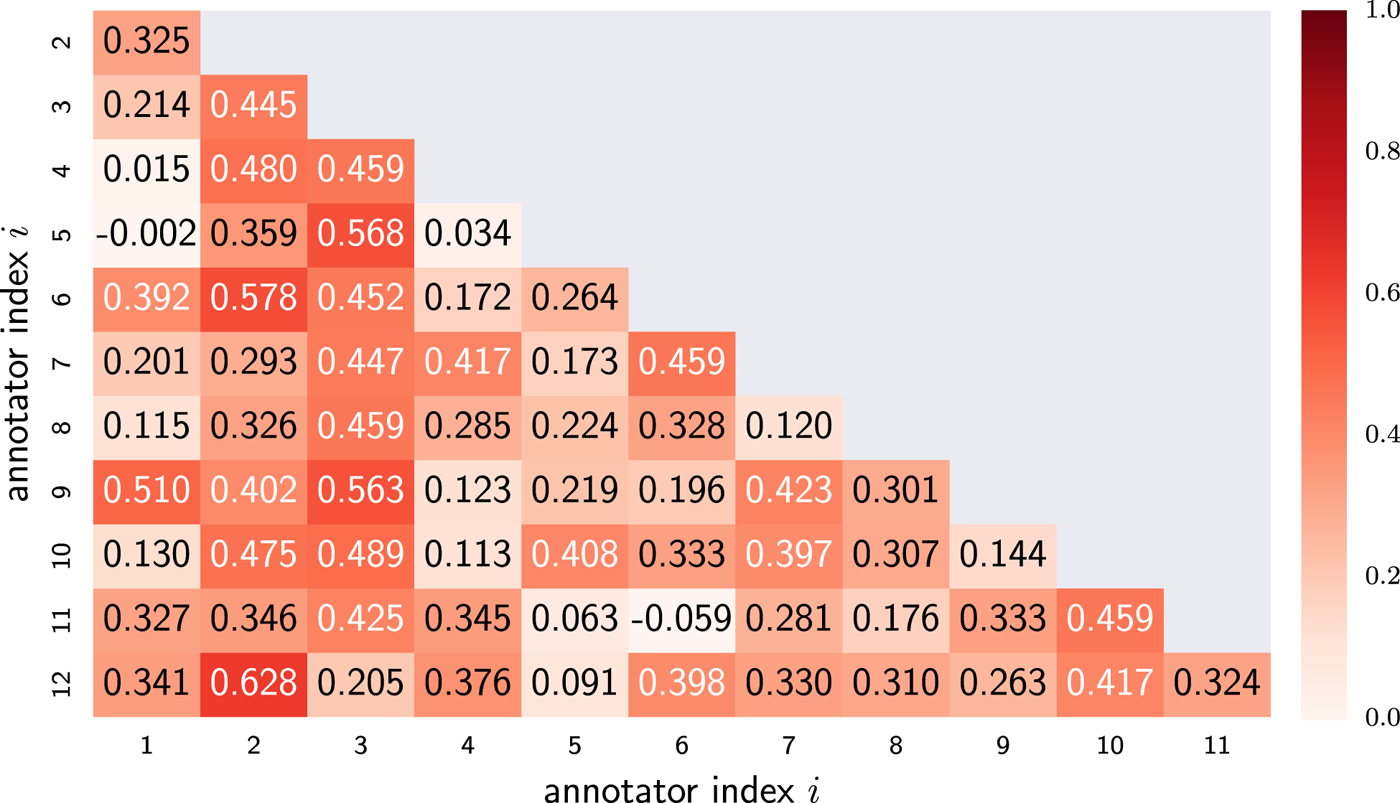

Fig. 3. Inter-annotator agreement score (Cohen's kappa) on each pair of the annotators.

We took a survey on which behaviors the annotators regarded as essential to judge the subject engagement. For every session, we asked the annotators to select all the essential behaviors to judge the subject engagement. Table 1 lists the results of this survey. Note that we conducted this survey in total 100 times (five annotators in 20 sessions). The result indicates that engagement could be related to some listener behaviors such as facial expression, backchannels, head nodding, eye gaze, laughing, and body pose.

Table 1. The number of times selected by the annotators as meaningful behaviors

In the following experiments, we use four behaviors: backchannels, laughing, head nodding, and eye gaze. As we have seen in the section on the related works, these behaviors have been identified as indicators of engagement. We manually annotated the occurrences of the four behaviors. The definition of backchannel in this annotation was responsive interjections (such as ‘yeah’ in English and ‘un’ in Japanese), and expressive interjections (such as ‘oh’ in English and ‘he-’ in Japanese) [Reference Den, Yoshida, Takanashi and Koiso52]. The laughing was defined as vocal laughing, not including just smiling without any vocal utterance. We annotated the occurrence of head nodding based on the vertical movement of the head. The occurrence of eye-gaze behaviors is acknowledged when the subject was gazing at ERICA's face continuously for more than 10 seconds. We decided this 10-second threshold by confirming a reasonable balance between the accuracy in Table 2 and the recall of the engaged turns. It was challenging to annotate facial expression and body pose due to their ambiguity. We will consider the other behaviors which we do not use in this study as additional features in the future work. The relationship between the occurrences of the four behaviors and the annotated engagement is summarized in Table 2. Note that we used the engagement labels given by all individual annotators. The result suggests that these four behaviors are useful cues to recognize the subject engagement. We further analyzed the accuracy scores on each annotator in Table 3. The results show that each annotator has a different perspective on each behavior. For example, the engagement labels of the first annotator (index 1) are related to the labels of backchannels and head nodding. On the other hand, those of the second annotator (index 2) are related to those of laughing, head nodding, and eye gaze. This difference implies that we need to consider each annotator's different perspective on engagement.

Table 2. Relationship between the occurrence of each behavior and the annotated engagement (1: occurred / engaged, 0: not occurred / not engaged)

Table 3. Accuracy scores of each annotator's engagement labels when the reference labels of each behavior are used

A) Problem formulation

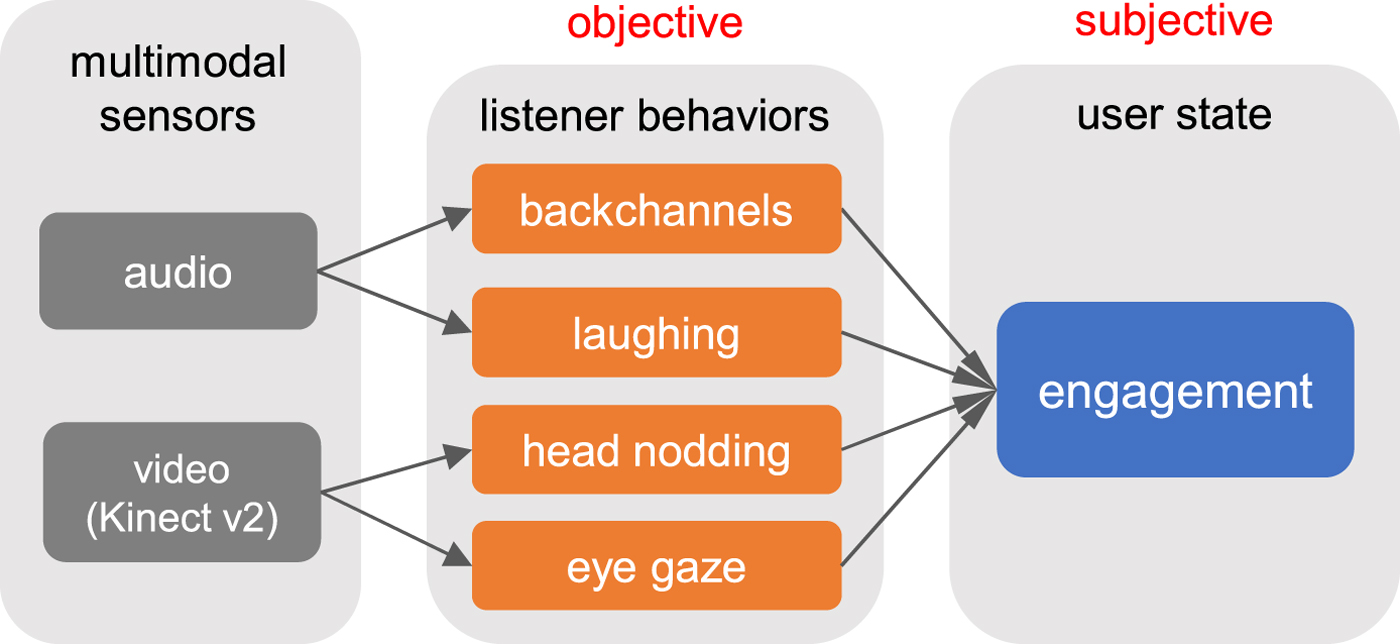

At first, we define the problem formulation of this engagement recognition as follows. Engagement recognition is done for each turn of the robot (ERICA). The input is based on listener behaviors of the user during the turn: laughing, backchannels, head nodding, and eye gaze. Each behavior is represented as binary: occur or not as defined in the previous section. The input feature is a combination of the occurrences of the four behaviors and referred to as behavior pattern. In this study, since we use the four behaviors, the possible number of the behavior patterns is 16 (=2⁴). Although the number of the behavior patterns would be massive if we use many behaviors, the observed patterns are limited so that we can exclude the less-frequent patterns. The output is also binary: engaged or not, as annotated in the previous section. Note that this ground-truth label differs for each annotator.

B) Generative process

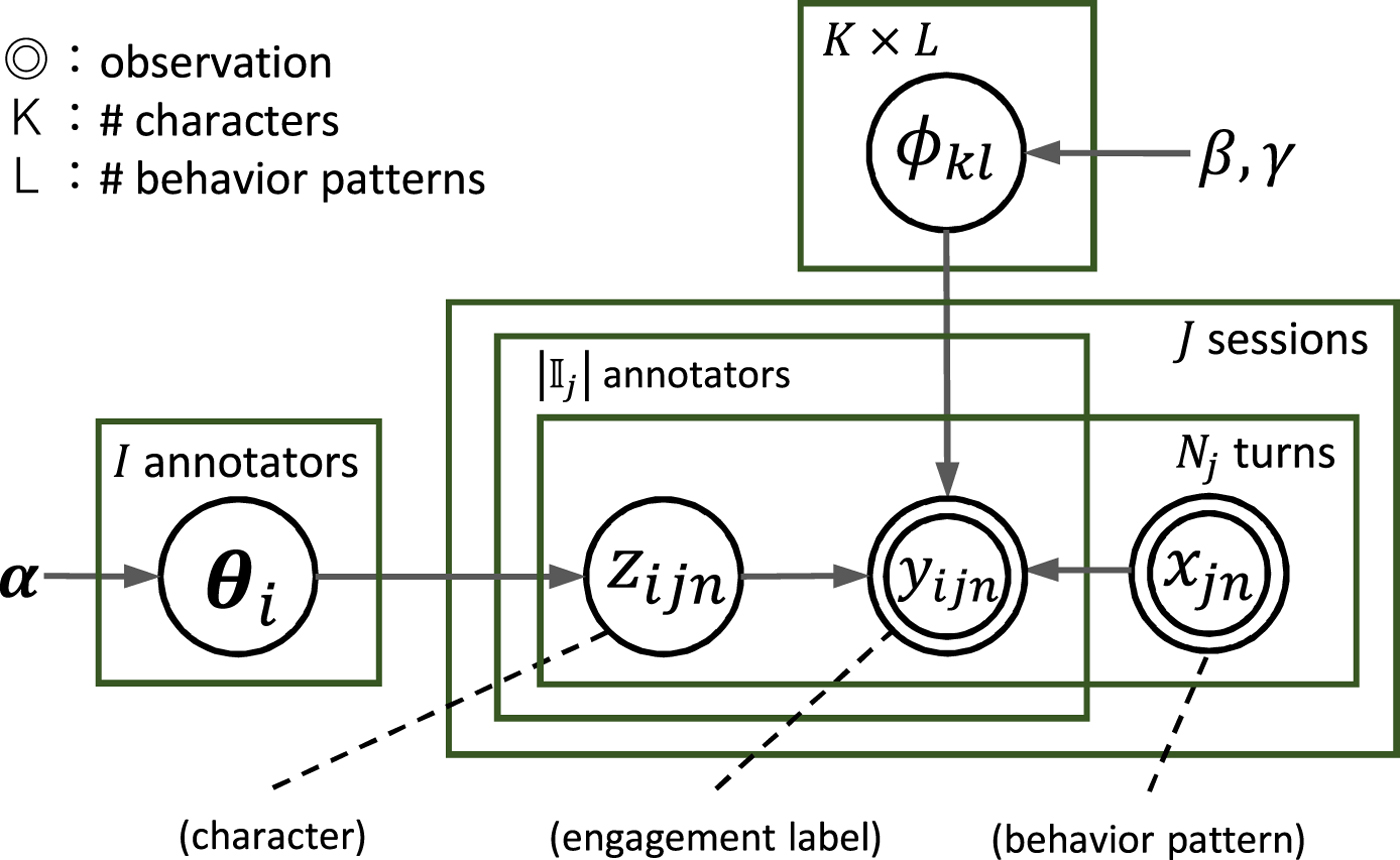

The latent character model is illustrated as the graphical model in Fig. 4. The generative process is as follows. For each annotator, parameters of a character distribution are generated from the Dirichlet distribution as

Fig. 4. Graphical model of latent character model.

(1)$$\eqalign{{\bf \theta}_{i} = \lpar \theta_{i1}, \ldots, \theta_{ik}, \ldots, \theta_{iK} \rpar &\sim \hbox{Dirichlet}({\bf \alpha}), \cr & \qquad 1 \leq i \leq I,}$$

where I, K, i, k denote the number of annotators, the number of characters, the annotator index, and the character index, respectively, and α = (α ₁,  …,  α _k,  …,  α _K) is a hyperparameter. The parameter θ_ik represents the probability that the i-th annotator has the k-th character. For each combination of the k-th character and the l-th behavior pattern, a parameter of an engagement distribution is generated by the beta distribution as

(2)$${\phi}_{kl} \sim \hbox{Beta}(\beta, \gamma), \quad 1 \leq k \leq K, \quad 1 \leq l \leq L,$$

where L denotes the number of behavior patterns, and β and γ are hyperparameters. The parameter ϕ_kl represents the probability that annotators with the k-th character interpret the l-th behavior pattern as an engaged signal.

The number of the total dialogue sessions is represented as J. For the j-th session, the set of annotators who were assigned to this session is represented as ${\open I}_j$. The number of conversational turns of the robot in the j-th session is represented as N _j. For each turn, a character is generated from the categorical distribution corresponding to the i-th annotator as

(3)$$\eqalign{z_{ijn} \sim \hbox{Categorical}({\bf \theta}_{i}), \quad 1 \leq j \leq J, 1 \leq n \leq N_{j}, \cr &i \in {\open I}_j,}$$

where n denotes the turn index. The input behavior pattern in this turn is represented as x _jn ∈ {1,  …,  L}. Note that the behavior pattern is independent from the annotator index i. The binary engagement label is generated from the Bernoulli distribution based on the character and the input behavior pattern as

(4)$$y_{ijn} \sim \hbox{Bernoulli}({\phi}_{z_{ijn} x_{jn}}).$$

Given the dataset of the above variables and parameters, the conditional distribution is represented as

(5)$$\eqalign{&p({\bf Y}, {\bf Z}, {\bf \theta}, {\bf \Phi} \vert {\bf X}) \cr &\quad = p({\bf Z}\vert {\bf \theta}) p({\bf Y}\vert {\bf X},{\bf Z},{\bf \Phi}) p({\bf \theta}) p({\bf \Phi}),}$$

where the bold capital letters represent the datasets of the variables written by the corresponding small letters. Note that θ and Φ are the model parameters, and the dataset of the behavior patterns X is given and regarded as constant.

C) Training

In the training phase, the model parameters θ and Φ are estimated. The training datasets of the behavior patterns X and the engagement labels Y are given. We use collapsed Gibbs sampling which marginalizes the model parameters and efficiently samples only target variables. Here, we sample each character alternately and iteratively from its conditional probability distribution as

(6)$$z_{ijn} \sim p(z_{ijn} \vert {\bf X}, {\bf Y}, {\bf Z}_{\backslash ijn}, {\bf \alpha}, \beta, \gamma),$$

where the model parameters θ and Φ are marginalized. Note that ${\bf Z}_{\backslash ijn}$ is the set of the characters without z _ijn. The conditional probability distribution is expanded in the same manner as the other work [Reference Griffiths and Steyvers55]. The distribution is proportionate to the product of two terms as

(7)$$\eqalign{&p(z_{ijn} = k \vert {\bf X}, {\bf Y}, {\bf Z}_{\backslash ijn}, {\bf \alpha}, \beta, \gamma) \cr &\quad \propto p(z_{ijn} = k \vert {\bf Z}_{\backslash ijn}, {\bf \alpha}) \cr & \qquad \times p(y_{ijn} \vert {\bf X}, {\bf Y}_{\backslash ijn}, z_{ijn} = k, {\bf Z}_{\backslash ijn}, \beta, \gamma),}$$

where ${\bf Y}_{\backslash ijn}$ is the dataset of the engagement labels without y _ijn. The first term is calculated as

(8)$$p(z_{ijn} = k \vert {\bf Z}_{\backslash ijn} {\bf \alpha}) = {p(z_{ijn} = k, {\bf Z}_{\backslash ijn} \vert {\bf \alpha}) \over p({\bf Z}_{\backslash ijn} \vert {\bf \alpha})}$$

(9)$$= {D_{ik \backslash ijn} + \alpha_k \over D_{i} -1 + \sum_{k^{\prime} = 1}^{K} \alpha_{k^{\prime}}}.$$

Note that D _i and $D_{ik \backslash ijn}$ represent the number of turns where the i-th annotator was assigned, and the number of turns where the i-th annotator had the k-th character without considering z _ijn, respectively. The above expansion from equations (8) to (9) is explained in the appendix. The second term is calculated as

(10)$$\eqalign{&p(y_{ijn} \vert {\bf X}, {\bf Y}_{\backslash ijn}, z_{ijn} = k, {\bf Z}_{\backslash ijn}, \beta, \gamma) \cr &\qquad = {p({\bf Y} \vert {\bf X}, z_{ijn} = k, {\bf Z}_{\backslash ijn}, {\bf X}, \beta, \gamma) \over p({\bf Y}_{\backslash ijn} \vert {\bf X}, {\bf Z}_{\backslash ijn}, {\bf X}, \beta, \gamma)}}$$

(11)$$\eqalign{&= \prod_{l=1}^{L} \left\{{\Gamma (N_{kl \backslash ijn} + \beta + \gamma) \over \Gamma (N_{kl \backslash ijn} + N_{ijnl} + \beta + \gamma)} \right. \cr &\qquad \times {\Gamma (N_{kl1 \backslash ijn} + N_{ijnl1} + \beta ) \over \Gamma (N_{kl1 \backslash ijn} + \beta)} \cr &\qquad \left. \times {\Gamma (N_{kl0 \backslash ijn} + N_{ijnl0} + \gamma ) \over \Gamma (N_{kl0 \backslash ijn} + \gamma)} \right\},}$$

where Γ(·) is the gamma function. Note that $N_{kl \backslash ijn}$ represents the number of times when the l-th behavior pattern was observed by annotators with the k-th character without considering x _ijn. Among them, $N_{kl1 \backslash ijn}$ and $N_{kl0 \backslash ijn}$ are the number of times when the annotators gave the engaged and not engaged labels, respectively. Besides, N _ijnl represents the binary variable indicating if the i-th annotator observed the l-th behavior pattern in the n-th turn of the j-th session. Among them, N _ijnl1 and N _ijnl0 are binary variables indicating if the annotator gave the engaged and not engaged labels, respectively. The above expansion from equations (10) to (11) is also explained in the appendix.

After sampling, we select one of the sampling results where the joint probability of the variables is maximized as

(12)$${\bf Z}^{\ast} = \mathop{\hbox{arg max}}\limits_{{\bf Z}^{(r)}} \, p({\bf Y}, {\bf Z}^{(r)} \vert {\bf X}, {\bf \alpha}, \beta, \gamma),$$

where Z^(r) represents the r-th sampling result. The joint probability is expanded as

(13)$$\eqalign{&p({\bf Y}, {\bf Z} \vert {\bf X}, {\bf \alpha}, \beta, \gamma) \cr &\quad = p({\bf Z}\vert {\bf \alpha}) p({\bf Y}\vert {\bf X},{\bf Z},\beta,\gamma),}$$

(14)$$\eqalign{&\propto \prod_{i=1}^{I} {\prod_k \Gamma (D_{ik}+\alpha_k) \over \Gamma (D_i + \sum_k \alpha_k)} \cr & \qquad \times \prod_{k=1}^{K} \prod_{l=1}^{L} {\Gamma (N_{kl1} + \beta) \Gamma (N_{kl0} + \gamma ) \over \Gamma (N_{kl} + \beta + \gamma )}.}$$

Note that N _kl is the number of times when annotators with k-th character annotated the l-th behavior pattern. Among them, N _kl1 and N _kl0 represent the number of times when the annotators gave the engaged and not-engaged labels, respectively. Besides, D _ik is the number of turns where the i-th annotator had the k-th character. The above expansion from equations (13) to (14) is also explained in the appendix. Finally, the model parameters θ and Φ are estimated based on the sampling result Z* as

(15)$$\theta_{ik} = {D_{ik} + \alpha_k \over D_i + \sum_{k^{\prime} = 1}^{K} \alpha_{k^{\prime}}},$$

(16)$$\phi_{kl} = {N_{kl1} + \beta \over N_{kl} + \beta + \gamma},$$

where D _i, D _ik, N _kl, and N _kl1 are counted up among the sampling result Z*.

D) Testing

In the testing phase, the unseen engagement label given by a target annotator is predicted based on the estimated model parameters θ and Φ. The input data are the behavior pattern x _t ∈ {1, …, L} and the target annotator index i ∈ {1,  …,  I}. Note that t represents the turn index in the test data. The probability that the target annotator gives the engaged label on this turn is calculated by marginalizing the character as

(17)$$p(y_{it} = 1 \vert x_{t}, i, {\bf \theta}, {\bf \Phi}) = \sum_{k = 1}^{K} \theta_{ik} \phi_{k x_{t}}.$$

The t-th turn is recognized as engaged when this probability is higher than a threshold.

E) Related models

We summarize similar models considering the difference of annotators. In a task of backchannel prediction, a two-step conditional random fields was proposed [Reference Ozkan, Sagae and Morency56,Reference Ozkan and Morency57]. They trained a prediction model per annotator. The final decision is based on voting by the individual models. Our method trains the model based on the character, not for each annotator, so that robust estimation is expected even if the amount of data for each annotator is not large, which is the case in many realistic applications. In a task of estimation of empathetic states among dialogue participants, a model classified annotators by considering both the annotators’ tendencies of the estimation and their personalities [Reference Kumano, Otsuka, Matsuda, Ishii and Yamato58]. The personalities correspond to the characters in our model. Their model was able to estimate the empathetic state based on a specific personality. It assumed that the personality and the input features such as the behavior patterns are independent. In our model, we assume that the character and the input features are dependent, meaning that how to perceive each behavior pattern is different for each character.

A) Automatic detection of behaviors

We detect backchannels and laughing from speech signals recorded by a directed microphone. Note that we will investigate making use of a microphone array in future work. This task has been widely studied in the context of social signal detection [Reference Schuller59]. We proposed using bi-directional long short-term memory with connectionist temporal classification (BLSTM-CTC) [Reference Inaguma, Inoue, Mimura and Kawahara60]. The advantage of CTC is that we do not need to annotate the time-wise alignment of the social signal events. On each user utterance, we extracted the log-Mel filterbank features as a 40-dimension vector and also a delta and a delta-delta of them. The number of dimensions of the input features was 120. We trained the BLSTM-CTC model for backchannels and laughing independently. The number of hidden layers was 5 and the number of units on each layer was 256. For training, we used other 71 dialogue sessions recorded in the same manner as the dataset for engagement recognition. In the training set, the total number of user utterances was 14,704. Among them, the number of utterances containing backchannels was 3931, and the number of utterances containing laughing was 1003. Then, we tested the 20 sessions which were used for engagement recognition. In the test dataset, the total number of the subject utterances was 3517. Among them, the utterances containing backchannels was 1045, and the utterances containing laughing was 240. Precision and recall of backchannels were 0.780 and 0.865, and the F1 score was 0.820. For laughing, precision and recall were 0.772 and 0.496, and the F1 score was 0.604. The occurrence probabilities of backchannel and laughing are computed for every user utterance. Therefore, we take the maximum value during the turn as the input for engagement recognition.

We detect head nodding from visual information captured by the Kinect v2 sensor. Detection of head nodding has also been widely studied in the field of computer vision [Reference Fujie, Ejiri, Nakajima, Matsusaka and Kobayashi61,Reference Morency, Quattoni and Darrell62]. We used LSTM for this task [Reference Lala, Inoue, Milhorat and Kawahara63]. With the Kinect v2 sensor, we can measure the head direction in the 3D space. We calculated a feature set containing the instantaneous speeds of the yaw, roll, and pitch of the head. Other features were the average speed, average velocity, acceleration and range of the head pitch over the previous 500 milliseconds. We trained an LSTM model with these features whose number of dimension was 7. We used a single hidden layer with 16 units. The dataset was the same 20 sessions as the engagement recognition task, and 10-fold cross-validation was applied. The number of data frames per second was about 30, and we made a prediction every 5 frames. There were 29 560 prediction points in the whole dataset, and 3152 of them were manually annotated as points where the user was nodding. Note that we discarded the data frames on the subject's turn. For prediction-point-wise evaluation, precision and recall of head nodding frames were 0.566 and 0.589, and the F1 score was 0.577. For event-wise detection, we regarded a continuous sequence of detected nodding as a head nodding event where the duration is longer than 300 milliseconds. If the sequence overlapped with a ground-truth event, the event was correctly detected. On an event basis, there were 855 head nodding events. Precision and recall of head nodding events were 0.608 and 0.763, and the F1 score was 0.677. We compared the LSTM performance with several other models such as SVM and DNN and found that the LSTM model had the best score [Reference Lala, Inoue, Milhorat and Kawahara63]. The occurrence probability of head nodding is estimated at every frame. We smoothed the output sequence with a Gaussian filter where the standard deviation for Gaussian kernel was 3.0. Therefore, we also take the maximum value during the turn as the input for engagement recognition.

The eye-gaze direction is approximated by the head orientation given by the Kinect v2 sensor. We would be able to detect eye-gaze direction precisely if we used an eye tracker, but non-contact sensors such as the Kinect v2 sensor are preferable for spoken dialogue systems interacting with users on a daily basis. Eye gaze towards the robot is detected when the distance between the head-orientation vector and the location of the robot's head is smaller than a threshold. We set the threshold at 300 mm in our experiment. The number of eye-gaze samples per second was about 30. In the dataset of the 20 sessions, there were 300 426 eye-gaze samples in total, and 77 576 samples were manually annotated as looking at the robot. For frame-wise evaluation, precision and recall of the eye-gaze towards the robot were 0.190 and 0.580, and the F1 score was 0.286. This result implies that the ground-truth label of eye gaze based on the actual eye-gaze direction is sometimes different from the head direction. However, even if the frame-wise performance is low, it is enough if we can detect the eye-gaze behavior which is continuous gaze longer than 10 seconds. We also evaluated the detection performance on a turn basis. There were 433 turns in the corpus, and the continuous eye-gaze behavior was observed in 115 turns of them. For this turn-wise evaluation, precision and recall of the eye-gaze behavior were 0.723 and 0.704, and the F1 score was 0.713. This result means that this method is sufficient to detect the eye-gaze behavior for engagement recognition. Note that we ignored some not looking states if the duration is smaller than 500 milliseconds. To convert the estimated binary states (looking or not) to the occurrence probability of the eye-gaze behavior, we use a logistic function with a threshold of 10 seconds.

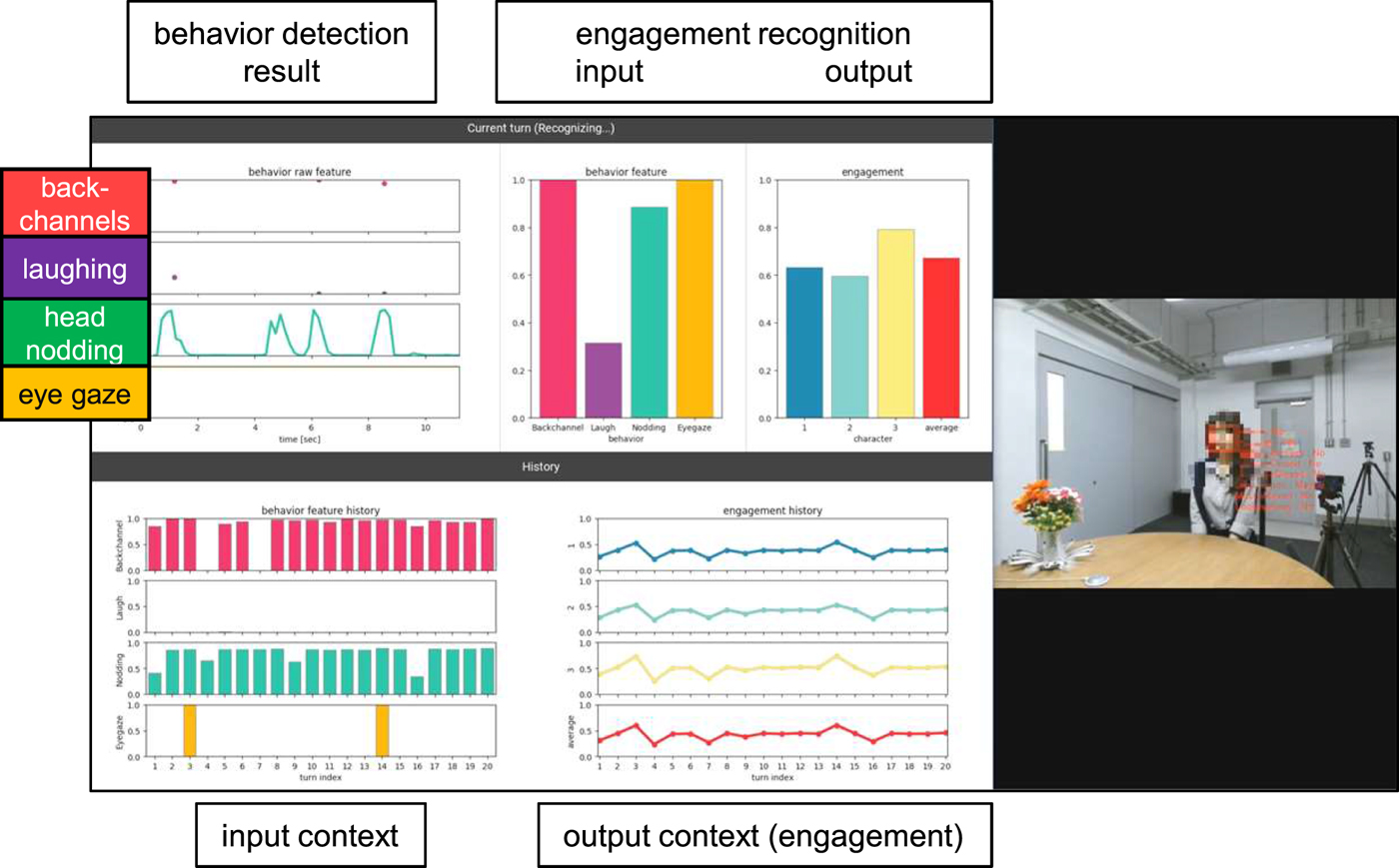

B) Integration with engagement recognition

We use the behavior detection models in the test phase of engagement recognition. At first, the occurrence probability of the l-th behavior pattern in the t-th turn of the test dataset is calculated as

(18)$$p_t (l) = \prod_{m=1}^{M} p_t(m)^{b_m} (1 - p_t(m))^{(1-{b_m})},$$

where M, m, p _t(m), and b _m∈{0, 1} denote the number of behaviors, the behavior index, the output probability of the behavior m, and the occurrence of the behavior m, respectively. Note that p _t(m) corresponds to the output of each behavior detection model, and the binary value b _m is based on the given behavior pattern l. For example, when the given behavior pattern l represents the case where both laughter (m=2) and eye-gaze (m=4) occur, the binary values are represented as (b ₁, b ₂, b ₃, b ₄) = (0, 1, 0, 1). As the behavior pattern l is represented by the combination of the occurrences, $l = \sum_{m=1}^{M} b_{m} \cdot 2^{m-1}$. The probability of engaging (equation (17)) is reformulated by marginalizing not only the character but also the behavior pattern with its occurrence probability as

(19)$$p(y_{it} = 1 \vert P_{tl}, i, {\bf \theta}, {\bf \Phi}) = \sum_{k=1}^{K} \sum_{l=1}^{L} \theta_{ik} \phi_{k l} p_t(l),$$

where P _tl denotes the set of the occurrence probabilities of all possible behavior patterns calculated by equation (18).

A) Experimental setup

We conducted the cross-validation with the 20 dialogue sessions: 19 for training and the rest for testing. In the proposed model, the number of sampling was 10 000, and all prior distributions were the uniform distribution. The evaluation was done for each annotator one by one where five annotators individually annotated each dialogue session. Given the annotator index i, the probability of the engaged label (equations (17) or (19)) was calculated for each turn. Setting the threshold at 0.5, we obtained the accuracy score which is a ratio of the number of the correctly recognized turns to the total number of turns. The final evaluation was made by averaging the accuracy scores for all annotators and also the cross-validation. The chance level was 0.579 (=1,271 / 2,165).

B) Effectiveness of character

At first, we compared the proposed model with two methods to see the effectiveness of the character. In this experiment, we used the input behavior patterns which were manually annotated. For the proposed model, we explored an appropriate number of characters (K) by changing from 2 to 5 on a trial basis. The first compared model was the same as the proposed model other than a unique character (K=1). The second compared models were based on other machine learning methods. We used logistic regression, SVM, and a multilayer perceptron (neural network). For each model, two types of training are considered: majority and individual. In the majority type, we integrated the training labels of the five annotators by majority voting and trained a unique model which was independent of the annotators. In the individual type, we trained an individual model for each annotator with his/her data only and used each model according to the input annotator index i in the test phase. Although the individual type can learn the different tendency of each annotator, the amount of training data decreases. Furthermore, we divided the training data into training and validation datasets on a session basis so that it corresponds to 9:1. We trained each model with the training dataset, and then tuned the parameter of each model with the validation dataset. For logistic regression, we tuned the weight parameter of the l2-norm regularization. For SVM, we used the radial basis function kernel and tuned the penalty parameter of the error term. For the multilayer perceptron, we tuned the weight parameter of the l2-norm regularization for each unit. We also needed to decide on other settings for the multilayer perceptron such as the number of hidden layers, the number of hidden units, the activation function, the optimization method, and the batch size. We tried many settings and report the best result among them.

Table 4 summarizes the accuracy scores. Among the conventional machine learning methods, the multilayer perceptron showed the highest score on both of the majority and individual types. For the majority type, the best setting of the multilayer perceptron was 5 hidden layers and 16 hidden units. For the individual type, the best setting was 1 hidden layer and 16 hidden units. The difference in the number of hidden layers can be explained by the number of available training data.

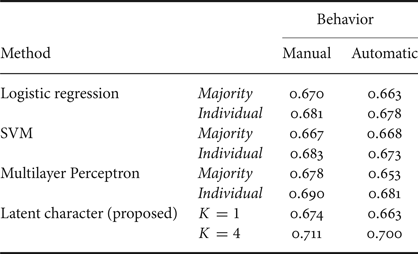

Table 4. Engagement recognition accuracy (K is the number of characters.)

Considering the character (K≥2), we improved the accuracy compared with the w/o-character models including the multilayer perceptron. The highest accuracy was 0.711 with the four characters (K=4). We conducted a paired t-test between the cases of the unique character (K = 1) and the four characters (K=4) and found a significant difference between them (t(99)=2.55, p=1.24×10⁻²). We also performed a paired t-test between the proposed model with the four characters and the multilayer perceptron models. There was a significant difference between the proposed model (K=4) and the majority type of the multilayer perceptron (t(99)=2.34, p=2.15×10⁻²). We also found a significant difference between the proposed model (K=4) and the individual type of the multilayer perceptron (t(99)=2.55, p=1.24×10⁻²).

These results indicate that the proposed model simulates each annotator's perception of engagement more accurately than the others by considering the character. Apparently, the majority voting is not enough for this kind of recognition task that contains subjectivity. Although the individual model has the potential to simulate each annotator's perception, it fails to address the data sparseness problem in model training. This means that there was not enough training data for each annotator. We often face this problem when we use data that was collected by the wisdom of crowd approach where a large number of annotators are available but the amount of data of each annotator is small.

C) Evaluation with automatic behavior detection

We evaluated the online processing described in Section V. We compared two types of the input features in the test phase: manually annotated and automatically detected. Note that we used the manually annotated features for training in both cases. We also tested the number of characters (K) at only one and four. Table 5 shows the difference between the manual and automatic features. The accuracy is not degraded so much even when we use the automatic detection. We performed the paired t-test on the proposed model with the four characters (K=4), and there was no significant difference between the cases of the manual and automatic features (t(99)=1.45, p=1.51×10⁻¹). This result indicates that we can apply our proposed model to live spoken dialogue systems. Note that all detection models can run in real time with short processing time which does not affect the decision-making process in spoken dialogue systems.

Table 5. Engagement recognition accuracy of the online processing

D) Identifying important behaviors

We examined the effectiveness of each behavior by eliminating one of the four behaviors from the feature set. We again tested the number of characters (K) at only one and four. Table 6 reports the results on both cases of the manual and automatic features. From this table, laughing and eye-gaze behaviors are more useful for this engagement recognition task. This result is partly consistent with the analysis of Table 2. It is assumed that backchannels and head nodding were indicating engagement, but those can be used more frequently than the others. While backchannel and head nodding behaviors play a role to acknowledge that the turn-taking floor will be held by the current speaker, laughing and eye-gaze behaviors express the reaction towards the spoken content. Therefore, laughing and eye-gaze behaviors are more related to the high level of engagement. However, it is thought that some backchannels such as expressive interjections (such as ‘oh’ in English and ‘he-’ in Japanese) [Reference Den, Yoshida, Takanashi and Koiso52] are used to express the high level of engagement. From this perspective, there is room for further investigation to classify each behavior into some categories which are correlated with the level of engagement.

Table 6. Recognition accuracy without each behavior of the proposed method

E) Example of parameter training

We analyzed the result of parameter training. The following parameters were trained using all 20 sessions. In this example, the number of characters was four (K=4).

The parameters of the character distribution (θ_ik) is shown in Fig. 5. The vertical axis represents the probability that each annotator has each character. It is observed that some annotators have common patterns. We clustered the annotators based on this distribution by using the hierarchical clustering with the unweighted pair-group method with arithmetic mean algorithm. From the generated tree diagram, we extracted three clusters that are reported in Table 7. Four annotators were independent (the annotators 5, 7, 8, 12). The table also shows the averaged agreement scores of the engagement labels among the annotators inside the same cluster. All scores are over the moderate agreement (larger than 0.400) and also higher than the whole averaged score (0.291) reported in Section III C. We further analyzed the averaged agreement scores between the clusters. Table 8 reports the scores that are lower than the in-cluster agreement scores.

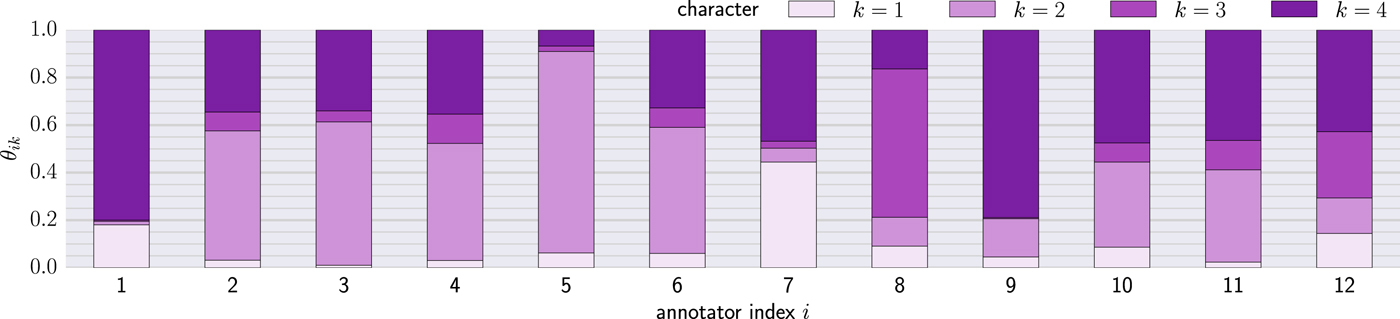

Fig. 5. Estimated parameter values of character distribution (Each value corresponds to the probability that each annotator has each character.).

Table 7. Clustered annotators based on character distribution and averaged in-cluster agreement scores

Table 8. Averaged agreement scores between-clusters

The parameters of the engagement distribution (ϕ_kl) is shown in Fig. 6. The vertical axis represents the probability that each behavior pattern is recognized as engaged by each character. Note that we excluded some behavior patterns which appear less than five times in the corpus. We also show the number of times when each behavior pattern is observed. The proposed model can obtain the different distribution for each character. Although the first character (k=1) seems to be reactive to some behavior patterns, it is also reactive to behaviors other than the four behaviors because the high probability is estimated against the empty behavior pattern (nothing) where no behavior was observed. The second and third characters (k=2, 3) show a similar tendency, but some are different (e.g. BL, BG, and BNG). The fourth character (k=4) is reactive to all behavior patterns except the patterns of empty (nothing) and eye gaze only (G). Among all characters, the co-occurrence of multiple behaviors leads to higher probability (the right side of the figure). Especially, when all behaviors are observed (BLNG), the probability becomes very high in all characters. This tendency indicates that the co-occurrence of multiple behaviors expresses the high level of engagement.

Fig. 6. Estimated parameter values of engagement distribution (Each value corresponds to the probability that each behavior pattern is recognized as engaged by each character. The number in parentheses next to the behavior pattern is the frequency of the behavior pattern in the corpus.).

F) How to determine character distribution

The advantage of the proposed model is to simulate various kinds of perspectives for engagement recognition by changing the character distribution. However, when we use the proposed model in a spoken dialogue system, we need to determine one character distribution to be simulated. We suggest a method based on the personality given to the dialogue system. Specifically, once we set the personality for the dialogue system, the character distribution for engagement recognition is decided. Here, as a proxy of the personality, we use the Big Five traits: extroversion, neuroticism, openness to experience, conscientiousness, and agreeableness [Reference Barrick and Mount64]. For example, given a social role of a laboratory guide, the dialogue system is expected to be extroverted.

In the annotation work, we also measured the Big Five scores of each annotator [Reference Wada65]. We then trained a softmax single-layer linear regression model which maps the Big Five scores to the character distribution as shown in Fig. 5. Note that the weight parameters of the regression are constrained by the l1-norm regularization and to be non-negative. The bias term was not added. Table 9 shows the regression weights and indicates that some characters are related to some personality traits. For example, extroversion is related to the first and fourth characters, followed by the second character.

Table 9. Regression weights for mapping from Big Five scores to character distribution

We also tested the regression with some social roles. When a dialogue system plays a role of a laboratory guide, we set the input score on extroversion at the maximum value among the annotators, and the other scores are set to the average values. The output of the regression was θ = (0.147,  0.226,  0.038,  0.589), which means the fourth character is weighted in this social role. For another social role such as a counselor, we set the input scores on conscientiousness and agreeableness at the maximum values among the annotators, and the other scores are set to the average values. The output was θ = (0.068,  0.464,  0.109,  0.359), which means the second and fourth characters are weighted in this social role Further investigation is required on the effectiveness of this personality control.
