1. Introduction
A graph
$G$
is universal for a class
$\mathcal{H}$
of graphs if
$G$
contains every graph in
$\mathcal{H}$
as a subgraph. The study of universal graphs was initiated by Rado [Reference Rado30] in the 1960s. Obviously, the complete graph
$K_n$
is universal for any family
$\mathcal{H}$
of
$n$
-vertex graphs. Research focused on finding the minimum size (i.e. number of edges) of universal graphs for various families of sparse graphs on
$n$
vertices. Babai, Chung, Erdős, Graham, and Spencer [Reference Babai, Chung, Erdős, Graham and Spencer5] proved that if
$\mathcal{H}$
is the family of all graphs with
$m$
edges, then the size of a universal graph for
$\mathcal{H}$
is in
$\Omega \!\left(m^2/\log ^2 m\right)$
and
$O\!\left(m^2\log \log m/ \log m\right)$
. Alon, Capalbo, Kohayakawa, Rödl, Rucinski, and Szemerédi [Reference Alon and Capalbo1, Reference Alon, Capalbo, Kohayakawa, Rödl, Rucinski and Szemerédi2] constructed a universal graph of optimal
$\Theta (n^{2-2/k})$
size for
$n$
-vertex graphs with maximum degree
$k$
.
Significantly better bounds exist for minor-closed families. Esperet, Joret, and Morin [Reference Esperet, Joret and Morin23] proved recently that there exist a universal graph with
$n\cdot 2^{O\left(\sqrt{\log n\cdot \log \log n}\right)}$
edges and vertices for
$n$
-vertex planar graphs, improving a longstanding previous record of
$O\big(n^{3/2}\big)$
by Babai, Chung, Erdős, Graham, and Spencer [Reference Babai, Chung, Erdős, Graham and Spencer5]. For bounded-degree planar graphs, Capalbo [Reference Capalbo16] constructed universal graphs of linear size, improving an earlier bound by Bhatt, Chung, Leighton, and Rosenberg [Reference Bhatt, Chung, Leighton and Rosenberg9], which extends to other families with bounded bisection width. Böttcher, Pruessmann, Taraz, and Würfl [Reference Böttcher, Pruessmann, Taraz and Würfl13, Reference Böttcher, Schacht and Taraz14] proved that every
$n$
-vertex graph with minimum degree
$\Omega (n)$
is universal for
$n$
-vertex bounded-degree planar graphs. For
$n$
-vertex trees, Chung and Graham [Reference Chung and Graham18, Reference Chung and Graham19] constructed an
$n$
-vertex universal graph of size
$O(n\log n)$
, and showed that this bound is asymptotically optimal apart from constant factors.
Rado [Reference Rado30] introduced universality also for induced subgraphs. A graph
$G$
is induced universal for a class
$\mathcal{H}$
of graphs if
$G$
contains every graph in
$\mathcal{H}$
as an induced subgraph. Alon and Nenadov [Reference Alon and Nenadov3] described a graph on
$O(n^{\Delta/2})$
vertices that is induced universal for the class of
$n$
-vertex graphs of maximum degree
$\Delta$
. Recently, Esperet, Joret, and Morin [Reference Esperet, Joret and Morin23] showed, improving earlier results by Bonamy, Gavoille, and Pilipczuk [Reference Bonamy, Gavoille and Pilipczuk11] and Dujmović, Esperet, Joret, Gavoille, Micek, and Morin [Reference Dujmović, Esperet, Gavoille, Joret, Micek and Morin22], that for every
$n\in{\mathbb{N}}$
, there exists a graph
$U_n$
with
$n\cdot 2^{O\left(\sqrt{\log n\cdot \log \log n}\right)}$
edges and vertices that contains every
$n$
-vertex planar graph as an induced subgraph.
In this paper, we extend the concept of universality to geometric graphs. A geometric graph is a graph together with a straight-line drawing in the plane in which the vertices are distinct points and the edges are straight-line segments not containing any vertex in their relative interiors. A geometric graph is convex if its vertices are in convex position (that is, they form the vertex set of a convex polygon in the plane).
A geometric graph is universal for a class
$\mathcal H$
of planar graphs if it contains an embedding of every graph in
$\mathcal{H}$
. For an (abstract) graph
$G_1$
and a geometric graph
$G_2$
, an embedding of
$G_1$
into
$G_2$
is an injective map
$\varphi \,:\,V(G_1)\rightarrow V(G_2)$
such that (i) every edge
$uv\in E(G_1)$
is mapped to an edge
$\varphi (u)\varphi (v)\in E(G_2)$
(that is,
$\varphi$
is a graph homomorphism); and (ii) every pair of edges
$u_1v_1, u_2v_2\in E(G_1)$
is mapped to a pair of noncrossing line segments
$\varphi (u_1)\varphi (v_1)$
and
$\varphi (u_2)\varphi (v_2)$
in the plane. When
$\varphi \,:\,V(G_1)\rightarrow V(G_2)$
is bijective, we say that it is an embedding of
$G_1$
onto
$G_2$
.
Previous research in the geometric setting was limited to finding the smallest complete geometric graph that is universal for the class of planar graphs on
$n$
vertices. The intersection pattern of the edges in a geometric graph is determined by the location of its vertices; hence universal complete geometric graphs are commonly referred to as
$n$
-universal point sets. De Fraysseix, Pach, and Pollack [Reference de Fraysseix, Pach and Pollack20] proved that the
$2n\times n$
section of the integer lattice is an
$n$
-universal point set. Over the last 30 years, the upper bound on the size of an
$n$
-universal point set has been improved from
$2n^2$
to
$n^2/4+O(n)$
[Reference Bannister, Cheng, Devanny and Eppstein6]; the current best lower bound is
$(1.293-o(1))n$
[Reference Scheucher, Schrezenmaier and Steiner31] (based on stacked triangulations, that is, maximal planar graphs of treewidth three; see also [Reference Cardinal, Hoffmann and Kusters17, Reference Kurowski28]). It is known that every set of
$n$
points in general position is universal for
$n$
-vertex outerplanar graphs [Reference Bose12, Reference Gritzmann, Mohar, Pach and Pollack26]. An
$O(n\log n)$
upper bound is known for 2-outerplanar and simply nested graphs [Reference Angelini, Bruckdorfer, Di Battista, Kaufmann, Mchedlidze, Roselli and Squarcella4], and an
$O(n^{3/2}\log n)$
upper bound for
$n$
-vertex stacked triangulations [Reference Fulek and Tóth25].
Our results. The results on universal point sets yield an upper bound of
$O(n^4)$
for the size of a geometric graph that is universal for
$n$
-vertex planar graphs and
$O(n^2)$
for
$n$
-vertex outerplanar graphs, including trees. We improve the upper bound for
$n$
-vertex trees to an optimal
$O(n\log n)$
, and show that the quadratic upper bound for outerplanar graphs is essentially tight for convex geometric graphs. More precisely, we prove the following results:
-
• For every
$n\in{\mathbb{N}}$
, there exists a geometric graph
$G$
with
$n$
vertices and
$O(n\log n)$
edges that is universal for forests with
$n$
vertices (Theorem 1 in Section 2). The bound of
$O(n\log n)$
edges is asymptotically optimal, apart from constant factors, even in the abstract setting, for caterpillars, and if the universal graph is allowed to have more than
$n$
vertices [[Reference Chung and Graham18], Theorem 1]. The proof of universality is constructive and yields a polynomial-time algorithm that embeds any forest with
$n$
vertices onto
$G$
. -
• For every
$h\in{\mathbb{N}}$
and
$n\geq 3h^2$
, every
$n$
-vertex convex geometric graph that is universal for the family of
$n$
-vertex cycles with
$h$
disjoint chords has
$\Omega _h(n^{2-1/h})$
edges (Theorem 9 in Section 3); this almost matches the trivial
$O(n^2)$
upper bound, which hence cannot be improved by polynomial factors even for
$n$
-vertex outerplanar graphs of maximum degree three. For
$n$
-vertex cycles with
$2$
disjoint chords, there exists an
$n$
-vertex convex geometric graph with
$O\big(n^{3/2}\big)$
edges (Theorem 10 in Section 3), which matches the lower bound above. -
• For every
$n\in{\mathbb{N}}$
, there exists a convex geometric graph
$G$
with
$n$
vertices and
$O(n\log n)$
edges that is universal for
$n$
-vertex caterpillars (Theorem 12 in Section 3).
2. Universal geometric graphs for forests
In this section, we prove the following theorem.
Theorem 1.
For every
$n\in{\mathbb{N}}$
, there exists a geometric graph
$G$
with
$n$
vertices and
$O(n\log n)$
edges that is universal for forests with
$n$
vertices.
Figure 1. A schematic drawing of the universal graph for
$n=15$
vertices (left) and a geometric drawing of the universal graph for
$n=7$
vertices. The edges of the tree
$B$
are shown black; the edges of the groups (E1), (E2), and (E3) are shown red, orange, and blue, respectively. Edges that belong to several of these groups are shown in the colour of the first group they belong to.
2.1. Construction
We adapt a construction due to Chung and Graham [Reference Chung and Graham19], originally designed for abstract graphs, to the geometric setting. For a given
$n\in{\mathbb{N}}$
, they construct a graph
$G$
with
$n$
vertices and
$O(n\log n)$
edges such that
$G$
contains every forest on
$n$
vertices as a subgraph. Let us sketch this construction. For simplicity assume that
$n=2^h-1$
, for some integer
$h\ge 2$
. Let
$B$
be a complete rooted ordered binary tree on
$n$
vertices. A level is a set of vertices at the same distance from the root. The levels are labelled
$1,\ldots,h$
, from the one containing the root to the one that contains the leaves of
$B$
. A pre-order traversal of
$B$
(which consists first of the root, then recursively of the vertices in its left subtree, and then recursively of the vertices in its right subtree) determines a total order on the vertices, and it also induces a total order on the vertices in each level of
$B$
. In each level, we call two consecutive elements in this order level-neighbours; in particular, any two siblings are level-neighbours. For a vertex
$v$
of
$B$
, we denote by
$B(v)$
the subtree of
$B$
rooted at
$v$
. The graph
$G$
contains
$B$
and three additional groups of edges defined as follows (see Figure 1 for an illustration).
-
(E1) Every vertex
$v$
is adjacent to all vertices in the subtree
$B(v)$
; -
(E2) for every vertex
$v$
and every left or right level-neighbour
$u$
of
$v$
in
$B$
, the vertex
$v$
is adjacent to all vertices in the subtree
$B(u)$
; and -
(E3) every vertex
$v$
whose parent has a left level-neighbour
$p$
is adjacent to all vertices in the subtree
$B(p)$
.
It is easily checked that
$G$
has
$O(n\log n)$
edges. Indeed, the binary tree
$B$
has
$2^{i-1}$
vertices on level
$i$
, for
$i=1,\ldots,h$
. A vertex
$v$
on level
$i$
has
$2^{h-i+1}-1$
descendants (including itself), and each of its level-neighbours have the same number of descendants. In addition, the left level-neighbour of the parent of
$v$
(if present) has
$2\cdot (2^{h-i+1}-1)$
descendants (excluding itself). Altogether
$v$
is adjacent to less than
$5\cdot 2^{h-i+1}$
vertices at the same or at lower levels of
$B$
. Hence, the number of edges in
$G$
is less than
\begin{align*} 5\cdot \sum _{i=1}^h 2^{i-1} \cdot 2^{h-i+1} = 5\cdot 2^h \cdot h = 5(n+1)\cdot \log _2\! (n+1) \in O\!\left(n \log n\right). \end{align*}
Chung and Graham [Reference Chung and Graham19] showed that
$G$
is universal for forests, that is,
$G$
contains every forest on
$n$
vertices as a subgraph.Footnote
1
Geometric representation
We next describe how to embed the vertices of
$G$
into
${{\mathbb{R}}}^2$
; see Figure 2 (left) for an illustration. First, the
$x$
-coordinates of the vertices are assigned in the order determined by a pre-order traversal of
$B$
. For simplicity, let us take these
$x$
-coordinates to be
$0,\ldots,n-1$
, so that the root of
$B$
is placed on the
$y$
-axis. The vertex of
$G$
with
$x$
-coordinate
$i$
is denoted by
$v_i$
.
Figure 2. Illustration for the assignment of
$x$
- and
$y$
-coordinates to the vertices of
$G$
, and for the definition of interval (left). Illustration for Observation 2(right).
The
$y$
-coordinates of the vertices are determined by a BFS traversal of
$B$
starting from the root, in which at every vertex the right sibling is visited before the left sibling. Denote by
$\sigma$
the order of vertices of
$G$
in this traversal. If a vertex
$u$
precedes a vertex
$v$
in
$\sigma$
, then
$u$
gets a larger
$y$
-coordinate than
$v$
. The gap between two consecutive
$y$
-coordinates is chosen so that every vertex is above all lines determined by any two vertices with smaller
$y$
-coordinates. This choice is feasible because no line through two vertices of
$G$
is vertical, due to the
$x$
-coordinate assignment. Thus, if the maximum difference between the
$y$
-coordinates of two vertices in a set
$X\subseteq V(G)$
is some value
$Y$
, then any line through two vertices in
$X$
has a slope whose absolute value is at most
$Y$
. Hence, any point that is
$n\cdot Y$
units higher than every vertex in
$X$
is above every line determined by two vertices in
$X$
.
Note that this choice of coordinates fixes the rotation system of the vertex set, which is the collection of circular sequences obtained as follows: For each vertex
$v$
consider a ray
$r_v$
emanating from
$v$
and record the sequence of other vertices as
$r_v$
encounters them while rotating counterclockwise around
$v$
. The rotation system in turn determines for each pair of (straight-line) edges whether they cross [[Reference Kynčl29], Proposition 6].
Our figures display the vertices of
$B$
in the correct
$x$
- and
$y$
-order, but – with the exception of Figure 1 (right) – they are not to scale. The
$y$
-coordinates in our construction are rapidly increasing (similarly to constructions in [Reference Bukh, Matoušek and Nivasch15, Reference Fulek and Tóth25]). For this reason, in our figures we draw the edges in
$B$
as straight-line segments and all other edges as Jordan arcs.
The choice of
$y$
-coordinates of the vertices implies that, for any vertex
$v$
, all vertices with larger
$y$
-coordinate than
$v$
see the vertices below
$v$
in the same circular order as
$v$
. Furthermore, the vertices of
$G$
are in general position, that is, no three are collinear. In particular, we have the following property (see Figure 2 (right) for an example).
Observation 2.
If
$ab, cd\in E(G)$
are such that (1)
$a$
has larger
$y$
-coordinate than
$b$
,
$c$
, and
$d$
, and (2)
$b$
has smaller or larger
$x$
-coordinate than both
$c$
and
$d$
, then
$ab$
and
$cd$
do not cross.
Proof. By (2) we can assume, without loss of generality up to a switch of the labels of
$c$
and
$d$
, that
$d$
is below the line through
$b$
and
$c$
. By (1) and by construction,
$a$
is above the line through
$b$
and
$c$
, hence
$ab$
and
$cd$
are separated by the line through
$b$
and
$c$
and thus do not cross.
2.2. Intervals and embeddings
For every interval
$[i,j]\subseteq [0,n-1]$
we define
$G[i,j]$
to be the subgraph of
$G$
induced by the vertices with
$x$
-coordinates in
$[i,j]$
. We call the graph
$G[i,j]$
an interval of
$G$
. The length of an interval
$G[i,j]$
of
$G$
is defined as
$|G[i,j]|=j-i+1$
, which is the number of vertices in
$G[i,j]$
. If
$I$
is an interval of integers, then we denote by
$G(I)$
the corresponding interval of
$G$
. For a subset
$U\subseteq V(G)$
, we denote by
$G[U]$
the subgraph of
$G$
induced by
$U$
.
In Section 2.3, we present a recursive algorithm that can embed every tree on
$h$
vertices onto every interval of length
$h$
of
$G$
. In some cases, we embed the root of a tree at some vertex of the interval, and recurse on the subtrees. For this strategy, it is convenient to embed the root at the centre of a spanning star. The following lemma shows that every interval contains spanning stars.
Lemma 3.
Every interval
$G[i,j]$
of
$G$
on at least two vertices contains a noncrossing spanning star centred at the highest vertex
$v_k$
and a noncrossing spanning star centred at the second highest vertex
$v_s$
of
$G[i,j]$
.
Proof. We first argue for the star centred at
$v_k$
. By construction (pre-order traversal and increasing
$y$
-coordinates along each level from left to right), all vertices in
$G[k,j]$
belong to
$B(v_k)$
. By construction,
$G$
contains edges from
$v_k$
to every vertex in
$B(v_k)$
; these edges are in
$E(B)$
and in the edge group (E1). This completes the proof if
$k=i$
. Assume that
$k\gt i$
. Then
$v_k$
has a parent
$v_p$
; further, we have
$p\lt i$
, because
$v_k$
is the highest vertex of
$G[i,j]$
and every vertex is higher than its descendants. Therefore,
$v_k$
has a left sibling
$v_\ell$
(which may or may not be in
$G[i,j]$
); all the vertices in
$G[i,k-1]$
are in
$B(v_\ell )$
and hence are adjacent to
$v_k$
, via edges in the edge group (E2).
We now argue about the second highest vertex
$v_s$
of
$G[i,j]$
. We consider two cases.
If
$k=j$
, then
$v_s$
is the highest vertex of
$G[i,j-1]$
. Therefore,
$G[i,j-1]$
contains a spanning star centred at
$v_s$
, as argued above if
$i\lt j-1$
; if
$i=j-1$
, then such a star trivially exists. The remaining edge between
$v_s$
and
$v_k$
also exists, as it is part of the star centred at
$v_k$
.
Hence, we may assume that
$k\lt j$
. We distinguish between two cases.
Assume first that
$k+1\leq s\leq j$
. Note that
$v_s$
is a child of
$v_k$
: Namely, since no vertex in
$G[i,j]$
is higher than
$v_k$
, it follows that neither the right level-neighbour of
$v_k$
, if it exists, nor a vertex on a level higher than
$v_k$
are in
$G[i,j]$
, hence
$v_s$
is either the left or the right child of
$v_k$
. We prove that
$v_s$
is adjacent to all the vertices of
$G[i,k-1]$
, to
$v_k$
, and to all the vertices of
$G[k+1,j]$
. Concerning the vertices of
$G[i,k-1]$
, we can assume that
$k\gt i$
, as otherwise
$G[i,k-1]$
contains no vertex. Recall that
$k\gt i$
implies that
$v_k$
has a left sibling
$v_\ell$
, which may or may not be in
$G[i,j]$
; regardless, all the vertices in
$G[i,k-1]$
are in
$B(v_\ell )$
and are hence adjacent to
$v_s$
, via edges in the edge group (E3). Further, the edge between
$v_s$
and
$v_k$
exists, as it is part of the star centred at
$v_k$
. Finally, each vertex in
$G[k+1,j]$
is either in
$B(v_s)$
, hence it is adjacent to
$v_s$
via an edge in
$E(B)$
or in the edge group (E1), or in
$B(v_q)$
, where
$v_q$
is the child of
$v_k$
different from
$v_s$
, hence it is adjacent to
$v_s$
via an edge in the edge group (E2).
Assume next that
$i\leq s\leq k-1$
. Then
$v_s$
must be on a level higher than
$v_{k+1}$
, which is the left child of
$v_k$
, and on a level lower than
$v_p$
, which is the parent of
$v_k$
. Hence,
$v_s$
is the left sibling of
$v_k$
, which implies
$p=s-1$
and
$s=i$
. Therefore,
$v_s$
is adjacent to all the vertices in
$G[i,k-1]$
via edges in
$E(B)$
or in the edge group (E1) as well as to all the vertices of
$G[k,j]$
, via edges in the edge group (E2); hence,
$v_s$
is adjacent to all the vertices of
$G[i,j]$
.
Finally, note that, as the vertices of
$G$
are laid out in general position, every star in
$G[i,j]$
is noncrossing.
The recursive algorithm (Section 2.3) occasionally embeds a subtree of
$T$
onto an induced subgraph of
$G$
that is ‘almost’ an interval, in the sense that it can be obtained from an interval of
$G$
by deleting its highest vertex or by replacing its highest vertex with a vertex that does not belong to the interval. Lemmas 5 and 6 below provide the tools to construct such embeddings.
We first prove that the ‘structure’ of an interval without its highest vertex is similar to that of an interval; this is formalised by the following definition. Let
$U$
and
$W$
be two subsets of
$V(G)$
with
$h=|U|=|W|$
. Let
$u_1,\dots,u_h$
and
$w_1,\dots,w_h$
be the vertices of
$U$
and
$W$
, respectively, ordered by increasing
$x$
-coordinates. We say that
$G[U]$
and
$G[W]$
are crossing-isomorphic if the following conditions are satisfied:
-
(C1) For any two distinct integers
$p,q\in \{1,\dots,h\}$
, the edge
$u_pu_q$
is an edge of
$G[U]$
if and only if
$w_pw_q$
is an edge of
$G[W]$
. -
(C2) For any four distinct integers
$p,q,r,s\in \{1,\dots,h\}$
such that both
$u_pu_q$
and
$u_ru_s$
are edges of
$G[U]$
, the edges
$u_pu_q$
and
$u_ru_s$
cross if and only if the edges
$w_pw_q$
and
$w_rw_s$
cross. -
(C3) For any integer
$i\in \{1,\dots,h\}$
,
$u_i$
is the highest vertex of
$G[U]$
if and only if
$w_i$
is the highest vertex of
$G[W]$
.
If
$G[U]$
and
$G[W]$
are crossing-isomorphic, the graph isomorphism given by
$\lambda (u_i)=w_i$
, for all
$i=1,\ldots, h$
, is a crossing-isomorphism. Clearly, the inverse of a crossing-isomorphism is also a crossing-isomorphism. We have the following.
Lemma 4.
Let
$v_k$
be the highest vertex in an interval
$G[i,j]$
with
$i\lt j$
, and assume that
$G[i,j]$
contains neither the right child of
$v_k$
, nor the left child of the left sibling of
$v_k$
(if it exists), nor any descendant of the left child of the left sibling of
$v_k$
(if it exists). Then
$G[i,j]-v_k$
is crossing-isomorphic to some interval
$G(I)$
of
$G$
. Moreover, the interval
$G(I)$
can be computed in
$O(1)$
time.
Proof. If
$k=i$
or
$k=j$
, then
$G[i,j]-v_k$
is the interval
$G[i+1,j]$
or
$G[i,j-1]$
, respectively, and the conclusion is immediate. So assume that
$i\lt k\lt j$
and that the subtrees of
$B$
rooted at the children of
$v_k$
have height
$\ell$
. Thus,
$B(v_{k+1})$
has
$D\,:\!=\,2^\ell -1$
vertices. Note that
$\ell \geq 1$
, that is,
$v_k$
has children, as otherwise
$v_{k+1}$
would be either the right sibling of
$v_k$
or a vertex at a higher level than
$v_k$
, in both cases contradicting the assumption that
$v_k$
is the highest vertex in
$G[i,j]$
. Let
$I=[i-D,j-D-1]$
and note that
$I$
can be computed in
$O(1)$
time. We prove that
$G[i,j]-v_k$
is crossing-isomorphic to
$G(I)$
. Let
$u_1,\dots,u_h$
be the vertices of
$G[i,j]-v_k$
, ordered by increasing
$x$
-coordinates; further, let
$w_1,\dots,w_h$
be the vertices of
$G(I)$
, ordered by increasing
$x$
-coordinates. Refer to Figure 3.

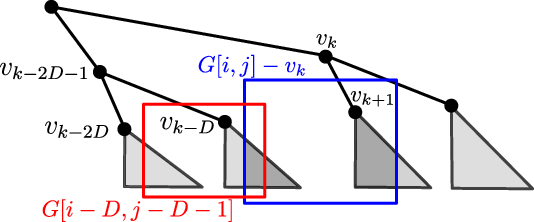

Figure 3. The interval
$G[i,j]-v_k$
is crossing-isomorphic to the interval
$G[i-D,j-D+1]$
.
Since
$v_k$
is the highest vertex in
$G[i,j]$
and
$i\lt k\lt j$
, it follows that
$v_k$
is not the root of
$B$
and
$v_{k-1}$
is not the parent of
$v_k$
. Hence
$v_k$
is the right child of its parent and has a left sibling
$v_{k-2D-1}$
; note that, since
$v_k$
has children, its left sibling
$v_{k-2D-1}$
also has children. Since by assumption
$G[i,j]$
contains neither the left child of
$v_{k-2D-1}$
nor any descendant of the left child of
$v_{k-2D-1}$
, it follows that
$G[i,k-1]$
is a subgraph of
$G$
induced by vertices in the right subtree of the left sibling of
$v_k$
. Specifically,
$G[i,k-1]$
is induced by the last
$k-i\leq D$
vertices (in a pre-order traversal) of the subtree
$B(v_{k-D})$
of height
$\ell$
, rooted at the right child
$v_{k-D}$
of
$v_{k-2D-1}$
. Further,
$G[i-D,k-D-1]$
consists of the last
$k-i$
vertices (in a pre-order traversal) of the subtree
$B(v_{k-2D})$
of height
$\ell$
, rooted at the left child
$v_{k-2D}$
of
$v_{k-2D-1}$
. Hence,
$G[i,k-1]$
is crossing-isomorphic to
$G[i-D,k-D-1]$
.
Since
$v_{k+1}$
is the left child of
$v_k$
and since the right child of
$v_k$
is not a vertex of
$G[i,j]$
by assumption, it follows that
$G[k+1,j]$
is the subgraph of
$G$
induced by the first
$j-k$
vertices (in a pre-order traversal) of the subtree
$B(v_{k+1})$
of height
$\ell$
. Further,
$G[k-D,j-D-1]$
consists of the first
$j-k$
vertices (in a pre-order traversal) of the subtree
$B(v_{k-D})$
of height
$\ell$
. Hence,
$G[k+1,j]$
is crossing-isomorphic to
$G[k-D,j-D-1]$
.
Condition (C1). In order to prove that Condition (C1) is satisfied (that is,
$G[i,j]-v_k$
is isomorphic to
$G[I]$
), it remains to argue about the edges of
$G[i,j]-v_k$
between
$G[i,k-1]$
and
$G[k+1,j]$
(that is, between
$\{u_1,\dots,u_{k-i}\}$
and
$\{u_{k-i+1},\dots,u_h\}$
), and about the edges of
$G(I)$
between
$G[i-D,k-D-1]$
and
$G[k-D,j-D-1]$
(that is, between
$\{w_1,\dots,w_{k-i}\}$
and
$\{w_{k-i+1},\dots,w_h\}$
). We claim that, for any pair of integers
$p\in [1,k-i]$
and
$q\in [k-i+1,h]$
,
$u_pu_q$
is an edge of
$G[i,j]-v_k$
if and only if
$w_pw_q$
is an edge of
$G(I)$
.
To prove the claim, recall that vertices
$v_{k-2D}$
,
$v_{k-D}$
, and
$v_{k+1}$
are at height
$\ell$
of
$G$
, and the descendants of these vertices induce isomorphic subgraphs
$G[k-2D,k-D-1]$
,
$G[k-D,$
$k-1]$
, and
$G[k+1,k+D]$
, respectively. Since
$u_p$
and
$u_q$
(resp.,
$w_p$
and
$w_q$
) have different ancestors at height
$\ell$
, they are not in an ancestor-descendant relationship, and so they cannot be connected by any edge in the edge group (E1). It remains to consider edges in the edge groups (E2) and (E3). In any case,
$u_p$
and
$w_p$
are on the same level, and similarly
$u_q$
and
$w_q$
are on the same level.
Note that the intervals
$[k-2D,k-D-1]$
and
$[k-D,k-1]$
are consecutive, but there is a gap between
$[k-D,k-1]$
and
$[k+1,k+D]$
. This means that for any pair of integers
$s\in [k-2D,k-D-1]$
and
$t\in [k-D,k-1]$
, the vertices
$v_s$
and
$v_t$
are level-neighbours if and only if the vertices
$v_{s+D}$
and
$v_{t+D+1}$
are level-neighbours (where
$s+D\in [k-D,k-1]$
and
$t+D+1\in [k+1,k+D]$
). Consequently, for any
$s\in [k-2D,k-D-1]$
and
$t\in [k-D,k-1]$
,
$v_s v_t$
is in the edge group (E2) if and only if
$v_{s+D}v_{t+D+1}$
is in the edge group (E2). It follows that
$u_pu_q$
is in the edge group (E2) if and only if
$w_pw_q$
is in the edge group (E2). The same argument establishes that
$u_pu_q$
is in the edge group (E3) if and only if
$w_pw_q$
is in the edge group (E3), assuming that the height of both
$u_p$
and
$u_q$
is at most
$\ell -1$
. Only the vertices
$v_{k-2D}$
,
$v_{k-D}$
, and
$v_{k+1}$
have height
$\ell$
in
$G[k-2D,k-D-1]$
,
$G[k-D,k-1]$
, and
$G[k+1,k+D]$
. All edges incident to these vertices in
$G(I)$
and
$G[i,j]-v_k$
are in the edge groups (E1) and (E2). (There are edges in the edge group (E3) between
$v_{k+1}$
and all vertices in
$G[k-2D,k-D]$
, but
$G[i,j]$
does not contain any vertex in
$G[k-2D,k-D]$
.)
Condition (C2). Recall that
$\sigma$
is the order of vertices in the BFS traversal of
$B$
that determines their
$y$
-coordinates (that is, if a vertex
$u$
precedes another vertex
$v$
in
$\sigma$
, then
$u$
gets a larger
$y$
-coordinate than
$v$
.) We claim that
$\sigma$
determines the same permutation on the vertices
$u_1,\dots,u_h$
of
$G[i,j]-v_k$
and the vertices
$w_1,\dots,w_h$
of
$G(I)$
, that is, a vertex
$u_p$
precedes a vertex
$u_q$
in
$\sigma$
if and only if the vertex
$w_p$
precedes the vertex
$w_q$
in
$\sigma$
. This property follows from the following facts:
-
1. The vertices
$u_1,\dots,u_{k-i}$
(resp.,
$w_1,\dots,w_{k-i}$
) are the last
$k-i$
vertices in a pre-order traversal of the subtree
$B(v_{k-D})$
(resp., of the subtree
$B(v_{k-2D})$
) of
$B$
of height
$\ell$
; -
2. the vertices
$u_{k-i+1},\dots,u_h$
(resp.,
$w_{k-i+1},\dots,w_h$
) are the first
$h-k+i$
vertices in a pre-order traversal of the subtree
$B(v_{k+1})$
(resp., of the subtree
$B(v_{k-D})$
) of
$B$
of height
$\ell$
; and -
3. the vertices of
$B(v_{k-D})$
(resp., of
$B(v_{k-2D})$
) precede the vertices of
$B(v_{k+1})$
(resp., of
$B(v_{k-D})$
) in a pre-order traversal of
$B$
.
Therefore, the rotation systems of
$G[i,j]-v_k$
and
$G(I)$
are the same and so are the pairs of edges that cross.
Condition (C3). Finally, note that
$v_{k+1}$
is the highest vertex of
$G[i,j]-v_k$
and
$v_{k-D}$
is the highest vertex of
$G[i-D,j-D-1]$
. Since
$v_{k+1}=u_{k-i+1}$
and
$v_{k-D}=w_{k-i+1}$
, Condition (C3) is also satisfied.
This concludes the proof that
$G[i,j]-v_k$
and
$G(I)$
are crossing-isomorphic.
We are now ready to present our tools for embedding trees onto ‘almost’ intervals. The first one deals with subgraphs of
$G$
obtained by deleting the highest vertex from an interval.
Lemma 5.
Let
$G[i,j]$
be an interval of
$G$
with
$h+1$
vertices and let
$v_k$
be its highest vertex. Assume that there is a crossing-isomorphism
$\lambda$
from
$G[i,j]-v_k$
to some interval
$G(I)$
of
$G$
with
$h$
vertices. Further, assume that a tree
$T$
with
$h$
vertices admits an embedding
$\varphi$
onto
$G(I)$
. Then
$\varphi^{\prime}=\lambda ^{-1} \circ \varphi$
is an embedding of
$T$
onto
$G[i,j]-v_k$
, and if
$a$
is the vertex of
$T$
such that
$\varphi (a)$
is the highest vertex of
$G(I)$
, then
$\varphi^{\prime}(a)$
is the highest vertex of
$G[i,j]-v_k$
.
Proof. Let
$u_1,\dots,u_h$
and
$w_1,\dots,w_h$
be the vertices of
$G(I)$
and
$G[i,j]-v_k$
, respectively, ordered by increasing
$x$
-coordinates. Let
$a_1,\dots,a_h$
be the vertices of
$T$
ordered so that
$\varphi (a_i)=u_i$
, for
$i=1,\dots,h$
. Note that
$\varphi^{\prime}=\lambda ^{-1} \circ \varphi$
yields
$\varphi^{\prime}(a_i)=w_i$
for
$i=1,\dots,h$
. We now prove that
$\varphi^{\prime}$
is an embedding of
$T$
onto
$G[i,j]-v_k$
with the properties stated in the lemma.
First, for every
$p,q\in \{1,\dots,h\}$
such that
$a_pa_q$
is an edge in
$T$
, we have that
$\varphi^{\prime}(a_p)\varphi^{\prime}(a_q)=w_pw_q$
is an edge in
$G[i,j]-v_k$
. In particular,
$\varphi (a_p)\varphi (a_q)=u_pu_q$
is an edge in
$G(I)$
, given that
$\varphi$
is an embedding of
$T$
onto
$G(I)$
. By Condition (C1) for
$\lambda$
, the edge
$w_pw_q$
is an edge of
$G[i,j]-v_k$
.
Second, for every
$p,q,r,s\in \{1,\dots,h\}$
such that
$a_pa_q$
and
$a_ra_s$
are distinct edges of
$T$
, the edges
$\varphi^{\prime}(a_p)\varphi^{\prime}(a_q)=w_pw_q$
and
$\varphi^{\prime}(a_r)\varphi^{\prime}(a_s)=w_rw_s$
do not cross each other. Namely,
$\varphi (a_p)\varphi (a_q)=u_pu_q$
and
$\varphi (a_r)\varphi (a_s)=u_ru_s$
do not cross each other, given that
$\varphi$
is an embedding of
$T$
onto
$G(I)$
. Then Condition (C2) for
$\lambda$
implies that
$w_pw_q$
and
$w_rw_s$
do not cross each other.
Finally, let
$a_t$
be the vertex of
$T$
such that
$\varphi (a_t)=u_t$
is the highest vertex of
$G(I)$
. Condition (C3) for
$\lambda$
implies that
$w_t$
is the highest vertex of
$G[i,j]-v_k$
. By construction,
$\varphi^{\prime}(a_t)=w_t$
. This concludes the proof of the lemma.
The second tool deals with subgraphs of
$G$
obtained by replacing the highest vertex of an interval with another ‘high’ vertex outside the interval; see Figure 4 for an illustration.
Figure 4. Illustration for the statement of Lemma 6.
Lemma 6.
Let
$G[i,j]$
be an interval of
$G$
with
$h$
vertices and let
$v_k$
be its highest vertex. Let
$v_x$
be a vertex of
$G$
that is higher than all vertices in
$G[i,j]-v_k$
and that does not belong to
$G[i,j]$
. Assume that a tree
$T$
with
$h$
vertices admits an embedding
$\varphi$
onto
$G[i,j]$
. Let
$a$
be the vertex of
$T$
such that
$\varphi (a)=v_k$
; further, let
$\varphi^{\prime}(a)=v_x$
and
$\varphi^{\prime}(b)=\varphi (b)$
for every vertex
$b$
of
$T$
other than
$a$
. Then
$\varphi^{\prime}$
is an embedding of
$T$
onto
$G[i,j]-v_k+v_x$
.
Proof. By construction, we have
$\varphi^{\prime}(b)=\varphi (b)$
for every vertex
$b$
of
$T$
other than
$a$
. Since
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
, we only need to prove that none of the edges incident to
$a$
crosses any other edge of
$T$
in
$\varphi^{\prime}(T)$
. Let
$ab$
and
$cd$
be two edges of
$T$
, and let
$v_p\,:\!=\,\varphi^{\prime}(b)$
,
$v_q\,:\!=\,\varphi^{\prime}(c)$
, and
$v_r\,:\!=\,\varphi^{\prime}(d)$
, where
$p,q,r\in [i,j]$
. We prove that
$v_xv_p$
and
$v_qv_r$
do not cross. We may assume, w.l.o.g., that
$q\lt r$
. Further, assume that
$x\gt j$
, as the case in which
$x\lt i$
can be handled by a symmetric argument.
-
• If
$r\lt p$
, then
$v_xv_p$
and
$v_qv_r$
do not cross as they use disjoint
$x$
-intervals. -
• If
$p\lt q$
, then
$v_xv_p$
and
$v_qv_r$
do not cross by Observation 2. -
• Finally, assume that
$q\lt p\lt r$
. If
$v_p$
precedes both
$v_q$
and
$v_r$
in the order
$\sigma$
that determines the
$y$
-coordinates of the vertices of
$G$
, then the
$y$
-coordinate of
$v_p$
is larger than that of
$v_q$
and
$v_r$
, hence
$v_xv_p$
and
$v_qv_r$
do not cross as they use disjoint
$y$
-intervals. Assume now that
$v_p$
succeeds
$v_q$
or
$v_r$
(possibly both) in
$\sigma$
. Suppose, for the sake of contradiction, that
$v_xv_p$
and
$v_qv_r$
cross. Then
$v_p$
lies below the line through
$v_q$
and
$v_r$
. However, this implies that
$v_kv_p$
and
$v_qv_r$
also cross, contradicting the assumption that
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
.
This concludes the proof of the lemma.
The following lemma is a variant of the (unique) lemma in [Reference Chung and Graham19]. It finds a subtree of a certain order in a rooted tree. For a vertex
$v$
of a rooted tree
$T$
, denote by
$T(v)$
the subtree of
$T$
rooted at
$v$
.
Lemma 7.
Given a rooted tree
$T$
on
$m\ge 2$
vertices and an integer
$s$
, with
$1\le s\le m$
, there is a vertex
$c$
of
$T$
such that
$|V(T(c))|\geq s$
but
$|V(T(d))|\leq s-1$
, for all children
$d$
of
$c$
. Such a vertex
$c$
can be computed in
$O(m)$
time.
Proof. We find vertex
$c$
by the following walk on
$T$
starting from the root. Initially, let
$c$
be the root of
$T$
. While
$c$
has a child
$d$
such that
$|V(T(d))|\geq s$
, then set
$c\,:\!=\,d$
. At the end of the while loop,
$|V(T(c))|\geq s$
but
$|V(T(d))|\leq s-1$
, for all children
$d$
of
$c$
. After precomputing the order of the subtree
$T(v)$
for every vertex
$v$
of
$T$
, the while loop runs in
$O(m)$
time.
2.3. Proof of Theorem 1
Given a tree
$T$
on
$h$
vertices and an interval
$G[i,j]$
of length
$h$
, we describe an algorithm that recursively constructs an embedding
$\varphi$
of
$T$
onto
$G[i,j]$
. For a subtree
$T^{\prime}$
of
$T$
, we denote by
$\varphi (T^{\prime})$
the image of
$\varphi$
restricted to the vertices and edges of
$T^{\prime}$
. A step of the algorithm explicitly embeds some vertices; the remaining vertices form subtrees that are recursively embedded onto pairwise disjoint subintervals of
$G[i,j]$
. In order to control the interaction between the recursively embedded subtrees and the edges connecting vertices of such subtrees to explicitly embedded vertices, we insist that in every subtree at most two vertices, called portals, are adjacent to external vertices (i.e. vertices that are not part of the subtree). We also ensure that whenever a subtree is embedded onto a subinterval, the external vertices that connect to the portals of that subtree are embedded above the whole subinterval.
For a point
$p\in{{\mathbb{R}}}^2$
, we define two quarter-planes:
\begin{align*} Q^+(p) & = \{q\in{{\mathbb{R}}}^2\,:\, x(p) \lt x(q) \text{ and } y(p) \lt y(q)\},\\ Q^-(p) & = \{q\in{{\mathbb{R}}}^2\,:\, x(q)\lt x(p) \text{ and } y(p) \lt y(q)\}. \end{align*}
Observe that
$Q^+(p)$
is set of points above and to the right of
$p$
, and similarly
$Q^-(p)$
is the set of points above and to the left of
$p$
. In Lemma 8 below, we require that these regions are empty of vertices and edges of the embedded graph, so that they can be used to add edges incident to
$p$
, when a portal is embedded onto it.
Figure 5. Illustration for Case 1.1: Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right).
We inductively prove the following lemma, which immediately implies Theorem 1. Given an
$n$
-vertex forest
$F$
, it suffices to define a tree
$T$
as an arbitrary
$n$
-vertex tree that contains
$F$
as a subgraph, to set
$h=n$
and
$G[i,j]=G[0,n-1]$
, and to choose a portal
$a$
in
$T$
arbitrarily.
Lemma 8.
We are given a tree
$T$
on
$h$
vertices, an interval
$G[i,j]$
of length
$h$
, and
-
1. either a single portal
$a$
in
$T$
or
-
2. two distinct portals
$a$
and
$b$
in
$T$
.
Then there exists an embedding
$\varphi$
of
$T$
onto
$G[i,j]$
with the following properties:
-
1. If only one portal
$a$
is given, then
-
(a)
$\varphi (a)$
is the highest vertex in
$G[i,j]$
; and
-
(b) if
$\deg _T(a)=1$
and
$a^{\prime}$
is the unique neighbour of
$a$
in
$T$
, then
$Q^-(\varphi (a^{\prime}))$
does not intersect any vertex or edge of the embedding
$\varphi (T(a^{\prime}))$
.
-
-
2. If two distinct portals
$a$
and
$b$
are given, then
-
(a)
$\varphi (a)$
is to the left of
$\varphi (b)$
; -
(b)
$Q^-(\varphi (a))$
does not intersect any edge or vertex of
$\varphi (T)$
; and
-
(c)
$Q^+(\varphi (b))$
does not intersect any edge or vertex of
$\varphi (T)$
.
-
Moreover, the embedding
$\varphi$
can be found in
$O(h^2)$
time.
Proof. We proceed by induction on the number of vertices of
$T$
. In the base case,
$T$
has one vertex, which must be the portal
$a$
, and the map
$\varphi (a)=v_i$
maps
$a$
to the highest vertex of
$G[i,i]$
. For the induction step we assume that
$h\geq 2$
and that the claim holds for all smaller trees.
Case 1: There is only one portal
$a$
. Let
$v_k$
denote the highest vertex in
$G[i,j]$
. We need to find an embedding of
$T$
onto
$G[i,j]$
where
$\varphi (a)=v_k$
. Consider
$T$
to be rooted at
$a$
. We distinguish two cases depending on the degree of
$a$
in
$T$
.
Case 1.1:
$\deg _T(a)\geq 2$
. Assume that
$a$
has
$t$
children
$a_1,\ldots,a_t$
. Refer to Figure 5. Partition the set of integers
$[i,j]\setminus \{k\}$
into
$t$
contiguous subsets
$I_1,\ldots,I_t$
such that
$|I_x|=|V(T(a_x))|$
, for
$x=1,\ldots,t$
. Let
$q\in \{1,\dots,t\}$
be such that
$I_q$
contains
$k-1$
or
$k+1$
, and so
$I_q\cup \{k\}$
is an interval of integers.
By induction, there is an embedding
$\varphi _x$
of
$T(a_x)$
onto
$G(I_x)$
such that
$a_x$
is mapped to the highest vertex of
$G(I_x)$
, for all
$x\neq q$
. Similarly, there is an embedding
$\varphi _q$
of
$T-\bigcup _{x\neq q} T(a_x)$
onto
$G(I_q\cup \{k\})$
such that
$a$
is mapped to the highest vertex of
$G(I_q\cup \{k\})$
, which is
$v_k$
. Note that these embeddings are pairwise noncrossing since they use pairwise disjoint intervals. Let
$\varphi \,:\,V(T)\rightarrow V(G[i,j])$
be the combination of these embeddings. Clearly, both Properties 1(a) and 1(b) (the latter vacuously) are satisfied by
$\varphi$
.
The only edges of
$T$
between distinct subtrees among
$T(a_1),\dots,T(a_{q-1}),T(a_{q+1}),\dots,T(a_{t})$
, and
$T-\bigcup _{x\neq q} T(a_x)$
are of the form
$aa_x$
, for
$x\neq q$
. The edges
$\varphi (a)\varphi (a_x)$
are in
$G[i,j]$
and are pairwise noncrossing by Lemma 3. Moreover,
$\varphi (a)\varphi (a_x)$
does not cross
$\varphi (T(a_x))$
, as
$\varphi (a_x)$
is the highest vertex of
$\varphi (T(a_x))$
and
$\varphi (a)$
is higher than
$\varphi (a_x)$
; further,
$\varphi (a)\varphi (a_x)$
does not cross
$\varphi (T(a_y))$
, where
$y\neq x$
, by Observation 2. Therefore,
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
, as required.
Case 1.2:
$\deg _T(a)=1$
. Let
$a^{\prime}$
be the unique neighbour of
$a$
in
$T$
and let
$T^{\prime}=T(a^{\prime})$
. We need to construct an embedding
$\varphi$
of
$T$
onto
$G[i,j]$
such that
$\varphi (a)=v_k$
and
$\varphi (T^{\prime})=G[i,j]-v_k$
.
Case 1.2.1:
$k=j$
. Set
$\varphi (a)=v_k$
and recursively embed
$T^{\prime}$
onto
$G[i,k-1]$
with a single portal
$a^{\prime}$
, which is mapped to the highest vertex in
$G[i,k-1]$
(i.e. the second highest vertex in
$G[i,j]$
). Clearly, both Properties 1(a) and 1(b) are satisfied. Further,
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
, since
$\varphi (a^{\prime})$
is the highest vertex of
$\varphi (T^{\prime})$
and
$\varphi (a)$
is higher than
$\varphi (a^{\prime})$
, hence the edge
$\varphi (a)\varphi (a^{\prime})$
, which exists by Lemma 3, does not cross
$\varphi (T^{\prime})$
.
Case 1.2.2:
$k=i$
. The discussion for this case is symmetric to the one for Case 1.2.1.
Case 1.2.3:
$i\lt k\lt j$
and the left sibling
$v_\ell$
of
$v_k$
exists and is in
$G[i,j]$
. It follows that
$\ell =i$
, as if
$\ell \gt i$
, then
$v_{\ell -1}$
, which is the parent of
$v_\ell$
and
$v_k$
, would be a vertex in
$G[i,j]$
higher than
$v_k$
. By construction,
$v_i$
is the second highest vertex in
$G[i,j]$
. Recursively construct an embedding
$\psi$
of
$T^{\prime}$
onto
$G[i+1,j]$
with a single portal
$a^{\prime}$
. By Property 1(a), we have
$\psi (a^{\prime})=v_k$
. By Lemma 6, there exists an embedding
$\varphi$
of
$T^{\prime}$
onto
$G[i+1,j]-v_k+v_i=G[i,j]-v_k$
in which
$\varphi (a^{\prime})=v_i$
(hence
$\varphi$
satisfies Property 1(b)). Finally, set
$\varphi (a)=v_k$
(hence
$\varphi$
satisfies Property 1(a)). As in Case 1.2.1, the edge
$\varphi (a)\varphi (a^{\prime})=v_kv_i$
, which exists by Lemma 3, does not cross
$\varphi (T^{\prime})$
, hence
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
.
Case 1.2.4:
$i\lt k\lt j$
, the left sibling of
$v_k$
does not exist or is not in
$G[i,j]$
, and the right child of
$v_k$
is not in
$G{[i,j]}$
. Refer to Figures 6–8. By construction, the left child of
$v_k$
is
$v_{k+1}$
, which is in
$G[i,j]$
. Since the left sibling of
$v_k$
does not exist or is not in
$G[i,j]$
, and since the right child of
$v_k$
is not in
$G[i,j]$
, it follows that
$v_{k+1}$
is the second highest vertex in
$G[i,j]$
.
Figure 6. Illustration for Case 1.2.4, if
$c^{\prime}=a$
. Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right).
Figure 7. Illustration for Case 1.2.4, if
$c^{\prime}=a^{\prime}$
. Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right).
Figure 8. Illustration for Case 1.2.4, if
$c^{\prime}\neq a$
and
$c^{\prime}\neq a^{\prime}$
. Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right).
Set
$s=j-k+1$
, that is,
$s$
is the number of vertices in the interval
$[k,j]$
. Note that
$s\lt h$
, given that
$k\gt i$
. Lemma 7 then yields a vertex
$c$
in
$T^{\prime}$
such that
$|V(T^{\prime}(c))|\geq s$
but
$|V(T^{\prime}(d))|\leq s-1$
for all children
$d$
of
$c$
, where
$c\neq a$
as
$a\notin V(T^{\prime})$
.
Label the children of
$c$
as
$c_1,\ldots, c_t$
in an arbitrary order and let
$\ell \in [1,t]$
be the smallest index such that
$1+\sum _{x=1}^\ell |V(T(c_x))|\geq s$
. Since
$|V(T(c_\ell ))|\leq s-1$
, we have
$s\leq 1+\sum _{x=1}^\ell |V(T(c_x))|\leq 2s-2$
.
Let
$c^{\prime}$
be the parent of
$c$
in
$T$
. Note that it might be the case that
$c^{\prime}=a$
or
$c^{\prime}= a^{\prime}$
. Let
$H$
denote the subtree of
$T$
induced by
$c$
and the union of
$V(T(c_1)),\ldots, V(T(c_\ell ))$
, and let
$m=|V(H)|$
. The above inequalities imply
$s\leq m\leq 2s-2$
. On the one hand,
$j-k+1\leq m$
implies that the subinterval
$G[j-m,j]$
contains
$v_k$
, and so
$v_k$
is the highest vertex in
$G[j-m,j]$
. On the other hand, the interval
$G[j-m,k-1]$
contains
$k-1-j+m+1=m-s+1\leq s-1$
vertices, given that
$m\leq 2s-2$
; however, since the right child of
$v_k$
is not in
$G{[i,j]}$
, we know that the order of a subtree of
$B$
rooted at any vertex at the level below
$v_k$
is at least
$s-1$
. It follows that
$G[j-m,j]$
contains neither the left child of the left sibling of
$v_k$
(if it exists) nor any descendants of the left child of the left sibling of
$v_k$
(if it exists). By Lemma 4,
$G[j-m,j]-v_k$
is crossing-isomorphic to an interval
$G(I)$
of size
$m$
.
Recursively embed
$H$
onto
$G(I)$
with one portal
$c$
, which is mapped to the highest vertex of
$G(I)$
. By Lemma 5, there exists an embedding
$\varphi$
of
$H$
onto
$G[j-m,j]-v_k$
such that
$\varphi (c)=v_{k+1}$
. We complete
$\varphi$
into an embedding of
$T$
onto
$G[i,j]$
as follows. Set
$\varphi (a)=v_k$
(hence
$\varphi$
satisfies Property 1(a)). If
$c$
has more than
$\ell$
children, then embed the subtrees
$T(c_{\ell +1}),\ldots, T(c_t)$
on consecutive subintervals to the left of
$G[j-m,j]$
, with single portals
$c_{\ell +1},\ldots, c_t$
, respectively. Finally, we distinguish three cases, based on whether
$c^{\prime}=a$
, or
$c^{\prime}=a^{\prime}$
, or
$c^{\prime}\notin \{a,a^{\prime}\}$
.
-
• If
$c^{\prime}=a$
, as in Figure 6, then the embedding
$\varphi$
defined so far embeds the entire tree
$T$
onto
$G[i,j]$
. Note that
$\varphi$
satisfies Property 1(b), given that
$\varphi (a^{\prime})=\varphi (c)=v_{k+1}$
. -
• If
$c^{\prime}=a^{\prime}$
, as in Figure 7, then by induction, we can embed
$T^{\prime}-T(c)$
onto the remaining subinterval of
$G[i,j]$
with one portal
$c^{\prime}=a^{\prime}$
(hence
$\varphi$
satisfies Property 1(b), given that the embedding of
$T^{\prime}-T(c)$
satisfies Property 1(a)). -
• If
$c^{\prime}\neq a$
and
$c^{\prime}\neq a^{\prime}$
, as in Figure 8, then by induction, we can embed
$T^{\prime}-T(c)$
onto the remaining subinterval of
$G[i,j]$
with two portals
$a^{\prime}$
and
$c^{\prime}$
(hence
$\varphi$
satisfies Property 1(b), given that the embedding of
$T^{\prime}-T(c)$
satisfies Property 2(b)).
The embeddings
$\varphi (H),\varphi (T(c_{\ell +1})),\dots,\varphi (T(c_t)),\varphi (T^{\prime}-T(c))$
are pairwise noncrossing since they use pairwise disjoint intervals. Further, the edges
$\varphi (c)\varphi (c_{\ell +1}),\dots,\varphi (c)\varphi (c_t)$
belong to
$G[i,j]$
and do not cross by Lemma 3, given that
$\varphi (c)=v_{k+1}$
is the second highest vertex of
$G[i,j]$
; further, these edges do not cross
$\varphi (H),\varphi (T(c_{\ell +1})),\dots,\varphi (T(c_t))$
by Observation 2 and do not cross
$\varphi (T^{\prime}-T(c))$
since they use intervals disjoint from the one used by
$\varphi (T^{\prime}-T(c))$
. By analogous arguments, we can conclude that the edge
$\varphi (a)\varphi (a^{\prime})$
belongs to
$G[i,j]$
and does not cross
$\varphi (H),\varphi (T(c_{\ell +1})),\dots,\varphi (T(c_t)),\varphi (T^{\prime}-T(c))$
, and that the edge
$\varphi (c)\varphi (c^{\prime})$
belongs to
$G[i,j]$
and does not cross
$\varphi (H),\varphi (T(c_{\ell +1})),\dots,\varphi (T(c_t))$
. Further, the edge
$\varphi (c)\varphi (c^{\prime})$
does not cross
$\varphi (T^{\prime}-T(c))$
; this comes from the fact that
$\varphi (c^{\prime})$
is the highest vertex of
$\varphi (T^{\prime}-T(c))$
if
$c^{\prime}=a^{\prime}$
, and from the fact that
$\varphi (T^{\prime}-T(c))$
satisfies Property 2(c) if
$c^{\prime}\neq a^{\prime}$
and
$c^{\prime}\neq a$
(in fact,
$\varphi (c)$
is in
$Q^+(\varphi (c^{\prime}))$
). It follows that
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
.
Case 1.2.5:
$i\lt k\lt j$
, the left sibling of
$v_k$
does not exist or is not in
$G[i,j]$
, and the right child
$v_r$
of
$v_k$
is in
$G{[i,j]}$
. By assumption, we have
$k+1\lt r\leq j$
; further, the second highest vertex in
$G[i,j]$
is
$v_r$
.
Set
$s=j-r+1$
, that is,
$s$
is the number of vertices in the interval
$[r,j]$
. Note that
$s\lt h$
, given that
$k\gt i$
(indeed,
$s\leq h-3$
, since
$v_i$
,
$v_k$
, and
$v_{k+1}$
do not belong to
$G[r,j]$
). Lemma 7 then yields a vertex
$c$
in
$T^{\prime}$
such that
$|V(T(c))|\geq s$
but
$|V(T(d))|\leq s-1$
for all children
$d$
of
$c$
, where
$c\neq a$
as
$a\notin V(T^{\prime})$
. Set
$m=|V(T(c))|$
, and label the children of
$c$
by
$c_1,\ldots, c_t$
in an arbitrary order. Let
$c^{\prime}$
be the parent of
$c$
and denote by
$T_c(c^{\prime})$
the subtree of
$T$
induced by
$c^{\prime}$
and
$V(T(c))$
.
Case 1.2.5.1:
$m\leq j-k-1$
. Then the interval
$[j-m,j]$
contains
$r$
but does not contain
$k$
, hence
$v_r$
is the highest vertex in
$G[j-m,j]$
. Note that
$m\leq j-k-1$
implies that
$m\leq h-3$
, given that
$k\geq i+1$
and that
$h=j-i+1$
. This implies that
$c\neq a^{\prime}$
and
$c^{\prime}\neq a$
, as otherwise
$m=|V(T(c))|=h-1$
. We construct an embedding
$\varphi$
of
$T$
onto
$G[i,j]$
as follows. Refer to Figures 9 and 10. First, set
$\varphi (a)=v_k$
(hence
$\varphi$
satisfies Property 1(a)).
Figure 9. Illustration for Case 1.2.5.1, if
$c^{\prime}=a^{\prime}$
. Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right).
Figure 10. Illustration for Case 1.2.5.1, if
$c^{\prime}\neq a^{\prime}$
. Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right).
By induction, there is an embedding
$\psi _1$
of
$T_c(c^{\prime})$
onto
$G[j-m,j]$
with a single portal
$c^{\prime}$
. By Property 1(a) of
$\psi _1$
, we have
$\psi _1(c^{\prime})=v_r$
; further, by Property 1(b) of
$\psi _1$
, we have that
$Q^-(\psi _1(c))$
does not intersect any vertex or edge of
$\psi _1(T(c))$
. Let
$\varphi (T(c))=\psi _1(T(c))$
. Note that this does not yet define the vertex of
$G[i,j]$
vertex
$c^{\prime}$
is embedded onto.
In order to complete the definition of
$\varphi$
, we distinguish two cases, based on whether
$c^{\prime}=a^{\prime}$
or
$c^{\prime}\neq a^{\prime}$
. In the first case, shown in Figure 9, by induction, there is an embedding
$\psi _2$
of
$T^{\prime}-T(c)$
onto
$G[i,j-m-1]$
with a single portal
$c^{\prime}=a^{\prime}$
. In the second case, shown in Figure 10, by induction, there is an embedding
$\psi _2$
of
$T^{\prime}-T(c)$
onto
$G[i,j-m-1]$
with two portals
$a^{\prime}$
and
$c^{\prime}$
. In both cases, by Lemma 6, there is an embedding
$\varphi$
of
$T^{\prime}-T(c)$
onto
$G[i,j-m-1]-v_k+v_r$
(this is part of the embedding
$\varphi$
of
$T$
onto
$G[i,j]$
), where the vertex of
$T$
that is mapped to
$v_k$
by
$\psi _2$
is mapped to
$v_r$
by
$\varphi$
, and every other vertex of
$T$
is mapped to the same vertex of
$G[i,j]$
by
$\psi _2$
and by
$\varphi$
. If
$\psi _2(a^{\prime})\neq v_k$
, then
$\varphi$
satisfies Property 1(b), given that
$\psi _2$
satisfies the same property (if
$c^{\prime}=a^{\prime}$
) or given that
$\psi _2$
satisfies Property 2(b) (if
$c^{\prime}\neq a^{\prime}$
). Further, if
$\psi _2(a^{\prime})= v_k$
, then
$\varphi (a^{\prime})=v_r$
and the only vertex of
$G[i,j]$
in the interior of
$Q^-(\varphi (a^{\prime}))$
is
$\varphi (a)=v_k$
(hence
$\varphi$
satisfies Property 1(b)). This completes the definition of
$\varphi$
.
We argue that the edge
$\varphi (c)\varphi (c^{\prime})$
is present in
$G[i,j]$
. To simplify the notation, let
$v_{p}=\varphi (c^{\prime})$
and
$v_q=\varphi (c)$
, and note that
$p\lt q$
or
$p=r$
. We first discuss the case
$p=r$
. Notice that this case happens if
$\psi _2(c^{\prime})=v_k$
, which holds always true if
$\psi _2$
embeds
$T^{\prime}-T(c)$
onto
$G[i,j-m-1]$
with a single portal
$c^{\prime}=a^{\prime}$
. Then the edge
$\varphi (c)\varphi (c^{\prime})$
is present in
$G[i,j]$
, as
$\psi _1(c^{\prime})=v_r$
and the edge
$cc^{\prime}$
belongs to
$T_c(c^{\prime})$
. Assume next that
$p\lt q$
, which implies that
$\psi _2$
embeds
$T^{\prime}-T(c)$
onto
$G[i,j-m-1]$
with two portals
$a^{\prime}$
and
$c^{\prime}$
. On the one hand, by Property 2(c) of
$\psi _2$
, we have that
$Q^+(\psi _2(c^{\prime}))$
does not contain any vertex or edge of
$\psi _2(T^{\prime}-T(c))$
, hence
$k\lt p$
, as otherwise
$v_k$
would be in
$Q^+(\psi _2(c^{\prime}))$
. It follows that
$v_p$
is the highest vertex in
$G[p,j-m-1]$
. On the other hand, by Property 1(b) of
$\psi _1$
, we have that
$Q^-(\psi _1(c))$
does not contain any vertex or edge of
$\psi _1(T(c))$
. It follows that
$v_q$
is either the highest or the second highest vertex in
$G[j-m,q]$
(as
$v_r$
might belong to such an interval). Overall, one of
$v_p$
or
$v_q$
is the highest or the second highest vertex in
$G[p,q]$
. By Lemma 3,
$G[p,q]$
contains a star centred at
$v_p$
or
$v_q$
, and so it contains the edge
$v_p v_q=\varphi (c^{\prime})\varphi (c)$
, as required.
We now prove that
$\varphi (T)$
is crossing-free. The embeddings
$\varphi (T(c))$
and
$\varphi (T^{\prime}-T(c))$
are pairwise noncrossing, since they use disjoint intervals, with the exception of the edges of
$\varphi (T^{\prime}-T(c))$
incident to
$v_r$
, which however do not cross
$\varphi (T(c))$
by Observation 2. It remains to deal with the edges
$\varphi (c^{\prime})\varphi (c)$
and
$\varphi (a)\varphi (a^{\prime})$
. Consider first the edge
$\varphi (c^{\prime})\varphi (c)$
.
-
• If
$\varphi (c^{\prime})=v_r$
, then the edge
$\varphi (c^{\prime})\varphi (c)$
does not cross
$\varphi (T(c))$
as
$\psi _1(c^{\prime})=v_r$
and
$\psi _1$
defines an embedding of
$T_c(c^{\prime})$
onto
$G[j-m,j]$
. The edge
$\varphi (c^{\prime})\varphi (c)$
does not cross any edge of
$\varphi (T^{\prime}-T(c))$
incident to
$v_r$
by Lemma 3, and it does not cross any edge of
$\varphi (T^{\prime}-T(c))$
not incident to
$v_r$
as they use disjoint intervals. -
• If
$\varphi (c^{\prime})=v_p$
with
$p\neq r$
, then the edge
$\varphi (c^{\prime})\varphi (c)$
does not cross
$\varphi (T(c))$
by Observation 2 and since
$Q^-(\varphi (c))$
does not intersect
$\varphi (T(c))$
; it does not cross any edge of
$\varphi (T^{\prime}-T(c))$
not incident to
$v_r$
by Observation 2 and since
$Q^+(\varphi (c^{\prime}))$
does not intersect
$\varphi (T^{\prime}-T(c))$
, except at
$v_r$
and its incident edges; and we claim that it does not cross any edge of
$\varphi (T^{\prime}-T(c))$
incident to
$v_r$
, either. The latter can be proved as follows. Let again
$\varphi (c)=v_q$
, and consider any edge
$v_rv_s$
in
$\varphi (T^{\prime}-T(c))$
. Then we have
$\max \{p,s\}\lt \min \{r,q\}$
. Since
$v_r$
is higher than
$v_p$
,
$v_q$
, and
$v_s$
, by Observation 2 the edges
$v_pv_q$
and
$v_rv_s$
do not cross if
$s\lt p$
, hence we can assume that
$p\lt s$
. The last inequality implies that the edge
$v_kv_s$
of
$\psi _2(T^{\prime}-T(c))$
crosses
$Q^+(\varphi (c^{\prime}))$
, which however is not possible by Property 2(c) of
$\psi _2(T^{\prime}-T(c))$
.
Finally, the edge
$\varphi (a)\varphi (a^{\prime})$
does not cross
$\varphi (T(c))$
, since they use disjoint intervals, and it does not cross
$\varphi (c^{\prime})\varphi (c)$
or any edge of
$\varphi (T^{\prime}-T(c))$
, by Observation 2 and since
$Q^-(\varphi (a^{\prime}))$
does not intersect any edge or vertex of
$\varphi (T^{\prime}-T(c))$
, by Property 2(b) of
$\psi _2(T^{\prime}-T(c))$
.
Case 1.2.5.2:
$j-k-1\lt m$
. In this case, the interval
$[j-m,j]$
contains both
$k$
and
$r$
; further, we might have
$c^{\prime}=a^{\prime}$
or
$c^{\prime}=a$
. Refer to Figure 11. Partition the set of integers
$[j-m,j]\setminus \{k,r\}$
into
$t$
contiguous subsets
$I_1,\ldots,I_t$
such that
$|I_x|=|V(T(c_x))|$
, for
$x=1,\ldots,t$
. Let
$q\in \{1,\dots,t\}$
be such that
$I_q$
contains
$r-1$
or
$r+1$
. Note that the sets
$I_1,\ldots,I_t$
are not necessarily intervals, since the set of integers
$[j-m,j]\setminus \{k,r\}$
they partition is not an interval, either.
Figure 11. Illustration for Case 1.2.5.2. Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right). In this example we have
$p=1$
and
$q=2$
.
Let
$\mathcal{I}(c)$
be the collection of
$t$
sets:
$I_q\cup \{r\}$
and
$I_x$
, for
$x\in [1,t]\setminus \{q\}$
. The sets in
$\mathcal{I}(c)$
are contiguous subsets of
$[j-m,j]\setminus \{k\}$
. Consequently, at least
$t-1$
of them are intervals, and at most one of them, say
$I_p$
, is an interval minus the element
$k$
. Since
$s=j-r+1$
and since all the vertices of
$G[r,j]$
belong to
$B(v_r)$
, as otherwise
$v_k$
would not be the highest vertex in
$G[i,j]$
, it follows that the size of
$B(v_r)$
is larger than or equal to
$s$
. Consequently, also the size of the subtrees of
$B$
rooted at the left child of
$v_k$
and at the right child of the left level-neighbour of
$v_k$
are larger than or equal to
$s$
. This, together with the fact that every tree
$T(c_i)$
has at most
$s-1$
vertices, implies that
$G(I_p)$
contains neither the right child of
$v_k$
, nor the left sibling of
$v_k$
, nor any descendant of the left sibling of
$v_k$
. By Lemma 4, the graph
$G(I_p)$
is crossing-isomorphic to an interval. Therefore, by Lemma 5, we can embed
$T(c_p)$
onto
$G(I_p)$
. We also recursively embed
$T(c_x)$
onto
$G[I_x]$
for all
$x\in [1,t]\setminus \{p,q\}$
and we recursively embed
$T(c)-\bigcup _{x\neq q}T(c_x)$
, that is, the subtree of
$T$
induced by
$c$
and by
$V(T(c_q))$
, onto
$G(I_q\cup \{r\})$
.
Embed
$a$
at
$v_k$
. If
$c^{\prime}=a$
(and
$c=a^{\prime}$
), then
$T^{\prime}$
coincides with
$T(c)$
and hence
$\varphi$
is the combination of the described embeddings. Otherwise,
$\varphi$
also includes an embedding of
$T^{\prime}-T(c)$
onto
$G[i,j-m-1]$
. This embedding is constructed recursively with a single portal
$c^{\prime}$
(if
$c^{\prime}=a^{\prime}$
) or with two portals
$a^{\prime}$
and
$c^{\prime}$
(if
$c^{\prime}\neq a^{\prime}$
). The proof that
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
satisfying Properties 1(a) and 1(b) is similar to the other cases. In particular,
$\varphi (c)=v_r$
is the second highest vertex of
$G[i,j]$
, hence the edge
$\varphi (c)\varphi (c^{\prime})$
exists by Lemma 3.
Case 2: Two portals. We are given two portals
$a$
and
$b$
; refer to Figure 12. Let
$P=(a=c_1,\ldots,$
$c_t=b)$
be the path between
$a$
and
$b$
in
$T$
, where
$t\geq 2$
. The deletion of the edges in
$P$
splits
$T$
into
$t$
trees rooted at
$c_1,\ldots,c_t$
. Partition
$[i,j]$
into
$t$
subintervals
$I_1,\ldots,I_t$
such that
$|I_x|=|V(T(c_x))|$
, for
$x=1,\ldots,t$
.
Figure 12. Illustration for Case 2. Tree
$T$
(left) and its embedding onto
$G[i,j]$
(right).
For
$x=1,\ldots,t$
, recursively construct an embedding
$\varphi _x$
of
$T(c_x)$
onto
$G(I_x)$
with one portal
$c_x$
, in which
$\varphi _x(c_x)$
is the highest vertex in
$G(I_x)$
. Let
$\varphi$
be the combination of these embeddings.
For any distinct
$x$
and
$y$
in
$\{1,\dots,t\}$
, we have that
$\varphi (T(c_x))$
and
$\varphi (T(c_y))$
do not cross, since they use disjoint intervals. Only the edges in
$P$
connect vertices from distinct intervals. For
$x=1,\dots,t-1$
, let
$e_x$
be the edge
$\varphi (c_x)\varphi (c_{x+1})$
. Note that
$e_x$
is incident to the highest vertex in
$G(I_x\cup I_{x+1})$
and hence belongs to
$G(I_x\cup I_{x+1})$
by Lemma 3. Further,
$e_x$
does not cross
$\varphi (T(c_y))$
, with
$y\lt x$
or
$y\gt x+1$
, as the intervals spanned by
$e_x$
and
$\varphi (T(c_y))$
are disjoint. Analogously,
$e_x$
does not cross any edge
$e_y$
, with
$y\neq x$
. Assume that
$\varphi (c_{x+1})$
is higher than
$\varphi (c_x)$
, the other case is symmetric. Then
$e_x$
does not cross
$\varphi (T(c_x))$
, as
$\varphi (c_x)$
is the highest vertex of
$\varphi (T(c_x))$
and
$\varphi (c_{x+1})$
is higher than
$\varphi (c_x)$
; finally,
$e_x$
does not cross
$\varphi (T(c_{x+1}))$
, by Observation 2. Therefore,
$\varphi$
is an embedding of
$T$
onto
$G[i,j]$
. It is easily checked that this embedding satisfies Properties 2(a), 2(b), and 2(c), as required.
Running time analysis. We conclude by inductively proving that the time complexity of the above described algorithm is at most
$c \cdot h^2$
, for some suitably large constant
$c$
.
The statement is obviously true in the base case.
In Case 1 of the induction step, we recursively embed some vertex-disjoint subtrees of
$T$
with a total of at most
$h-1$
vertices. By induction, this takes at most
$\sum _{S} (c \cdot |V(S)|^2)\leq c \cdot (h-1)^2$
time, where the sum is over all subtrees
$S$
of
$T$
which are recursively embedded. Apart from these recursive embedding constructions, in Case 1 we explicitly embed in constant time (denoted as
$k_1$
) some vertices of
$T$
at vertices of
$G[i,j]$
, we find in constant time (denoted as
$k_2$
) a subtree with suitable order by means of Lemma 7, we modify in constant time (denoted as
$k_3$
) a recursively constructed embedding by means of Lemma 6, we modify in linear time (denoted as
$k_4\cdot h$
) a recursively constructed embedding by means of Lemma 5, or we find in linear time (denoted as
$k_5\cdot h$
) some subintervals of
$G[i,j]$
of the proper size. Thus, it suffices to choose a sufficiently large constant
$c$
so that
$({-}2c+k_4+k_5)\cdot h+(c+k_1+k_2+k_3)\lt 0$
, in order to verify that the time complexity of the algorithm is at most
$c \cdot h^2$
.
In Case 2 of the induction step, we recursively embed some subtrees of
$T$
with a total of
$h$
vertices and we find in linear time (denoted as
$k\cdot h$
) some subintervals of
$G[i,j]$
of the proper size. By induction, this takes at most
$\sum _{S} (c \cdot |V(S)|^2) + k\cdot h$
time. Since in Case 2 there are at least two recursively embedded subtrees,
$\sum _{S} (c \cdot |V(S)|^2)$
is maximised when there is one subtree of order
$h-1$
and one subtree of order
$1$
, which leads to
$\sum _{S} (c \cdot |V(S)|^2) + k\cdot h\leq c \cdot (h-1)^2 +c + k\cdot h$
, which is smaller than
$c \cdot h^2$
time, as long as
$({-}2c+k)\cdot h+2c\lt 0$
, which is true for a sufficiently large
$c$
, given that
$h\geq 2$
.
3. Convex geometric graphs
Every graph embedded into a convex geometric graph is outerplanar. Clearly, a complete convex geometric graph on
$n$
vertices has
$O(n^2)$
edges and is universal for
$n$
-vertex outerplanar graphs. In the next theorem we show that this trivial upper bound is almost tight. For
$h\geq 0$
and
$n\geq 2h+2$
, let
$\mathcal{OP}_h(n)$
be the family of all outerplanar graphs on
$n$
vertices that consist of a spanning cycle plus
$h$
pairwise vertex-disjoint chords. In the following, we write
$f(n)\in \Omega _h(n)$
to represent
$f(n)\geq c_h n$
, where
$c_h$
is a constant depending on
$h$
only.
Theorem 9.
For every positive integer
$h$
and
$n\geq 3h^2$
, every convex geometric graph on
$n$
vertices that is universal for
$\mathcal{OP}_h(n)$
has
$\Omega _h(n^{2-1/h})$
edges.
Proof. The claim trivially holds for
$h=1$
; we may assume
$h\geq 2$
in the remainder of the proof. Let
$C$
be a convex geometric graph on
$n$
vertices that is universal for
$\mathcal{OP}_h(n)$
, and denote by
$\partial C$
its outer (spanning) cycle. The length of a chord
$uv$
of
$\partial C$
is the length of a shortest path between
$u$
and
$v$
along
$\partial C$
. For
$k\geq 2$
, denote by
$E_k$
the set of length-
$k$
chords in
$C$
, and let
$m\in \{2,\ldots, \lfloor n/(3h)\rfloor \}$
be an integer such that
$|E_m|=\min \{|E_2|,\ldots,|E_{\lfloor n/(3h)\rfloor }|\}$
.
Let
$\mathcal{L}$
be the set of vertex-labeled outerplanar graphs on
$n$
vertices that consist of a spanning cycle
$(v_0,\ldots, v_{n-1})$
plus
$h$
pairwise vertex-disjoint chords of length
$m$
such that one chord is
$v_0v_m$
and all
$h$
chords have both vertices on the path
$P=(v_0,\ldots, v_{\lfloor n/3\rfloor +hm-1})$
.
Every graph
$G\in \mathcal{L}$
has a unique spanning cycle
$H$
. If an edge
$e$
of
$H$
were embedded onto a chord of
$\partial C$
, then the path of
$H-e$
would cross
$e$
, given that
$C$
is a convex geometric graph. It follows that
$H$
is embedded onto
$\partial C$
. The four endpoints of any two chords of
$H$
are noninterleaving along
$H$
, otherwise
$G$
would not be an outerplanar graph. Since they all have the same length, the
$h$
chords of
$H$
have a well-defined cyclic order along
$H$
. A gap of
$G$
is a path between two consecutive chords along
$H$
(in cyclic order). Note that
$G$
has
$h$
gaps.
The length of the path
$P$
is
$\lfloor n/3\rfloor +hm-1\leq \lfloor n/3\rfloor +h\cdot \lfloor n/(3h)\rfloor -1\lt 2\lfloor n/3\rfloor$
. Consequently, the length of the gap between the last and the first chord of
$P$
is greater than
$n-2\lfloor n/3\rfloor =\lceil n/3\rceil$
. This is the longest gap, as the sum of the lengths of the remaining
$h-1$
gaps is at most
$\lfloor n/3\rfloor$
.
Let
$\mathcal{U}$
denote the subset of unlabelled graphs in
$\mathcal{OP}_h(n)$
that correspond to some labelled graph in
$\mathcal{L}$
. We give lower bounds for
$|\mathcal{L}|$
and
$|\mathcal{U}|$
. Each graph in
$\mathcal{L}$
is determined by the
$h-1$
gaps between consecutive chords along
$P$
. The sum of these distances is an integer between
$h-1$
and
$(\lfloor n/3\rfloor +hm-1)-hm \lt \lfloor n/3\rfloor$
. The number of compositions of
$\lfloor n/3\rfloor$
into
$h$
positive integers (i.e.
$h-1$
distances and a remainder) is
$\binom{\lfloor n/3\rfloor }{h-1}\in \Theta _h\big(n^{h-1}\big)$
. Each unlabelled graph in
$\mathcal{U}$
corresponds to at most two labeled graphs in
$\mathcal{L}$
, since any graph automorphism setwise fixes the unique spanning cycle as well as the longest gap. Hence,
$|\mathcal{U}| \in \Theta (|\mathcal{L}|)\subseteq \Theta _h\big(n^{h-1}\big)$
.
Since
$C$
is universal for
$\mathcal{OP}_h(n)$
and
$\mathcal{U}\subset \mathcal{OP}_h(n)$
, every graph
$G$
in
$\mathcal{U}$
embeds onto
$C$
. Since every embedding of
$G$
maps the spanning cycle of
$G$
onto the outer cycle
$\partial C$
and the
$h$
chords of
$G$
into a subset of
$E_m$
, we have that
$C$
contains at most
$\binom{|E_m|}{h}\leq |E_m|^h$
graphs from
$\mathcal{U}$
. The combination of the lower and upper bounds for
$|\mathcal{U}|$
yields
$|E_m|^h \in \Omega _h\big(n^{h-1}\big)$
, hence
$|E_m| \in \Omega _h\big(n^{1-1/h}\big)$
. Overall, the number of edges in
$C$
is at least
$\sum _{i=1}^{\lfloor n/(3h)\rfloor } |E_i|\geq \lfloor n/(3h)\rfloor \cdot |E_m|\in \Omega _h\big(n^{2-1/h}\big)$
.
For the case
$h=2$
, the lower bound of Theorem 9 is the best possible, as shown in the following theorem.
Theorem 10.
For every
$n\in{\mathbb{N}}$
, there exists a convex geometric graph with
$n$
vertices and
$O\big(n^{3/2}\big)$
edges that is universal for
$\mathcal{OP}_2(n)$
.
Proof. We construct a convex geometric graph
$C$
and then show that it is universal for
$\mathcal{OP}_2(n)$
. The vertices
$v_0,\ldots,v_{n-1}$
of
$C$
form a regular convex
$n$
-gon, and the edges of this spanning cycle are in
$C$
. Denote
\begin{align*} S=\left \{0,\ldots, \left \lfloor \sqrt{n}\right \rfloor -1\right \}\cup \left \{i \!\left \lfloor \sqrt{n}\right \rfloor \colon 1\le i\le \lfloor \sqrt{n}\rfloor \right \} \end{align*}
and add (the edges of) a star centred at
$v_s$
, for every
$s\in S$
, to
$C$
. Clearly,
$C$
contains
$O\big(n^{3/2}\big)$
edges. Moreover, for every
$d\in \{1,\ldots,\lfloor n/2\rfloor \}$
there exist
$a,b\in S$
so that
$b-a=d$
. For any
$G\in \mathcal{OP}_2(n)$
, let
$a,b\in S$
so that the distance along the outer cycle between the two closest vertices of the two chords of
$G$
is
$b-a$
. As
$C$
contains stars centred at both
$v_a$
and
$v_b$
, the graph
$G$
embeds onto
$C$
.
While we can prove a near-quadratic lower bound for the number of edges of an
$n$
-vertex convex geometric graph that is universal for
$n$
-vertex outerplanar graphs, for
$n$
-vertex trees we only have an
$\Omega \!\left(n \log n\right)$
lower bound. This lower bound is valid even in the abstract setting and for caterpillars [[Reference Chung and Graham18], Theorem 1], where a caterpillar is a tree such that the removal of its leaves results in a path, called spine.
We next prove that for caterpillars the above lower bound is tight. Namely, we construct a convex geometric graph
$C$
with
$n$
vertices and
$O\!\left(n \log n\right)$
edges that is universal for caterpillars with
$n$
vertices. Our construction of
$C$
relies on a simple recursive construction of integer sequences. Specifically, we define a sequence
$\pi _n$
of
$n$
integers. Let
$\pi _1$
be a one-term sequence
$\pi _1=(1)$
. For every integer
$m$
of the form
$m=2^h-1$
, where
$h\geq 2$
, let
$\pi _m = \pi _{(m-1)/2}(m)\pi _{(m-1)/2}$
. For example,
$\pi _{15}=(1,3,1,7,1,3,1,15,1,3,1,7,1,3,1)$
. Now for any
$n\in{\mathbb{N}}$
, the sequence
$\pi _n$
consists of the first
$n$
integers in
$\pi _m$
, where
$m\geq n$
and
$m=2^h-1$
, for some integer
$h\geq 1$
. For example,
$\pi _{10}=(1,3,1,7,1,3,1,15,1,3)$
. For
$i=1,\dots,n$
, let
$\pi _n(i)$
be the
$i$
th term of
$\pi _n$
.
Property 11 ([Reference Frati, Patrignani and Roselli24]). For every
$n\in{\mathbb{N}}$
,
$\pi _n$
is a sequence of positive integers such that for every
$x$
with
$1\leq x \leq n$
, the maximum of any
$x$
consecutive elements in
$\pi _n$
is at least
$x$
.
The graph
$C$
has vertices
$v_1,\dots,v_n$
, placed in clockwise order along a circle
$c$
. Further, for
$i=1,\dots,n$
, we have that
$C$
contains edges connecting
$v_i$
to the
$\pi _n(i)$
vertices preceding
$v_i$
and to the
$\pi _n(i)$
vertices following
$v_i$
along
$c$
. We are now ready to prove the following.
Theorem 12.
For every
$n\in{\mathbb{N}}$
, there exists a convex geometric graph
$C$
with
$n$
vertices and
$O(n\log n)$
edges that is universal for
$n$
-vertex caterpillars.
Proof. First, the number of edges of
$C$
is at most twice the sum of the integers in
$\pi _n$
; the latter is less than or equal to the sum of the integers in
$\pi _m$
, where
$m\lt 2n$
and
$m=2^h-1$
, for some integer
$h\geq 1$
. Further,
$\pi _m$
is easily shown to be equal to
$(h-1) \cdot 2^h +1\in O\!\left(n \log n\right)$
.
Let
$T$
be a caterpillar with
$n$
vertices and let
$(u_1,u_2,\ldots,u_s)$
be the spine of
$T$
, for some
$s\geq 1$
. For
$i=1,\ldots,s$
, let
$S_i$
be the star composed of
$u_i$
and its adjacent leaves; let
$n_i$
be the number of vertices of
$S_i$
. Let
$m_1=0$
and, for
$i=2,\ldots,s$
, let
$m_i=\sum _{j=1}^{i-1} n_j$
. For
$i=1,\ldots,s$
, we embed
$S_i$
onto the subgraph
$C_i$
of
$C$
induced by the vertices
$v_{m_i+1},v_{m_i+2},\dots,v_{m_{i}+n_i}$
: This is done by embedding
$u_i$
at the vertex
$v_{x_i}$
of
$C_i$
whose degree (in
$C$
) is maximum, and by embedding the leaves of
$S_i$
at the remaining vertices of
$C_i$
.
By Property 11, we have that
$v_{x_i}$
is adjacent in
$C$
to the
$n_i$
vertices preceding it and the
$n_i$
vertices following it along
$c$
(and possibly to more vertices). Hence,
$v_{x_i}$
is adjacent to all other vertices of
$C_i$
, which proves that the above embedding of
$S_i$
onto
$C_i$
is valid. We now prove that the edge
$v_{x_i}v_{x_{i+1}}$
belongs to
$C$
for all
$i=1,\ldots,s-1$
. Again by Property 11, the vertex between
$v_{x_i}$
and
$v_{x_{i+1}}$
with the highest degree is adjacent to the
$n_i+n_{i+1}$
vertices preceding and
$n_i+n_{i+1}$
vertices following it along
$c$
(and possibly to more vertices). Hence, the vertex between
$v_{x_i}$
and
$v_{x_{i+1}}$
with the highest degree is adjacent to all other vertices in
$\{v_{m_i+1},v_{m_i+2},\ldots,v_{m_{i+1}+n_{i+1}}\}$
, and in particular to the vertex between
$v_{x_i}$
and
$v_{x_{i+1}}$
with the lowest degree. The proof is concluded by observing that the edges of the spine
$(u_1,u_2,\ldots,u_s)$
do not cross, since the vertices
$u_1, u_2,\ldots, u_s$
appear in this clockwise order along
$c$
.
4. Conclusions and open problems
In this paper we introduced and studied the problem of constructing geometric graphs with few vertices and edges that are universal for families of planar graphs. Our research raises several challenging problems.
Universal geometric graphs
First, what is the minimum number of edges in an
$n$
-vertex convex geometric graph that is universal for
$n$
-vertex trees? We proved that the answer is in
$O\!\left(n \log n\right)$
if the convexity requirement is dropped, or if caterpillars, rather than trees, are considered, while the answer is close to
$\Omega (n^2)$
if outerplanar graphs, rather than trees, are considered.
Second, what is the minimum number of edges in a geometric graph that is universal for all
$n$
-vertex planar graphs? For abstract graphs, Babai, Chung, Erdős, Graham, and Spencer [Reference Babai, Chung, Erdős, Graham and Spencer5] constructed a universal graph with
$O\big(n^{3/2}\big)$
edges based on separators; and Esperet, Joret, and Morin [Reference Esperet, Joret and Morin23] improved the bound to
$n\cdot 2^{O\left(\sqrt{\log n\cdot \log \log n}\right)}$
using strong products of a path with a graph of treewidth at most eight. Can either of these methods be adapted to a geometric setting? The current best lower bound is
$\Omega (n\log n)$
, the same as for trees [Reference Chung and Graham19], while the best upper bound is only
$O(n^4)$
.
Third, for a constant
$\Delta \in{\mathbb{N}}$
, what is the minimum number of edges in a geometric graph that is universal for all
$n$
-vertex planar graphs of maximum degree
$\Delta$
?
Plane graphs
The notion of universality can be further extended to plane graphs, that is, planar graphs with given rotation systems. The rotation system of a graph embedded in the plane consists of the counterclockwise orders of the incident edges at all vertices. (A further generalisation to embedded graphs replaces the plane by an arbitrary orientable surface.) For a class
$\mathcal H$
of plane graphs, a geometric graph is universal for
$\mathcal H$
if it contains an embedding of every graph in
$\mathcal{H}$
with the given rotation system. Our upper bounds do not extend to this setting. In particular, we do not know what is the minimum number of edges (i) in a geometric graph that is universal for all
$n$
-vertex plane trees, and (ii) in a convex geometric graph that is universal for all
$n$
-vertex plane caterpillars.
Topological (multi-)graphs
Finally, the problems considered in this paper can be posed for topological (multi-)graphs, as well, in which edges are represented by Jordan arcs. Within this setting we observe a sub-quartic upper bound for the number of edges of a topological multigraph that is universal for all
$n$
-vertex planar graphs.
Theorem 13.
For every
$n\in{\mathbb{N}}$
, there exists a topological multigraph with
$n$
vertices and
$O(n^3)$
edges that contains a planar drawing of every
$n$
-vertex planar graph.
Proof. Every planar graph admits a
$2$
-page monotone topological book embedding [Reference Di Giacomo, Didimo, Liotta and Wismath21]. In such a drawing, every edge is either drawn on one page only, or it is drawn so that it crosses the spine exactly once. As there are
$\binom{n}{2}$
possible pairs of endpoints, two choices for the page incident to the left endpoint, and less than
$n$
possible segments of the spine to cross, we have less than
$n^2(n-1)\in \Theta (n^3)$
edges to draw. A drawing that encompasses all those edges is universal for planar graphs on
$n$
vertices.
A planar graph is subhamiltonian if it is a subgraph of a Hamiltonian planar graph. In particular, planar graphs of degree at most four [Reference Bekos, Gronemann and Raftopoulou7], triconnected planar graphs of degree at most five [Reference Hoffmann and Klemz27], and planar graphs that do not contain a separating triangle [Reference Biedl, Kant and Kaufmann10, Reference Whitney32] are subhamiltonian.
Theorem 14.
For every
$n\in{\mathbb{N}}$
, there exists a topological multigraph with
$n$
vertices and
$O(n^2)$
edges that contains a planar drawing of every
$n$
-vertex subhamiltonian planar graph.
Proof. Every subhamiltonian planar graph admits a
$2$
-page book embedding [Reference Bernhart and Kainen8]. On each page, draw the complete graph using
$\binom{n}{2}$
circular arcs, and let
$D$
denote the union of these two drawings. Clearly,
$G$
contains
$n(n-1)=\Theta (n^2)$
edges and is universal for subhamiltonian planar graphs on
$n$
vertices.
Acknowledgements
This research was started at the 7th Annual Workshop on Geometry and Graphs held at Bellairs Research Institute in March 2019. Thanks to the other workshop participants for creating a productive working atmosphere.
Open access
