BOUNDING VOLUMES OF SINGULAR FANO THREEFOLDS

CHING-JUI LAI

doi:10.1017/nmj.2016.21

BOUNDING VOLUMES OF SINGULAR FANO THREEFOLDS

Part of: Surfaces and higher-dimensional varieties Birational geometry

Published online by Cambridge University Press: 17 October 2016

CHING-JUI LAI

Show author details

CHING-JUI LAI*: Affiliation:
National Taiwan University, Taiwan, ROC email [email protected]

Article contents

Abstract
Non-klt centers
Guiding example
Covering families of tigers
Log Del Pezzo surfaces
Log Fano threefolds of Picard number one
Footnotes
References

Rights & Permissions

Abstract

Let $(X,\unicode[STIX]{x1D6E5})$ be an $n$-dimensional $\unicode[STIX]{x1D716}$-klt log $\mathbb{Q}$-Fano pair. We give an upper bound for the volume $\text{Vol}(X,\unicode[STIX]{x1D6E5})=(-(K_{X}+\unicode[STIX]{x1D6E5}))^{n}$ when $n=2$, or $n=3$ and $X$ is $\mathbb{Q}$-factorial of $\unicode[STIX]{x1D70C}(X)=1$. This bound is essentially sharp for $n=2$. The main idea is to analyze the covering families of tigers constructed in J. McKernan (Boundedness of log terminal fano pairs of bounded index, preprint, 2002, arXiv:0205214). Existence of an upper bound for volumes is related to the Borisov–Alexeev–Borisov Conjecture, which asserts boundedness of the set of $\unicode[STIX]{x1D716}$-klt log $\mathbb{Q}$-Fano varieties of a given dimension $n$.

MSC classification

Primary: 14E30: Minimal model program (Mori theory, extremal rays) 14J45: Fano varieties

Type: Article
Information: Nagoya Mathematical Journal , Volume 224 , Issue 1 , December 2016 , pp. 37 - 73

DOI: https://doi.org/10.1017/nmj.2016.21 [Opens in a new window]
Copyright: © 2016 by The Editorial Board of the Nagoya Mathematical Journal

According to the minimal model program, Fano varieties are the building blocks for varieties of negative Kodaira dimension. The set of Fano varieties of a given dimension is expected to satisfy certain boundedness properties. For example, the set of all the $n$ -dimensional smooth Fano manifolds forms a bounded family by [Reference Kollár, Miyaoka and MoriKMM92]. Since the need of singularities arises naturally in the minimal model program, the set of mildly singular Fano varieties is also expected to be bounded. This is known for terminal $\mathbb{Q}$ -Fano $\mathbb{Q}$ -factorial threefolds of Picard number one by [Reference KawamataKaw92] and for canonical $\mathbb{Q}$ -Fano threefolds by [Reference Kollár, Miyaoka, Mori and TakagiKMMT00]. However, if one considers the set of all klt $\mathbb{Q}$ -Fano varieties with Picard number one of a given dimension, [Reference LinLin03] and [Reference OkadaOka09] have shown that (birational) boundedness fails. The problem is that the category of klt singularities is too big to be bounded as it contains finite quotients of arbitrarily large order. Instead, one restricts to a smaller class of singularities, known as $\unicode[STIX]{x1D716}$ -klt singularities where $0<\unicode[STIX]{x1D716}<1$ . Since the notion of log pairs naturally arises in the context of minimal model program, we also consider log Fano varieties.

Definition.

A pair $(X,\unicode[STIX]{x1D6E5})$ consists of a normal projective variety $X$ and an effective Weil $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}$ such that $K_{X}+\unicode[STIX]{x1D6E5}$ is $\mathbb{Q}$ -Cartier. Let $\unicode[STIX]{x1D70B}:Y\rightarrow X$ be a log resolution of a pair $(X,\unicode[STIX]{x1D6E5})$ and write $K_{Y}+\unicode[STIX]{x1D6E5}_{Y}=\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5})$ . For $0<\unicode[STIX]{x1D716}<1$ , we say that the pair $(X,\unicode[STIX]{x1D6E5})$ is $\unicode[STIX]{x1D716}$ -klt if all the coefficients of $\unicode[STIX]{x1D6E5}_{Y}$ are less than $1-\unicode[STIX]{x1D716}$ . In particular, all the coefficients of $\unicode[STIX]{x1D6E5}$ lie in $[0,1-\unicode[STIX]{x1D716})$ . Note that smaller $\unicode[STIX]{x1D716}$ corresponds to worse singularities.

An $\unicode[STIX]{x1D716}$ -klt (weak) log $\mathbb{Q}$ -Fano variety is an $\unicode[STIX]{x1D716}$ -klt pair $(X,\unicode[STIX]{x1D6E5})$ such that the $\mathbb{Q}$ -Cartier divisor $-(K_{X}+\unicode[STIX]{x1D6E5})$ is ample (resp. nef and big).

Definition.

We say that a collection of varieties $\{X_{\unicode[STIX]{x1D706}}\}_{\unicode[STIX]{x1D706}\in \unicode[STIX]{x1D6EC}}$ is bounded if there exists a morphism of finite type of Noetherian schemes $h:{\mathcal{X}}\rightarrow S$ such that for each $X_{\unicode[STIX]{x1D706}}$ , $X_{\unicode[STIX]{x1D706}}\cong {\mathcal{X}}_{s}$ for some closed point $s\in S$ .

In this paper, we are interested in the following conjecture which is still open in dimension three and higher.

Borisov–Alexeev–Borisov Conjecture.

Fix $0<\unicode[STIX]{x1D716}<1$ , an integer $n>0$ , and consider the set of all the $n$ -dimensional $\unicode[STIX]{x1D716}$ -klt log $\mathbb{Q}$ -Fano pairs $(X,\unicode[STIX]{x1D6E5})$ . Then the set of underlying varieties $\{X\}$ is bounded.

A. Borisov and L. Borisov establish the B–A–B Conjecture for toric varieties in [Reference Borisov and BorisovBB92]. Alexeev establishes the two-dimensional B–A–B Conjecture in [Reference AlexeevAle94] with a simplified argument given in [Reference Alexeev and MoriAM04]. The author’s original motivation of studying the B–A–B Conjecture is that it is related to the conjectural termination of flips in the minimal model program: According to [Reference Birkar and ShokurovBS10], log minimal model program, ACCFootnote ¹ for minimal log discrepancies, and B–A–B Conjecture in dimension ${\leqslant}d$ implies termination of log flips in dimension ${\leqslant}d+1$ for effective pairs.

The following statements concerning log $\mathbb{Q}$ -Fano pairs $(X,\unicode[STIX]{x1D6E5})$ are relevant to the B–A–B Conjecture:

(i) The Cartier index of $K_{X}+\unicode[STIX]{x1D6E5}$ of an $n$ -dimensional $\unicode[STIX]{x1D716}$ -klt log $\mathbb{Q}$ -Fano pair $(X,\unicode[STIX]{x1D6E5})$ is bounded from above by a fixed integer $r(n,\unicode[STIX]{x1D716})$ depending only on $n=\dim X$ and $\unicode[STIX]{x1D716}$ .
(ii) The anticanonical volume $\text{Vol}(X,\unicode[STIX]{x1D6E5})=(-(K_{X}+\unicode[STIX]{x1D6E5}))^{n}$ of an $n$ -dimensional $\unicode[STIX]{x1D716}$ -klt log $\mathbb{Q}$ -Fano pair $(X,\unicode[STIX]{x1D6E5})$ is bounded from above by a fixed integer $M(n,\unicode[STIX]{x1D716})$ depending only on $n=\dim X$ and $\unicode[STIX]{x1D716}$ .
(iii) (Batyrev Conjecture) For given integers $n,r>0$ , consider the set of all the $n$ -dimensional klt log $\mathbb{Q}$ -Fano pairs $(X,\unicode[STIX]{x1D6E5})$ such that $r(K_{X}+\unicode[STIX]{x1D6E5})$ is Cartier. Then the set of underlying varieties $\{X\}$ is bounded.

It is clear that the B–A–B Conjecture follows from (i) and (iii) (cf., Proposition below). The Batyrev Conjecture (iii) in dimension three is established by Borisov, [Reference BorisovBor96, Reference BorisovBor01]. Recently Hacon, M^cKernan, and Xu have announced a proof of the Batyrev Conjecture (iii) in any dimension. In general, it is very hard to establish (i). Ambro in [Reference AmbroAmb09] has proved (i) for toric singularities assuming that only the standard coefficients $\{1-\frac{1}{l}|l\in \mathbb{Z}_{{\geqslant}1}\}\cup \{1\}$ are allowed to be the coefficients of $\unicode[STIX]{x1D6E5}$ . A necessary condition for (i) is that the coefficients of $\unicode[STIX]{x1D6E5}$ must lie in a fixed DCC set: A counterexample is given by the set of pairs $(\mathbb{P}^{1},\frac{1}{N}\{\text{pt}\})$ for $N\geqslant 1$ .

For convenience of the reader, we include a well-known (to the experts) argument establishing the B–A–B Conjecture under conditions (i) and (ii) in the case when $\unicode[STIX]{x1D6E5}=0$ , or $X$ is $\mathbb{Q}$ -factional of $\unicode[STIX]{x1D70C}(X)=1$ .

Proposition.

Suppose that $\unicode[STIX]{x1D6E5}=0$ or $X$ is $\mathbb{Q}$ -factional of $\unicode[STIX]{x1D70C}(X)=1$ , then the B–A–B Conjecture follows from the statements (i) and (ii) above.

Proof. Let $X$ be an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -Fano variety of dimension $n$ and let $r_{X}$ be the Cartier index of $K_{X}$ . The following statements together imply boundedness:

(1) There is an upper bound $r(n,\unicode[STIX]{x1D716})$ of the Cartier index $r_{X}$ of $K_{X}$ depending only on $n$ and $\unicode[STIX]{x1D716}$ ;
(2) The divisor $M(-K_{X})$ is a very ample line bundle for a fixed $M$ depending only on $n$ and $\unicode[STIX]{x1D716}$ ;
(3) The set of Hilbert polynomials $\mathfrak{F}=\{P(t)=\unicode[STIX]{x1D712}({\mathcal{O}}_{X}(-r_{X}K_{X})^{\otimes t})\}$ associated to all the $n$ -dimensional $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -Fano variety is finite.

In fact, $(2)$ and $(3)$ imply that the set of $n$ -dimensional $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -Fano varieties is contained in the finite union of Hilbert schemes $\prod _{P(t)\in \mathfrak{F}}{\mathcal{H}}_{P(t)}$ , where each ${\mathcal{H}}_{P(t)}$ is Noetherian. Note that $(1)$ is essential for getting $(2)$ .

The statement (1) is simply (i).

Let $r=r(n,\unicode[STIX]{x1D716})$ as in (i). Since $rK_{X}$ is a line bundle, by [Reference KollárKol93] $|-mrK_{X}|$ is base point free for any $m>0$ divisible by a constant $N_{1}(n)>0$ depending only on $n=\dim X$ . Since $|-mrK_{X}|$ is ample and base point free for $m>0$ sufficiently divisible, it defines a finite morphism. By [Reference KollárKol97, Theorem 5.9], the map induced by $|-lrK_{X}|$ for $l>0$ divisible by $N_{2}(n)$ is birational where $N_{2}(n)$ also depends only on $n=\dim X$ . Since a finite birational morphism of normal varieties is an isomorphism, it follows that there exists an effective embedding by $|M(-rK_{X})|$ for some fixed $M>0$ depending only on $n=\dim X$ and $\unicode[STIX]{x1D716}$ . This is $(2)$ .

By [Reference Kollár and MatsusakaKM83], the coefficients of the Hilbert polynomial $P(t)=\unicode[STIX]{x1D712}({\mathcal{O}}_{X}(tH))$ of a polarized variety $(X,H)$ with $H$ an ample line bundle can be bounded by $H^{n}$ and $|H^{n-1}\cdot K_{X}|$ . Since by (1) there exists an integer $r(n,\unicode[STIX]{x1D716})>0$ depending only on $n=\dim X$ and $\unicode[STIX]{x1D716}$ such that $r(n,\unicode[STIX]{x1D716})(-K_{X})$ is an ample line bundle, set $H=r(n,\unicode[STIX]{x1D716})(-K_{X})$ and apply (ii), it follows that there are only finitely many Hilbert polynomials for the set of anticanonically polarized $\unicode[STIX]{x1D716}$ -klt Fano varieties $\{(X,r(n,\unicode[STIX]{x1D716})(-K_{X}))\}$ . This proves $(3)$ .

If $X$ is $\mathbb{Q}$ -factorial of $\unicode[STIX]{x1D70C}(X)=1$ , then $-(K_{X}+\unicode[STIX]{x1D6E5})$ being ample implies that $-K_{X}$ is also ample. It is clear that $X$ is also $\unicode[STIX]{x1D716}$ -klt and hence boundedness follows from the same proof as above.◻

An effective upper bound in (ii) is obtained for smooth Fano $n$ -folds in [Reference Kollár, Miyaoka and MoriKMM92] and for canonical $\mathbb{Q}$ -Fano threefolds in [Reference Kollár, Miyaoka, Mori and TakagiKMMT00]. In this work, we obtain an effective answer to question (ii) in dimension two, that is, for log del Pezzo surfaces (cf., Theorem 4.3).

Theorem A.

Let $(X,\unicode[STIX]{x1D6E5})$ be an $\unicode[STIX]{x1D716}$ -klt weak log del Pezzo surface, then the anticanonical volume $\text{Vol}(X,\unicode[STIX]{x1D6E5})=(K_{X}+\unicode[STIX]{x1D6E5})^{2}$ satisfies

$$\begin{eqnarray}(K_{X}+\unicode[STIX]{x1D6E5})^{2}\leqslant \max \biggl\{64,\frac{8}{\unicode[STIX]{x1D716}}\biggr\}.\end{eqnarray}$$

Moreover, this upper bound is in a sharp form: There exists a sequence of $\unicode[STIX]{x1D716}$ -klt del Pezzo surfaces whose volume grows linearly with respect to $1/\unicode[STIX]{x1D716}$ .

Let $(X,\unicode[STIX]{x1D6E5})$ be an $\unicode[STIX]{x1D716}$ -klt weak log del Pezzo surface and $X_{\text{min}}$ be the minimal resolution of $(X,\unicode[STIX]{x1D6E5})$ . Alexeev and Mori have shown in [Reference Alexeev and MoriAM04, Theorem 1.8] that $\unicode[STIX]{x1D70C}(X_{\text{min}})\leqslant 128/\unicode[STIX]{x1D716}^{5}$ . Also from [Reference Alexeev and MoriAM04, Lemma 1.2] (or see the proof of Theorem 4.3), an exceptional curve $E$ on $X_{\text{min}}$ over $X$ satisfies $1\leqslant -E^{2}\leqslant 2/\unicode[STIX]{x1D716}$ . In case $\unicode[STIX]{x1D6E5}=0$ , since the Cartier index of $K_{X}$ is bounded from above by the determinant of the intersection matrix $(E_{i}.E_{j})$ of the exceptional curves $E_{i}$ ’s on $X_{\text{min}}$ over $X$ , it follows that the Cartier index bound $r(2,\unicode[STIX]{x1D716})$ in statement (i) satisfies

(◇)

$$\begin{eqnarray}r(2,\unicode[STIX]{x1D716})\leqslant 2(2/\unicode[STIX]{x1D716})^{128/\unicode[STIX]{x1D716}^{5}}.\end{eqnarray}$$

Remark 0.1. An upper bound of $(K_{X}+\unicode[STIX]{x1D6E5})^{2}$ is implicitly mentioned in [Reference AlexeevAle94] but not clearly written down. It is also not clear if the upper bound (◇) is optimal. In view of Theorem A, this seems unlikely.

We also obtain an upper bound of the anticanonical volumes for $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -factorial log $\mathbb{Q}$ -Fano threefolds of Picard number one (cf., Theorem 5.17).

Theorem B.

Let $(X,\unicode[STIX]{x1D6E5})$ be an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -factorial log $\mathbb{Q}$ -Fano threefold of $\unicode[STIX]{x1D70C}(X)=1$ . Then the degree $-K_{X}^{3}$ satisfies

$$\begin{eqnarray}-K_{X}^{3}\leqslant \biggl(\frac{24M(2,\unicode[STIX]{x1D716})R(2,\unicode[STIX]{x1D716})}{\unicode[STIX]{x1D716}}+12\biggr)^{3},\end{eqnarray}$$

where $R(2,\unicode[STIX]{x1D716})$ is an upper bound of the Cartier index of $K_{S}$ for $S$ any $\unicode[STIX]{x1D716}/2$ -klt log del Pezzo surface of $\unicode[STIX]{x1D70C}(S)=1$ and $M(2,\unicode[STIX]{x1D716})$ is an upper bound of the anticanonical volume $\text{Vol}(S)=K_{S}^{2}$ for $S$ any $\unicode[STIX]{x1D716}/2$ -klt log del Pezzo surface of $\unicode[STIX]{x1D70C}(S)=1$ . Note that $M(2,\unicode[STIX]{x1D716})\leqslant \max \{64,16/\unicode[STIX]{x1D716}\}$ from Theorem A and $R(2,\unicode[STIX]{x1D716})\leqslant 2(4/\unicode[STIX]{x1D716})^{128/\unicode[STIX]{x1D716}^{5}}$ from ( ◇).

For a $\mathbb{Q}$ -factorial $\unicode[STIX]{x1D716}$ -klt log $\mathbb{Q}$ -Fano pair $(X,\unicode[STIX]{x1D6E5})$ of $\unicode[STIX]{x1D70C}(X)=1$ , since $-(K_{X}+\unicode[STIX]{x1D6E5})^{3}\leqslant -K_{X}^{3}$ and $X$ is also $\unicode[STIX]{x1D716}$ -klt, by Theorem B we get an upper bound of the anticanonical volume $\text{Vol}(X,\unicode[STIX]{x1D6E5})=-(K_{X}+\unicode[STIX]{x1D6E5})^{3}$ . However, it is not expected that the bound in Theorem B is sharp or in a sharp form. As a corollary of Theorem B, this gives a proof of the Batyrev conjecture in the case of log $\mathbb{Q}$ -Fano threefolds of Picard number one.

Note that $\mathbb{Q}$ -factoriality is a technical assumption. However, this condition is natural in the sense that starting from a smooth variety, each variety constructed by a step of the minimal model program remains $\mathbb{Q}$ -factorial. In dimension two, surfaces with rational singularities, for example, klt singularities, are always $\mathbb{Q}$ -factorial.

Instead of using deformation theory of rational curves as in [Reference Kollár, Miyaoka, Mori and TakagiKMMT00], the Riemann–Roch formula as in [Reference KawamataKaw92], or the sandwich argument of [Reference AlexeevAle94], we aim to create isolated non-klt centers by the method developed in [M^cK02]. The point is that deformation theory for rational curves on klt varieties is much harder and so far no effective Riemann–Roch formula is known for klt threefolds.

This paper is organized as follows: In Section 1, we study non-klt centers. In Section 2, we illustrate the general method in [M^cK02] for obtaining an upper bound of anticanonical volumes in Theorems A and B. In Section 3, we review the theory of families of non-klt centers in [M^cK02]. In Section 4, we study weak log del Pezzo surfaces and prove Theorem A. In Section 5, we prove Theorem B.

Through this article we work over field of complex numbers $\mathbb{C}$ .

1 Non-klt centers

For the definition and properties of the singularities in the minimal model program, we refer to [Reference Kollár and MoriKM98].

Definition 1.1. Let $(X,\unicode[STIX]{x1D6E5})$ be a log pair. A subvariety $V\subseteq X$ is called a non-klt center if it is the image of a divisor of discrepancy at most -1. A non-klt place is a valuation corresponding to a divisor of discrepancy at most -1. The non-klt locus $\text{Nklt}(X,\unicode[STIX]{x1D6E5})\subseteq X$ is the union of the non-klt centers. If there is a unique non-klt place lying over the generic point of a non-klt center $V$ , then we say that $V$ is exceptional. If $(X,\unicode[STIX]{x1D6E5})$ is log canonical along the generic point of a non-klt center $V$ , then we say that $V$ is pure.

The non-klt places/centers here are the log canonical (lc) places/centers in [M^cK02].

A standard way of creating a non-klt center on an $n$ -dimensional variety $X$ is to find a very singular divisor: Fix $p\in X$ a smooth point. If $\unicode[STIX]{x1D6E5}$ is a $\mathbb{Q}$ -Cartier divisor on $X$ with $\text{mult}_{p}\unicode[STIX]{x1D6E5}\geqslant n$ , then $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5})$ . Indeed, consider the blow up $\unicode[STIX]{x1D70B}:Y=\text{Bl}_{p}X\rightarrow X$ and let $E$ be the unique exceptional divisor with $\unicode[STIX]{x1D70B}(E)=p$ , then the discrepancy

$$\begin{eqnarray}a(E,X,\unicode[STIX]{x1D6E5})=\text{mult}_{E}(K_{Y}-\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5}))=(n-1)-\text{mult}_{E}(\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}))\leqslant -1,\end{eqnarray}$$

as $n-1=\text{mult}_{E}(K_{Y}-\unicode[STIX]{x1D70B}^{\ast }K_{X})$ and $\text{mult}_{E}(\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}))=\text{mult}_{p}\unicode[STIX]{x1D6E5}\geqslant n$ .

Existence of singular divisors can be shown by the following standard estimation.

Lemma 1.2. Let $X$ be an $n$ -dimensional complete complex variety and $D$ be a divisor with $h^{i}(X,{\mathcal{O}}(mD))=O(m^{n-1})$ for all $i>0$ , for example, when $D$ is big and nef. Fix a positive rational number $\unicode[STIX]{x1D6FC}$ with $0<\unicode[STIX]{x1D6FC}^{n}<D^{n}$ . Then for $m\gg 0$ and any $x\in X_{\text{sm}}$ , there exists a divisor $E_{x}\in |mD|$ with $\text{mult}_{x}(E_{x})\geqslant m\cdot \unicode[STIX]{x1D6FC}.$

Proof. This is [Reference LazarsfeldLaz04, Proposition 1.1.31]. ◻

We will apply Lemma 1.2 to the case where $(X,\unicode[STIX]{x1D6E5})$ is an $n$ -dimensional log $\mathbb{Q}$ -Fano variety: Write $(-(K_{X}+\unicode[STIX]{x1D6E5}))^{n}>(\unicode[STIX]{x1D714}n)^{n}$ for some rational number $\unicode[STIX]{x1D714}>0$ , then as the cohomology groups $h^{i}(X,{\mathcal{O}}_{X}(m(-K_{X}+\unicode[STIX]{x1D6E5})))=0$ for $i>0$ and $m>0$ sufficiently divisible by Kawamata–Viehweg vanishing theorem, we can find for each $p\in X_{\text{sm}}$ an effective $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}_{p}$ such that $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}-(K_{X}+\unicode[STIX]{x1D6E5})/\unicode[STIX]{x1D714}$ with $\text{mult}_{p}(\unicode[STIX]{x1D6E5}_{p})\geqslant n$ . In particular, $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ .

The non-klt centers satisfy the following Connectedness Lemma of Kollár and Shokurov, whose proof is simply a formal consequence of the Kawamata–Viehweg vanishing theorem. This is the most important ingredient in this work.

Lemma 1.3. Let $(X,\unicode[STIX]{x1D6E5})$ be a log pair. Let $f:X\rightarrow Z$ be a projective morphism with connected fibers such that the image of every component of $\unicode[STIX]{x1D6E5}$ with negative coefficient is of codimension at least two in $Z$ . Assume that $-(K_{X}+\unicode[STIX]{x1D6E5})$ is big and nef over $Z$ , then the intersection of $\text{Nklt}(X,\unicode[STIX]{x1D6E5})$ with each fiber $X_{z}=f^{-1}(z)$ is connected.

Proof. For simplicity, we assume that $Z=\text{Spec}(\mathbb{C})$ is a point and $(X,\unicode[STIX]{x1D6E5})$ is log smooth, that is, $X$ is smooth and $\unicode[STIX]{x1D6E5}$ has simple normal crossing support. Then the identity map $\text{id}_{X}:X\rightarrow X$ is a log resolution of $(X,\unicode[STIX]{x1D6E5})$ and $\text{Nklt}(X,\unicode[STIX]{x1D6E5})=\llcorner \unicode[STIX]{x1D6E5}\lrcorner$ . Consider the exact sequence

$$\begin{eqnarray}\cdots \rightarrow \text{H}^{0}(X,{\mathcal{O}}_{X})\rightarrow \text{H}^{0}(X,{\mathcal{O}}_{\llcorner \unicode[STIX]{x1D6E5}\lrcorner })\rightarrow \text{H}^{1}(X,{\mathcal{O}}_{X}(-\llcorner \unicode[STIX]{x1D6E5}\lrcorner ))\rightarrow \cdots \,.\end{eqnarray}$$

Since $-\llcorner \unicode[STIX]{x1D6E5}\lrcorner =K_{X}+\{\unicode[STIX]{x1D6E5}\}-(K_{X}+\unicode[STIX]{x1D6E5})$ and $(X,\{\unicode[STIX]{x1D6E5}\})$ is klt, we have $\text{H}^{1}(X,{\mathcal{O}}_{X}(-\llcorner \unicode[STIX]{x1D6E5}\lrcorner ))=0$ by Kawamata–Viehweg vanishing theorem as $-(K_{X}+\unicode[STIX]{x1D6E5})$ is nef and big. Since $\text{H}^{0}(X,{\mathcal{O}}_{X})\cong \mathbb{C}$ , we see that $\text{Nklt}(X,\unicode[STIX]{x1D6E5})=\llcorner \unicode[STIX]{x1D6E5}\lrcorner$ is connected.

For general case, see [Reference CortiCor07, Theorem 17.4]. ◻

Here is a nonexample showing that $-(K_{X}+\unicode[STIX]{x1D6E5})$ being nef and big is necessary in the Connectedness Lemma 1.3.

Example 1.4. Let $X$ be $\mathbb{P}^{1}\times \mathbb{P}^{1}$ and denote $F$ (resp. $G$ ) to be the fiber of the first (resp. second) projection to $\mathbb{P}^{1}$ . Consider $\unicode[STIX]{x1D6E5}_{1}=F_{1}+F_{2}$ the sum of two distinct fibers of the first projection to $\mathbb{P}^{1}$ and $\unicode[STIX]{x1D6E5}_{2}=F+G$ the sum of two fibers with respect to two different projections to $\mathbb{P}^{1}$ ’s. Then $\text{Nklt}(X,\unicode[STIX]{x1D6E5}_{1})=F_{1}+F_{2}$ is not connected while $\text{Nklt}(X,\unicode[STIX]{x1D6E5}_{2})=F+G$ is connected. Note that $-(K_{X}+\unicode[STIX]{x1D6E5}_{1})$ is nef but not big while $-(K_{X}+\unicode[STIX]{x1D6E5}_{2})$ is nef and big.

Later on, we will try to produce not only non-klt centers but isolated non-klt centers. The following theorem is the main technique which allows us to cut down the dimension of non-klt centers.

Theorem 1.5. [Reference KollárKol97, Theorem 6.8.1]

Let $(X,\unicode[STIX]{x1D6E5})$ be klt, projective and $x\in X$ a closed point. Let $D$ be an effective $\mathbb{Q}$ -Cartier $\mathbb{Q}$ -divisor on $X$ such that $(X,\unicode[STIX]{x1D6E5}+D)$ is log canonical in a neighborhood of $x$ . Assume that $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+D)=Z\cup Z^{\prime }$ where $Z$ is irreducible, $x\in Z$ , and $x\notin Z^{\prime }$ . Set $k=\dim Z$ . Let $H$ be an ample $\mathbb{Q}$ -divisor on $X$ such that $(H^{k}.Z)>k^{k}$ . Then there is an effective $\mathbb{Q}$ -divisor $B\equiv H$ and rational numbers $0<\unicode[STIX]{x1D6FF}\ll 1$ and $0<c<1$ such that

(1) $(X,\unicode[STIX]{x1D6E5}+(1-\unicode[STIX]{x1D6FF})D+cB)$ is non-klt in a neighborhood of $x$ , and
(2) $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+(1-\unicode[STIX]{x1D6FF})D+cB)=W\cup W^{\prime }$ where $W$ is irreducible, $x\in W$ , $x\notin W^{\prime }$ and $\dim W<\dim Z$ .

2 Guiding example

The idea in [M^cK02] for obtaining an upper bound of the anticanonical volumes is to create isolated non-klt centers and then use the Connectedness Lemma 1.3: For simplicity, we assume that $\unicode[STIX]{x1D6E5}=0$ . Write $(-K_{X})^{n}>(\unicode[STIX]{x1D714}n)^{n}$ for a positive rational number $\unicode[STIX]{x1D714}$ . For each $p\in X_{\text{sm}}$ , we can find an effective $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}-K_{X}/\unicode[STIX]{x1D714}$ such that $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}\geqslant n$ and hence $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5}_{p})$ . The observation is that if $\unicode[STIX]{x1D714}\gg 0$ , then for general $p\in X$ , $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5}_{p})$ cannot be an isolated point. Indeed, if this is not true, then for two general points $p,q\in X$ , the set $\text{Nklt}(X,\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})$ would contain $\{p,q\}$ as isolated non-klt centers. But the pair $-(K_{X}+\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}){\sim}_{\mathbb{Q}}\big(1-\frac{2}{\unicode[STIX]{x1D714}}\big)(-K_{X})$ is nef and big for $\unicode[STIX]{x1D714}>2$ . By the Connectedness Lemma 1.3, $\text{Nklt}(X,\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})$ must be connected, a contradiction.

Therefore, for general $p\in X$ the minimal non-klt center $V_{p}\subseteq \text{Nklt}(X,\unicode[STIX]{x1D6E5}_{p})$ passing through $p$ is typically positive dimensional. We would like to show that the restricted volume $\text{Vol}(-K_{X}|_{V_{p}})$ on the minimal non-klt center $V_{p}$ is large if $\unicode[STIX]{x1D714}\gg 0$ . Hence, we can cut down the dimension of non-klt centers by Theorem 1.5. After doing this finitely many times, we get isolated non-klt centers and we are done.

In general, it is hard to find a lower bound of the restricted volume $\text{Vol}(-K_{X}|_{V_{p}})$ on the minimal non-klt center $V_{p}$ . We illustrate M^cKernan’s method of obtaining a lower bound of the restricted volumes on the non-klt center of an $\unicode[STIX]{x1D716}$ -klt log $\mathbb{Q}$ -Fano variety by the following guiding example (cf., [M^cK02]).

Example 2.1. Let $X$ be the projective cone over a rational normal curve of degree $d\geqslant 2$ with the unique singular point $O\in X$ . The blow up $\unicode[STIX]{x1D70B}:Y=\text{Bl}_{O}X\rightarrow X$ is a resolution of $X$ where $Y$ is a $\mathbb{P}^{1}$ -bundle $f:Y\rightarrow \mathbb{P}^{1}$ over $\mathbb{P}^{1}$ :

It is easy to show that

(a) $K_{Y}=\unicode[STIX]{x1D70B}^{\ast }K_{X}+(-1+2/d)E$ , where $E$ is the unique $\unicode[STIX]{x1D70B}$ -exceptional divisor and hence $X$ is $\unicode[STIX]{x1D716}$ -klt for $\unicode[STIX]{x1D716}=1/d$ ;
(b) $X$ is $\mathbb{Q}$ -factorial of Picard number one and $-K_{X}{\sim}_{\mathbb{Q}}(d+2)l$ is an ample $\mathbb{Q}$ -Cartier divisor, where $l$ is the class of a ruling of $X$ . Hence $X$ is an $\unicode[STIX]{x1D716}$ -klt del Pezzo surface;
(c) $\text{Vol}(-K_{X})=d+4+4/d$ is a linear function of $d=1/\unicode[STIX]{x1D716}$ and provides the required example in Theorem A.

Let $p\in X$ be a general point. Then $p$ is not the vertex $O$ and the unique ruling $l_{p}$ passing through $p$ is the non-klt center of the log pair $(X,l_{p})$ , that is, $l_{p}=\text{Nklt}(X,l_{p})$ . Moreover, the proper transform $F_{p}$ of $l_{p}$ on $Y$ is a fiber of the $\mathbb{P}^{1}$ -bundle $f:Y\rightarrow \mathbb{P}^{1}$ . In this case, one interprets the $\mathbb{P}^{1}$ -bundle structure of $Y$ as a covering family of non-klt centers of $X$ since the map $\unicode[STIX]{x1D70B}:Y\rightarrow X$ is dominant.

For $p,q\in X$ two general points, let $l_{p}$ and $l_{q}$ be the rulings passing through $p$ and $q$ respectively. Consider the pair $K_{Y}+(1-2/d)E=\unicode[STIX]{x1D70B}^{\ast }K_{X}$ . By the Connectedness Lemma 1.3, the non-klt locus $\text{Nklt}(K_{Y}+(1-2/d)E+\unicode[STIX]{x1D70B}^{\ast }(l_{p}+l_{q}))$ containing $F_{p}\cup F_{q}$ is connected as

$$\begin{eqnarray}-(K_{Y}+(1-2/d)E+\unicode[STIX]{x1D70B}^{\ast }(l_{p}+l_{q}))=-\unicode[STIX]{x1D70B}^{\ast }(K_{X}+l_{p}+l_{q})\equiv d\unicode[STIX]{x1D70B}^{\ast }l\end{eqnarray}$$

is nef and big. In fact, the fibers $F_{p}$ and $F_{q}$ are connected by $E$ in $\text{Nklt}(K_{Y}+(1-2/d)E+\unicode[STIX]{x1D70B}^{\ast }(l_{p}+l_{q}))$ as

$$\begin{eqnarray}\displaystyle F_{p}\cup F_{q} & \subseteq & \displaystyle \text{Nklt}(K_{Y}+(1-2/d)E+\unicode[STIX]{x1D70B}^{\ast }(l_{p}+l_{q}))\nonumber\\ \displaystyle & \subseteq & \displaystyle \unicode[STIX]{x1D70B}^{-1}(\text{Nklt}(K_{X}+l_{p}+l_{q}))=F_{p}\cup F_{q}\cup E,\nonumber\end{eqnarray}$$

where the second inclusion follows from the definition of non-klt centers. In particular,

$$\begin{eqnarray}\text{mult}_{E}(\unicode[STIX]{x1D70B}^{\ast }(l_{p}+l_{q}))\geqslant \frac{2}{d}=2\unicode[STIX]{x1D716}.\end{eqnarray}$$

By symmetry, $\unicode[STIX]{x1D70B}^{\ast }l_{p}$ must contribute multiplicity at least $1/d=\unicode[STIX]{x1D716}$ to the component $E$ (and in fact is exactly $1/d$ in this case), that is,

(2.1)

$$\begin{eqnarray}\unicode[STIX]{x1D70B}^{\ast }l_{p}\geqslant \unicode[STIX]{x1D716}E.\end{eqnarray}$$

Note that

(2.2)

$$\begin{eqnarray}l_{p}{\sim}_{\mathbb{Q}}\frac{-K_{X}}{\sqrt{d}\cdot \sqrt{\text{V ol }(X)}}.\end{eqnarray}$$

By intersecting both sides of (2.1) with a general fiber $F$ of $f:Y\rightarrow \mathbb{P}^{1}$ , we get for the ruling $l=\unicode[STIX]{x1D70B}_{\ast }(F)$ ,

(2.3)

$$\begin{eqnarray}\frac{1}{\sqrt{d}\cdot \sqrt{\text{V ol }(X)}}\text{deg}_{l}(-K_{X})=\unicode[STIX]{x1D70B}^{\ast }l_{p}.F\geqslant \unicode[STIX]{x1D716}E.F.\end{eqnarray}$$

Since $F$ is a general fiber meeting the horizontal divisor $E$ at a smooth point, $E.F\geqslant 1$ . (In this case $E.F=1$ .) Combining all of these, we obtain a lower bound of the restricted volume $\text{deg}_{l}(-K_{X})$ ,

$$\begin{eqnarray}\text{deg}_{l}(-K_{X})\geqslant \unicode[STIX]{x1D716}\sqrt{d}\cdot \sqrt{\text{V ol }(X)}.\end{eqnarray}$$

Note that since in this case $\text{deg}_{l}(-K_{X})=-K_{X}.l=-K_{Y}.\unicode[STIX]{x1D70B}^{\ast }l\leqslant 2$ , it follows that the anticanonical volume $\text{Vol}(X)=K_{X}^{2}\leqslant 4d=4/\unicode[STIX]{x1D716}$ .

In summary, the method of getting an upper bound of the anticanonical volumes is to obtain a lower bound of the restricted volume $\text{Vol}(-(K_{X}+\unicode[STIX]{x1D6E5})|_{V_{p}})$ on the non-klt center $V_{p}$ . This is outlined in the following steps:

∙ Suppose that $\text{Vol}(X,\unicode[STIX]{x1D6E5})=(-(K_{X}+\unicode[STIX]{x1D6E5}))^{n}>(\unicode[STIX]{x1D714}n)^{n}$ for a positive rational number $\unicode[STIX]{x1D714}$ . We will show that $\unicode[STIX]{x1D714}>0$ cannot be arbitrarily large.
∙ For general $p\in X$ , choose
$$\begin{eqnarray}\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}\frac{-(K_{X}+\unicode[STIX]{x1D6E5})}{\unicode[STIX]{x1D714}}\end{eqnarray}$$
so that $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ . Let $V_{p}\subseteq \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ be the minimal non-klt center containing $p$ .
∙ Construct covering families of non-klt centers by “lining up” (part of the) non-klt centers $\{V_{p}\}$ ; see Section 3. This is the generalization of the $\mathbb{P}^{1}$ -bundle structure in the Example 2.1 and is called the covering families of tigers in [M^cK02].
∙ Use the Connectedness Lemma 1.3 to obtain a lower bound of the restricted volume
$$\begin{eqnarray}\text{Vol}(-(K_{X}+\unicode[STIX]{x1D6E5})|_{V_{p}})=(-(K_{X}+\unicode[STIX]{x1D6E5})|_{V_{p}})^{\dim V_{p}}\end{eqnarray}$$
on the non-klt center $V_{p}$ in terms of $\unicode[STIX]{x1D714}$ and $\unicode[STIX]{x1D716}$ . This is the most technical part.
∙ If $\unicode[STIX]{x1D714}\gg 0$ , then we cut down the dimension of non-klt centers by Theorem 1.5. After finitely many steps, we get isolated non-klt centers and hence a contradiction to the Connectedness Lemma 1.3.

The difficulty of this argument arises in dimensions three in many places. First of all, the non-klt centers can be of dimension one or two and we have to deal them separately. When we have one-dimensional covering families of tigers, it is subtle to detect the contribution of the $\unicode[STIX]{x1D716}$ -klt condition from some horizontal subvariety, which is the analogue to the exceptional curve $E$ in the Example 2.1. This is done by applying a differentiation argument to construct a better behaved covering family of tigers; see 5.3. In case we have two-dimensional non-klt centers, complications arise for computing intersection numbers as the total space $Y$ of a covering family of tigers is in general not $\mathbb{Q}$ -factorial. This can be fixed by replacing $Y$ with a suitable birational model. To finish the proof, we also need to run a relative minimal model on the covering families of tigers and study the geometry of all possible outcomes.

3 Covering families of tigers

The main reference for this section is [M^cK02].

Definition 3.1. [M^cK02, Definition 3.1]

Let $(X,\unicode[STIX]{x1D6E5})$ be a log pair with $X$ projective and $D$ a $\mathbb{Q}$ -Cartier divisor. We say that pairs of the form $(\unicode[STIX]{x1D6E5}_{t},V_{t})$ form a covering family of tigers of dimension $k$ and weight $\unicode[STIX]{x1D714}$ if

(1) there is a projective morphism $f:Y\rightarrow B$ of normal projective varieties such that the general fiber of $f$ over $t\in B$ is $V_{t}$ ;
(2) there is a morphism of $B$ to the Hilbert scheme of $X$ such that $B$ is the normalization of its image and $f$ is obtained by taking the normalization of the universal family;
(3) If $\unicode[STIX]{x1D70B}:Y\rightarrow X$ is the natural morphism, then $\unicode[STIX]{x1D70B}(V_{t})$ is a pure non-klt center of $K_{X}+\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{t}$ ;
(4) $\unicode[STIX]{x1D70B}$ is generically finite and dominant;
(5) $\unicode[STIX]{x1D6E5}_{t}{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}$ , where $\unicode[STIX]{x1D6E5}_{t}$ is effective;
(6) the dimension of $V_{t}$ is $k$ .

Note that by definition $k\leqslant \dim X-1$ and $\unicode[STIX]{x1D70B}|_{V_{t}}:V_{t}\rightarrow \unicode[STIX]{x1D70B}(V_{t})$ is finite and birational. A covering family of tigers is illustrated in the following diagram:

We will sometimes also refer $V_{p}$ as a pure non-klt center of $(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ containing $p$ .

For $(X,\unicode[STIX]{x1D6E5})$ a log $\mathbb{Q}$ -Fano variety, we will always assume that $D=-\unicode[STIX]{x1D706}(K_{X}+\unicode[STIX]{x1D6E5})$ for some $\unicode[STIX]{x1D706}>0$ . In particular, $D$ is big and semiample.

The existence of a covering family of tigers is achieved by constructing non-klt centers at general points of $X$ and then fitting a subcollection of them into a family. In order to fit the non-klt centers into a family, we use exceptional non-klt centers where we patch up the unique non-klt place associated to each of them; see Lemma 3.3. The following lemma allows us to create exceptional non-klt centers.

Lemma 3.2. Let $(X,\unicode[STIX]{x1D6E5})$ be a log pair and let $D$ be a big and semiample $\mathbb{Q}$ -Cartier divisor. Write $D^{n}>(\unicode[STIX]{x1D714}n)^{n}$ for some positive rational number $\unicode[STIX]{x1D714}$ . For every $p\in X_{\text{sm}}$ , we can find an effective $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}$ such that the unique minimal non-klt center $V_{p}\subseteq \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ containing $p$ is exceptional.

Proof. Fix a rational number $0<\unicode[STIX]{x1D706}<1$ . By Lemma 1.2, for any $p\in X_{\text{sm}}$ we can find an effective divisor $\unicode[STIX]{x1D6E5}_{p}^{\prime }{\sim}_{\mathbb{Q}}\frac{D}{\unicode[STIX]{x1D706}\unicode[STIX]{x1D714}}$ such that $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}^{\prime }\geqslant n$ and hence $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p}^{\prime })$ .

Fix $p\in X_{\text{sm}}$ , pick $0<\unicode[STIX]{x1D6FF}_{p}\leqslant 1$ the unique rational number such that $(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6FF}_{p}\unicode[STIX]{x1D6E5}_{p}^{\prime })$ is log canonical but not klt at $p$ . By [Reference AmbroAmb98, Proposition 3.2], we can find an effective divisor $M_{p}{\sim}_{\mathbb{Q}}D$ and some rational number $a>0$ such that for any rational number $0<\unicode[STIX]{x1D707}<1$ , the pair $(X,(1-\unicode[STIX]{x1D707})(\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6FF}_{p}\unicode[STIX]{x1D6E5}_{p}^{\prime })+\unicode[STIX]{x1D707}\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D707}aM_{p})$ has a unique minimal non-klt center $V_{p}$ passing through $p$ which is exceptional. If we write

$$\begin{eqnarray}\unicode[STIX]{x1D6E5}_{p}:=(1-\unicode[STIX]{x1D707})\unicode[STIX]{x1D6FF}_{p}\unicode[STIX]{x1D6E5}_{p}^{\prime }+\unicode[STIX]{x1D707}aM_{p}{\sim}_{\mathbb{Q}}\frac{1}{\unicode[STIX]{x1D714}_{p}^{\prime }}D,\end{eqnarray}$$

then

$$\begin{eqnarray}\unicode[STIX]{x1D714}_{p}^{\prime }=\frac{\unicode[STIX]{x1D714}}{(1-\unicode[STIX]{x1D707})\unicode[STIX]{x1D6FF}_{p}/\unicode[STIX]{x1D706}+\unicode[STIX]{x1D707}a\unicode[STIX]{x1D714}}\end{eqnarray}$$

satisfies

$$\begin{eqnarray}(1-\unicode[STIX]{x1D707})\unicode[STIX]{x1D6FF}_{p}/\unicode[STIX]{x1D706}+\unicode[STIX]{x1D707}a\unicode[STIX]{x1D714}<1\end{eqnarray}$$

for $\unicode[STIX]{x1D6FF}_{p}\approx \unicode[STIX]{x1D706}$ and $0<\unicode[STIX]{x1D707}\ll 1$ . Hence $\unicode[STIX]{x1D714}_{p}^{\prime }>\unicode[STIX]{x1D714}$ . Since $D$ is semiample, we can add a small multiple of $D$ to $\unicode[STIX]{x1D6E5}_{p}$ so that $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}$ is the required divisor.◻

For a topological space $X$ , we say that a subset $P$ is countably dense if $P$ is not contained in the union of countably many proper closed subsets of $X$ . The following proposition is the construction of the covering family of tigers; see also [M^cK02, Lemma 3.2] or [Reference TodorovTod07, Lemma 3.2].

Proposition 3.3. Let $(X,\unicode[STIX]{x1D6E5})$ and $\unicode[STIX]{x1D6E5}_{p}$ be the same as in Lemma 3.2. Then there exists a covering family of tigers $\unicode[STIX]{x1D70B}:Y\rightarrow X$ of weight $\unicode[STIX]{x1D714}$ with $p\in V_{p}\subseteq \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ .

Proof. For each $p\in X_{\text{sm}}$ , there is an integer $m_{p}$ such that $m_{p}\unicode[STIX]{x1D6E5}_{p}$ and $m_{p}D/\unicode[STIX]{x1D714}$ are linearly equivalent Cartier divisors. For $m>0$ such that $mD/\unicode[STIX]{x1D714}$ is Cartier, set $C_{m}:=\{p\in X_{\text{sm}}|m\unicode[STIX]{x1D6E5}_{p}\in |mD/\unicode[STIX]{x1D714}|\}$ . Then by construction $X=\cup _{m}\overline{C_{m}}$ , where the union is taken over all $m>0$ such that $mD/\unicode[STIX]{x1D714}$ is Cartier. Since $X$ is countably dense, there is an integer $m>0$ such that $\overline{C_{m}}=X$ .

Choose $m>0$ an integer as above so that $mD/\unicode[STIX]{x1D714}$ is integral Cartier and $\overline{C_{m}}=X$ . Let $B$ be the Zariski closure of the set of points $\{m\unicode[STIX]{x1D6E5}_{p}|p\in X_{\text{sm}}\}\subseteq |mD/\unicode[STIX]{x1D714}|$ in the projective space $|mD/\unicode[STIX]{x1D714}|$ . Replace $B$ by an irreducible component which contains an uncountable subset $Q$ of $B$ such that the set $\{p\in X|\unicode[STIX]{x1D6E5}_{p}\in Q\}$ is dense in $X$ . This is possible since $\overline{C_{m}}=X$ and $X$ is countably dense. Let $H\subseteq X\times |mD/\unicode[STIX]{x1D714}|$ be the universal family of divisors defined by the incidence relation and $H_{B}\rightarrow B$ the restriction to $B$ . Take a log resolution of $H_{B}\subseteq X\times B$ over the generic point of $B$ and extend it over an open subset $U$ of $B$ . By assumption the log resolution over the generic point of $B$ has a unique exceptional divisor of log discrepancy zero since it is true over $Q\subseteq B$ . Let $Y$ be the image of this unique exceptional divisor in $X\times B$ with the natural projection map $\unicode[STIX]{x1D70B}:Y\rightarrow X$ . By construction $\unicode[STIX]{x1D70B}:Y\rightarrow X$ dominates $X$ .

Possibly taking a finite cover of $B$ and passing to an open subset of $B$ , we may assume that any fiber $V_{t}$ of $f:Y\rightarrow B$ over $t\in B$ is a non-klt center of $K_{X}+\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{t}$ . Possibly passing to an open subset of $B$ , we may assume that $f:Y\rightarrow B$ is flat and $B$ maps into the Hilbert scheme. Replace $B$ by the normalization of the closure of its image in the Hilbert scheme and $Y$ by the normalization of the pullback of the universal family. After possibly cutting by hyperplanes in $B$ , we may assume that $\unicode[STIX]{x1D70B}$ is generically finite and dominant. The resulted family is a required covering family of tigers.◻

In fact, the original construction of covering families of tigers is carried out in a more general setting.

Corollary 3.4. Let $(X,\unicode[STIX]{x1D6E5})$ be an $n$ -dimensional log pair and let $D$ be a big $\mathbb{Q}$ -Cartier divisor. Let $\unicode[STIX]{x1D714}$ be a positive rational number such that $\text{Vol}(D)>(\unicode[STIX]{x1D714}n)^{n}$ . Let $P$ be a countably dense subset of $X$ . Suppose that for every point $p\in P$ we may find a pair $(\unicode[STIX]{x1D6E5}_{p},V_{p})$ such that $V_{p}$ is a pure non-klt center of $K_{X}+\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p}$ where $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}_{p}$ for some $\unicode[STIX]{x1D714}_{p}>\unicode[STIX]{x1D714}$ . Then we may find a covering family of tigers of weight $\unicode[STIX]{x1D714}$ together with a countably dense subset $Q$ of $P$ such that for all $q\in Q$ , $V_{q}$ is a fiber of $\unicode[STIX]{x1D70B}$ .

Proof. See [M^cK02, Lemma 3.2] or [Reference TodorovTod07, Lemma 3.2]. ◻

The following lemma shows that we can assume the covering families of tigers under our consideration are always positive dimensional as suggested in the guiding example 2.1.

Lemma 3.5. Let $(X,\unicode[STIX]{x1D6E5})$ be a projective klt pair and $D=-(K_{X}+\unicode[STIX]{x1D6E5})$ be a big and nef $\mathbb{Q}$ -Cartier divisor. Then a covering family of tigers $(\unicode[STIX]{x1D6E5}_{t},V_{t})$ of weight $\unicode[STIX]{x1D714}>2$ is positive dimensional, that is, $k=\dim V_{t}>0$ .

Proof. This is [M^cK02, Lemma 3.4] and we include the proof for convenience of the reader. Suppose that there exists a zero-dimensional covering family of tigers of weight $\unicode[STIX]{x1D714}>2$ . For $p_{1}$ and $p_{2}$ general, there are divisors $\unicode[STIX]{x1D6E5}_{1}$ and $\unicode[STIX]{x1D6E5}_{2}$ with $\unicode[STIX]{x1D6E5}_{i}{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}$ such that $p_{i}$ is an isolated non-klt center of $K_{X}+\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{i}$ . As $p_{1}$ and $p_{2}$ are general, it follows that $\unicode[STIX]{x1D6E5}_{2}$ does not contain $p_{1}$ and $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{1}+\unicode[STIX]{x1D6E5}_{2})$ contains $p_{1}$ and $p_{2}$ as disconnected non-klt centers. But $-(K_{X}+\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{1}+\unicode[STIX]{x1D6E5}_{2})\sim \big(1-\frac{2}{\unicode[STIX]{x1D714}}\big)D$ is nef and big if $\unicode[STIX]{x1D714}>2$ . This contradicts to Lemma 1.3.◻

Recall that we want to obtain a lower bound of restricted volumes on the non-klt centers by studying the associated covering families of tigers so that we can cut down the dimension via Theorem 1.5 to get isolated non-klt centers. If the new non-klt centers after cutting down the dimension are still positive dimensional, then we have to create new covering families of tigers and repeat the process. The following proposition due to M^cKernan, [M^cK02, Lemma 5.3], enables us to create covering families of tigers of new non-klt centers after cutting down the dimension. We include the proof here for the convenience of the readers. It starts with two lemmas.

Lemma 3.6. Let $\unicode[STIX]{x1D70B}:Y\rightarrow X$ be a smooth morphism of smooth varieties. Let $\unicode[STIX]{x1D6E5}_{1}$ be a $\mathbb{Q}$ -divisor on $X$ and let $\unicode[STIX]{x1D6E4}_{1}$ be the pullback of $\unicode[STIX]{x1D6E5}_{1}$ to $Y$ . Let $\unicode[STIX]{x1D6E4}_{2}$ be a boundary on $Y$ , such that the support $B$ of $\unicode[STIX]{x1D6E4}_{2}$ dominates $X$ and $\unicode[STIX]{x1D70B}|_{B}$ is smooth. Then $(X,\unicode[STIX]{x1D6E5}_{1})$ is log canonical (respectively Kawamata log terminal, etc.) if and only if $(Y,\unicode[STIX]{x1D6E4}=\unicode[STIX]{x1D6E4}_{1}+\unicode[STIX]{x1D6E4}_{2})$ is log canonical (respectively Kawamata log terminal, etc.).

Proof. The property of being log canonical is local in the analytic topology. On the other hand, locally in the analytic topology, $Y$ is a product $X_{1}\times X_{2}$ , where $X_{1}$ is isomorphic to $X$ and $\unicode[STIX]{x1D6E4}_{2}$ is the pullback of a divisor $\unicode[STIX]{x1D6E5}_{2}$ on $X_{2}$ whose support is smooth, so that $\unicode[STIX]{x1D6E4}=\unicode[STIX]{x1D6E5}_{1}\times X_{2}+X_{1}\times \unicode[STIX]{x1D6E5}_{2}$ . The result follows from the same computation as in [Reference KollárKol97, Proposition 8.21].◻

Lemma 3.7. Let $(X,\unicode[STIX]{x1D6E5})$ be a log pair where $X$ is projective and $\unicode[STIX]{x1D6E5}$ is effective. Suppose that $V$ is an exceptional log canonical center of $K_{X}+\unicode[STIX]{x1D6E5}$ . Then there is an open subset $U$ of the smooth locus of $V$ with the following property:

For all divisors $\unicode[STIX]{x1D6E9}$ on $X$ , which do not contain the generic point of $V$ and subvarieties $W$ of $V$ such that $W|_{U}$ is a pure log canonical center of $K_{U}+\unicode[STIX]{x1D6E9}|_{U}$ , then $W$ is a pure log canonical center of $K_{X}+\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E9}$ .

Proof. This result is local about the generic point of $V$ so we are free to replace $X$ by any open set that contains the generic point of $V$ . The idea is to reduce to the case of a divisor, when the result becomes an easy consequence of inversion of adjunction. Pick a log resolution $\unicode[STIX]{x1D70B}:Y\rightarrow X$ of the pair $(X,\unicode[STIX]{x1D6E5})$ and let $\unicode[STIX]{x1D6E4}$ be the divisor defined by $K_{Y}+\unicode[STIX]{x1D6E4}=\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5})$ . By assumption there is a unique divisor $E$ lying over $V$ of log discrepancy zero. Let $f:E\rightarrow V$ be the restriction of $\unicode[STIX]{x1D70B}$ to $E$ . Replacing $X$ by an open subset, we may assume that $f$ and $V$ are both smooth, and that $K_{V}$ and $K_{X}+\unicode[STIX]{x1D6E5}$ are $\mathbb{Q}$ -linearly equivalent to zero. Passing to a smaller open set of $X$ , we can assume that $\unicode[STIX]{x1D6E4}\geqslant 0$ . By adjunction we may write $(K_{Y}+\unicode[STIX]{x1D6E4})|_{E}=K_{E}+B$ for some effective divisor $B$ , where both sides are $\mathbb{Q}$ -linearly equivalent to zero. Passing to a smaller open set again, we may assume that every component of $B$ dominates $V$ and that $f|_{B}$ is smooth. Then

$$\begin{eqnarray}K_{E}+B=(K_{Y}+\unicode[STIX]{x1D6E4})|_{E}=\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5})|_{E}=f^{\ast }((K_{X}+\unicode[STIX]{x1D6E5})|_{V}){\sim}_{\mathbb{Q}}f^{\ast }(K_{V}).\end{eqnarray}$$

Suppose that $W$ is a pure log canonical center of $K_{V}+\unicode[STIX]{x1D6E9}|_{V}$ . Set $\unicode[STIX]{x1D6E9}^{\prime }=\unicode[STIX]{x1D70B}^{\ast }\unicode[STIX]{x1D6E9}$ . As $\unicode[STIX]{x1D6E9}$ does not contain the generic point of $V$ , $E$ is not a component of $\unicode[STIX]{x1D6E9}^{\prime }$ , so that $f^{\ast }(\unicode[STIX]{x1D6E9}|_{V})=\unicode[STIX]{x1D6E9}^{\prime }|_{E}$ . It follows by Lemma 3.6 that $f^{-1}(W)$ is a pure log canonical center of $K_{E}+\unicode[STIX]{x1D6E9}^{\prime }|_{E}$ .

The result now follows from the inversion of subadjunction (cf., (17.1.1), (17.6) and (17.7) of [Reference KollárKol92]). ◻

Proposition 3.8. Let $(X,\unicode[STIX]{x1D6E5})$ be a log pair and let $D$ be a $\mathbb{Q}$ -Cartier divisor of the form $A+E$ where $A$ is ample and $E$ is effective. Let $(\unicode[STIX]{x1D6E5}_{t},V_{t})$ be a covering family of tigers of weight $\unicode[STIX]{x1D714}$ and dimension $k$ . Let $A_{t}$ be $A|_{V_{t}}$ . Suppose that there is an open subset $U\subseteq B$ such that for all $t\in U$ we may find a covering family of tigers $(\unicode[STIX]{x1D6E4}_{t,s},W_{t,s})$ on $V_{t}$ of weight $\unicode[STIX]{x1D714}^{\prime }$ with respect to $A_{t}$ . Then for $(X,\unicode[STIX]{x1D6E5})$ we can find a covering family of tigers $(\unicode[STIX]{x1D6E4}_{s},W_{s})$ of dimension less than $k$ and weight

$$\begin{eqnarray}\unicode[STIX]{x1D714}^{\prime \prime }=\frac{1}{1/\unicode[STIX]{x1D714}+1/\unicode[STIX]{x1D714}^{\prime }}=\frac{\unicode[STIX]{x1D714}\unicode[STIX]{x1D714}^{\prime }}{\unicode[STIX]{x1D714}+\unicode[STIX]{x1D714}^{\prime }}.\end{eqnarray}$$

Proof. Pick $r$ so that $rA$ is Cartier and let $L={\mathcal{O}}_{X}(rA)$ be the corresponding line bundle. Note that by Serre vanishing $\text{H}^{1}(X,{\mathcal{I}}_{V}\otimes L^{\otimes m})=0$ for $m$ large enough. Hence we may lift $\unicode[STIX]{x1D6E4}_{t,s}$ to a $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E9}_{t,s}$ on $X$ $\mathbb{Q}$ -linearly equivalent to the same multiple of $A$ . Adding on a multiple of $E$ we may assume that $\unicode[STIX]{x1D6E9}_{t,s}$ is in fact a multiple of $D$ . Since adding $E$ only effect a proper closed subset of $X$ , there is a countably dense collection $(\unicode[STIX]{x1D6E5}_{t},V_{t})$ satisfying the hypothesis of Lemma 3.7. Thus by Corollary 3.4 applied to $(\unicode[STIX]{x1D6E5}_{t}+\unicode[STIX]{x1D6E9}_{t,s},W_{t,s})$ , we may find a covering family of tigers $(\unicode[STIX]{x1D6E4}_{s},W_{s})$ of weight $\unicode[STIX]{x1D714}^{\prime \prime }$ .◻

We will apply Proposition 3.8 with the ample divisor $D=-(K_{X}+\unicode[STIX]{x1D6E5})$ and only in the case when we have a two-dimensional covering family of tigers $\unicode[STIX]{x1D70B}:Y\rightarrow X$ with $\deg (\unicode[STIX]{x1D70B})>1$ .

In the process of obtaining lower bound of the restricted volume on the non-klt centers, if we have one-dimensional non-klt centers, then we can control the restricted volume of $D$ (cf., [M^cK02, Lemma 5.3]).

Corollary 3.9. Let $(X,\unicode[STIX]{x1D6E5})$ be a log pair and let $D$ be an ample divisor. Let $(\unicode[STIX]{x1D6E5}_{t},V_{t})$ be a covering family of tigers of weight $\unicode[STIX]{x1D714}>2$ and dimension one. Then $\text{deg}(D|_{V_{t}})\leqslant 2\unicode[STIX]{x1D714}/(\unicode[STIX]{x1D714}-2)$ .

Proof. Suppose that $\text{deg}(D|_{V_{t}})>2\unicode[STIX]{x1D714}/(\unicode[STIX]{x1D714}-2)$ , then by Lemma 3.2, Theorem 1.5, and Corollary 3.4 we may find a covering family $(\unicode[STIX]{x1D6E4}_{t,s},W_{s,t})$ of tigers of weight $\unicode[STIX]{x1D714}^{\prime }>2\unicode[STIX]{x1D714}/(\unicode[STIX]{x1D714}-2)$ and dimension zero on $V_{t}$ . By Proposition 3.8, there exists a covering family of tigers of dimension zero and weight

$$\begin{eqnarray}\unicode[STIX]{x1D714}^{\prime \prime }=\frac{\unicode[STIX]{x1D714}\unicode[STIX]{x1D714}^{\prime }}{\unicode[STIX]{x1D714}+\unicode[STIX]{x1D714}^{\prime }}>2\end{eqnarray}$$

for $X$ . This contradicts Lemma 3.5.◻

4 Log Del Pezzo surfaces

Let $(X,\unicode[STIX]{x1D6E5})$ be an $\unicode[STIX]{x1D716}$ -klt weak log del Pezzo surface. The minimal resolution $\unicode[STIX]{x1D70B}:Y\rightarrow X$ of $(X,\unicode[STIX]{x1D6E5})$ is the unique proper birational morphism such that $Y$ is a smooth projective surface and $K_{Y}+\unicode[STIX]{x1D6E5}_{Y}=\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5})$ for some effective $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}_{Y}$ on $Y$ . Note that minimal resolutions always exist for two-dimensional log pairs. It is easy to see that $(Y,\unicode[STIX]{x1D6E5}_{Y})$ is also an $\unicode[STIX]{x1D716}$ -klt weak log del Pezzo surface with volume

$$\begin{eqnarray}\text{Vol}(Y,\unicode[STIX]{x1D6E5}_{Y})=(K_{Y}+\unicode[STIX]{x1D6E5}_{Y})^{2}=(K_{X}+\unicode[STIX]{x1D6E5}_{X})^{2}=\text{Vol}(X,\unicode[STIX]{x1D6E5}_{X}).\end{eqnarray}$$

Hence replacing $(X,\unicode[STIX]{x1D6E5})$ by its minimal resolution, we can assume that $X$ is smooth.

Write $(K_{X}+\unicode[STIX]{x1D6E5})^{2}>(2\unicode[STIX]{x1D714})^{2}$ . For a general point $p\in X$ , let $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}-(K_{X}+\unicode[STIX]{x1D6E5})/\unicode[STIX]{x1D714}$ be an effective $\mathbb{Q}$ -divisor constructed from Lemma 1.2 such that $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ . Assume that $\unicode[STIX]{x1D714}>2$ , then by Lemma 3.5 the unique minimal non-klt center $F_{p}$ of $(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ containing $p$ is one-dimensional. Note that for general $p\in X$ , $F_{p}\leqslant \unicode[STIX]{x1D6E5}_{p}$ .

Lemma 4.1. For a very general point $p\in X$ , the numerical class $F:=F_{p}$ on $X$ is well defined and $F$ is nef.

Proof. An effective integral one-cycles $F_{p}$ satisfies $F_{p}\leqslant \unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}-(K_{X}+\unicode[STIX]{x1D6E5})/\unicode[STIX]{x1D714}$ and hence forms a bounded set in the Mori cone of curves. As $\mathbb{C}$ is uncountable, for $p\in X$ a very general point the numerical class $F:=F_{p}$ is well defined. Since $\{F_{p}\}$ moves, the class $F$ is nef.◻

The following lemma shows that if we assume the weight $\unicode[STIX]{x1D714}$ is large, then the non-klt centers $\{F_{p}\}$ on $X$ already possess a nearly fiber bundle structure analogous to a covering family of tigers.

Lemma 4.2. Assume that $\unicode[STIX]{x1D714}>4$ , then $F^{2}=0$ , that is, $F_{p}\cap F_{q}=\emptyset$ for $p,q\in X$ two very general points.

Proof. Suppose that $\unicode[STIX]{x1D714}>4$ and assume that $F_{p}\cap F_{q}\neq \emptyset$ for $p,q\in X$ two very general points. Since by Lemma 4.1 the curve class $F=F_{p}$ is nef, then for $H=-(K_{X}+\unicode[STIX]{x1D6E5})/\unicode[STIX]{x1D714}$ we have

$$\begin{eqnarray}1\leqslant F_{p}.F_{q}=F.F_{q}\leqslant F.\unicode[STIX]{x1D6E5}_{q}=\text{deg}(H|_{F_{q}}).\end{eqnarray}$$

Since $H$ is big and nef, one can cut down the dimension of the non-klt centers by Theorem 1.5.Footnote ²

To be precise, choose $x$ an intersection point of $F_{p}$ and $F_{q}$ . Pick $0<\unicode[STIX]{x1D6FF}_{1}\leqslant 1$ such that $(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6FF}_{1}\unicode[STIX]{x1D6E5}_{p})$ is log canonical at $x$ . If $(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6FF}_{1}\unicode[STIX]{x1D6E5}_{p})=\{x\}$ , then this contradicts the Connected Lemma 1.3 as $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6FF}_{1}\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})$ containing $x$ and $F_{q}$ is disconnected but $-(K_{X}+\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6FF}_{1}\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})$ is nef and big. Hence we may assume that $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6FF}_{1}\unicode[STIX]{x1D6E5}_{p})$ is one-dimensional. By Theorem 1.5, there exists rational numbers $0<\unicode[STIX]{x1D6FF}\ll 1$ , $0<c<1$ , and an effective $\mathbb{Q}$ -divisor $B_{x}\equiv H$ such that $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+(1-\unicode[STIX]{x1D6FF})\unicode[STIX]{x1D6FF}_{1}\unicode[STIX]{x1D6E5}_{p}+cB_{x})=\{x\}$ in a neighborhood of $x$ . By switching $p$ and $q$ , we can assume that $q\neq x$ . Similarly we have $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+(1-\unicode[STIX]{x1D6FF}^{\prime })\unicode[STIX]{x1D6FF}_{2}\unicode[STIX]{x1D6E5}_{q}+c^{\prime }B_{q})=\{q\}$ in a neighborhood of $q$ for some divisor $B_{q}\equiv H$ and rational numbers $0<\unicode[STIX]{x1D6FF}_{2}\leqslant 1$ , $0<\unicode[STIX]{x1D6FF}^{\prime }\ll 1$ , and $0<c^{\prime }<1$ . The set $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+(1-\unicode[STIX]{x1D6FF})\unicode[STIX]{x1D6FF}_{1}\unicode[STIX]{x1D6E5}_{p}+cB_{x}+(1-\unicode[STIX]{x1D6FF}^{\prime })\unicode[STIX]{x1D6FF}_{2}\unicode[STIX]{x1D6E5}_{q}+c^{\prime }B_{q})$ contains isolated non-klt centers $x$ and $q$ and hence is disconnected. Since the pair is numerically equivalent to $\big(1-\frac{(1-\unicode[STIX]{x1D6FF})\unicode[STIX]{x1D6FF}_{1}+c+(1-\unicode[STIX]{x1D6FF}^{\prime })\unicode[STIX]{x1D6FF}_{2}+c^{\prime }}{\unicode[STIX]{x1D714}}\big)(-(K_{X}+\unicode[STIX]{x1D6E5}))$ which is nef and big if $\unicode[STIX]{x1D714}>4$ , we have a contradiction to the Connectedness Lemma 1.3.◻

Recall that for any two Weil divisors $A=\sum a_{i}D_{i}$ and $B=\sum b_{i}D_{i}$ , we define $A\wedge B$ to be

$$\begin{eqnarray}A\wedge B=\mathop{\sum }_{i}\min \{a_{i},b_{i}\}D_{i}.\end{eqnarray}$$

Theorem 4.3. Let $(X,\unicode[STIX]{x1D6E5})$ be an $\unicode[STIX]{x1D716}$ -klt weak log del Pezzo surface. Then the anticanonical volume $\text{Vol}(X,\unicode[STIX]{x1D6E5})=(K_{X}+\unicode[STIX]{x1D6E5})^{2}$ satisfies

$$\begin{eqnarray}(K_{X}+\unicode[STIX]{x1D6E5})^{2}\leqslant \max \biggl\{64,\frac{8}{\unicode[STIX]{x1D716}}\biggr\}.\end{eqnarray}$$

Proof. Replacing $(X,\unicode[STIX]{x1D6E5})$ by its minimal resolution, we may assume that $X$ is smooth. Write $(K_{X}+\unicode[STIX]{x1D6E5})^{2}>(2\unicode[STIX]{x1D714})^{2}$ , then for each general point $p\in X$ there exists an effective $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}-(K_{X}+\unicode[STIX]{x1D6E5})/\unicode[STIX]{x1D714}$ such that $p\in \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ . From Lemma 3.5, we may assume that $\unicode[STIX]{x1D714}>2$ and the unique minimal non-klt center $F_{p}\subseteq \text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p})$ containing $p$ is one-dimensional. Note that $F_{p}\leqslant \unicode[STIX]{x1D6E5}_{p}$ for general $p\in X$ . By Lemmas 4.1 and 4.2, we may assume that $\unicode[STIX]{x1D714}>4$ and for very general $p\in X$ the numerical class $F$ of $F_{p}$ is well defined and nef with $F^{2}=0$ .

For two very general points $p,q\in X$ , $\unicode[STIX]{x1D6E5}_{p}.\unicode[STIX]{x1D6E5}_{q}>0$ and hence $F_{p}=\text{Supp}(F_{p})\subsetneq \text{Supp}(\unicode[STIX]{x1D6E5}_{p})$ : Otherwise $\unicode[STIX]{x1D6E5}_{q}\equiv \unicode[STIX]{x1D6E5}_{p}\leqslant NF_{p}$ for some $N>0$ and $0<\unicode[STIX]{x1D6E5}_{p}.\unicode[STIX]{x1D6E5}_{q}\leqslant N^{2}F_{p}^{2}=N^{2}F^{2}=0$ , a contradiction. Denote $E_{p}=\text{Supp}(\unicode[STIX]{x1D6E5}_{p})-F_{p}\neq 0$ . By the Connectedness Lemma 1.3, $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\supseteq F_{p}\cup F_{q}$ is connected. By Lemma 4.2, $F_{p}\cap F_{q}=\emptyset$ and hence $E_{p}$ must contain a connected curve $E\leqslant E_{p}$ such that $F_{p}.E\neq 0$ , $F_{q}.E\neq 0$ , and $\text{Nklt}(X,\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\supseteq F_{p}\cup F_{q}\cup E$ . Furthermore, we can assume that $E$ is irreducible since $E.F_{q}\neq 0$ as $F_{q}\equiv F_{p}$ for $q\in X$ a very general point. By symmetry and the $\unicode[STIX]{x1D716}$ -klt condition, $E$ satisfies $\frac{\unicode[STIX]{x1D716}}{2}E\leqslant \unicode[STIX]{x1D6E5}_{p}$ (cf., Example 2.1).

Suppose that $E^{2}\geqslant 0$ , then as $H=-(K_{X}+\unicode[STIX]{x1D6E5})/\unicode[STIX]{x1D714}$ is nef

$$\begin{eqnarray}H.E=\unicode[STIX]{x1D6E5}_{p}.E=(\unicode[STIX]{x1D6E5}_{p}^{\prime }.E+a_{E}^{\prime }E^{2})\geqslant F_{p}.E\geqslant 1\end{eqnarray}$$

where we write $\unicode[STIX]{x1D6E5}_{p}=\unicode[STIX]{x1D6E5}_{p}^{\prime }+a_{E}^{\prime }E$ with $\unicode[STIX]{x1D6E5}_{p}^{\prime }\wedge E=0$ , $\unicode[STIX]{x1D6E5}_{p}^{\prime }\geqslant F_{p}$ , and $a_{E}^{\prime }>0$ . In particular, we can use Theorem 1.5 again to cut down the dimension of non-klt centers as in Lemma 4.2. This contradicts the Connectedness Lemma 1.3.

We may assume that $E^{2}<0$ , and thus

$$\begin{eqnarray}\displaystyle -2 & {\leqslant} & \displaystyle 2g_{a}(E)-2=(K_{X}+E).E\nonumber\\ \displaystyle & = & \displaystyle (K_{X}+\unicode[STIX]{x1D6E5}).E+(1-\unicode[STIX]{x1D716}-a_{E})E^{2}-\unicode[STIX]{x1D6E5}^{\prime }.E+\unicode[STIX]{x1D716}E^{2}\leqslant \unicode[STIX]{x1D716}E^{2}\nonumber\end{eqnarray}$$

where $\unicode[STIX]{x1D6E5}=\unicode[STIX]{x1D6E5}^{\prime }+a_{E}E$ with $\unicode[STIX]{x1D6E5}^{\prime }\wedge E=0$ and $a_{E}\in [0,1-\unicode[STIX]{x1D716})$ by the $\unicode[STIX]{x1D716}$ -klt condition. This implies that

$$\begin{eqnarray}1\leqslant -E^{2}\leqslant 2/\unicode[STIX]{x1D716}\end{eqnarray}$$

where the first inequality follows from the fact that $E^{2}\in \mathbb{Z}$ as $X$ is smooth. Since $F^{2}=0$ for $F$ the numerical class of $F_{p}$ , where $p\in X$ is very general, by Nakai’s criterion the divisor $H_{s}=F+sE$ with $0<s\leqslant 1/(-E^{2})$ is nef and big. By the Hodge index theorem (see [Reference HartshorneHar77, V 1.1.9(a)]), we get the inequality

(1)

$$\begin{eqnarray}(K_{X}+\unicode[STIX]{x1D6E5})^{2}\leqslant \frac{(-(K_{X}+\unicode[STIX]{x1D6E5}).H_{s})^{2}}{H_{s}^{2}}.\end{eqnarray}$$

From $\unicode[STIX]{x1D6E5}.F\geqslant 0$ and $F^{2}=0$ , we have that

(2)

$$\begin{eqnarray}-(K_{X}+\unicode[STIX]{x1D6E5}).F\leqslant -(K_{X}+F).F\leqslant 2.\end{eqnarray}$$

Also for $\unicode[STIX]{x1D6E5}=\unicode[STIX]{x1D6E5}^{\prime }+a_{E}E$ with $\unicode[STIX]{x1D6E5}^{\prime }\wedge E=0$ and $a_{E}\in [0,1-\unicode[STIX]{x1D716})$ , we have that

(3)

$$\begin{eqnarray}\displaystyle -(K_{X}+\unicode[STIX]{x1D6E5}).E & = & \displaystyle -K_{X}.E-\unicode[STIX]{x1D6E5}^{\prime }.E-a_{E}E^{2}\nonumber\\ \displaystyle & {\leqslant} & \displaystyle E^{2}+2-a_{E}E^{2}=(a_{E}-1)(-E^{2})+2\leqslant 2-\unicode[STIX]{x1D716}(-E^{2}).\end{eqnarray}$$

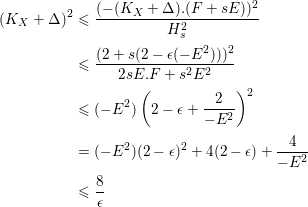

Put $s=1/(-E^{2})$ , all together we get

$$\begin{eqnarray}\displaystyle (K_{X}+\unicode[STIX]{x1D6E5})^{2} & {\leqslant} & \displaystyle \frac{(-(K_{X}+\unicode[STIX]{x1D6E5}).(F+sE))^{2}}{H_{s}^{2}}\nonumber\\ \displaystyle & {\leqslant} & \displaystyle \frac{(2+s(2-\unicode[STIX]{x1D716}(-E^{2})))^{2}}{2sE.F+s^{2}E^{2}}\nonumber\\ \displaystyle & {\leqslant} & \displaystyle (-E^{2})\left(2-\unicode[STIX]{x1D716}+\frac{2}{-E^{2}}\right)^{2}\nonumber\\ \displaystyle & = & \displaystyle (-E^{2})(2-\unicode[STIX]{x1D716})^{2}+4(2-\unicode[STIX]{x1D716})+\frac{4}{-E^{2}}\nonumber\\ \displaystyle & {\leqslant} & \displaystyle \frac{8}{\unicode[STIX]{x1D716}}\nonumber\end{eqnarray}$$

where the first inequality is (1), the second inequality follows from (2), (3), and $F^{2}=0$ , and the third inequality is given by $E.F\geqslant 1$ , and thus $2sE\cdot F+s^{2}E^{2}\geqslant 2s+s^{2}E^{2}=1/(-E^{2})$ . The last inequality follows from the fact that the function $f(x)=(2-\unicode[STIX]{x1D716})^{2}x+4/x$ , defined on $1\leqslant x\leqslant 2/\unicode[STIX]{x1D716},$ achieves its maximum at $x=2/\unicode[STIX]{x1D716}.$ ◻

Remark 4.4. Note that by applying Corollary 3.9 one can only obtain an upper bound of order $1/\unicode[STIX]{x1D716}^{2}$ . Hence Theorem 4.3 is a nontrivial result.

5 Log Fano threefolds of Picard number one

Let $(X,\unicode[STIX]{x1D6E5})$ be an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -factorial log $\mathbb{Q}$ -Fano threefold of Picard number $\unicode[STIX]{x1D70C}(X)=1$ . Note that by hypothesis $X$ is $\unicode[STIX]{x1D716}$ -klt and $-K_{X}$ is ample with $-K_{X}^{3}\geqslant \text{Vol}(X,\unicode[STIX]{x1D6E5})=-(K_{X}+\unicode[STIX]{x1D6E5})^{3}$ . Hence it is sufficient to assume that $X$ is an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -factorial $\mathbb{Q}$ -Fano threefold of Picard number $\unicode[STIX]{x1D70C}(X)=1$ and to find an upper bound of $\text{Vol}(X)=-K_{X}^{3}$ .

We will obtain an upper bound of the volumes by studying covering families of tigers. The weight of any covering families of tigers in our study will always be the weight with respect to $-K_{X}$ .

Let $X$ be an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -factorial $\mathbb{Q}$ -Fano threefold of Picard number $\unicode[STIX]{x1D70C}(X)=1$ and write $\text{Vol}(X)=-K_{X}^{3}>(3\unicode[STIX]{x1D714})^{3}$ for some positive rational number $\unicode[STIX]{x1D714}$ . Denote $D=-2K_{X}$ , we have $D^{3}>(6\unicode[STIX]{x1D714})^{3}$ . By Lemma 1.2, we can fix an affine open subset $U\subseteq X$ such that for each $p\in U$ there exists an effective divisor $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}$ with $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}\geqslant 6$ . We do not assume that $\unicode[STIX]{x1D6E5}_{p}$ creates exceptional non-klt centers as in Lemma 3.2, otherwise we lose control on multiplicity. We pick divisors $\unicode[STIX]{x1D6E5}_{p}$ ’s in the following systematic way so that we can control their multiplicities uniformly.

5.1 Construction

Let $\unicode[STIX]{x1D6E5}_{U}\subseteq U\times U$ be the diagonal and ${\mathcal{I}}_{{\mathcal{Z}}}$ be the ideal sheaf of ${\mathcal{Z}}=\overline{\unicode[STIX]{x1D6E5}_{U}}\subseteq X\times U$ . For each $p\in U$ , by the existence of $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}_{p}{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}$ with $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}\geqslant 6$ , there exists $m_{p}>0$ such that $L_{m_{p}}=m_{p}D/\unicode[STIX]{x1D714}$ is Cartier and $H^{0}(X,L_{m_{p}}\otimes {\mathcal{I}}_{p}^{\otimes 6m_{p}})\neq 0$ , where ${\mathcal{I}}_{p}$ is the ideal sheaf of $p\in U$ . In particular, we can write $U=\cup U_{m}$ where $m>0$ runs through all sufficiently divisible integers such that $L_{m}=mD/\unicode[STIX]{x1D714}$ is Cartier and $U_{m}=\{p\in U|H^{0}(X,L_{m}\otimes {\mathcal{I}}_{p}^{\otimes 6m})\neq 0\}$ . In particular, each $\overline{U_{m}}$ is closed in $X$ and $X=\cup \overline{U_{m}}$ . Since the base field $\mathbb{C}$ is uncountable, $X$ cannot be a countable union of proper closed subsets and there exists some $m>0$ such that $U_{m}$ is dense in $X$ .

Fix an $m>0$ so that $L_{m}=mD/\unicode[STIX]{x1D714}$ is Cartier and $U_{m}=\{p\in U|H^{0}(X,L_{m}\otimes {\mathcal{I}}_{p}^{\otimes 6m})\neq 0\}$ is dense in $X$ . Denote $\text{pr}_{X}:X\times U\rightarrow X$ and $\text{pr}_{U}:X\times U\rightarrow U$ the projection maps. Since $\text{pr}_{U}:X\times U\rightarrow U$ is flat, by [Reference HartshorneHar77, III 12.11] after restricting to a smaller open affine subset of $U$ , we can assume that the map

$$\begin{eqnarray}(\text{pr}_{U})_{\ast }(\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})\otimes \mathbb{C}(p)\rightarrow H^{0}(X,L_{m}\otimes {\mathcal{I}}_{p}^{\otimes 6m})\end{eqnarray}$$

is isomorphic for each $p\in U$ . Since $U_{m}$ is dense in $U$ , the sheaf $(\text{pr}_{U})_{\ast }(\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})\neq 0$ on $U$ and hence $H^{0}(X\times U,\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})\neq 0$ as $U$ is affine. Let $s\in H^{0}(X\times U,\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ be a nonzero section with $F=\text{div}(s)$ the corresponding divisor on $X\times U$ . For each $p\in U$ , denote $F_{p}=F\cap (X\times \{p\})$ the associated divisor on $X\cong X\times \{p\}$ . Since $\text{mult}_{{\mathcal{Z}}}(F)\geqslant 6m$ , by Lemma 5.1 below the $\mathbb{Q}$ -divisor $\unicode[STIX]{x1D6E5}_{p}=F_{p}/m{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}$ on $X$ satisfies $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}\geqslant 6$ for general $p\in U$ .

Lemma 5.1. [Reference LazarsfeldLaz04, Lemma 5.2.11]

Let $g:M\rightarrow T$ be a morphism of smooth varieties, and suppose that ${\mathcal{Z}}\subseteq M$ is an irreducible subvariety dominating $T$ :

Let $F\subseteq M$ be an effective divisor. Then for a general point $t\in T$ and any irreducible component ${\mathcal{Z}}_{t}^{\prime }\subseteq {\mathcal{Z}}_{t}$ ,

$$\begin{eqnarray}\text{mult}_{{\mathcal{Z}}_{t}^{\prime }}(M_{t},F_{t})=\text{mult}_{{\mathcal{Z}}}(M,F)\end{eqnarray}$$

where $\text{mult}_{{\mathcal{Z}}}(M,F)$ is the multiplicity of the divisor $F$ on $M$ along a general point of the irreducible subvariety ${\mathcal{Z}}\subseteq M$ and similarly for $\text{mult}_{{\mathcal{Z}}_{t}^{\prime }}(M_{t},F_{t})$ .

For a given collection of $\mathbb{Q}$ -divisors $\{\unicode[STIX]{x1D6E5}_{p}=F_{p}/m{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}|p\in U~\text{general}\}$ associated to a nonzero section in $H^{0}(X\times U,\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ as above, by Lemma 3.2 we can modify $\unicode[STIX]{x1D6E5}_{p}$ ’s such that the unique non-klt centers $V_{p}\subseteq \text{Nklt}(X,\unicode[STIX]{x1D6E5}_{p})$ passing through $p$ are exceptional. By Lemma 3.3 (or in general Corollary 3.4), we can construct covering families of tigers from these divisors.

In order to obtain an upper bound of $\unicode[STIX]{x1D714}$ , which is enough for bounding the volumes, we will pick up a “well-behaved” nonzero section $s\in H^{0}(X\times U,pr_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ and study the corresponding covering families of tigers.

5.2 Cases

By 5.1, there exists an open affine subset $U\subseteq X$ and an integer $m>0$ such that $H^{0}(X\times U,\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})\neq 0$ . Let $s\in H^{0}(X\times U,\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ be a nonzero section with divisor $F=\text{div}(s)$ on $X\times U$ and $\{\unicode[STIX]{x1D6E5}_{p}=F_{p}/m{\sim}_{\mathbb{Q}}D/\unicode[STIX]{x1D714}|p\in U~\text{general}\}$ be the associated collection of $\mathbb{Q}$ -divisors. We consider two cases:

(1) (Small multiplicity) For each irreducible component ${\mathcal{W}}$ of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ , $\text{mult}_{{\mathcal{W}}}(F)\leqslant 3m$ , that is, for general $p\in U$ we have $\text{mult}_{W}(\unicode[STIX]{x1D6E5}_{p})\leqslant 3$ for any irreducible component $W$ of $\text{Supp}(\unicode[STIX]{x1D6E5}_{p})$ passing through $p$ . After differentiating $F$ , we will construct a “well-behaved” covering family of tigers of dimension one. We will derive an upper bound of $\unicode[STIX]{x1D714}$ by studying this well-behaved covering family of tigers. See Section 5.3.
(2) (Big multiplicity) There exists an irreducible component ${\mathcal{W}}$ of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ with multiplicity $\text{mult}_{{\mathcal{W}}}(F)>3m$ , that is, for general $p\in U$ we have $\text{mult}_{W}(\unicode[STIX]{x1D6E5}_{p})>3$ for an irreducible component $W$ of $\text{Supp}(\unicode[STIX]{x1D6E5}_{p})$ passing through $p$ . We will construct a covering family of tigers of dimension two and derive an upper bound of $\unicode[STIX]{x1D714}$ by studying the geometry of this covering family of tigers. See Section 5.4.

To pick up a “well-behaved” nonzero section in $H^{0}(X\times U,\text{pr}_{X}^{\ast }L_{m}\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ , we will apply the following proposition.

Proposition 5.2. [Reference LazarsfeldLaz04, Proposition 5.2.13]

Let $X$ and $U$ be smooth irreducible varieties, with $U$ affine, and suppose that

$$\begin{eqnarray}{\mathcal{Z}}\subseteq {\mathcal{W}}\subseteq X\times U\end{eqnarray}$$

are irreducible subvarieties such that ${\mathcal{W}}$ dominates $X$ . Fix a line bundle $L$ on $X$ , and suppose given on $X\times U$ a divisor $F\in |\text{pr}_{X}^{\ast }(L)|$ . Write

$$\begin{eqnarray}l=\text{mult}_{{\mathcal{Z}}}(F),\qquad k=\text{mult}_{{\mathcal{W}}}(F).\end{eqnarray}$$

Then after differentiating in the parameter directions, there exists a divisor $F^{\prime }\in |\text{pr}_{X}^{\ast }(L)|$ on $X\times U$ with the property that

$$\begin{eqnarray}\text{mult}_{{\mathcal{Z}}}(F^{\prime })\geqslant l-k\quad \text{and}\quad {\mathcal{W}}\nsubseteq \text{Supp}(F^{\prime }).\end{eqnarray}$$

5.3 Small multiplicity

Let $X$ be an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -Fano threefold of Picard number one and write $\text{Vol}(X)=-K_{X}^{3}>(3\unicode[STIX]{x1D714})^{3}$ for some positive rational number $\unicode[STIX]{x1D714}$ . Denote $D=-2K_{X}$ , we have $D^{3}>(6\unicode[STIX]{x1D714})^{3}$ . From 5.1, there is an integer $m>0$ such that $L=mD/\unicode[STIX]{x1D714}$ is Cartier and an open affine subset $U\subseteq X$ such that $H^{0}(X\times U,\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})\neq 0$ . We fix a nonzero section $s\in H^{0}(X\times U,\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ with $F=\text{div}(s)$ on $X\times U$ .

Proposition 5.3. With the above set up, assume that $\unicode[STIX]{x1D714}>4$ . Suppose that we are in the case where all the irreducible components ${\mathcal{W}}$ of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ satisfy $\text{mult}_{{\mathcal{W}}}(F)\leqslant 3m$ , then we have $\unicode[STIX]{x1D714}<8/\unicode[STIX]{x1D716}+4$ . In particular, there is an upper bound of the volume

$$\begin{eqnarray}\text{Vol}(X)=-K_{X}^{3}\leqslant \biggl(\frac{24}{\unicode[STIX]{x1D716}}+12\biggr)^{3}.\end{eqnarray}$$

Proof. Let $M$ be the maximum of $\text{mult}_{{\mathcal{W}}}(F)$ amongst all the irreducible components ${\mathcal{W}}$ of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ , then $M\leqslant 3m$ from the hypothesis. For ${\mathcal{W}}$ of $\text{Supp}(F)$ a fixed irreducible component passing through ${\mathcal{Z}}$ , take $M$ times differentiation of $F$ by Proposition 5.2. Then we obtain a divisor $F^{\prime }\in |\text{pr}_{X}^{\ast }(L)\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m-M}|$ with the property that

$$\begin{eqnarray}\text{mult}_{{\mathcal{Z}}}(F^{\prime })\geqslant (6m-M)\geqslant 3m\quad \text{and}\quad {\mathcal{W}}\nsubseteq \text{Supp}(F^{\prime }).\end{eqnarray}$$

Since there are only finitely many irreducible components of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ and we are taking a generic differentiation, indeed for a general divisor $F^{\prime \prime }\in |\text{pr}_{X}^{\ast }(L)\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m-M}|$ we have ${\mathcal{W}}\nsubseteq \text{Supp}(F^{\prime \prime })$ for any ${\mathcal{W}}$ an irreducible component of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ . In particular, the base locus $\text{Bs}(|\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m-M}|)$ contains no codimension one components in a neighborhood of ${\mathcal{Z}}$ .

Let $G$ be a general divisor in $|\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m-M}|$ and $\unicode[STIX]{x1D6E5}_{p}=G_{p}/m$ for $p\in U$ general be the corresponding $\mathbb{Q}$ -divisors on $X$ . It follows that $p\in \text{Nklt}(K_{X}+\unicode[STIX]{x1D6E5}_{p})$ as $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}\geqslant 3$ . The minimal non-klt center $V_{p}\subseteq \text{Nklt}(K_{X}+\unicode[STIX]{x1D6E5}_{p})$ passing through $p$ must be positive dimensional by Lemma 3.5 as the weight of $\unicode[STIX]{x1D6E5}_{p}$ is $\unicode[STIX]{x1D714}/2>2$ . Also $V_{p}$ can only be one-dimensional, as by construction $m\geqslant 2$ , and hence

$$\begin{eqnarray}0\leqslant \text{mult}_{W}\unicode[STIX]{x1D6E5}_{p}=\text{mult}_{w}\unicode[STIX]{x1D6E5}_{p}=1/m<1,\end{eqnarray}$$

where $W$ is any irreducible component of $\text{Supp}(\unicode[STIX]{x1D6E5}_{p})$ and $w\in W$ is a general point.

Let $\unicode[STIX]{x1D70B}:Y\rightarrow X$ with $f:Y\rightarrow B$ be a one-dimensional covering family of tigers of weight $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ constructed from $\unicode[STIX]{x1D6E5}_{p}$ ’s by Lemma 3.2 and Proposition 3.3. By abusing of the notation, we still denote $\unicode[STIX]{x1D6E5}_{p}$ ’s the divisors associated to this covering family of tigers.

Choose $p,q\in U\subseteq X$ general. By Lemma 1.3, the non-klt locus $\text{Nklt}(\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}))\supseteq V_{p}\cup V_{q}$ on $Y$ is connected and there is a one-cycle $C_{p,q}$ connecting $V_{p}$ and $V_{q}$ . Since $Y$ is normal, an irreducible component $C$ of $C_{p,q}$ intersecting $V_{q}$ satisfies $C\cap Y_{\text{sm}}\neq \emptyset$ for $p,q\in X$ general. Since $C$ is in $\text{Nklt}(\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}))$ , by symmetry we have $\text{mult}_{C}(\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}))\geqslant \unicode[STIX]{x1D716}/2$ . Choose a general point $b\in f(C)$ , then $Y_{b}=f^{-1}(b)$ is a general fiber of $f:Y\rightarrow B$ and one has

$$\begin{eqnarray}\frac{2}{\frac{\unicode[STIX]{x1D714}}{2}-2}\geqslant \frac{2}{\unicode[STIX]{x1D714}}(-K_{X}.V_{t})=\unicode[STIX]{x1D70B}^{\ast }\unicode[STIX]{x1D6E5}_{p}.Y_{b}\geqslant \frac{\unicode[STIX]{x1D716}}{2}\end{eqnarray}$$

where the first inequality follows from Corollary 3.9. For the second inequality, note that we can make $0\leqslant \text{mult}_{W}\unicode[STIX]{x1D6E5}_{p}=1/m\ll 1$ for $W$ any irreducible component of $\text{Supp}(\unicode[STIX]{x1D6E5}_{p})$ . In fact, in 5.2 we can start with the section $s^{N}\in H^{0}(X\times U,pr_{X}^{\ast }L_{mN}\otimes {\mathcal{I}}_{p}^{\otimes 6mN})$ for $N\gg 0$ . The dichotomy into small and big multiplicities are the same and the above argument still goes through.

Hence $\unicode[STIX]{x1D714}\leqslant 8/\unicode[STIX]{x1D716}+4$ .◻

Remark 5.4. The difficulty here when we have covering families of tigers of dimension one is that in general the one-cycle $C$ as in the above proof might be contained in $\text{Supp}(\unicode[STIX]{x1D70B}_{\ast }^{-1}(\unicode[STIX]{x1D6E5}_{p}))$ . In this case, one cannot see the contribution of the $\unicode[STIX]{x1D716}$ -klt condition from the intersection number $\unicode[STIX]{x1D70B}^{\ast }\unicode[STIX]{x1D6E5}_{p}.Y_{b}$ for $Y_{b}$ a general fiber over $f(C)\subseteq B$ , since $Y_{b}\subseteq \text{Supp}(\unicode[STIX]{x1D70B}_{\ast }^{-1}(\unicode[STIX]{x1D6E5}_{p}))$ (cf., Example 2.1). The differentiation argument eliminates the contribution of irreducible codimension one components of $\text{Supp}(\unicode[STIX]{x1D70B}_{\ast }^{-1}(\unicode[STIX]{x1D6E5}_{p}))$ along $Y_{b}$ and hence we can proceed as in Proposition 5.3.

5.4 Big multiplicity

Again, let $X$ be an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -factorial $\mathbb{Q}$ -Fano threefold of Picard number one. Write $\text{Vol}(X)=-K_{X}^{3}>(3\unicode[STIX]{x1D714})^{3}$ for some positive rational number $\unicode[STIX]{x1D714}$ and denote $D=-2K_{X}$ . As before, from 5.1 there is an integer $m>0$ such that $L=mD/\unicode[STIX]{x1D714}$ is Cartier and an open affine subset $U\subseteq X$ such that $H^{0}(X\times U,\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})\neq 0$ . We fix a nonzero section $s\in H^{0}(X\times U,\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ with $F=\text{div}(s)$ on $X\times U$ . We now consider the case where there exists an irreducible component ${\mathcal{W}}$ of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ with multiplicity $\text{mult}_{{\mathcal{W}}}(F)>3m$ .

Lemma 5.5. Suppose that there exists an irreducible component ${\mathcal{W}}$ of $\text{Supp}(F)$ passing through ${\mathcal{Z}}$ with multiplicity $\text{mult}_{{\mathcal{W}}}(F)>3m$ , then there exists a covering family of tigers of dimension two and weight $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ .

Proof. Fix ${\mathcal{W}}$ to be one of these irreducible components. Cutting down by hyperplanes on $U$ and restrict to a smaller open subset of $U$ , we may assume that ${\mathcal{W}}\rightarrow U$ factors through a Hilbert scheme of $X$ and ${\mathcal{W}}\rightarrow X$ is generically finite. Replace $U$ by the normalization of the closure of its image in the Hilbert scheme and ${\mathcal{W}}$ by the normalization of universal family, we obtain maps $\unicode[STIX]{x1D70B}:Y\rightarrow X$ and $f:Y\rightarrow B$ . Note that a general fiber $Y_{b}$ is two-dimensional. We claim that the pairs $(\unicode[STIX]{x1D6E5}_{b}=\unicode[STIX]{x1D70B}_{\ast }(Y_{b}),V_{b}=Y_{b})$ is a two-dimensional covering of tigers of weight $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ .

Since $X$ is $\mathbb{Q}$ -factorial and $\unicode[STIX]{x1D70C}(X)=1$ , the integral divisor $\unicode[STIX]{x1D6E5}_{b}=\unicode[STIX]{x1D70B}_{\ast }(Y_{b})$ for any $b\in B$ on $X$ is $\mathbb{Q}$ -linearly equivalent to a multiple of $-K_{X}$ . Also $\unicode[STIX]{x1D70B}_{\ast }(Y_{b})\leqslant F_{b}$ since by construction this is true for the divisor ${\mathcal{W}}_{b}$ . In particular, $\unicode[STIX]{x1D70B}_{\ast }(Y_{b}){\sim}_{\mathbb{Q}}-K_{X}/\unicode[STIX]{x1D714}^{\prime }$ for some $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ . Since any two general divisors $\unicode[STIX]{x1D70B}_{\ast }(Y_{b_{i}})$ , $i=1,2$ , on $X$ are $\mathbb{Q}$ -linearly equivalent as the base field is uncountable, and it is clear that $V_{b}=\unicode[STIX]{x1D70B}(Y_{b})$ is a pure non-klt center of $\text{Nklt}(X,\unicode[STIX]{x1D6E5}_{b})$ , the claim follows.◻

Let $\unicode[STIX]{x1D70B}:Y\rightarrow X$ with $f:Y\rightarrow B$ be a covering family of tigers of dimension two and weight $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ from Lemma 5.5. We first deal with case where $\unicode[STIX]{x1D70B}:Y\rightarrow X$ is not birational.

Proposition 5.6. Suppose that the two-dimensional covering family of tigers $\unicode[STIX]{x1D70B}:Y\rightarrow X$ with $f:Y\rightarrow B$ of weight $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ is not birational and assume that $\unicode[STIX]{x1D714}>12$ , then $\unicode[STIX]{x1D714}\leqslant 24/\unicode[STIX]{x1D716}+12$ . In particular, there is an upper bound of volume

$$\begin{eqnarray}\text{Vol}(X)=-K_{X}^{3}\leqslant \biggl(\frac{72}{\unicode[STIX]{x1D716}}+36\biggr)^{3}.\end{eqnarray}$$

Proof. Let $d\geqslant 2$ be the degree of $\unicode[STIX]{x1D70B}:Y\rightarrow X$ . Fix an open subset $U\subseteq X$ such that for a general point $p\in U$ , there are $d$ divisors $\unicode[STIX]{x1D6E5}_{p}^{t_{i}}$ for some $t_{1},\ldots ,t_{d}\in B$ such that $\unicode[STIX]{x1D70B}(Y_{t_{i}})\subseteq \text{Nklt}(X,\unicode[STIX]{x1D6E5}_{p}^{t_{i}})$ is the unique minimal non-klt center passing through $p$ . Consider the collection of $\mathbb{Q}$ -divisors $\{\unicode[STIX]{x1D6E5}_{p}^{\prime }=\frac{6}{d}\sum _{i=1}^{d}\unicode[STIX]{x1D6E5}_{p}^{t_{i}}|p\in U\}$ , then $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}^{\prime }\geqslant 6$ , $\text{mult}_{W^{\prime }}\unicode[STIX]{x1D6E5}_{p}^{\prime }=\frac{6}{d}\leqslant 3$ for $W^{\prime }\subseteq \text{Supp}(\unicode[STIX]{x1D6E5}_{p}^{\prime })$ any irreducible component, and $\unicode[STIX]{x1D6E5}_{p}^{\prime }{\sim}_{\mathbb{Q}}\frac{-K_{X}}{d\unicode[STIX]{x1D714}^{\prime }/6}$ .

By the same construction as in 5.1, possibly after shrinking $U$ to a smaller open affine subset, there exists an integer $m>0$ such that $H^{0}(X\times U,\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})\neq 0$ where $L=6m(-K_{X})/d\unicode[STIX]{x1D714}^{\prime }$ is Cartier. Let $t\in H^{0}(X\times U,\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m})$ be a general nonzero section and $G=\text{div}(t)$ be the associated divisor on $X\times U$ . Note that $\text{mult}_{{\mathcal{Z}}}(G)\geqslant 6m$ and $\text{mult}_{{\mathcal{W}}}(G)\leqslant 6m/d\leqslant 3m$ for ${\mathcal{W}}$ any irreducible component of $\text{Supp}(G)$ passing through ${\mathcal{Z}}$ . This is true since for general $p\in U$ there is a special divisor $\unicode[STIX]{x1D6E5}_{p}^{\prime }$ with $\text{mult}_{p}\unicode[STIX]{x1D6E5}_{p}^{\prime }\geqslant 6$ and $\text{mult}_{W^{\prime }}\unicode[STIX]{x1D6E5}_{p}^{\prime }=\frac{6}{d}\leqslant 3$ for $W^{\prime }\subseteq \text{Supp}(\unicode[STIX]{x1D6E5}_{p}^{\prime })$ any irreducible component, but $t$ is a general section and we can use Lemma 5.1 to compute the multiplicity of the general section $t_{p}=t|_{X\times \{p\}}$ .

By a differentiation argument and the same construction as in Proposition 5.3, there is a covering family of tigers $(\unicode[STIX]{x1D6E5}_{t},V_{t})$ of dimension one and weight $\unicode[STIX]{x1D714}^{\prime \prime }\geqslant d\unicode[STIX]{x1D714}^{\prime }/6\geqslant d\unicode[STIX]{x1D714}/12$ which satisfies the property that the base locus $\text{Bs}(|\text{pr}_{X}^{\ast }L\otimes {\mathcal{I}}_{{\mathcal{Z}}}^{\otimes 6m-M}|)$ contains no codimension one components in a neighborhood of ${\mathcal{Z}}$ , where $M$ is the maximum of $\text{mult}_{{\mathcal{W}}}(G)$ amongst all the irreducible components ${\mathcal{W}}$ of $\text{Supp}(G)$ passing through ${\mathcal{Z}}$ . Hence by Corollary 3.9 again, we get

$$\begin{eqnarray}\frac{2}{\unicode[STIX]{x1D714}^{\prime \prime }-2}\geqslant \frac{1}{\unicode[STIX]{x1D714}^{\prime \prime }}(-K_{X}.V_{t})=\unicode[STIX]{x1D70B}^{\ast }\unicode[STIX]{x1D6E5}_{p}.Y_{b}\geqslant \frac{\unicode[STIX]{x1D716}}{2}.\end{eqnarray}$$

In particular,

$$\begin{eqnarray}\frac{4}{\unicode[STIX]{x1D716}}+2\geqslant \unicode[STIX]{x1D714}^{\prime \prime }\geqslant \frac{d\unicode[STIX]{x1D714}}{12}\geqslant \frac{\unicode[STIX]{x1D714}}{6}\end{eqnarray}$$

and $\unicode[STIX]{x1D714}\leqslant 24/\unicode[STIX]{x1D716}+12$ .◻

Assumption 5.7. From now on, we assume that $\unicode[STIX]{x1D70B}:Y\rightarrow X$ with $f:Y\rightarrow B$ is a birational covering family of tigers of dimension two and weight $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ . Write $K_{Y}+\unicode[STIX]{x1D6E4}-R=\unicode[STIX]{x1D70B}^{\ast }K_{X}$ where $\unicode[STIX]{x1D6E4}$ and $R$ are effective divisors on $Y$ with no common components.

Lemma 5.8. There is a $\unicode[STIX]{x1D70B}$ -exceptional divisor $E$ on $Y$ dominating $B$ . In particular, $\unicode[STIX]{x1D70B}:Y\rightarrow X$ is not small.

Proof. Suppose that there is no $\unicode[STIX]{x1D70B}$ -exceptional divisors dominating $B$ . Let $A_{B}$ be a sufficiently ample divisor on $B$ and $A_{Y}=f^{\ast }A_{B}$ the pullback. Since $\unicode[STIX]{x1D70C}(X)=1$ , the divisor $A_{X}=\unicode[STIX]{x1D70B}_{\ast }A_{Y}$ on $X$ is ample and $\unicode[STIX]{x1D70B}^{\ast }A_{X}=A_{Y}+G$ for some effective $\unicode[STIX]{x1D70B}$ -exceptional divisor $G$ . By assumption $f(G)\subseteq B$ has codimension one and hence $A_{Y}+G\leqslant f^{\ast }H$ for some divisor $H$ on $B$ . This is a contradiction since then $A_{Y}+G$ is not big but $\unicode[STIX]{x1D70B}^{\ast }A_{X}$ is.◻

The following lemma is crucial for computing the restricted volume. The key point is that it allows us to control the negative part of the subadjunction $-K_{X}|_{V_{t}}$ . Note that the proof fails in higher dimensions (cf., [M^cK02, Lemma 6.2]).

Lemma 5.9. Let $E$ be a $\unicode[STIX]{x1D70B}$ -exceptional divisor dominating $B$ , then for general points $p,q\in X$ we have that

$$\begin{eqnarray}E\subseteq \text{Nklt}(K_{Y}+\unicode[STIX]{x1D6E4}-R+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})).\end{eqnarray}$$

In particular, if we denote $H=\unicode[STIX]{x1D70B}^{\ast }(-K_{X})$ , then for any $\unicode[STIX]{x1D70B}$ -exceptional divisor $E$ dominating $B$ we have

$$\begin{eqnarray}\frac{2}{\unicode[STIX]{x1D714}^{\prime }}H{\sim}_{\mathbb{Q}}\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\geqslant \unicode[STIX]{x1D716}E.\end{eqnarray}$$

Proof. Since the construction of covering families of tigers is done by the Hilbert scheme, $\unicode[STIX]{x1D70B}$ is finite on the general fibers $V_{t}$ of $f:Y\rightarrow B$ . Recall that $\unicode[STIX]{x1D70B}(V_{t})\subseteq X$ is a pure non-klt center of $(X,\unicode[STIX]{x1D6E5}_{p(t)})$ for some $\unicode[STIX]{x1D6E5}_{p(t)}$ passing through a general point $p(t)\in X$ . We denote $\unicode[STIX]{x1D6E5}_{p(t)}$ by $\unicode[STIX]{x1D6E5}_{t}$ for simplicity.

Let $E$ be a $\unicode[STIX]{x1D70B}$ -exceptional divisor dominating $B$ . Take $t_{1},t_{2}\in B$ general, and consider $\unicode[STIX]{x1D70B}(E\cap V_{t_{i}})\subseteq \unicode[STIX]{x1D70B}(V_{t_{i}})\cap \unicode[STIX]{x1D70B}(E)$ . Since $\unicode[STIX]{x1D70B}$ is finite on the general fibers of $f:Y\rightarrow B$ , $\unicode[STIX]{x1D70B}(E)$ is an irreducible curve contained in $\unicode[STIX]{x1D70B}(V_{t_{1}})\cap \unicode[STIX]{x1D70B}(V_{t_{2}})\subseteq \text{Nklt}(K_{X}+\unicode[STIX]{x1D6E5}_{t_{1}}+\unicode[STIX]{x1D6E5}_{t_{2}})$ . Pick a general point $x\in \unicode[STIX]{x1D70B}(E)$ and consider its preimage on $V_{t_{i}}$ . Since $\unicode[STIX]{x1D70B}$ is finite on the general fiber $V_{t}$ , $\unicode[STIX]{x1D70B}^{-1}(x)\cap V_{t_{i}}$ can only be finitely many points. Choose $x_{i}\in \unicode[STIX]{x1D70B}^{-1}(x)\cap V_{t_{i}}$ over $x$ for $i=1,2$ . By the Connectedness Lemma 1.3 applied to the pair $(Y,\unicode[STIX]{x1D6E4}-R+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{t_{1}}+\unicode[STIX]{x1D6E5}_{t_{2}}))$ over $X$ , there is a (possibly reducible) curve contained in $\unicode[STIX]{x1D70B}^{-1}(x)\cap \text{Nklt}(Y,\unicode[STIX]{x1D6E4}-R+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{t_{1}}+\unicode[STIX]{x1D6E5}_{t_{2}}))$ connecting $x_{1}$ and $x_{2}$ . The component of this curve containing $x_{1}$ cannot lie on $V_{t_{1}}$ as the map $\unicode[STIX]{x1D70B}$ is finite on $V_{t_{1}}$ . As $x\in \unicode[STIX]{x1D70B}(E)$ is general, this curve deforms into a dimension two set by moving $x\in \unicode[STIX]{x1D70B}(E)$ . Denote $\tilde{E}$ the closure of this two-dimensional set, which is another $\unicode[STIX]{x1D70B}$ -exceptional divisor mapping onto $\unicode[STIX]{x1D70B}(E)$ and intersects along $E\cap V_{t_{1}}$ . Since there are only finitely many exceptional divisors over $\unicode[STIX]{x1D70B}(E)$ and $t_{1}$ is general, we can assume $\tilde{E}=E$ as $E$ is irreducible, and hence $E\subseteq \text{Nklt}(K_{Y}+\unicode[STIX]{x1D6E4}-R+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{t_{1}}+\unicode[STIX]{x1D6E5}_{t_{2}}))$ . In particular, $\text{mult}_{E}(K_{Y}+\unicode[STIX]{x1D6E4}-R+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{t_{1}}+\unicode[STIX]{x1D6E5}_{t_{2}}))\geqslant 1$ and we get $\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\geqslant E$ if $E\nsubseteq \text{Supp}(\unicode[STIX]{x1D6E4})$ and $\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\geqslant \unicode[STIX]{x1D716}E$ if $E\subseteq \text{Supp}(\unicode[STIX]{x1D6E4})$ from the fact that $\unicode[STIX]{x1D6E4}\in [0,1-\unicode[STIX]{x1D716})$ as $X$ is $\unicode[STIX]{x1D716}$ -klt.◻

To study the geometry of the covering family $f:Y\rightarrow B$ , we would like to run a relative minimal model program of $(Y,\unicode[STIX]{x1D6E4})$ over $B$ . However, $Y$ is normal but possibly not $\mathbb{Q}$ -factorial. To get a $\mathbb{Q}$ -factorial model of $(Y,\unicode[STIX]{x1D6E4})$ , we adopt Hacon’s dlt models (cf., [Reference Kollár and KovácsKK10, Theorem 3.1]). In fact, since the volume bound will be obtained by doing a computation on a general fiber $Y_{b}$ , it suffices to modify $Y$ over an open subset $U\subseteq B$ .

Lemma 5.10. After restricting to an open subset $U\subseteq B$ and replacing $Y$ by a suitable birational model, we can assume that $Y$ is $\mathbb{Q}$ -factorial and $(Y,\unicode[STIX]{x1D6E4})$ is $\unicode[STIX]{x1D716}/2$ -klt. Moreover, we can assume that for $E$ any $\unicode[STIX]{x1D70B}$ -exceptional divisor dominating $U$ and $p,q\in X$ general, we have that

(5.1)

Proof. Fix $p,q\in X$ general and consider the pair

( ♯ )

$$\begin{eqnarray}K_{Y}+\unicode[STIX]{x1D6E4}-R_{\text{d}}+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})-R_{\text{e}}{\sim}_{\mathbb{Q}}\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\end{eqnarray}$$

where $R=R_{\text{d}}+R_{\text{e}}$ with $(-)_{\text{d}}$ the sum of components dominating $B$ and $(-)_{\text{e}}$ the sum of components mapping to points in $B$ . Restricting $Y$ to $Y_{U}=f^{-1}(U)$ for a suitable nonempty open set $U\subseteq B$ , we may assume that $R_{\text{e}}=0$ and the pair ( ♯ ) becomes the effective pair

$$\begin{eqnarray}K_{Y}+\unicode[STIX]{x1D6E4}-R_{\text{d}}+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}){\sim}_{\mathbb{Q}}\unicode[STIX]{x1D70B}^{\ast }(K_{X}+\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}).\end{eqnarray}$$

We abuse the notation: $Y$ is understood to be $Y_{U}$ if not specified.

Denote $\unicode[STIX]{x1D6E4}_{p,q}=\unicode[STIX]{x1D6E4}-R_{\text{d}}+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})$ and let $\unicode[STIX]{x1D719}:W\rightarrow Y$ be a log resolution of $(Y,\unicode[STIX]{x1D6E4}_{p,q})$ . Write

$$\begin{eqnarray}K_{W}+\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4}_{p,q}+Q{\sim}_{\mathbb{Q}}\unicode[STIX]{x1D719}^{\ast }(K_{Y}+\unicode[STIX]{x1D6E4}_{p,q})+P\end{eqnarray}$$

where $Q,P\geqslant 0$ are $\unicode[STIX]{x1D719}$ -exceptional divisors with $Q\wedge P=0$ . We aim to modify $W$ by running a relative minimal model program over $Y$ with scaling of an ample divisor so that it contracts $Q^{{<}1-\unicode[STIX]{x1D716}/2}+P$ .

Consider $F=\sum _{i}F_{i}$ where the sum runs over all the $\unicode[STIX]{x1D719}$ -exceptional divisors with log discrepancy in $(\unicode[STIX]{x1D716}/2,1]$ with respect to $(Y,\unicode[STIX]{x1D6E4}_{p,q})$ , then

$$\begin{eqnarray}(F+P)\wedge Q^{{\geqslant}1-\unicode[STIX]{x1D716}/2}=0\quad \text{and}\quad \text{Supp}(F)\supseteq \text{Supp}(Q^{{<}1-\unicode[STIX]{x1D716}/2}).\end{eqnarray}$$

Since $(Y,\unicode[STIX]{x1D6E4}-R)$ is $\unicode[STIX]{x1D716}$ -klt, the divisor $\unicode[STIX]{x1D6E4}$ on $Y$ as well as $\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4}$ on $W$ has coefficients in $[0,1-\unicode[STIX]{x1D716})$ . For rational numbers $0<\unicode[STIX]{x1D716}<\unicode[STIX]{x1D716}^{\prime }<1$ and $0<\unicode[STIX]{x1D6FF},\unicode[STIX]{x1D6FF}^{\prime }\ll 1$ , we have the following $\unicode[STIX]{x1D716}/2$ -klt pair

$$\begin{eqnarray}\displaystyle & & \displaystyle K_{W}+\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4}+Q^{{<}1-\unicode[STIX]{x1D716}/2}+\unicode[STIX]{x1D6FF}^{\prime }Q^{1-\unicode[STIX]{x1D716}/2\leqslant \cdot <1}+(1-\unicode[STIX]{x1D716}^{\prime })(Q^{{\geqslant}1})_{\text{red}}+\unicode[STIX]{x1D6FF}F\nonumber\\ \displaystyle & & \displaystyle \quad {\sim}_{\mathbb{Q}}\unicode[STIX]{x1D719}^{\ast }(K_{Y}+\unicode[STIX]{x1D6E4}_{p,q})-(\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4}_{p,q}-\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4})-(1-\unicode[STIX]{x1D6FF}^{\prime })Q^{1-\unicode[STIX]{x1D716}/2\leqslant \cdot <1}\nonumber\\ \displaystyle & & \displaystyle \quad -\,(Q^{{\geqslant}1}-(1-\unicode[STIX]{x1D716}^{\prime })(Q^{{\geqslant}1})_{\text{red}})+P+\unicode[STIX]{x1D6FF}F\nonumber\end{eqnarray}$$

where $(\sum _{i}a_{i}Q_{i})^{\unicode[STIX]{x1D6FC}\leqslant \cdot <\unicode[STIX]{x1D6FD}}=\sum _{\unicode[STIX]{x1D6FC}\leqslant a_{i}<\unicode[STIX]{x1D6FD}}a_{i}Q_{i}$ and $(\sum _{j}b_{j}G_{j})_{\text{red}}=\sum _{b_{j}\neq 0}G_{j}$ . We denote this pair by $(W,\unicode[STIX]{x1D6EF})$ where $\unicode[STIX]{x1D6EF}=\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4}+Q^{{<}1-\unicode[STIX]{x1D716}/2}+\unicode[STIX]{x1D6FF}^{\prime }Q^{1-\unicode[STIX]{x1D716}/2\leqslant \cdot <1}+(1-\unicode[STIX]{x1D716}^{\prime })(Q^{{\geqslant}1})_{\text{red}}+\unicode[STIX]{x1D6FF}F$ .

By [BCHM10], a relative minimal model program with scaling of an ample divisor of the pair $(W,\unicode[STIX]{x1D6EF})$ over $Y$ terminates with a birational model $\unicode[STIX]{x1D713}:W{\dashrightarrow}W^{\prime }$ over $Y$ with $\unicode[STIX]{x1D719}^{\prime }:W^{\prime }\rightarrow Y$ the induced map. We obtain the following diagram:

where $\unicode[STIX]{x1D70B}^{\prime }:W^{\prime }\rightarrow X$ is the induced map.

Write $K_{W^{\prime }}+\unicode[STIX]{x1D6E4}_{W^{\prime }}-R_{W^{\prime }}{\sim}_{\mathbb{Q}}{\unicode[STIX]{x1D70B}^{\prime }}^{\ast }K_{X}$ where $\unicode[STIX]{x1D70B}^{\prime }=\unicode[STIX]{x1D719}^{\prime }\circ \unicode[STIX]{x1D70B}$ . Note that $\unicode[STIX]{x1D6E4}_{W^{\prime }}\in [0,1-\unicode[STIX]{x1D716})$ by the $\unicode[STIX]{x1D716}$ -klt condition and $\unicode[STIX]{x1D6E4}_{W^{\prime }}-\unicode[STIX]{x1D713}_{\ast }\unicode[STIX]{x1D6E4}\geqslant 0$ is $\unicode[STIX]{x1D719}^{\prime }$ -exceptional. It follows by the construction that

$$\begin{eqnarray}\unicode[STIX]{x1D713}_{\ast }^{-1}\unicode[STIX]{x1D6E4}_{W^{\prime }}\leqslant \unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4}+\unicode[STIX]{x1D6FF}^{\prime }Q^{1-\unicode[STIX]{x1D716}/2\leqslant \cdot <1}+(1-\unicode[STIX]{x1D716}^{\prime })(Q^{{\geqslant}1})_{\text{r ed}}.\end{eqnarray}$$

In particular, $(W^{\prime },\unicode[STIX]{x1D6E4}_{W^{\prime }})$ is $\unicode[STIX]{x1D716}/2$ -klt as the pair $(W,\unicode[STIX]{x1D6EF})$ is $\unicode[STIX]{x1D716}/2$ -klt and the minimal model program does not make singularities worse.

On $W^{\prime }$ , the divisor

$$\begin{eqnarray}\displaystyle G & = & \displaystyle \unicode[STIX]{x1D713}_{\ast }(-(\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4}_{p,q}-\unicode[STIX]{x1D719}_{\ast }^{-1}\unicode[STIX]{x1D6E4})-(1-\unicode[STIX]{x1D6FF}^{\prime })Q^{1-\unicode[STIX]{x1D716}/2\leqslant \cdot <1}\nonumber\\ \displaystyle & & \displaystyle \qquad -(Q^{{\geqslant}1}-(1-\unicode[STIX]{x1D716}^{\prime })(Q^{{\geqslant}1})_{\text{red}})+P+\unicode[STIX]{x1D6FF}F)\nonumber\end{eqnarray}$$

is $\unicode[STIX]{x1D719}^{\prime }$ -nef with $\unicode[STIX]{x1D719}_{\ast }^{\prime }G\leqslant 0$ . By [Reference Kollár and MoriKM98, Negativity Lemma 3.39], we have that $G\leqslant 0$ . Since $F$ is $\unicode[STIX]{x1D719}$ -exceptional and $(F+P)\wedge Q^{{\geqslant}1-\unicode[STIX]{x1D716}/2}=0$ , it follows that $\unicode[STIX]{x1D713}_{\ast }(P+\unicode[STIX]{x1D6FF}F)=0$ . In particular, all the $\unicode[STIX]{x1D719}^{\prime }$ -exceptional divisors on $W^{\prime }$ have log discrepancies less than or equal to $\unicode[STIX]{x1D716}/2$ with respect to $(Y,\unicode[STIX]{x1D6E4}_{p,q})$ .

We now show that for any $\unicode[STIX]{x1D70B}^{\prime }$ -exceptional divisor $E^{\prime }$ on $W^{\prime }$ dominating $U$ , $E^{\prime }$ satisfies the inequality

$$\begin{eqnarray}\frac{2}{\unicode[STIX]{x1D714}^{\prime }}H^{\prime }{\sim}_{\mathbb{ Q}}{\unicode[STIX]{x1D70B}^{\prime }}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\geqslant \frac{\unicode[STIX]{x1D716}}{2}E^{\prime }.\end{eqnarray}$$

where $H^{\prime }=\unicode[STIX]{x1D713}_{\ast }H={\unicode[STIX]{x1D70B}^{\prime }}^{\ast }(-K_{X})$ . This is easy to see: If $E=\unicode[STIX]{x1D719}_{\ast }^{\prime }(E^{\prime })\neq 0$ on $Y_{U}$ , then by Lemma 5.9 $E\subseteq \text{Nklt}(K_{Y}+\unicode[STIX]{x1D6E4}-R+\unicode[STIX]{x1D70B}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}))$ and hence $E^{\prime }\subseteq \text{Nklt}(K_{W^{\prime }}+\unicode[STIX]{x1D6E4}_{W^{\prime }}-R_{W^{\prime }}+{\unicode[STIX]{x1D70B}^{\prime }}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}))$ . The inequality then follows from the same argument as in Lemma 5.9. If $\unicode[STIX]{x1D719}_{\ast }^{\prime }E^{\prime }=0$ , then by construction $\text{mult}_{E^{\prime }}(K_{W^{\prime }}+\unicode[STIX]{x1D6E4}_{W^{\prime }}-R_{W^{\prime }}+{\unicode[STIX]{x1D70B}^{\prime }}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q}))\geqslant 1-\unicode[STIX]{x1D716}/2$ . Suppose that $E^{\prime }\subseteq \text{Supp}(R_{W^{\prime }})$ , then

$$\begin{eqnarray}\frac{2}{\unicode[STIX]{x1D714}^{\prime }}H^{\prime }{\sim}_{\mathbb{ Q}}{\unicode[STIX]{x1D70B}^{\prime }}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\geqslant E^{\prime }\geqslant \frac{\unicode[STIX]{x1D716}}{2}E^{\prime }.\end{eqnarray}$$

If $E^{\prime }\subseteq \text{Supp}(\unicode[STIX]{x1D6E4}_{W^{\prime }})$ , then as $\unicode[STIX]{x1D6E4}_{W^{\prime }}\in [0,1-\unicode[STIX]{x1D716})$ we get

$$\begin{eqnarray}\frac{2}{\unicode[STIX]{x1D714}^{\prime }}H^{\prime }{\sim}_{\mathbb{ Q}}{\unicode[STIX]{x1D70B}^{\prime }}^{\ast }(\unicode[STIX]{x1D6E5}_{p}+\unicode[STIX]{x1D6E5}_{q})\geqslant \biggl(\biggl(1-\frac{\unicode[STIX]{x1D716}}{2}\biggr)-(1-\unicode[STIX]{x1D716})\biggr)E^{\prime }=\frac{\unicode[STIX]{x1D716}}{2}E^{\prime }.\end{eqnarray}$$

It follows that $W^{\prime }$ is a required model.◻

Remark 5.11. Write $\unicode[STIX]{x1D6E4}=\unicode[STIX]{x1D70B}_{\ast }^{-1}\unicode[STIX]{x1D6E5}+\unicode[STIX]{x1D6E4}_{\text{d}}+\unicode[STIX]{x1D6E4}_{\text{e}}$ and $R=R_{\text{d}}+R_{\text{e}}$ , where $(-)_{\text{d}}$ is the sum of components dominating $B$ and $(-)_{\text{e}}$ is the sum of components mapping to points in $B$ . From the proof of Lemma 5.10, we deduce the following two inequalities:

(5.2)

and

(5.3)

Now let $\unicode[STIX]{x1D70B}:Y\rightarrow X$ with $f:Y\rightarrow U$ be the modified birational covering family of tigers of dimension two and weight $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ given by Lemma 5.10 where $Y$ is now $\mathbb{Q}$ -factorial. Write $K_{Y}+\unicode[STIX]{x1D6E4}-R{\sim}_{\mathbb{Q}}\unicode[STIX]{x1D70B}^{\ast }K_{X}$ , where $\unicode[STIX]{x1D6E4}\geqslant 0$ , $R\geqslant 0$ are $\unicode[STIX]{x1D70B}$ -exceptional, and $\unicode[STIX]{x1D6E4}\wedge R=0$ . The pair $(Y,\unicode[STIX]{x1D6E4})$ is $\unicode[STIX]{x1D716}/2$ -klt with $\unicode[STIX]{x1D6E4}\in [0,1-\unicode[STIX]{x1D716})$ and note that $H=\unicode[STIX]{x1D70B}^{\ast }(-K_{X})$ is semiample and big on $Y$ .

Recall that for a projective morphism $\unicode[STIX]{x1D719}:Z\rightarrow U$ , a divisor $D$ on $Z$ is pseudo-effective (PSEF) over $U$ if the restriction of $D$ to the generic fiber is pseudo-effective.

Lemma 5.12. Assume that $\unicode[STIX]{x1D714}^{\prime }>2$ and consider the pseudo-effective threshold of $K_{Y}+\unicode[STIX]{x1D6E4}$ over $U$ with respect to $H$

$$\begin{eqnarray}\unicode[STIX]{x1D70F}:=\inf \{t>0|K_{Y}+\unicode[STIX]{x1D6E4}+tH~\text{is PSEF over}~B\},\end{eqnarray}$$

then

$$\begin{eqnarray}1\geqslant \unicode[STIX]{x1D70F}\geqslant 1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}>0.\end{eqnarray}$$

Proof. Since $K_{Y}+\unicode[STIX]{x1D6E4}+H{\sim}_{\mathbb{Q}}R\geqslant 0$ , the first inequality is clear. When restrict to a general fiber $Y_{u}$ of $Y$ over $U$ , we have

$$\begin{eqnarray}\displaystyle (K_{Y}+\unicode[STIX]{x1D6E4}+\unicode[STIX]{x1D70F}H)|_{Y_{u}} & = & \displaystyle (R-(1-\unicode[STIX]{x1D70F})H)|_{Y_{u}}\nonumber\\ \displaystyle & = & \displaystyle \biggl(R_{d}-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}H\biggr)|_{Y_{u}}-\biggl(1-\unicode[STIX]{x1D70F}-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)H|_{Y_{u}}\nonumber\end{eqnarray}$$

which cannot be PSEF if $\unicode[STIX]{x1D714}^{\prime }>2$ and $\unicode[STIX]{x1D70F}<1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}$ since the first term is nonpositive by (5.2) and the second term is negative.◻

Now we run a relative minimal model program with scaling of the covering family of tigers $f:Y\rightarrow U$ . Since $(Y,\unicode[STIX]{x1D6E4})$ is $\unicode[STIX]{x1D716}/2$ -klt and $H$ is semiample and big, we may assume that $(Y,\unicode[STIX]{x1D6E4}+\unicode[STIX]{x1D70F}^{\prime }H)$ remains $\unicode[STIX]{x1D716}/2$ -klt for a rational number $0<\unicode[STIX]{x1D70F}^{\prime }<\unicode[STIX]{x1D70F}$ . Run a relative minimal model program of $(K_{Y}+\unicode[STIX]{x1D6E4}+\unicode[STIX]{x1D70F}^{\prime }H)$ with scaling of $H$ over $U$ . By [BCHM10], it terminates with a relative Mori fiber space $Y^{\prime }\rightarrow T$ over $U$ with $\dim Y^{\prime }>\dim T\geqslant \dim U$ . Denote the induced maps by $g:Y{\dashrightarrow}Y^{\prime }$ , $\unicode[STIX]{x1D713}:Y^{\prime }\rightarrow T$ , and $\unicode[STIX]{x1D719}:Y^{\prime }\rightarrow U$ , we get the following diagram:

For a general fiber $Y_{t}^{\prime }$ of $\unicode[STIX]{x1D713}:Y^{\prime }\rightarrow T$ , the Picard number $\unicode[STIX]{x1D70C}(Y_{t}^{\prime })=1$ and $-(K_{Y^{\prime }}+\unicode[STIX]{x1D6E4}_{d}^{\prime })|_{Y_{t}^{\prime }}{\sim}_{\mathbb{Q}}(H^{\prime }-R_{d})|_{Y_{t}^{\prime }}$ is ample.

Lemma 5.13. There exists a divisor $E^{\prime }$ on $Y^{\prime }$ which is exceptional over $X$ and dominates $T$ .

Proof. Recall that there is a natural map $T\rightarrow U\rightarrow B$ . Hence we can extend $\unicode[STIX]{x1D713}:Y^{\prime }\rightarrow T$ to $\overline{\unicode[STIX]{x1D713}}:\overline{Y^{\prime }}\rightarrow \overline{T}$ over $B$ where $\overline{(-)}$ stands for a projective compactification of $(-)$ . Take a common resolution $p:W\rightarrow X$ and $q:W\rightarrow \overline{Y^{\prime }}$ and let $A_{\overline{T}}$ be a sufficiently ample divisor on $\overline{T}$ . Let $A_{\overline{Y^{\prime }}}=\overline{\unicode[STIX]{x1D713}}^{\ast }A_{\overline{T}}$ , $A_{W}=q^{\ast }A_{\overline{Y^{\prime }}}$ , and $A_{X}=p_{\ast }A_{W}$ . Then $p^{\ast }A_{X}=A_{W}+E=q^{\ast }A_{\overline{Y^{\prime }}}+E=q^{\ast }\overline{\unicode[STIX]{x1D713}}^{\ast }A_{\overline{T}}+E$ for an effective divisor $E$ on $W$ which is exceptional over $X$ . Since $\unicode[STIX]{x1D70C}(X)=1$ , it follows by the same argument as in Lemma 5.8 that one of the irreducible components of $E$ maps to a divisor $E^{\prime }$ on $\overline{Y^{\prime }}$ . By the same argument as in Lemma 5.8 again, one of the irreducible components of the nonzero divisor $q_{\ast }(E)$ dominates $\overline{T}$ .◻

Proposition 5.14. If $\dim T=2$ , then $\unicode[STIX]{x1D714}^{\prime }\leqslant 8/\unicode[STIX]{x1D716}+2$ .

Proof. By Lemma 5.13, there exists a divisor $E^{\prime }$ on $Y^{\prime }$ which is exceptional over $X$ and dominates $T$ . Note that $Y^{\prime }$ is normal and hence $\unicode[STIX]{x1D713}(\text{Sing}(Y^{\prime }))$ is a proper subset of $T$ . In particular, a general fiber $Y_{t}^{\prime }$ of $\unicode[STIX]{x1D713}:Y^{\prime }\rightarrow T$ is a smooth projective curve and hence $E^{\prime }.Y_{t}^{\prime }\geqslant 1$ . Since $-(K_{Y^{\prime }}+\unicode[STIX]{x1D6E4}_{d}^{\prime })|_{Y_{t}^{\prime }}{\sim}_{\mathbb{Q}}(H^{\prime }-R_{d})|_{Y_{t}^{\prime }}$ is ample, a general fiber $Y_{t}^{\prime }$ is a smooth rational curve $\mathbb{P}^{1}$ . From (5.1), we know that

$$\begin{eqnarray}\frac{2}{\unicode[STIX]{x1D714}^{\prime }}H^{\prime }-\frac{\unicode[STIX]{x1D716}}{2}E^{\prime }{\sim}_{\mathbb{ Q}}\text{effective}.\end{eqnarray}$$

Also from (5.2),

$$\begin{eqnarray}\displaystyle -(K_{Y^{\prime }}+\unicode[STIX]{x1D6E4}^{\prime }).Y_{t}^{\prime }=(H^{\prime }-R^{\prime }).Y_{t}^{\prime } & = & \displaystyle \biggl(1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)H^{\prime }.Y_{t}^{\prime }+\biggl(\frac{2}{\unicode[STIX]{x1D714}^{\prime }}H-R^{\prime }\biggr).Y_{t}^{\prime }\nonumber\\ \displaystyle & {\geqslant} & \displaystyle \biggl(1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)H^{\prime }.Y_{t}^{\prime }.\nonumber\end{eqnarray}$$

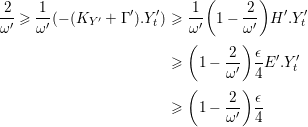

It follows that

$$\begin{eqnarray}\displaystyle \frac{2}{\unicode[STIX]{x1D714}^{\prime }}\geqslant \frac{1}{\unicode[STIX]{x1D714}^{\prime }}(-(K_{Y^{\prime }}+\unicode[STIX]{x1D6E4}^{\prime }).Y_{t}^{\prime }) & {\geqslant} & \displaystyle \frac{1}{\unicode[STIX]{x1D714}^{\prime }}\biggl(1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)H^{\prime }.Y_{t}^{\prime }\nonumber\\ \displaystyle & {\geqslant} & \displaystyle \biggl(1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)\frac{\unicode[STIX]{x1D716}}{4}E^{\prime }.Y_{t}^{\prime }\nonumber\\ \displaystyle & {\geqslant} & \displaystyle \biggl(1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)\frac{\unicode[STIX]{x1D716}}{4}\nonumber\end{eqnarray}$$

where the first inequality is by the adjunction formula on $\mathbb{P}^{1}$ . Hence $\unicode[STIX]{x1D714}^{\prime }\leqslant \frac{8}{\unicode[STIX]{x1D716}}+2.$ ◻

Proposition 5.15. If $\dim T=1$ , then

$$\begin{eqnarray}\unicode[STIX]{x1D714}^{\prime }\leqslant \frac{4M(2,\unicode[STIX]{x1D716})R(2,\unicode[STIX]{x1D716})}{\unicode[STIX]{x1D716}}+2\end{eqnarray}$$

Proof. Since $f:Y\rightarrow U$ has connected fibers, $T\cong U$ . Since $-(K_{Y^{\prime }}+\unicode[STIX]{x1D6E4}_{d}^{\prime })|_{Y_{u}^{\prime }}{\sim}_{\mathbb{Q}}(H^{\prime }-R_{d})|_{Y_{u}^{\prime }}$ is ample and $\unicode[STIX]{x1D70C}(Y_{u}^{\prime })=1$ for a general point $u\in U$ , we see that

$$\begin{eqnarray}-K_{Y_{u}^{\prime }}{\sim}_{\mathbb{Q}}(H^{\prime }+\unicode[STIX]{x1D6E4}_{d}^{\prime }-R_{d})|_{Y_{u}^{\prime }}\end{eqnarray}$$

is ample. By Lemma 5.13, let $E^{\prime }$ be a divisor on $Y^{\prime }$ exceptional over $X$ which dominates $U$ , then

$$\begin{eqnarray}-K_{Y_{u}^{\prime }}\equiv (H^{\prime }+\unicode[STIX]{x1D6E4}_{d}^{\prime }-R_{d})|_{Y_{u}^{\prime }}\geqslant \biggl(1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)H|_{Y_{u}^{\prime }}\geqslant \biggl(1-\frac{2}{\unicode[STIX]{x1D714}^{\prime }}\biggr)\cdot \frac{\unicode[STIX]{x1D714}^{\prime }\unicode[STIX]{x1D716}}{4}E_{u}^{\prime }\end{eqnarray}$$

where the second inequality follows by dropping $\unicode[STIX]{x1D6E4}_{d}^{\prime }$ and applying (5.2) while the last one from (5.1). By intersecting with the ample divisor $-K_{Y_{u}^{\prime }}$ , this implies that

$$\begin{eqnarray}(-K_{Y_{u}^{\prime }})^{2}\geqslant (\unicode[STIX]{x1D714}^{\prime }-2)\frac{\unicode[STIX]{x1D716}}{4}E_{u}^{\prime }.(-K_{Y_{u}^{\prime }}).\end{eqnarray}$$

Now $(Y_{u}^{\prime },\unicode[STIX]{x1D6E4}_{u}^{\prime })$ is an $\unicode[STIX]{x1D716}/2$ -klt log del Pezzo surfaces of Picard number one. Hence $Y_{u}^{\prime }$ is an $\unicode[STIX]{x1D716}/2$ -klt del Pezzo surfaces of Picard number $\unicode[STIX]{x1D70C}(Y_{u}^{\prime })=1$ . By Theorem 4.3, $(-K_{Y_{u}^{\prime }})^{2}$ is bounded above by a positive number $M(2,\unicode[STIX]{x1D716})$ satisfying

$$\begin{eqnarray}M(2,\unicode[STIX]{x1D716})\leqslant \max \biggl\{64,\frac{16}{\unicode[STIX]{x1D716}}+4\biggr\}.\end{eqnarray}$$

Also, by (◇) the Cartier index of $K_{Y_{u}^{\prime }}$ has an upper bound,

$$\begin{eqnarray}R(2,\unicode[STIX]{x1D716})\leqslant r\biggl(2,\frac{\unicode[STIX]{x1D716}}{2}\biggr)\leqslant 2(4/\unicode[STIX]{x1D716})^{128/\unicode[STIX]{x1D716}^{5}}.\end{eqnarray}$$

It follows that

$$\begin{eqnarray}\displaystyle M(2,\unicode[STIX]{x1D716}) & {\geqslant} & \displaystyle (-K_{Y_{u}^{\prime }})^{2}\geqslant \frac{1}{R(2,\unicode[STIX]{x1D716})}(\unicode[STIX]{x1D714}^{\prime }-2)\frac{\unicode[STIX]{x1D716}}{4}E_{u}^{\prime }.(\text{Ample Cartier})\nonumber\\ \displaystyle & {\geqslant} & \displaystyle \frac{1}{R(2,\unicode[STIX]{x1D716})}(\unicode[STIX]{x1D714}^{\prime }-2)\frac{\unicode[STIX]{x1D716}}{4}\nonumber\end{eqnarray}$$

and hence we get an upper bound,

$$\begin{eqnarray}\unicode[STIX]{x1D714}^{\prime }\leqslant \frac{4M(2,\unicode[STIX]{x1D716})R(2,\unicode[STIX]{x1D716})}{\unicode[STIX]{x1D716}}+2.\end{eqnarray}$$

Remark 5.16. It has been shown in [Reference BelousovBel08] that a klt log del Pezzo surface has at most four isolated singularities. Also surface klt singularities are classified by Alexeev in [Reference CortiCor07]. Hence we expect that it is possible to obtain a better upper bound for $R(2,\unicode[STIX]{x1D716})$ and $M(2,\unicode[STIX]{x1D716})$ in Proposition 5.15.

Theorem 5.17. Let $(X,\unicode[STIX]{x1D6E5})$ be an $\unicode[STIX]{x1D716}$ -klt log $\mathbb{Q}$ -Fano threefold of $\unicode[STIX]{x1D70C}(X)=1$ . Then the degree $-K_{X}^{3}$ satisfies

$$\begin{eqnarray}-K_{X}^{3}\leqslant \biggl(\frac{24M(2,\unicode[STIX]{x1D716})R(2,\unicode[STIX]{x1D716})}{\unicode[STIX]{x1D716}}+12\biggr)^{3}\end{eqnarray}$$

where where $R(2,\unicode[STIX]{x1D716})$ is an upper bound of the Cartier index of $K_{S}$ for $S$ any $\unicode[STIX]{x1D716}/2$ -klt log del Pezzo surface of $\unicode[STIX]{x1D70C}(S)=1$ and $M(2,\unicode[STIX]{x1D716})$ is an upper bound of the volume $\text{Vol}(S)=K_{S}^{2}$ for $S$ any $\unicode[STIX]{x1D716}/2$ -klt log del Pezzo surface of $\unicode[STIX]{x1D70C}(S)=1$ . Note that we have $M(2,\unicode[STIX]{x1D716})\leqslant \max \{64,16/\unicode[STIX]{x1D716}+4\}$ from Theorem 4.3 and $R(2,\unicode[STIX]{x1D716})\leqslant 2(4/\unicode[STIX]{x1D716})^{128/\unicode[STIX]{x1D716}^{5}}$ from ( ◇).

Proof. Recall that $\unicode[STIX]{x1D714}^{\prime }\geqslant \unicode[STIX]{x1D714}/2$ . The theorem then follows from Propositions 5.3, 5.14 and 5.15.◻

The following example shows that the cone construction analogous to Example 2.1 only provides $\unicode[STIX]{x1D716}$ -klt Fano threefolds with volumes of order $1/\unicode[STIX]{x1D716}^{2}$ .

Example 5.18. (Projective cone of projective spaces)

For $n\geqslant 1$ and $d\geqslant 2$ , let $\mathbb{P}^{n}{\hookrightarrow}\mathbb{P}^{N}$ be the embedding by $|{\mathcal{O}}(d)|$ and $X$ be the associated projective cone. The projective variety $X$ is normal $\mathbb{Q}$ -factorial of Picard number one with the unique singularity at the vertex $O$ . $X$ admits a resolution $\unicode[STIX]{x1D70B}:Y=Bl_{O}X\rightarrow X$ with exceptional divisor $E\cong \mathbb{P}^{n}$ of normal bundle ${\mathcal{O}}_{E}(E)\cong {\mathcal{O}}_{\mathbb{P}^{n}}(-d)$ . The variety $Y$ is the projective bundle $\unicode[STIX]{x1D707}:Y\cong \mathbb{P}_{\mathbb{P}^{n}}({\mathcal{O}}_{\mathbb{P}^{n}}\oplus {\mathcal{O}}_{\mathbb{P}^{n}}(-d))\rightarrow \mathbb{P}^{n}$ with tautological bundle ${\mathcal{O}}_{Y}(1)\cong {\mathcal{O}}_{Y}(E)$ . We have:

∙ ${\mathcal{O}}_{E}(E)\cong {\mathcal{O}}_{\mathbb{P}^{n}}(-d)$ and hence $E^{n+1}=(-d)^{n}$ ;
∙ $K_{Y}=\unicode[STIX]{x1D70B}^{\ast }K_{X}+(-1+\frac{n+1}{d})E$ and hence $X$ is always klt. $X$ is terminal (resp. canonical) if and only if $n+1>d\geqslant 2$ (resp. $n+1\geqslant d\geqslant 2$ );
∙ $K_{Y}=\unicode[STIX]{x1D707}^{\ast }(K_{\mathbb{P}^{n}}+\det ({\mathcal{E}}))\otimes {\mathcal{O}}_{Y}(-\text{rk}({\mathcal{E}}))\equiv -(n+1+d)F-2E$ where ${\mathcal{E}}={\mathcal{O}}_{\mathbb{P}^{n}}\oplus {\mathcal{O}}_{\mathbb{P}^{n}}(-d)$ and $F=\unicode[STIX]{x1D707}^{\ast }{\mathcal{O}}_{\mathbb{P}}^{n}(1)$ ;
∙ $F^{n+1}=0$ and $F^{n+1-k}.E^{k}=(-d)^{k-1}$ for $1\leqslant k\leqslant n+1$ ;
∙ $K_{Y}^{n+1}=K_{X}^{n+1}+(-1+\frac{n+1}{d})^{n+1}E^{n+1}$ and
$$\begin{eqnarray}\displaystyle K_{Y}^{n+1} & = & \displaystyle \frac{-1}{d}\mathop{\sum }_{k=1}^{n+1}\left(\begin{array}{@{}c@{}}n+1-k\\ k\end{array}\right)\biggl(-1+\frac{n+1}{d}\biggr)^{n+1-k}(2d)^{k}\nonumber\\ \displaystyle & = & \displaystyle \frac{-1}{d}((d-n-1)^{n+1}-(-(d+n+1)^{n+1}));\nonumber\end{eqnarray}$$
∙ In summary, $-K_{X}$ is ample with
$$\begin{eqnarray}(-K_{X})^{n+1}=\frac{(d+n+1)^{n+1}}{d}.\end{eqnarray}$$

If $n=2$ , then we have an $\unicode[STIX]{x1D716}$ -klt Fano threefold of Picard number one with $\unicode[STIX]{x1D716}=1/d$ . The volume $\text{Vol}(X)=(-K_{X})^{3}$ is of order $1/\unicode[STIX]{x1D716}^{2}$ .

In view of Theorem 5.17, it is then interesting to see whether $\unicode[STIX]{x1D716}$ -klt Fano threefolds with big volumes exist.

Question 5.19. Can one find an $\unicode[STIX]{x1D716}$ -klt $\mathbb{Q}$ -factorial $\mathbb{Q}$ -Fano threefold $X$ of $\unicode[STIX]{x1D70C}(X)=1$ with volume $\text{Vol}(X)=(-K_{X})^{3}=O\big(\frac{1}{\unicode[STIX]{x1D716}^{c}}\big)$ for $c\geqslant 3$ ?

Acknowledgments

The author is grateful to Professor Christopher Hacon, Professor James M^cKernan, and Professor Chenyang Xu for many useful discussions and suggestions. The author thanks Professor James M^cKernan for allowing him to include in this article his theory of the covering families of tigers in [M^cK02]. The author also thanks the referees for their careful reading and very helpful suggestions for improving the presentation of this paper.

Footnotes

1 An ACC (resp. DCC) set is a set of real numbers satisfying the ascending (resp. descending) chain condition, that is, it contains no infinite strictly increasing (decreasing) sequences.

2 By adding a small multiple of $-(K_{X}+\unicode[STIX]{x1D6E5})$ , we may assume that the inequality $\text{deg}(H|_{F_{q}})\geqslant 1$ is strict with a smaller modified $\unicode[STIX]{x1D714}$ and hence Theorem 1.5 applies.

References

Alexeev, V., Boundedness and K ² for log surfaces , Internat. J. Math. 5(6) (1994), 779–810.Google Scholar

Alexeev, V. and Mori, S., “ Bounding singular surfaces of general type ”, in Algebra, Arithmetic and Geometry with Applications (West Lafayette, IN, 2000), Springer, Berlin, 2004, 143–174.CrossRef Google Scholar

Ambro, F., The locus of log canonical singularities, 1998.Google Scholar

Ambro, F., “ On the classification of toric singularities ”, in Combinatorial Aspects of Commutative Algebra, Contemporary Mathematics 502 , American Mathematical Society, Providence, RI, 2009, 1–3.Google Scholar

Belousov, G. N., Del Pezzo surfaces with log terminal singularities , Mat. Zametki 83(2) (2008), 170–180.Google Scholar

C. Birkar, P. Cascini, C. D. Hacon and J. M^c Kernan, Existence of minimal models for varieties of log general type, J. Amer. Math. Soc. 23(2) (2010), 405–468.CrossRef Google Scholar

Birkar, C. and Shokurov, V. V., Mld’s vs thresholds and flips , J. Reine Angew. Math. 638 (2010), 209–234.Google Scholar

Borisov, A., Boundedness theorem for Fano log-threefolds , J. Algebraic Geom. 5(1) (1996), 119–133.Google Scholar

Borisov, A., Boundedness of Fano threefolds with log-terminal singularities of given index , J. Math. Sci. Univ. Tokyo 8(2) (2001), 329–342.Google Scholar

Borisov, A. A. and Borisov, L. A., Singular toric Fano three-folds , Mat. Sb. 183(2) (1992), 134–141.Google Scholar

Corti, A. (eds), Flips for 3-Folds and 4-Folds, Oxford Lecture Series in Mathematics and its Applications 35 , Oxford University Press, Oxford, 2007.Google Scholar

Hartshorne, R., Algebraic Geometry, Graduate Texts in Mathematics 52 , Springer, New York, 1977.Google Scholar

Kawamata, Y., “ Boundedness of Q -Fano threefolds ”, in Proceedings of the International Conference on Algebra, Part 3 (Novosibirsk, 1989), Contemporary Mathematics, 131 , American Mathematical Society, Providence, RI, 1992, 439–445.Google Scholar

Kollár, J., Flips and Abundance for Algebraic Threefolds, Société Mathématique de France, Paris, 1992, Papers from the Second Summer Seminar on Algebraic Geometry held at the University of Utah, Salt Lake City, Utah, August 1991, Astérisque 211 (1992).Google Scholar

Kollár, J., Effective base point freeness , Math. Ann. 296(4) (1993), 595–605.CrossRef Google Scholar

Kollár, J., “ Singularities of pairs ”, in Algebraic Geometry—Santa Cruz 1995, Proc. Sympos. Pure Math. 62 , American Mathematical Society, Providence, RI, 1997, 221–287.Google Scholar

Kollár, J. and Kovács, S. J., Log canonical singularities are Du Bois , J. Amer. Math. Soc. 23(3) (2010), 791–813.Google Scholar

Kollár, J. and Matsusaka, T., Riemann–Roch type inequalities , Amer. J. Math. 105(1) (1983), 229–252.CrossRef Google Scholar

Kollár, J., Miyaoka, Y. and Mori, S., Rational connectedness and boundedness of Fano manifolds , J. Differential Geom. 36(3) (1992), 765–779.Google Scholar

Kollár, J., Miyaoka, Y., Mori, S. and Takagi, H., Boundedness of canonical Q -Fano 3-folds , Proc. Japan Acad. Ser. A Math. Sci. 76(5) (2000), 73–77.Google Scholar

Kollár, J. and Mori, S., Birational Geometry of Algebraic Varieties, Cambridge Tracts in Mathematics 134 , Cambridge University Press, Cambridge, 1998, With the collaboration of C. H. Clemens and A. Corti, Translated from the 1998 Japanese original.Google Scholar

Lazarsfeld, R., Positivity in Algebraic Geometry. I, Ergebnisse der Mathematik und ihrer Grenzgebiete. 3. Folge. A Series of Modern Surveys in Mathematics [Results in Mathematics and Related Areas. 3rd Series. A Series of Modern Surveys in Mathematics] 48 , Springer, Berlin, 2004, Classical Setting: Line Bundles and Linear Series.CrossRef Google Scholar

Lin, J., Birational unboundedness of ℚ-Fano threefolds , Int. Math. Res. Not. (6) (2003), 301–312.CrossRef Google Scholar

J. M^c Kernan, Boundedness of log terminal fano pairs of bounded index, preprint, 2002, arXiv:0205214.Google Scholar

Okada, T., On the birational unboundedness of higher dimensional ℚ-Fano varieties , Math. Ann. 345(1) (2009), 195–212.CrossRef Google Scholar

Todorov, G. T., Pluricanonical maps for threefolds of general type , Ann. Inst. Fourier (Grenoble) 57(4) (2007), 1315–1330.Google Scholar

Article contents

BOUNDING VOLUMES OF SINGULAR FANO THREEFOLDS

Abstract

MSC classification

Definition.

Definition.

Borisov–Alexeev–Borisov Conjecture.

Proposition.

Theorem A.

Theorem B.

1 Non-klt centers

Theorem 1.5. [Reference KollárKol97, Theorem 6.8.1]

2 Guiding example

3 Covering families of tigers

Definition 3.1. [McK02, Definition 3.1]

4 Log Del Pezzo surfaces

5 Log Fano threefolds of Picard number one

5.1 Construction

Lemma 5.1. [Reference LazarsfeldLaz04, Lemma 5.2.11]

5.2 Cases

Proposition 5.2. [Reference LazarsfeldLaz04, Proposition 5.2.13]

5.3 Small multiplicity

5.4 Big multiplicity

Example 5.18. (Projective cone of projective spaces)

Acknowledgments

Footnotes

References

Save article to Kindle

Save article to Dropbox

Save article to Google Drive

Reply to: Submit a response

Your details

You have entered the maximum number of contributors

Conflicting interests

Definition 3.1. [M^cK02, Definition 3.1]
