1. Introduction
Antarctic ice shelves are important components of the climate system where basal melting and freezing processes can significantly modify large water masses circulating in the ocean cavities beneath them (Reference Foldvik and GammelsrødFoldvik and Gammelsrød, 1988; Reference Nicholls, Makinson and RobinsonNicholls and others, 1991). Contrary to early evidence from small ice shelves like the Wordie (Reference VaughanVaughan, 1993), the recent collapse of larger ice-shelf sections (Larsen A; Prince Gustav Channel) in the Antarctic Peninsula has led to accelerated discharge of grounded ice, and is likely through glacio-eustasy to directly impact on global mean sea-level variations (Reference Rott, Rack, Skvarca and De AngelisRott and others, 2002; Reference Carmack and UntersteinerDe Angelis and Skvarca, 2003).
The Amery Ice Shelf (AIS) and the inland Lambert Glacier drainage basin, occupying a total area of 1 550 000 km2, incorporating 58 000 km2 of floating ice, form the largest glacier–ice-shelf system in East Antarctica (Reference Fricker, Young, Allison and ColemanFricker and others, 2002a). A new delineation of the grounding zone for the AIS has been determined from hydrostatic equilibrium calculations using a satellite altimetric digital elevation model (DEM), radio-echo sounding measurements, satellite imagery and mass-balance considerations (Reference FrickerFricker and others, 2002 b). This places the grounding line of the AIS as far south as 73.2˚ S. The mass-flux estimates indicate that at least half the continental ice flowing into the AIS is lost through basal melt within the first 100 km of the ice becoming afloat. Some of this is later accreted back on to the base of the northwest sector of the ice shelf as marine ice (Reference Fricker, Popov, Allison and YoungFricker and others, 2001). Oceanographic observations of the modification to the salinity and temperature of water masses entering and exiting the ice-shelf cavity indicate a similar net mean annual melt loss (Reference Wong, Bindoff, Forbes, Jacobs and WeissWong and others, 1998).
Processes of interaction between ice shelves and the sea water in contact with them, as well as the sensitivity of these processes to changes in ocean temperature and circulation patterns near Antarctica, are important both to the Antarctic mass budget and to the modification of water-mass characteristics. The Amery Ice Shelf Ocean Research (AMISOR) project aims to: quantify the interaction between the ocean and the AIS; determine the implications of this interaction for the discharge of grounded ice and for water-mass modification; and derive a long-term record (from sediment and ice cores) of the time variability of the interaction. It builds on previous glaciological investigations of the Amery Ice Shelf–Lambert Glacier drainage basin (Reference BuddBudd, 1966; Reference AllisonAllison, 1979; Reference Budd, Corry and JackaBudd and others, 1982; Reference Fricker, Popov, Allison and YoungFricker and others, 2001, Reference Fricker, Young, Allison and Coleman2002a, Reference Frickerb; Reference Young and HylandYoung and Hyland, 2002), and of the Prydz Bay oceanography (Reference Smith, Zhaoqian, Kerry and WrightSmith and others, 1984; Reference Wong, Bindoff, Forbes, Jacobs and WeissWong and others, 1998) and sedimentary record (O’Brien and Harris, 1996; Reference DomackDomack and others, 1998).
AMISOR employs a multidisciplinary approach to the study of the region. The project includes components of hot-water drilling (HWD) through the AIS to access the underlying cavity; glaciological measurements of the ice-shelf velocity, strain and thickness; oceanographic measurements in Prydz Bay; investigation of sub-ice-shelf sediments and sediment dynamics; remote sensing; and numerical modelling of ice-shelf–ocean interaction and ice-shelf dynamics. This paper describes initial results obtained from two HWD boreholes melted through the ice toward the front of the AIS, after an initial test season near the northeast edge of the shelf in 1999–2000 (Fig. 1).
2. The AMISOR Hot-Water Drill (HWD) System
A modular HWD system was designed and built in-house, with the capability of drilling a 250 mm or greater diameter borehole to 1000 m in cold ice. System component specifications were determined from the results of calculations of borehole freezing rates using formulations as described by Reference Napoléoni and CNapoléoni and Clarke (1978), Reference TaylorTaylor (1984), Reference Iken, Echelmeyer, Harrison, Rado and BeaudoingIken and others, (1989) and Reference Humphrey and EchelmeyerHumphrey and Echelmeyer (1990).

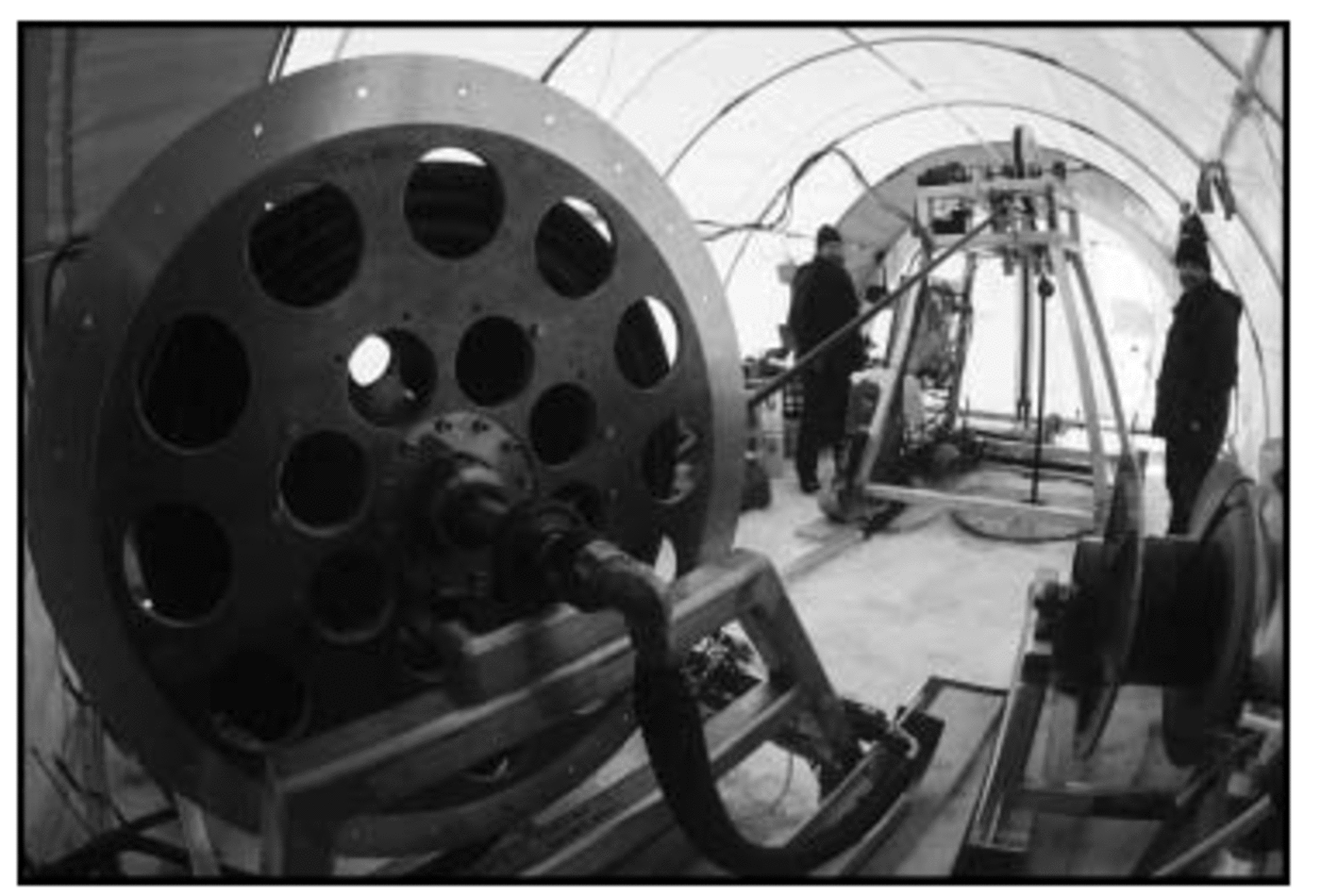

The AMISOR HWD (Fig. 2) is powered by a Hatz 12 kVA three-phase diesel generator, with an identical Hatz bare-shaft motor driving a CAT 1051 high-pressure surface pump for delivering water at rates up to 45 L min–1. Up to six 80 kW K’Archer Volcano industrial heaters are plumbed in parallel via inlet and outlet manifolds to heat the water to around 80˚C. The system uses 1 in (50mm) internal diameter 580N-16-SL thermoplastic hose in 600 ft lengths (183 m), to deliver hot water to a 90 kg stainless-steel drill stem via a motor-driven hose drum winch, and an electronically controlled capstan drive. A set of Spraying Systems nozzles, covering a range of outlet diameters, deliver either a solid stream or full cone spray to the borehole depending on whether drilling is underway in a water-filled ice cavity, or in the upper air-filled porous firn section of the hole. The HWD water supply comes from melted snow stored in a Structure-Flex 12 000 L portable water tank free-standing on insulated boards set out on the snow surface. A subsurface water recovery system is employed using a Grundfos SP5A-38 4 kW submersible pump in an adjacent shallow hole, with hydraulic connection near sea-level depth with the main borehole. This method has been described and successfully employed elsewhere, such as on the Ross Ice Shelf (Reference Browning, Bigl and SommervilleBrowning and others, 1979; Reference KociKoci, 1984), the Ronne Ice Shelf (Reference Nicholls, Makinson and RobinsonNicholls and others, 1991; Reference MakinsonMakinson, 1993), and ice streams in West Antarctica (Reference EngelhardtEngelhardt and others, 1990).
3. Field Operations
3.1. HWD borehole sites
The borehole site selection for the AMISOR project was based on knowledge of the distribution of marine ice accreted to the base of the shelf (Reference Fricker, Popov, Allison and YoungFricker and others, 2001) and aligned with previous AIS glaciological survey grids (Budd and others, 1982). It was expected that a borehole array across the AIS, near the front, would sample regions of both melting and freezing basal conditions.
In the 2000/01 season a 300–350mm diameter 373 m deep borehole was drilled at a northeastern site AM02 (69˚42.8' S, 72˚38.4' E; 57 ma.s.l.), 70 km southwest of the calving front, in a basal melt zone (Fig. 1). During the austral summer of 2001/02 a 479m deep borehole was melted at site AM01 (69˚26.5' S, 71˚25.0' E; 65 ma.s.l.), 50 km west-northwest of AM02, 90 km from the calving front. At AM01, hydraulic connection with the ocean cavity beneath the shelf was attained at 376m depth, some 100m above the base, indicating a highly porous or ‘honeycomb’ structure of the lowest layer of ice. At each site the boreholes were kept open for 5–7 days for scientific sampling, before mooring arrays were deployed for long-term monitoring. At AM01, depth-targeted ice-core samples were obtained using a HWD ice-coring head (Reference EngelhardtEngelhardt and others, 2000) in an adjacent hole displaced 0.5 m from the access borehole.
3.2. Sampling and monitoring instruments
Measurement and sampling instruments deployed within and through the boreholes consisted of:
-
1. borehole caliper and inclinometer
-
2. hot-water drill ice-coring barrel (AM01 only)
-
3. Falmouth Scientific Instruments, FSI-3’’ Micro CTD (up and down casts)
-
4. Niskin water bottles
-
5. Aquadopp three-dimensional (3-D) acoustic current meter (AM01 only)
-
6. gravity sediment corer.
The caliper and inclinometer were used to check the integrity of the borehole for minimum diameter throughout, and verticality at exit into the ocean cavity below the shelf.
Ice-core analysis of the samples obtained from AM01 is the subject of ongoing investigation, with initial visual inspection, stable-isotope (δ18O), electrolytical conductivity, salinity and thin-section crystal-fabric analysis conducted in-house thus far.
The FSI CTD was pre-calibrated in a temperature-controlled water bath (Commonwealth Scientific and Industrial Research Organisation (CSIRO) Marine Laboratories, Hobart) prior to field deployment. During return voyages to Australia, aboard the research vessel Aurora Australis, it was intercalibrated with a ship-board CTD unit whilst mounted on a 12-bottle Niskin water-sampling rosette (Reference RosenbergRosenberg and others, 2002). At AM02 the Niskin water samples were all contaminated due to a faulty housing arrangement causing leakage around the seals.
The Aquadopp 3-D acoustic current meter was used to record cavity current profiles beneath the AM01 site during 2min stoppages at 20m depth intervals over 30–40 min sample runs. A single extended 7 hour recording was also obtained from 477 dbar (near the bottom of the well-mixed boundary layer; see section 4.3).
The gravity corer retrieved a clean 1.44 m long sediment core from the sea-floor at AM02 (841m below the ice-shelf surface), but failed to collect any significant sample at AM01 despite repeated attempts over several days (ice-shelf speed 800 ma–1, spatial separation of 2–5 m). Sediment analysis procedures have been described elsewhere (Reference GadeHemer and Harris, 2003).
Instruments for longer-term measurements were also deployed below, within and on the ice shelf at both sites. These consisted of:
-
1. three Seabird SBE-37-IM CTD units (pressure sensors failed at AM01)
-
2. strings of eight thermistors (ice/water interface, AM01 and AM02; ice internal AM01)
-
3. deep-ice thermistors at 80 and 150 m depth (AM02 only)
-
4. Benthos sonar altimeter (AM01 only)
-
5. surface automatic weather station (temperature, pressure, wind speed and direction, snow accumulation, near-surface snow temperature).
Problems were experienced with the thermistor string surface loggers, particularly at AM01 where the loggers failed in February–March 2002. The sonar altimeter at AM01 was positioned to look upwards at the base of the shelf from 20 m below, but, after initially providing good data, this instrument failed to provide measurements of basal freeze or melt rates at the site.
4. Results and Interpretation
4.1. Basal melt/freezing rates
Thermistor measurements within the body of the ice shelf and toward the ice/water interface at AM02 were typical of those at a basal melt site, with a minimum internal temperature of –20.3˚C at 80 m, increasing monotonically to the pressure-freezing temperature at the base, –2.12˚C at 373 m. The closely spaced thermistors across the interface have not yet yielded a clear mean annual melt rate, but from their spacing the upper limit is 2 ma–1. The lower limit can be estimated from considerations of the conservation of heat and salt for the static stability of a meltwater-modified boundary layer immediately beneath the shelf (Reference Jacobs, Gordon and ArdaiJacobs and others, 1979).
The temperature gradient (ΔT i/Δz) in the bottom few metres of the shelf was measured to be 0.17˚Cm–1, compared to 0.08˚C m–1 at the J9 borehole site on the Ross Ice Shelf (Reference Jacobs, Gordon and ArdaiJacobs and others, 1979). The salinity gradient (ΔS v/Δz) below the boundary layer was found from CTD casts (see section 4.3) to be 0.00043 μ–1 (compared to 0.0025 μ–1 at J9). With the latent heat of fusion, L=3.35×105J Kg–1; seawater thermal capacity, C p=4×103J Kg–1 K–1; representative salinity, S = 34.4; thermal conductivity of ice, K i=2.2J s–1 m–1 K–1; ice density, ρ i=9.17×1010 kg m–3; a coefficient of vertical turbulent mixing (not well known) for the halocline beneath the boundary layer, K v = 0.1 Kg m–1; and a ratio of temperature to salinity change equal to the local isopycnal gradient, ΔT/ΔS = 32; a minimum melt rate, m=0.5 m a–1 was obtained. Net mean melt rates in the 0.5 –2.0 m a–1 range are considered reasonable for such a site within 100 km of the ice-shelf calving front where tidal pumping and seasonally warmer waters of the coastal current penetrate the front part of the shelf cavity to shallow depth (Reference Jenkins and DoakeJenkins and Doake, 1991; Reference Jacobs, Hellmer and FrolichJacobs and others, 1992).
Despite problems encountered with thermistor strings at AM01, initial data indicate that the temperature profile has an inflection curve typical of basal accretion sites, and in agreement with measurements from a 1968 ice-core borehole to 315 m depth taken at the same geographic location (Reference MorganMorgan, 1972). The lower 150m of marine ice (see section 4.2) in the shelf may be an almost isothermal layer near the basal in situ sea-water freezing temperature (–2.23˚C, 34.40 PSS78, 440 dbar) as might be expected from the high porosity evidenced by the hydraulic connection 100m above the ice-shelf base during drilling. No estimate is available yet of possible accretion rates from either the interface thermistor string or the upward-looking sonar altimeter deployed at this site.
4.2. Marine-ice properties
A HWD ice-coring head (Reference EngelhardtEngelhardt and others, 2000) was trialled at AM01, primarily to sample marine ice at depth. The meteoric-/marine-ice interface was anticipated to be around 270 m depth, from analysis of the earlier 315 m core (Reference MorganMorgan, 1972). HWD ice-core samples were collected from 240 m, within the meteoric ice; 290 m, near the top of the marine ice; and 360 and 390 m, just above and below the hydraulic connection depth. The marine ice from 290 m contained debris bands that from 360m had a bubble structure (possibly brine pockets), and the lowest sample was highly porous honeycomb ice. As this was a first attempt at HWD ice coring and field fuel stocks were low, techniques were not perfected, so that the ice cores collected were not uniformly cylindrical, but quite irregular in shape, particularly at depth. In 2002/03 a Polar Research Institute of China core-drilling team recovered a 302 m long continuous ice core at a site within 100m of AM01 and detected the marine-ice interface at 276 m by visual inspection of the core (sharp transition from bubbly meteoric to clear marine ice with debris inclusions) (personal communication from Li Yuansheng, 2003).
Marine ice from reasonably thick layers (60m or more) was reported earlier to be devoid of brine drainage channels and bubbles (Reference OerterOerter and others, 1992). Previously measured anomalously low marine-ice electrolytical conductivities (40–200 μS cm–1) in the Ronne and Amery Ice Shelves could not be explained by typical sea-ice brine drainage mechanisms (gravity drainage and brine pore migration). A frazil-ice compaction mechanism consisting of two stages – individual crystal formation in the water column, followed by compaction and consolidation at the base of the ice shelf – rather than in situ ice growth has been proposed for production of the layers (Reference EngelhardtEngelhardt and Determann, 1987; Reference EickenEicken and others, 1994; Reference Tison, Khazendar and RoulinTison and others, 2001).

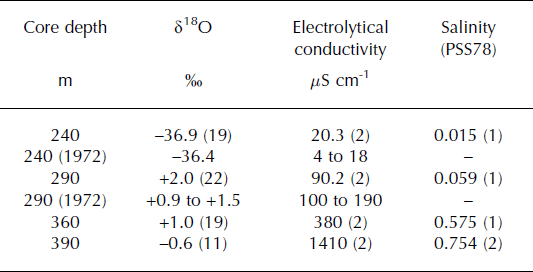

Oxygen isotope (δ18O), electrolytical conductivity, and salinity data for the AM01 core samples are shown in Table 1. In the upper marine-ice layer (290 m depth) a δ18O value of +2‰ was found (in agreement with Morgan, 1972) decreasing to –0.6‰ at 390 m (cf. mean value –0.76‰ in the sea-water column). The fractionation of the lowest layers of AIS marine ice is smaller than that previously found for thick marine-ice layers on the Ronne Ice Shelf (Reference OerterOerter and others, 1992; Reference EickenEicken and others, 1994). Comparatively high electrolytical conductivity and salinity values in the deep samples (0.575 PSS78 at 360 m, and 0.752 PSS78 at 390 m) also contrast with typically decreasing conductivity and salinity with depth in consolidated marine ice devoid of brine inclusions on the Ronne Ice Shelf (Reference OerterOerter and others, 1992; Reference EickenEicken and others, 1994; Reference Moore and ReidMoore and others, 1994). Such values are in striking agreement, however, with the salinity range quoted for marine ice from shallow-depth (45m) core samples collected from Hells Gate Ice Shelf (HGIS) (Tison and others, 1998). At HGIS the more positive δ18O signature of the marine ice collected from near the front of the shelf was interpreted as an indication of recycling of melted marine ice from upstream. It is possible that the decrease of δ18O with depth at AM01 reflects an increased contribution of melted meteoric ice (e.g. from the eastern part of the AIS) to the parent water.

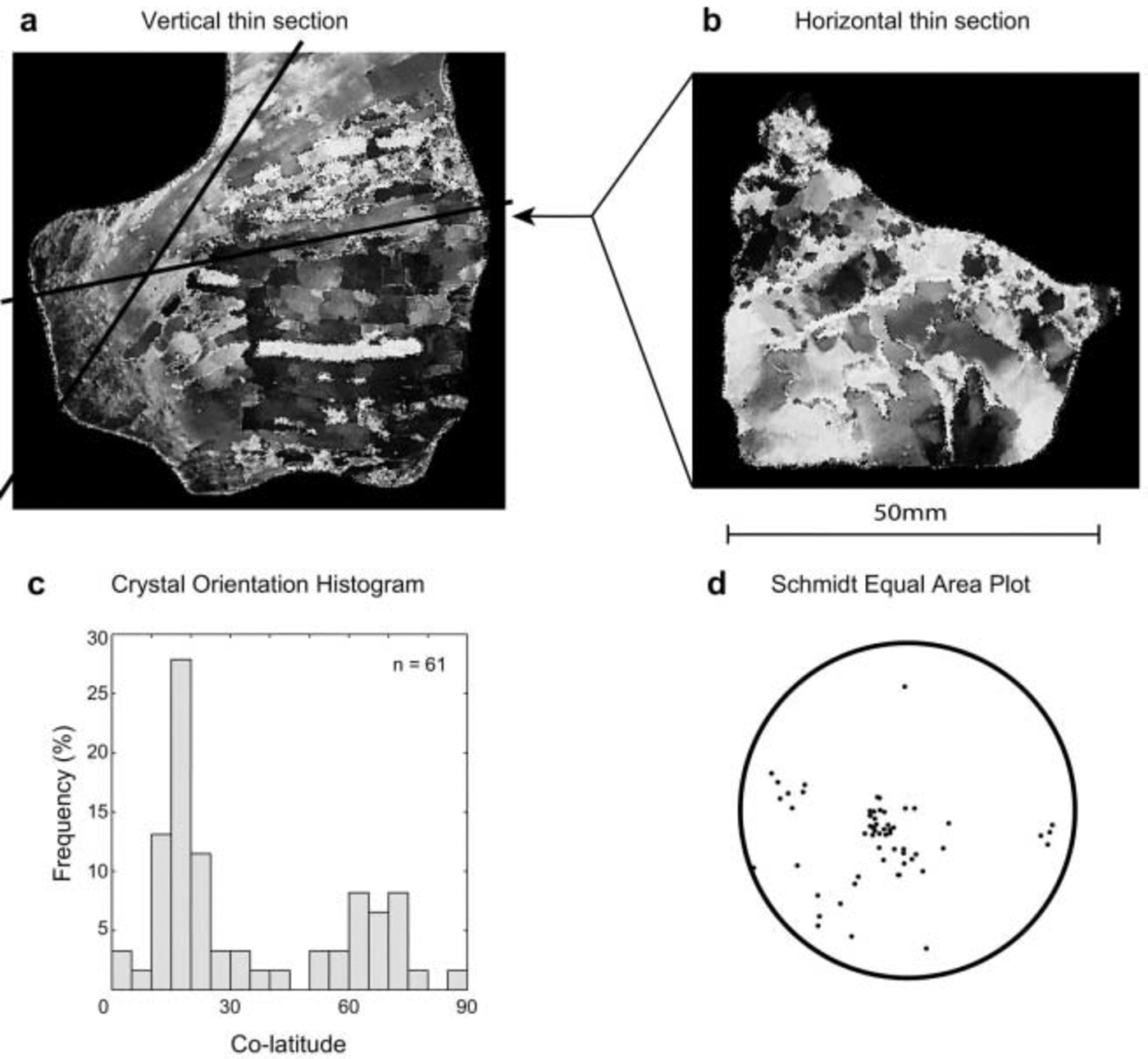

A vertical thin section of the porous core sample at 390 m through crossed polarizing filters shows bands of rectangular crystals (Fig. 3a). The fabric diagram of a corresponding horizontal thin section (Fig. 3b) shows a strong single pole near vertical maximum, and a small offset arc at 60–75˚ (Fig. 3c and d). This can be interpreted from the vertical thin section as due to two preferred directions of rectangular crystals, which likely formed as two separate clumps, later welded together into the marine-ice matrix at an angle relative to one another. As shown by Reference Tison, Ronveaux and LorrainTison and others (1993), the textural and structural characteristics are typical of the more saline marine ice at HGIS. These authors suggested that the strongly aligned c-axes fabrics in marine ice are indicative of individual frazil crystals orienting nearly parallel to the ice/ocean interface during initial freezing under the influence of boundary layer currents. The horizontal layering of the banded rectangular facies described here is in contrast to the near-vertical orientation of similar crystals in marine ice recovered from near the grounding line of the Nansen Ice Shelf (NIS). The NIS marine ice, however, formed in large basal crevasses and had subsequently undergone significant folding due to high lateral compression (Reference Khazendar, Tison, Stenni, Dini and BondesanKhazendar and others, 2001).
Relatively shallow ocean circulation, in which ice-shelf water (ISW) (see section 4.3) production, and marine-ice accretion took place, led to the formation of similarly high-salinity (> 0.5 PSS78) banded marine-ice facies in the frontal zone of HGIS. This had been considered a peculiar process, perhaps unique (Tison and others, 1998), with until now no deep marine-ice cores collected from the major ice shelves exhibiting this textural type. At HGIS, sea water began to enter the air-filled drillhole at 32 m depth (total core length 45 m), indicating the lower banded facies of the marine ice was highly permeable, with interstitial water salinity enriched by brine exclusion through active freezing during the consolidation process (Reference Tison, Lorrain, Bouzette, Dini, Bondesan, Stiévenard and JeffriesTison and others, 1998). At AM01 the hydraulic connection realized with the HWD head at 376 m depth (100 m up from the shelf base) was the result of the pressure head exerted by a 320 m long water column within the borehole punching through highly permeable banded-facies marine ice deep down. No direct evidence exists of basal melting or freezing at this site, although phase changes are highly likely at least within the banded facies ‘host’ water matrix (Reference Tison, Khazendar and RoulinTison and others, 2001), even if not at the very base of the shelf. There was no clear evidence of significant frazil ice, or slush build-up toward the base of the borehole, with no resistance to the passage of instruments in or out.
Debris inclusions within the marine-ice core samples are yet to be analyzed, but during HWD ice-core sampling trials at AM01 the core dog inserts of the core barrel returned to the surface from around 360 m depth full of debris that had been melted out of the borehole walls. This debris consisted of two fractions. The first was pale grey, fine and coherent siliceous mud and ooze (SMO) containing the diatom Fragilariopsis curta, whose presence represents either advection in marine water, or a piece of sediment from some relatively recent time when the ice edge was further south (personal communication from P. Quilty and A. McMinn, 2002). The remainder of the sediment consisted of angular sand grains of such size as should not remain suspended in the water column for any significant length of
time. An ice-shelf flowline traced upstream from the AM01
borehole passes close to Budd Ice Rumples (BIR; 71˚30' S, ′′
68˚45'E; see Fig. 1) where bedrock projects halfway into the
local 800–900 m ice-shelf thickness. The BIR and the more northerly Else Platform–Jetty Peninsula region are suggested as possible sources of granular debris incorporated into the accreted marine-ice layer sampled at AM01.
4.3. Ocean structure beneath the ice shelf

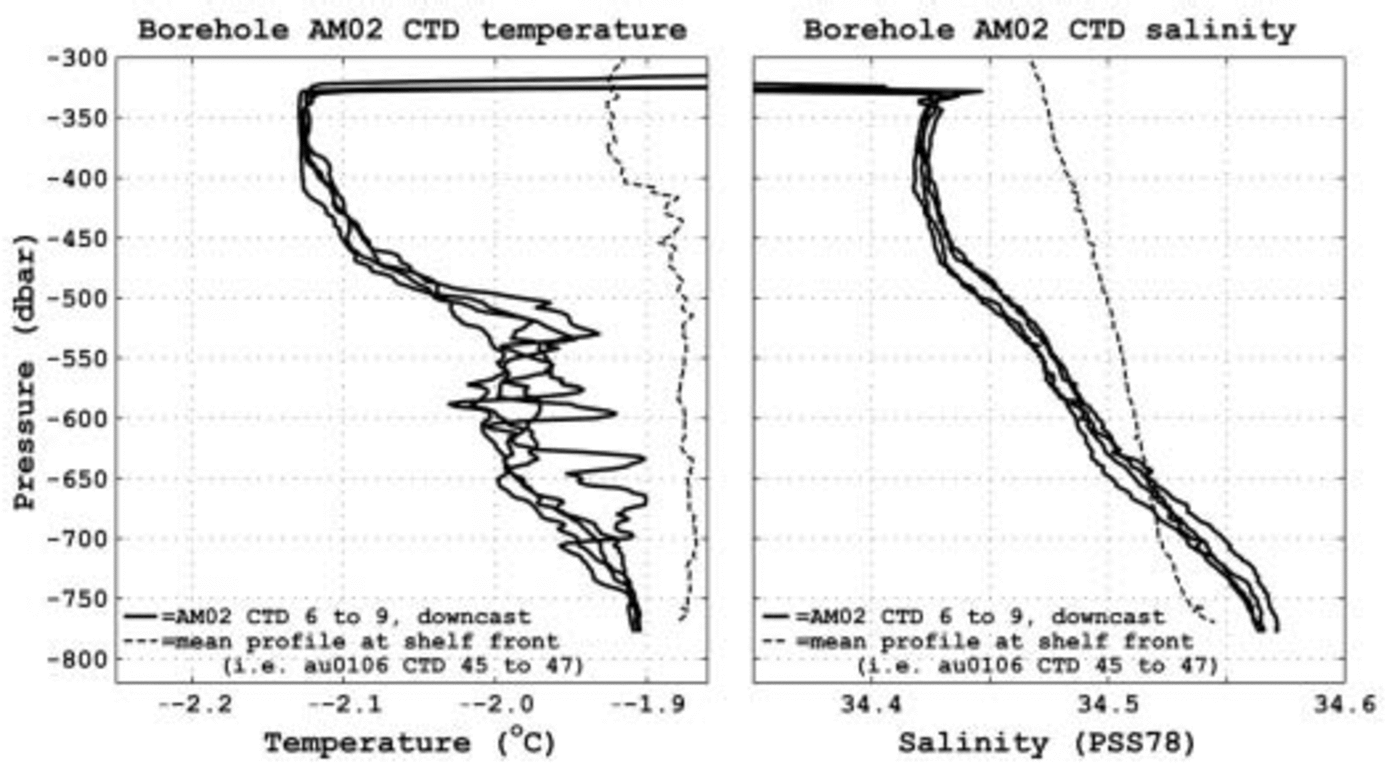

CTD profiles measured in the 468 m deep water column beneath the northeastern site AM02 revealed a characteristic cool fresh layer (–2.12˚C, 34.42 PSS78, 330 dbar) indicative of a meltwater-modified boundary layer in the upper 40– 60m immediately beneath the shelf, where the pressure-freezing point at the ice-shelf base is –2.13˚C (Fig. 4). A number of persistent intrusions of warmer water were seen below the thermocline, whilst salinity increased steadily toward the seabed (–1.90˚C, 34.54 PSS78, 770 dbar). Open-ocean CTD profiles measured off the front of the shelf (1 month later) showed water temperatures close to –1.9˚C throughout that part of the water column equivalent to depths in the cavity beneath AM02. Salinities at 330 dbar (the depth of the base of the shelf at AM02) were in the range 34.46–34.48 PSS78, slightly above those found in the ice-shelf basal boundary layer. But the salinity at 770 dbar was almost the same as found near the sea-floor beneath the borehole site.
Summertime ocean structure in the 360m deep water column at the central site AM01 (Fig. 5) was similar to that for AM02, but with a thicker (80–100 m), cooler boundary layer at greater depth (–2.23˚C, 34.40 PSS78, 420 dbar). The upper 50 m of this layer was slightly supercooled compared to the pressure-freezing temperature of –2.20˚C (data quality in temperature and salinity measurements both considered good to within ± 0.005 units, pressure to ± 2 dbar), indicating a potential for frazil formation at the base of the shelf. Open-ocean water-column properties off the front of the shelf were similar to those found downstream of AM02.

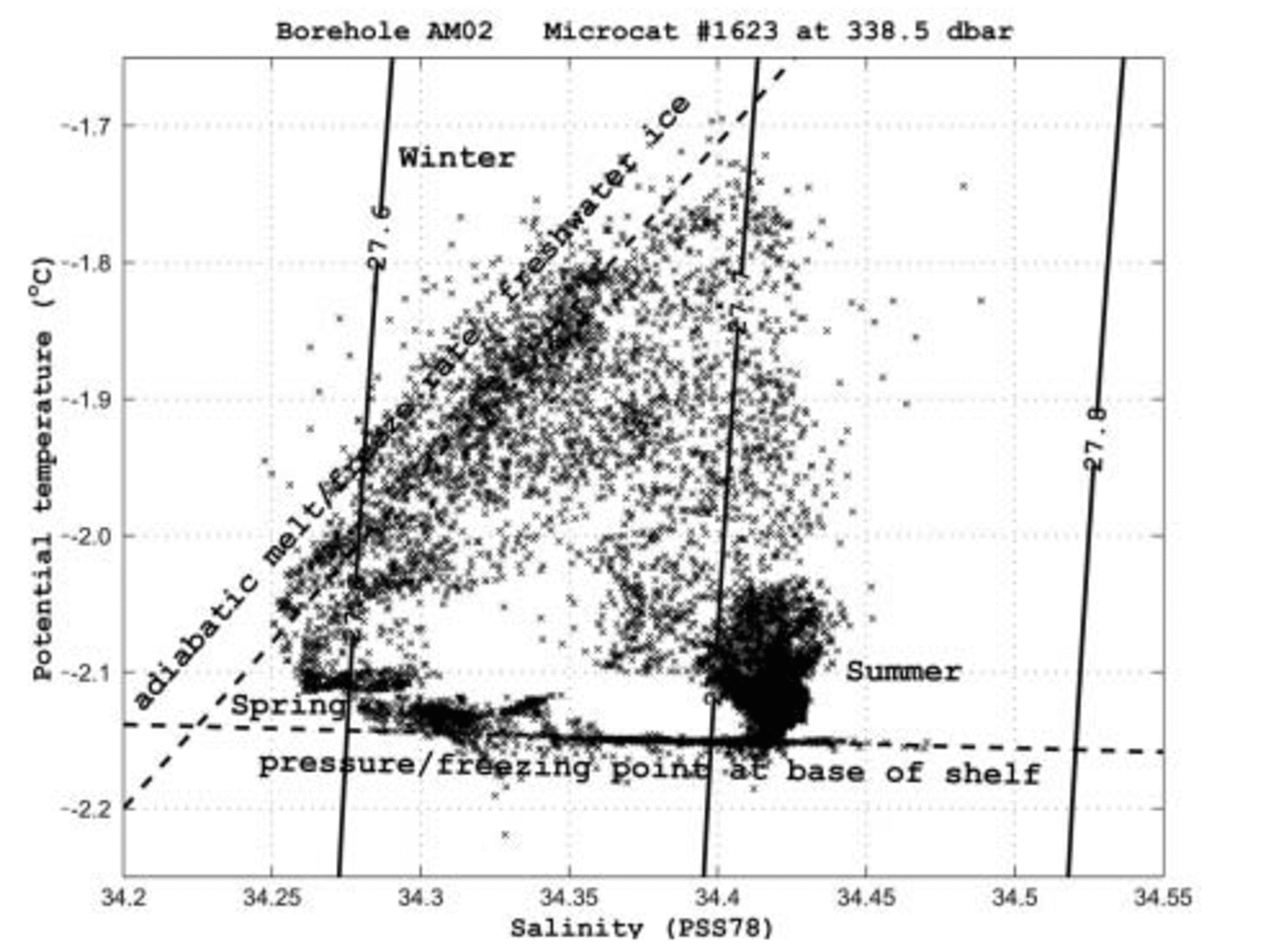

An almost complete annual record for 2001 was recovered from CTD instruments moored at three depths in the water column beneath AM02. Data from the uppermost instrument, suspended some 20m below the ice-shelf base (338 dbar), are shown in a potential-temperature–salinity (θ–S) diagram in Figure 6. This depicts an anticlockwise seasonal cycle of water-mass characteristics. From summer through to winter there is a warming and slight freshening driven by intrusion of water from Prydz Bay. This water has characteristics (Reference Wong, Bindoff, Forbes, Jacobs and WeissWong and others, 1998) of a mix of Winter Water (WW; –1.9˚C< θ< –1.5˚C, 34.2 ≤S ≤34.5 PSS78) and Summer Surface Water (SSW; –1.8˚C< θ< –2.1˚C, 30.6 ≤S≤34.2 PSS78). From winter to spring, ice-shelf basal melt causes freshening and cooling, producing Ice Shelf Water (ISW, θ< –2˚C). The winter gradient (Δθ/ΔS≈2.5) approximates the slope of the adiabatic melt–freeze curve (Reference GadeGade, 1979), and yields a winter melt rate equivalent to around 3 ma–1 from Equation 1, although the salinity gradient (ΔS v/Δz) below the boundary layer is not well known. The lowest salinity values recorded require a slight broadening of ISW definition for this region down to 34.25 PSS78, with even lower values expected at greater depth beneath the ice shelf. A gradual increase in salinity, tied to the pressure-freezing point at the base of the ice shelf, occurred through spring into early summer as more saline water from sea-ice formation and brine-rejection processes in Prydz Bay entered the cavity. In this part of Prydz Bay, salinities did not attain values as high as those in what is called High Salinity Shelf Water (HSSW; S < 34.6 PSS78) in the Weddell Sea, and therefore are unlikely to contribute to bottom water formation (Reference Carmack and UntersteinerCarmack, 1986). Initial CTD data from moorings at similar depths in the water column at the front of the shelf showed a corresponding anticlockwise seasonal cycle.
Limited data are available from a current meter deployed through the borehole at site AM01. These measurements indicated currents of around 5 cm s–1 inflow immediately beneath the shelf, and stronger 5–10cm s–1 outflow near the sea-floor. One continuous 7 hour recording was obtained at 477 dbar (approximate position of the thermocline) with a 5–10 cm s–1 inflow swinging slowly over the first 3 hours to a steady outflow for the remainder of the record. Moored ADCP measurements off the front of the ice shelf yielded monthly mean currents for 2001 for positions downstream of both the AM01 and AM02 boreholes. For the basal-melt AM02 site, shelf front currents at depths equivalent to the ice-shelf base at AM02 were chiefly outflowing from March to October, and with a weak inflow through to February.
4.4. Sea-floor sediments
Included in the AMISOR project objectives is the derivation of a long-term sediment record of the time variability of the interaction between the ocean and the AIS, and to understand the implications of this for the discharge of grounded ice and for water-mass modification. For this purpose, a 1.5m long, 0.1 m diameter gravity sediment corer was deployed at the borehole sites. Reference HemerHemer and Harris (2003) present the analysis from the collected sub-ice-shelf sediments. A summary of their results is included here to complete an overview of all collected borehole data.

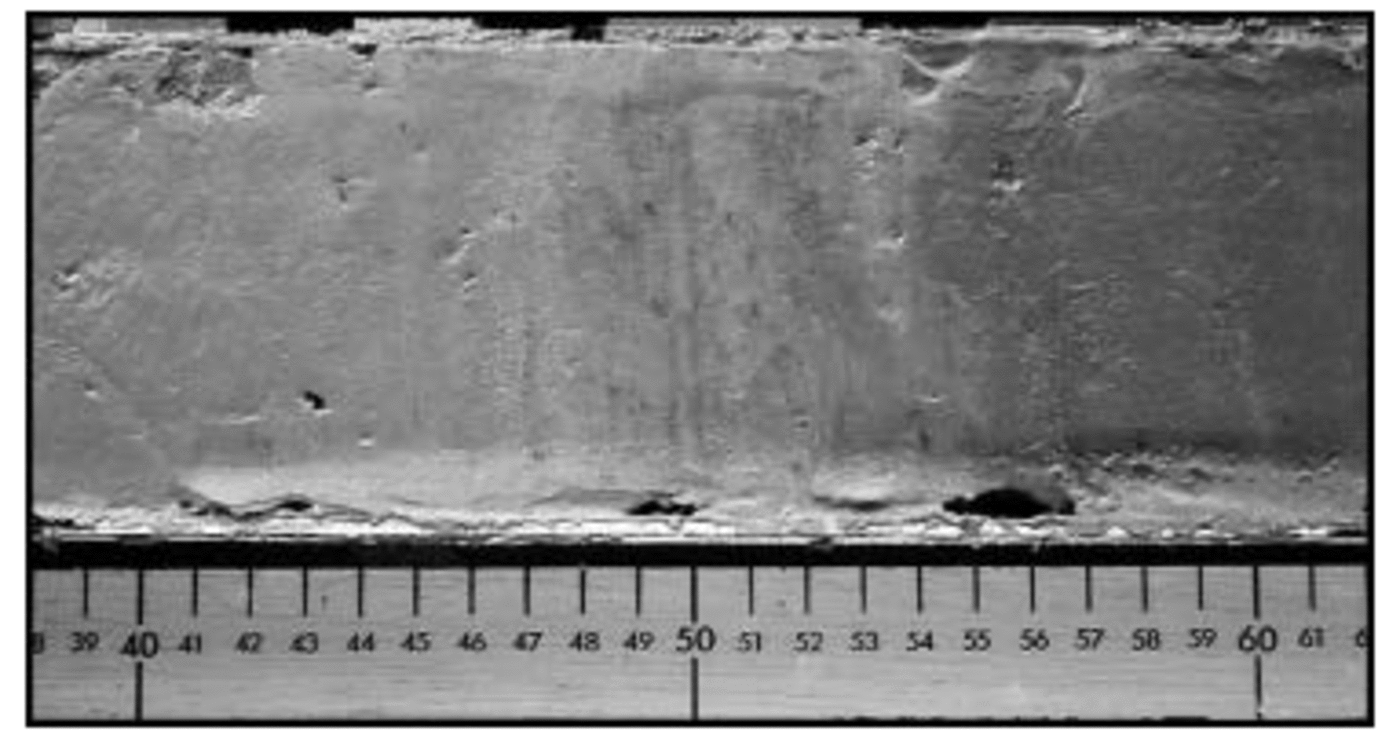

A single 1.44m long sediment core was obtained from the sea-floor at a depth of 841 m below the ice-shelf surface (57ma.s.l.) at AM02, some 70 km southwest of the calving front (Fig. 7). The upper third of the core was Holocene-age siliceous mud and diatom ooze (SMO) of marine origin (Reference Hemer and HarrisHemer and Harris, 2003) which is typical of continental-shelf deposits (Reference Dunbar, Anderson, Domack and JacobsDunbar and others, 1985). This is supporting evidence for transport by currents under the shelf from Prydz Bay. Immediately below this was an olive-grey, well-sorted, massively bedded, very fine-grained silt, low in biogenic opal and carbonaceous material, overlying glacial till containing several large clasts (3–5cm diameter), both interpreted as water-lain deposits formed rapidly proximal to a palaeo grounding zone. These overlaid a lodgement till in the last few centimetres of the core, deposited during the Last Glacial Maximum. There was evidence for an increase in deposition of sea-ice-associated diatoms (Fragilariopsis curta) around 3500–5000 years BP, suggestive of a major retreat of the AIS front during the mid-Holocene climatic optimum (Reference Hemer and HarrisHemer and Harris, 2003). Alternatively, with warmer ocean temperatures, modelling studies predict stronger currents and therefore greater biogenic transport beneath the ice shelf (Reference Hemer and HarrisHemer, 2003), while increased sea-ice biogenic productivity may also play a role.
At AM01 no sediment core was obtained despite repeated attempts, due likely to the highly compacted nature of the seabed. However, small sediment scrape samples were obtained from around the core barrel, indicating an uncorrected surface 14C age (11 722 ± 60 years BP) nearly twice that of the surface layer age at the AM02 basal melt site (6548 ± 60 years BP). This could be interpreted as a consequence of the under-ice ocean circulation pattern wherein this site was in a predominantly outflow regime, compared to an inflow regime at the basal melt site; or alternatively may reflect sediment starvation during the Holocene at this site (Reference Hemer and HarrisHemer and Harris, 2003).
5. Summary and Conclusions
We have examined two boreholes with different basal regimes, one with active melt (AM02) and the other with a considerable thickness of accreted marine ice (AM01). At the melt site, mean net basal melt rates are estimated to be 0.5–2.0 m a–1, with possible winter melt rates up to 3 ma–1. At the marine-ice site, basal change rates remain as yet undetermined, though a potential for local frazil-ice formation has been observed.
The marine-ice layer at AM01 has been found to be close to 200–210 m thick. This compares well with an early estimate of 196 m inferred from hydrostatic equilibrium considerations (Reference MorganMorgan, 1972), and is larger than the 141 ± 30 m derived estimate from satellite altimeter measurements (Reference Fricker, Popov, Allison and YoungFricker and others 2001). The major sources of error in the altimetry method result from rms errors in the digital elevations, uncertainties in geoid–ellipsoid separations, ice radar limitations, and uncertainties in the adopted ice-shelf density model. Future laser altimetry studies, better coherent-phase radio-echo sounding results, gravity surveys, and adjustments to the density model will all improve mapping of the marine-ice layer distribution pattern for the region.
In at least the upper region of the marine-ice layer at AM01 the very low-salinity (0.059 PSS78), bubble-free, debris-enriched, consolidated ice has similar characteristics to those reported previously for the Amery (Reference MorganMorgan, 1972) and Filchner–Ronne (Reference OerterOerter and others, 1992; Reference EickenEicken and others, 1994; Reference Moore and ReidMoore and others, 1994) Ice Shelves. Coarse granular particulate debris incorporated into this upper layer may result from marine-ice formation in the shallow cusp regions between where ice streams merge northwards of Else Platform–Jetty Peninsula, and after grounded shelf
contact with Budd Ice Rumples. The estimated AIS marine-ice distribution map (Reference Fricker, Popov, Allison and YoungFricker and others, 2001) indicates that the layer thickness increases dramatically immediately north of Else Platform, implying possible accelerated production rates in that region. Sub-shelf geometry between merging ice streams of different thicknesses may play an important role in this process.
A surprising aspect of the marine-ice properties at AM01 was the honeycomb nature of the ice at depth, probably extending through the entire lower 100m of the layer. The highly porous nature of this ice, with brine pockets, increased salinities, reduced oxygen isotope fractionation, and rectangular banded-facies textural characteristics, is almost identical to the marine ice collected from HGIS (Reference TaylorTison and others, 1998). By analogy to the HGIS interpretation, where two distinct marine-ice production mechanisms were proposed, it is supposed that the upper consolidated marine ice at AM01 results from ISW formed by deep thermohaline convection circulation and melting near the grounding zone (Reference Jacobs, Hellmer and FrolichJacobs and others, 1992), the mechanism responsible for marine ice reported from under the Ronne Ice Shelf (Reference Nicholls, Makinson and RobinsonNicholls and others, 1991). The lower permeable banded-facies marine ice likely forms from a shallower-depth circulation loop toward the front of the shelf, producing ISW that reaches the pressure-melting point at some greater depth, then achieves a state of supercooling during the return flow elsewhere beneath the shelf (Reference TaylorTison and others, 1998).
The temperature profile in the upper meteoric ice at AM01 has an inflection point characteristic of a basal freezing site, with the lower 100–150m of accreted marine ice there an almost isothermal layer near the local sea-water pressure-freezing point. Together with the honeycomb nature of the ice, this may make this region of the shelf particularly vulnerable to changes in character of water masses that penetrate the ocean cavity below, and may also dramatically increase initial iceberg dissolution rates in Prydz Bay for icebergs containing this layer.
Summertime ocean structure beneath the AIS at both borehole sites consists of an upper boundary layer of ISW above the thermocline, whilst near the sea-floor water-mass characteristics mirror those at similar depths in the open ocean out front of the shelf, where temperatures are close to the surface freezing point throughout the equivalent water column.
Water-mass characteristics in the ocean cavity beneath AM02 show a strong seasonal dependence, with relatively warm surface water from out front of the shelf being strongly modified by basal melting throughout winter into ISW at the local pressure-freezing point. Changes in Prydz Bay circulation patterns as a result of climate warming, with stronger current fluxes entering the shelf cavity (Reference Hemer and HarrisHemer, 2003), may lead to a significant increase in basal melt rates toward the front of the shelf. Such destabilization may in part be offset by accompanying increases to banded-facies marine-ice formation elsewhere. Less intense winter sea-ice production, also as a result of climate warming, could lead to a reduction in deep thermohaline convection fluxes, reducing basal melt rates near the grounding zone (Reference NichollsNicholls, 1997). This may lead to an ice-shelf profile with an overall steeper gradient, with much thicker ice upstream and thinner ice toward the front. From a dynamics point of view, this would have considerable consequences for shelf advance, spreading, and iceberg calving rates. For the Filchner–Ronne it has been argued that the predominant source of ISW production is melting toward the front of the ice shelf (Reference JoughinJoughin and Padman, 2003). This is yet to be fully determined for the AIS, though the study presented here indicates that at least some ISW formation is indeed occurring within 100 km of the calving front.
