Operating principle

The proposed reflectarray operates by the variable rotation technique (VRT) applied to the elements printed on the antenna surface, which is illuminated by electromagnetic waves in dual-CP [Reference Smith, Gothelf, Kim and Breinbjerg11]. According to the VRT, a reflectarray element rotated α_rot in a periodic environment introduces a phase shift in the reflected CP field equal to 2⋅α_rot, with opposite sign for each orthogonal CP. Figure 1 shows a reflectarray cell with a rotated patch, including the regular and rotated coordinate systems, associated to the vectors $( \hat{x}, \;\hat{y})$ and $( \hat{x}^{\rm ^{\prime}}, \;\hat{y}^{\rm ^{\prime}}$, respectively.

Fig. 1. Reflectarray cell based on a rectangular patch with a rotation angle α_rot = 30°.

The VRT can be used to split in opposite directions the orthogonal CP beams reflected by a reflectarray antenna, when it is illuminated by a dual-CP feed horn, as in [Reference Somolinos, Florencio, González, Encinar and Cátedra18]. In [Reference Zhou and Sørensen12], a parabolic reflectarray was proposed to split in opposite directions the orthogonal CP beams by VRT, using the parabolic surface of the reflectarray to focus high-gain beams. In this work, a 1.8 m parabolic reflectarray has been designed based on the same operating principle, but with an independent application of the VRT at 19.7 and 29.5 GHz, thus providing two spaced orthogonal CP beams per feed at Tx and Rx frequencies in Ka-band. Figure 2 shows a schematic representation of the reflectarray antenna, whose parabolic configuration is given by a projected diameter, D, equal to 1.81 m, a clearance, C, of 0.35 m, and a focal distance, f, of 2.72 m. The antenna configuration has been defined to satisfy the requirements in gain and beamwidth typically specified in HTS [Reference Martinez-de-Rioja, Martinez-de-Rioja, Encinar, Rodriguez-Vaqueiro and Pino17].

Fig. 2. Parabolic reflectarray antenna with the boresight and scanned directions of radiation.

The VRT also requires a careful adjustment of the dimensions of the rotated elements to minimize the cross-polar component in the reflected field. In order to cancel the cross-polar component in CP, the elements must be adjusted to provide a difference of 180° between the phases of the co-polar reflection coefficients referred to the linear components of the incident field in the rotated coordinate system of each cell, defined as $R_{XX}^{\rm ^{\prime}}$ and $R_{YY}^{\rm ^{\prime}}$ in (1), where the linear components of the tangential incident and reflected fields associated to the rotated coordinate system on each cell are $E{\rm ^{\prime}}_{x, \;y}^{\;inc}$ and $E{\rm ^{\prime}}_{x, y}^{\;ref}$. For instance, the phases of $R_{XX}^{\rm ^{\prime}}$ and $R_{YY}^{\rm ^{\prime}}$ in the cell shown in Fig. 1 would be independently controlled by the dimensions l_x and l_y of the patch, which should be sized to provide the required 180° phase difference.

(1)$$\left({\matrix{ {E{\rm^{\prime}}_x^{\;ref} } \cr {E{\rm^{\prime}}_y^{\;ref} } \cr } } \right) = \left({\matrix{ {R_{XX}^{\rm^{\prime}} } & {R_{XY}^{\rm^{\prime}} } \cr {R_{YX}^{\rm^{\prime}} } & {R_{YY}^{\rm^{\prime}} } \cr } } \right)\left({\matrix{ {E{\rm^{\prime}}_x^{\;inc} } \cr {E{\rm^{\prime}}_y^{\;inc} } \cr } } \right)$$

The independent implementation of the VRT at two different frequencies requires a reflectarray cell with two types of printed elements, one for each frequency band. The elements will be independently rotated, so the cell should be designed to provide the 180° phase difference between the phases of $R_{XX}^{\rm ^{\prime}}$ and $R_{YY}^{\rm ^{\prime}}$ simultaneously at both operating frequencies (19.7 and 29.5 GHz).

Reflectarray cell

The reflectarray cell has a dual-layer configuration that includes two types of printed elements: two symmetrical circular arcs and two orthogonal sets of three parallel dipoles, as shown in Fig. 3. The choice of these elements is based on the fact that they can be independently rotated without colliding with each other. The arcs are used to control the phase-shift at 19.7 GHz, while the stacked sets of dipoles ensure the required phases at 29.5 GHz. The size of the cell is 6.5 mm × 6.5 mm, which is 0.64 λ at 29.5 GHz. The width of the arcs is 0.2 mm, with an inner radius of 2.65 mm. The dipoles have been defined with a width of 0.4 mm, a separation of 1.2 mm between adjacent dipoles from center to center, and with a fixed scale factor of 0.67 between the lengths of the central and lateral dipoles of each set of three parallel dipoles (l_{A 2} = 0.67⋅l_{A 1}, l_{B 2} = 0.67⋅l_{B 1} in Fig. 3). In order to provide the 180° phase difference between the phases of $R_{XX}^{\rm ^{\prime}}$ and $R_{YY}^{\rm ^{\prime}}$ at 19.7 GHz, the length of the rotated arcs (given by Ω in Fig. 3) must be adjusted, cell by cell. In the same way, the lengths of the upper and lower dipoles can be independently adjusted to control the phases of $R_{XX}^{\rm ^{\prime}}$ and $R_{YY}^{\rm ^{\prime}}$ at 29.5 GHz. Note that the degrees of freedom provided by the dipoles could be used to split the orthogonal CP beams while focusing high-gain beams from a flat reflectarray antenna, as in [Reference Florencio, Encinar, Boix, Barba and Toso19].

Fig. 3. Proposed reflectarray cell. (a) Top view, (b) lateral view.

Although the thermomechanical design of the antenna goes beyond the scope of the work, the dielectric substrates of the reflectarray have been chosen taking into account that the antenna is proposed for space applications. The lower substrate has been defined as 1 mm Quartz-fiber Qzll/EX-1516 (ɛ_r = 3.2, tanδ = 0.004), which is a prepreg fabric with quartz fibers and low loss resin, characterized by its mechanical strength and dimensional stability. For the upper substrate, a thin substrate of 50 μm Rogers R/Flex 3000 (ɛ_r = 2.9, tanδ = 0.0025) has been considered, which is similar to the Kapton polyimide used in aerospace applications. The proposed 1.8 m parabolic reflectarray is made up of 62 654 reflectarray cells.

The electromagnetic analysis of the reflectarray cell has been performed by an in-house software tool based on the Method of Moments in the Spectral Domain (MoM-SD) considering a periodic environment [Reference Florencio, Boix and Encinar20]. This tool makes it possible an efficient analysis of the cell under any angle of incidence. The phase shift introduced by the reflectarray cell has been analyzed when both arcs and dipoles are independently rotated. Figures 4 and 5 show the phase introduced in RHCP and LHCP at 19.7 and 29.5 GHz respectively, when the arcs and dipoles are independently rotated. The arcs have been defined with a length of 4.2 mm (Ω = 88°), and dipoles with l_{A 1} = 2.3 mm and l_{B 1} = 2.2 mm. As can be seen, the phases at 19.7 GHz are barely affected by the dipoles, which proves the independent operation of the arcs at 19.7 GHz.

Fig. 4. Phase (°) in (a) RHCP and (b) LHCP introduced at 19.7 GHz when the arcs and dipoles are independently rotated.

Fig. 5. Phase (°) in (a) RHCP and (b) LHCP introduced at 29.5 GHz when the arcs and dipoles are independently rotated.

Design process

The 1.8 m reflectarray is expected to deviate ±0.28° the orthogonal CP beams focused by the parabolic surface of the reflectarray antenna. The objective phase distributions on the antenna surface at 19.7 GHz to split ±0.28° the orthogonal CP beams in the xz-plane are shown in Fig. 6. Note that opposite phases are required in RHCP and LHCP to deviate in opposite directions the orthogonal CP beams, thus these distributions can be fully implemented by the VRT applied to the arcs. The phase distributions at 29.5 GHz to also deviate ± 0.28° the orthogonal CP beams are shown in Fig. 7, which would be provided by the rotation of the dipoles. The phase distributions have been defined in order to generate orthogonal CP beams at 19.7 and 29.5 GHz, so the phases in RHCP depicted in Figs 6 (a) and 7(a) show an opposite phase variation (as the phases in LHCP in Figs 6(b) and 7(b)).

Fig. 6. Required phase distribution (°) at 19.7 GHz. (a) RHCP, (b) LHCP.

Fig. 7. Required phase distribution (°) at 29.5 GHz. (a) RHCP, (b) LHCP.

The rotation angle of every element on the reflectarray antenna can be computed dividing by two the required phase-shifts in RHCP, at 19.7 GHz for the rotation angles of the arcs (α_Arc) and at 29.5 GHz for the rotation angles of the dipoles (α_Dip). The distribution of rotation angles for the arcs and dipoles on the reflectarray surface is shown in Fig. 8. Note that the arcs and dipoles are rotated in opposite senses to generate orthogonal CP beams at 19.7 and 29.5 GHz.

Fig. 8. Rotation angles (°) of (a) the arcs and (b) the dipoles.

Then, the lengths of the rotated arcs and dipoles must be adjusted cell by cell to provide a difference of 180° between the phases of R’_XX and R’_YY at 19.7 and 29.5 GHz, considering the real angles of incidence on each cell. Figures 4 and 5 have shown that the impact of the dipoles at 19.7 GHz is smaller than the effect of the arcs at 29.5 GHz, so the sizing process of the elements starts by adjusting the lengths of the rotated arcsat 19.7 GHz, and then the lengths of the rotated dipoles at 29.5 GHz, taking into account the designed lengths of the arcs. The sizing process is based on a dimensional sweep prior to an optimization routine, which provides a fast convergence only when the solution is close enough. A block diagram with the design process applied to each reflectarray cell is shown in Fig. 9.

Fig. 9. Scheme of the cell design process.

Implementing this cell-by-cell design process for large antennas may require an excessive amount of time (the proposed antenna has 62 654 reflectarray cells). Note also that the computational time can be increased due to the independent sizing of the arcs and then the dipoles, which may require an iterative process to reduce the effect of the last adjustment of the dipoles on the Tx performance. However, the high degree of accuracy required in antennas for space applications penalizes the use of design methods with more basic approximations, like those based on lookup tables. The computational time can be strongly reduced by selecting starting dimensions for the lengths of all the elements close to those that will be finally reached after the design process, which requires a customized starting point for every cell. An appropriate starting point removes the need to implement the dimensional sweep prior to the optimization routine for the adjustment process of every element. The difference between starting with a dimensional sweep or directly with the optimization routine may reduce the computational time by a magnitude depending on the number of steps in the dimensional sweep. The need to implement iterative steps for the adjustment of arcs and dipoles can also be removed by an appropriate initial sizing of the elements, since the arcs would be adjusted considering initially sized dipoles with dimensions close to those of the finally designed dipoles.

A novel method has been developed to obtain this initial layout, based on the initial adjustment of the elements placed in the central lines of the antenna. Thus, from the 62 654 reflectarray cells arranged in a grid of 286 × 279 cells, only 286 + 279–1 = 564 cells must be designed (considering a conventional non-optimal starting sizing of the elements), 111 times fewer cells than for the complete reflectarray antenna. Then, a weighted replication process is used to obtain the dimensions of all the rotated elements on the antenna surface. This process firstly replicates the sizing of the elements designed in one of the central lines of the antenna, and then introduces a correction given by the difference between the dimensions of the designed elements in the orthogonal central line of the antenna. For instance, the length l_{A 1} for a cell placed in coordinates (x_i, y_i) with respect to the center of the antenna (considering a flat grid of cells) would be obtained as shown in (2), from the designed lengths l_{A 1} in the cells placed in the central lines of the antenna. This replication process has made it possible to maintain the accurate cell-by-cell design process, considering the real angles of incidence in the 62 654 reflectarray cells.

(2)$$l_{A1}( {x_i, \;y_i} ) = l_{A1}( {0, \;y_i} ) + ( {l_{A1}( {x_i, \;0} ) -l_{A1}( {0, \;0} ) } ) $$

Simulated results

The designed parabolic reflectarray has been analyzed by an in-house software that combines physical optics [Reference Rahmat-Samii21] with the aforementioned MoM-SD code to characterize the surface reflection on the reflectarray antenna. The simulations have considered that the parabolic reflectarray is illuminated by 27 dual-CP feeds to generate 54 spot-beams in two orthogonal CPs (two different colors). Figure 10 shows the group of feeds and the spot distribution associated to the feed array. Note that a second parabolic reflectarray operating at slightly different frequencies would produce a similar coverage of 54 spots, and the overlapped coverage of both reflectarrays would produce 108 spots in a four-color reuse scheme. The feed-horn reported in [Reference Schneider, Hartwanger and Wolf22] has been taken as a reference to define the characteristics of the feeds: the aperture diameter of the horns is 54 mm, so the distance between adjacent feeds has been set to 55 mm, and the radiation of the feeds has been modelled by a cos^q(θ) distribution with q = 24 at 19.7 GHz and q = 42 at 29.5 GHz. Note that the simulation tool for the reflectarray antenna is suitable to include the incident field on the reflectarray antenna computed by a more realistic model of the feed (as spherical-mode expansion), or even from feed measurements; however, at this point, the cos^q(θ) function is considered a sufficiently suitable approach.

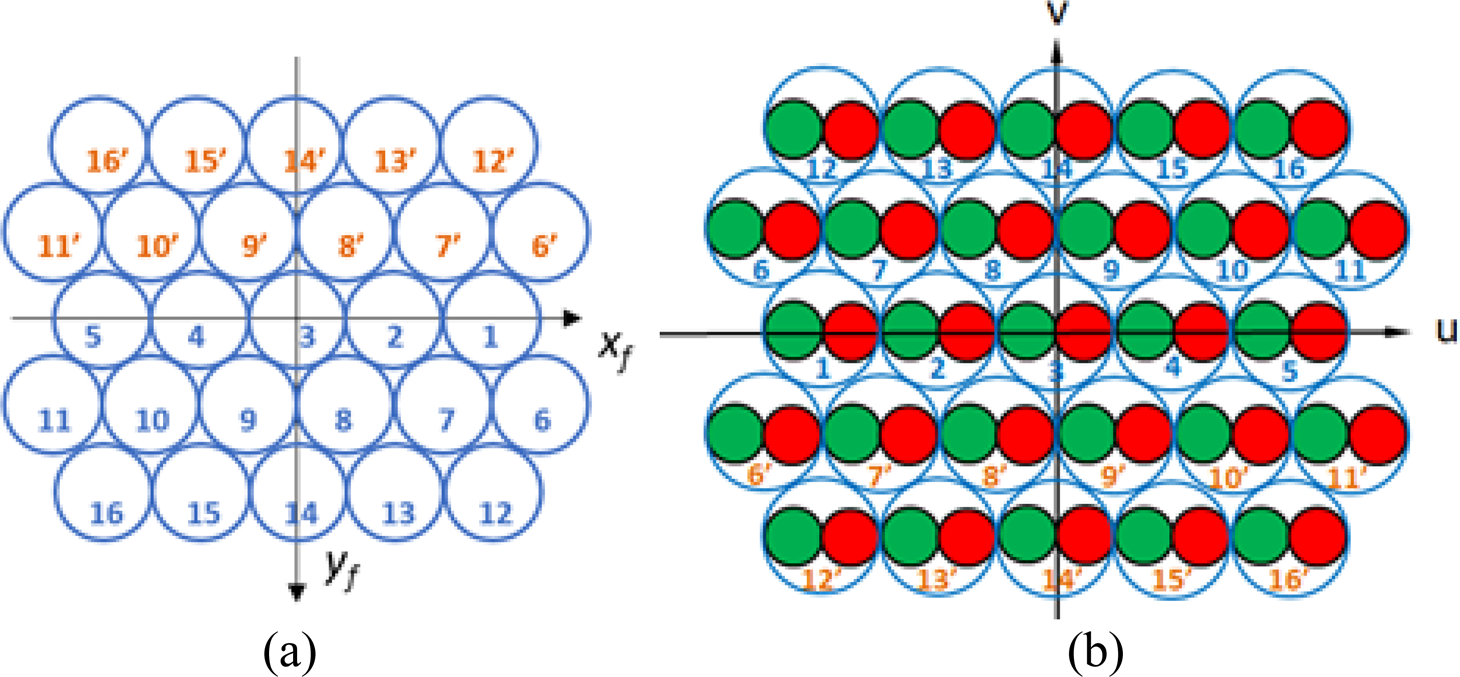

Fig. 10. Distribution of (a) the 27 feed-horns and (b) the 54 spots associated to the feeds.

Since the antenna configuration is symmetric with respect to the xz-plane, the simulations have considered only the feeds numbered from 1 to 16 in Fig. 10(a). Therefore, the 32 spot-beams generated by the selected 16 feeds have been computed at 19.7 and 29.5 GHz. Figure 11 shows the contour patterns at 46 and 45 dBi for the beams at 19.7 and 29.5 GHz, respectively. The contours show an angular diameter of 0.65° and a separation between adjacent beams of 0.56° from center to center. Moreover, it can be seen that the beams are generated in orthogonal CPs at 19.7 and 29.5 GHz, due to the opposite sense of rotation of the arcs and dipoles (see Fig. 8).

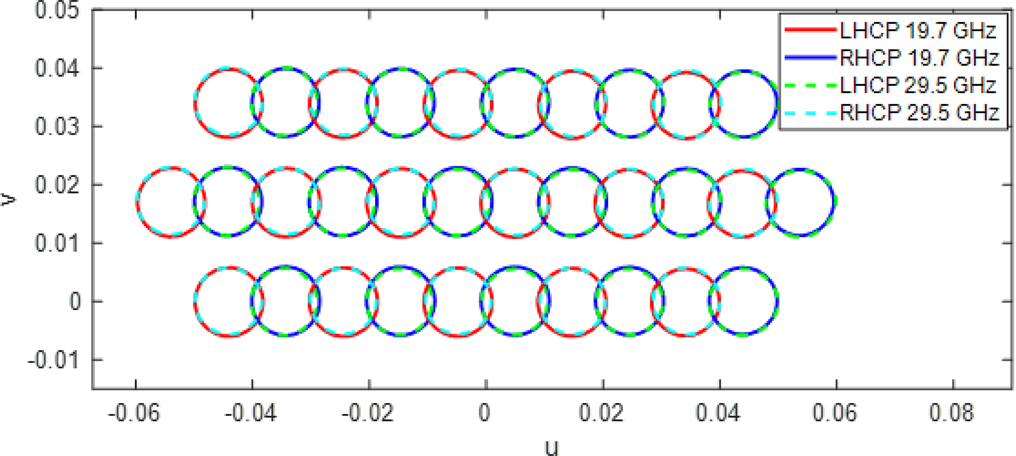

Fig. 11. Contour patterns of the 32 beams generated by 16 dual-CP feeds.

The simulated radiation patterns have also been analyzed in the main planes of the triangular spot distribution. Figure 12 shows the elevation cut of the radiation patterns at 19.7 GHz in RHCP for the beams generated by feeds #1 to #5, while the cut of the radiation patterns at 19.7 GHz in LHCP for the beams generated by feeds #12 to #16 is shown in Fig. 13. The figures include masks to show the zone of coverage of every beam, with a gain level of 46 dBi and a beamwidth of 0.65°, and the zone of the adjacent beams with a gain level of 26 dBi. The simulated radiation patterns do not show differences between the beams in RHCP and LHCP. The maximum gain of the beams at 19.7 GHz is around 50 dBi, providing a radiation efficiency close to 70% (the cos^q(θ) distribution of the feeds at 19.7 GHz provides an edge illumination on the reflectarray of −12 dB). The radiation patterns at 19.7 GHz also show a side-lobe level slightly lower than 20 dB below the end-of-coverage (EOC) level of 46 dBi, and a cross-polar discrimination below the level of 26 dBi of the masks.

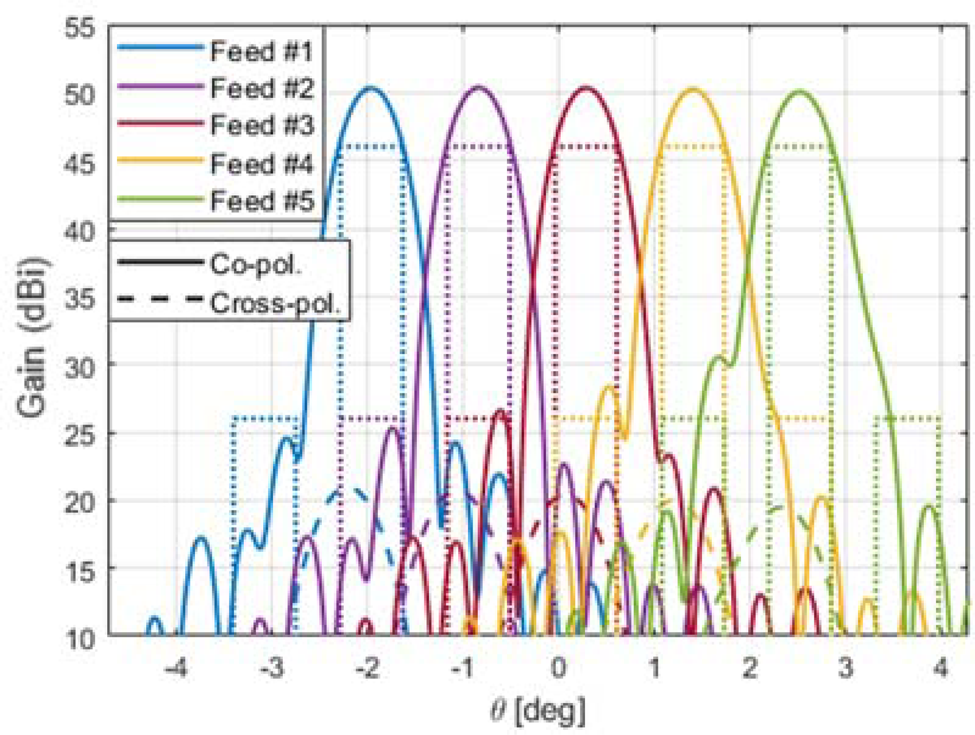

Fig. 12. Simulated radiation patterns in RHCP at 19.7 GHz in the plane v = 0 (generated by feeds 1–5).

Fig. 13. Simulated radiation patterns in RHCP at 19.7 GHz in the plane v = 0.034 (generated by feeds 12–16).

Figures 14 and 15 show the same cuts depicted in Figs 12 and 13 for the radiation patterns at 29.5 GHz. Due to the larger electrical size of the reflectarray at 29.5 than at 19.7 GHz, the maximum gain of the beams at 29.5 GHz is close to 53 dBi, associated to a radiation efficiency of around 65%. The radiation patterns at 29.5 GHz also show larger levels of SLL than at 19.7 GHz, as a result of the lower edge illumination provided by the feeds at 29.5 GHz (around −20 dB), and cross-polar levels 20 dB below the EOC gain.

Fig. 14. Simulated radiation patterns in LHCP at 29.5 GHz in the plane v = 0 (generated by feeds 1–5).

Fig. 15. Simulated radiation patterns in LHCP at 29.5 GHz in the plane v = 0.034 (generated by feeds 12–16).

Experimental validation

The design and simulation software tools described in this paper have been experimentally validated by a parabolic reflectarray scaled in a factor of 0.5, which has been manufactured and tested. The 0.9 m parabolic reflectarray has been designed to deviate ±0.59° the orthogonal CP beams by using the VRT, simultaneously at Tx and Rx frequencies in Ka-band. The manufactured antenna, which is shown in Fig. 16, has 15 748 reflectarray cells.

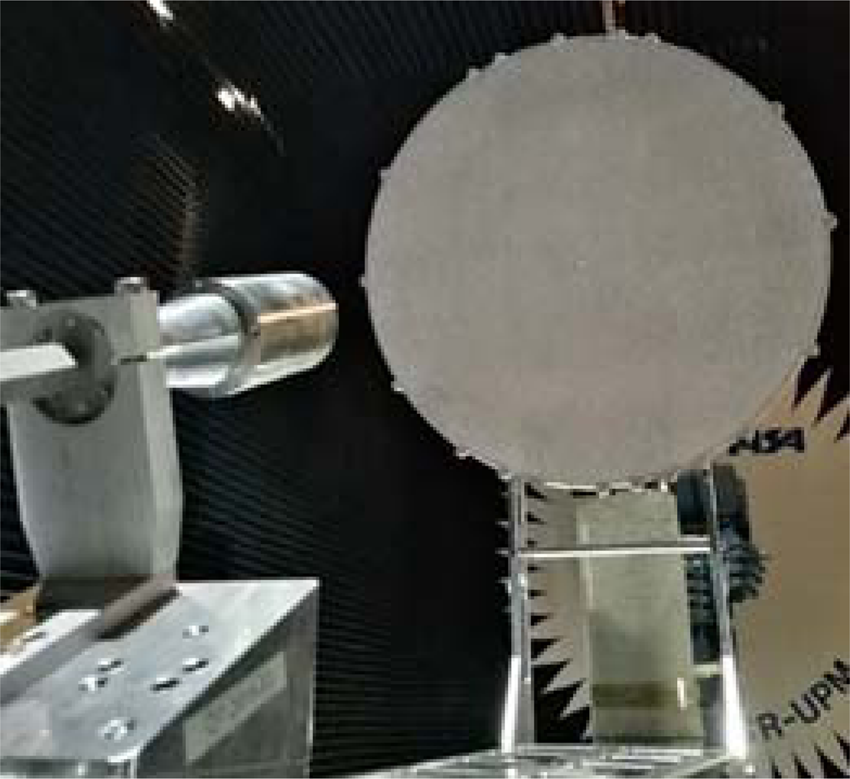

Fig. 16. Manufactured parabolic reflectarray scaled in a factor of 0.5.

The measurements have proven that the parabolic reflectarray, illuminated by three dual-CP feeds, generates six beams in two orthogonal CPs, with also orthogonal CP beams at Tx and Rx frequencies. Figure 17 shows the measured contour patterns of the six beams at 40.6 dBi, and Figure 18 shows the measured radiation patterns of the parabolic reflectarray when it is illuminated by a single dual-CP feed. The measurements of the prototype have been reported in [Reference Martinez-de-Rioja, Martinez-de-Rioja, Rodriguez-Vaqueiro, Encinar, Pino, Arias and Toso6].

Fig. 17. Measured contour patterns at 40.6 dBi of the six beams generated by three feeds.

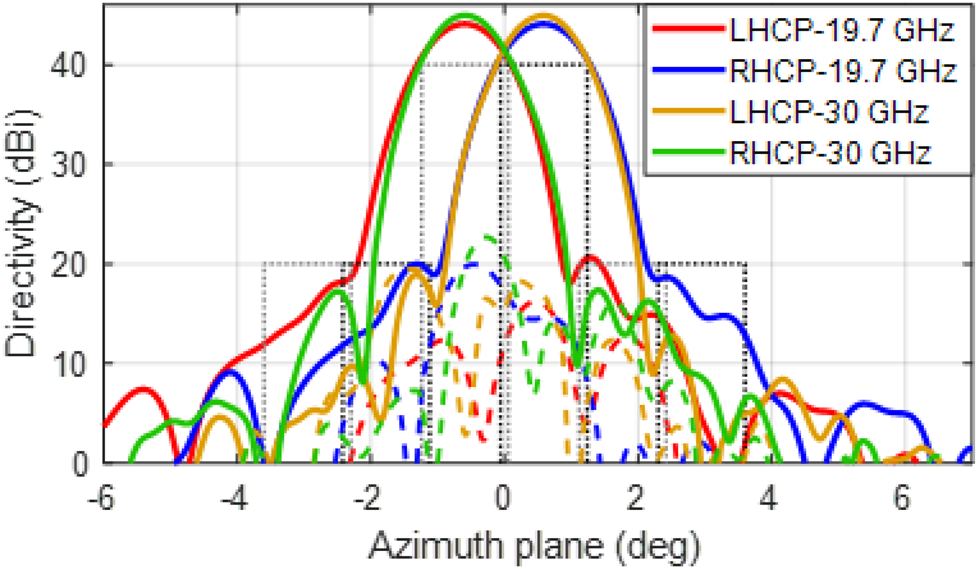

Fig. 18. Cut of the measured radiation patterns for the beams generated by one feed.

The comparison between the measured and simulated radiation patterns is depicted in Fig. 19 for the beam generated at 19.7 and 29.5 GHz in RHCP by one of the feeds. The comparison shows an excellent agreement between measurements and simulations at both frequencies, particularly for the co-polar components. The successful operation of the fabricated prototype allows to validate the simulations shown in the previous sections, supporting the proposal that two parabolic reflectarray antennas could generate a complete four-color coverage from HTS, which would reduce by half the number of antennas and feed-chains required on board the satellite.

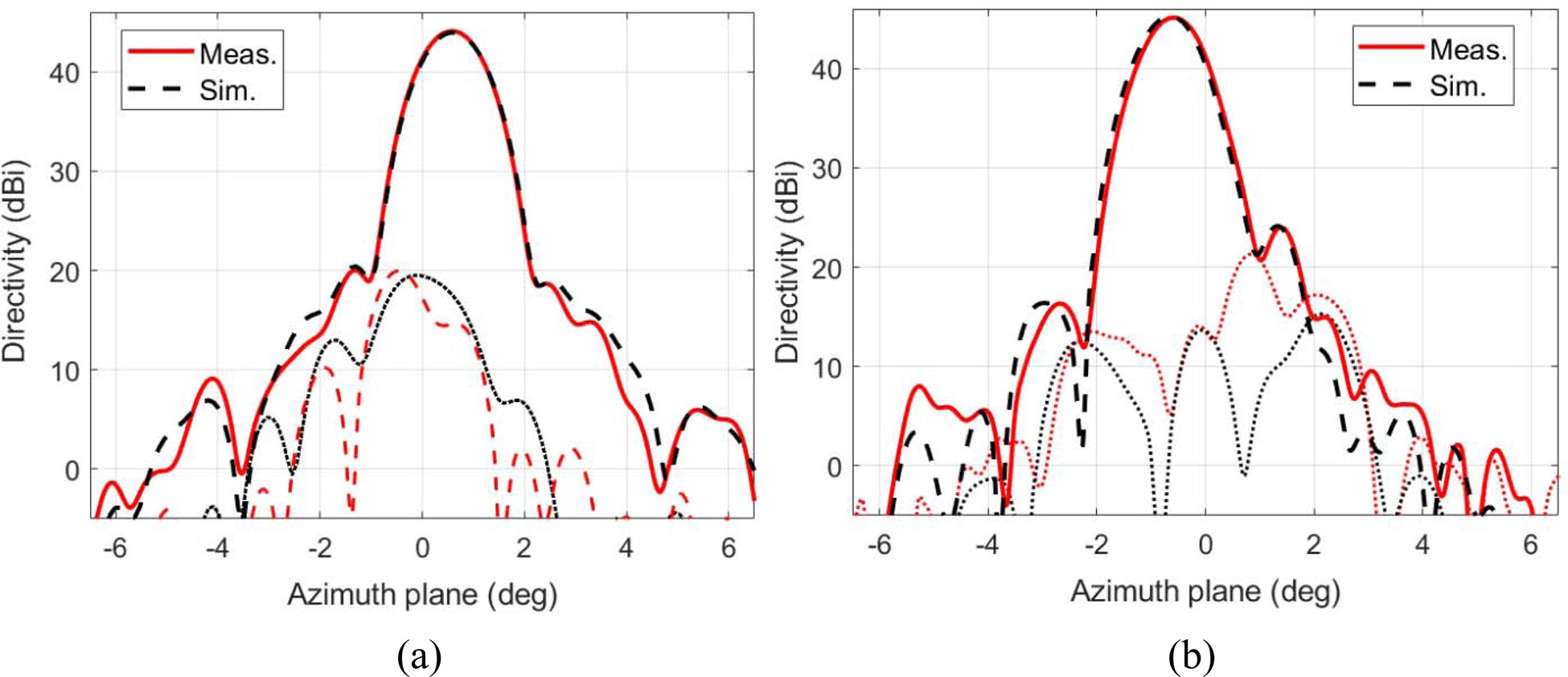

Fig. 19. Cut of the measured and simulated radiation patterns for the beam generated in RHCP by one feed at (a) 19.7 GHz and (b) 29.5 GHz.
