The site

The lowland Maya city of Ceibal (also spelled Seibal), Guatemala, is the largest among the Pasion River drainage sites, both in extent and in the total volume of major public structure construction (Figure 1). This site is well known for the landmark investigation conducted by Harvard University from 1964–1968 (Sabloff Reference Sabloff1975; Willey Reference Willey1990). Building on this pioneering work, intensive excavations of the Ceibal-Petexbatun Archaeological Project have uncovered substantial construction activities in the early stages of human settlement at Ceibal, especially during the Middle Preclassic period. The centre of Ceibal represents the earliest known formal ceremonial complex with an E-Group temple. This is identified as a square structure on the west side of the public plaza, with an elongated platform to the east of the E-Group temple assemblage. The ceremonial complex was constructed on top of the slope 100m above the Pasion River around 1000 BC (Inomata et al. Reference Inomata, Triadan, Aoyama, Castillo and Yonenobu2013, Reference Inomata, MacLellan, Triadan, Burham, Aoyama, Nasu, Munson, Pinzón and Yonenobu2015).

Figure 1. Map of southern Mesoamerica showing the locations of Ceibal and the sites discussed in the text.

Real 1 phase (1000–850 BC)

Four caches dating from the Real 1 phase containing polished greenstone celts (caches 118, 134, 138 and 183) came from the east–west axis of the E-Group plaza. A series of greenstone celts and other caches were deposited in this public plaza, indicating that this space served as a stage for public performance throughout the Middle Preclassic period. At the beginning of the Real 1 phase (c. 1000 BC), the residents of Ceibal dug a pit into the initial plaza floor between the first two ceremonial structures (structure Ajaw on the west side, and structure Xa'an on the east side) and deposited cache 118, consisting of the largest number of greenstone celts (N = 12) as part of public rituals. Both the mean dimensions and mean weight of the celts from cache 118 are well above those of the Middle Preclassic period (Table 2). Eight large celts, three medium celts and a small celt were placed horizontally. Ten of them rested in two parallel lines and a large celt made from serpentine was placed in front of them, while a small jade celt was deposited 100mm above them. Two of the ten celts laid in the two parallel lines are large: more than 150mm in length, and include the largest polished greenstone celt ever found at Ceibal to date (165 × 73 × 32mm, 610.9g).

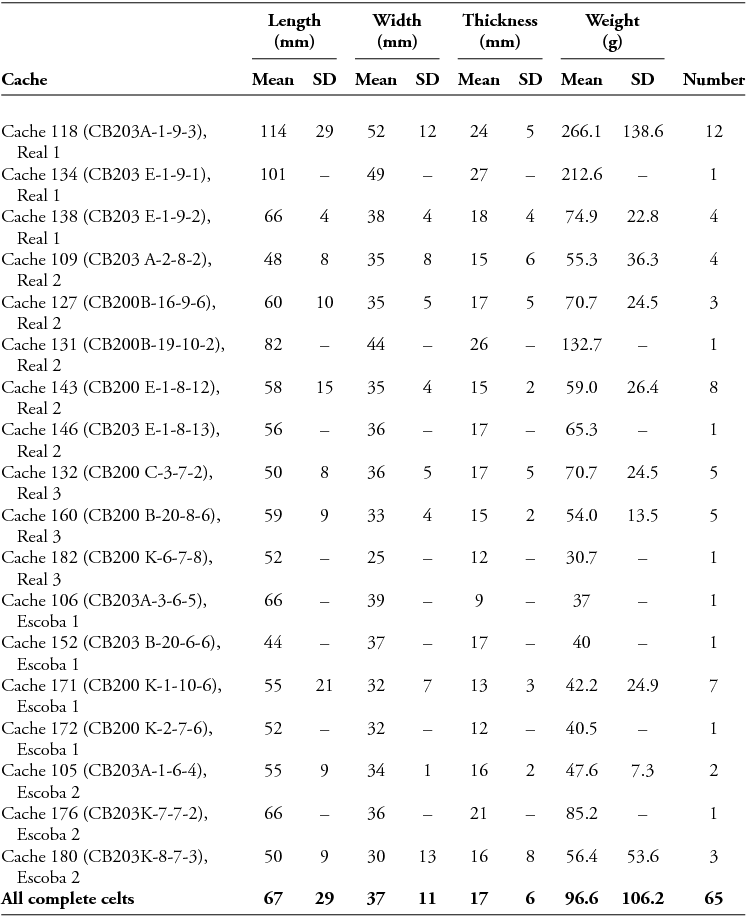

Table 2. Complete greenstone celts from the Middle Preclassic caches at Ceibal.

Cache 134 was uncovered 2m to the west of cache 118. A large jade celt was placed upright in a pit, which was also dug into the first plaza floor at the beginning of the Real 1 phase. Its proximal end was planted in the ground and the distal end pointed upward. This special placement of axes and bundles of axes grouped together, as well as those rested like petals of a flower (see below), closely resemble those found at El Manatí during the Manatí B phase (1500–1200 BC), suggesting that the residents of Ceibal adopted ritual practices involving the deposition of greenstone celts that had originated in the Isthmian region, including the southern Gulf Coast (Ortiz & Rodríguez Reference Ortiz, Rodríguez, Clark and Pye2000). Both caches 118 and 134 consisted of the earliest greenstone celts ever found in the Maya lowlands to date. The celt from cache 134 shows faceting with a circular dimple not apparent on any of the other celts recovered from Ceibal. The dimple was clearly intentionally created by the knapper. This feature is identical to two faceted celts found in offering 1942-C at the Middle Preclassic Olmec centre of La Venta (Drucker et al. Reference Drucker, Heizer and Squier1959: fig. 65; Inomata & Triadan Reference Inomata and Triadan2016). Nevertheless, the Ceibal faceted celt belongs to the Real 1 phase, and is earlier than the La Venta celts, which pertain to the Real 3 phase or later. The results of microwear analysis on the 12 celts from cache 118 and on the large jade celt from cache 134 indicate that none of them were used.

Cache 138 was located in the second floor of the E-Group plaza, and dates to later than caches 118 and 134. Four small celts appear to have been placed in a circle and their distal ends were pointed upward, like the petals of a flower. The mean dimensions and mean weight of cache 138 are much smaller than those of caches 118 and 134 (Table 2). One celt was manufactured from jade, while the other three were made from a different type of greenstone. One of the other three celts made from a different type of greenstone placed on the east side had been employed for wood carving. Type B polish, produced as the result of wood working (Aoyama Reference Aoyama2009: 12), and vertical striations were observed on its distal end, indicating wood chopping. This is the only polished greenstone celt that had been used (5.6 per cent) of the Real 1 phase's celts. By contrast, the residents of Ceibal did not use the great majority of greenstone celts as utilitarian tools, but rather deposited them in caches in the public plaza during this phase.

Cache 183 itself was deposited in a cruciform arrangement. Both an unfinished jade spoon of a style usually attributed to the Middle Preclassic Gulf Cost Olmec and a medial fragment of medium-sized jade celt with no use-wear were deposited in its central part (Figure 4), unlike the later cruciform caches with celts placed in radiating arms of the pits (see below). The cache was sealed by floor 20, which we date to the Real 1 phase. If this dating is correct, cache 183 represents the earliest cruciform cache found in southern Mesoamerica, possibly signalling the development of new ritual practice. According to iconographic studies, polished greenstone celts in cruciform patterns were associated with maize ears as well as lightning, and were imbued with divine power, often as symbols of the world axis (Taube Reference Taube, Clark and Pye2000).

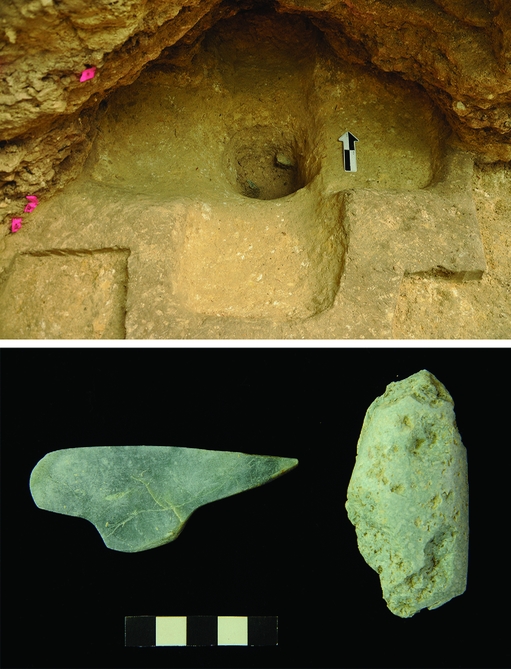

Figure 4. Cache 183. Top: photograph taken during excavation. Note that we had excavated the area outside the cache to a lower level, leaving the original floor around the cruciform edge of the cache (photograph by Flory Pinzón). Bottom: the offerings deposited within cache 183 (photograph by Takeshi Inomata).

Real 2 phase (850–775 BC)

Four caches date to the Real 2 phase, while one dates (cache 143) to the Real 2–3 transition. Three of these caches (caches 109, 143 and 146) were found in the east–west axis of the E-Group plaza, and two caches (caches 127 and 131) were found in the A-24 platform. Compared with the polished greenstone celts of the Real 1 phase, the celts of the Real 2 phase were smaller (Table 3), and 5 out of 18 finished celts placed in the five caches (27.8 per cent) were used for carving wood before their deposition in caches (Figure 5).

Table 3. Mean length of complete polished greenstone celts from the Middle Preclassic Ceibal.

Figure 5. B-type polish and vertical striations on a polished greenstone celt used to carve wood, from cache 109 of Ceibal, Real 2 phase (200× magnification) (photograph by Kazuo Aoyama).

Cache 109 consisted of seven objects: four complete celts, a nearly complete celt, a distal fragment of celt and an unfinished jade object reworked from a rectangular-shaped ornament, which could refer to a symbolic celt. Six of them were arranged irregularly in an open semicircle with their distal ends pointing upward and proximal ends down, while the distal fragment was placed horizontally above them. Four complete celts—one small celt and one very small celt made from a different type of greenstone, as well as two very small celts manufactured from metagabbro (Figure 6: 5)—were employed for wood carving. Cache 146 contained a small celt made from a different type of greenstone, which was also used for wood carving. Cache 143 consisted of eight polished greenstone celts placed in a loose cruciform arrangement. The eight celts include: a medium jade celt, two small celts made from the translucent ‘Olmec’ blue-green jade found among the Gulf Coast Olmec (Seitz et al. Reference Seitz, Harlow, Sisson and Taube2001), one small celt and two very small celts manufactured from metagabbro, as well as one small celt and one very small celt made from a different type of greenstone. The results of microwear analysis suggest that none of them were used.

Figure 6. Polished greenstone celts of the Middle Preclassic Ceibal: 1) unfinished celt (cache 131, Real 2 phase); 2) unused small celt (cache 105, Escoba 2 phase); 3) unused small celt (cache 160, Real 3 phase); 4) small celt used for wood carving (cache 132, Real 3 phase); 5) very small celt used for wood carving (cache 109, Real 2 phase). Celts 4–5 show the distribution of use-wear associated with Type B polish and vertical striations (drawing by Kazuo Aoyama).

Extensive excavation of Platform Ch'och’ (an early version of the A-24 platform) revealed two greenstone celt caches. It is not clear whether this platform served as an elite residence complex during the Real 2 phase or not. Cache 131 comprised an unfinished greenstone celt (Figure 6: 1) and was placed in horizontal alignment with overlying floor 8. Several flakes were removed by striking a metagabbro nodule. Both surfaces mostly show remnant natural cortex, while the distal area was partially polished thus forming a cutting edge. No use-wear was observed on it.

Cache 127 comprised three small celts, which appear to have been originally positioned upright and were of a triangular shape, with the proximal ends in the ground and the distal ends pointing upward. Cache 127 was uncovered under floor 7a1 in platform Ch'och’ slightly later than cache 131 (Figure 2). One celt was manufactured from jade, while the others were made from a different type of greenstone. The results of microwear analysis show that none of them were used. No greenstone celts have been found in any other Middle Preclassic residence at Ceibal. If platform Ch'och’ was a residential complex, caches 127 and 131 represent the first and only examples of the Middle Preclassic greenstone celt caches found in domestic contexts in the Maya lowlands to date. Although the nature of platform Ch'och’ remains ambiguous, we may consider the possibility that the emergent elites played an important role in the exchange of greenstone nodules and finished celts, as well as in celt production and use, and in addition to their deposition during public rituals held in the E-Group plaza at Ceibal.

Real 3 phase (775–700 BC)

Three caches (caches 132, 160 and 182) containing polished greenstone celts, recovered from the east–west axis of the E-Group plaza, date to the Real 3 phase. Excavators did not recognise a circular pit of cache 132 until they reached the natural marl layer. The pit may have been cut from floors 7, 8 or 8b. Given its similarity to cache 160 uncovered 1.7m to the east of cache 132, we tentatively assume that cache 132 is roughly contemporaneous with the nearby cache 160. Five out of eleven celts (45.5 per cent) were employed for carving wood before their deposition in caches. Caches 132 and 160 were deposited in cruciform arrangements that closely resemble those found at Chiapa de Corzo (Bachand Reference Bachand2013), San Isidro (Lowe Reference Lowe and Benson1981), La Venta (Drucker et al. Reference Drucker, Heizer and Squier1959) and Cival (Estrada-Belli Reference Estrada-Belli2006), suggesting that elites at Ceibal shared ritual practices with those of neighbouring centres, possibly through direct contact. Cache 132 contained five polished greenstone celts. The northern and western celts seem to have been arranged pointing upward with their proximal ends in the ground, while the central celt was placed flat with its distal end pointing east. The other two celts seem to have been moved from their original position. The results of microwear analysis indicate that three celts, i.e. the eastern (Figure 6: 4) and northern small celts (made from metagabbro) as well as the very small, western celt, manufactured from a different type of greenstone, were used for wood carving.

Cache 160 also contained five greenstone celts in a cruciform deposit. The central small celt manufactured from jade was placed flat with its distal end pointing north, and was found in association with a small quartz sphere and a small quantity of red pigment in the central part of the pit. Each of the other four celts, made from other unidentified greenstone, were placed upright in cardinal directions relative to the central jade piece. The very small, northern celt and small southern celt were employed for carving wood. Cache 182 contained a single small celt manufactured from a different type of greenstone with no evidence of use-wear.

Escoba 1 phase (700–600 BC)

At the beginning of the Escoba 1 phase, the residents of Ceibal dug a pit to place cache 171 in the east–west axis of the E-Group plaza. It was cruciform in shape and oriented to the four points of the Maya cosmos, similar to the earlier cruciform caches. A pectoral (chest ornament) and an ‘icepick-form’ perforator, both made from translucent ‘Olmec’ blue-green jade, a greenstone celt and a polishing stone made of sandstone were placed in the central part of the pit (Figure 7). The ‘icepick-form’ perforator may have been an import from the Gulf Coast. A pottery vessel and a greenstone celt were deposited in the east part; and a pottery vessel, a greenstone celt, a green polishing stone and a pyrite mirror in the west; a pottery vessel and two greenstone celts in the south and two greenstone celts were deposited in the north. The seven celts mentioned above include: a medium serpentine celt, two very small celts made from jade, two small celts and two very small celts manufactured from a different type of greenstone. Among them, a small celt made from a different type of greenstone was used for wood carving. These celts were found laid flat in horizontal positions, and it is not clear whether any of them were originally placed vertically on their proximal ends.

Figure 7. Cache 171. Top: photograph taken during excavation. The dark soil probably resulted from intense burning (photograph by Flory Pinzón). Bottom: the loosely approximated relative positions of the offerings, with north to the viewer's left (photograph by Takeshi Inomata).

During the latter part of the late Middle Preclassic period, after the beginning of the Escoba 1 phase, the number of greenstone celts deposited in caches decreased. Three more caches pertaining to the Escoba 1 phase were found from the east–west axis of the E-Group plaza. Cache 106 contained a small celt made from a different type of greenstone without any evidence of use-wear. Cache 152 yielded a very small, unfinished jade celt. A jade pebble that had been flaked and then polished, but with remnant flake scars left unpolished, was also recovered. No use-wear traces were observed on it. In Cache 172, a small jade celt without any evidence of use-wear was placed in association with burnt sherds of a partial ceramic jar (Achiotes Unslipped).

Escoba 2 phase (600–450 BC)

During the Escoba 2 phase, between one and three celts were deposited in each of three caches (caches 105, 176 and 180) and a burial (burial 153) on the east–west axis of the E-Group plaza (Table 2). Cache 105 contained two celts: one small and made from the translucent ‘Olmec’ blue-green jade, and the other very small and manufactured from a different type of greenstone. The latter was employed for wood carving. A small celt made from a different type of greenstone as well as a miniature pottery vessel and 15 small pieces of reworked ceramic sherds were placed in cache 176 (Figure 8). No evidence of use-wear was observed on the celt.

Figure 8. Cache 176. Left: photograph taken during excavation (photograph by Flory Pinzón). Right: reconstruction of the original arrangement of the offerings (photograph by Takeshi Inomata).

Cache 180 was cruciform in shape (Figure 9). Two celts—a small jade celt and a small celt made from a different type of greenstone, as well as a very large, mostly unworked piece of obsidian (the largest piece ever found at Ceibal, 245.4g)—were placed in the central part of the pit. A very small celt manufactured from a different type of greenstone was deposited to the south of the pit. The results of microwear analysis indicate that the two celts placed in the central part of the pit were used for wood carving. Both greenstone celts and the very large, nearly unworked obsidian appear to have had some ritual significance for the residents of late Middle Preclassic Ceibal.

Burial 153 consisted of the sacrificed remains of five individuals, with one placed at each of the cardinal points (i.e. the bodies were oriented towards the cardinal directions) and the fifth between the south and west human remains. Four of the individuals were infants less than one year old, while the fifth was an infant three to four years old. A total of five exhausted polyhedral cores of obsidian, one for each of the four sacrificial individuals, and one placed in their centre, were also submitted as offerings. There was also a proximal fragment of greenstone celt associated with the human remains to the north, a jade bead for each of the other three individuals and a blue polishing stone in the centre. Here, the fragment of greenstone celt was not a centrepiece of the burial offering. Moreover, this is, to date, the only burial found to contain a greenstone celt at Ceibal. The ritual significance of greenstone celts appears to have diminished by the Escoba 2 phase. Exhausted polyhedral obsidian cores and pressure-flaked blades were more frequently left as caches and burial offerings in the public plaza during the Escoba 3 phase (450–350 BC).

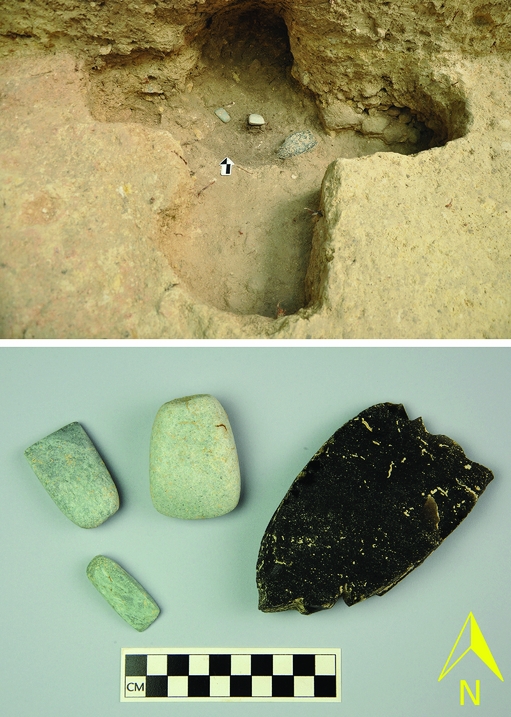

Figure 9. Cache 180. Top: photograph taken during excavation (photograph by Flory Pinzón). Bottom: approximate relative positions of the offerings, with north to the top of the image (photograph by Takeshi Inomata).
