2.1. Soft robotics in wearable assistive technology

Soft mechatronic technologies have become more reliable, effective, and well known over the last decade and have become an attractive solution for wearable robotic technologies (Bao et al. Reference Bao, Fang, Chen, Wan, Xu, Yang and Zhang2018). There has been a gradual advancement from rigid exoskeletons with isolated compliant methods of actuation toward a paradigm of entirely soft, garment-like wearables that feel nearly transparent to the user (Granberry et al. Reference Granberry, Duvall, Dunne and Holschuh2017). Wearable robotic devices made from soft, compliant materials have been gaining momentum in both academic and commercial settings over the past decade (Bao et al. Reference Bao, Fang, Chen, Wan, Xu, Yang and Zhang2018; Cianchetti et al. Reference Cianchetti, Laschi, Menciassi and Dario2018). The lightweight, low-cost characteristics of garment-like devices forgo heavy, bulky, and rigid components in favor of inherently soft and compliant materials such as silicone elastomers, fabrics, and other forms of flexible materials (Coyle et al. Reference Coyle, Majidi, LeDuc and Hsia2018). The forgiving nature of the materials helps to alleviate issues with joint alignment that can be observed in some rigid exoskeletons (Schiele and van der Helm Reference Schiele and Helm2009) and provides safer interaction with people and the environment around the robotic system. The compliance of the materials can easily conform to its surroundings, the user’s joints, or the objects with which it interacts (Galiana et al. Reference Galiana, Hammond, Howe and Popovic2012). Soft robotics offers an unmatched level of flexibility and versatility, resulting in systems that mold easily to their surroundings and the user for increased comfort, safety, and ease of use.

2.2. Definitions, scope, and application

Some SWRs are entirely soft, monolithic, garment-like wearable devices, made from soft actuators, fabric, and other compliant materials, while other applications include minimal or reduced amount of rigid components as mounting points for the soft actuators. Categories of wearable robots can be simplified into four main groups as defined by Wearable Robotics Association (2015) and Exoskeleton Report (ExR) (2020): (a) military, (b) industrial, (c) consumer, and (d) medical. Most wearable devices aim to either provide assistance or augmentation. In this review, assistance is defined as an SWR with a goal of restoring a more “natural” movement of biomechanical behavior (Awad et al. Reference Awad, Bae, O’donnell, De Rossi, Hendron, Sloot, Kudzia, Allen, Holt, Ellis and Walsh2017b) and serves a role in accomplishing ADLs (Spector and Fleishman Reference Spector and Fleishman1998). Augmentation is defined as an SWR that applies active external forces to a healthy user to increase the capability, strength, and/or endurance of the said user.

In this review, SWRs are analyzed and sorted into upper body (UB) wearables or LB wearables categories. This review evaluates multiple types of actuator designs and approaches that provide active assistance. While the following sections briefly highlight the prevalence of passive types of assistance, this review focuses only on looking at SWRs that utilize active actuator assistance and therefore will exclude thorough examination or discussion regarding SWRs that rely on passive assistance. This review analyzes the two most prevalent and rapidly expanding methods of providing active power, actuation, and assistance in SWRs: cable-driven systems and fluidic actuation. While there are many other types of soft actuators being developed (as discussed in “Other types of actuation for SWRs” section), this review aims to break down and analyze some of the most widely explored actuator designs, methods, and applications for an SWR for cable-driven and fluidic actuation. Fluidic actuators are organized into subcategories based on the materials used in fabrication: McKibben/pneumatic artificial muscles (PAMs), elastomers, and textiles/fabric-based actuators. Each aforementioned actuator design will be discussed in greater detail in “Actuation methods and materials for SWRs” section.

2.3. Growing trends in assistive SWRs over the decade

In order to determine how rapidly the interest in this sub-field of soft robotics has begun to grow, a meta-analysis of publications in this category is performed to analyze the rate of expansion. IEEE Xplore is used as the primary search engine, and all meta-data are searched for the specified conditions to determine the number of publications that fit the selected criteria. For this search, only peer-reviewed articles published as part of IEEE conference proceeding and journals listed in the IEEE Xplore search engine were included for the final publication count. The search was limited by year for each search, and the total number of publications was recorded from years spanning from 2009 to 2019, to obtain a record of relevant publications across the last decade. These data were collected on January 9th of 2020. The search parameters were limited articles that included the terms “soft” and “robot” in the title or main text and also containing the words “wearable” and “assist” in the metadata of the publications. The resulting information of the meta-analysis is shown in Figure 1a, which highlights that 60% of all publications on IEEE Xplore fitting the aforementioned criteria were published across 2019, 2018, and 2017, the last 3 years since this search was performed. These data indicate visible trends which show that soft robotics is itself a rapidly growing field, and additionally that research into an SWR has begun to expand at exponential rates in recent years. The last year evaluated (2019 from Figure 1a), shows the highest number of publications fitting within the confines of the refined search criteria, with 26% of the search results appearing in the most recent year.

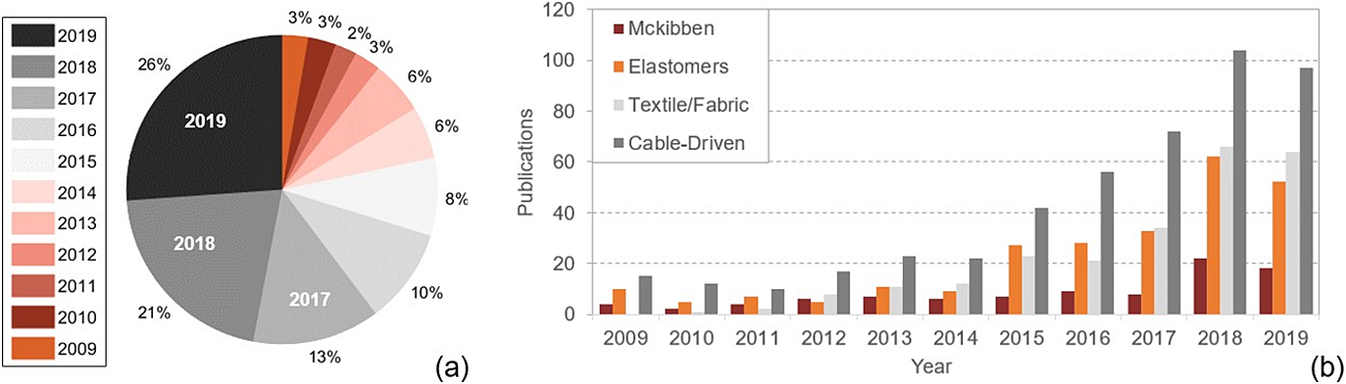

Figure 1. (a) Highlights the number of publications found on IEEE Xplore, including conference and journal publications, for research related to a soft wearable robot (SWR) between 2009 and 2019. Over the last decade, 57% of the existing research in an SWR has been published in the span of the last 3 years. (b) Indicates the number of publications found on IEEE Xplore, including conference and journal publications, for research related to an SWR between 2009 and 2019. Papers are refined according to type of actuation.

To further evaluate the trends across SWRs published during this time, each search was refined in the respective year of publication by the actuation methods used (Figure 1b). These actuation methods, the pros and cons of each, as well as a more in-depth look, are included in the following sections. The increasing trend in publications and research interest can also be observed for each of the following actuation types, though it is notable that while cable-driven systems appear to remain predominant in most years, textiles and passive SWRs have begun to gain more popularity among published research. Where there were no notable SWR publications in 2009, this actuation method made up 16% of published work since 2017 and nearly 20% of the published SWR research in 2019. A push for rapid advancement in wearable technologies in the early 2010s may be partially attributed to military and government-funded projects in the field of robotics for more simplistic, lower cost, and lighter wearable devices to enhance human performance. Some of these major projects started with funding from DARPA and NASA grants with the Warrior Web (Asbeck et al. Reference Asbeck, Dyer, Larusson and Walsh2013) and the Armstrong (Kadivar et al. Reference Kadivar, Beck, Rovekamp, O’Malley and Joyce2017). These exosuits aimed to reduce the overall metabolic cost to soldiers, who walk prolonged distances while carrying heavy loads, as well as reduce ergonomic issues and increase prevention of work-related injuries for astronauts.

3.1. Development in fluid-driven soft actuators for SWRs

One of the earlier soft actuator design and most commonly implemented method of actuation used in the soft robotics field is the fluid-driven approach (Yariott Reference Yariott1972; Petersen and Shepherd Reference Petersen and Shepherd2018). This method uses fluidic pressurization of specific cavities within the soft actuators to entice some kind of motion or generate force and can be traced back to initial designs from the 1970s and early 2000s (Yariott Reference Yariott1972; Noritsugu Reference Noritsugu2005). Pneumatically powered systems use compressible fluids to generate variable stiffness within specific actuators. Compressed air is most commonly used due to low viscosity, high compressibility, accessibility, and low cost (Ding et al. Reference Ding, Tolley, Park, Shepherd, Wood, Wehner, Mengüç, Mozeika, Onal and Whitesides2014). However, pneumatic systems have suffered from issues with latency and controllability when expected to interact or react to the user’s kinematic or surrounding feedback (Malcolm et al. Reference Malcolm, Derave, Galle and De Clercq2013; Ding et al. Reference Ding, Tolley, Park, Shepherd, Wood, Wehner, Mengüç, Mozeika, Onal and Whitesides2014). This review analyzes methods of soft actuation when applied to wearable devices, which are discussed in the following sections for McKibben/PAMs, elastomers, and textiles/fabric-based actuators.

3.1.1. Pneumatic artificial muscles/McKibben

The PAM is one of the earliest developments in soft actuators for wearable devices, dating back as far as the 1970s for initial documentation (Figure 2a) (Yariott Reference Yariott1972; Klute et al. Reference Klute, Czerniecki and Hannaford1999). PAM actuators are typically characterized by a uniaxial contraction force upon actuator pressurization, which can be used to apply high tensile forces that closely resemble the mechanisms of human muscles contracting (Noritsugu Reference Noritsugu2005). When unactuated, PAMs have an intrinsic compliance from the soft materials that are nearly transparent to the user’s natural kinematics in comparison to a rigid exoskeleton. The McKibben muscle (or braided PAM) is a well-known PAM actuator (Yariott Reference Yariott1972; Klute et al. Reference Klute, Czerniecki and Hannaford1999; Davis et al. Reference Davis, Tsagarakis, Canderle and Caldwell2003) that began introducing the concept of using soft materials to create a robotic actuator for human assistance in the early 2000s (Noritsugu Reference Noritsugu2005; Kobayashi et al. Reference Kobayashi, Suzuki and Iba2007). McKibben muscles consist of a cylindrical shell (often a type of braided mesh) that is capable of radial expansion and becomes inextensible at a maximum threshold (Klute et al. Reference Klute, Czerniecki and Hannaford1999; Sasaki et al. Reference Sasaki, Noritsugu, Takaiwa and Yamamoto2005b). The shell contains an airtight, thin-walled rubber tube with hyperelastic properties and is capped on both ends with an inlet for pressurization (Yariott Reference Yariott1972). Once pressurized, the tube expands the radius of the shell, inducing an overall contraction in the PAM actuator and an increasing tensile strength (Majidi Reference Majidi2013). McKibben muscles have a high force-to-weight ratio which makes them a popular choice when assisting human joints that require high torque (Teng et al. Reference Teng, Wong, Teh and Chong2012; Wehner et al. Reference Wehner, Quinlivan, Aubin, Martinez-Villalpando, Baumann, Stirling, Holt, Wood and Walsh2013). McKibben muscles can have low bandwidth for certain human movements (Wehner et al. Reference Wehner, Park, Walsh, Nagpal, Wood, Moore and Goldfield2012) and can cause discomfort related to friction from the constantly varying surface area when in contact with the body (Davis et al. Reference Davis, Tsagarakis, Canderle and Caldwell2003).

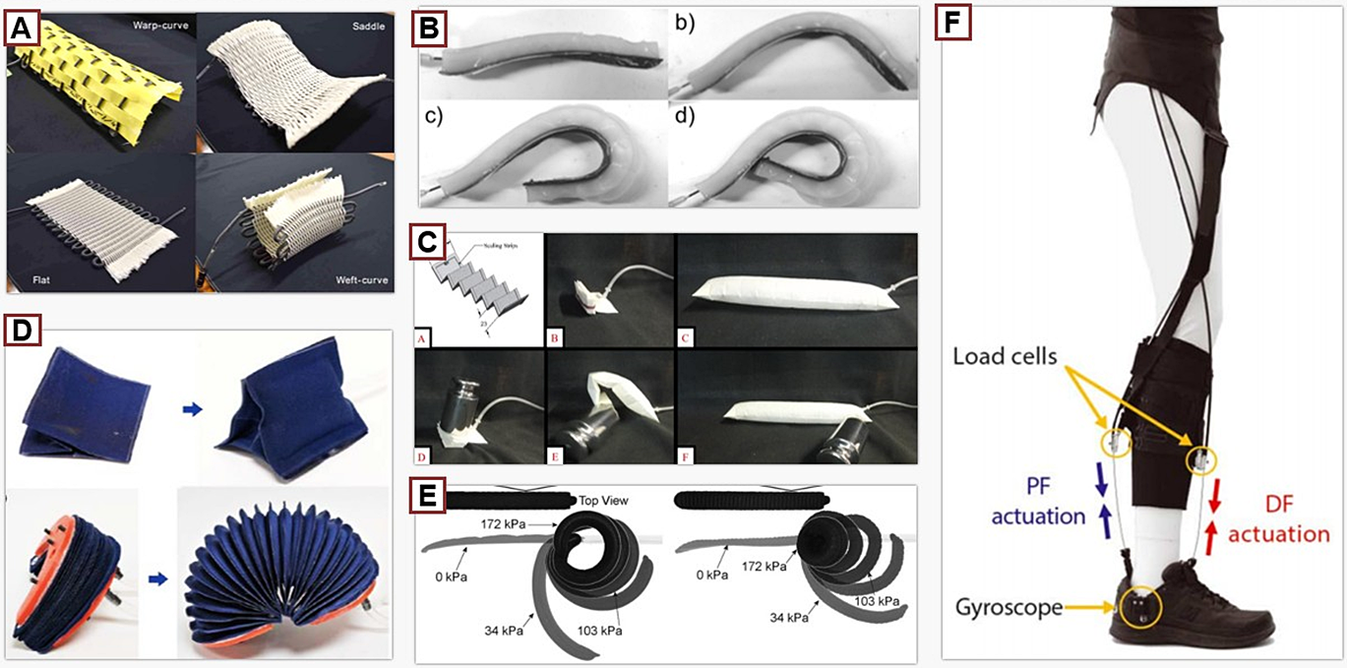

Figure 2. This figure provides a brief overview of different actuation methods used in soft exosuits: (a) Improved McKibben-type actuators braided into a mesh for higher contraction, lower profile, and a wider range of bending mechanics (Hiramitsu et al. Reference Hiramitsu, Suzumori, Nabae and Endo2019), (b) an elastomeric actuator that can be mechanically programmed to achieve different types of bending (Yap et al. Reference Yap, Goh and Yeow2015a), (c) a stiffening beam textile actuator designed to resisted bending and buckling (Miller-Jackson et al. Reference Miller-Jackson, Natividad and Yeow2019a), (d) new fabrication methodologies to create fabric-based inflatable actuators (Yang and Asbeck Reference Yang and Asbeck2018), (e) shows fabric-based inflatables based on fiber reinforcement to induce different types of motions (Cappello et al. Reference Cappello, Galloway, Sanan, Wagner, Granberry, Engelhardt, Haufe, Peisner and Walsh2018a), and (f) a cable-driven soft wearable robot (SWR) device using Bowden cables to provide assistance (Awad et al. Reference Awad, Bae, O’donnell, De Rossi, Hendron, Sloot, Kudzia, Allen, Holt, Ellis and Walsh2017b).

Some PAM actuators address these issues by decreasing the overall size for more effective operation (Hiramitsu et al. Reference Hiramitsu, Suzumori, Nabae and Endo2019) and increasing the types of motions that the actuators can achieve (Sasaki et al. Reference Sasaki, Noritsugu and Takaiwa2005a; Hassanin et al. Reference Hassanin, Steve and Samia2017; Funabora Reference Funabora2018). These new approaches are opening doors to biologically inspired exosuits that have the high force-to-weight ratio of a McKibben muscle (Bilodeau et al. Reference Bilodeau, Miriyev, Lipson and Kramer-Bottiglio2018) but with less weight, bulk, lower operating pressures, and a higher degree of transparency and flexibility for the user (Abe et al. Reference Abe, Koizumi, Nabae, Endo and Suzumori2018; Hiramitsu et al. Reference Hiramitsu, Suzumori, Nabae and Endo2019).

3.2. Cable driven

Designing new, lighter weight, lower profile wearable robots began to converge toward main-streamed popularity around the early 2010s as the term “exosuit” became more well-known and defined (Figure 2f) (Asbeck et al. Reference Asbeck, De Rossi, Galiana, Ding and Walsh2014). While PAM actuators had been effective in providing assistance, SWRs rapidly gained attention from researchers with the introduction of cable-driven mechanisms, which aimed to address several issues observed in early developments of fluidic SWRs (Galiana et al. Reference Galiana, Hammond, Howe and Popovic2012; Asbeck et al. Reference Asbeck, Dyer, Larusson and Walsh2013). Cable-driven actuation (Figure 2f) can easily mimic behaviors of the human musculoskeletal system to assist specific motions (Asbeck et al. Reference Asbeck, De Rossi, Galiana, Ding and Walsh2014; In et al. Reference In, Kang, Sin and Cho2015; Awad et al. Reference Awad, Bae, O’donnell, De Rossi, Hendron, Sloot, Kudzia, Allen, Holt, Ellis and Walsh2017b; Zhang et al. Reference Zhang, Kleinmann, Nolan and Zanotto2019b). These systems have developed significantly in the past decade and are still one of the more prevalent actuation methods used. Extensive research has been done in controllability (Ding et al. Reference Ding, Kim, Kuindersma and Walsh2018), anchor points for applied loads (Yandell et al. Reference Yandell, Ziemnicki, McDonald and Zelik2020), and design (Kwon et al. Reference Kwon, Park, Ku, Jeong, Paik and Park2019) to create high performing exosuits.

The cables (or tendons) are affixed to a point on the exosuit (typically a strap or tab made from inextensible synthetic fabrics or lightweight plastics) which interfaces with the human body to allow for proper force transmission to the targeted joint (Asbeck et al. Reference Asbeck, De Rossi, Galiana, Ding and Walsh2014; In et al. Reference In, Kang, Sin and Cho2015; Awad et al. Reference Awad, Bae, Kudzia, Long, Hendron, Holt, O’Donnell, Ellis and Walsh2017a). The cable is routed along the body and fed to a motor which, when activated, winds the cables to apply a tensile force to the anchor point to mimic the musculoskeletal behaviors of specified joint or area (Awad et al. Reference Awad, Bae, O’donnell, De Rossi, Hendron, Sloot, Kudzia, Allen, Holt, Ellis and Walsh2017b). Selecting an ideal anchor point is critical to ensuring the forces are translated to the body safely and effectively, as misalignments can cause the SWR to underperform (Galiana et al. Reference Galiana, Hammond, Howe and Popovic2012; Asbeck et al. Reference Asbeck, De Rossi, Galiana, Ding and Walsh2014). Actuator power is transmitted to the direct point of contact (Yandell et al. Reference Yandell, Quinlivan, Popov, Walsh and Zelik2017) by engaging the motors or pulley systems to provide varying levels of tension and movement on each cable. Sheathing is often used to help reduce friction of the cables moving across the skin and reduce overall friction (Nilsson et al. Reference Nilsson, Ingvast, Wikander and Holst2012). The interface that attaches the cable to the user must avoid slippage, allow for predictable torque generation when the cable is tensioned, and be comfortable to the wearer (In et al. Reference In, Kang, Sin and Cho2015; Asbeck et al. Reference Asbeck, Schmidt, Galiana, Wagner and Walsh2015b). Cable-driven actuation can produce high torques at a bandwidth higher than that of other methods of soft robotic actuation used with SWRs. As a result, cable-driven systems are a popular approach for augmentation of performance (Quinlivan et al. Reference Quinlivan, Asbeck, Wagner, Ranzani, Russo and Walsh2015). However, such high tensile forces applied at singular points on the body can cause discomfort (Schiele Reference Schiele2009; Quinlivan et al. Reference Quinlivan, Asbeck, Wagner, Ranzani, Russo and Walsh2015; Baltrusch et al. Reference Baltrusch, van Dieën, van Bennekom and Houdijk2018).

3.3. Comparison and critical evaluation of actuation methods in SWRs

Each type of actuator has benefits and drawbacks depending on the application and the user. Designing an effective SWR means being able to select the materials and methods needed for the chosen application and ensure the selection will sufficiently meet the need. Listed in this section is a summarized overview of some of the pros and cons of each type of actuator. The highlights of each section are outlined in Figure 3, which categorizes the actuation methods discussed in the previous sections.

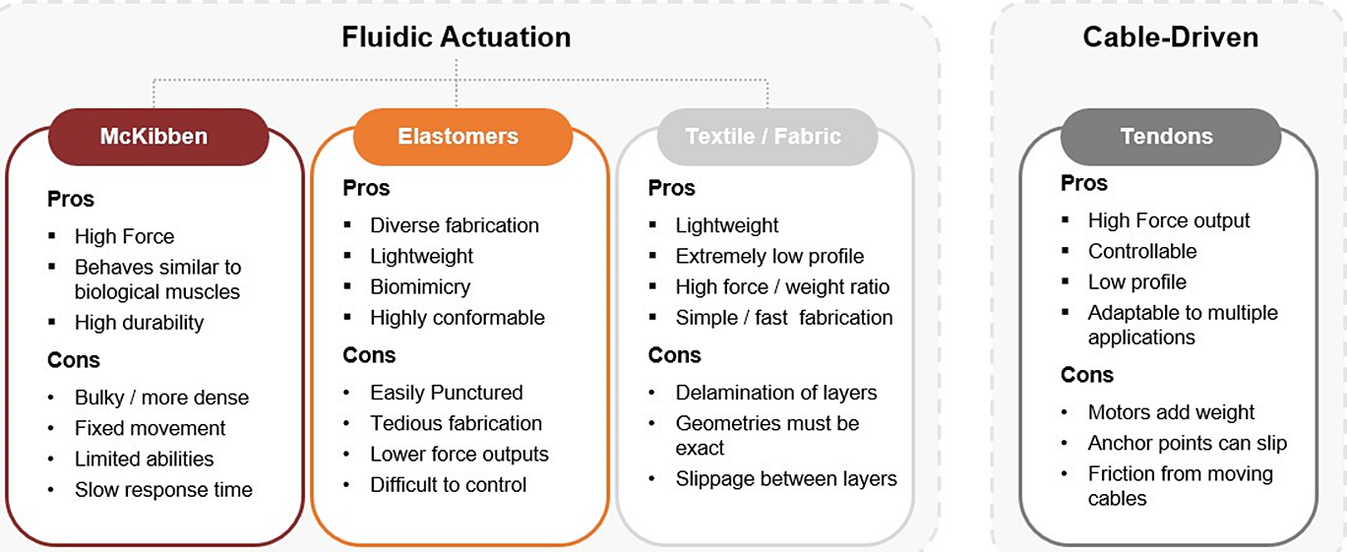

Figure 3. Brief overview of different actuation methods used in soft exosuits and the benefits/disadvantages of the listed types.

Pneumatic Artificial Muscles (McKibben):

• • Pros—McKibben muscles have a higher force/weight ratio and are able to withstand and generate higher forces during pressurization than other pneumatic designs. The actuators behave similarly to the human muscle, which simplifies design conceptualization and can easily provide assistance (Wehner et al. Reference Wehner, Quinlivan, Aubin, Martinez-Villalpando, Baumann, Stirling, Holt, Wood and Walsh2013). The lightweight and flexible nature of the inactive actuator make it easy to integrate onto a person without adding excessive weight to the users. The design of the braided mesh McKibben muscles is durable and can withstand the wear and tear of daily and repeated use.

• • Cons—McKibben actuators face some issues with bulkiness and anchoring points (Kobayashi et al. Reference Kobayashi, Suzuki and Iba2007). Some McKibben muscles can be large in diameter to facilitate the needed force output, and the anchoring point of the point load from the actuator must be securely fixed on the user in order function as anticipated.

  Elastomeric Fluidic Actuators:

• • Pros—Elastomeric actuators can achieve high degrees of freedom with a single input and are forgiving against complicated joints or surfaces. Elastomers are less impacted by misalignment between the actuator and joint when subjected to an injection of pressurization and conform easily to their surroundings without additional input. Actuators are made from lightweight materials that have hyperelastic properties and expand and interact over larger surface areas against the body to avoid anchor point issues. This is useful for assistance to joints where additional bulkiness or anchor points may restrict user movement. These actuators can also reach a high degree of biomimicry which can be helpful when designing actuators to perform a specific biological or kinematic task.

• • Cons—Elastomeric actuators begin to see a disadvantage in the aspect of controllability, due to the nonlinear behaviors exhibited upon pressurization and the general lack of sensing capabilities for position or control. Slower actuation time can be a limiting factor in the final application and higher force output can lead to inevitable structural failure, which would not be ideal for tasks that require higher force or cyclical repetition during assistance (i.e., heavy lifting or walking). Tethers to the pneumatic source may also be limiting to user motions or system portability.

  Fabric-Based Inflatables and Textiles:

• • Pros—Textile-based actuators have similar benefits to elastomeric alternatives; however, textiles are even lighter weight and can achieve a nearly undetectable profile when not pressurized (Yang and Asbeck Reference Yang and Asbeck2018). Textile actuators can achieve higher force output at elevated pressure levels with inextensible fabrics, which increases the strength of the material properties to match the most durable inextensible layers. Textile or fabric actuators motion is predetermined by the materials and the corresponding material properties selected during fabrication (Cappello et al. Reference Cappello, Galloway, Sanan, Wagner, Granberry, Engelhardt, Haufe, Peisner and Walsh2018a). Fabrication techniques are easily accessible and simple, and design possibilities are limited mainly by the materials present or readily available for development (Yang and Asbeck Reference Yang and Asbeck2018).

• • Cons—Textile-based actuators face the same limitations as the aforementioned fluidic actuators with power source portability and latency. Other disadvantages can arise from mechanical fragility or failure, delamination of layers which create fluidic chambers, and slippage between layers of fabric and the human (Cappello et al. Reference Cappello, Galloway, Sanan, Wagner, Granberry, Engelhardt, Haufe, Peisner and Walsh2018a).

Cable Driven:

• • Pros—The pros of cable-driven systems are low profile, lightweight, high torque, and increased controllability when compared to fluidic actuators. Highly complex motions can be achieved with a simple and underactuated input (Asbeck et al. Reference Asbeck, Dyer, Larusson and Walsh2013). This is beneficial for joints such as the hand or the shoulder or assisting multiple joints in series, such as LB limbs during walking. High torque is also easily achievable and controlled through fine-tuned input to the actuator motors, which allows for fast response time at precise and specified values. Cable-driven systems do not require a tether and are highly portable which is helpful to ADL tasks dealing with locomotion.

• • Cons—Some drawbacks of cable-driven systems are friction, backlash hysteresis, nonlinearities (Dinh et al. Reference Dinh, Xiloyannis, Cappello, Antuvan, Yen and Masia2017), and force translation to anchor points on the user (Galiana et al. Reference Galiana, Hammond, Howe and Popovic2012). Force and torque translation from the tendons to the joints relies on applying a point load to a soft or flexible interface (often garment-like exosuits or braces) which can result in slippage or hysteresis (Dinh et al. Reference Dinh, Xiloyannis, Cappello, Antuvan, Yen and Masia2017). Slippage can often be observed between the skin and the fabrics, which can cause discomfort or inaccurate actuation based on nonobservable discrepancies with this displacement. The user typically must support the weight of the motors and other supporting hardware on their body (Asbeck et al. Reference Asbeck, Dyer, Larusson and Walsh2013).

3.4. Other types of actuation for SWRs

The following are actuation methods and designs that are beginning to be of more interest in the field of SWRs but have not yet become as effective or thoroughly investigated at this stage. These actuation methods have proven highly effective when implemented properly and are therefore worth noting. However, these actuator designs and methodologies are not within the scope of the review paper and will not be discussed in depth beyond this section.

Origami-inspired actuators are made from very thin, lightweight materials and designed to fold or bend in ways that mimic soft materials (Li et al. Reference Li, Vogt, Rus and Wood2017; Sedal et al. Reference Sedal, Fisher, Bishop-Moser, Wineman and Kota2018). Actuators can be controlled via small motors or are sometimes placed inside sealed thin film structures. Negative pressure can then be applied to remove the air from the thin film casing, forming a reinforced, folded structure encased inside the vacuum chamber contained in the thin film. Negative pressure can often be used just as effectively as positive pressure (Felt et al. Reference Felt, Robertson and Paik2018), which can be used in combination with other soft materials (i.e. foam, sand, paper, etc.) which occupy a certain volume at atmospheric pressure and compress and become stiff when subjected to negative pressure (Robertson and Paik Reference Robertson and Paik2017). Another form of actuation method used is the shape-memory alloy (SMA) actuator, which uses electrical current to affect the behavior, shape, and/or length of a material used in designing an actuator (Park and Park Reference Park and Park2019). Another method is passive assistance from flexible or relatively soft materials. These actuators use materials with some intrinsic compliance or elasticity, to provide passive assistance to the user (Higuma et al. Reference Higuma, Kiguchi and Arata2017; Lee et al. Reference Lee, Roh, Lee, Choi, Lee, Kim, Choi, Shim and Kim2017b).

4.1. Bellows/rotary

The first design in Figure 4a builds upon the PneuNet actuators described in “Cable driven” and “Comparison and critical evaluation of actuation methods in SWRs” sections, such as works presented at Harvard University (Polygerinos et al. Reference Polygerinos, Wang, Overvelde, Galloway, Wood, Bertoldi and Walsh2015) and Arizona State University (Thalman et al. Reference Thalman, Lam, Nguyen, Sridar and Polygerinos2018), for elastomeric- and textile-based actuators, respectively. This design utilizes individual chambers or pockets that expand when inflated, as shown in Figure 4a. The base has a strain-limiting layer while the top is free to move. This allows for expansion across the top surface, while expansion is restricted at the base. Each chamber expands and exerts a contact force against adjacent chambers, which results in an effect that resembles bellows and generates a rotational motion (Miller-Jackson et al. Reference Miller-Jackson, Li, Natividad and Yeow2019c). This actuator design is effective for assisting joints in a single degree of freedom (DoF) and has been commonly used in flexion of joints (such as the elbow or a finger).

4.2. Extending/stiffening

The design forms a straight beam-like shape which will either stiffen or extend depending on the exact design and intended purpose (Figure 4b). Creating a beam of variable stiffness can allow for corrections in kinematics and support based on the torque and stiffness provided by the beam (Miller-Jackson et al. Reference Miller-Jackson, Natividad and Yeow2019a). This actuator design can provide variable stiffness as seen in the elastomeric design from National University of Singapore (Koh et al. Reference Koh, Cheng, Yap and Yeow2017), where the inherent stiffness and recoiling effect of the beam are used to push the elbow into extension. Another example is the ExoBoot from Harvard University (Chung et al. Reference Chung, Heimgartner, Oneill, Phipps and Walsh2018), which uses an inflatable textile beam to push the foot into plantarflexion. The beam design is beneficial when either placed laterally across a joint to serve as a split or pull into alignment when activated (Natividad and Yeow Reference Natividad and Yeow2016) or is placed in acute angle of a joint to push the joint to straighten as the beam inflates and extends (Miller-Jackson et al. Reference Miller-Jackson, Li, Natividad and Yeow2019c). This design is most commonly used in joint extension or joint bending prevention (e.g., finger or knee).

4.3. Contracting/tensile

This actuator design is the most common in exosuits, mainly because it includes cable-driven systems by nature, as well as McKibben muscles. Actuators that generate tensile forces mimic concentric contraction of human muscles, which provides many design concepts for SWRs that behave similarly to natural biological functions. Cable-driven actuation functions similarly to tendons in the body, and fluidic contracting actuators are designed to contract like muscles when an internal pressure is applied as depicted in Figure 4c. Researchers at Carnegie Mellon developed an elastomeric version of a PAM that generates a tensile force when pressurized (Wirekoh and Park Reference Wirekoh and Park2017), and a fabric-based contracting actuator was developed from Arizona State University (Thalman et al. Reference Thalman, Hsu, Snyder and Polygerinos2019). Contracting actuators are the most widely seen design and support joints in all motions from flexion to extension and are commonly seen assisting multiple joints in series (ankle + hip, fingers + hand, etc.).

4.4. Curling/bending

This design (depicted in Figure 4d) is in a separate category from the bellows/rotary design to distinguish the different methods in which this motion is achieved. Specifically, the materials used and the properties that interact when subjected to internal pressure or load will generate the resulting deformation. The top layer is made from a hyperelastic or highly extensible material, while the base layer is made from or constrained with an inextensible material. This difference in extensibility will cause the actuator to curl around the inextensible layer when pressurized (Noritsugu et al. Reference Noritsugu, Takaiwa and Sasaki2008). The benefit of an actuator that can curl rather than rotate about a point is the forgiving nature, which can easily form around complex joints with a single input. This design is commonly placed on the outside of a joint, such as the finger to assist flexion. This is seen in the three discussed fluidic actuation methods with modified McKibben muscle from University of Salford (Hassanin et al. Reference Hassanin, Steve and Samia2017), elastomeric design (Yap et al. Reference Yap, Goh and Yeow2015a), and fabric-based design from Harvard University (Cappello et al. Reference Cappello, Meyer, Galloway, Peisner, Granberry, Wagner, Engelhardt, Paganoni and Walsh2018b).

5.1. Advanced fabrication methods used in SWR Actuators

Some exosuits utilize smaller rigid or semi-rigid components as an integral part of the design, to create “anchor points,” which relieve load on the wearer (Asbeck et al. Reference Asbeck, Dyer, Larusson and Walsh2013; Quinlivan et al. Reference Quinlivan, Asbeck, Wagner, Ranzani, Russo and Walsh2015; Li et al. Reference Li, Yang, Yu, Zhao, Chang, Xi and Liu2018). By integrating anchor points correctly, strength and structure can be provided to the device without sacrificing flexibility and wearability for the user (Jiang et al. Reference Jiang, Chen, Liu, Jiao, Ping, Xu, Li and Xu2018). Rigid components are kept a safe distance away from the user, ensuring that the user only directly interacts with soft components (Balasubramanian et al. Reference Balasubramanian, Wei, Perez, Shepard, Koeneman, Koeneman and He2008). Rigid or semi-rigid components can also be embedded in the soft exosuit, used to help translate large forces more comfortably across the body and provide minor structural support within the exosuit (Quinlivan et al. Reference Quinlivan, Asbeck, Wagner, Ranzani, Russo and Walsh2015; Li et al. Reference Li, Yang, Yu, Zhao, Chang, Xi and Liu2018).

Fabrication methods of soft exosuit devices are myriad and evolving at a comparable rate to the evolution of the designs themselves (Miller-Jackson et al. Reference Miller-Jackson, Li, Natividad and Yeow2019c). New fabrication methods, and the developments that they facilitate, include the use of sew-free textiles (Yang and Asbeck Reference Yang and Asbeck2018; Connolly et al. Reference Connolly, Wagner, Walsh and Bertoldi2019), soft lithography for stretchable electronics, and the use of multimaterial 3D printers to integrate several different soft materials into the same part (Yap et al. Reference Yap, Ng and Yeow2016). In sew-free anisotropic textiles, a film is applied to the desired textile material to make it air impermeable (Connolly et al. Reference Connolly, Wagner, Walsh and Bertoldi2019). Then, a water-soluble polymer is applied alongside a heat press to bond the seams in an air-impermeable way, and any excess polymer can be dissolved using water (Connolly et al. Reference Connolly, Wagner, Walsh and Bertoldi2019). This eliminates the need for complex seamwork using traditional sewing techniques, allowing for faster turnaround and less technical skill required on the part of the manufacturer. It also allows for new materials that otherwise would not be feasible for soft robotics, like anisotropic textiles, to create actuators that exhibit anistropic properties (Connolly et al. Reference Connolly, Wagner, Walsh and Bertoldi2019).

6.1. Head and neck

There are limited studies of soft robotics application above the shoulders. However, there are studies on how soft robotics can help with basic facial motor functions. So far this area of research is minimal, though could pose promise for future studies due to the biomimicry often seen in many SWRs. Due to limited or sufficient data on this particular joint, it is omitted from the final list of considered (real) options.

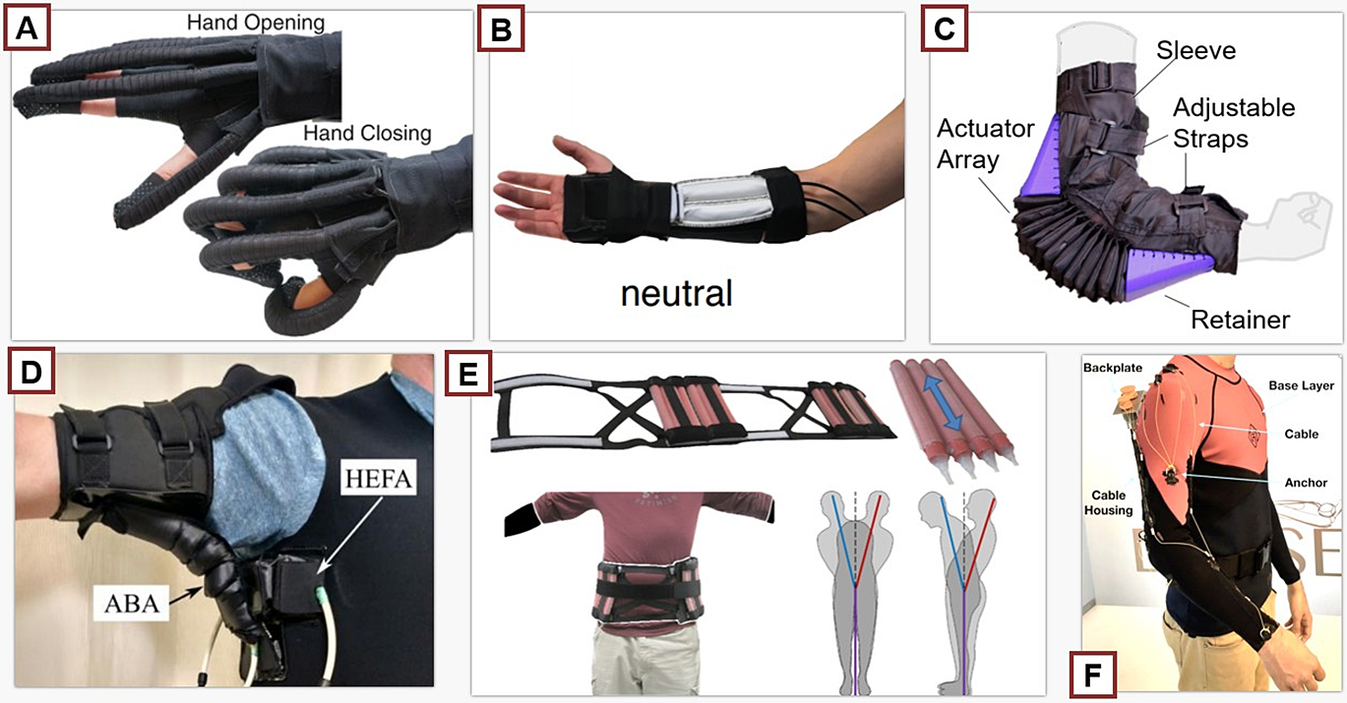

6.2. Shoulder

The shoulder joint is comprised of a combination of DoF and motions that become coupled during certain movements and remain separate entirely for other motions, which create a particularly complex location to provide assistance with wearable devices. The shoulder maintains several rotational DoFs that intersect and do not have perfectly perpendicular axes, as well as another DoF that moves as a translation of the center of the joint itself. This level of complexity has made the shoulder a difficult joint to assist with rigid robots, and many early designs required the user to be seated with their torso fixed in order to utilize the device (Table 1a).

Initial research into SWRs for the shoulder can be observed in the turn of the century, when McKibben actuators were the more common approach (Kobayashi et al. Reference Kobayashi, Suzuki and Iba2007; Balasubramanian et al. Reference Balasubramanian, Wei, Perez, Shepard, Koeneman, Koeneman and He2008). Initial designs were lighter than rigid counterparts and less complex, however, because McKibben muscles could only apply tensile forces the DoF assisted were limited. Significant issues with slippage were observed, and the translation of forces to the human body was not always comfortable for the user (Kobayashi et al. Reference Kobayashi, Suzuki and Iba2007). As cable-driven systems became more common in the 2010s, shoulder assistance with SWRs shifted away from McKibben and fluidic actuators and focused more on using tendons to manipulate the joint (Kesner et al. Reference Kesner, Jentoft, Hammond, Howe and Popovic2011; Galiana et al. Reference Galiana, Hammond, Howe and Popovic2012). These systems were far less bulky and conformed more easily to the joint, with less limitation on tensile force or contraction ratio which could support the full RoM, and also facilitate placement to allow support in more DoF (Kobayashi et al. Reference Kobayashi, Suzuki and Iba2007; Galiana et al. Reference Galiana, Hammond, Howe and Popovic2012). Development for shoulder SWRs became a more active research topic in the later 2010s as NASA began to invest in the “Armstrong,” a wearable suit for astronauts that used tendons to assist the shoulder (Kadivar et al. Reference Kadivar, Beck, Rovekamp, O’Malley and Joyce2017). It was around the time of this development that increasingly advanced textile actuators emerged in the field (Natividad and Yeow Reference Natividad and Yeow2016; O’Neill et al. Reference O’Neill, Phipps, Cappello, Paganoni and Walsh2017) and McKibben muscles showed more sophisticated and effective designs (Abe et al. Reference Abe, Koizumi, Nabae, Endo and Suzumori2018). The shoulder has proven to be a difficult joint to assist, and some of the most prevalent SWRs tackling this goal are still seeking to find actuators that most closely resemble human muscle functions and placements (Abe et al. Reference Abe, Koizumi, Nabae, Endo, Suzumori, Sato, Adachi and Takamizawa2019).

6.3. Back and trunk

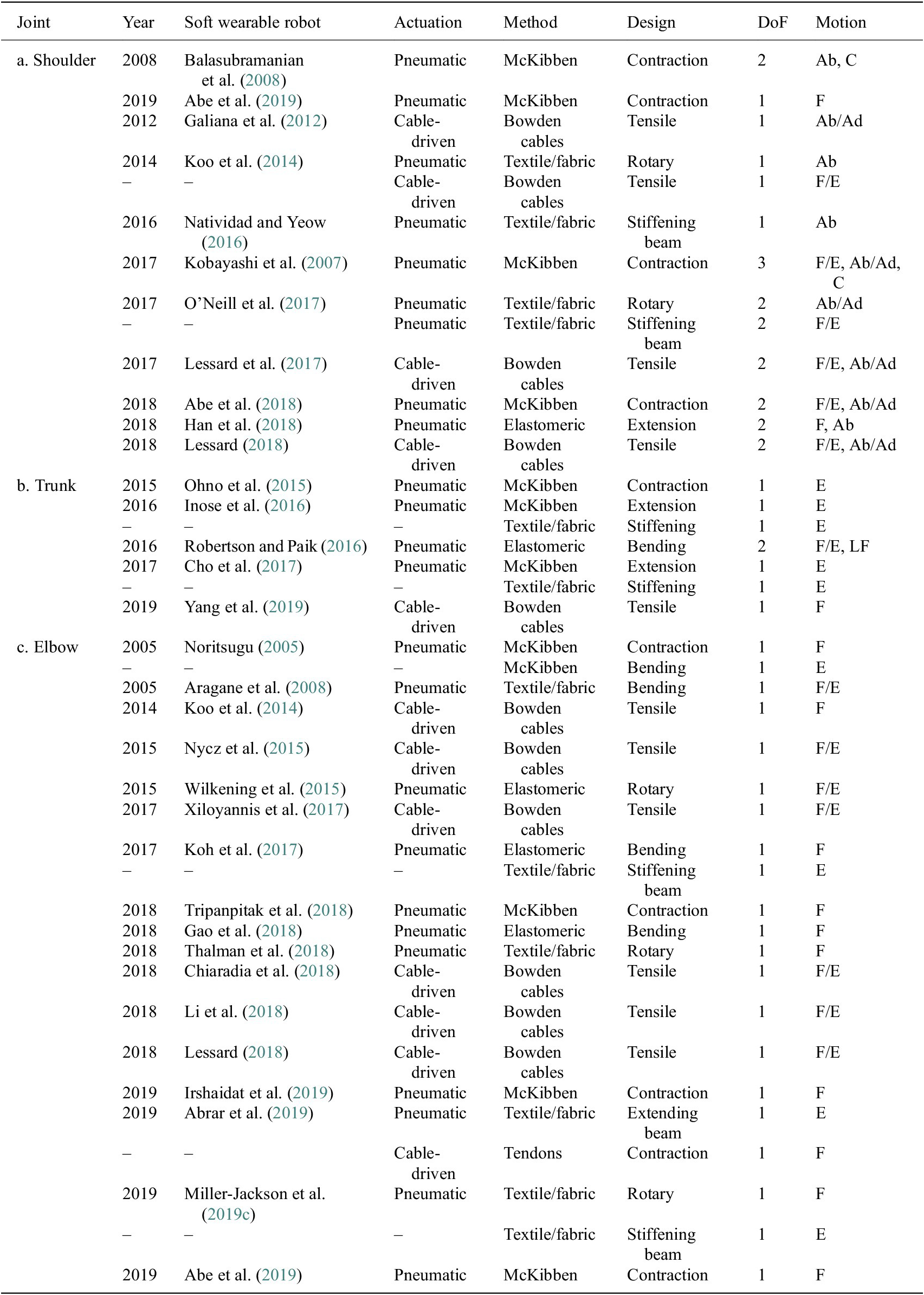

These SWRs are commonly seen to help prevent injuries before they occur when dealing with the back or trunk of the user (Table 1b) and usually focus on posture and lifting assistance (Babicˇ et al. Reference Babicˇ, Mombaur, Lefeber, Dieën, Graimann, Russold, Šarabon and Houdijk2017). This is especially critical for factory or industrial workers, or other individuals who do repetitive heavy lifting (Babicˇ et al. Reference Babicˇ, Mombaur, Lefeber, Dieën, Graimann, Russold, Šarabon and Houdijk2017; Lamers et al. Reference Lamers, Yang and Zelik2018). Several soft systems utilize passive methods of actuation such as pretensioned elastic bands or pulley systems that help support the back at opportune moments for injury (Cho et al. Reference Cho, Sugimoto, Noritsugu and Li2017; Yang et al. Reference Yang, Huang, Hu, Yu, Zhang, Zhou, Carriero, Yue and Su2019). The benefit of actuation that uses tension in-line with the spine is the ability to store and release energy during lifting with the flexion and extension of the trunk. Since the human trunk can be heavy, actuation methods to actively assist movement can be difficult when locating anchor points that do not impede motion or translate forces to become burdensome to other joints.

6.4. Elbow

SWRs for elbow assistance range from a focus in rehabilitation to injury prevention (Table 1c). These systems began in a consistent and similar methodology as wearable robots for the shoulder. The initial introduction of the McKibben muscle led to development emerging to design systems in robotics that would facilitate elbow rehabilitation without restricting movement of the user (Noritsugu et al. Reference Noritsugu, Takaiwa and Sasaki2008). McKibben muscles quickly became an issue when translating tensile force to torque at the elbow joint, and with cable-driven systems gaining popularity in LB SWRs, designing cable-driven systems for the UB became a focus for SWRs (Koo et al. Reference Koo, Yun, Costa, Scognamiglio, Yangali, Park and Cho2014). With only a single DoF to maneuver at the elbow, it became more common to integrate designs for assisting both joints simultaneously with underactuation (Abe et al. Reference Abe, Koizumi, Nabae, Endo and Suzumori2018). Cable-driven systems provide assistance that mimics the biological function of the muscles in the upper arm to enact flexion and extension (Xiloyannis et al. Reference Xiloyannis, Cappello, Binh, Antuvan and Masia2017; Chiaradia et al. Reference Chiaradia, Xiloyannis, Antuvan, Frisoli and Masia2018). By attaching cables to the base of the forearm and routing to an anchor point at the shoulder, the cables can be controlled to provide flexion and extension assistance at the elbow joint (Xiloyannis et al. Reference Xiloyannis, Cappello, Binh, Antuvan and Masia2017; Li et al. Reference Li, Yang, Yu, Zhao, Chang, Xi and Liu2018).

Fluidic actuation approaches specific to the elbow begun to emerge in the 2010s with other pneumatic SWRs and varied stylistically to match the specific need the exosuit is trying to fulfill (Abe et al. Reference Abe, Koizumi, Nabae, Endo and Suzumori2018). Some used a bellows-type design to push the elbow into extension and pull it into flexion from the armpit area (Oguntosin et al. Reference Oguntosin, Harwin, Kawamura, Nasuto and Hayashi2015), while others designed for rotary actuators placed on the exterior side of the elbow joint to apply a rotational torque to induce flexion assistance (Aragane et al. Reference Aragane, Noritsugu, Takaiwa, Sasaki and Naomoto2008; Noritsugu et al. Reference Noritsugu, Takaiwa and Sasaki2008; Thalman et al. Reference Thalman, Lam, Nguyen, Sridar and Polygerinos2018). Elbow assistance is still a topic of high interest. It is less commonly seen as an isolated SWR for the particular joint. The elbow is commonly designed to be assisted as a part of a larger UB system as factors such as posture and weight/load distribution become more critical.

6.5. Wrist and hand

SWRs are effective for the human hand due to their ability to easily follow complex motion and utilize the compliance for an underactuated mechanism (Sasaki et al. Reference Sasaki, Noritsugu, Takaiwa and Yamamoto2005b). Table 2d–f lists several successful executions of SWRs for assistance to the hand and wrist. Underactuated SWRs use limited inputs for each segment of the hand and allow for reduced computing power and simplified control (Yap et al. Reference Yap, Lim, Nasrallah, Goh and Yeow2015b). The goal for these technologies is to restore basic hand movement and functionality to regain independence and achieve ADL (Connelly et al. Reference Connelly, Jia, Toro, Stoykov, Kenyon and Kamper2010). There has been a variety of adaptations of soft hand exosuits for rehabilitation over the past decade, and the hand in particular is an assistance location that has drawn a significant amount of attention from the SWR community. Some notable applications of soft robotics on the hand and wrist can be seen as far back as the early 2000s, utilizing the principles of McKibben muscles to modify the existing mechanical behavior to generate new and more helpful actuator performance (Noritsugu et al. Reference Noritsugu, Yamamoto, Sasakil and Takaiwa2004; Sasaki et al. Reference Sasaki, Noritsugu, Takaiwa and Yamamoto2005b).

Despite major shift of McKibben actuators and expanding capabilities, other avenues of soft actuation were being explored to provide assistance to the human hand. As cable-driven SWRs gained popularity, this strategy actuation is effective as it mimics the natural mechanics of the hand and tendons and often have a low profile, though often requires motors being placed somewhere on the arm or wrist. PAMs (Sasaki et al. Reference Sasaki, Noritsugu, Takaiwa and Yamamoto2005b), fluidic elastomers (Polygerinos et al. Reference Polygerinos, Wang, Overvelde, Galloway, Wood, Bertoldi and Walsh2015; Zhao et al. Reference Zhao, Jalving, Huang, Knepper, Ruina and Shepherd2016; Jiang et al. Reference Jiang, Chen, Liu, Jiao, Ping, Xu, Li and Xu2018; Shiota et al. Reference Shiota, Kokubu, Tarvainen, Sekine, Kita, Huang and Yu2019), and fabric-based inflatable (Noritsugu et al. Reference Noritsugu, Takaiwa and Sasaki2008; Zhu et al. Reference Zhu, Adams and Polygerinos2017; Realmuto and Sanger Reference Realmuto and Sanger2019) actuation methods have been used to achieve various levels of assistance and are typically all actuated using pneumatics, which pose similar uses of needed tubing and a pneumatic source. Fabric-based pneumatics have shown promise to avoid some of the issues of bulkiness observed in PAMs and elastomers. There is newly emerging research on soft exosuits for the wrist joint with focus on preventative assistance, as well as supporting forearm pronation and supination (Realmuto and Sanger Reference Realmuto and Sanger2019; Park et al. Reference Park, Yi, Kim, Lee, Koo and Park2019b).

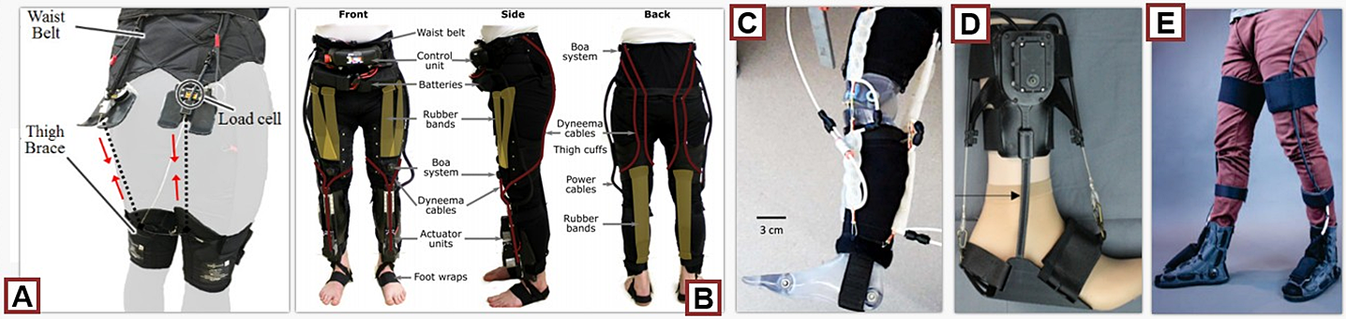

7.1. Hip

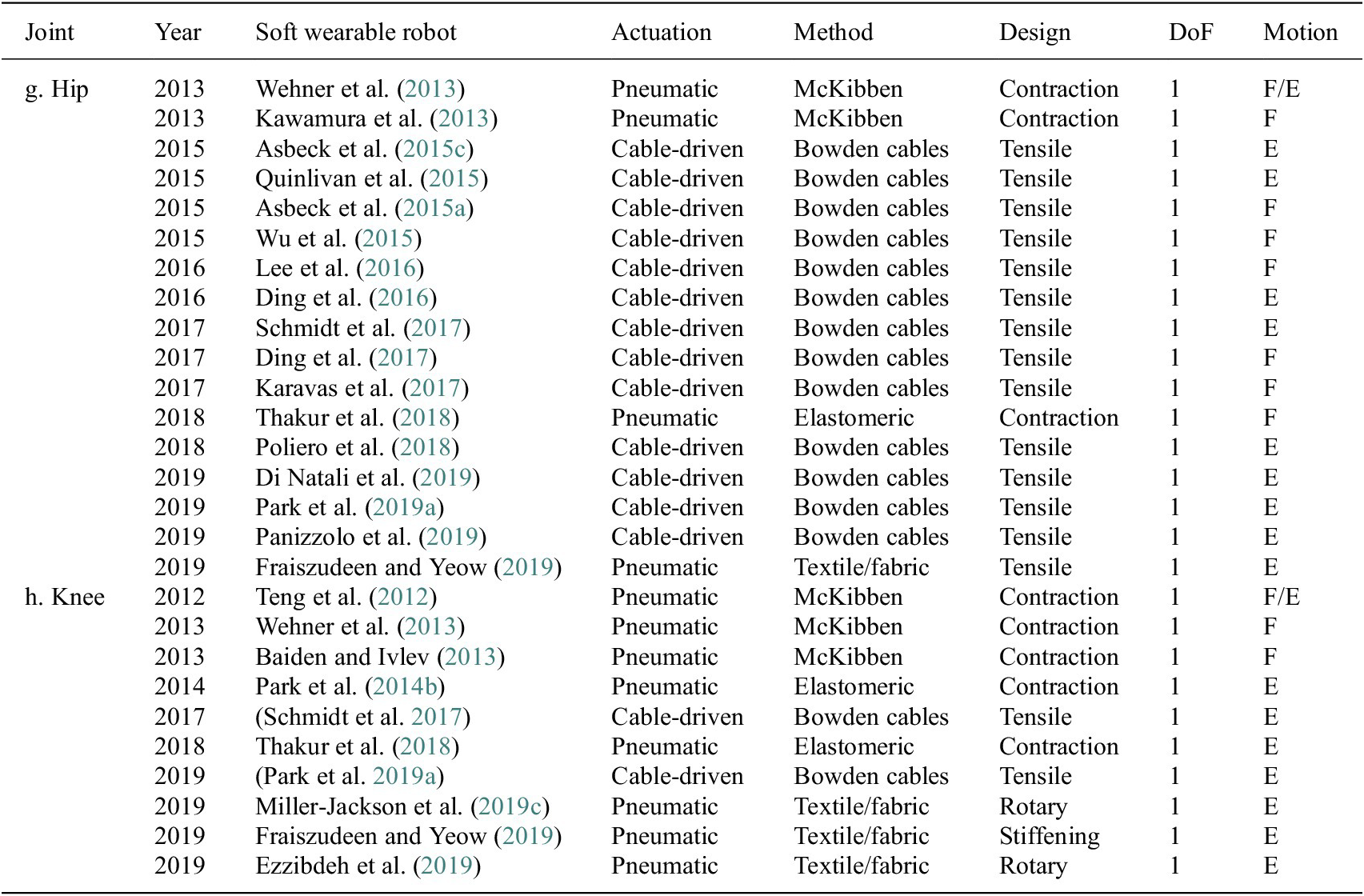

The human hip is a critical joint that allows for the transmission of force from the grown to the torso. The hips also assist in standing, balancing, postural, and sitting tasks, and hip joint actuation with SWRs (shown in Table 3g) primarily relies on cable-driven actuation, due to the high torque output from the tension forces of the cables as shown in (Wu et al. Reference Wu, Wang, Du and Zhang2015; Asbeck et al. Reference Asbeck, Schmidt and Walsh2015c; Ding et al. Reference Ding, Galiana, Siviy, Panizzolo and Walsh2016; Lee et al. Reference Lee, Ding, Bujanda, Karavas, Zhou and Walsh2017a; Ding et al. Reference Ding, Kim, Kuindersma and Walsh2018; Di Natali et al. Reference Di Natali, Poliero, Sposito, Graf, Bauer, Pauli, Bottenberg, De Eyto, O’Sullivan, Hidalgo, Scherly, Stadler, Caldwell and Ortiz2019), though recent work has shown how fluidic actuators done by groups (Kawamura et al. Reference Kawamura, Takanaka, Nakamura and Osumi2013; Thakur et al. Reference Thakur, Ogawa, Tsuji and Kurita2018) and passive actuation methods seen in (Lee et al. Reference Lee, Roh, Lee, Choi, Lee, Kim, Choi, Shim and Kim2017b) can be used in hip assistance. Hip assistance from SWRs can be used for both stationary sit-to-stand tests or during corrective gait therapy (Abouhossein et al. Reference Abouhossein, Martinez-Hernandez, Awad and Dehghani-Sanij2018; Fraiszudeen and Yeow Reference Fraiszudeen and Yeow2019).

7.2. Knee

SWRs have been designed to help assist in both knee flexion and extension, as well as to provide stability to the knee joint to prevent buckling at the knee as shown in Table 3h. SWRs for the knee are often seen as stationary systems designed to be worn to address issues with gait symmetry (Elliott et al. Reference Elliott, Sawicki, Marecki and Herr2013). This can be done by assisting the knee in either flexion or extension for executing the swing phase or providing support during the weight shift in the stance phase (Teng et al. Reference Teng, Wong, Teh and Chong2012). Many designs are cable-driven systems that pull the knee into both flexion and extension (Asbeck et al. Reference Asbeck, Dyer, Larusson and Walsh2013; Di Natali et al. Reference Di Natali, Poliero, Sposito, Graf, Bauer, Pauli, Bottenberg, De Eyto, O’Sullivan, Hidalgo, Scherly, Stadler, Caldwell and Ortiz2019). Other research has been done on using fluidic actuators for knee assistance (Teng et al. Reference Teng, Wong, Teh and Chong2012; Park et al. Reference Park, Santos, Galloway, Goldfield and Wood2014b; Ezzibdeh et al. Reference Ezzibdeh, Arora and Amanatullah2019; Miller-Jackson et al. Reference Miller-Jackson, Li, Natividad and Yeow2019c). Issues with pneumatic knee assistance are found in the latency in the actuators firingas mentioned in reference to pneumatic control. Other methods of actuation include passive elastic elements to provide preventative microcorrections (Elliott et al. Reference Elliott, Sawicki, Marecki and Herr2013).

7.3. Ankle and foot

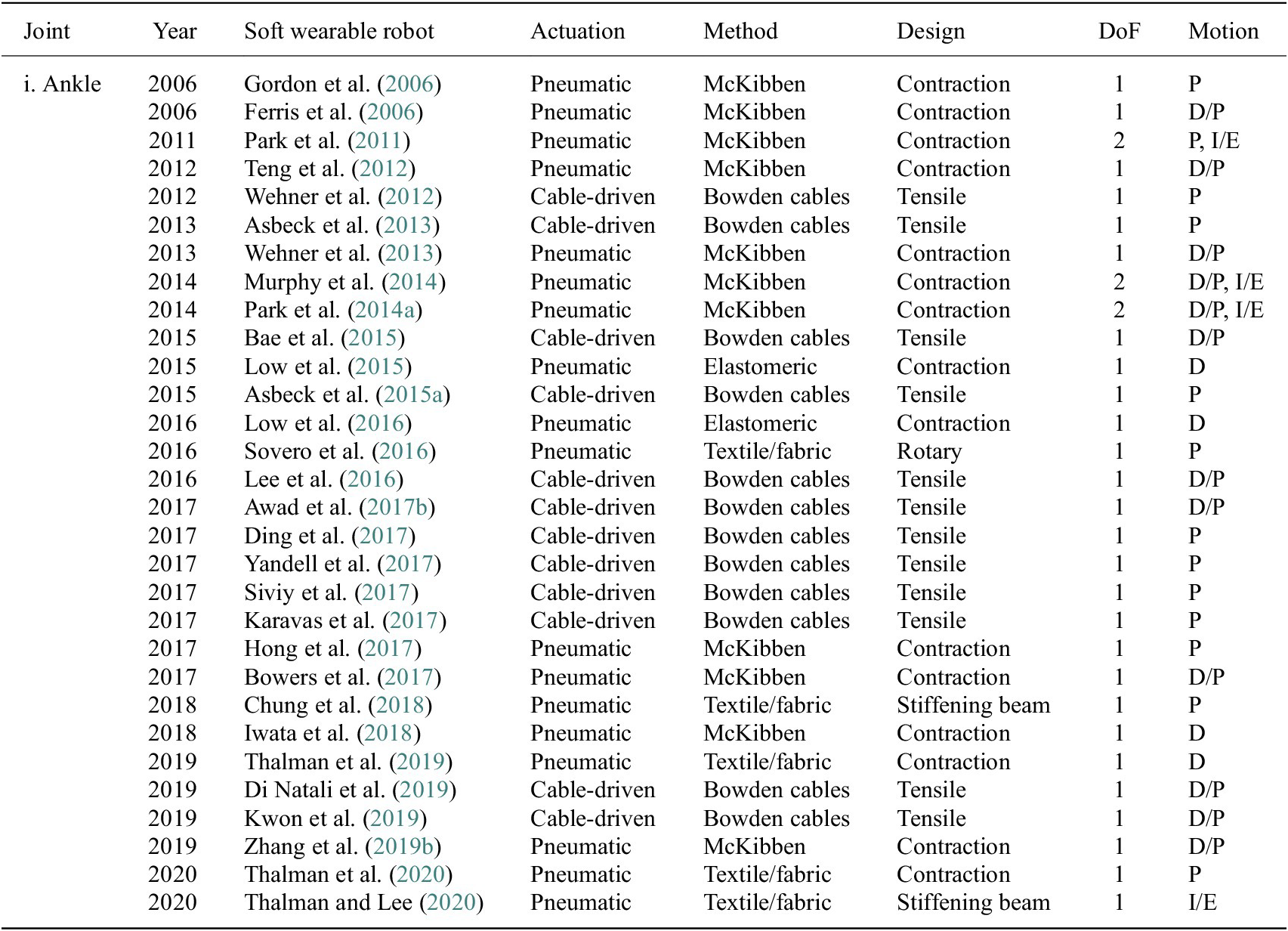

Prior to advancements in portable, wearable robotics, most ankle rehabilitation robots focused on seated therapies on robotic platforms that would adjust or orient the ankle into various positions (Table 4i). Designing wearable robots for the ankle joint has been difficult until recent years, as rigid robots can be heavy and adding excessive weight to the ankle joint can lead to increased risk of trips or slowed gait due to higher inertia at the foot while walking (Browning et al. Reference Browning, Modica, Kram and Goswami2007). The ankle joint has two major degrees of freedom, the dorsiflexion/plantarflexion (DP) axis and the inversion/eversion (IE) axis (Hong et al. Reference Hong, Fukushima, Suzuki, Yauda, Ohashi and Iwata2017; Perez-Ibarra et al. Reference Perez-Ibarra, Alarcon, Jaimes, Ortega, Terra and Siqueira2017). During walking, the DP axis plays a major role in assisting in forward locomotion and foot ground clearance (toe up and toe down), while IE assists in ankle stability and resilience to external perturbations during movement (lateral ankle rotation) (Hong et al. Reference Hong, Fukushima, Suzuki, Yauda, Ohashi and Iwata2017; Siviy et al. Reference Siviy, Galiana, Holt, Walsh, Panizzolo, Malcolm, Crea, Lee and Saucedo2017).

A few early instances of soft actuators seen for ankle rehabilitation consisted of a McKibben actuator affixed to a rigid orthosis. Issues with latency and weight were still prevalent, however, and as more opportunities became available with DARPA and other funding sources, there was a noticeable shift toward one of the most common approaches for SWRs for the ankle: Cable-driven systems or other forms of contracting actuation methods have been widely seen in use ankle assistance, likely due to similarities with the tendon and muscle groups that control the foot (Park et al. Reference Park, Chen, Young, Stirling, Wood, Goldfield and Nagpal2011; Ren et al. Reference Ren, Wu, Yang, Xu, Harvey and Zhang2017; Iwata et al. Reference Iwata, Yasuda, Hong, Ohashi, Suzuki and Fukushima2018). This can be attributed to the high complexity and torque requirements for the ankle joint, specifically plantarflexion, during walking (Teng et al. Reference Teng, Wong, Teh and Chong2012; Murphy et al. Reference Murphy, Adolf, Daly, Bolton, Maurice, Bonia, Mavroidis and Yen2014; Chung et al. Reference Chung, Heimgartner, Oneill, Phipps and Walsh2018). There is extensive research on using cable-driven systems to assist ankle function, both through calculated torque generation and metabolic cost reduction experimentation (Chin et al. Reference Chin, Hsiao-Wecksler, Loth, Kogler, Manwaring, Tyson, Shorter and Gilmer2009; Chung et al. Reference Chung, Heimgartner, Oneill, Phipps and Walsh2018; Yandell et al. Reference Yandell, Tacca and Zelik2019). Cable-driven ankle SWRs tend to switch between both assistance and augmentation, with applications ranging from warfighter assistance to poststroke rehabilitation during walking (Bae et al. Reference Bae, De Rossi, O’Donnell, Hendron, Awad, Teles Dos Santos, De Araujo, Ding, Holt, Ellis and Walsh2015; Sovero et al. Reference Sovero, Talele, Smith, Cox, Swift and Byl2016; Siviy et al. Reference Siviy, Galiana, Holt, Walsh, Panizzolo, Malcolm, Crea, Lee and Saucedo2017; Kwon et al. Reference Kwon, Park, Ku, Jeong, Paik and Park2019). Fluidic actuation methods for the ankle are relatively popular, with some of the most notable contributions using PAM Mckibben-type actuators (Wehner et al. Reference Wehner, Park, Walsh, Nagpal, Wood, Moore and Goldfield2012; Murphy et al. Reference Murphy, Adolf, Daly, Bolton, Maurice, Bonia, Mavroidis and Yen2014; Sovero et al. Reference Sovero, Talele, Smith, Cox, Swift and Byl2016; Bowers et al. Reference Bowers, Harmalkar, Agrawal, Kashyap, Tai and Popovic2017), with a select few fabric-based inflatable devices (Chung et al. Reference Chung, Heimgartner, Oneill, Phipps and Walsh2018; Thalman et al. Reference Thalman, Hsu, Snyder and Polygerinos2019; Thalman and Lee Reference Thalman and Lee2020). Some applications seek simply to add stability and prevent trips and falls using the user’s body weight to distribute pressure through different chambers based on where the user is applying their body weight to their foot (Babu et al. Reference Babu, Sadeghi, Mondini and Mazzolai2018).
