2.1. Radio and infrared images

The RadioGalaxyNET dataset contains radio images derived from observations with the ASKAP radio telescope. ASKAP is located at Inyarrimanha Ilgari Bundara, the Murchison Radio-astronomy Observatory (MRO). Utilizing advanced technologies like the phased array feed (PAF) (PAF Hay et al. Reference Hay, O’Sullivan, Kot, Granet, Lacoste and Ouwehand2006), ASKAP can efficiently scan vast sections of the sky, significantly enhancing survey capabilities. Comprising 36 antennas, ASKAP has baselines reaching up to 6.4 km, with 30 antennas concentrated within a 2.3 km radius (Hotan et al. Reference Hotan2021). ASKAP is currently involved in various surveys, each designed for specific scientific objectives. One notable survey is the EMU survey, which aims to identify approximately 40 million galaxies over its five-year operational period. In 2019, the EMU pilot survey was conducted to develop technologies in preparation for the main survey.

The EMU-PS survey encompasses a sky area of 270 deg $^2$ , ranging from $301^{\circ}$ to $336^{\circ}$ in Right Ascension and from $-63^{\circ}$ to $-48^{\circ}$ in Declination. Comprising ten overlapping tiles, each tile underwent a total integration time of approximately 10 h, resulting in an RMS noise of 25–35 $\mu$ Jy beam $^{-1}$ . The survey operated within a frequency range of 800–1 088 MHz, centred at 944 MHz (with a wavelength of 0.37–0.28 m, centred at 0.32 m). The telescope’s visibility data, recording electric fields as a function of time and frequency, was processed through the ASKAPsoft pipeline (Whiting et al. Reference Whiting, Voronkov, Mitchell, Lorente, Shortridge and Wayth2017) to generate images for the EMU-PS.

The identification of the 2 800 extended radio galaxies in the EMU-PS image involved a meticulous manual process conducted in three distinct stages, as detailed by Yew et al. in prep. While a comprehensive overview of the source identification methodology is available in their work, we provide a brief summary here. Initially, a quick assessment of the EMU-PS radio image was conducted to identify clearly visible extended sources. Subsequently, a thorough visual scan covered the entire radio image systematically, involving the classification of sources and marking the extent of diffuse radio emission for each. In the third and final stage, an exhaustive scan aimed to uncover additional sources possibly overlooked in previous stages. Upon completion of the identification process, the centroid position and approximate size of each source were documented. It is important to note that, despite the three rounds of manual identification, locating all extended sources remains challenging, particularly for faint ones, given the substantial scientific resources required for such an exhaustive search. Following this, cut-outs of size $0.25^{\circ}\times 0.25^{\circ}$ were generated at the centroid positions of these galaxies, resulting in $450\times 450$ pixel images with a pixel size of 2 arcsec. The left column of Fig. 1 presents examples of noisy raw images. Following the procedure outlined by Gupta et al. (Reference Gupta2023), we preprocess the raw images. Examples of processed radio images are illustrated in the middle column of Fig. 1.

At the same sky locations of radio images, we obtain AllWISE (Cutri et al. Reference Cutri2021) infrared images from the Wide-field Infrared Survey Explorer’s (WISE; Wright et al. Reference Wright2010) W1 band that correspond to 3.4 $\mu$ m wavelength. Similar to radio images, infrared images are processed to reduce noise in the same way. However, the noise in the infrared images is estimated as Median $+3\times$ MAD due to the non-Gaussian nature of the noise and the saturation of sources in the images. The right column of Fig. 1 presents examples of processed infrared images, while raw infrared images are not displayed for brevity.

Finally, we create 3-channel RGB images by combining the processed radio and infrared images. In this process, the B and G channels represent radio channels. The original 32-bit FITS image is initially converted to 16-bit, and its 8–16 bit and 0–8 bit information are assigned to the B and G channels, respectively. Similarly, the infrared FITS image undergoes a conversion to 16-bit, and its 8–16 bit information is incorporated into the R channel.

2.2. Annotations

The RadioGalaxyNET dataset has the following four sets of labels

• the infrared host galaxy positions.

• the extended radio galaxy classes,

• the bounding boxes enclosing all components of each radio galaxy, and

• the segmentation masks for radio galaxies.

The labelling process details are discussed in Yew et al. (in preparation) and Gupta et al. (Reference Gupta2023). In summary, we visually identified host galaxies in the infrared images, with the most likely hosts situated near or over the central peaks of radio emission. Only sources with identified host galaxies in the infrared image were included in the dataset. Radio sources were classified based on criteria from Fanaroff & Riley (Reference Fanaroff and Riley1974), distinguishing between FR-I and FR-II sources by considering the distance between the peak radio emission of all components and the total extent of the source. Additionally, some sources were classified as FR-x due to uncertainties in determining peak flux positions and total extent, as explained in Gupta et al. (Reference Gupta2023). Another category, denoted as R, includes resolved sources exhibiting extended emissions without clear peaks other than in the central part. The bounding boxes for each radio source, measured with the CARTA visualization package (Comrie et al. Reference Comrie2021), served as the basis for obtaining segmentation masks. These masks were then created for all pixels within the bounding box, where the flux exceeded 3 $\sigma$ . Annotations in the RadioGalaxyNET dataset adhere to the COCO dataset format (Lin et al. Reference Lin, Fleet, Pajdla, Schiele and Tuytelaars2014), facilitating straightforward comparisons of object detection methods. Radio annotations for each galaxy are stored as ‘categories’, ‘box’, and ‘segmentation’, while the positions of the infrared hosts are stored as ‘keypoints’.

2.3. Data statistics and possible tasks

The RadioGalaxyNET dataset encompasses 2 800 3-channel images featuring two radio sky channels and one corresponding infrared sky channel. Both noisy and processed radio images are included in the dataset. It comprises 2 800 extended radio galaxies, resulting in a total of 4 155 instances of these galaxies due to their proximity in the sky and their appearance in multiple images. The radio galaxies in the dataset are categorized as 13% FR-I, 48% FR-II, 14% FR-x, and 25% R sources. The dataset is divided into three sets: training, validation, and test sets, with a split ratio of $0.7\;:\;0.15\;:\;0.15$ , respectively. This split ratio is widely used in machine learning and represents a balanced approach that achieves a reasonable trade-off between having sufficient data for training and fine-tuning the model, while also ensuring that the model is evaluated on a suitably large, independent test set. The statistics for the number of objects in one frame, categories of extended radio galaxies, and the occupied area of labelled objects are shown in Fig. 2. The distribution of target galaxies is approximately matched between the training, validation, and test sets. Small extended radio galaxies (area $< 48^2$ in pixels) make up the largest proportion of the dataset.

Figure 1. Raw radio (left column), processed radio (middle column) and processed infrared (right column) images with the frame size of $450\times450$ pixels ( $0.25^{\circ}\times 0.25^{\circ}$ ). The processed radio images highlight the categories of extended radio galaxies, and the bounding boxes denote their total radio extent encompassing all of its components. The infrared images show host galaxies inside the circles.

Figure 2. The dataset split distributions of the RadioGalaxyNET. Shown are the distributions of extended radio galaxies in one frame (left), their categories (middle) and the occupied area per radio galaxy (right). The tables presented below the figures display the precise counts of galaxy instances within the training, validation, and test sets.

Although the primary goal of this study is to detect radio galaxies, the RadioGalaxyNET dataset’s unique multimodality can be leveraged for the simultaneous identification of infrared host galaxies. Additionally, it could be insightful to explore approaches for grouping multiple components of galaxies. Instead of component association using given box boundaries, the direct segmentation of related galaxy components could present a greater challenge for models. This could also be linked to instance segmentation approaches, where different input modalities could provide an interesting challenge. The dataset’s unlabelled extended radio galaxies in a given frame make it suitable for experimenting with semi-supervised and contrastive learning methods. Furthermore, RadioGalaxyNET dataset could be used to validate signal enhancement in previous radio sky surveys. By downweighing detections that resemble extended galaxies in the dataset images, the dataset could be used to discover new galaxies in the radio sky. Finally, the modalities in the dataset could be used to model extended radio galaxy emissions from infrared hosts and vice versa.

In this paper, we only focused on extended radio galaxies for the current dataset and have not included labels for several compact sources in radio images. Few extended radio galaxies, such as Odd Radio (Norris, Crawford, & Macgregor Reference Norris, Crawford and Macgregor2021a), some Giant Radio Galaxies and other peculiar galaxies (Gupta et al. Reference Gupta2022), are also not included in the dataset. Future efforts should focus on including a balanced representation of these sources in the dataset.

2.4. Related work

3.1. Gal-DETR

In this paper, we introduce Gal-DETR, multimodal model for computer vision. The Gal-DETR model consists of two primary components: the DEtection TRansformers (DETR), as described in Carion et al. (Reference Carion2020) that is trained for the class and bounding box prediction for radio galaxies, and our novel Keypoint detection module, trained concurrently to detect infrared hosts. Note that the existing multimodal methods are tailored to specific tasks. Here we have radio images where galaxies appear larger due to extended emission, while in infrared images, the host galaxies look like point objects (as depicted in columns 2 and 3 of Fig. 1). To the best of our knowledge, there are no specific models that deal with objects that look completely different in two image modalities. As a result, we introduce our own approach to modelling, illustrated in Fig. 3.

Table 1. Datasets currently available for the machine learning tasks of classification and object detection involving radio galaxies. The annotations C, B, S, and K are categories, bounding boxes, segmentation and keypoint labels, respectively. Section 2 provides a detailed description of the annotations for both our dataset and the existing dataset.

3.1.1. Class and bounding box detection for radio galaxies

DETR model leverages the Transformer architecture (Vaswani et al. Reference Vaswani2017), initially developed for natural language processing, to tackle the complex task of object detection in images following (Dosovitskiy et al. Reference Dosovitskiy2020). Unlike traditional methods that rely on region proposal networks (e.g. Faster RCNN; Ren et al. Reference Ren, He, Girshick and Sun2015b), DETR introduces end-to-end object detection using Transformers. The model begins with a convolutional neural network (CNN) backbone, such as ResNet, to process the input image and extract relevant feature maps. ResNet-50 is a convolutional neural network architecture designed to address the challenge of vanishing gradients in very deep neural networks. It incorporates 50 layers and utilizes skip connections, also referred to as residual connections, to enhance gradient flow during training (He, Zhang, Ren, & Sun Reference He, Zhang, Ren and Sun2015). To incorporate spatial information into the Transformer architecture, DETR introduces positional encodings. These encodings are added to the feature maps, providing the model with information about the relative positions of objects within the image. The feature maps, enhanced with positional encodings, are then passed through a Transformer encoder. This component enables the model to simultaneously process the entire image, capturing contextual relationships between various regions. DETR introduces learned object queries, similar to class-specific anchor boxes in traditional detectors (e.g. Tian et al. Reference Tian, Shen, Chen and He2019). Note that the anchor boxes are prior boxes defined as a set of pre-determined, fixed-size boxes of different scales and aspect ratios. These anchor boxes are chosen based on prior knowledge of the expected object sizes and shapes within the dataset. However, unlike fixed anchor boxes, the object queries in DETR are learned during training through the transformer decoder and represent the classes of objects the model aims to detect. The final output from the decoder has two distinct output heads: one for class prediction, which estimates the class probabilities for each object query, and another for bounding box prediction, which calculates the coordinates (x, y, width, height) of each object query’s bounding box (see Fig. 3).

DETR employs a Hungarian lossFootnote ² function to establish associations between predicted bounding boxes and ground truth boxes. This loss enforces a one-to-one mapping between predicted and ground truth objects, ensuring the model’s permutation invariance. The overall loss function for DETR combines the classification loss (cross-entropy) for class predictions and the box loss (smooth L1 loss) for bounding box predictions,

(1) \begin{equation}\mathcal{L}_{\text{DETR}} = \mathcal{L}_{\text{class}} + \mathcal{L}_{\text{box}},\end{equation}

where $\mathcal{L}_{\text{class}}$ is the cross-entropy loss for class predictions and $\mathcal{L}_{\text{box}}$ is the smooth L1 loss for bounding box predictions. In the context of object detection, the L1 loss is often used for bounding box regression. It calculates the absolute difference between the predicted bounding box coordinates (e.g. x, y, width, height) and the ground truth bounding box coordinates. This loss penalizes the model for deviations between the predicted and true bounding box values, with larger differences leading to higher loss values.

3.1.2. Keypoint detection for infrared hosts

In addition to the object detection method that employs bounding boxes to detect extended radio galaxies, the integration of keypoint detection techniques (e.g. Simon et al. Reference Simon, Joo, Matthews and Sheikh2017) can offer a complementary approach for identifying the corresponding infrared hosts. Keypoints, representing specific landmarks or distinctive features within the radio and infrared images, provide valuable spatial information that aids in precisely determining the location of the host galaxy. Unlike bounding boxes that enclose the entire source, keypoints allow for a more fine-grained localization, providing a more accurate representation of the host’s position within the radio source. This precise localization is especially valuable when the radio emission exhibits complex morphologies.

In the present work, we extended the capabilities of DETR by incorporating keypoint detection. We refer to this enhanced version as Gal-DETR. In Gal-DETR, we integrated keypoint detection to complement the existing object detection capabilities of the original DETR algorithm (see Fig. 3). By incorporating keypoint detection, Gal-DETR gains the ability to identify salient keypoints within the objects, providing additional spatial information and fine-grained details. The keypoint detection module in Gal-DETR leverages the transformer-based architecture of DETR to capture global context and local details. By attending to the keypoint embeddings and utilizing self-attention mechanisms, Gal-DETR localizes and associates keypoints for the infrared host galaxies. The overall loss function for Gal-DETR combines the DETR loss for class and bounding box predictions, in addition to the keypoint detection loss as

(2) \begin{equation}\mathcal{L}_{\text{Gal-DETR}} = \mathcal{L}_{\text{DETR}} + \mathcal{L}_{\text{keypoint}}\end{equation}

where $\mathcal{L}_{\text{keypoint}}$ is the L1 loss for keypoint detection to detect infrared hosts. In the context of keypoint detection, the L1 loss calculates the absolute difference between the predicted keypoint coordinates (e.g. x, y position of host) and the ground truth keypoint coordinates.

Figure 3. An overview of the multimodal modelling strategy introduced in this study. In the context of the Gal-DETR model (refer to Section 3.1), we introduce a keypoint estimation module within the transformer encoder-decoder framework. This enables the simultaneous detection of categories and bounding boxes for radio galaxies, and the positions of infrared hosts. A similar multimodal strategy is introduced for Gal-Deformable DETR and Gal-DINO (as detailed in Sections 3.2 and 3.3).

3.2. Gal-deformable DETR

The second multimodal model we introduce in this paper is Gal-Deformable DETR. Similar to Gal-DETR, the Gal-Deformable DETR model consists of two primary components: the Deformable DEtection TRansformers (Deformable DETR), as described in Zhu et al. (Reference Zhu2021) that is trained for the class and bounding box prediction for radio galaxies, and our novel Keypoint detection module, trained concurrently to detect infrared hosts.

Deformable DETR builds upon the foundation of DETR and introduces several key enhancements. Deformable attention mechanisms allow the model to adaptively adjust the spatial sampling locations for better feature extraction, especially for objects with complex shapes or poses. Unlike DETR, which relies solely on learned positional encodings, Deformable DETR adds spatial positional encodings to the feature maps. This addition helps the model better capture the spatial relationships between objects.

In this study, we have expanded the functionalities of Deformable DETR by introducing keypoint detection, resulting in an enhanced version known as Gal-Deformable DETR. Much like the Gal-DETR model, Gal-Deformable DETR incorporates keypoint detection as a complementary component to the existing object detection capabilities inherited from the original Deformable DETR algorithm. Specifically, we have integrated keypoint detection in conjunction with the deformable convolutional layers originally introduced in the Deformable DETR framework. Similar to Equation (2), the L1 loss for keypoint detection is combined with the class and bounding box loss during the training of the Gal-Deformable DETR model.

3.3. Gal-DINO

The third multimodal model we introduce in this paper is Gal-DINO. Following Gal-DETR and Gal-Deformable DETR models, Gal-DINO also consists of two primary components: the DETR with Improved deNoising anchOr boxes (DINO), as described in Zhang et al. (Reference Zhang2022a) that is trained for the class and bounding box prediction for radio galaxies, and our novel Keypoint detection module, trained simultaneously to detect infrared hosts.

DINO extends the DETR model with improved de-noising anchor boxes, introducing several key enhancements. DINO improves anchor boxes, which are predefined boxes used for object detection. It introduces better strategies for selecting and placing these anchor boxes, enhancing the model’s ability to detect objects of different sizes and aspect ratios. DINO introduces an improved mechanism for matching anchor boxes to ground truth objects during training, making the model more accurate in localization and classification. DINO employs adaptive convolutional features, allowing the model to focus on informative regions of the image, thus improving both efficiency and accuracy.

Much like our approach with Gal-DETR, we integrated keypoint detection into the DINO algorithm, which already has improved de-noising anchor boxes. This enhanced version, featuring keypoint detection, is denoted as Gal-DINO. By reducing the impact of noise and outliers, Gal-DINO produces more robust and precise bounding box predictions, resulting in better localization of the extended radio sources and their associated infrared hosts within these enhanced bounding boxes. In a manner similar to the approach outlined in Equation (2), the Gal-DINO model incorporates the L1 loss for keypoint detection combined with the class and bounding box loss during the training process.

3.4. Gal-SIOD

Detection of objects in situations with imperfect data has recently become a focal point. Weakly supervised object detection (WSOD) encounters notable challenges in localization due to the lack of direct annotations (e.g. Gupta et al. Reference Gupta2023). Li et al. (Reference Li, Pan, Yan, Tang and Zheng2022) introduced an approach known as Single Instance Annotated Object Detection (SIOD). We refer the reader to their paper for detailed information about the SIOD method. Briefly, SIOD requires just one instance annotation for each category present in an image. SIOD offers a more robust and informative source of prior knowledge for detecting the remaining unlabelled instances. This approach strikes a balance between annotation cost and performance, providing a valuable solution to object detection challenges under imperfect data conditions.

This holds significance in the context of our current study on radio galaxy detection. As detailed in Section 2, even after conducting three rounds of manual search of EMU-PS, not all extended sources could be precisely located. This arises from the fact that visual inspections entail an exhaustive search for faint extended radio galaxies, a process demanding a substantial allocation of scientific resources. This implies that certain extended and peculiar sources within the same image are not annotated in the dataset. Utilizing SIOD for radio galaxy detection offers us the possibility to detect these unlabelled extended radio galaxies within a given image.

Note that we have not incorporated keypoint detection into the radio galaxy detection process using SIOD. This decision stems from our primary objective, which is to assess whether we can detect additional radio galaxies not labelled in the dataset using this method. Future work should integrate keypoint detection into SIOD to enable the simultaneous detection of infrared hosts alongside radio galaxy detections. While our current implementation directly employs SIOD for our task, we have named our implementation as Gal-SIOD for naming consistency.

3.5. Gal-SIOD-DMiner

SIOD-DMiner (Li et al. Reference Li, Pan, Yan, Tang and Zheng2022) improves upon SIOD by introducing the Dual-Mining (DMiner) framework. SIOD, while effective in certain scenarios, faces challenges when it comes to dealing with unlabelled regions. Directly assigning all unlabelled regions as background can adversely affect the training process and detector performance. SIOD-DMiner tackles this challenge and improves object detection efficacy by integrating a Similarity-based Pseudo-Label Generating module (SPLG). This module retrieves instances by assessing feature similarity between labelled reference instances and the remaining unlabelled area in the image. This improves object detection over SIOD, which lacks this mechanism for leveraging unlabelled data effectively.

In addition, the SIOD-DMiner recognizes that relying solely on pseudo-labels generated by SPLG can be problematic. It can lead to confusion due to false pseudo-labels, especially when the model focuses on learning a hyperplane for discriminating each class from the others. To mitigate this issue, SIOD-DMiner introduces a Pixel-level Group Contrastive Learning module (PGCL). PGCL improves the model’s ability to withstand inaccurate pseudo-labels, reducing reliance on potentially flawed annotations. For similar considerations as mentioned earlier, we have not integrated keypoint detection into the radio galaxy detection process using SIOD-DMiner. Future work should integrate keypoint detection into SIOD-DMiner to enable the simultaneous detection of unlabelled infrared hosts. Furthermore, we have employed the SIOD-DMiner from Li et al. (Reference Li, Pan, Yan, Tang and Zheng2022) for our task but named our implementation Gal-SIOD-DMiner to maintain naming consistency.

3.6. Gal-Faster RCNN

Faster Region-based Convolutional Neural Network (Faster RCNN; Ren et al. Reference Ren, He, Girshick and Sun2015b) significantly improved the speed and accuracy of object detection compared to the proposal-based predecessor methods. Faster RCNN follows a two-stage approach to object detection, which distinguishes it from earlier methods like Fast RCNN (Girshick Reference Girshick2015). The first stage of Faster RCNN is a Region Proposal Network (RPN), which efficiently generates region proposals (candidate bounding boxes) that are likely to contain objects of interest. The RPN operates on feature maps extracted from the input image and predicts regions with high scores. In the second phase, the system fine-tunes and categorizes these region proposals. Region of Interest (RoI) pooling is employed to derive standardized feature maps of fixed dimensions from each region proposal, making them suitable for a standard CNN classifier. Faster RCNN uses a CNN classifier to categorize the content within each RoI into predefined object classes (e.g. FR-I, FR-II etc.) and regress the bounding box coordinates for precise localization. The entire network, including both the RPN and the classifier, is trained end-to-end. This means that the model learns to generate region proposals and classify objects simultaneously during training. While Deformable DETR and DINO have demonstrated superior performance over Faster RCNN when applied to real-life images from the COCO dataset (Zhu et al. Reference Zhu2021; Zhang et al. Reference Zhang2022a), we have opted to utilize Faster RCNN on our dataset for the sake of comparison. In line with this primary objective of comparing Faster RCNN with Transformer-based methods, we have refrained from incorporating Keypoint detection into Faster RCNN. We have named our implementation Gal-Faster RCNN to maintain naming consistency.

3.7. Gal-YOLOv8

You Only Look Once version 8 (YOLOv8) is an object detection model latest in the YOLO (Redmon et al. Reference Redmon, Divvala, Girshick and Farhadi2016b) series of object detection models. YOLOv8 follows the one-stage detection paradigm, which means it directly predicts bounding boxes and class probabilities for objects in a single pass through the neural network. This makes it faster compared to two-stage detectors like Faster RCNN. YOLOv8 employs a CNN backbone architecture that is designed to capture features at multiple scales. YOLOv8 uses a detection head consisting of convolutional layers to predict bounding boxes and class probabilities. It predicts class labels and confidence scores for each detected object. Similar to initial YOLO versions, YOLOv8 uses anchor boxes to help predict the shape and location of objects. However, YOLOv8 has the option to automatically calculate anchor box sizes based on the dataset, which can simplify the training process. In this study, we perform fine-tuning on a pre-trained YOLOv8 model using our dataset and designate our customized implementation as Gal-YOLOv8 to maintain naming consistency. It is worth noting that we have not integrated keypoint detection into YOLOv8 in this implementation. Future work should explore methods for detecting infrared hosts alongside radio galaxy detections within the YOLO class of models.

4.1. Training details

The dataset division into training, validation, and test sets is detailed in Fig. 2 and Section 2.3. The training data is used to train the networks, while the validation and test sets serve as inference datasets during and after training, respectively. The networks described in Section 3 are trained for different numbers of epochs, which depend on their convergence speed and the stability of validation results. In this context, one epoch signifies a single pass through the entire training dataset during the model’s training process. During each epoch, the training dataset is subjected to various randomly applied augmentations.

These augmentations involve random flipping, random rotations, random resizing, and random cropping of a randomly selected set of 3-channel images from the training data. Random flipping, performed horizontally (left to right), exposes the model to various object orientations and viewpoints. Random rotations, ranging from −180 to 180 degrees, promote rotational invariance in the network – a critical aspect for handling radio galaxies with random orientations in the sky. Random resizing operations entail scaling images up or down by selecting a target size randomly within predefined bounds. We have set the lower and upper bounds to $400\times400$ and $1\,300\times1\,300$ pixels, respectively. This strategy enables the model to learn from objects at different scales while preventing overfitting to specific sizes or aspect ratios. Additionally, random cropping involves the random selection of a portion (or crop) from an input image, discarding the rest. This cropping operation, always applied after image resizing, introduces spatial variability in object locations within an image. The application of these augmentations enhances the model’s capacity to generalize effectively and perform well on unseen data. These augmentations are applied during the training of all the networks described in this study.

All networks are trained and evaluated on an Nvidia Tesla P100. We retained the original hyperparameters for each algorithm during training, except for specific modifications. These hyperparameters are configuration settings that are not learned from the training data but are set prior to the training process. The most important ones include the learning rate, which dictates the magnitude of weight adjustments during training; the batch size, indicating the number of data samples processed at a time; architecture parameters, specifying neural network architecture details like layer counts and filter sizes; dropout rate for preventing overfitting by deactivating units during training; activation functions applied to the output of neural network layers to introduce non-linearity into the model; and optimizer for weight updates. While we do not present all the hyperparameters for various networks here to keep the discussion concise, we refer the reader to the network architectures available in the provided repositories for these details. Here, we focus on the critical training aspects.

As detailed in Section 3.1, Gal-DETR introduces multimodal modelling for radio and infrared detections. Specifically, we implemented keypoint detection to the model architecture and Hungarian loss function. We reduced the learning rate to $5\times 10^{-5}$ and the number of queries to 10 from 100. The number of queries is decreased due to the fact that there are no more than five extended galaxies per image in our dataset, as depicted in the left panel of Fig. 2. As indicated in Table 2, Gal-DETR has 41 million parameters and undergoes training over the course of 500 epochs for $\sim$ 10 h on a single P100 GPU.

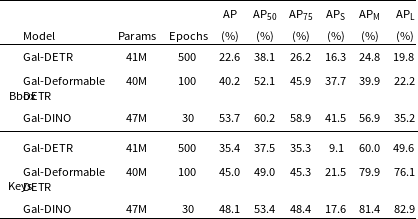

Table 2. Bounding box and keypoint detection results on the test set of RadioGalaxyNET. From left to right, the columns display the multimodal models introduced in this study, the number of model parameters in millions, the number of training epochs, the average precision for IoU (or OKS) thresholds ranging from 0.50 to 0.95 (AP), a specific IoU (or OKS) threshold of 0.5 (AP $_{50}$ ), IoU (or OKS) threshold of 0.75 (AP $_{75}$ ), and the average precision for small-sized radio galaxies (AP $_{\mathrm {S}}$ ), medium-sized radio galaxies (AP $_{\mathrm {M}}$ ), and large-sized radio galaxies (AP $_{\mathrm {L}}$ ), categorized by areas less than $24^2$ , between $24^2$ and $48^2$ , and greater than $48^2$ pixels, respectively. Detailed information on the training and development of these models is provided in Section 4, while the models themselves are described in Section 3.

Table 3. Bounding box detection results using Gal-SIOD and Gal-SIOD-DMiner networks. The AP $_{50}$ , AP $_{\mathrm {S}}$ , AP $_{\mathrm {M}}$ , and AP $_{\mathrm {L}}$ reported here correspond to those in Table 2. The average precision values in this table are provided for various confidence thresholds (S), ranging from no limit to 0, 0.3, and 0.5 confidence scores. Comprehensive information regarding the models and their training (or evaluation) can be found in Sections 3 and 4, respectively.

Similar changes were made for Gal-Deformable DETR model (Section 3.2), where keypoint detection was also implemented in the deformable attention mechanism. Training Gal-Deformable DETR, which comprises 40 million parameters, spanned 100 epochs and consumed approximately 8 h on a single GPU. For Gal-DINO model (Section 3.3), we made the same changes as for Gal-DETR and additionally implemented keypoint detection in the de-noising anchor box mechanism. Training Gal-DINO, featuring 47 million parameters, involved a 30-epoch training process that took approximately 6 h on a single GPU.

As Gal-SIOD (Section 3.4) necessitates only one instance annotation per category within an image, we performed a selection process where we retained unique categories of radio galaxies in each image. For example, we ensured that each image contained at most one random annotation for FR-I sources, FR-II sources, FR-x sources, and R radio sources. This selection reduced the overall number of training annotations in all training images from 2 910 to 2 534, resulting in an annotation keeping ratio of 0.87. No additional changes were made for Gal-SIOD-DMiner (Section 3.5) except for the reduction in annotations with the same keeping ratio. Both the Gal-SIOD and Gal-SIOD-DMiner networks, each comprising 14.4 million parameters, underwent separate 200-epoch training sessions, with each session taking approximately 8 h on a single GPU. The Gal-Faster RCNN (Section 3.6) model underwent training for 20 000 epochs, which took approximately 5 h on a single GPU. To train Gal-YOLOv8 (Section 3.7), we utilized the pre-trained YOLOv8 model from UltralyticsFootnote ³ for object detection. The training process took approximately 12 h for 30 epochs and was conducted on a single GPU.

Figure 4. Object detection results: Shown are the processed radio-radio-infrared images and ground truth annotations (first column), ground truth and Gal-DINO keypoint detections as circles and triangles over infrared images (second column), Gal-DINO (third column) and Gal-SIOD-DMiner (fourth column) class and bounding box predictions over radio images with a confidence threshold of 0.25. These models exhibit the capability to detect additional extended galaxies that lack ground truth annotations.

4.2. Evaluation metric

We employ the standard evaluation metrics outlined by Lin et al. (Reference Lin, Fleet, Pajdla, Schiele and Tuytelaars2014) for computer vision to evaluate and compare the performance of the seven algorithms on the test dataset. Specifically, we utilize the Intersection over Union (IoU), a metric commonly used for assessing object detection algorithm performance. The IoU is calculated as the ratio of the intersection between the predicted bounding boxes ( $P_{\mathrm {B}}$ ) and the ground truth bounding boxes ( $T_{\mathrm {B}}$ ) to the union of the two boxes. The metric can be expressed as

(3) \begin{equation} \text{IoU}(P_{\mathrm {B}}, T_{\mathrm {B}}) = \frac{{\text{Area of Overlap between $P_{\mathrm {B}}$ and $T_{\mathrm {B}}$}}}{{\text{Area of Union between $P_{\mathrm {B}}$ and $T_{\mathrm {B}}$}}},\end{equation}

In the domain of bounding box prediction, the area of each predicted box is evaluated to ascertain its classification as a true positive (TP), false positive (FP), or false negative (FN) concerning the ground truth box’s area for each radio galaxy. To be more specific, a bounding box is classified as TP if it accurately identifies an object and exhibits a sufficiently high IoU overlap with a corresponding ground truth bounding box. In essence, this means that the algorithm’s detected bounding box correctly recognizes an object present in the ground truth data. An FP bounding box, on the other hand, is one generated by the algorithm but fails to accurately correspond to any ground truth object. Finally, a false negative (FN) bounding box occurs when an object is present in the ground truth data, but the algorithm fails to detect it, indicating a missed opportunity to identify a genuine object.

The metric employed to assess the keypoint detection of infrared hosts is called Object Keypoint Detection (OKS). It is determined by the Euclidean distance between the predicted and true positions of the infrared hosts and is expressed as:

(4) \begin{equation}\mathrm{OKS} = \exp \left(-\frac{d^2}{2r^2c^2}\right).\end{equation}

In this equation, d represents the Euclidean distance, r represents the ratio of the bounding box to the image area, and $c=0.107$ instead of 10 values in Lin et al. (Reference Lin, Fleet, Pajdla, Schiele and Tuytelaars2014), as there is one infrared host per bounding box in our case. The OKS score ranges from 0 to 1, with 1 signifying optimal detection.

Table 4. Bounding box detection results for Gal-Faster RCNN and Gal-YOLOv8 models. The columns here align with those presented in Table 2. Additional information regarding the networks can be found in Sections 3 and 4.

We assess the performance of all seven networks using the average precision metric, a widely adopted standard for evaluating object detection models (Lin et al. Reference Lin, Fleet, Pajdla, Schiele and Tuytelaars2014). Precision is a metric that measures the accuracy of positive predictions made by a model. It is calculated as the ratio of TPs (correctly identified instances of the positive class) to the sum of TPs and FPs (incorrectly identified instances of the positive class). Recall, also known as sensitivity or true positive rate, is a metric that measures the ability of a model to correctly identify all relevant instances of the positive class. It is calculated as the ratio of TPs to the sum of TPs and FPs (instances of the positive class that were not identified). The Precision-Recall Curve depicts how the balance between precision and recall changes at various thresholds. Average Precision (AP) is a metric calculated from the precision-recall curve, representing the area under that curve. An AP of 1 indicates a perfect model, achieving both maximum precision and recall. On the other hand, an AP of 0 signifies that the model fails to correctly identify any positive instances, resulting in minimal precision and recall.

We compute average precision values by employing standard IoU and OKS thresholds for bounding boxes and keypoints, respectively. The IoU threshold determines the correctness of a prediction based on the extent of overlap it shares with the ground truth; predictions with an IoU exceeding this threshold are considered correct. Similarly, the OKS threshold assesses the correctness of predicted keypoints based on their similarity scores, with scores above this threshold indicating correctness. We calculate average precision at IoU (or OKS) thresholds ranging from 0.50 to 0.95, denoted as AP, as well as at specific IoU (or OKS) thresholds of 0.50 (AP $_{50}$ ) and 0.75 (AP $_{75}$ ) for radio galaxies of all sizes. Additionally, in order to assess performance across varying scales of structures within radio images, we compute the Average Precision for small (AP $_{\mathrm {S}}$ ), medium (AP $_{\mathrm {M}}$ ), and large (AP $_{\mathrm {L}}$ ) area ranges, defined as pixel areas less than $24^2$ , between $24^2$ and $48^2$ , and greater than $48^2$ , respectively.

We evaluate the performance of bounding boxes for radio galaxies and the identification of keypoints indicating the positions of infrared hosts using the multimodal networks Gal-DINO, Gal-Deformable DETR, and Gal-DINO, all introduced in the present study. For Gal-SIOD, Gal-SIOD-DMiner, Gal-Faster RCNN, and Gal-YOLOv8 networks, we exclusively provide average precision values for the bounding boxes. In the case of Gal-SIOD and Gal-SIOD-DMiner, a confidence constraint to the COCO-style evaluation metrics is used. This constraint requires a predicted box to meet specific IoU and confidence threshold (S) criteria in order to be considered a true match.
