2.1 The need for spectroscopic confirmations

Deep multi-wavelength surveys utilising medium-bands (such as ZFOURGE; Straatman et al. Reference Straatman2016) have demonstrated that galaxy SED fitting with photometric data can obtain redshifts and evolutionary types of galaxies (i.e. blue/red star-forming or quiescent) with high accuracy (e.g. Spitler et al. Reference Spitler2014; Straatman et al. Reference Straatman2014). However, spectroscopy is crucial to constrain the number density of massive quiescent galaxies in the $z\sim3\!-\!5$ epoch and rule out redshift and non-quiescent outliers (e.g. Schreiber et al. Reference Schreiber2018b). Thus, in order to make robust comparisons with cosmological models, obtaining redshift confirmations and indications for quiescence from galaxy spectra is imperative.

The main limitation of purely characterising quiescent galaxies based on photometry is the redshift uncertainty. In SED fitting techniques, the shape of the multi-wavelength photometry is used to infer the redshift. Prominent breaks such as the Lyman and Balmer breaks (Alcalde-Pampliega et al. Reference Alcalde-Pampliega2019) and the D4000 features have shown to constrain the redshift to ${\sim}2\%$ accuracy (e.g. Whitaker et al. Reference Whitaker2011; Straatman et al. Reference Straatman2016). As an example, Straatman et al. (Reference Straatman2016) find that the inclusion of the FourStar (Persson et al. Reference Persson2013) NIR J1, J2, J3, Hs, Hl filters reduces the photometric redshift uncertainty by up to ${\sim}50\%$ at $z>1.5$ . Additionally, the redshift outlier fraction has also been shown to be dependent on the magnitude of a galaxy, with fainter sources showing a systematic increase in the outlier fraction (Brinchmann et al. Reference Brinchmann2017). Thus, degeneracies between redshift, galaxy type, and S/N constraints add uncertainty to the determination of photometric redshifts. For example, as shown in Figure 1, the SED shape of $z\sim2$ dusty (red) star-forming galaxies (e.g. Spitler et al. Reference Spitler2014) is largely similar to that of quiescent galaxies at $z\sim4$ . The Balmer break of $z\sim4$ galaxies observed in the K-band could provide some constraints; however, the uncertainties in constraining the redshift and strong H $\alpha$ emission that contaminate $z\sim2$ K-band photometry limit the diagnostic power.

Figure 1. Two example SEDs from the ZFOURGE survey. Shown in red is a quiescent galaxy SED at $z\sim4$ and in orange is a dusty star-forming galaxy at $z\sim2$ . The spectra are normalised in the K band. The spectral shape of the normalised SEDs of the $z\sim4$ quiescent and $z\sim2$ dusty star-forming at $\lesssim\!2\,\unicode{x03BC}\,\mathrm{m}$ looks largely similar; thus, spectroscopy is required to obtain emission lines to distinguish between the two types of galaxies. Alternatively, infrared/sub-mm observations can also be used to detect the dust continuum emission of dusty star-forming galaxies.

The IR emission from the dusty star-forming galaxies can be used as an alternate indicator to differentiate them from $z\sim4$ quiescent galaxies. In the pre-JWST era, this required extremely deep Spitzer or Herschel photometry and accurate source deblending techniques to account for the large PSF in such observations (e.g. Stefanon et al. Reference Stefanon2021). JWST with ${\sim}50\times$ collecting area than Spitzer will obtain exquisite spatial quality deep near and mid-IR observations in the Hubble legacy fields to revolutionise this space. Additionally, ALMA sub-mm observations can be used to detect molecular gas content (e.g. Boogaard et al. Reference Boogaard2021) as an indirect tracer of quiescence, though the presence of gas around the galaxy is not necessarily an indicator for ongoing star formation (e.g. Kalita et al. Reference Kalita2021). However, ALMA is not a survey instrument and thus has a limited field of view (FoV). Therefore, covering an extragalactic field such as the Hubble Ultra Deep Field is very expensive (Walter et al. Reference Walter2016).

Dusty star-forming galaxies can also be identified through rest-frame optical emission lines which can be obtained with relatively short integration times. Thus, spectroscopy can efficiently remove contaminants in photometrically selected galaxies such as dusty star-forming galaxies and bright active galactic nuclei. Spectroscopic confirmations provide tighter constraints to the evolution of the number density of massive quiescent galaxies with cosmic time at an accuracy far greater than ${\sim}2\%$ that can be obtained through photometric redshifts. Given JWST FoV, this can only be achieved through spectroscopic follow-up of quiescent galaxy candidates selected from deep JWST imaging surveys (e.g. Kauffmann et al. Reference Kauffmann2020) and/or deep ground-based imaging surveys (e.g. Weaver et al. Reference Weaver2021). Based on the ZFOURGE survey, Schreiber et al. (Reference Schreiber2018b) estimated the number density of quiescent galaxies between $3<z<4$ to be ${\sim}2\times10^{-5}\,\mathrm{MPc}$ $^3$ . The NIRCam GTO JADES survey will cover ${\sim}\mathrm{200}\,\mathrm{arcmin}^{2}\,\mathrm{FoV}$ reaching up to ${\sim}30\mathrm{th}$ magnitude in the NIRCam filters (Williams et al. Reference Williams2018). This is ${\sim}5$ magnitudes deeper than the ZFOURGE survey but only half as small in terms of the FoV. Therefore, JADES alone would obtain a significantly higher number of older (fainter) quiescent galaxies than any ground-based survey has currently observed.

Figure 2. JWST NIRSpec wavelength coverage of rest-frame optical features that are crucial to determine the quiescence and constrain the stellar population properties of massive $z\sim3\!-\!5$ quiescent galaxies. Redshifts only accessible via space-based spectroscopy of JWST are shown by the thicker/darker colour lines. Balmer emission/absorption features (sensitive to the SFH) are labelled in purple, forbidden emission lines, and $\alpha$ -element absorption lines are labelled in orange, while the other absorption features that constrain the overall stellar metallicity are labelled in green. IMF sensitive features are shown by dashed lines. It is evident that JWST NIRSpec spectroscopy is crucial to obtain a suite of spectral features that are necessary to analyse the $z\sim3\!-\!5$ quiescent galaxy populations.

In addition to the spectroscopic confirmation of the redshift, spectroscopy provides crucial coverage of important spectral features that determines the quiescence of galaxies. In Figure 2, we show the wavelength coverage of spectral features that are necessary to determine the quiescence and stellar population properties of $z\sim3\!-\!5$ quiescent galaxies. By obtaining coverage of Balmer lines or forbidden lines such as $[\hbox{O}\kern 0.1em {\small \text{II}}]$ and $[\hbox{O}\kern 0.1em {\small \text{III}}]$ , strong constraints can be placed on the levels of star formation in these massive quiescent candidates. Absorption features of $\alpha$ -elements and other metals provide information on the stellar populations which is crucial to determine the SFH. When the redshift and quiescence are constrained through spectroscopy, multi-wavelength SED fitting would provide stronger constraints to stellar masses and SFHs, which are also important parameters to test cosmological evolution models.

2.2 NIRSpec PRISM/CLEAR spectroscopy as a redshift confirmation machine

In order to address the number density of massive quiescent galaxies in the $z\sim3\!-\!5$ epoch, a systematic spectroscopic follow-up of all massive quiescent galaxy candidates is required. Rest-frame $U-V$ vs $V-J$ colour distributions have shown to be effective in identifying the star-forming and quiescent galaxies from each other in various cosmic epochs (e.g. Williams et al. Reference Williams, Quadri, Franx, van Dokkum and Labbé2009; Straatman et al. Reference Straatman2014). Recent ground-based efforts have been successful in obtaining the rest-frame optical coverage of the brightest of these quiescent candidates (e.g. Schreiber et al. Reference Schreiber2018b; Valentino et al. Reference Valentino2020). They have shown a high success rate in identifying quiescent galaxies based on rest-frame $U-V$ vs $V-J$ colours with a high purity but not necessarily high completeness. For example, Schreiber et al. (Reference Schreiber2018b) analysed 24 $U-V$ vs $V-J$ colour selected galaxies and obtained redshift confirmations for 12 galaxies out of which only two were $z\sim2$ dusty star-forming interlopers (see discussion in Schreiber et al. Reference Schreiber2018b).

Figure 3. Simulated observations of JWST/NIRSpec PRISM/CLEAR spectroscopy for a quiescent $(E_{(B-V)}=0.5)$ , a post-starburst $(E_{(B-V)}=0.3)$ , dusty star-forming $(E_{(B-V)}=1.0)$ , and dust-free star-forming ( $(E_{(B-V)}=0.0)$ ) galaxy at $z\sim3$ . Redder NIR colours due to age-dust degeneracies make it challenging to identify quiescent galaxies purely based on photometric observations. The high sensitivity coupled with the multiplexing capability makes NIRSpec an ideal instrument to obtain 0.6–5.3 $\unicode{x03BC}\,\mathrm{m}$ spectroscopy to accurately distinguish between these types of galaxies and confirm their quiescence. The spectra shown here are all normalised to $K=21.5,$ and the typical continuum S/N obtained is ${\sim}80-100$ in a ${\sim}1\,500\,\mathrm{s}$ exposure.

However, studies have so far only targeted the brightest quiescent galaxies in the $z\sim3\!-\!5$ epoch. This is driven by observational challenges in obtaining ground-based NIR spectroscopy. The limited wavelength coverage due to atmospheric absorption, strong skyline contamination, and limited multiplexing capabilities in ground-based NIR instruments have traditionally challenged astronomers to spectroscopically follow up mass/magnitude complete samples of quiescent galaxies. Additionally, targeting only the brightest galaxies biases the observed samples since most massive quiescent galaxies are in general older and fainter.

The multiplexing capability and the 0.6–5.3 $\unicode{x03BC}\,\mathrm{m}$ wavelength coverage make JWST/NIRSpec an ideal instrument to obtain spectroscopic redshifts of photometrically selected massive quiescent galaxy candidates. The PRISM/CLEAR disperser/filter combination of NIRSpec provides continuous spectral coverage between 0.6 and 5.3 $\unicode{x03BC}\,\mathrm{m}$ at a resolution of $R\sim100$ . Thus, by selecting quiescent candidates from deep ground and space-based imaging surveys, NIRSpec PRISM/CLEAR spectroscopy can be used to obtain the crucial rest-frame optical absorption features that are necessary to confirm the redshifts, quiescence, and rule out interlopers.

In Figure 3, we show that the NIRSpec PRISM/CLEAR spectroscopy is capable of accurately distinguishing between $z\sim3$ quiescent, post-starburst, dusty (red) star-forming, and dust-free (blue) star-forming galaxies. Blue star-forming galaxies can be clearly identified based on the NIR colours and rest-UV continuum; however, prism spectra provide emission line measurements to further constrain the ISM and star formation properties of these galaxies. NIR colours will be similar between dusty star-forming and quiescent galaxies; however, the Balmer and forbidden emission features in the star-forming galaxies will be detectable by $R\sim100$ spectroscopy to rule out any star-forming contaminants. $\mathrm{H}\beta$ and $\mathrm{H}\gamma$ equivalent width can be used to determine the time since the last star formation episode (e.g. Glazebrook et al. Reference Glazebrook2017) and comparisons of the continuum around D4000 feature and the rest-frame near-UV continuum can distinguish between post-starburst and dusty star-forming/quiescent galaxies.

In addition to the simultaneous 0.6–5.3 $\unicode{x03BC}\,\mathrm{m}$ wavelength coverage, the sensitivity of the NIRSpec instrument and the lower background level in space-based observations increase the efficiency of the JWST observations. Spectra shown in Figure 3 are generated using the Flexible Stellar Population Synthesis (FSPS) code (Conroy & Gunn Reference Conroy and Gunn2010) and are normalised to $K=21.5$ in the JWST exposure time calculator (ETC). With an exposure time of $\;{\sim}1\,500\,\mathrm{s}$ , ETC predicts that NIRSpec PRISM/CLEAR spectroscopy will obtain a typical continuum S/N of ${\sim}80\!-\!100$ for these galaxies. Dusty star-forming, post-starburst, and quiescent galaxies are reddened with a $E_{(B-V)}=1.0, 0.3, 0.5,$ respectively, following the Cardelli, Clayton, & Mathis (Reference Cardelli, Clayton and Mathis1989) extinction law. No extinction is applied to the dust-free star-forming galaxies. For simplicity, we assume the sources to be pointlike. Glazebrook et al. (Reference Glazebrook2017) obtained a S/N of 6 for a $K=22.5\;z=3.7$ quiescent galaxy with 7’h of $K-\mathrm{band}$ Keck/MOSFIRE spectroscopy at a resolution of 19 Å per pixel. For a $K=21.5,$ source Keck/MOSFIRE can reach a S/N of ${\sim}\,9$ in 1 500 s at similar resolution to NIRSpec PRISM/CLEAR spectroscopy.Footnote a Therefore, even when only a limited wavelength coverage is considered, NIRSpec PRISM/CLEAR spectroscopy is $\sim\times10$ more efficient.

As a potential caveat to the efficiency of quiescent galaxy surveys using NIRSpec PRISM/CLEAR, we also note that the NIRSpec micro-shutter assembly (MSA) adds extra observational challenges in obtaining uncontaminated spectra of galaxies. In addition to contamination from fixed open shutters, as stated in the JDox, MSA flux leakage due to small gaps in the MSA shutters can lead to ${\sim}2\%$ contaminationFootnote b. Therefore, to obtain deep spectroscopy of faint spectral features, the NIRSpec fixed slits (S200A1 or S200A2 with 0.2” slit width) is ideally suited. Fixed slits provide the cleanest spectra in the NIRSpec detectors and yield a higher S/N compared to the MSA mode for the same exposure time. Additionally, it is possible to obtain simultaneous MSA and fixed slit spectroscopy by positioning the primary target of interest in the fixed slit location and populating the MSA shutters with secondary targets. This can be achieved by either configuring the MSA to only allow for rotational variation using the MSA planning design tool or by manually configuring the MSA shutters in open/close positions.

3.1 Stellar population models used in this analysis

We use two different stellar population models in our analysis. To investigate how the spectral features change based on element abundances, we use the Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) empirical SSPs using the alf software (Conroy et al. Reference Conroy, Villaume, van Dokkum and Lind2018) to generate synthetic galaxy spectra. Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) models have the flexibility to change the abundance of individual elements which makes it ideally suited for this task. We use the same models to also investigate the accuracy in recovering element abundances from mock observed spectra as detailed in Section 3.2.

Table 1. SFHs generated using FSPS models. The parameters related to the SFH used in FSPS are shown by the columns. Model A is an SSP, while Models B, C, and D have parametric SFHs. All models are generated at solar metallicity at an age of 1 Gyr.

To investigate the role of SFH in recovering galaxy properties, we use the FSPS code (Conroy & Gunn Reference Conroy and Gunn2010) to generate synthetic spectra for 4 mock galaxies as described in Table 1. Within FSPS, we select the MILES spectral library (Vazdekis et al. Reference Vazdekis, Sánchez-Blázquez, Falcón-Barroso, Cenarro, Beasley, Cardiel, Gorgas and Peletier2010) and MIST isochrones (Choi et al. Reference Choi, Dotter, Conroy, Cantiello, Paxton and Johnson2016) to generate the synthetic models. All galaxies are generated at solar metallicity following a Calzetti et al. (Reference Calzetti, Armus, Bohlin, Kinney, Koornneef and Storchi-Bergmann2000) dust law with an optical depth of $\tau_{dust}=0.5$ . Unless specified all other parameters are kept at the python-fsps default values. Galaxy Model A is formed via a single burst event at $t=0$ . Model B has a delayed $\tau$ model in the form of $te^{-t/\tau}$ with $\tau=1\,\mathrm{Gyr}$ . A constant SFH is superimposed in the model to generate 50% of the total mass at 1 Gyr, and the star formation is truncated at 500 Myr. Model C is an exponentially declining SFH with a timescale of $\tau=1\,\mathrm{Gyr}$ . 20% of the total mass at 1 Gyr is formed through a constant SFH episode. Both of these are combined with an instantaneous burst at 700 Myr that generates 30% of the total stellar mass at 1 Gyr. Model D is an exponentially declining SFH with a timescale of $\tau=1\,\mathrm{Gyr}$ . Models C and D have declining but residual star formation, while Models A and B have been quenched for $>0.5\,\mathrm{Gyr}$ . All FSPS SFH parameters used are presented in Table 1 and are also shown in Figure 4.

The FSPS galaxies are normalised to a $10^{11}\,\mathrm{M}_\odot$ to be similar to the Esdaile Reference Esdaile2021b) sample. Observed galaxy spectra are generated at 1 Gyr and are fed through the JWST ETC to compute the observed spectrum from the G235M/FL170LP grism/filter combination with a continuum S/N ${\sim}\,30\,\mathrm{per}$ pixel. ETC output spectra are instrument throughput corrected and flux calibrated.

Figure 4. Visualisation of input SFHs generated using FSPS models as detailed in Table 1. The input parametric forms are averaged using seven time-bins which are fixed similar to the Prospector fits as described in Section 3.3. In lookback time, the first two bins are fixed to be between 0–30 and 30–100 Myr. The most distant bin is fixed to be between 850 and 1 000 Myr. The remaining four bins are split in logarithmic time evenly between 100 and 850 Myr.

3.2 Element abundances

Stellar population properties of galaxies can be obtained via rest-UV and optical absorption line spectroscopy. O- and B-type stars which contribute to UV flux have short lifetimes. Therefore, rest-frame optical features from A and G type stars play the most important role in deciphering the underlying stellar population properties of quiescent galaxies. In Figure 5, we show prominent rest-frame optical absorption lines that are necessary to constrain the ages, metallicities, and element abundances of quiescent galaxies based on the Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) empirical SSPs. We choose SSPs purely for illustrative purposes because it simplifies the variation of the selected spectral features with time, $\alpha$ -abundance, and metallicity. Realistic SFHs with multiple generations of stellar populations require more advanced simultaneous treatment of multiple spectral features and are further explored later in the context of full spectral fitting.

It is clear from Figure 5 that not all features differ substantially between models such that they can be distinguished at a given sensitivity. As an example, the SFH (or rather the time since the last star formation episode) can be well constrained by the Balmer absorption lines with reasonable S/N limits ( ${\sim}100$ ). However, in order to map changes in the lower mass IMF slope through the IMF sensitive features such as the Fe-H band and NaD absorption (e.g. Conroy & van Dokkum Reference Conroy and van Dokkum2012) requires extremely high S/N sensitivity of $\gtrsim350$ . Achieving such levels of S/N in spectroscopy for populations of galaxies at $z>3$ , even with JWST requires upwards of hundreds of hours per target and is not practical. However, we note that these S/N levels are only presented in the context of simple SFHs and assume that diagnostics rely on a single feature. Much tighter constraints can be made by combined analysis of spectral features. Local galaxy analysis between individual features (i.e. Lick indices; Burstein et al. Reference Burstein, Faber, Gaskell and Krumm1984) and full spectral fitting have shown that results from both methods are in broad agreement with each other (e.g. Conroy, Graves, & van Dokkum Reference Conroy, Graves and van Dokkum2014).

Next, we go beyond individual spectral line analysis and perform full spectrum fits to identify optimal S/N levels and JWST/NIRSpec grism/filter combinations required to constrain the element abundances and the SFHs of $z\gtrsim3$ quiescent galaxies similar to that of Esdaile Reference Esdaile2021b) sample. The combined role of spectroscopy and multi-wavelength photometry in constraining the complex SFH of galaxies will be addressed in Section 3.3.

Rest-frame optical spectroscopy covers the spectral features that are necessary to constrain the formation history of quiescent galaxies. In addition to constraining the last star formation episode from the Balmer absorption features, the coverage of absorption features from elements such as Mg, Fe, Ti provides additional constraints to the durations of previous star formation episodes, metallicities, and chemical abundance patterns of galaxies (e.g. Vazdekis et al. Reference Vazdekis, Sánchez-Blázquez, Falcón-Barroso, Cenarro, Beasley, Cardiel, Gorgas and Peletier2010). These are crucial to determine the SFHs of the early quiescent galaxies and can be compared with $\Lambda\mathrm{CDM}$ hierarchical galaxy formation models.

Here, we investigate what optimal JWST NIRSpec grism/filter combinations and S/N thresholds are required to accurately obtain element abundances of a simulated massive quiescent galaxy similar to that of Esdaile Reference Esdaile2021b) sample. We use Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) empirical SSPs to generate a mock 1.5 Gyr old galaxy at $z=3.2$ with velocity dispersion of 300 km s⁻¹ and keep all elemental abundances at solar. We feed the mock galaxy to the JWST ETC to obtain a suite of mock observables at different S/N values for the JWST NIRSpec fixed slit S200A1 with G235H/FL170LP and G395H/FL290LP grism/filter combinations. We then use the full spectral fitting code alf (Conroy et al. Reference Conroy, Villaume, van Dokkum and Lind2018) on the calibrated data to fit for velocity, velocity dispersion, age, [Z/H], and element abundances of C, N, O, Mg, Si, Ca, Ti, and Na. Spectral fitting is performed to each individual grism/filter combination and to the combined spectrum from both grisms/filters to obtain 100 best-fit values for the input spectrum.

Figure 5. Here we show Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) empirical SSPs computed at different ages (dashed), $\alpha$ -abundances (solid), and metallicities (dotted) using alf. Spectra are smoothed to a resolution of 100 km s⁻¹ and are divided by a 1.5 Gyr old solar abundance spectrum, so relative changes in the spectra can be clearly identified. The grey-shaded region shows the relative accuracy that is obtained by a S/N’=’100 spectrum. It is evident that age through the Balmer absorption lines, $\alpha$ -abundances through Mgb, and metallicity ([Fe/H]) through Fe features can be recovered using these individual absorption features at this S/N level.

In Figure 6, we show the element abundance recovery of [Mg/Fe], [Ti/Fe], and [Fe/H] for our mock observables. It is evident that at native resolutions of each grism/filter combinations, at a S/N $\gtrsim30\,\mathrm{per}$ pixel the recovery of the elemental abundances converges to the input values. We further find that there is no significant difference between the two grism/filter combinations. However, when the spectra from both grism/filter combinations are fit together, the uncertainty is slightly decreased. Even though spectral features such as Mgb are not covered by G395H/FL290LP for $z=3.2$ galaxies, inherent relationships between various $\alpha$ -elements and other metals in the Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) templates allow Mg abundance to be converged albeit with slight systemic offset. For example, because Mg and Ca are both $\alpha$ elements, the coverage of the CaT $\lambda8498\lambda8542\lambda8662$ features can be used to constrain the Mg abundance using theoretical response functions (Conroy et al. Reference Conroy, Villaume, van Dokkum and Lind2018). Thus, abundances of elements not included in the spectral range are inferred from predetermined element abundance ratios and chemical evolutionary models. However, direct measurements of element abundances should be preferred particularly for high-redshift galaxies where these assumptions may not hold.

Figure 6. The recovery of top left: velocity dispersion and elemental abundances of top right: [Mg/Fe], lower left: [Ti/Fe], lower right: [Fe/H] of mock JWST NIRSpec S200A1 G235H/FL170LP and G395H/FL290LP observations. Full spectral fitting is performed using alf for individual grism/filter combinations separately and together at their respective native grism resolutions. The input values to the model spectra are shown by the horizontal dashed lines.

Figure 7. The recovery of top left: velocity dispersion and elemental abundances of top right: [Mg/Fe], lower left: [Ti/Fe], lower right: [Fe/H] from NIRSpec G235M/FL170LP and G235H/FL170LP grism/filter combinations using alf at their respective native grism resolutions. The true value is shown by the horizontal dashed lines. It is evident that even with the lower resolution G235M grism, the input parameters can be accurately recovered at S/N $\gtrsim30$ . For the same exposure time, the S/N can increase by a factor of $\gtrsim\!2$ between G235H and G235M grisms; therefore, obtaining absorption line spectroscopy using the G235M will be the most efficient to derive velocity dispersions and element abundances.

Thus, for the $z\sim3\!-\!4$ Esdaile Reference Esdaile2021b) sample, most of the spectral features that are necessary to obtain $\alpha$ -element abundances can be obtained by the G235H/FL170LP grism/filter combination. For the fixed observed wavelength coverage of the FL170LP filter, we investigate whether the choice of the spectral resolution offered by the G235M and G235H grisms plays a significant role in the convergence of mock observable parameters. In Figure 7, we show the recovery of the parameters for the G235M and G235H grisms. It is evident that there is no significant difference between the two grisms for the recovery of the [Mg/Fe], [Ti/Fe], and [Fe/H] element abundances. Therefore, it is advantageous to obtain G235M spectroscopy to increase the efficiency of $z>3$ quiescent galaxy observing programmes. From our alf simulations, we find that at a S/N of ${\sim}30\,\mathrm{per}$ pixel, an accuracy of ${\sim}15\%$ can be obtained for element abundances which are comparable to the accuracy obtained for local globular clusters (Conroy et al. Reference Conroy, Villaume, van Dokkum and Lind2018).

Figure 8. The recovery of top left: velocity dispersion and elemental abundances of top right: [Mg/Fe], lower left: [Ti/Fe], lower right: [Fe/H] from NIRSpec G235M/FL170LP grism/filter combination using alf. The models are generated using FSPS using different SFHs as detailed in Table 1. It is clear that with the exception of [Fe/H], other parameters are recovered accurately within the error limits for most SFHs.

Figure 9. Simulated JWST NIRSpec G235M/FL170LP observations of the four $z\sim3\!-\!4$ quiescent galaxies presented by Esdaile Reference Esdaile2021b). The best fit FAST++ templates to the galaxies from Schreiber et al. (Reference Schreiber2018b) are used to obtain the JWST mock observations. We show top left: 3D-EGS-40032 ( ${\sim}8\,\mathrm{h}$ ), top right: 3D-EGS-18996 ( ${\sim}4\,\mathrm{h}$ ), lower left: 3D-EGS-31322 ( ${\sim}4\,\mathrm{h}$ ), and lower right: ZF-COSMOS-20115 ( ${\sim}5\,\mathrm{h}$ ) where the time stated inside the brackets refers to the typical NIRSpec G235M/FL170LP observing times necessary to obtain a continuum S/N of ${\sim}30\!-\!40$ . Ground-based H and K band Keck/MOSFIRE spectra from Schreiber et al. (Reference Schreiber2018b) are also shown for comparison. With $<10\,\mathrm{h}$ of exposure time, JWST/NIRSpec can obtain $\gtrsim7$ times greater S/N quality at similar velocity resolutions compared to the current ground-based data for such targets and provides continuous coverage of features through atmospheric windows which are essential to analyse the stellar population properties of these galaxies. These features are colour coded according to their primary sensitivity to age, $\alpha$ -abundance, and metallicity.

Next, we go beyond SSPs to investigate the role of SFH in recovering element abundances from the G235H/FL170LP grism/filter combination. We use FSPS code (Conroy & Gunn Reference Conroy and Gunn2010) to generate four different SFHs as detailed in Section 3. Simulated galaxy spectra are generated at 1 Gyr of age with a velocity dispersion ( $\sigma$ ) of 300 km s⁻¹. We then use the JWST ETC to generate mock observed spectra at $z=3.2$ using the NIRSpec G235M/FL170LP grism/filter combination. The galaxy spectra are normalised to a stellar mass of $10^{11}$ $\mathrm{M}_\odot$ at 1 Gyr, and the exposure parameters are varied such that a continuum S/N of ${\sim}30$ is achieved for the spectra.

In Figure 8, we show the recovery of element abundances for the 4 FSPS mock observations. The [Mg/Fe] abundance of all four galaxies are recovered well by the alf fits to our simulations. Similarly, except for Model B, the [Ti/Fe] of the other SFHs is also well recovered. However, the [Fe/H] abundance cannot be recovered for any of the models. The [Fe/H] of the single burst (Model A) is underestimated by ${\sim}0.08\,\mathrm{dex}$ , while the [Fe/H] of the other models is overestimated by ${\sim}0.1\,\mathrm{dex}$ . Therefore, despite the fact that Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) SSPs showed good convergence of [Fe/H] for NIRSpec G235M/FL170LP S/N ${\sim}\,30$ observations, we find that FSPS models show a slight offset. We further run FSPS models up to S/N ${\sim}\,100$ and find that the discrepancy cannot be resolved by increasing the S/N of the observations and/or by a different grism/filter combination offered by NIRSpec. The underlying stellar libraries and isochrones used by alf to fit the mock galaxy spectra are largely similar to the ones used to create the mock observables at $\lesssim\!0.7\,\unicode{x03BC}\,\mathrm{m}$ ( $\lesssim\!2.9\,\unicode{x03BC}\mathrm{m}$ in observed space at $z=3.2$ ). Thus, we speculate that the offsets we observe in Figure 8 are due to effects such as dust and complex SFHs (except for Model A) in FSPS which are not accounted for in alf. Further detailed analysis on the role of galaxy properties in the recoveries is warranted but is out of the scope of this paper.

In Figure 9, we show the simulated JWST/NIRSpec G235M/F170LP observations of the four $z\sim3\!-\!4$ quiescent galaxies from the Esdaile Reference Esdaile2021b) sample. These galaxies have per pixel S/N ${\sim}\,5-10$ in ground-based spectra with exposure times up to ${\sim}15\,\mathrm{h}$ with Keck/MOSFIRE. Following morphological properties derived by Esdaile Reference Esdaile2021b), we reconstruct each source on the JWST ETC based on the HST WFC3/F160W imaging and use the best-fit FAST++ Footnote c spectra from Schreiber et al. (Reference Schreiber2018b) as the source spectra.

Following our aforementioned experiments with alf, we alter the exposure times to obtain a continuum S/N ${\sim}\,30-40$ , to maximise the accuracy of the recovered spectral parameters. With exposure times ranging between 4 and 8 h, JWST/NIRSpec G235M/F170LP provide $\gtrsim7$ times better S/N at similar velocity resolutions compared to ground-based Keck/MOSFIRE spectra. It is also clear from the figure that space-based observations from JWST allow a continuous coverage of most crucial rest-frame optical spectral signatures for the $z\sim3\!-\!4$ quiescent galaxy populations. These range from age, $\alpha$ -element abundance, and overall metallicity sensitive indicators as shown in Figure 5. Thus, rest-frame optical spectra of $z\sim3\!-\!4$ quiescent galaxies with similar properties to the Esdaile Reference Esdaile2021b) sample can be obtained from JWST NIRSpec with modest exposure times. Such high-quality observations of quiescent galaxies are crucial to constrain their formation and evolution properties with high confidence.

3.3 Star formation history

There is significant tension regarding the existence and abundance of massive quiescent galaxies in the $z>3$ universe between observations and cosmological simulation models (e.g. Merlin et al. Reference Merlin2019). Thus, to understand the formation and subsequent quenching mechanisms of the early Universe, determining how massive quiescent galaxies built their mass efficiently is of great importance.

The SFH of massive quiescent galaxies at $z\sim3\!-\!5$ could be addressed via two different methods. Firstly, through analysis of individual line strengths such as Balmer and D4000 features, the approximate duration of the most recent SFH can be constrained (Vazdekis et al. Reference Vazdekis2015). Additionally, if an enhancement of $\alpha$ -elements such as Mg, Ca, and Na is observed, this would provide indications that they were formed over a short starburst event due to the delay time of Type Ia supernovae (e.g. Kriek et al. Reference Kriek2016).

Secondly, more stringent constraints to the SFHs can be made by combining full-spectrum fitting techniques with multi-wavelength photometric fitting techniques. However, even full spectrophotometric fitting techniques have degeneracies that result in a factor of ${\sim}2$ uncertainty in derived cosmological parameters, that is, the cosmic SFR density (e.g. Madau & Dickinson Reference Madau and Dickinson2014; Yu & Wang Reference Yu and Wang2016). This is a result of multiple levels of complex degeneracies and uncertainties inherent to stellar populations models (Conroy Reference Conroy2013) and SED fitting techniques (Walcher et al. Reference Walcher, Groves, Budavári and Dale2011). If only photometry is used in SED fitting, inferences are based purely on the SED shape. This can result in systematic offsets in derived galaxy properties due to effects such as the age-dust-metallicity degeneracy that affects the shape of the SED (Bell & de Jong Reference Bell and de Jong2001).

When spectra are combined with photometry, stronger inferences can be made on galaxy properties. This is due to extra information that can be obtained from the spectral features. However, uncertainties in stellar evolution, limitations in empirical stellar libraries, and limitations in theoretical stellar atmosphere models can introduce systematic biases to these inferences (e.g. Bruzual Reference Bruzual2007). The SFH of a galaxy will have imprints in the overall shape of the SED and on the strength of different elements observed in the spectra. Additionally, the presence of specific types of stars leaves wider spectral imprints which can be used to provide further constraints (e.g. Brinchmann, Kunth, & Durret Reference Brinchmann, Kunth and Durret2008). However, simultaneous modelling of a variety of spectral features that consider variations in stellar types, stellar/ISM abundances, and IMFs is complicated (Gunawardhana et al. Reference Gunawardhana2020). When this is combined with non-parametric SFHs to model the formation history, high-quality data and modular SED fitting codes become crucial (e.g. Leja et al. Reference Leja, Johnson, Conroy, van Dokkum and Byler2017, Reference Leja, Carnall, Johnson, Conroy and Speagle2019).

Next, we perform mock observations to investigate whether spectrophotometric fitting of galaxies could recover the SFHs in sufficient accuracy to distinguish between different mass growth scenarios. Given the Universe is ${\sim}2$ billion years old at $z\sim3.2$ , SFH variations should be evaluated by the SED fitting codes within this short time frame. We use the FSPS-derived model galaxies with four different SFHs to generate the mock JWST NIRSpec spectra as detailed in Section 3. Observed photometry for the galaxies is computed using sedpy python package mirroring the full wavelength coverage of the ZFOURGE COSMOS field (Straatman et al. Reference Straatman2016). For simplicity, we assume that all photometric bands are detected at a S/N of 10.

Utilising the mock photometry and deep NIRSpec rest-frame optical spectra with full-spectrum fitting techniques of Prospector (Johnson et al. Reference Johnson, Leja, Conroy and Speagle2020) and its non-parametric approach to constraining the SFHs (e.g. Leja et al. Reference Leja, Carnall, Johnson, Conroy and Speagle2019), we investigate whether precise constraints could be placed on the formation timescale of massive quiescent galaxies. In Prospector fitting, we allow stellar mass, stellar metallicity, and dust attenuation to vary as free parameters. Additionally, a continuity_sfh prior (see Section 2.2.3 of Leja et al. Reference Leja, Carnall, Johnson, Conroy and Speagle2019) is used for the SFH. In lookback time, the first two bins are fixed to be between 0–30 Myr and 30–100 Myr. The most distant bin is fixed to be between $0.85\times$ age of the Universe and the age of the Universe; thus, at $z=3.2$ , the final bin is between 1 700 and 2 000 Myr in lookback time. The remaining bins are split in logarithmic time evenly between 100 and 1 700 Myr. In total, we use between 4 and 7 bins to investigate the SFH recovery for our four models.

In Figure 10, we show the recovered SFH for our four models. For Model A, the form of the SFH is recovered well by Prospector independent of the number of SFH bins investigated here. All recoveries suggest that the bulk of the star formation happened around 1 Gyr and that the current SFR is very minimal. This is further confirmed by the highest time resolution 7-bin SFH showing a clear peak at ${\sim}1\,\mathrm{Gyr}$ , with the SFR in the immediately preceding and following bins reducing by a $\gtrsim10^{-3}$ and $\gtrsim10^{-8}$ , respectively.

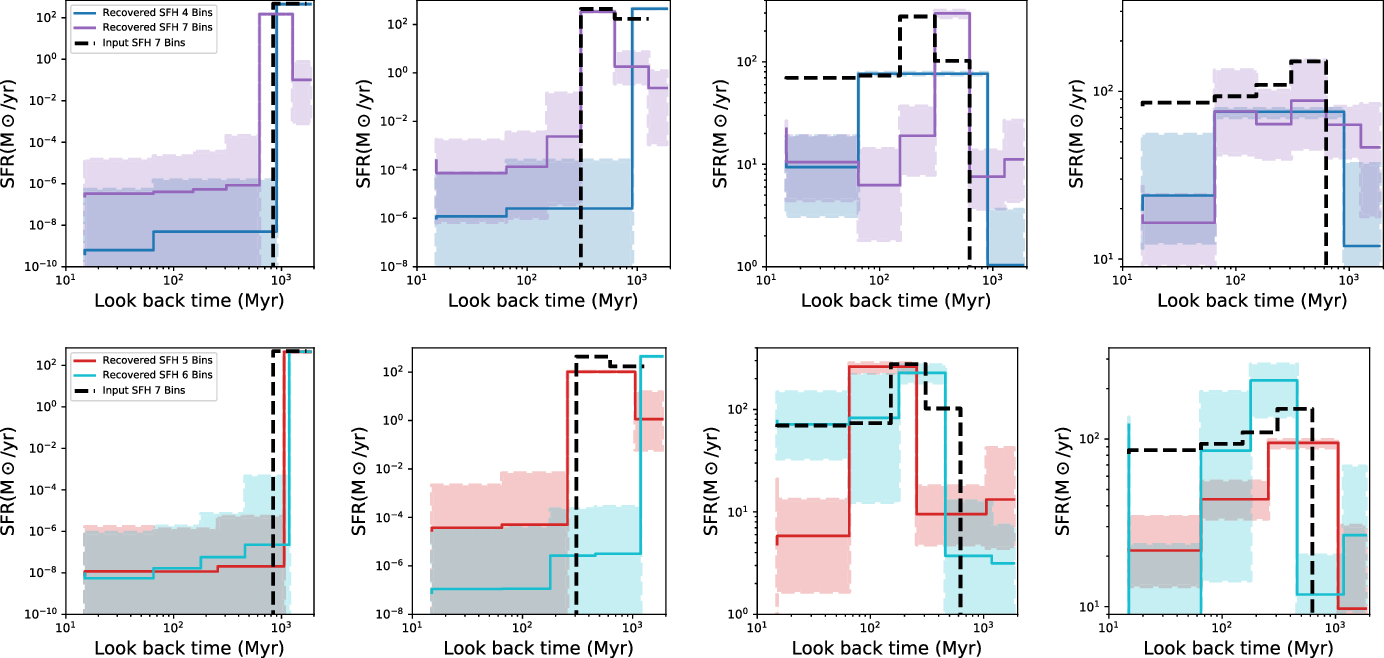

Figure 10. The recovery of SFHs based on full spectral + photometry fitting by the Prospector SED fitting code. Panels show the recovery of Models First Column: A Second Column: B Third Column: C Fourth Column: D as described in Table 1. All models are fit with varying numbers of non-parametric bins ranging from 4 to 7 bins. The top row shows the recovery for 4 and 7 bins, and the bottom row shows the recovery for 5 and 6 bins. The input SFH is shown as a black dashed line using 7 time-bins defined similarly to the 7 bin Prospector fit. The 16th and 84th percentiles are shown by the colour shading for each recovered SFH. For all models, Prospector is able to recover the overall shape of the input SFH. However, some fine tuning of the number of SFH bins is required to accurately recover the SFHs.

For Model B, the increase in the SFR and the subsequent truncation of the SFR are well captured when the SFH is modelled using either 5 or 7 bins. The 4 and 6 bin SFHs fail to recognise the exponential increase in the SFR at earlier times. This is expected for the 4-bin SFH, because the 3rd time-bin by construct covers a large 100–1 700 Myr time window. The galaxy only forms stars for 500 Myr in this window, which may result in the SFH sensitivity of this bin to reduce. However, the 6-bin SFH should have had sufficient sensitivity to recover the increase in SFR. The lack of star formation in the later stages of the galaxy is well recovered irrespective of the number of bins.

For Model C, the input SFH shown by the black dashed line is recovered well by all the fits. 6 and 7 bin SFHs provide the most accurate recovery of the burst; however, even with the limited time resolution of 4 and 5 SFH bin fits, the burst is still captured by the Prospector fits. The 7 and 5 bin SFHs bins also show that the SFR was declining before the galaxy underwent a burst. This, however, is not captured by the SFH with 6 bins even though it has finer time sampling compared to the SFH with 5 bins. It is interesting to note that at $z\sim3.2$ , even with 7 time-bins, the input SFH does not show the exponentially declining nature of the SFH in the post-burst phase (compared to Figure 4 Model C). Thus, constraining the full form of the SFH would require a much larger number of time-bins. Additionally, only the 6-bin SFH is able to detect the ongoing star formation of this model at present time.

For Model D, the overall shape of the SFH is captured well by the fits. The 6-bin SFH suggests the galaxy to have a younger ${\sim}500\,\mathrm{Myr}$ component and an older ${\sim}2\,\mathrm{Gyr}$ component. The 7-bin SFH also suggests that a significant fraction of the galaxy is been formed at an older age compared to the input model. None of the recoveries are able to capture the residual star formation of this model at present time.

When comparing the recoveries between the models, it is evident that Prospector struggles to recover the ongoing star formation for Models C and D (with the exception of the 6-bin SFH recovery for Model C). Therefore, even with state-of-the-art SED fitting codes like Prospector, it is plausible that galaxies with ongoing residual star formation could be identified as quiescent when a full spectrophotometric fitting is performed. Analysis of optical rest-frame nebular optical emission lines from JWST spectroscopy could be used to provide constraints on the star formation limits of such galaxies. However, low emission lines such as $[\hbox{O}\kern 0.1em {\small \text{II}}]$ have been observed in lower redshift quiescent galaxies (e.g. Maseda et al. Reference Maseda2021), which adds extra complexity. Dust continuum detections in the sub-mm would provide an independent constraint to the SFRs in such galaxies (e.g. Simpson et al. Reference Simpson2017; Schreiber et al. Reference Schreiber2018a).

Albeit limitations in recovering residual star formation at later times, in general, our simulations with different SFHs and the different number of SFH bins demonstrate that the SED fitting techniques (investigated here in the context of Prospector) can recover the past form of the SFH to distinguish between different formation scenarios (extended formation vs short sharp formation). We note that our simulations here are tied closely to investigate the recovery of parameters for galaxies that are of similar properties to the Esdaile Reference Esdaile2021b) sample. In this context, in order to recover the input SFHs accurately, some tuning of the number of SFH bins is required. The differences between bins are likely due to the sensitivity of certain photometric/spectral features to the SFH which are enhanced with finer/coarse time sampling. However, these should be well tested with simulated models for galaxies with short evolutionary times (age $\rm \lesssim 3\,\mathrm{Gyr}$ ) and compared with other recovered galaxy properties such as stellar mass and metallicity. We defer this to a future analysis. We also note that the rest-frame optical includes both age and abundance-sensitive lines; thus, both the SFH and metallicity can be constrained to high accuracy using Prospector with fine-tuned binning. Additionally, when direct $\alpha$ -element constraints are lacking, metallicity along with strong constraints on the SFH can be used to infer the $\alpha$ -abundances.

3.4 The IMF

The stellar IMF is a fundamental parameter in galaxy evolution that plays a vital role in regulating galaxy formation and chemical evolution of the Universe. Even though traditionally the IMF has been considered to be universal (e.g. Salpeter Reference Salpeter1955; Kroupa Reference Kroupa2001; Baldry & Glazebrook Reference Baldry and Glazebrook2003; Chabrier Reference Chabrier2003), recent results have started to show evidence for systemic variations (e.g. Bastian, Covey, & Meyer Reference Bastian, Covey and Meyer2010; Hopkins Reference Hopkins2018). At $z\sim0,$ studies have shown that the lower mass of the IMF slope could vary as a function of velocity dispersion (e.g. Cappellari et al. Reference Cappellari2012; Conroy et al. Reference Conroy, Dutton, Graves, Mendel and van Dokkum2013), metallicity (e.g. Martín-Navarro et al. Reference Martín-Navarro2015b), and radial distance from the galactic centre (e.g. Martín-Navarro et al. Reference Martín-Navarro, Barbera, Vazdekis, Falcón-Barroso and Ferreras2015a) in local early type galaxies (ETGs). However, mechanisms for such variations are still not well understood and overall agreement between different IMF indicators are still not clear (e.g. Smith Reference Smith2014, Reference Smith2020). Constraining the IMF in the early Universe is vital to determine how such variations may have been influenced by conditions prevalent in the Universe when the local ETGs were building up their stellar masses. Constraints on the early Universe IMF are also necessary to provide constraints to the cosmic SFH and to understand how the Universe transformed from hydrogen and helium to the current complex Universe.

The IMF of the $z\sim3\!-\!5$ massive quiescent galaxies can be constrained using high-precision dynamical and stellar mass measurements. NIRSpec slit spectroscopy or NIRSpec IFU observations (see Section 4) can be used to constrain the dynamical masses of the galaxies. Given these early systems are compact and dense ( $M_{ast}{\sim}10^{10}-10^{11}$ , $r_e\sim0.5-2\,\mathrm{kpc}$ Straatman et al. Reference Straatman2014; Esdaile Reference Esdaile2021b), the baryonic matter is expected to dominate the kinematics; thus, dynamical mass measurements are largely independent of the assumed dark matter halo profiles. This means that the dynamical mass is only contributed to by the stellar mass, and thus, the ratio of the dynamical mass to stellar mass (also known as the IMF mismatch parameter (e.g. Davis & McDermid Reference Davis and McDermid2017) can be used to understand the stellar populations via the IMF. JWST NIRSpec spectroscopy will also provide constraints to the rest-frame optical spectral shape of the $z\sim3\!-\!5$ massive quiescent galaxies, which will provide strong constraints to stellar masses (Conroy Reference Conroy2013). Therefore, with JWST spectroscopy, stronger constraints on the IMF mismatch parameter can be obtained.

The IMF mismatch parameter can be compared with the distribution of the $z\sim3\!-\!5$ galaxies in the stellar mass plane to see if there are differences in the inherent stellar populations of these galaxies, perhaps indicating different formation scenarios. Given quiescent galaxies by definition do not have active star formation, the ‘observed’ dynamical mass will only constrain the lower mass slope of the IMF (but is degenerated with high mass stellar remnants). This is due to the lack of massive O, B type stars, which have relatively short lifetimes of 10–100 Myr compared to the long-lived lower mass stars.

The IMF mismatch parameter is the only practical way to measure the IMF of unlensed individual massive quiescent galaxies at $z\sim3\!-\!5$ . As we showed in Figure 5, IMF-sensitive spectral features such as the Na I doublet and the Wing–Ford band resulting from K and M dwarf stars require S/N $>300$ to distinguish between different IMF slopes (van Dokkum & Conroy Reference van Dokkum and Conroy2010). Our NIRSpec simulations with alf show that a S/N ${\sim}\,350$ is required in the G395H/FL290LP grism/filter combination to recover the IMF slopes and reaching such levels even for the brightest $z\sim3\!-\!5$ massive quiescent galaxies is not feasible due to the very high exposure times required.

Apart from the ‘observed’ IMF, the relic IMF of $z\sim3\!-\!5$ massive quiescent galaxies can be reconstructed through spectrophotometric fitting of advanced SED fitting codes such as Prospector (private communication) and variable IMF chemical evolution codes such as galIMF (Yan et al. Reference Yan, Jerabkova, Kroupa and Vazdekis2019). By providing IMF as an extra free parameter in SED fitting, the evolution of the IMF in the $z>5$ Universe can be constrained. However, the time variation of the IMF, SFH, and $\alpha$ -element abundances is intricately connected (e.g. Martín-Navarro Reference Martín-Navarro2016); therefore, detailed stellar population modelling is required to understand degeneracies between them. $z>5$ Universe is the time window when the $z\sim3\!-\!5$ massive quiescent galaxies were forming the bulk of their stars (e.g. Valentino et al. Reference Valentino2020). If these galaxies did indeed have top-heavy IMFs in their star formation phase (e.g. as formulated by Lacey et al. Reference Lacey2016, also see Gunawardhana et al. Reference Gunawardhana2011; Nanayakkara et al. Reference Nanayakkara2017, Reference Nanayakkara2020), this would lead to differences in the number of ionising photons produced, the chemical enrichment, and stellar wind and supernovae feedback processes. Such changes would be crucial to the reionisation timescales of the Universe; thus, the reconstruction of the relic IMF in the $z>6$ Universe is important to constrain the cosmological evolutionary models of the Universe.

4.1 Velocity dispersions through slit spectroscopy

JWST NIRSpec slit spectroscopy can be used to measure the velocity dispersions of $z\sim3\!-\!5$ massive quiescent galaxies. In Figures 6 and 7, we show the recovery of the velocity dispersions of our mock NIRSpec S200A1 simulations. It is clear that with both the grisms and filters, the velocity dispersion is converged to the input value of the mock simulations. In Section 3.2, we established that G235M/FL170LP grism/filter combination provides the best wavelength coverage and the necessary resolution to obtain the element abundances of $z\sim3\!-\!5$ galaxies.

In terms of velocity dispersion, the G235M medium-resolution disperser of NIRSpec can obtain dispersions of ${\sim}130\,\mathrm{km\,s}^{-1}$ for a 2-pixel resolution element while the high-resolution G235H disperser achieves a dispersion resolution of ${\sim}50\,\mathrm{km\,s}^{-1}$ . Given the lowest velocity dispersion observed for $z>3$ quiescent galaxies is ${\sim}15\,\mathrm{km\,s}^{-1}$ (Esdaile Reference Esdaile2021b), the medium resolution grating is sufficient to obtain velocity dispersions of quiescent galaxies. We also perform mock JWST observations of a galaxy with ${\sim}150\,\mathrm{km\,s}^{-1}$ velocity dispersion and find that at a S/N of 30, the velocity dispersion can be recovered by the G235M/FL170LP grism/filter combination. Additionally, we find that the delivered S/N from G235M is higher than the S/N of G235H when binned to the same spectral resolution.

By obtaining a S/N of ${\sim}30\,\mathrm{per}$ pixel with JWST NIRSpec G235M/FL170LP observations, robust constraints can be obtained to the dynamical masses. For example, Esdaile Reference Esdaile2021b) measured dynamical masses for four $z\sim3\!-\!5$ massive quiescent galaxies to an accuracy of ${\sim}20\%$ . This was based on measurements of Balmer and Ca H & K absorption lines covering a total of ${\sim}600$ Å in rest-frame with a continuum S/N of ${\sim}5-7$ achieved through spectral binning of 6 Å in the rest-frame. With NIRSpec, our simulations show that high-quality spectra of such galaxies can be obtained with typical S/N of ${\sim}30\!-\!40$ per pixel at similar resolution with continuous coverage of ${\sim}3\,000$ Å in the rest-frame. They have no skyline contamination and reach an accuracy of ${\sim}2\!-\!3\%$ for dynamical mass measurements. This higher level of accuracy will enable robust comparisons with mass-matched control samples of galaxies at $z\sim2$ , which can also be obtained as filler targets using the JWST NIRSpec multi-object spectroscopy (MOS) which utilises the NIRSpec micro-shutter assembly (MSA).

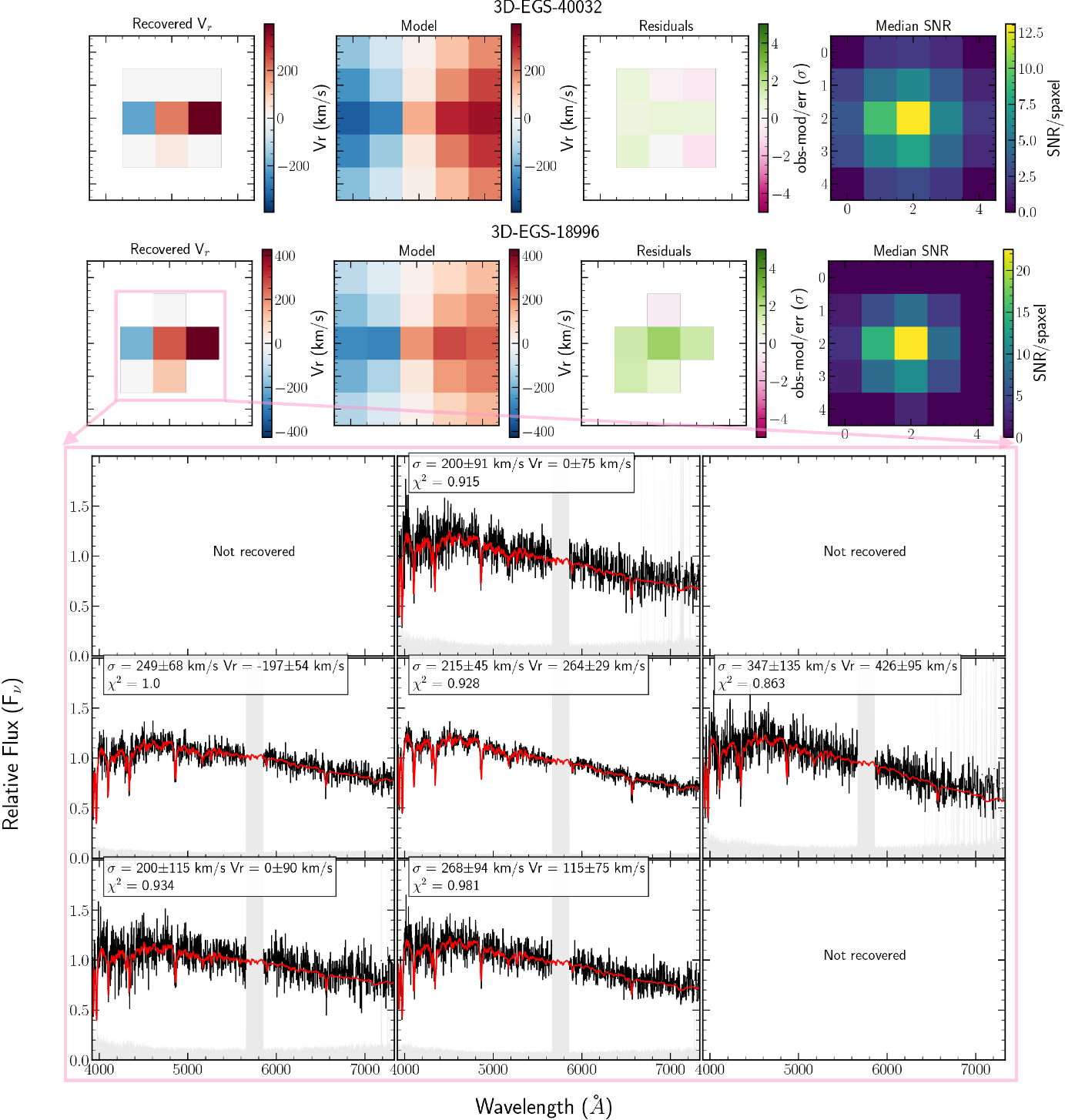

Figure 11. Simulated IFU observations for 2D kinematics recovery of two galaxies in the Esdaile Reference Esdaile2021b) sample: 3D-EGS-40032 (G140M/F100LP grism/filter, 12 h exposure) and 3D-EGS-18996 (G235H/F170LP grism/filter, 8 h exposure). The chosen grism/filter combination optimises the spectral ranges (which includes [OII] emission from 3D-EGS-40032), sensitivity, and resolving power to measure existing velocity dispersions for each galaxy. Top: from left to right: recovered 2D kinematics from simulated IFU cube (left) for a Hernquist 2D model of a rotationally supported galaxy and with an inclination of 45° (middle-left), the normalised residuals (middle-right) and median S/N/spaxel from the IFU cube. The simulation for 3D-EGS-40032 is in the top row with a $V_r/\sigma=1.5$ and 3D-EGS-18996 is below with a $V_r/\sigma=1.8$ . Bottom: Recovered radial velocities and velocity dispersions for 3D-EGS-18996 per inner set of spaxels in the simulated IFU observations cube. Black lines are the simulated spectra, red lines are the best-fit, and grey-shaded area is the corresponding noise spectra. The spectral fit is only included for $ 0.85 < \chi^2 < 1.5$

4.2 Galaxy kinematics through IFU spectroscopy

JWST NIRSpec IFU spectroscopy can be used to obtain resolved kinematics of $z\sim3\!-\!5$ massive quiescent galaxies. Compared to ground-based IFU spectroscopy, the JWST NIRSpec IFU provides many advantages for kinematics analysis. Higher spatial resolution can be obtained due to diffraction-limited space-based observing at $2\,\unicode{x03BC}\,\mathrm{m}$ and is not limited by the lack of bright stars necessary for adaptive optics corrections to increase the seeing. Generally, non-AO observations are preferred for the analysis of continuum sources with absorption line kinematics. This is because, in kinematics, the AO PSF imposes an interdependency between luminosity, velocity, and dispersion; thus, more advanced deconvolution is necessary for each spectral plane of the original data cube (Davies & Kasper Reference Davies and Kasper2012). This can be corrected by robustly using emission line features (after accounting for beam smearing); however, for continuum features a PSF convolved step-wise model for every pixel in the continuum and equivalent width would be required. This is hard to achieve even for bright sources (Thater et al. Reference Thater, Krajnović, Cappellari, Davis, de Zeeuw, McDermid and Sarzi2019). Additionally, the desired S/N is practically impossible to achieve even with the best ground-based IFUs such as Keck/OSIRIS, where the majority of the absorption features for $z\sim3$ galaxies exist in the $H-$ band where the Strehl ratio is low ( ${\sim}10\%$ ). For example, for the two mock NIRSpec IFU simulations of two of the Esdaile Reference Esdaile2021b) galaxies which we describe below, the total exposure time necessary to obtain resolved kinematics increases from ${\sim}8\!\mathrm{to}\!12\,\mathrm{h}$ with JWST/NIRSpec time to $>40\!-\!100\,\mathrm{h}$ (based on the surface brightness of the galaxy) in ground-based Keck/OSIRIS spectroscopy.

In order to investigate whether JWST NIRSpec IFU observations could recover the kinematics of $z\sim3\!-\!5$ massive quiescent galaxies accurately, we perform full 2D mock IFU simulations to investigate the recovery of spatially resolved velocities with pPXF (Cappellari Reference Cappellari2017). We use empirical SSPs from Villaume et al. (Reference Villaume, Conroy, Johnson, Rayner, Mann and van Dokkum2017) to generate mock 1.5 Gyr old galaxies with velocity dispersions consistent with the measurements in Esdaile Reference Esdaile2021b). These model spectra are input into the JWST ETC, including their physical size and properties determined from modelling using HST F160W band images. Several mock IFU cubes were then generated to obtain a suite of S/N values. Hernquist rotational models (Hernquist Reference Hernquist1990) were then applied to each simulated IFU observation, assuming a 45° inclination, with various rotational-to-velocity dispersion ratios ( $V_r/\sigma$ ) to simulate galaxies with rotational support. A Hernquist model is chosen as suitable for modelling a rotating spheroidal star system; the estimated mass and the scale length (taken to be the effective radius of the galaxy) produce the velocity profile. The Plummer model (Plummer Reference Plummer1911) produces similar rotational curves. Finally, we used pPXF on the instrument calibrated data to fit for radial velocity and velocity dispersion.

In Figure 11, we show the recovery of both 3D-EGS-18996 and 3D-EGS-40032 2D kinematics. We note that the JWST ETC outputs 0.1” spaxels which do not account for drizzling; however, we expect in practice that drizzling will improve the sampling compared to what is shown here. Given the compact sizes and sharp decrease in S/N per spaxel, binning to this IFU spaxel scale is likely optimal for signal, while still allowing sufficient spatial scale to infer rotation. To assess the S/N requirements for the mock observations, this analysis was repeated for different exposure times. We found that a median S/N ${\sim}7$ per spaxel is required in the adjacent to central pixels to recover a radial velocity and infer rotation with $>2\sigma$ confidence. At this S/N, $V_r/\sigma$ can be constrained to $V_r/\sigma {\sim}1.5$ in 3D-EGS-18996 and $V_r/\sigma {\sim}1.3$ in 3D-EGS-40032 and confirm rotational support in these galaxies. Additionally, this would limit the underestimation in dynamical mass from 0.4 dex (for a $V_r/\sigma {\sim}3$ ) to ${\sim}0.1\!-\!0.15\,\mathrm{dex}$ (from Equation (5) Belli et al. Reference Belli, Newman and Ellis2017a) in both galaxies and allow for high-precision IMF constraints without potential large systematic errors.
