Abstract

We present the data and initial results from the first pilot survey of the Evolutionary Map of the Universe (EMU), observed at 944 MHz with the Australian Square Kilometre Array Pathfinder (ASKAP) telescope. The survey covers $270 \,\mathrm{deg}^2$ of an area covered by the Dark Energy Survey, reaching a depth of 25–30 $\mu\mathrm{Jy\ beam}^{-1}$ rms at a spatial resolution of $\sim$ 11–18 arcsec, resulting in a catalogue of $\sim$ 220 000 sources, of which $\sim$ 180 000 are single-component sources. Here we present the catalogue of single-component sources, together with (where available) optical and infrared cross-identifications, classifications, and redshifts. This survey explores a new region of parameter space compared to previous surveys. Specifically, the EMU Pilot Survey has a high density of sources, and also a high sensitivity to low surface brightness emission. These properties result in the detection of types of sources that were rarely seen in or absent from previous surveys. We present some of these new results here.

Type
Research Article
Copyright
© The Author(s), 2021. Published by Cambridge University Press on behalf of the Astronomical Society of Australia

1. Introduction

Large radio surveys provide substantial samples of galaxies for studying cosmology. They also reveal rare but important stages of galaxy evolution and expand the volume of observed parameter space. Before the survey described here took place, about 2.5 million radio sources were known. That figure is about to increase by about two orders of magnitude (Norris Reference Norris2017a), primarily due to using innovative technology in the development of new radio telescopes and upgrading of older radio telescopes. These technological developments will enable several large radio surveys, which are expected to drive a rapid advance in knowledge. Figure 1 shows the historical growth of these surveys.

Figure 1. The number of known extragalactic radio sources discovered by surveys as a function of time, adapted from Norris (Reference Norris2017a). The symbols indicate the type of telescope used to make the survey, and are fully described in Norris (Reference Norris2017a). The dates and survey size are based on estimates made in 2017, and some later surveys (e.g. RACS McConnell et al. Reference McConnell2020, with 2.8 million sources) are missing from this plot. Survey abbreviations and references are given in Norris (Reference Norris2017a). The shading under the curve is merely to improve readability.

Figure 2. Some of the ASKAP antennas equipped with phased array feeds, located in the Murchison Region of Western Australia. Photo credit: CSIRO

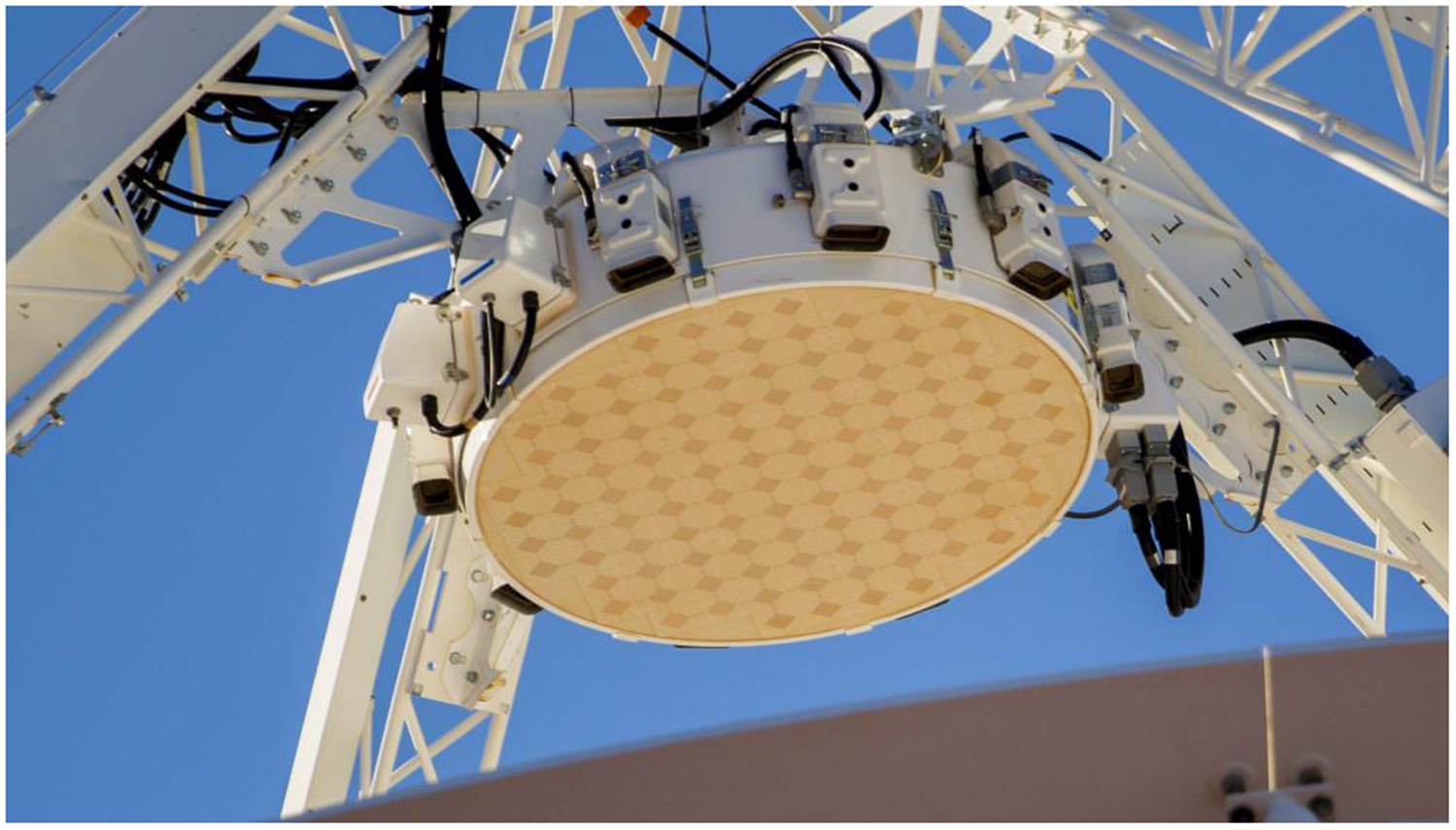

Figure 3. One of the phased array feeds. Each square on the chequerboard is an antenna element connected to two receivers. Photo credit: CSIRO

One of these new telescopes is the Australian Square Kilometre Array Pathfinder, (ASKAP, Johnston et al. Reference Johnston2007; Johnston et al. Reference Johnston2008; McConnell et al. Reference McConnell2016; Hotan et al. Reference Hotan2021) which consists of 36 12-m antennas spread over a region 6 km in diameter at the Murchison Radio-astronomy Observatory in Western Australia, shown in Figure 2. At the focus of each antenna is an innovative phased-array feed (PAF: Hay et al. Reference Hay, O’Sullivan, Kot, Granet, Lacoste, Ouwehand and Special Publication2006) of 94 dual-polarisation pixels (Figure 3). As a result, ASKAP has an instantaneous field of view up to $30 \,\mathrm{deg}^2$ , producing a much higher survey speed than that of previous synthesis arrays. The antennas are a novel three-axis design, with the feed and reflector rotating to ensure a constant position angle of the PAF and sidelobes on the sky.

The first all-sky survey undertaken by ASKAP was the Rapid ASKAP Continuum Survey (McConnell et al. Reference McConnell2020) which surveyed the entire sky south of Declination $+41^{\circ}$ to a median rms of about 250 $\mu\mathrm{Jy\ beam}^{-1}$ . Apart from its astrophysical importance, this survey will also generate a sky model (Hale et al., in preparation) to facilitate the calibration of subsequent deeper observations with ASKAP.

ASKAP will conduct a deep all-sky continuum survey known as the Evolutionary Map of the Universe (EMU: Norris et al. Reference Norris2011). The primary goal of EMU is to make a deep (10–20 $\mu\mathrm{Jy\ beam}^{-1}$ rms) radio continuum survey of the entire southern sky, extending as far north as $+30^{\circ}$ . EMU is expected to generate a catalogue of as many as 70 million galaxies.

In preparation for the full EMU survey, we conducted the EMU Pilot Survey (EMU-PS) with the goal of testing the planned EMU survey strategy and the processing pipeline. In designing the pilot survey, we adopted the following boundary conditions:

  • Declination $ < -30 ^{\circ} $ (to avoid potentially poor u,v coverage near the equator).

  • Galactic latitude $ > +20 ^{\circ} $ (to avoid the strong diffuse emission in the Galactic plane).

  • Sufficiently far from the Sun to avoid solar interference, or night-time observation.

  • A single area of 240–300 $\mathrm{deg}^2$ , of 10–12 h observations each on contiguous fields, to form a rectangular area. Cosmological analyses are optimised if the area is as square as possible.

  • Fields overlapped by a small amount to provide uniform sensitivity.

  • Frequency band chosen to avoid any radio frequency interference and maximise survey speed, subject to constraints on resolution and confusion.

  • Field that is well studied at other wavelengths to maximise the scientific value.

These boundary conditions were satisfied by the survey described in this paper. The survey specifications are given in Table 1.

Table 1. EMU Pilot Survey specifications.

An area of sky within the Dark Energy Survey (DES: Abbott et al. Reference Abbott2018) was chosen so that we could access the excellent optical photometric data available from DES. EMU and DES have a Memorandum of Understanding that enables data to be shared between the two projects.

The observations were taken and processed in late 2019. It should be emphasised that, at the time of observation, commissioning of the telescope and its processing software were not yet complete, so that there are known telescope issues and processing deficiencies which were not yet addressed. As a result, the images show some artefacts, and the rms noise level is about twice as high as we expect in the final EMU survey. Nevertheless, this is still the largest radio survey ever completed at this depth, and so a great deal of valuable science results are being obtained, some of which are discussed briefly in this paper.

Section 2 of this paper describes the observations, and Section 3 describes the data reduction. Section 4 describes the ‘value-added’ data processing, and Section 5 presents the results and data access. Section 6 presents some preliminary science results.

1.1. Nomenclature and conventions

Throughout this paper and in the catalogue, we use source names in the format EMU PS JHHMMSS.S $-$ DDMMSS and we define spectral index $\alpha$ in terms of the relationship between flux density S and observing frequency $\nu$ as $S \propto \nu^{\alpha}$ .

For consistency among science results derived from EMU-PS data, we encourage the use of a consistent set of cosmological parameters in papers reporting results from EMU-PS. Here we assume a flat $\Lambda$ CDM model, with parameter values taken from the mean posterior of the Planck 2018 cosmology, from paper VI (Planck Collaboration et al. 2020), using a combination of Planck data, but with no extra, non-Planck data (e.g. no Baryon Acoustic Oscillation data). This results in the parameter set shown in Table 2.

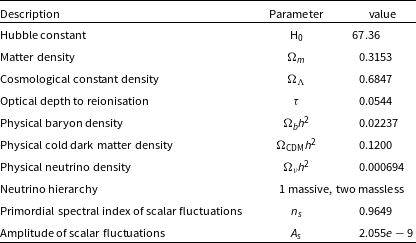

Table 2. Cosmological parameters used in this paper and adopted for EMU-PS.

2. Observations

ASKAP has 36 antennas, all but 6 of which are within a region of 2.3 km diameter, with the outer 6 extending the baselines up to 6.4 km. In all pilot survey observations, as many of the 36 antennas were used as possible. However, in some cases, a few antennas were omitted because of maintenance or hardware issues. The actual number of antennas used is shown in Table 3.

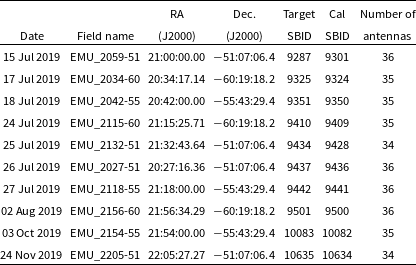

Table 3. EMU pilot observation details.

The position shown is the antenna pointing centre, corresponding to position (0,0) in Figure 4. Columns 5 and 6 show the ASKAP scheduling block identification (SBID) number for the target and calibrator observations.

At the prime focus of each antenna is a phased array feed (PAF), which subtends a solid angle of about $30 \,\mathrm{deg}^2$ of the sky. The PAF consists of 188 single-polarisation dipole receivers. A weighted sum of the outputs of groups of these receivers is used to form 36 dual-polarisation ‘beams’. Individual dipole receivers will, in general, contribute to more than one beam, so that adjacent beams are not completely independent. The 36 beams together cover an area of about $30 \,\mathrm{deg}^2$ on the sky, which we refer to as a ‘tile’.

There are several ways of arranging the individual beams within the tile. For EMU-PS, we use a hexagonal arrangement of the 36 beams with 6 rows of 6 beams, known as ‘closepack36’ (Hotan et al. Reference Hotan2021), shown in Figure 4. This configuration provides more uniform coverage than the widely used rectangular array known as ‘square_6x6’. The spacing between the beams is known as the ‘pitch’ and is set to $0.9^{\circ}$ for EMU-PS. In some other ASKAP observations, interleaved observations are taken, with the antenna pointing position shifted by half the pitch, to provide better uniformity. However, this is not necessary for the EMU-PS because of the combination of our lower observing frequency and the closepack36 configuration.

Figure 4. The arrangement of the 36 ASKAP beams in the ‘closepack36’ configuration. The beams are numbered from 0 to 35 (diagram adapted from McConnell et al. Reference McConnell2019). The circles shown are for illustration only. For EMU-PS, the actual full width half maximum of each beam is ${\sim}1.5^{\circ}$ at the band centre, and the pitch spacing is $0.9^{\circ}$ , giving an approximately uniform sensitivity over the field of view.

The weights of the individual beams are initially calibrated by observing the Sun, placed successively at the centre of each beam, and then adjusting the weights for maximum signal-to-noise ratio. A radiator at the vertex of each antenna (the On-Dish Calibrator, or ODC) enables the gain of each receiver to be monitored, and the weight solution initially obtained from solar observations may be updated if necessary using these ODC measurements.

Before (or sometimes after) the observation of each target, the calibrator source PKS 1934–638 is observed for 200 s at the centre of each of the 36 beams to provide bandpass and gain calibration. This calibration observation takes about 2 h.

The positions of the tiles are chosen using a tiling scheme which will be used for the main EMU survey, shown in Figure 5. At most declinations, the tiles are aligned with lines of constant declination. At the south polar cap (below declination $-71.81^{\circ}$ ), they are arranged in a rectangular grid as shown in Figure 5. Using this scheme, the sky south of Declination $+30^{\circ}$ is covered by 1 280 tiles. Overlaps between tiles amount to less than 5% of the total area covered.

Figure 5. The sky tiling scheme adopted for the EMU-PS. The red rectangles covering the celestial sphere show the tiles planned for the EMU survey, and the orange area indicates the 10 tiles of the EMU-PS. The white strip shows the Galactic plane, and the south celestial pole is at the bottom of the figure.

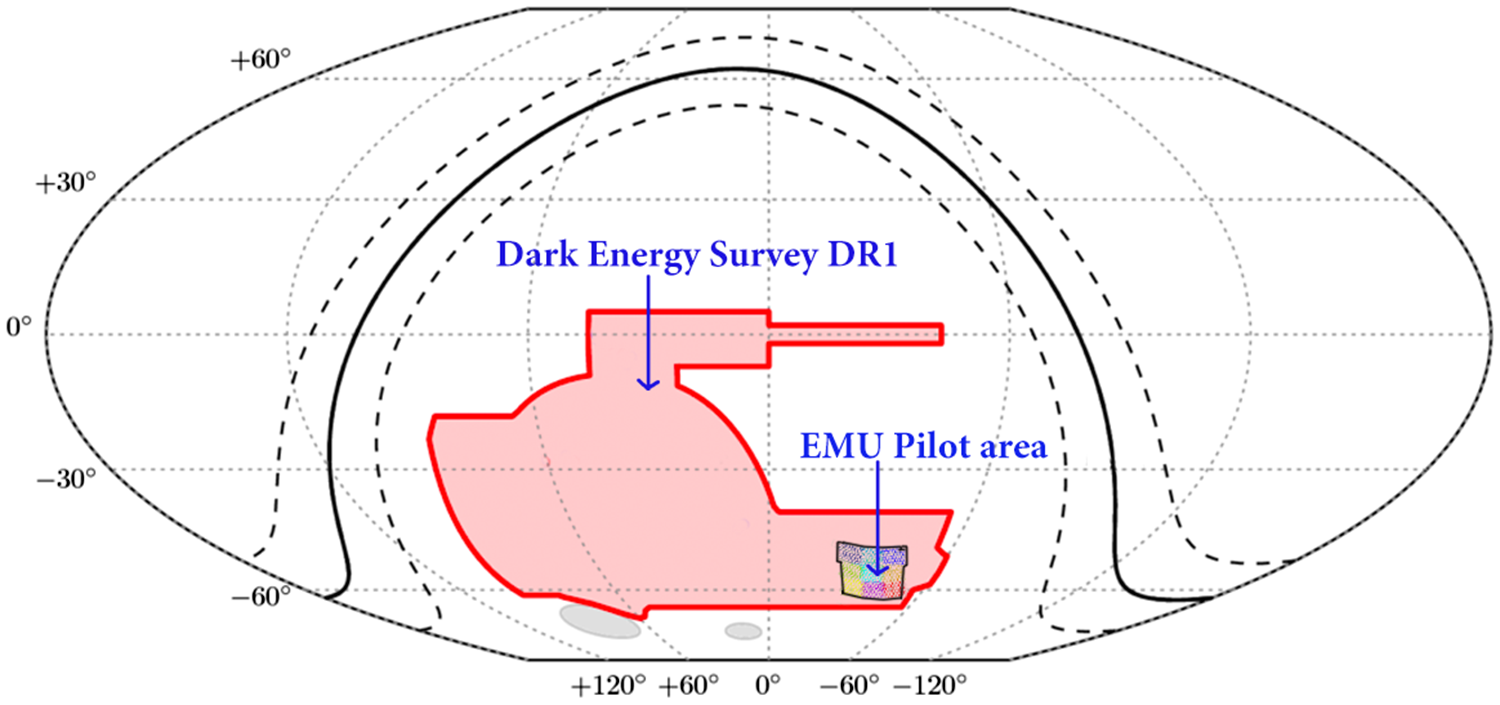

Figure 6. The location of the EMU Pilot Survey area on the sky within DES DR1, adapted from Abbott et al. (Reference Abbott2018). The diagram is in equatorial coordinates, and the solid line marks the Galactic plane, flanked by two dashed lines showing Galactic latitude $\pm 10 ^{\circ}$ .

The pilot survey was observed with ASKAP in the period from 2019 July 15 to 2019 November 24. In some cases, the initial observations were subsequently found to be faulty, in which case the field was re-observed. Table 3 shows the details of the observations that were used in the final data product.

The survey consists of a 10-h observation of each of the 10 tiles, each accompanied by a calibration observation as described above. No further calibration is performed during the observation. The location of the survey area is shown in Figure 6, and the details of the pointing centres are shown in Table 3 and in Figure 7.

3. Pipeline data reduction

We process the data using the ASKAPsoft pipeline (Whiting et al. Reference Whiting, Voronkov and Mitchell2017; Whiting Reference Whiting, Ballester, Ibsen, Solar and Shortridge2020; Guzman et al. Reference Guzman2019) with the parameters shown in Table 4, and using 2-arcsec square pixels. All parameter names, shown in italics in this section, are included in Table 4.

Table 4. EMU pilot processing parameters. The first column shows the parameter name used by ASKAPsoft.

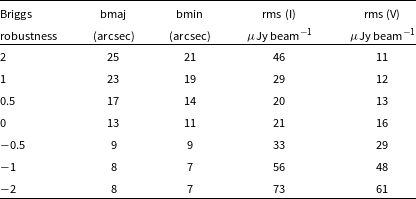

Table 5. Results of tests to measure the optimum robustness.

Tests were conducted at 888 MHz, using a 10-h ASKAP observation on arrays of 33 (for Stokes V, using SB8129 on a field close to UV Ceti) and 35 (for Stokes I, using SB8137 on the GAMA23 field) antennas. Columns 2 and 3 given the major and minor axes of the restoring beam, and columns 4 and 5 gives the measured rms values in (a) a source-free region of the Stokes I image, and (b) the Stokes V image, which is almost source-free. The results have been scaled to a 10-h observation on an array of 36 antennas.

The ASKAP correlator generates 16384 spectral line channels and, for EMU data, we start by averaging these to 288 1-MHz channels to reduce the computational load (i.e. $DO\_SPECTRAL\_$ $ IMAGING = true$ and $DO\_CONTCUBE\_ $ $ IMAGING = true$ )

Weighting and tapering in ASKAPsoft are done using a Wiener filter preconditioning technique, which is computationally more efficient than traditional tapering and weighting. (i.e. $ RESTORE\_PRECONDITIONER\_LIST = [Wiener, Gaussian$- $Taper]$ ) for the main and alt image respectively

To choose the robustness (Briggs Reference Briggs1995), we conducted tests on part of the GAMA23 field (at about Right Ascension 23:00, Declination $-$ 32:00; Leahy et al. (Reference Leahy2019), Prandoni et al., in preparation), in both Stokes I (total intensity) and Stokes V (circular polarisation) resulting in the values shown in Table 5. At lower (more negative) values of robustness, the rms increases because the near-uniform weighting discards information. At higher (more positive) values of robustness, corresponding to near-natural weighting, the V rms continues to decrease but the I rms increases presumably because of (a) confusion, (b) poorer u,v coverage leading to increased sidelobes, (c) increased radio frequency interference on short baselines. Based on these results, we choose a robustness of 0.0 as an optimum value for the EMU-PS, that is, $PRECONDITIONER\_WIENER\_ROBUSTNESS=0.0$ . Although robustness +0.5 has a slightly lower rms, it has a significantly increased beam size. No further tapering is used in the main image.

Figure 7. The arrangement of the ten individual ASKAP tiles on the sky for EMU-PS with their SBID numbers as listed in Table 3. The rectangles are separated in this diagram for clarity, but there is actually overlapping coverage as illustrated by the greyscale background.

The non-coplanarity of ASKAP is managed using the w-projection technique (Cornwell et al. Reference Cornwell, Golap and Bhatnagar2008; Rau et al. Reference Rau, Bhatnagar, Voronkov and Cornwell2009), using a total of 557 w-planes (i.e. $GRIDDER\_NWPLANES=557$ ). The data are gridded using multi-frequency synthesis and deconvolved using a multi-frequency multiscale CLEAN, using $CLEAN\_SCALES$ of [0,6,15,30,45,60] pixels, which gives 6 scales up to 10 times the clean beam size. After initial imaging and cleaning (using 5 major cycles: $CLEAN\_NUM\_MAJOR\_CYCLES$ , with 400 iterations in each minor cycle, down to a limit of 0.25 mJy), the data are given one iteration of phase selfcal using the output of the previous CLEAN (i.e. $SELFCAL\_METHOD=CLEAN$ ) before the final imaging and cleaning (15 major cycles with up up to 3000 iterations in each minor cycle, with minor cycles triggering a major cycle when they reach a 30% CLEAN limit, to a clean limit of $30 \,\mu\mathrm{Jy}$ , i.e. $CLEAN\_THRESHOLD\_MINORCYCLE$ ). Two images are produced by the pipeline: the main image at full resolution and an alternative (‘alt’) image tapered to a 30-arcsec resolution, which is optimised for faint diffuse emission. The alt image is not used in this paper.

The multi-frequency synthesis imaging uses a Taylor term technique (Rau & Cornwell Reference Rau and Cornwell2011) over the 288-MHz bandwidth to account for the spectral variation of each source. We use two terms in the Taylor expansion, resulting in two planes called TT0 and TT1. The TT0 plane is the zeroth-order term, corresponding to the total intensity of each pixel integrated over the full bandwidth. TT1 is the first-order term and allows the spectral indices at each pixel to be measured as $\alpha$ = TT1/TT0.

Primary beam correction is applied to each beam, and beams are combined using a weighted mean down to a cut-off of 20% of the peak (i.e. $LINMOSCUTOFF =0.2$ ) assuming a Gaussian primary beam shape. Future ASKAP surveys will use a beam shape based on holographic measurements, but that was not available for EMU-PS. Using the Gaussian beam approximation increases calibration errors and the rms noise level.

Source extraction uses the ‘ Selavy’ software tool (Whiting & Humphreys Reference Whiting and Humphreys2012; Whiting et al. Reference Whiting, Voronkov and Mitchell2017) which identifies ‘islands’ of emission higher than three times the local rms in the image, using a flood-fill technique, and then fits Gaussian components to peaks of emission within the islands. Only components and islands greater than five times the local rms are retained.

In the EMU initial public data release (defined in Section 5.1), spectral indices for individual components are measured as $\alpha$ = TT1/TT0, where TT0 and TT1 are a weighted mean of the Taylor terms over the area of the component, down to a level of five times the local rms noise. However, this technique has been found to be unsatisfactory, so the spectral indices in the initial public data release should be regarded as unreliable. Our alternative technique is discussed below in Section 4.4

As a final step within the pipeline, the data from each scheduling block are uploaded to the data archive (but not yet released) and passed through the ASKAP continuum validation packageFootnote a using default parameters. This package takes the final image, noise map, and Selavy catalogue as input and produces metrics and data quality flags based on a number of validation testsFootnote b. The following metrics are used for each of these tests using ASKAP data only:

  • Fraction of sources considered resolved, given by the difference in the integrated ( $S_{\rm int}$ ) and peak ( $S_{\rm peak}$ ) flux densities, and local noise $\sigma$ . We consider a source to be resolved when ( $S_{\rm int} - S_{\rm peak}) / \sqrt{dS_{\rm int}^2 + dS_{\rm peak}^2 + \sigma^2} > 3$ , where $dS_{\rm int}$ and $dS_{\rm peak}$ are the estimated measurement errors in $S_{\rm int}$ and $S_{\rm peak}$

  • Reduced $\chi^2$ of differential Euclidean source counts

  • Median RMS value (from Selavy noise map)

  • Median in-band spectral index (from Selavy catalogue, measured from Taylor term images)

Figure 8. An example validation report for one of the processing runs for SB9325, including the metrics and their flags. A higher-resolution version is available online2.

The following additional metrics are used with respect to selected point sources, cross-matched to the reference catalogue that provided the most matches, which for the pilot, is SUMSS (Mauch et al. Reference Mauch, Murphy, Buttery, Curran, Hunstead, Piestrzynski, Robertson and Sadler2003), which has a resolution of $\sim$ 45 arcsec at an observing frequency of 843 MHz:

  • Median absolute deviation (MAD) of the ratio of the flux density of the reference catalogue to the ASKAP flux density, after correcting for the frequency difference assuming $\alpha = -0.8$ ,

  • Flux density ratio uncertainty, calculated from the MAD

  • Positional offset, given by the median compared to reference catalogue

  • Positional offset uncertainty, calculated from the MAD

An example reportFootnote c for one of the processing runs for SB9325 is shown in Figure 8, including a summary of the metrics and their flags. Each metric is flagged as good, bad, or uncertain based on selected tolerance valuesFootnote d. The metrics and flags are associated and archived with the data, and the validation reports are automatically uploaded as a report under project AS101Footnote e.

The final validation process is done by members of the EMU team and includes

  • inspecting each of the validation reports described above,

  • inspecting the images to search for artefacts,

  • examining quantities such as the variation of restoring beam among the 36 beams used in the mosaic.

Data deemed to be acceptable are then released to the public domain on the data archive, described in Section 5.1. If the data are not found to be acceptable, then the data are removed from the archive and we request a re-observation.

4. Value-added processing

To mitigate some of the data issues in the initial public data release and to produce a unified image and source catalogue covering the full EMU-PS field, we conduct value-added processing on the initial public data release to generate a value-added data release. This value-added processing also includes some optical and infrared ancillary data, as described below.

4.1. Merging tiles

The initial public release of the survey data consists of 10 overlapping tiles, each with its own source catalogue. Simply merging these catalogues generates a large number of duplicate sources, which must be reconciled to maximise the information integrity and consistency. This approach also fails to take full advantage of the additional information, such as increased sensitivity, available where tiles overlap.

To overcome these issues, we merged the 10 tiles in the image plane using the ASKAPsoft task linmos, which performs a weighted average of the data in overlapping regions. The merged data set is shown in Figure 9. We refer to this image, which has a typical spatial resolution of 11–13 arcsec, as the ‘native resolution image’.

Figure 9. The resulting native resolution ( $13'' \times 11''$ ) image of the $270 \,\mathrm{deg}^2$ EMU Pilot Survey, containing about 220 000 radio sources. The rms noise level is 25–30 $\mu\mathrm{Jy\ beam}^{-1}$ , and the peak flux density is $3.14 \mathrm{Jy\ beam}^{-1}$ .

4.2. Convolution to a common restoring beam size

A problem with the native resolution image is that the point spread function (psf) varies from beam to beam over the field, so that both the flux density scale and also the spectral indices vary from beam to beam. To overcome this problem, we created a version of the data in which each PAF beam is individually convolved with a Gaussian kernel to obtain a common circular restoring beam of 18 arcsec FWHM. We then recombined all beams into a weighted average using the ASKAPsoft task linmos. We refer to this data set as the ‘convolved image’.

We then ran the Selavy source finder on the convolved image, to produce a catalogue of components and islands. This convolved catalogue has 220 102 components. These ‘convolved’ data are recommended over the ‘native’ data product for the measurements of flux density and spectral index. However, the data products in native resolution are still optimum for studies of morphology, or when the higher resolution is needed.

4.3. Separation of sources into simple and complex

Many value-added operations, such as measuring spectral index, and cross-identifying to optical/IR catalogues, are far more complex for extended or complex sources than for simple, compact sources. These techniques are still under development for the full EMU survey.

We therefore divided the source catalogue into ‘simple’ and ‘complex’ sources. A sophisticated technique for this separation is still under development, so for the purposes of this paper we used a simple technique in which we defined islands with only one component (specifically, with has_siblings $>$ 0) to be simple, and all other islands are defined to be ‘complex’. This technique results in a catalogue of 178 921 components, so that about 81% of sources in the catalogue are ‘simple’.

Many ‘complex’ sources are classical FRI or FR II sources (Fanaroff & Riley Reference Fanaroff and Riley1974), but our high sensitivity to low surface brightness has also enabled the detection of several peculiar-looking sources that are quite unlike those seen in earlier surveys such as NVSS (Condon et al. Reference Condon, Cotton, Greisen, Yin, Perley, Taylor and Broderick1998) or FIRST (White et al. Reference White, Becker, Helfand and Gregg1997). In Section 6, we discuss a small sample of these peculiar objects, which will be further explored in subsequent papers.

We expect about half of the ‘simple’ sources to be star-forming galaxies (SFGs), with the remaining half to be AGN. It is this simple sample for which we obtain multiwavelength data in this paper.The rest of the value-added processing described here is concerned only with this simple catalogue, and the value-added processing of the complex sources will be described in a future paper (Marvil et al., in preparation).

In Table 6, we list the numbers of sources remaining at each stage of the value-added processing.

4.4. Spectral indices

Spectral indices of the simple sources are measured over the 288-MHz bandwidth of ASKAP using the Taylor term technique described above. We measure spectral indices by calculating them from the Taylor terms at the peak pixel of each component, in the convolved data set. Note, as discussed above, that this procedure differs from that in the initial public data release, which we consider to be unreliable.

Table 6. Numbers of sources remaining after each stage of the value-added processing.

Asterisked rows are shown for information but are not used in the subsequent selection step. Photometric redshifts are taken from Zou et al. (Reference Zou, Gao, Zhou and Kong2019), Zou et al. (Reference Zou, Gao, Zhou and Kong2020), and Bilicki et al. (Reference Bilicki2016).

We also explored using the third Taylor term, which would measure spectral curvature, but found that very few sources had a measurable spectral curvature in the 288-MHz bandwidth of these observations. More importantly, we found that introducing a third Taylor term increased the uncertainty in the first two Taylor terms without increasing the accuracy, presumably because we are introducing a third free parameter which is primarily driven by noise.

The distribution of the resulting spectral indices as a function of flux density is shown in Figure 10. Based on the noise measured in the TT1 image, the $1\sigma$ spectral index uncertainty of a source with flux density S mJy is $0.25 / S$ . The spectral index of a 2.5-mJy source, therefore, has a standard error of $\sim$ 0.1, and spectral indices of sources weaker than this will be increasingly uncertain.

Figure 10. The measured spectral index as a function of flux density. The two solid lines show the 3 $\sigma$ uncertainty for a source of spectral index -0.8. Note the excess of sources with a positive spectral index, discussed in Section 6.9.

A histogram of the spectral indices for the 10458 sources with flux density $>$ 2.5 mJy is shown in Figure 11. The peak is at a spectral index of –0.7, as expected for surveys of mJy radio sources, with a tail of steeper spectrum sources extending to $\alpha < -1.3$ . Such ‘ultra-steep spectrum sources’ are well known in the literature (e.g. Afonso et al. Reference Afonso2011) and can be an indicator of high redshift sources. There is also an unexpected tail of sources with positive spectral indices. Such sources are also well known (e.g. Healey et al. Reference Healey, Romani, Taylor, Sadler, Ricci, Murphy, Ulvestad and Winn2007) but are relatively rare. Here, however, they appear to constitute a significant fraction of EMU-PS sources. This is discussed further in Section 6.9.

Figure 11. A histogram of measured spectral index as a function of flux density, for the 10458 sources with flux density $>$ 2.5 mJy.

Figure 12. The fraction of simple radio sources (as listed in Table 6) matched with a CWISE source as a function of separation, both for unshifted data and for data shifted by one arcmin.

4.5. Multi-wavelength cross-identifications and redshifts

For cross-identifying simple sources, we use a simple nearest-neighbour cross-identification algorithm and show below that this gives an acceptable completeness and false-ID rate. Norris et al. (Reference Norris2006) found that cross-matching with 3.6- $\mu$ m Spitzer infrared data and then cross-matching the infrared with optical gave a lower false-ID rate than matching radio with optical directly. We therefore adopt this procedure here, and first match the radio against the W1 band (3.4 $\mu$ m) of the CATWISE2020 catalogue (Marocco et al. Reference Marocco2021), hereafter referred to as ‘CWISE’, and then cross-match the CWISE positions against the DES DR1 optical catalogue (Abbott et al. Reference Abbott2018).

We measured the number of cross-matches between the radio and the infrared as a function of separation, and then estimated the false-ID rate by shifting the radio positions by 1 arcmin and then repeating the cross-match. The result is shown in Figure 12. The choice of an optimum search radius depends on the application (i.e., whether the goal depends on maximising the number of cross-matches or minimising the number of false-IDs). In producing the cross-matched catalogue, we include all cross-matches up to a search radius of 10 arcsec so that users can choose their optimum search radius, but for further work herein we limit our analysis to a maximum search radius of 3 arcsec, at which we find an 8% false-ID rate and a 75% total cross-match rate (which includes the false-IDs). The resulting numbers of sources are listed in Table 6.

Because of the high numbers of faint CWISE sources, we also explored the effect of introducing a cut-off in the CWISE flux densities, so only the brighter sources would be cross-matched to radio sources, but found that had a negligible effect on the false-ID rate, while significantly reducing the number of true IDs, and so no cut-off is used.

To cross-match the CWISE IR positions against DES optical positions, we again explored the false-ID rate and the total-ID rate as a function of search radius, and show the results in Figure 13. As a result, we adopt a search radius of 2 arcsec. The resulting numbers of sources are listed in Table 6.

Figure 13. The fraction of radio sources with a CWISE position matched with a DES DR1 source as a function of separation, both for unshifted data and for data shifted by one arcmin.

There is no major spectroscopic redshift survey covering the EMU-PS field, but a large number of photometric redshifts are available from Bilicki et al. (Reference Bilicki2016) (using their ‘main’ catalogue), and from Zou et al. (Reference Zou, Gao, Zhou and Kong2019; Reference Zou, Gao, Zhou and Kong2020), and we also include those in the catalogue. Throughout the rest of this paper, redshifts given without a citation refer to these redshifts used in the EMU-PS catalogue.

4.6. Astrometric precision

For each source that was cross-matched with a CWISE catalogue source, we measured the offset in position, as a check on the precision of the positions of the radio components. The result is shown in Figure 14, showing a mean offset of $\sim$ 0.3 arcsec, which is small compared to the 18 arcsec resolution of the convolved data. The positions in the catalogue have not been corrected for this insignificant offset.

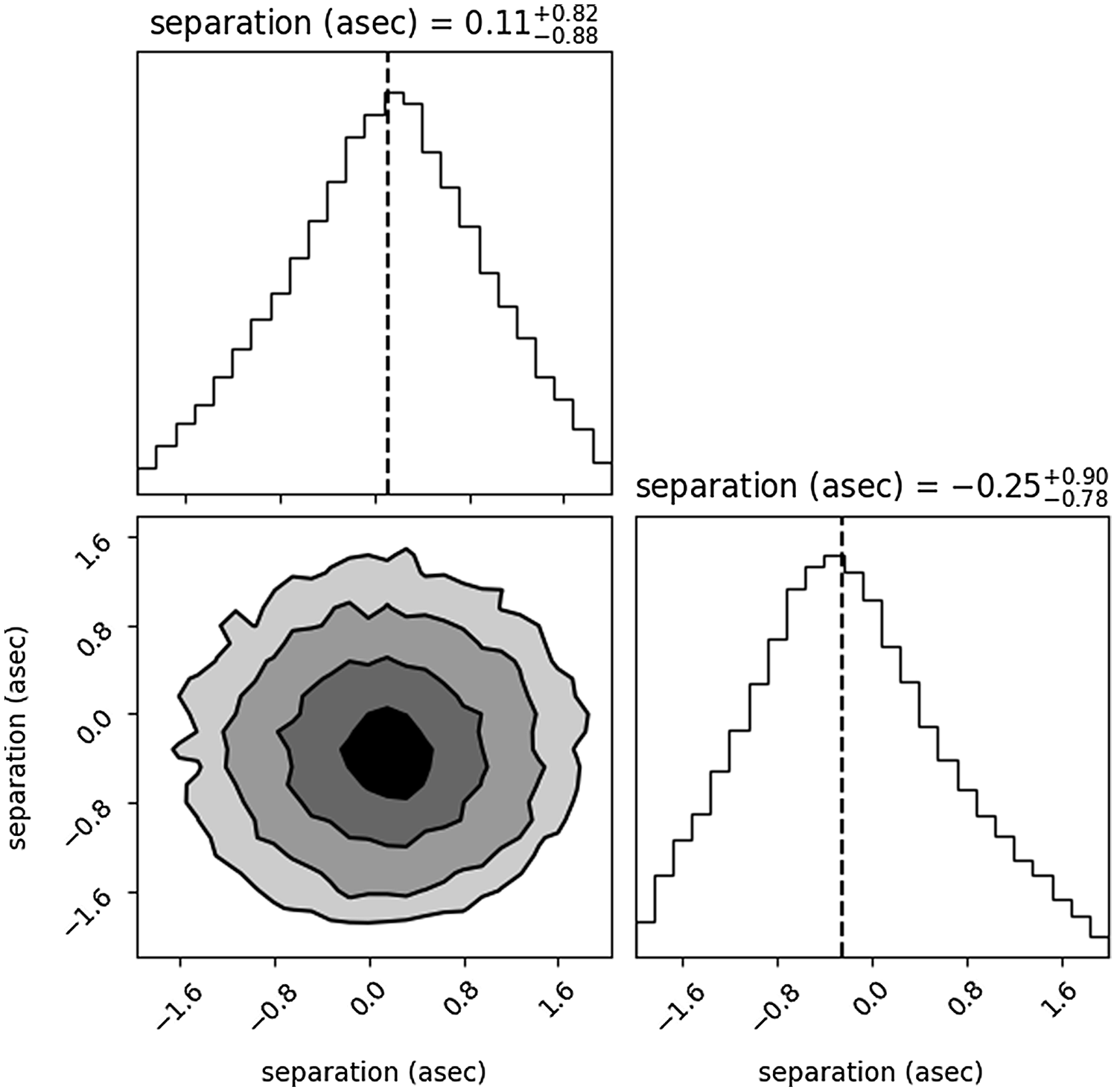

Figure 14. A plot showing the difference in position of radio sources compared to the matching CWISE source in the W1 band, showing a mean offset of $\sim$ 0.3 arcsec, which is small compared to the 18 arcsec resolution of the convolved data. The horizontal axis is Right Ascension and the vertical axis is Declination.

Figure 15. The ratio of peak flux densities between EMU-PS and SUMSS for simple sources with EMU-PS flux densities $>$ 6 mJy, and with catalogued positions within 3 arcsec.

4.7. Flux density accuracy

To estimate the flux density accuracy, we select EMU-PS sources stronger than 6 mJy (the minimum flux density for sources in the SUMSS (Mauch et al. Reference Mauch, Murphy, Buttery, Curran, Hunstead, Piestrzynski, Robertson and Sadler2003) catalogue) and cross-match them to SUMSS sources using a 3-arcsec search radius, which selects about 50% of the SUMSS sources, and tends to exclude the very extended SUMSS sources. We then calculate the ratio of peak fluxes in the EMU-PS and SUMMS catalogues. The result is shown in Figure 15.

Figure 16. A typical section of the survey field, covering about $0.3 \,\mathrm{deg}^2$ (or about one thousandth of the area of the EMU Pilot Survey) which contains about 250 radio sources). On the left is the SUMSS image (Mauch et al. Reference Mauch, Murphy, Buttery, Curran, Hunstead, Piestrzynski, Robertson and Sadler2003) and on the right is the EMU-PS image. Prominent in this image is the Giant Radio Galaxy ESO 234-68. The maximum flux density of ESO 234-68 in the EMU-PS image is $58.8 \mathrm{mJy\ beam}^{-1}$ , and that of the strong source at the bottom of the image (PMN J2045-5135) is $1.06 \mathrm{Jy beam}^{-1}$ . The rms of the EMU-PS image is 25–30 $\mu\mathrm{Jy\ beam}^{-1}$ , and that of the SUMSS image is ${\sim}1.25\ \mathrm{mJy\ beam}^{-1}$ .

Ideally, we would convolve the EMU-PS to the 45-arcsec resolution of SUMSS and then repeat the source extraction, but then it would not be matched to the EMU-PS value-added catalogue. Because we have not done this convolution, some SUMSS peak flux densities are boosted by components which are included in the SUMSS beam but not in the EMU-PS beam. This increases the scatter of the ratios so that the measured scatter in the ratio is an overestimate of the uncertainty in the EMU-PS flux density scale.

We note the following features of Figure 15.

  • The EMU-PS central frequency of 944-MHz differs from the SUMSS central frequency of 843 MHz, and, assuming a spectral index of –0.8, we expect the peak of the distribution to occur at a ratio of ${\sim}(944/843)^{0.8} = 1.09 $ as observed.

  • The histogram is more extended on the right, presumably because of the larger size of the SUMSS beam which will boost the SUMSS peak flux as discussed above.

  • The left of the histogram is approximately Gaussian with a standard deviation of $\sim$ 0.12.

We therefore estimate our flux density scale uncertainty for strong sources to have a maximum value of $\sigma \sim$ 12%. To this should be added in quadrature the estimated flux density scale standard error for SUMSS of 3% (Mauch et al. Reference Mauch, Murphy, Buttery, Curran, Hunstead, Piestrzynski, Robertson and Sadler2003).

The measured flux density of weaker sources will be degraded by a factor of 1/SNR, where SNR is the local signal-to-noise ratio. As we have rejected sources from the EMU-PS catalogue with SNR $<$ 5, this may add an uncertainty of up to 20% (to be added in quadrature) to the quoted flux densities of weak sources.

5. Results

5.1. Data summary and access

The EMU-PS has produced an image of about $270 \,\mathrm{deg}^2$ of the radio sky at 944 MHz, with a spatial resolution of $\sim$ 11–13 arcsec and an rms sensitivity of $\sim$ 25–30 $\mu\mathrm{Jy\ beam}^{-1}$ .

A problem with large surveys is that it is difficult to convey the scale and depth of the image in a journal paper. Figure 9 shows the entire native resolution image, and Figure 16 shows a random section of it, which covers about one thousandth of the area of the EMU-PS. An interactive interface to the image of the entire survey field in HiPS format is available on http://emu-survey.org.

After observing, processing, and validation by the EMU survey team, the data from each observation are placed on the CSIRO ASKAP Science Data Archive (CASDA) data server and made available to the public as described below. These data consist of all the data from each day’s observations, known as a ‘tile’, including images and tables of extracted components and islands. We call this catalogue the EMU Pilot Initial Public Data Release. The validation metrics and flags are associated with each tile and are fully queryable via table access protocol (TAP).

The data are then processed by merging tiles into a common image covering the whole field of the EMU-PS. The resulting data release of this image is called the ‘native’ value-added data release.

As described in Section 4, we then smooth the native resolution image to a constant resolution of 18 arcsec, perform source extraction, and separate the resulting catalogue of 220 102 components into simple, single, components (81%), and more complex sources (19%). We also perform cross-identifications of the simple sources with other available multiwavelength products.

We call this science-ready data set the ‘Convolved’ data set. The resulting image for an area of sky covering an object of interest is shown in Figure 17, which shows the three data products: the initial public data release, the added-value ‘native’ data release with 11–13 arcsec resolution, and the added-value ‘convolved’ data release with 18 arcsec resolution.

Figure 17. A sample of the final image, showing the three data products on a region, covered by three tiles, containing two of the ‘Odd Radio Circles’(Norris et al. Reference Norris2021): (a) the initial public data release from a single tile (SB9351) (resolution 11 $\times$ 13 arcsec, rms = $40 \,\mu\mathrm{Jy\ beam}^{-1}$ , (b) the added-value ‘native’ data release with 11 $\times$ 13 arcsec resolution, from the merged tiles, rms = 25 $\mu\mathrm{Jy\ beam}^{-1}$ , and (c) the added-value ‘convolved’ data release with 18 arcsec resolution, rms = 25 $\mu\mathrm{Jy\ beam}^{-1}$ . The peak flux density in this image is $4.6\ \mathrm{mJy\ beam}^{-1}$ .

All three data products from the EMU-PS (the initial public data release, the added-value ‘native’ data release with 11–13 arcsec resolution, and the added-value ‘convolved’ data release with 18 arcsec resolution) are released via the CASDA data server described below. The initial public data release is currently available in the public domain, but the two added-value data releases are available only to EMU members for a proprietary period of 1 year from the date of publication of this paper, after which they will be released into the public domain. However, EMU is an open collaboration, and other astronomers are welcome to join the project, and access the proprietary data, provided they agree to the EMU data and publication policies.

The EMU-PS initial public release data in the CASDA are open to the public domain. To download data from CASDA, users need to obtain a CASS Online Proposal Applications and Links (OPAL) accountFootnote f.

CASDA is described in detail by Chapman et al. (Reference Chapman, Dempsey, Miller, Heywood, Pritchard, Sangster, Whiting, Dart, Lorente, Shortridge and Wayth2017) and Huynh et al. (Reference Huynh, Dempsey, Whiting, Ophel, Ballester, Ibsen, Solar and Shortridge2020). In brief, CASDA is implemented across two data centres, the Pawsey Supercomputing Centre in Perth and the CSIRO data centre in Canberra. So-called ‘backend’ functions such as deposit, storage, and data access are implemented at Pawsey, while the ‘frontend’ functions such as the user interface and authentication are implemented at the CSIRO data centre.

The simplest way to access the data is via the CASDA web user interface. From the CASDA webpageFootnote g, select ‘Access CASDA via the Data Access Portal’, to be taken to the Observation Search user interface. EMU-PS data can be obtained by searching for ‘Released’ data under project code AS101. EMU-PS data have Digital Object Identifiers (DOIs) which provide a persistent resolvable link to the data. Table 7 gives the DOI for each data product discussed in this paper. The DOI links to the collection page; from there click on ‘files’ and select the files to download.

CASDA also implements several Virtual Observatory services to maximise the usability and interoperability of ASKAP data products and allow for automated scripted access. For example, the TAP can be used to search for EMU-PS observations under project code AS101, using an application such as TOPCAT (Taylor Reference Taylor, Shopbell, Britton and Ebert2005) or Aladin (Boch & Fernique Reference Boch, Fernique, Manset and Forshay2014; Bonnarel et al. Reference Bonnarel2000). A CASDA module has recently been added to the Python astropy astroqueryFootnote h package. Using this Python API, the EMU-PS images can be accessed and downloaded with a cone search of the EMU-PS pointings.

All public data (tables and images, and u,v data) are available from CASDA (see Table 7) and a listing of all ASKAP observations is on the Observation Management Portal (OMP)Footnote i. OMP allows the user to select observations by several parameters including date, SBID (listed in Table 3), or project name (AS101 for EMU).

5.2. Sensitivity to compact sources

The EMU-PS survey reaches a typical sensitivity of 25–30 $\mu\mathrm{Jy\ beam}^{-1}$ rms. This is about a factor of two above the calculated thermal noise sensitivity ( $\sim$ 13 $\mu\mathrm{Jy\ beam}^{-1}$ ), which we tentatively attribute to the following causes.

  • Timing errors in the correlator cause a significant fraction of data (30–50%) to be flagged, resulting in a loss of data. Work is in progress to identify and eliminate the cause of this problem.

  • The data calibration processes are in a preliminary state. By the time of the final EMU survey, we expect to have developed a sky model which will be used to calibrate the data and remove strong sources prior to cleaning.

  • A dynamic range problem, which is currently being addressed, causes diffraction patterns around strong sources.

    Table 7. Available data products, including Digital Object Identifiers (DOIs) that can be used to access the data described in this paper.

    Notes:

    •The initial public data release is immediately available, but the value-added releases are available only to members of the EMU collaboration for 1 year from the data of publication of this paper, after which they become public.

    •All catalogues contain island and component information, and, for the added-value catalogue, cross-identifications and redshifts, where available.

    •TT0 and TT1 refer to Taylor Term 0 image (total power) and Taylor Term 1 image (TT0 $\times$ spectral index)

    Figure 18. The sensitivity of EMU-PS as a function of spatial scale. The plot was made using visibility data from a single beam and pointing of an interleaved observation (2-h observation, 288-MHz bandwidth, scaled to the EMU-PS observing frequency of 944 MHz) which was filled with Gaussian noise and various uv tapers were applied to shape the beam size. We then measured the image noise (effectively the sensitivity at the scale associated with the uv taper). The two plots show the same result over different ranges of spatial scale.

  • The primary beam correction assumes a Gaussian profile across each PAF beam. This is being replaced by a profile based on holographic measurements which will be beam-specific.

  • The lack of direction-dependent calibration, which we hope to address in the future.

After correcting these errors, and including a confusion noise of about 9 $\mu\mathrm{Jy\ beam}^{-1}$ , we expect the full EMU survey (conducted at a centre frequency of $\sim$ 944 MHz) can potentially reach an rms of about 17.5 $\mu\mathrm{Jy\ beam}^{-1}$ .

5.3. Sensitivity to extended emission

As well as its high sensitivity to compact sources, the survey also has high sensitivity to extended low surface brightness emission, because of the large number of short spacings in the ASKAP array.

In Figure 18, we show a plot of the sensitivity of EMU-PS as a function of spatial scale, obtained by running simulated observations with different tapers, producing different beam sizes.

The sensitivity of 25–30 $\mu\mathrm{Jy\ beam}^{-1}$ at the native resolution of 11–13 arcsec is almost unchanged at the convolved resolution of 18 arcsec and continues at a similar level beyond the 45-arcsec resolution of SUMSS (Mauch et al. Reference Mauch, Murphy, Buttery, Curran, Hunstead, Piestrzynski, Robertson and Sadler2003), which has a median rms sensitivity of $1.27 \mathrm{mJy\ beam}^{-1}$ . The effect of this high sensitivity to low surface brightness emission is demonstrated in Section 6.

5.4. Source counts and confusion

Figure 19 shows the differential source counts normalised to a non-evolving Euclidean model (n $\propto S^{2.5}$ ) obtained from the EMU-PS catalogue (black symbols), rescaled from 943.5 MHz to 1.4 GHz by assuming $\alpha=-0.7$ . Two counts’ determinations are shown: one referring to the island catalogue, where components of complex sources are merged together (filled diamonds) and one referring to simple sources only (empty diamonds). The source counts are corrected for both Eddington bias (Eddington Reference Eddington1913; Eddington Reference Eddington1940) and resolution bias (i.e. the incompleteness introduced by the fact that a larger source of a given total flux density will drop below the signal-to-noise threshold of a survey more easily than a smaller source of the same total flux density). This is done following standard recipes in the literature (see e.g. Prandoni et al. 2001; Reference Prandoni, Guglielmino, Morganti, Vaccari, Maini, Röttgering, Jarvis and Garrett2018; Mandal et al. Reference Mandal2021).

Figure 19. Normalised differential source counts derived from the $270\ \mathrm{deg}^2$ EMU-PS survey for the island catalogue (black filled diamonds) and for simple sources only (black empty diamonds). The counts have been rescaled from 943.5 MHz to 1.4 GHz by assuming $\alpha=-0.7$ . Also shown for comparison are the counts derived from 1.4 GHz $>$ degree-scale surveys (symbols and colours as indicated in the figure). Vertical bars represent Poissonian errors on the normalised counts. Systematic errors due to incompleteness corrections and spectral index assumptions are approximately included in the size of the plotted symbols. The result of the P(D) analysis performed by (Vernstrom et al. Reference Vernstrom2014, rescaled from 3 to 1.4 GHz by assuming $\alpha $ = $-$ 0.7) is indicated in dark green. The black solid line represents the predicted counts from 200 sq. degr. of the S3-SEX simulations (Wilman et al. Reference Wilman2008). The light blue and yellow shaded areas illustrate the predicted cosmic variance effects for survey coverages of 5 and $10\ \mathrm{deg}^2$ , respectively (obtained by splitting the S3-SEX simulation in 40 5- $\mathrm{deg}^2$ and 20 10- $\mathrm{deg}^2$ fields, respectively). The $25\ \mathrm{deg}^2$ medium tier of the more recent T-RECS simulations (Bonaldi et al. Reference Bonaldi, Bonato, Galluzzi, Harrison, Massardi, Kay, De Zotti and Brown2019) is represented by the purple shaded area. Finally, the Mancuso et al. (Reference Mancuso2017) radio source evolutionary model is shown by the light green line.

Figure 19 shows for comparison some of the widest-area samples available to date at 1.4 GHz. This includes sub-mJy surveys covering $>1\ \mathrm{deg}^2$ regions, like PDF (Hopkins et al. Reference Hopkins, Afonso, Chan, Cram, Georgakakis and Mobasher2003), VLA-COSMOS (Bondi et al. Reference Bondi, Ciliegi, Schinnerer, Smolčić, Jahnke, Carilli and Zamorani2008) and the $6\ \mathrm{deg}^2$ Westerbork mosaic covering the Lockman Hole region (LHW: Prandoni et al. Reference Prandoni, Guglielmino, Morganti, Vaccari, Maini, Röttgering, Jarvis and Garrett2018), as well as shallower ( $> 1$ mJy) but larger ( $\gg$ 10 sq. degr.) surveys like ATESP (Prandoni et al. Reference Prandoni, Gregorini, Parma, de Ruiter, Vettolani, Wieringa and Ekers2001), SDSS Stripe 82 (Heywood et al. Reference Heywood2016) and FIRST (White et al. Reference White, Becker, Helfand and Gregg1997). Also shown are simulated source counts derived by combining evolutionary models of either classical radio loud (RL) AGN or radio source populations dominating the sub-mJy radio sky, namely SFGs and low-luminosity AGN (LLAGN). In particular, we show the 1.4-GHz counts derived from the recent modelling of Mancuso et al. (Reference Mancuso2017), light green solid line, the T-RECS $25\ \mathrm{deg}^2$ medium tier simulation (Bonaldi et al. Reference Bonaldi, Bonato, Galluzzi, Harrison, Massardi, Kay, De Zotti and Brown2019), as well as different realisations obtained from the S3-SEX simulated catalogue (Wilman et al. Reference Wilman2008): $1\times 200\ \mathrm{deg}^2$ (black solid line), $20\times 10\ \mathrm{deg}^2$ regions (yellow shaded area) and $40\times 5\ \mathrm{deg}^2$ regions (light blue shaded area).

Figure 19 clearly shows that the source counts derived from the EMU-PS island catalogue nicely match previous counts and are in good agreement with the most recent models/simulations (Mancuso et al. Reference Mancuso2017; Bonaldi et al. Reference Bonaldi, Bonato, Galluzzi, Harrison, Massardi, Kay, De Zotti and Brown2019). Even more interestingly they provide very robust statistics all the way from ${\sim}0.1\,\textrm{mJy}$ to $>1$ Jy, something which could only be achieved in the past by combining deeper (but smaller) surveys with larger (but shallower) surveys. Finally, it is interesting to note that the counts derived from simple sources only (black empty diamonds) fall well below the full counts (black filled diamonds) at bright fluxes. This is not surprising as we expect a large contribution from multi-component RL AGN at flux densities $\gg 1$ mJy. On the other hand, no significant difference is observed at sub-mJy fluxes, confirming that this flux regime is dominated by SFG and LLAGN.

5.4.1. Source Confusion

We estimate the source confusion noise, and instrumental noise using the probability of deflection, or P(D) technique (Scheuer Reference Scheuer1957). The P(D) distribution of an image is the distribution of pixel intensities ( $\mathrm{Jy\ beam}^{-1}$ ) which depends on the underlying source count, shape of the beam, and the instrumental noise (see Vernstrom et al. Reference Vernstrom2014, for a detailed description of the method).

The P(D) method assumes a Gaussian distribution for the instrumental noise and can therefore be affected by imaging artefacts, such as those found around bright sources. We computed the histogram of pixel intensities for the pilot survey image by selecting regions of pixels devoid of any image artefacts, as well as any complex diffuse or extended emission. Rather than a full source count fitting analysis, which is beyond the scope of this paper, we take the deep P(D) source counts derived in Vernstrom et al. (Reference Vernstrom2014) and scale it to a frequency of $944\,$ MHz using $\alpha =-0.7$ . We take the average beam sizes from the individual beams and find $B_{\rm maj}=12\,$ arcsec and $B_{\rm min}=10\,$ arcsec, while using an image of the ‘dirty’ synthesised beam for sources below the clean limit (approximated at $S_{\rm clean}=200\, \mu\mathrm{Jy\ beam}^{-1}$ ). We use an average instrumental noise value of $\sigma=23\, \mu\mathrm{Jy\ beam}^{-1}$ . The image P(D), noise distribution, and model P(D) can be seen in Figure 20.

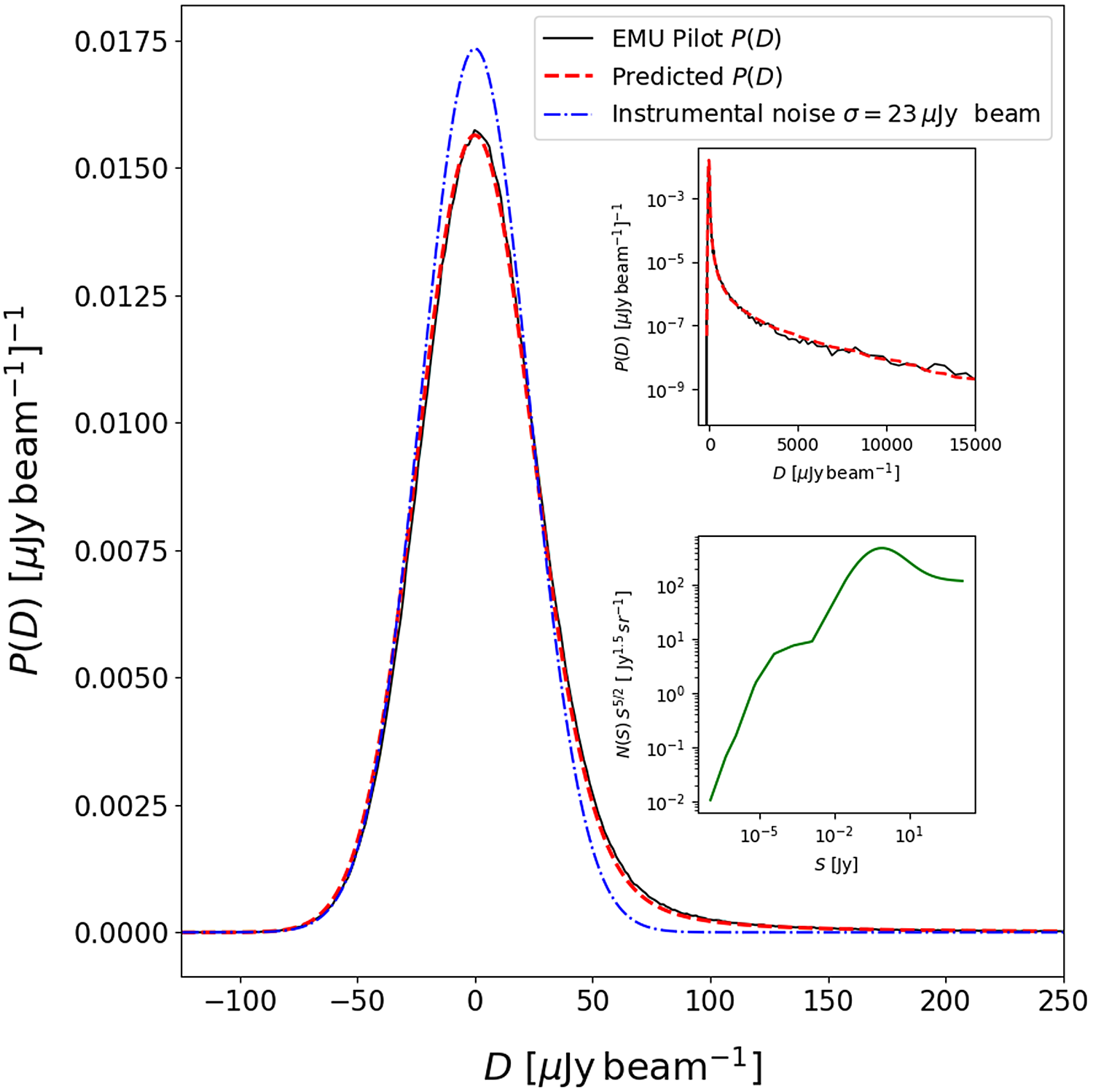

Figure 20. The EMU-PS preliminary P(D) distributions. The solid black line is the probability distribution made from sections of the pilot away from bright sources. The upper right inset shows bright flux density tail of the P(D) distributions. The blue dot-dashed line shows a Gaussian noise distribution of $\sigma= 23 \mu\mathrm{Jy\ beam}^{-1}$ . The red dashed line shows the predicted or model P(D) generated from the source count shown in the lower right inset.

Without any additional fitting or changes to the parameters or source count, we find very good agreement between the image and model P(D) distributions. The noise-free model P(D) provides an estimate of the confusion noise in the field of $\sigma_{\rm conf}=5\, \mu\mathrm{Jy\ beam}^{-1}$ . This quick test shows through independent means that the instrumental noise estimate of 20 to $25\, \mu\mathrm{Jy\ beam}^{-1}$ is accurate. Furthermore, the fact that the scaled source count model provides a good match to the image is a confirmation of accurate source flux densities in the pilot data, and that confusion noise is not a significant factor for our scientific investigations, even when considering the dirty beam sidelobe confusion noise. At the same time, the observations of P(D) are sensitive enough to probe far below the source populations that we can directly detect.

6. Preliminary science results

6.1. Peculiar radio sources

Many unusual radio sources are found in the EMU-PS.

The source PKS 2130-538, shown in Figure 21, has been previously identified as a complex source (e.g. Ekers Reference Ekers1970; Schilizzi & McAdam Reference Schilizzi and McAdam1975; Jones & McAdam Reference Jones and McAdam1992), and as two radio galaxies (G4Jy 1704 and G4Jy 1705) in the G4Jy Sample (White et al. Reference White2020b; White et al. Reference White2020a). However, no previous image shows the wealth of detail and low surface brightness emission seen in Figure 21. It consists of the radio lobes of two host galaxies, one of which (‘Host 1’: 2MASX J21341775-5338101) is the bright galaxy at the centre of the curved northern radio bridge, at a redshift of 0.0781. This is the brightest galaxy of the cluster Abell 3785. The other host galaxy (‘Host 2’: 2MASX J21340666-5334186) is the bright galaxy near the southeast end, at a redshift of 0.0763.

Figure 21. A peculiar radio source found in the EMU Pilot Survey, consisting of a group of distorted radio components, collectively known as PKS 2130–538, and nicknamed ‘the dancing ghosts’. The two host galaxies ( $z \sim 0.077$ ) are seen at the centre of the narrow jets (shown with numbers in the figure to indicate their putative host) which expand into diffuse lobes, probably bent by interactions. On the left is the total intensity greyscale image (shown in turquoise), superimposed on a background of the DES optical image, assembled from the r, g, and i images. On the right is the total intensity image of PKS 2130-538, colour-coded by spectral index. The unconventional colour scheme was constructed using sequential colours on the ‘colour wheel’ (e.g. Itten Reference Itten1970). The colours were fixed in luminosity, that is, fixed to be constant in luminosity-chroma-hue colour space (Ferrand Reference Ferrand2019). In this way, the brightness level on the image represents only the total intensity values. The colour bar indicates the spectral index at a single fixed intensity. Since the spectral index map in this colour scheme was multiplied by the total intensity map, darker versions of colours are associated with fainter regions in the data. The peak flux density in this image is $103\ \mathrm{mJy\ beam}^{-1}$ .

The spectral index image helps to isolate the contributions from these two hosts. In the north, there is a very flat spectrum region ( $\alpha \sim 0$ ) at the position of Host 1, connecting to relatively flat $\alpha \sim -0.4{-}0.5$ jets (‘1’). These then connect to the large bright regions of $\alpha \sim -0.6{-}0.7$ , steepening sharply down the tails to the south to at least -1.5, beyond which the spectra become more uncertain. All of this is consistent with the behaviour of bent-tail galaxies. In the eastern half, there is a dramatic change in spectral index at the position of the emission associated with the second host; it has its own flat core and steeper lobe/tail structures. Although the overall emission comes from two distinct hosts, it is unclear whether there is an interaction between them, or merely a superposition. An additional curiosity is the thin stream of emission ‘3’ extending eastward from the NE bright region; it has a median spectral index of -2.1, and both its dynamical origins and particle history do not fit naturally into existing radio galaxy models.

The source PMN J2041-5256, shown in Figure 22, is a double-lobed radio AGN, associated with the host galaxy WISEA J204112.05-525737.7 at a redshift of $z=0.048$ . Previous radio data (Mauch et al. Reference Mauch, Murphy, Buttery, Curran, Hunstead, Piestrzynski, Robertson and Sadler2003; Gregory et al. Reference Gregory, Vavasour, Scott and Condon1994) show only an indistinct extended source corresponding to the nucleus. Its jets (shown with numbers in the figure to indicate their putative host) are presumably being bent by intracluster winds, but the morphology is much more complex than normal bent-tail galaxies. The eastern jet (‘2’) is bifurcated, while the western jet (‘1’) breaks down into a number of blobs, accompanied by a large diffuse area of emission to the west of the source. One possibility is that its relative motion with respect to the intracluster medium (ICM) has a large component along the line of sight; the bifurcated tail and western diffuse extensions would then be more typical of structures seen in bent-tail galaxies, but seen here in projection. If the direction of motion were $\sim$ 20 degrees from the line of sight, the entire source length would be $\sim$ 750 kpc, among the larger bent-tail sources.

Figure 23 shows two diffuse clouds of radio emission whose origin is unclear. The most likely hypothesis is that they represent the remnants of a classical double-lobed radio galaxy in which the central engine has switched off, leaving a remnant radio galaxy. We refer to this object as the ‘Smoking Gun.’

A tentative identification of the host (marked A in Figure 23) is the galaxy WISEA J204837.65–491115.2, at a redshift of 0.10 (Bilicki et al. Reference Bilicki2016) and which is detected as a $260 \,\mu\mathrm{Jy}$ unresolved source in the ASKAP image. At that redshift, the largest angular size across the lobes is 530 kpc, which is not unusual for double-lobed radio galaxies. An alternative identification (marked B in Figure 23) of the host is an isolated unresolved $200 \,\mu\mathrm{Jy}$ radio source which appears to be coincident with the galaxy DES J204835.43-491137.5, at $z=0.937$ (Zhou et al. Reference Zhou2021). If the ‘Smoking Gun’ were actually at this redshift, then the source’s large inferred radio size (2.25 Mpc) would make it a member of the rare class of ‘Giant Radio Galaxies’ (see Section 6.4) and it would also be very luminous ( ${\sim}4 \times 10^{23}$ W/Hz). This seems unlikely for a fading remnant, and so we think A, at a redshift of 0.1, is more likely to be the host galaxy. We note that the northern lobe is unusually circular and resembles the Odd Radio Circles (ORCs) shown in Figure 17, except that the ORCs don’t show a continuous rise of their surface brightness towards their centres.

Figure 22. Another peculiar radio source found in the EMU Pilot Survey: a double-lobed radio AGN, known as PMN J2041–5256, with a curious ‘double’ bent tail. The radio data from EMU-PS has been ‘stretched’ to show the faint emission, and then coloured turquoise, and adjusted to emphasise the double tail. DES g-, r-, and i-band data are combined to form the background, which is combined with the radio data using a layer mask in GIMP. Embedded in the tails are several radio sources that may be unrelated to the tailed galaxy. The peak flux density in this image is $58.3\ \mathrm{mJy\ beam}^{-1}$ .

Figure 23. The ‘Smoking Gun’ Galaxy EMU PS J204835.0–491137 consists of the two diffuse radio clouds seen in this image. These are presumably the remnants of a classical double-lobed radio galaxy in which the central engine has switched off. The labels A and B indicate two possible host galaxies, discussed in the text. The peak flux density in this image is $0.87\ \mathrm{mJy\ beam}^{-1}$ .

Such remnant radio galaxies have previously been reported (e.g. Brienza et al. Reference Brienza2017; Mahatma et al. Reference Mahatma2018; Saripalli et al. Reference Saripalli, Subrahmanyan, Thorat, Ekers, Hunstead, Johnston and Sadler2012), but these new observations probe a lower level of surface brightness than earlier studies. Another remnant radio galaxy imaged by ASKAP has also been recently reported (Quici et al. Reference Quici2021). However, none of the previously reported remnant radio galaxies has a circular lobe resembling that in Figure 23.

Figure 24 shows the radio source EMU PS J210700.0 $-$ 501128 (also detected as SUMSS J210704 $-$ 501206). It appears similar in some ways to PKS 2130-538 shown above (Figure 21) with two bright patches and diffuse tails, presumably blown to the east by relative motion through an external medium. However, there is no obvious host galaxy between the lobes, only a scattering of faint DES galaxies. Instead, the bright southern lobe is coincident with the quasar WISEA J210703.75 $-$ 501207.7 at a redshift of 0.197 (Monroe et al. Reference Monroe, Prochaska, Tejos, Worseck, Hennawi, Schmidt, Tumlinson and Shen2016), also detected in the Second ROSAT all-sky survey (Boller et al. Reference Boller, Freyberg, Trümper, Haberl, Voges and Nandra2016). This raises the possibility that the two ‘lobes’ are two independent tailed radio galaxies with very similar morphologies. An apparent overdensity of galaxies visible in both DES and WISE is embedded in the faint southern emission. However, there is no cataloged cluster near this location, and we found photometric redshifts (Zou et al. Reference Zou, Gao, Zhou and Kong2019) for only three galaxies within the source confines that would be consistent with the quasar redshift, so there is no evidence for a cluster.

Figure 24. EMU PS J210700.0–501128.8 is an ambiguous case, appearing at first to be a double-lobed source with material blown to the east. But with no host between the bright patches, and the southern bright component coincident with a quasar, marked with an ‘X’, these may be two independent sources with serendipitously similar appearances The peak flux density in this image is $11.6\ \mathrm{mJy\ beam}^{-1}$ .

6.2. Odd radio circles

It has been predicted that, because EMU would observe a previously inaccessible part of observational parameter space, it would probably make unexpected discoveries (Norris Reference Norris2017b). Nevertheless, we were surprised to find an apparently new class of object appearing in the EMU-PS, consisting of circles of radio emission, typically one arcmin across, with no optical or infrared counterpart (Norris et al. Reference Norris2021). The first of these ORCs to be identified is shown in Figure 25, and another example is shown in Figure 17. We do not yet understand the nature of these objects, nor whether they are a single class of object or multiple classes. Since discovering them in EMU-PS, we have subsequently observed them with several other telescopes to confirm their reality and have been able to rule out some potential explanations such as supernova remnants or starburst rings. We have also found more examples in other ASKAP fields (e.g. Koribalski et al. Reference Koribalski, Norris, Andernach, Rudnick, Shabala, Filipovic and Lenc2021). Several ORCs have a galaxy at the centre, typically at a redshift of $\sim$ 0.3 in the currently known examples. Potential explanations are that these central galaxies may be the origins of spherical shock waves which we see in projection as a ring, or else that we are seeing end-on radio lobes.

Figure 25. An image of the first ‘Odd Radio Circle’, or ORC, found in EMU-PS (Norris et al. Reference Norris2021). It has no optical counterpart to the diffuse ring, or to other diffuse structure, but has a galaxy at its centre which may be the origin of the ring. The image is based on EMU-PS data at native resolution but enhanced to show faint features as described in Norris et al. (Reference Norris2021), particularly the internal structure or “spokes” of the ORC. Radio data are shown in green, and DES optical data are shown in turquoise, magenta, yellow and red, and mainly appear in this image as white.

6.3. Nearby galaxies

The design of ASKAP was largely driven by its two largest survey science projects: the EMU continuum survey (Norris et al. Reference Norris2011) and the WALLABY spectral line survey (Koribalski et al. Reference Koribalski2020) with the latter aiming to map neutral hydrogen (H i) over the entire extragalactic sky in the declination range from $-90^{\circ}$ to $+30^{\circ}$ to a redshift of $\sim$ 0.26. WALLABY will generate H i image cubes at $\sim$ 30 arcsec resolution and ${\sim}1.6\ \mathrm{mJy\ beam}^{-1}\ \mathrm{per}\ 4\,\mathrm{km\,s}^{-1}$ channel sensitivity and is expected to detect around half a million galaxies with a mean redshift of $\sim$ 0.05 (Koribalski et al. Reference Koribalski2020).

The relationship between the integrated radio continuum emission of SFGs, unattenuated by interstellar dust, and their star formation rate (SFR) has been extensively studied, (e.g. Condon Reference Condon1992; Tabatabaei et al. Reference Tabatabaei2017; Davies et al. Reference Davies2017), and the broad correlation is well documented, (e.g. Condon et al. Reference Condon, Cotton and Broderick2002; Murphy Reference Murphy2009; Murphy et al. Reference Murphy2011; Molnár et al. Reference Molnár2021). However, the detailed correlations and the underlying mechanisms are still the subject of much debate (e.g. Heesen et al. Reference Heesen, Brinks, Leroy, Heald, Braun, Bigiel and Beck2014). Furthermore, the relationship between the atomic neutral hydrogen gas content of galaxies (for $z < 0.2$ , where individual galaxy detections are feasible) and their SFR requires further investigation (e.g. Wong et al. Reference Wong, Meurer, Zheng, Heckman, Thilker and Zwaan2016; Bera et al. Reference Bera, Kanekar, Chengalur and Bagla2019).

Our most extensive knowledge of the southern sky in neutral hydrogen currently comes from the low-resolution H i Parkes All Sky Survey (HIPASS; Barnes et al. Reference Barnes2001) which covers the sky from $-90^{\circ}$ to $+25^{\circ}$ . HIPASS produced a catalogue of $\sim$ 5000 galaxies out to a redshift of $z = 0.04$ (Koribalski et al. Reference Koribalski2004; Meyer et al. Reference Meyer2004). Corresponding 20-cm radio continuum maps (CHIPASS) were created by Calabretta et al. (Reference Calabretta, Staveley-Smith and Barnes2014). ASKAP delivers a 90-fold (for EMU) or 30-fold (for WALLABY) improvement in angular resolution compared to the HIPASS single-dish beam of $\sim$ 15.5 arcmin.

The survey characteristics of EMU and WALLABY imply that we expect nearly all of the $\sim$ 5000 catalogued HIPASS galaxies to be detected by EMU, and to be well resolved by both EMU and WALLABY. Therefore, the combination of EMU radio continuum and WALLABY H i spectral line measurements of nearby galaxies, combined with other multi-wavelength data, offers the opportunity to study the relationships between star formation, radio continuum emission, and H i emission in great detail. Here we start to explore this field using the EMU-PS observations of a small sample of nearby galaxies which have been detected in HIPASS.

Of the 89 catalogued HIPASS sources in the EMU-PS area, 63 are clearly detected by EMU-PS in the radio continuum. We expect most of the remaining HIPASS sources to be detected in the full sensitivity main EMU survey. A selection of these galaxies is shown in Figures 26 and 27. While no WALLABY H i data currently exist for this field, high-resolution ATCA H i images are available for some of the galaxies.

Figure 26. A selection of ASKAP-detected nearby galaxies in the EMU-PS. Optical DSS2 R-band images are overlaid with ASKAP radio continuum contours. The contour levels are –0.09, 0.09 ( ${\sim}3 \sigma$ ), 0.18, 0.36, 0.75, 1.5, 3.0, 7.5, 15.0, and $30\ \mathrm{mJy\,beam}^{-1}$ . The convolved 18 arcsec beam is shown in the bottom left corner of each panel. The galaxy name and heliocentric velocity (all but one, ESO233-IG004, from HIPASS) are also displayed. The velocity of ESO233-IG004 is taken from Jones et al. (Reference Jones2009).

The most interesting galaxy in Figure 26 is the edge-on spiral NGC 7090. Using the ATCA, Heesen et al. (2016; Reference Heesen2018) obtained detailed radio continuum maps, finding a radio halo with polarised emission up to 6 kpc above the disc correlating with extraplanar H $\alpha$ emission. ATCA H i images (Dahlem et al. Reference Dahlem, Ehle, Ryder, Vlajić and Haynes2005) reveal an asymmetric, slightly disturbed disc matching the stellar extent. Another galaxy of interest is the nearly face-on spiral NGC 7125 (see Figure 27), which forms an interacting pair with its northern companion NGC 7126, separated by six arcmin ( $\sim$ 80 kpc). ATCA H i maps (Nordgren et al. Reference Nordgren, Chengalur, Salpeter and Terzian1997) show a large gas envelope encompassing both galaxies. Once detailed H i spectral line and radio continuum maps are available for large numbers of nearby resolved galaxies, the local and global SFRs and efficiencies can be analysed as a function of H i column density and environment (e.g. Koribalski & López-Sánchez Reference Koribalski and López-Sánchez2009; Wong et al. Reference Wong, Meurer, Zheng, Heckman, Thilker and Zwaan2016).

6.4. Giant Radio Galaxies

Giant Radio Galaxies (GRGs) were originally defined as Radio Galaxies (RGs) whose projected linear size was greater than 1 Mpc for a Hubble constant of $\mathrm{H}_0=50\,\mathrm{km\,s}^{-1}\,\mathrm{Mpc}^{-1}$ (e.g. Ishwara-Chandra & Saikia Reference Ishwara-Chandra and Saikia1999). However, based on the currently accepted value of $\mathrm{H}_0 \sim 70\,\mathrm{km\,s}^{-1}\,\mathrm{Mpc}^{-1}$ , RGs larger than 0.7 Mpc are now also considered GRGs. In the compilation of GRGs by Kużmicz et al. (Reference Kużmicz, Jamrozy, Bronarska, Janda-Boczar and Saikia2018), the EMU-PS area contains only a single GRG, namely PKS 2014 $-$ 558, first mentioned as a GRG by Jones & McAdam (Reference Jones and McAdam1992) and recently studied in detail by Cotton et al. (Reference Cotton2020).

In a recent ASKAP observation covering $30 \,\mathrm{deg}^2$ centred on the Abell 3391/3395 galaxy cluster pair, and of comparable depth and angular resolution as the EMU-PS, Brüggen et al. (Reference Brüggen2021) found the surface density of GRGs $\gtrsim$ 1 Mpc to be ${\sim}0.8\,\mathrm{deg}^{-2}$ , and that of GRGs $\gtrsim0.7$ Mpc to be at least ${\sim}1.7\,\mathrm{deg}^{-2}$ , suggesting that the EMU-PS should contain $\sim$ 200 and $\sim$ 460 such GRGs, respectively.

From a preliminary visual inspection of the EMU-PS area, biased towards sources of larger angular size and featuring a radio nucleus, we found $\sim$ 120 GRGs larger than 1 Mpc and a similar number with sizes between 0.7 and 1 Mpc. We visually cross-identified these with the DES images and catalogues (Abbott et al. Reference Abbott2018) and estimated linear sizes based on photometric redshifts (Bilicki et al. Reference Bilicki2016; Drlica-Wagner et al. Reference Drlica-Wagner2018; Zou et al. Reference Zou, Gao, Zhou and Kong2019). The number of GRGs in EMU-PS is likely to increase with a more thorough visual inspection, the results of which will be reported by Andernach et al. (in prep.).

6.4.1. The Giant Radio Galaxy EMU PS J205139.8–570434

The GRG EMU PS J205139.8–570434 (hereafter GRG J2051–5704), shown in Figure 28, is hosted by 2MASX J20513976–5704334 at $z_{sp}=0.0602$ (Jones et al. Reference Jones2009) and its radio emission can be traced over a largest angular size ${\sim}22.1$ arcmin and thus a linear projected size of 1.53 Mpc. It has an FR I radio morphology whose jets are oriented roughly north-south, feature several wiggles, and terminate in diffuse lobes at both extremes of the source. The strong ( $\mathrm{S}_{944}=2.12\,\mathrm{Jy}$ ) source 3.1 arcmin due E, surrounded by diffraction rings, is the well-studied galaxy IC 5063 at $z_{sp} =0.01135$ .

The central region of the new GRG can be recognised in the SUMSS (Bock et al. Reference Bock, Large and Sadler1999) images and was even detected at mm wavelengths by the South Pole Telescope (Mocanu et al. Reference Mocanu2013). However, the full extended structure shown here has not been previously detected, despite extensive imaging of the neighbouring source IC 5063 (Murphy et al. Reference Murphy2010 and references therein), probably because of the brightness sensitivity and dynamic range limitations.

The host galaxy of GRG J2051–5704 is the brightest galaxy of cluster 400d J2051–5704 (aka MCXC J2051.6–5704, Burenin et al. Reference Burenin, Vikhlinin, Hornstrup, Ebeling, Quintana and Mescheryakov2007; Piffaretti et al. Reference Piffaretti, Arnaud, Pratt, Pointecouteau and Melin2011) at a redshift of 0.0599. The radio morphology is reminiscent of archetypal FR I sources such as 3C 31 and Hydra A, with wiggles consistent with either the presence of jet instabilities due to interaction with the surrounding gas, or jet precession (e.g. Nawaz et al. Reference Nawaz, Bicknell, Wagner, Sutherland and McNamara2016). While FR I type sources are rare among GRGs larger than 1 Mpc, a recent LOFAR image showed that the GRG 3C 31 also had an extent $>\ 1\,\mathrm{Mpc}$ (Heesen et al. Reference Heesen2018).

It is likely that more of these very large GRGs will be detected with next-generation radio telescopes such as ASKAP thanks to the combination of good angular resolution necessary to reveal the inner jet structure and identify the host, as well as high sensitivity to the low surface brightness features such as the outer tails or lobes. We note that Turner et al. (Reference Turner, Rogers, Shabala and Krause2018) showed from simulations that more sensitive, or lower frequency, observations will reveal FR I galaxies to be much larger than previously thought.

Figure 27. DES-DR1 optical composite image of the nearby face-on spiral galaxy NGC 7125 overlaid with contours from the EMU-PS. The contour levels are: 0.1, 0.25, 0.5, 1.0, 1.3, 1.6, 2.0, and $2.4\ \mathrm{mJy\,beam}^{-1}$ . NGC 7125 and its neighbour NGC 7216 form an interacting galaxy pair (HIPASS J2149–60) with a large pool of hydrogen gas for star formation.

6.5. Radio counterparts to 6dF galaxies

EMU and the EMU-PS overlap the 6dF Galaxy Survey (6dFGS; Jones et al. Reference Jones2004; Reference Jones2009), a spectroscopic survey of most of the southern sky containing 125 071 galaxy redshifts with a median redshift of $0.053$ . While a variety of selection criteria were used for 6dFGS, most 6dFGS galaxies are brighter than $K=12.65$ and have redshifts of $z<0.15$ . In the EMU-PS region, there are 2506 6dFGS galaxies and, as we discuss below, a large fraction of these galaxies are detected by the EMU-PS.

We measured the flux density of each 6dFGS galaxy using the pixel in the radio continuum maps corresponding to each galaxy’s position. This will underestimate the total flux density of spatially resolved galaxies, and aperture bias is relevant as the $13^{\prime\prime}\times 11^{\prime\prime}$ EMU-PS beam and $6.7^{\prime\prime}$ 6dFGS spectroscopic fibre correspond to less than $3.4\,{\rm kpc}$ and $2.0\,{\rm kpc,}$ respectively, for galaxies within $60\,{\rm Mpc}$ of Earth. Despite these limitations, our preliminary measurements allow us to quantify the fraction of 6dFGS galaxies that are radio sources and allows us to push fainter than blind radio source catalogues. Of the 2506 6dFGS galaxies in the EMU-PS region, 1887 (75%) have a flux density greater than 75 $\mu\mathrm{Jy\ beam}^{-1}$ , corresponding to $\gtrsim 3\sigma$ . As SFGs and passive galaxies have different distributions of radio continuum luminosities, we roughly split these two populations using the presence and absence of ${\rm H\alpha}$ , measured from the 6dFGS spectra (Jones et al. Reference Jones2004; Reference Jones2009). To quantify noise and source confusion, we also measure flux density at positions offset by 100 pixels (200 arcsec, so well outside the relevant galaxy).

In Figure 29, we present the histogram of EMU-PS flux densities of 6dFGS galaxies with ${\rm H\alpha}$ and with $K<12.65$ , along with the histogram of flux densities measured at offset positions. Roughly half of the SFGs are fainter than $1\,{\rm mJy}$ and would not have been detected by previous generations of wide-field radio continuum surveys. Almost all 6dFGS galaxies with detectable ${\rm H\alpha}$ emission and $K<12.65$ in the EMU-PS area are detected, with just 17 of the 623 galaxies having flux densities below $75\,{\rm \mu Jy}$ . For comparison, at the 623 offset positions there are just 22 flux density measurements brighter than 75 $\mu\mathrm{Jy\ beam}^{-1}$ (corresponding to $\gtrsim 3\sigma$ ) and only 8 flux density measurements brighter than 125 $\mu\mathrm{Jy\ beam}^{-1}$ (corresponding to $\gtrsim 5 \sigma$ ).

The radio continuum flux densities of $K<12$ galaxies with and without ${\rm H\alpha}$ emission is presented in Figure 30. Most $K<12$ SFGs are detected by EMU-PS, and a significant fraction of passive galaxies are also detected. While the lowest mass passive galaxies are often undetected by EMU-PS, all but one of the $M_K<-26$ passive galaxies has a positive radio continuum flux density, presumably resulting from AGNs. This is consistent with Brown et al. (Reference Brown, Jannuzi, Floyd and Mould2011) and Sabater et al. (Reference Sabater2019), who have concluded that all massive elliptical galaxies are radio continuum sources, using NVSS and LOFAR, respectively. When complete, EMU will detect thousands of nearby $M_K<-26$ elliptical galaxies, enabling characterisation of the radio luminosities of these objects and the AGNs they host.

Figure 28. (Left) The Giant Radio Galaxy (GRG) EMU PS J205139.8–570434, with radio (at native resolution) shown in greyscale, overlaid on the DES DR1 colour image. The GRG consists of the roughly north-south jet and the two diffuse plumes above and below it. The strong source to the east, surrounded by diffraction rings, is the well-studied galaxy IC 5063. (Right) A contour diagram of the central part of the GRG at 18 arcsec resolution, overlaid on the DES DR1 colour image. Contour levels are 3, 7, 12, and $18\ \mathrm{mJy\ beam}^{-1}$ .

6.6. Comparison with Gaia

The Gaia project (Gaia Collaboration et al. 2016) has measured the parallax and proper motion of over a billion stars, and as a byproduct has also identified a number of quasars and compact galaxies (Bailer-Jones et al. Reference Bailer-Jones, Fouesneau and Andrae2019). To produce a catalogue of candidate radio-loud quasars, we therefore cross-match the DES counterparts to EMU radio sources against the Gaia EDR3 catalogue (Gaia Collaboration et al. 2021). We use the same technique as in earlier cross-matches in this paper, resulting in a plot of cross-matches as a function of search radius for shifted and unshifted data, shown in Figure 31. As a result of this test, we choose a cross-match radius of 0.2 arcsec, resulting in 14 174 cross-matches in the unshifted data, and 14 cross-matches in the shifted data, indicating a false-ID rate of 0.1%.

To explore the infrared properties of this sample of Gaia-selected sources, we need to use the WISE W3 band, which is absent from the CWISE catalogue, and so we must match our sources against the AllWISE catalogue (Cutri et al. Reference Cutri2021). We therefore cross-match the list of 14 174 sources, using a search radius of 1 arcsec, against the AllWISE catalogue, resulting in a catalogue of 11 142 sources with WISE W1, W2, and W3 flux densities. These sources are shown in Figure 32, colour-coded by their proper motion.

The sources with the lowest proper motions lie in the region identified by Jarrett et al. (Reference Jarrett2017) as being dominated by quasars, while a higher level of proper motion is seen in the region dominated by galaxies. This effect was also noted by Bailer-Jones et al. (Reference Bailer-Jones, Fouesneau and Andrae2019) who explained it as extended galaxies not having well-defined centroids, causing the measured Gaia position to vary, resulting in an apparent proper motion. The group with the highest proper motion (coded as yellow) lie in the region designated as stars, confirming that these DES sources are indeed stars. However, most, if not all, of these ‘stars’ are probably false IDs and do not correspond to radio sources.

Of the 11 142 galaxies with W1, W2, and W3 flux densities, 2604 have W1-W2 $>$ 0.8, and we refer to these as quasar candidates. To estimate the false-ID rate, we repeated the above selection process after shifting the declination by 1 arcmin, and this resulted in 2312 sources with W1, W2, and W3 flux densities, of which 503 have W1-W2 $>$ 0.8. We therefore expect that 81% of our quasar candidates are radio-loud quasars, assuming that no other types of source fall in that part of the WISE colour diagram.

The combination of the Gaia selection and the WISE colour selection has, therefore, yielded a catalogue of 2312 radio-loud quasar candidates, of which about 81% are true radio-loud quasars. Using the same technique on the entire EMU survey will yield a catalogue of about 230 000 radio-loud quasar candidates, representing a significant increase in the number of known radio-loud quasars.

6.7. Clusters of galaxies

Galaxy clusters represent some of the largest gravitationally bound structures in the universe, and radio emission provides an insight into their formation and evolution. They evolve and grow through a variety of processes including passive accretion of gas, consumption of small galaxy groups, and violent merger events which can deposit vast amounts of energy ( ${\sim}10^{64}$ erg, e.g. Ferrari et al. Reference Ferrari, Govoni, Schindler, Bykov and Rephaeli2008) into the ICM.

Many merging galaxy clusters host vast and enigmatic radio continuum sources. These diffuse radio sources are broadly classified into two categories: radio relics (or cluster radio shocks) and radio halos (see van Weeren et al. Reference van Weeren, de Gasperin, Akamatsu, Brüggen, Feretti, Kang, Stroe and Zandanel2019, for a recent review). To date, some ${\sim}70$ clusters are known to host radio relics, and some ${\sim}65$ clusters are known to host radio halosFootnote j.

Radio relics are highly extended (typically ${\sim}1$ Mpc), highly polarised, diffuse synchrotron sources that lie towards the periphery of galaxy clusters. They often exhibit curved morphologies and filamentary sub-structures and are thought to be powered by shocks which generate relativistic electrons through a form of diffusive shock acceleration.

Radio halos, on the other hand, are largely amorphous, unpolarised diffuse synchrotron sources that are centrally located in merging galaxy clusters, and roughly follow the distribution of the thermal plasma in the ICM (as traced by X-ray emission).The most commonly accepted scenario is that radio halos are powered by turbulence injected in the ICM during cluster merger events, although there are alternatives based on collisions between cosmic ray protons (CRp) and thermal protons from the ICM (for a review, see Brunetti & Jones Reference Brunetti and Jones2014). On smaller scales ( $\lesssim0.5$ Mpc), ‘mini-halos’ are relatively small diffuse radio sources that are generally co-located with powerful, radio-loud, brightest cluster galaxies (BCGs) in relaxed clusters. One theoretical explanation for mini-halos is that ‘core-sloshing’ in the ICM from minor or off-axis mergers produces small-scale turbulence which can then provide sufficient energy for re-acceleration of the relativistic electrons.

For relics, halos, and mini-halos, the shape of the synchrotron emitting spectrum provides a diagnostic for these relativistic particle (re-)acceleration processes. Historically, our understanding of the relevant physics has been limited by (i) the generally relatively poor quality of low-frequency radio data, (ii) missing short spacings, leading to loss of highly-extended radio emission, and (iii) narrow bandwidths, limiting the spectral shape measurements. By circumventing these limitations with the EMU survey, the sample of clusters suitable for study can be increased by at least two orders of magnitude.

There are already $\sim$ 20 known X-ray detected galaxy clusters in the EMU-PS area. All show compact or moderately extended radio sources that are likely associated with AGN. The eROSITA survey (Predehl et al. Reference Predehl2021) will provide many more X-ray clusters for radio investigation. The first eROSITA all-sky survey (eRASS1) will find as many as $1.5\ \mathrm{clusters/\,deg}^2$ ; more than $3\ \mathrm{clusters/\,deg}^2$ are expected after all eight all-sky surveys are completed (e.g., Pillepich et al. Reference Pillepich, Reiprich, Porciani, Borm and Merloni2018). Hence, we expect as many as 400 X-ray-detected clusters will soon be available in the EMU-PS area alone, and more than 10 000 AGN.

Early EMU/eROSITA results on the Abell 3391/95 galaxy cluster system (Reiprich et al. Reference Reiprich2021; Brüggen et al. Reference Brüggen2021) have already helped constrain physical processes in the merger. We show two additional examples of diffuse radio sources detected in the EMU-PS area in Figures 33 and 34.

Figure 29. The histogram of EMU-PS flux densities for 6dFGS galaxies with ${\rm H\alpha}$ emission and $K<12.65$ , along with the corresponding histogram of flux densities measured at offset positions. Just 17 of the 623 6dFGS galaxies with detectable ${\rm H\alpha}$ emission have radio flux densities below 75 $\mu\mathrm{Jy\ beam}^{-1}$ .

Figure 30. The EMU-PS flux densities of $K<12$ galaxies with and without ${\rm H\alpha}$ emission as a function of absolute magnitude. The dashed line shows $75\,{\rm \mu Jy}$ , roughly corresponding to $3\sigma$ . Almost all star-forming galaxies are detected by the EMU-PS. While low mass passive galaxies can have no detectable radio continuum emission, all but one $M_K<-26$ passive galaxy has a positive radio continuum flux density.

Figure 31. The number of cross-matches between DES counterparts to EMU-PS sources, and Gaia sources, for unshifted data (blue), and data shifted by one arcmin (orange).

Figure 32. The AllWISE colour-colour plot for EMU-PS sources cross-matched with Gaia, colour-coded according to their measured proper motion. The dashed lines divide the graph into the regions identified by Jarrett et al. (Reference Jarrett2017).

Figure 33. Multi-wavelength composite image of SPT-CL J2023 $-$ 5535. Contours denote the EMU-PS surface brightness at 944 MHz at 18 arcsec resolution, at $3\sigma_{\rm{rms}} \times 2^{n}$ where $n=0, 1, 2, 3, 4$ and $\sigma_{rms}=\sim25$ $\mu\mathrm{Jy\ beam}^{-1}$ . Background colourmap shows a composite g, r, and i image from DECam. X-ray emission from Chandra is also overlaid in red. New diffuse radio sources identified by HyeongHan et al. (Reference HyeongHan2020) are also indicated.

Figure 34. Multi-wavelength composite image of the cluster SPT-CL J2032 $-$ 5627. Colour map and contours are the same as Figure 33, but with $25\,\mathrm{ks}$ XMM- Newton surface brightness shown in red. It appears that the cluster hosts one of the rare class of double-radio relics with the northern (A and B) and southern (C) relics as indicated.

Other cluster catalogues will similarly provide important targets for EMU-PS and the full EMU Survey. For example, Aguena et al. (Reference Aguena2021) provide the WaZP catalogue of 60542 clusters from the DESFootnote k. About 30 of their BCGs are coincident with extended RGs in the EMU-PS and will be discussed by Andernach et al. (in preparation).

6.7.1. SPT-CL J2023-5535

Figure 33 presents the radio halo and relic in the massive merging galaxy cluster, SPT-CL J2023 $-$ 5535 ( $z=0.23$ ), reported by HyeongHan et al. (Reference HyeongHan2020). Their weak-lensing analysis has revealed significant substructure in this massive ( $M_{200}=1.04\pm0.36\times 10^{15}\,M_{\odot}$ ) cluster, which comprises three subclusters.

The merger event between the eastern and central subclusters appears to have generated a ${\sim}0.5$ Mpc radio relic on the western edge of the central subcluster. The results presented by HyeongHan et al. (Reference HyeongHan2020) show an unusually flat spectral index $\alpha_{\rm{int}}=-0.76 \pm 0.06$ , which may indicate that this relic is powered by the re-acceleration of fossil electrons, perhaps originally seeded by a nearby (photometric) cluster member AGN. Follow-up observations at other radio frequencies will be required to confirm this flat spectrum.

6.7.2. SPT-CL J2032-5627

Figure 34 shows a rare class of a possible double-radio relic with an elongation of X-ray emission in the massive ( $M_{500}=4.77^{+0.71}_{-0.63}\times 10^{14}\,M_{\odot}$ ; Bulbul et al. Reference Bulbul2019) cluster SPT-CL J2032 $-$ 5627 ( $z=0.28$ ). The north-western (sources A & B) and south-eastern (source C) all exhibit steep radio spectra ( $\alpha_{\rm{int}} = -1.75$ , $\alpha_{\rm{int}} = -1.69$ , and $\alpha_{\rm{int}} =-1.46$ , respectively).

Figure 35. Radio contours overlaid on a multi-wavelength (irg) composite image of 6dFGS g2212485-614658 from DES. The radio image was made from the EMU-PS native resolution data by subtracting four unresolved sources and then convolving to a resolution of 18 arcsec. Contours are at 75, 150, 300, and 600 $\mu\mathrm{Jy\ beam}^{-1}$ . The subtracted sources were at 22:12:48.64 $-$ 61:46:58.5 (14.9 mJy), 22:12:43.04 $-$ 61:46:50.1 (0.3 mJy), 22:12:51.19 $-$ 61:46:15.5 (0.2 mJy), 22:12:37.17 $-$ 61:47:24.5 (0.1 mJy)

The highly asymmetric X-ray surface brightness profile and large projected separation between the radio relics in this cluster suggest that the merger event is occurring close to the plane of the sky. Curiously, no evidence of a shock has been found in the X-ray surface brightness. However, the presence of a cold front towards the leading edge to the south-east of the cluster may suggest that the lack of a shock detection is due to the relatively shallow depth ( $25\,\mathrm{ks}$ ) of the existing XMM- Newton observations. See also Duchesne et al. (Reference Duchesne, Johnston-Hollitt, Bartalucci, Hodgson and Pratt2021) for further discussion of SPT-CL J2032 $-$ 5627.

6.7.3. A Mini-Halo in a poor cluster

Figure 35 shows a very low surface brightness structure, much fainter (50 $\mu\mathrm{Jy\ beam}^{-1}$ ) than the embedded compact 14.8 $\pm0.07\,\textrm{mJy}$ source associated with 6dFGS g2212485-614658 at a redshift of z=0.054. The low surface brightness emission was found using the multi-resolution filtering technique of Rudnick (Reference Rudnick2002), using a filter box size of 34 arcsec which removes the emission from compact components. It has a total extent of 150 arcsec (160 kpc) and a total flux density of 5 $\pm$ 0.5 mJy, corresponding to a luminosity of $\approx 3\times10^{22}$ W/Hz. No substructure is apparent.

The diffuse structure could be the dying remains of a radio galaxy, faded to a luminosity comparable to the faintest AGN or to typical SFGs (Mauch & Sadler Reference Mauch and Sadler2007). The lack of radio structure, however, suggests that it could also be an underluminous mini-halo, an option we briefly explore here.

There is no catalogued cluster associated with 6dFGS g2212485-614658, although there are five galaxies with a similar redshift listed in Vizier, out to a separation of 17 arcmin (1 Mpc). This, and the presence of many smaller galaxies embedded in the 6dFGS g2212485-614658 envelope (Figure 35) suggest that this could be a poor cluster or group.

The radio and extended (as opposed to AGN) X-ray luminosities of mini-halo systems are well correlated (Giacintucci et al. Reference Giacintucci, Markevitch, Cassano, Venturi, Clarke, Kale and Cuciti2019). For this system, we determined upper limits to the bolometric (0.2–2 keV) X-ray emission using both RASS and XMM Slew archives, yielding limits in the range 1.4–2.4 $\times10^{-13}\ \mathrm{erg/s/cm}^2$ . At mid-range, the inferred luminosity upper limit of $10^{42}$ erg/s is two orders of magnitude lower than that of the mini-halo clusters summarised in Giacintucci et al. (Reference Giacintucci, Markevitch, Cassano, Venturi, Clarke, Kale and Cuciti2019) and than the value expected from the radio-X-ray correlation.

Probing mini-halo-like structures in these poor-cluster, low X-ray luminosity type systems is important for understanding the physical mechanisms which form and continue to power the radio emission. We do not know whether the current observed radio-X-ray correlation is influenced by X-ray selection effects, or whether the correlation breaks down at very low cluster masses.

The sensitivity of EMU to very low surface brightness emission such as presented here will provide a powerful tool for exploring the connection between compact and extended AGN emissions and pure cluster/group particle acceleration processes in mini-halos.

6.8. Cosmology

The spatial distribution of radio sources is a tracer of the underlying matter distribution and can be used to probe the formation conditions of radio galaxies, as well as the underlying fundamental ingredients and physics of the universe. As these continuum sources are not easy to localise in redshift, we use measurements of angular clustering for the EMU-PS.

Here, we use the Landy & Szalay (Reference Landy and Szalay1993) estimator, which is defined as:

(1) \begin{equation} w_{\mathrm{LS}}(\theta) = \frac{DD(\theta) + RR(\theta) - 2DR(\theta)}{RR(\theta)},\end{equation}

where $DD(\theta)$ is the number of observed galaxy pairs at distance between $\theta$ and $\theta+d\theta$ , $RR(\theta)$ is the number of random galaxies pairs at this separation, and $DR(\theta)$ is the number of observed random pairs. We apply this statistic to the pilot survey catalogue, using the island data catalogue as the data vector (D), and generated random catalogues (R), normalising the number over all angles such the angular correlation function $w(\theta)$ functions as a probability excess or decrement relative to an entirely random distribution of galaxies on the sky.

The random catalogue (R) is generated using the method used in Hale et al. (Reference Hale, Jarvis, Delvecchio, Hatfield, Novak, Smolčić and Zamorani2018) and Siewert et al. (Reference Siewert2020) where random positions for simulated sources are generated across the EMU-PS field of view and for each simulated source a flux density is randomly assigned to the source using flux densities from the SKADS simulation (Wilman et al. Reference Wilman2008)Footnote l. We assign noise to the flux density of the simulated source by sampling from a Gaussian distribution with spread given by the RMS at the random source location. A source remains within the random catalogue provided the simulated source peak flux density (where we assume the random sources are unresolved) added to the noise would be detectable at $\geq 5 \times$ the RMS at the simulated source position.

Figure 36. The number of sources in the EMU-PS with a flux density greater than some limit (S), as a function of that limit, compared to scaled predictions from the SKADS and T-RECS simulated catalogues. The dashed black vertical line gives the $500\mu\mathrm{Jy}$ limit we assume for the clustering analysis presented in this paper. There is some discretisation of the prediction for the larger flux density limits, due to a scaling of some small integer value for the original prediction that was made for a much smaller value.

The robustness of this approach to generate the randoms is checked by comparing the fluxes of the simulated catalogues to the island catalogue of the EMU-PS. We selected both AGN and SFG galaxies from SKADS and T-RECS (Bonaldi et al. Reference Bonaldi, Bonato, Galluzzi, Harrison, Massardi, Kay, De Zotti and Brown2019) simulations. In Figure 36, we compare the number counts for different flux density cuts $N(>S)$ between the EMU-PS island catalogue and the number counts from both simulated radio catalogues at 1 GHz.

In order to calculate the expected $w_{\mathrm LS}(\theta)$ distribution, we must know the redshift distribution N(z) of the sources. For the analysis here, the SKADS and T-RECS simulations are used for N(z) and are shown in Figure 37. There is good agreement in the redshift distribution between these two catalogues, and this consistency indicates that we are accurately modelling N(z) and choosing the SKADS catalogue should not introduce a significant error. Using the N(z) distribution estimated from SKADS, we compute the theoretical expectation for the clustering statistics at the flux density cut of $500 \mu\mathrm{Jy}$ .

Figure 37. The predicted number of sources in the EMU Pilot Survey as a function of redshift, generated by scaling the predictions from the SKADS and T-RECS simulated catalogues. This assumes a flux density limit of $500\mu\mathrm{Jy}$

The measured angular correlation function $w(\theta)$ is shown in Figure 38, estimating the errors from boostrap resampling the data and random simulated data 100 times. We also show the predicted angular correlation function, assuming a cosmological model with values fixed at the values listed in Table 2, with a number distribution and bias model from SKADS. We show that the theoretical prediction, with no tuning of free parameters, is a reasonable fit to the data in the angular range $0.1^{\circ} < \theta < 10^{\circ}$ . There is somewhat of a discrepancy at small scales ( $\theta < 0.1^{\circ}$ ), which is probably generated by the multiple components that can be generated by the same radio galaxy, but which here are being treated as independent tracers of the cosmological density field. A more complete analysis, including calibration of the effect of multi-component sources on the angular correlation function on small scales, is planned for future work.

Figure 38. The measured angular correlation function (ACF) $w(\theta)$ as a function of angular separation with one-sigma error bar computed from bootstrap re-sampling from 100 bootstraps. The correlation function is measured from the integrated flux-corrected EMU-PS island catalogue, using all sources above a flux density limit of $500\mu\mathrm{Jy}$ . The blue curve is the theoretical prediction for the correlation function, assuming the Planck 2018 best fit cosmology and a SKADS model for the number distribution with redshift and the bias. No fitting of the cosmological or bias parameters was performed to change the prediction curve. As negative values cannot be shown on a log scale, in bins where the ACF becomes negative, we show (in red) the value of (-ACF) instead.

6.9. The excess of flat spectral index sources

To investigate the skew towards flatter and inverted spectral indices shown in Figures 10 and 11, we compare the spectral index distributions for a sample of clearly resolved and unresolved components from the EMU-PS. The unresolved population contains radio cores and therefore includes flat-spectrum radio quasars (Urry & Padovani Reference Urry and Padovani1995) and peaked-spectrum sources (O’Dea & Saikia Reference O’Dea and Saikia2021). At the observing frequency of EMU-PS ( $\nu \sim 900\,$ MHz), the radio spectra of Gigahertz Peaked-Spectrum sources tend to have shallow spectral index values as EMU-PS is observing close to their turnover frequency (O’Dea Reference O’Dea1998). For this comparison, we define each source to be resolved or unresolved using the component size after deconvolution from the beam, $\Psi$ , considering components with $\Psi < 2\,\mathrm{arcsec}$ to be unresolved and components with $\Psi > 20\,\mathrm{arcsec}$ to be resolved.

Figure 39. The spectral index distributions for unresolved ( $\Psi < 2''$ , blue) and resolved ( $\Psi > 20''$ , red) EMU components. The three panels show different minimum brightness levels, corresponding to $S_{\text{peak}} > 1\,\mathrm{mJy\ beam}^{-1}$ , $S_{\text{peak}} > 3\,\mathrm{mJy\ beam}^{-1}$ , and $S_{\text{peak}} > 10\,\mathrm{mJy\ beam}^{-1}$ from top to bottom. The legend in each panel denotes the number of components contributing to each distribution shown. Each plot is normalised to the area under the curve.

In Figure 39, we show the spectral index distributions for the resolved and unresolved EMU components at three levels of minimum peak brightness: $S_{\text{peak}} > 1\, \mathrm{mJy\ beam}^{-1}$ , $S_{\text{peak}} > 3\,\mathrm{mJy\ beam}^{-1}$ , and $S_{\text{peak}} > 10\,\mathrm{mJy\ beam}^{-1}$ . Resolved components have symmetric distributions around a peak of $\alpha \sim -0.7$ . However, while the spectral index distribution for the unresolved population is comparable to the resolved population at steep negative spectral indices ( $\alpha < -0.7$ ), the distributions differ at flatter spectral indices. At $\alpha > -0.7$ , the unresolved population dominates over the resolved population at all three brightness levels. Due to the large scatter in the spectral index distribution at sub-mJy levels (Figure 10), we have only performed this analysis on EMU components with $S_{\text{peak}}>1\,\mathrm{mJy\ beam}^{-1}$ . Future EMU data, where potential issues in the spectral index calibration at lower signal to noise are better understood, will present the opportunity to study the spectral index distributions of fainter resolved and unresolved components. Such an analysis, particularly for the full EMU survey, will enable tests of the potential flattening of the spectral index distribution for radio sources with $S \lesssim 0.5\,$ mJy (Prandoni et al. Reference Prandoni, Parma, Wieringa, de Ruiter, Gregorini, Mignano, Vettolani and Ekers2006; Whittam et al. Reference Whittam2013).

The different spectral index distributions of resolved and unresolved components we observe with the EMU-PS are consistent with what is seen with higher angular resolution and higher frequency observations. Recently, Gordon et al. (Reference Gordon2021) demonstrated the $1.4 - 3\,$ GHz spectral index distributions for point-like radio components are skewed to flatter values than well-resolved components using observations from the Faint Images of the Radio Sky at Twenty cm survey (FIRST; $\nu \sim 1.4\,$ GHz, Becker et al. Reference Becker, White and Helfand1995) and the Very Large Array Sky Survey (VLASS, $\nu \sim 3\,$ GHz, Lacy et al. Reference Lacy2020). Further comparisons between EMU and radio observations in other bands, such as those from VLASS and the Australia Telescope Large Area Survey (ATLAS, $1.4 - 2.3\,$ GHz, Zinn et al. Reference Zinn, Middelberg, Norris, Hales, Mao and Randall2012), may help quantify the fractions of peaked-spectrum sources with different turnover frequencies, and this will be the focus of a follow-up work.

7. Conclusion

We have presented the first pilot survey of EMU, using the ASKAP telescope.

The resulting images reach an rms sensitivity of about 25–30 $\mu\mathrm{Jy\ beam}^{-1}$ rms at a spatial resolution of $\sim$ 11–18 arcsec and result in a catalogue of $\sim$ 220 000 sources, of which $\sim$ 180 000 are compact. We have presented the catalogue of compact sources, together with optical and infrared cross-identifications and redshifts. We have also shown some preliminary science results, on both these compact sources and on diffuse sources, which will be discussed in more detail in subsequent papers.

The results presented here testify to the outstanding observational characteristics of ASKAP, including its high survey speed and unprecedented sensitivity to low surface brightness emission. Nevertheless, at the time of the pilot survey, several aspects of ASKAP correlator operation, calibration, and data processing were incomplete. We therefore expect future results from ASKAP, including the main EMU survey, to have even better sensitivity and dynamic range than the results presented in this paper.

Acknowledgements

We thank an anonymous referee for valuable feedback on an earlier iteration of this paper. The Australian SKA Pathfinder is part of the Australia Telescope National Facility which is managed by CSIRO. Operation of ASKAP is funded by the Australian Government with support from the National Collaborative Research Infrastructure Strategy. Establishment of the Murchison Radio-astronomy Observatory was funded by the Australian Government and the Government of Western Australia. ASKAP uses advanced supercomputing resources at the Pawsey Supercomputing Centre. We acknowledge the Wajarri Yamatji people as the traditional owners of the Observatory site. This work makes use of data products from the Wide-field Infrared Survey Explorer, which is a joint project of the University of California, Los Angeles, and the Jet Propulsion Laboratory/California Institute of Technology, funded by the National Aeronautics and Space Administration. It also makes use of data from the European Space Agency (ESA) mission Gaia, and we acknowledge the institutions listed on https://gea.esac.esa.int/archive/documentation/GEDR3/Miscellaneous/sec/_acknowl/ It also uses public archival data from the DES and we acknowledge the institutions listed on https://www.darkenergysurvey.org/the-des-project/ data-access/. This research has made use of the ‘Aladin sky atlas’ developed at CDS, Strasbourg Observatory, France (Boch & Fernique Reference Boch, Fernique, Manset and Forshay2014). This research uses services or data provided by the Astro Data Lab at NSF’s National Optical-Infrared Astronomy Research Laboratory. NOIRLab is operated by the Association of Universities for Research in Astronomy (AURA), Inc. under a cooperative agreement with the National Science Foundation. Partial support for LR comes from US National Science Foundation Grant AST 17-14205 to the University of Minnesota. The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. CLH acknowledges support from the Leverhulme Trust through an Early Career Research Fellowship. IP acknowledges support from CSIRO under its Distinguished Research Visitor Programme, and from INAF through the SKA/CTA PRIN “FORECaST” and the PRIN MAIN STREAM “SAuROS” projects. MJJ acknowledges support from the National Research Foundation of Korea under the program nos. 2017R1A2B2004644 and 2017R1A4A1015178. CJR acknowledges financial support from the ERC Starting Grant ‘DRANOEL’, number 714245. HA benefited from grant CIIC 174/2021 of Universidad de Guanajuato.

References

Abbott, T. M. C., et al. 2018, ApJS, 239, 18 CrossRefGoogle Scholar
Afonso, J., et al. 2011, ApJ, 743, 122 Google Scholar
Aguena, M., et al. 2021, MNRAS, 502, 4435 CrossRefGoogle Scholar
Bailer-Jones, C. A. L., Fouesneau, M., & Andrae, R. 2019, MNRAS, 490, 5615 CrossRefGoogle Scholar
Barnes, D. G., et al. 2001, MNRAS, 322, 486 Google Scholar
Becker, R. H., White, R. L., & Helfand, D. J. 1995, ApJ, 450, 559 CrossRefGoogle Scholar
Bera, A., Kanekar, N., Chengalur, J. N., & Bagla, J. S. 2019, ApJ, 882, L7 CrossRefGoogle Scholar
Bilicki, M., et al. 2016, ApJS, 225, 5 CrossRefGoogle Scholar
Boch, T., & Fernique, P. 2014, in Astronomical Data Analysis Software and Systems XXIII, ed. Manset, N., & Forshay, P., Astronomical Society of the Pacific Conference Series, vol. 485, 277Google Scholar
Bock, D. C. J., Large, M. I., & Sadler, E. M. 1999, AJ, 117, 1578 CrossRefGoogle Scholar
Boller, T., Freyberg, M. J., Trümper, J., Haberl, F., Voges, W., & Nandra, K. 2016, A&A, 588, A103 CrossRefGoogle Scholar
Bonaldi, A., Bonato, M., Galluzzi, V., Harrison, I., Massardi, M., Kay, S., De Zotti, G., & Brown, M. L. 2019, MNRAS, 482, 2 CrossRefGoogle Scholar
Bondi, M., Ciliegi, P., Schinnerer, E., Smolčić, V., Jahnke, K., Carilli, C., & Zamorani, G. 2008, ApJ, 681, 1129 CrossRefGoogle Scholar
Bonnarel, F., et al. 2000, A&AS, 143, 33 CrossRefGoogle Scholar
Brienza, M., et al. 2017, A&A, 606, A98 CrossRefGoogle Scholar
Briggs, D. S. 1995, PhD thesis, New Mexico Institute of Mining and Technology Socorro, New MexicoGoogle Scholar
Brown, M. J. I., Jannuzi, B. T., Floyd, D. J. E., & Mould, J. R. 2011, ApJ, 731, L41 CrossRefGoogle Scholar
Brüggen, M., et al. 2021, A&A, 647, A3 Google Scholar
Brunetti, G., & Jones, T. W. 2014, Int. J. Mod. Phys. D, 23, 1430007 CrossRefGoogle Scholar
Bulbul, E., et al. 2019, ApJ, 871, 50 CrossRefGoogle Scholar
Burenin, R. A., Vikhlinin, A., Hornstrup, A., Ebeling, H., Quintana, H., & Mescheryakov, A. 2007, ApJS, 172, 561 CrossRefGoogle Scholar
Calabretta, M. R., Staveley-Smith, L., Barnes, D. G., 2014, PASA, 31, e007 CrossRefGoogle Scholar
Chapman, J. M., Dempsey, J., Miller, D., Heywood, I., Pritchard, J., Sangster, E., Whiting, M., & Dart, M. 2017, in Astronomical Data Analysis Software and Systems XXV, ed. Lorente, N. P. F., Shortridge, K., & Wayth, R., Astronomical Society of the Pacific Conference Series, vol. 512, 73 Google Scholar
Condon, J. J. 1992, ARA&A, 30, 575 CrossRefGoogle Scholar
Condon, J. J., Cotton, W. D., Greisen, E. W., Yin, Q. F., Perley, R. A., Taylor, G. B., & Broderick, J. J. 1998, AJ, 115, 1693 CrossRefGoogle Scholar
Condon, J. J., Cotton, W. D., & Broderick, J. J. 2002, AJ, 124, 675 CrossRefGoogle Scholar
Cornwell, T. J., Golap, K., & Bhatnagar, S. 2008, IEEE J. Selected Top. Sig. Process., 2, 647 Google Scholar
Cotton, W. D., et al. 2020, MNRAS, 495, 1271 Google Scholar
Cutri, R. M., et al. 2021, VizieR Online Data Catalog, p. II/328Google Scholar
Dahlem, M., Ehle, M., Ryder, S. D., Vlajić, M., & Haynes, R. F. 2005, A&A, 432, 475 CrossRefGoogle Scholar
Davies, L. J. M., et al. 2017, MNRAS, 466, 2312 Google Scholar
Drlica-Wagner, A., et al. 2018, ApJS, 235, 33 Google Scholar
Duchesne, S. W., Johnston-Hollitt, M., Bartalucci, I., Hodgson, T., & Pratt, G. W. 2021, PASA, 38, e005 CrossRefGoogle Scholar
Eddington, A. S. 1913, MNRAS, 73, 359 CrossRefGoogle Scholar
Eddington, A. S. 1940, MNRAS, 100, 354 CrossRefGoogle Scholar
Ekers, R. D. 1970, AuJPh, 23, 217 CrossRefGoogle Scholar
Fanaroff, B. L., & Riley, J. M. 1974, MNRAS, 167, 31P CrossRefGoogle Scholar
Ferrand, G. 2019, Slicing the LCH space, Available at https://nbviewer.jupyter.org/github/gillesferrand/colourspace/blob/master/4.slices.ipynb (accessed 10 May 2021)Google Scholar
Ferrari, C., Govoni, F., Schindler, S., Bykov, A. M., & Rephaeli, Y. 2008, SSRv, 134, 93 CrossRefGoogle Scholar
Gaia Collaboration et al. 2016, A&A, 595, A2 Google Scholar
Gaia Collaboration et al. 2021, A&A, 649, A1 CrossRefGoogle Scholar
Giacintucci, S., Markevitch, M., Cassano, R., Venturi, T., Clarke, T. E., Kale, R., & Cuciti, V. 2019, ApJ, 880, 70 CrossRefGoogle Scholar
Gordon, Y. A., et al. 2021, arXiv e-prints, p. arXiv:2102.11753Google Scholar
Gregory, P. C., Vavasour, J. D., Scott, W. K., & Condon, J. J. 1994, ApJS, 90, 173 CrossRefGoogle Scholar
Guzman, J., et al. 2019, ASKAPsoft: ASKAP science data processor software (ascl:1912.003)Google Scholar
Hale, C. L., Jarvis, M. J., Delvecchio, I., Hatfield, P. W., Novak, M., Smolčić, V., & Zamorani, G. 2018, MNRAS, 474, 4133 CrossRefGoogle Scholar
Hay, S., O’Sullivan, J., Kot, J., & Granet, C. 2006, in The European Conference on Antennas and Propagation: EuCAP 2006, ed. Lacoste, H., & Ouwehand, L., Special Publication, ESA, vol. 626, 663Google Scholar
Healey, S. E., Romani, R. W., Taylor, G. B., Sadler, E. M., Ricci, R., Murphy, T., Ulvestad, J. S., & Winn, J. N. 2007, ApJS, 171, 61 CrossRefGoogle Scholar
Heesen, V., Brinks, E., Leroy, A. K., Heald, G., Braun, R., Bigiel, F., & Beck, R. 2014, AJ, 147, 103 CrossRefGoogle Scholar
Heesen, V., Dettmar, R.-J., Krause, M., Beck, R., & Stein, Y. 2016, MNRAS, 458, 332 CrossRefGoogle Scholar
Heesen, V., et al. 2018, MNRAS, 474, 5049 Google Scholar
Heywood, I., et al. 2016, MNRAS, 460, 4433 CrossRefGoogle Scholar
Hopkins, A. M., Afonso, J., Chan, B., Cram, L. E., Georgakakis, A., & Mobasher, B. 2003, AJ, 125, 465 CrossRefGoogle Scholar
Hotan, A. W., et al. 2021, PASA, 38, e009 Google Scholar
Huynh, M., Dempsey, J., Whiting, M. T., & Ophel, M. 2020, in Astronomical Data Analysis Software and Systems XXVII. ed. Ballester, P., Ibsen, J., Solar, M., Shortridge, K., Astronomical Society of the Pacific Conference Series, vol. 522, 263Google Scholar
HyeongHan, K., et al. 2020, ApJ, 900, 127 CrossRefGoogle Scholar
Ishwara-Chandra, C. H., & Saikia, D. J. 1999, MNRAS, 309, 100 CrossRefGoogle Scholar
Itten, J. 1970, The Elements of Colour. Van Nostrand Reinhold Company, Toronto Google Scholar
Jarrett, T. H., et al. 2017, ApJ, 836, 182 CrossRefGoogle Scholar
Johnston, S., et al. 2007, PASA, 24, 174 CrossRefGoogle Scholar
Johnston, S., et al. 2008, ExA, 22, 151 CrossRefGoogle Scholar
Jones, P. A., & McAdam, W. B. 1992, ApJS, 80, 137 CrossRefGoogle Scholar
Jones, D. H., et al. 2004, MNRAS, 355, 747 CrossRefGoogle Scholar
Jones, D. H., et al. 2009, MNRAS, 399, 683 Google Scholar
Koribalski, B. S., & López-Sánchez, á. R. 2009, MNRAS, 400, 1749 CrossRefGoogle Scholar
Koribalski, B. S., et al. 2004, AJ, 128, 16 Google Scholar
Koribalski, B. S., et al. 2020, Ap&SS, 365, 118 Google Scholar
Koribalski, B. S., Norris, R. P., Andernach, H., Rudnick, L., Shabala, S., Filipovic, M., & Lenc, E. 2021, MNRAS, 505, L11 CrossRefGoogle Scholar
Kużmicz, A., Jamrozy, M., Bronarska, K., Janda-Boczar, K., & Saikia, D. J. 2018, ApJS, 238, 9 CrossRefGoogle Scholar
Lacy, M., et al. 2020, PASP, 132, 035001 Google Scholar
Landy, S. D., & Szalay, A. S. 1993, ApJ, 412, 64 CrossRefGoogle Scholar
Leahy, D. A., et al. 2019, PASA, 36, e024 Google Scholar
Mahatma, V. H., et al. 2018, MNRAS, 475, 4557 CrossRefGoogle Scholar
Mancuso, C., et al. 2017, ApJ, 842, 95 CrossRefGoogle Scholar
Mandal, S., et al. 2021, A&A, 648, A5 Google Scholar
Marocco, F., et al. 2021, ApJS, 253, 8 CrossRefGoogle Scholar
Mauch, T., & Sadler, E. M. 2007, MNRAS, 375, 931 CrossRefGoogle Scholar
Mauch, T., Murphy, T., Buttery, H. J., Curran, J., Hunstead, R. W., Piestrzynski, B., Robertson, J. G., & Sadler, E. M. 2003, MNRAS, 342, 1117 CrossRefGoogle Scholar
McConnell, D., et al. 2016, PASA, 33, e042 Google Scholar
McConnell, D., et al. 2019, ASKAP Observation Guide, Available at https:// confluence.csiro.au/display/askapsst/ASKAP+Observation+Guide (accessed 10 May 2021)Google Scholar
McConnell, D., et al. 2020, PASA, 37, e048 CrossRefGoogle Scholar
Meyer, M. J., et al. 2004, MNRAS, 350, 1195 CrossRefGoogle Scholar
Mocanu, L. M., et al. 2013, ApJ, 779, 61 CrossRefGoogle Scholar
Molnár, D. C., et al. 2021, MNRAS, 504, 118 CrossRefGoogle Scholar
Monroe, T. R., Prochaska, J. X., Tejos, N.,Worseck, G., Hennawi, J. F., Schmidt, T., Tumlinson, J., & Shen, Y. 2016, AJ, 152, 25 CrossRefGoogle Scholar
Murphy, E. J. 2009, ApJ, 706, 482 CrossRefGoogle Scholar
Murphy, T., et al. 2010, MNRAS, 402, 2403 Google Scholar
Murphy, E. J., et al. 2011, ApJ, 737, 67 CrossRefGoogle Scholar
Nawaz, M. A., Bicknell, G. V., Wagner, A. Y., Sutherland, R. S., & McNamara, B. R. 2016, MNRAS, 458, 802 CrossRefGoogle Scholar
Nordgren, T. E., Chengalur, J. N., Salpeter, E. E., & Terzian, Y. 1997, AJ, 114, 913 CrossRefGoogle Scholar
Norris, R. P. 2017a, NatAs, 1, 671 CrossRefGoogle Scholar
Norris, R. P. 2017b, PASA, 34, e007 Google Scholar
Norris, R. P., et al. 2006, AJ, 132, 2409 CrossRefGoogle Scholar
Norris, R. P., et al. 2011, PASA, 28, 215 CrossRefGoogle Scholar
Norris, R. P., et al. 2021, PASA, 38, e003 Google Scholar
O’Dea, C. P. 1998, PASP, 110, 493 CrossRefGoogle Scholar
O’Dea, C. P., & Saikia, D. J. 2021, A&A Rev., 29, 3 Google ScholarPubMed
Piffaretti, R., Arnaud, M., Pratt, G. W., Pointecouteau, E., & Melin, J. B. 2011, A&A, 534, A109 CrossRefGoogle Scholar
Pillepich, A., Reiprich, T. H., Porciani, C., Borm, K., & Merloni, A. 2018, MNRAS, 481, 613 CrossRefGoogle Scholar
Planck Collaboration et al. 2020, A&A, 641, A6 Google Scholar
Prandoni, I., Gregorini, L., Parma, P., de Ruiter, H. R., Vettolani, G., Wieringa, M. H., & Ekers, R. D. 2001, A&A, 365, 392 CrossRefGoogle Scholar
Prandoni, I., Parma, P., Wieringa, M. H., de Ruiter, H. R., Gregorini, L., Mignano, A., Vettolani, G., & Ekers, R. D. 2006, A&A, 457, 517 CrossRefGoogle Scholar
Prandoni, I., Guglielmino, G., Morganti, R., Vaccari, M., Maini, A., Röttgering, H. J. A., Jarvis, M. J., & Garrett, M. A. 2018, MNRAS, 481, 4548 CrossRefGoogle Scholar
Predehl, P., et al. 2021, A&A, 647, A1 Google Scholar
Quici, B., et al. 2021, PASA, 38, e008 Google Scholar
Rau, U., & Cornwell, T. J. 2011, A&A, 532, A71 CrossRefGoogle Scholar
Rau, U., Bhatnagar, S., Voronkov, M. A., & Cornwell, T. J. 2009, IEEE Proc., 97, 1472 CrossRefGoogle Scholar
Reiprich, T. H., et al. 2021, A&A, 647, A2 Google Scholar
Rudnick, L. 2002, PASP, 114, 427 CrossRefGoogle Scholar
Sabater, J., et al. 2019, A&A, 622, A17 Google Scholar
Saripalli, L., Subrahmanyan, R., Thorat, K., Ekers, R. D., Hunstead, R. W., Johnston, H. M., & Sadler, E. M. 2012, ApJS, 199, 27 CrossRefGoogle Scholar
Scheuer, P. A. G. 1957, Proce. Cambridge Philos. Soc., 53, 764 Google Scholar
Schilizzi, R. T., & McAdam, W. B. 1975, MmRAS, 79, 1 Google Scholar
Siewert, T. M., et al. 2020, A&A, 643, A100 Google Scholar
Tabatabaei, F. S., et al. 2017, ApJ, 836, 185 CrossRefGoogle Scholar
Taylor, M. B., 2005, in Astronomical Society of the Pacific Conference Series, vol. 347, Astronomical Data Analysis Software and Systems XIV, ed. Shopbell, P., Britton, M., & Ebert, R., 29Google Scholar
Turner, R. J., Rogers, J. G., Shabala, S. S., & Krause, M. G. H. 2018, MNRAS, 473, 4179 CrossRefGoogle Scholar
Urry, C. M., & Padovani, P. 1995, PASP, 107, 803 CrossRefGoogle Scholar
Vernstrom, T., et al. 2014, MNRAS, 440, 2791 CrossRefGoogle Scholar
White, R. L., Becker, R. H., Helfand, D. J., & Gregg, M. D. 1997, ApJ, 475, 479 CrossRefGoogle Scholar
White, S. V., et al. 2020a, PASA, 37, e017 Google Scholar
White, S. V., et al. 2020b, PASA, 37, e018 Google Scholar
Whiting, M. T. 2020, in Astronomical Data Analysis Software and Systems XXVII, ed. Ballester, P., Ibsen, J., Solar, M., & Shortridge, K., Astronomical Society of the Pacific Conference Series, vol. 522, 469Google Scholar
Whiting, M., & Humphreys, B. 2012, PASA, 29, 371 CrossRefGoogle Scholar
Whiting, M., Voronkov, M., Mitchell, D., & Askap Team, 2017, Early Science Pipelines for ASKAP, 431Google Scholar
Whittam, I. H., et al. 2013, MNRAS, 429, 2080 CrossRefGoogle Scholar
Wilman, R. J., et al. 2008, MNRAS, 388, 1335 Google Scholar
Wong, O. I., Meurer, G. R., Zheng, Z., Heckman, T. M., Thilker, D. A., & Zwaan, M. A. 2016, MNRAS, 460, 1106 CrossRefGoogle Scholar
Zhou, R., et al. 2021, MNRAS, 501, 3309 CrossRefGoogle Scholar
Zinn, P. C., Middelberg, E., Norris, R. P., Hales, C. A., Mao, M. Y., & Randall, K. E. 2012, A&A, 544, A38 CrossRefGoogle Scholar
Zou, H., Gao, J., Zhou, X., & Kong, X. 2019, ApJS, 242, 8 CrossRefGoogle Scholar
Zou, H., Gao, J., Zhou, X., & Kong, X. 2020, VizieR Online Data Catalog, J/ApJS/242/8CrossRefGoogle Scholar
van Weeren, R. J., de Gasperin, F., Akamatsu, H., Brüggen, M., Feretti, L., Kang, H., Stroe, A., & Zandanel, F. 2019, SSRv, 215, 16 CrossRefGoogle Scholar
Figure 0

Figure 1. The number of known extragalactic radio sources discovered by surveys as a function of time, adapted from Norris (2017a). The symbols indicate the type of telescope used to make the survey, and are fully described in Norris (2017a). The dates and survey size are based on estimates made in 2017, and some later surveys (e.g. RACS McConnell et al. 2020, with 2.8 million sources) are missing from this plot. Survey abbreviations and references are given in Norris (2017a). The shading under the curve is merely to improve readability.

Figure 1

Figure 2. Some of the ASKAP antennas equipped with phased array feeds, located in the Murchison Region of Western Australia. Photo credit: CSIRO

Figure 2

Figure 3. One of the phased array feeds. Each square on the chequerboard is an antenna element connected to two receivers. Photo credit: CSIRO

Figure 3

Table 1. EMU Pilot Survey specifications.

Figure 4

Table 2. Cosmological parameters used in this paper and adopted for EMU-PS.

Figure 5

Table 3. EMU pilot observation details.

Figure 6

Figure 4. The arrangement of the 36 ASKAP beams in the ‘closepack36’ configuration. The beams are numbered from 0 to 35 (diagram adapted from McConnell et al. 2019). The circles shown are for illustration only. For EMU-PS, the actual full width half maximum of each beam is ${\sim}1.5^{\circ}$ at the band centre, and the pitch spacing is $0.9^{\circ}$, giving an approximately uniform sensitivity over the field of view.

Figure 7

Figure 5. The sky tiling scheme adopted for the EMU-PS. The red rectangles covering the celestial sphere show the tiles planned for the EMU survey, and the orange area indicates the 10 tiles of the EMU-PS. The white strip shows the Galactic plane, and the south celestial pole is at the bottom of the figure.

Figure 8

Figure 6. The location of the EMU Pilot Survey area on the sky within DES DR1, adapted from Abbott et al. (2018). The diagram is in equatorial coordinates, and the solid line marks the Galactic plane, flanked by two dashed lines showing Galactic latitude $\pm 10 ^{\circ}$.

Figure 9

Table 4. EMU pilot processing parameters. The first column shows the parameter name used by ASKAPsoft.

Figure 10

Table 5. Results of tests to measure the optimum robustness.

Figure 11

Figure 7. The arrangement of the ten individual ASKAP tiles on the sky for EMU-PS with their SBID numbers as listed in Table 3. The rectangles are separated in this diagram for clarity, but there is actually overlapping coverage as illustrated by the greyscale background.

Figure 12

Figure 8. An example validation report for one of the processing runs for SB9325, including the metrics and their flags. A higher-resolution version is available online2.

Figure 13

Figure 9. The resulting native resolution ($13'' \times 11''$) image of the $270 \,\mathrm{deg}^2$ EMU Pilot Survey, containing about 220 000 radio sources. The rms noise level is 25–30 $\mu\mathrm{Jy\ beam}^{-1}$, and the peak flux density is $3.14 \mathrm{Jy\ beam}^{-1}$.

Figure 14

Table 6. Numbers of sources remaining after each stage of the value-added processing.

Figure 15

Figure 10. The measured spectral index as a function of flux density. The two solid lines show the 3$\sigma$ uncertainty for a source of spectral index -0.8. Note the excess of sources with a positive spectral index, discussed in Section 6.9.

Figure 16

Figure 11. A histogram of measured spectral index as a function of flux density, for the 10458 sources with flux density $>$ 2.5 mJy.

Figure 17

Figure 12. The fraction of simple radio sources (as listed in Table 6) matched with a CWISE source as a function of separation, both for unshifted data and for data shifted by one arcmin.

Figure 18

Figure 13. The fraction of radio sources with a CWISE position matched with a DES DR1 source as a function of separation, both for unshifted data and for data shifted by one arcmin.

Figure 19

Figure 14. A plot showing the difference in position of radio sources compared to the matching CWISE source in the W1 band, showing a mean offset of $\sim$0.3 arcsec, which is small compared to the 18 arcsec resolution of the convolved data. The horizontal axis is Right Ascension and the vertical axis is Declination.

Figure 20

Figure 15. The ratio of peak flux densities between EMU-PS and SUMSS for simple sources with EMU-PS flux densities $>$ 6 mJy, and with catalogued positions within 3 arcsec.

Figure 21

Figure 16. A typical section of the survey field, covering about $0.3 \,\mathrm{deg}^2$ (or about one thousandth of the area of the EMU Pilot Survey) which contains about 250 radio sources). On the left is the SUMSS image (Mauch et al. 2003) and on the right is the EMU-PS image. Prominent in this image is the Giant Radio Galaxy ESO 234-68. The maximum flux density of ESO 234-68 in the EMU-PS image is $58.8 \mathrm{mJy\ beam}^{-1}$, and that of the strong source at the bottom of the image (PMN J2045-5135) is $1.06 \mathrm{Jy beam}^{-1}$. The rms of the EMU-PS image is 25–30 $\mu\mathrm{Jy\ beam}^{-1}$, and that of the SUMSS image is ${\sim}1.25\ \mathrm{mJy\ beam}^{-1}$.

Figure 22

Figure 17. A sample of the final image, showing the three data products on a region, covered by three tiles, containing two of the ‘Odd Radio Circles’(Norris et al. 2021): (a) the initial public data release from a single tile (SB9351) (resolution 11 $\times$ 13 arcsec, rms = $40 \,\mu\mathrm{Jy\ beam}^{-1}$, (b) the added-value ‘native’ data release with 11$\times$13 arcsec resolution, from the merged tiles, rms = 25 $\mu\mathrm{Jy\ beam}^{-1}$, and (c) the added-value ‘convolved’ data release with 18 arcsec resolution, rms = 25 $\mu\mathrm{Jy\ beam}^{-1}$. The peak flux density in this image is $4.6\ \mathrm{mJy\ beam}^{-1}$.

Figure 23

Table 7. Available data products, including Digital Object Identifiers (DOIs) that can be used to access the data described in this paper.

Figure 24

Figure 18. The sensitivity of EMU-PS as a function of spatial scale. The plot was made using visibility data from a single beam and pointing of an interleaved observation (2-h observation, 288-MHz bandwidth, scaled to the EMU-PS observing frequency of 944 MHz) which was filled with Gaussian noise and various uv tapers were applied to shape the beam size. We then measured the image noise (effectively the sensitivity at the scale associated with the uv taper). The two plots show the same result over different ranges of spatial scale.

Figure 25

Figure 19. Normalised differential source counts derived from the $270\ \mathrm{deg}^2$ EMU-PS survey for the island catalogue (black filled diamonds) and for simple sources only (black empty diamonds). The counts have been rescaled from 943.5 MHz to 1.4 GHz by assuming $\alpha=-0.7$. Also shown for comparison are the counts derived from 1.4 GHz $>$ degree-scale surveys (symbols and colours as indicated in the figure). Vertical bars represent Poissonian errors on the normalised counts. Systematic errors due to incompleteness corrections and spectral index assumptions are approximately included in the size of the plotted symbols. The result of the P(D) analysis performed by (Vernstrom et al. 2014, rescaled from 3 to 1.4 GHz by assuming $\alpha $ = $-$0.7) is indicated in dark green. The black solid line represents the predicted counts from 200 sq. degr. of the S3-SEX simulations (Wilman et al. 2008). The light blue and yellow shaded areas illustrate the predicted cosmic variance effects for survey coverages of 5 and $10\ \mathrm{deg}^2$, respectively (obtained by splitting the S3-SEX simulation in 40 5-$\mathrm{deg}^2$ and 20 10-$\mathrm{deg}^2$ fields, respectively). The $25\ \mathrm{deg}^2$ medium tier of the more recent T-RECS simulations (Bonaldi et al. 2019) is represented by the purple shaded area. Finally, the Mancuso et al. (2017) radio source evolutionary model is shown by the light green line.

Figure 26

Figure 20. The EMU-PS preliminary P(D) distributions. The solid black line is the probability distribution made from sections of the pilot away from bright sources. The upper right inset shows bright flux density tail of the P(D) distributions. The blue dot-dashed line shows a Gaussian noise distribution of $\sigma= 23 \mu\mathrm{Jy\ beam}^{-1}$. The red dashed line shows the predicted or model P(D) generated from the source count shown in the lower right inset.

Figure 27

Figure 21. A peculiar radio source found in the EMU Pilot Survey, consisting of a group of distorted radio components, collectively known as PKS 2130–538, and nicknamed ‘the dancing ghosts’. The two host galaxies ($z \sim 0.077$) are seen at the centre of the narrow jets (shown with numbers in the figure to indicate their putative host) which expand into diffuse lobes, probably bent by interactions. On the left is the total intensity greyscale image (shown in turquoise), superimposed on a background of the DES optical image, assembled from the r, g, and i images. On the right is the total intensity image of PKS 2130-538, colour-coded by spectral index. The unconventional colour scheme was constructed using sequential colours on the ‘colour wheel’ (e.g. Itten 1970). The colours were fixed in luminosity, that is, fixed to be constant in luminosity-chroma-hue colour space (Ferrand 2019). In this way, the brightness level on the image represents only the total intensity values. The colour bar indicates the spectral index at a single fixed intensity. Since the spectral index map in this colour scheme was multiplied by the total intensity map, darker versions of colours are associated with fainter regions in the data. The peak flux density in this image is $103\ \mathrm{mJy\ beam}^{-1}$.

Figure 28

Figure 22. Another peculiar radio source found in the EMU Pilot Survey: a double-lobed radio AGN, known as PMN J2041–5256, with a curious ‘double’ bent tail. The radio data from EMU-PS has been ‘stretched’ to show the faint emission, and then coloured turquoise, and adjusted to emphasise the double tail. DES g-, r-, and i-band data are combined to form the background, which is combined with the radio data using a layer mask in GIMP. Embedded in the tails are several radio sources that may be unrelated to the tailed galaxy. The peak flux density in this image is $58.3\ \mathrm{mJy\ beam}^{-1}$.

Figure 29

Figure 23. The ‘Smoking Gun’ Galaxy EMU PS J204835.0–491137 consists of the two diffuse radio clouds seen in this image. These are presumably the remnants of a classical double-lobed radio galaxy in which the central engine has switched off. The labels A and B indicate two possible host galaxies, discussed in the text. The peak flux density in this image is $0.87\ \mathrm{mJy\ beam}^{-1}$.

Figure 30

Figure 24. EMU PS J210700.0–501128.8 is an ambiguous case, appearing at first to be a double-lobed source with material blown to the east. But with no host between the bright patches, and the southern bright component coincident with a quasar, marked with an ‘X’, these may be two independent sources with serendipitously similar appearances The peak flux density in this image is $11.6\ \mathrm{mJy\ beam}^{-1}$.

Figure 31

Figure 25. An image of the first ‘Odd Radio Circle’, or ORC, found in EMU-PS (Norris et al. 2021). It has no optical counterpart to the diffuse ring, or to other diffuse structure, but has a galaxy at its centre which may be the origin of the ring. The image is based on EMU-PS data at native resolution but enhanced to show faint features as described in Norris et al. (2021), particularly the internal structure or “spokes” of the ORC. Radio data are shown in green, and DES optical data are shown in turquoise, magenta, yellow and red, and mainly appear in this image as white.

Figure 32

Figure 26. A selection of ASKAP-detected nearby galaxies in the EMU-PS. Optical DSS2 R-band images are overlaid with ASKAP radio continuum contours. The contour levels are –0.09, 0.09 (${\sim}3 \sigma$), 0.18, 0.36, 0.75, 1.5, 3.0, 7.5, 15.0, and $30\ \mathrm{mJy\,beam}^{-1}$. The convolved 18 arcsec beam is shown in the bottom left corner of each panel. The galaxy name and heliocentric velocity (all but one, ESO233-IG004, from HIPASS) are also displayed. The velocity of ESO233-IG004 is taken from Jones et al. (2009).

Figure 33

Figure 27. DES-DR1 optical composite image of the nearby face-on spiral galaxy NGC 7125 overlaid with contours from the EMU-PS. The contour levels are: 0.1, 0.25, 0.5, 1.0, 1.3, 1.6, 2.0, and $2.4\ \mathrm{mJy\,beam}^{-1}$. NGC 7125 and its neighbour NGC 7216 form an interacting galaxy pair (HIPASS J2149–60) with a large pool of hydrogen gas for star formation.

Figure 34

Figure 28. (Left) The Giant Radio Galaxy (GRG) EMU PS J205139.8–570434, with radio (at native resolution) shown in greyscale, overlaid on the DES DR1 colour image. The GRG consists of the roughly north-south jet and the two diffuse plumes above and below it. The strong source to the east, surrounded by diffraction rings, is the well-studied galaxy IC 5063. (Right) A contour diagram of the central part of the GRG at 18 arcsec resolution, overlaid on the DES DR1 colour image. Contour levels are 3, 7, 12, and $18\ \mathrm{mJy\ beam}^{-1}$.

Figure 35

Figure 29. The histogram of EMU-PS flux densities for 6dFGS galaxies with ${\rm H\alpha}$ emission and $K<12.65$, along with the corresponding histogram of flux densities measured at offset positions. Just 17 of the 623 6dFGS galaxies with detectable ${\rm H\alpha}$ emission have radio flux densities below 75 $\mu\mathrm{Jy\ beam}^{-1}$.

Figure 36

Figure 30. The EMU-PS flux densities of $K<12$ galaxies with and without ${\rm H\alpha}$ emission as a function of absolute magnitude. The dashed line shows $75\,{\rm \mu Jy}$, roughly corresponding to $3\sigma$. Almost all star-forming galaxies are detected by the EMU-PS. While low mass passive galaxies can have no detectable radio continuum emission, all but one $M_K<-26$ passive galaxy has a positive radio continuum flux density.

Figure 37

Figure 31. The number of cross-matches between DES counterparts to EMU-PS sources, and Gaia sources, for unshifted data (blue), and data shifted by one arcmin (orange).

Figure 38

Figure 32. The AllWISE colour-colour plot for EMU-PS sources cross-matched with Gaia, colour-coded according to their measured proper motion. The dashed lines divide the graph into the regions identified by Jarrett et al. (2017).

Figure 39

Figure 33. Multi-wavelength composite image of SPT-CL J2023$-$5535. Contours denote the EMU-PS surface brightness at 944 MHz at 18 arcsec resolution, at $3\sigma_{\rm{rms}} \times 2^{n}$ where $n=0, 1, 2, 3, 4$ and $\sigma_{rms}=\sim25$$\mu\mathrm{Jy\ beam}^{-1}$. Background colourmap shows a composite g, r, and i image from DECam. X-ray emission from Chandra is also overlaid in red. New diffuse radio sources identified by HyeongHan et al. (2020) are also indicated.

Figure 40

Figure 34. Multi-wavelength composite image of the cluster SPT-CL J2032$-$5627. Colour map and contours are the same as Figure 33, but with $25\,\mathrm{ks}$ XMM- Newton surface brightness shown in red. It appears that the cluster hosts one of the rare class of double-radio relics with the northern (A and B) and southern (C) relics as indicated.

Figure 41

Figure 35. Radio contours overlaid on a multi-wavelength (irg) composite image of 6dFGS g2212485-614658 from DES. The radio image was made from the EMU-PS native resolution data by subtracting four unresolved sources and then convolving to a resolution of 18 arcsec. Contours are at 75, 150, 300, and 600 $\mu\mathrm{Jy\ beam}^{-1}$. The subtracted sources were at 22:12:48.64 $-$61:46:58.5 (14.9 mJy), 22:12:43.04 $-$61:46:50.1 (0.3 mJy), 22:12:51.19 $-$61:46:15.5 (0.2 mJy), 22:12:37.17 $-$61:47:24.5 (0.1 mJy)

Figure 42

Figure 36. The number of sources in the EMU-PS with a flux density greater than some limit (S), as a function of that limit, compared to scaled predictions from the SKADS and T-RECS simulated catalogues. The dashed black vertical line gives the $500\mu\mathrm{Jy}$ limit we assume for the clustering analysis presented in this paper. There is some discretisation of the prediction for the larger flux density limits, due to a scaling of some small integer value for the original prediction that was made for a much smaller value.

Figure 43

Figure 37. The predicted number of sources in the EMU Pilot Survey as a function of redshift, generated by scaling the predictions from the SKADS and T-RECS simulated catalogues. This assumes a flux density limit of $500\mu\mathrm{Jy}$

Figure 44

Figure 38. The measured angular correlation function (ACF) $w(\theta)$ as a function of angular separation with one-sigma error bar computed from bootstrap re-sampling from 100 bootstraps. The correlation function is measured from the integrated flux-corrected EMU-PS island catalogue, using all sources above a flux density limit of $500\mu\mathrm{Jy}$. The blue curve is the theoretical prediction for the correlation function, assuming the Planck 2018 best fit cosmology and a SKADS model for the number distribution with redshift and the bias. No fitting of the cosmological or bias parameters was performed to change the prediction curve. As negative values cannot be shown on a log scale, in bins where the ACF becomes negative, we show (in red) the value of (-ACF) instead.

Figure 45

Figure 39. The spectral index distributions for unresolved ($\Psi < 2''$, blue) and resolved ($\Psi > 20''$, red) EMU components. The three panels show different minimum brightness levels, corresponding to $S_{\text{peak}} > 1\,\mathrm{mJy\ beam}^{-1}$, $S_{\text{peak}} > 3\,\mathrm{mJy\ beam}^{-1}$, and $S_{\text{peak}} > 10\,\mathrm{mJy\ beam}^{-1}$ from top to bottom. The legend in each panel denotes the number of components contributing to each distribution shown. Each plot is normalised to the area under the curve.
