1. The PTC1 Data Set

The PTC1 (pupillometry tone categorization experiment 1) data set is obtained from a Mandarin tone learning study conducted at the Department of Communication Science and Disorders, University of Pittsburgh (McHaney et al., Reference McHaney, Tessmer, Roark and Chandrasekaran2021). Mandarin Chinese is a tonal language, which means that pitch patterns at the syllable level differentiate word meanings. There are four linguistically relevant pitch patterns in Mandarin that make up the four Mandarin tones: high-flat (Tone 1), low-rising (Tone 2), low-dipping (Tone 3), and high-falling (Tone 4). For example, the syllable /ma/ can be pronounced using the four different pitch patterns of the four tones, which would result in four different word meanings. Adult native English speakers typically experience difficulty differentiating between the four Mandarin tones because pitch contrasts at the syllable level are not linguistically relevant to word meanings in English (Wang et al., Reference Wang, Spence, Jongman and Sereno1999, Reference Wang, Jongman and Sereno2003). Thus, Mandarin tones are valid stimuli to examine how non-native speech sounds are acquired, which has implications for second language learning in adulthood. In PTC1, a group of native English-speaking younger adults learned to categorize monosyllabic Mandarin tones in a training task. During a single trial of training, an input tone was presented over headphones, and the participants were instructed to categorize the tone into one of the four tone categories via a button press on a keyboard. Corrective feedback in the form of “Correct” or “Wrong” was then provided on screen. A total of $n=28$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$n=28$$\end{document} participants completed the training task across $T=6$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T=6$$\end{document} blocks of training, each block comprising $L=40$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$L=40$$\end{document} trials. Figure 2 shows the middle 30% quantiles of the proportion of times the response to an input tone was classified into different tone categories over blocks across different subjects, each for the four input tones.

Pupillometry measurements were also taken during each trial. It is commonly used as a metric of cognitive effort during listening because increases in pupil diameter are associated with greater usage of cognitive resources (Parthasarathy et al., Reference Parthasarathy, Hancock, Bennett, DeGruttola and Polley2020; Peelle, Reference Peelle2018; Robison & Unsworth, Reference Robison and Unsworth2019; Winn et al., Reference Winn, Wendt, Koelewijn and Kuchinsky2018; Zekveld et al., Reference Zekveld, Kramer and Festen2011). One issue with pupillary responses however is that they unfold slowly over time. In view of that, unlike standard Mandarin tone training tasks, where the participants hear the input tone, press the keyboard response, and are provided feedback all within a few seconds (Chandrasekaran et al., Reference Chandrasekaran, Yi, Smayda and Maddox2016; Llanos et al., Reference Llanos, McHaney, Schuerman, Yi, Leonard and Chandrasekaran2020; Reetzke et al., Reference Reetzke, Xie, Llanos and Chandrasekaran2018; Smayda et al., Reference Smayda, Chandrasekaran and Maddox2015), in the PTC1 experiment, there was an intentional four-second delay from the start of the input tone to the response prompt screen where participants made their category decision via button press. This four-second delay allows the pupil to dilate in response to hearing the tone and begin to return to baseline before the participant makes a motor response to the button press. During this four-second period, participants have likely already made conscious category decisions. As such, the response times that are recorded in the end are not meaningful measures of their actual decision times.

This presents a critical limitation for using these response times for further analysis. Conventional drift-diffusion analysis that requires data on response times, such as the one presented in Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021), can no longer be directly applied here. The focus of this article is to see if the drift-diffusion parameters can still be meaningfully recovered from input–output tone categories alone in the PTC1 data.

We found drift-diffusion analysis in the absence of reliable data on response times challenging enough to merit its separate treatment presented here. Relating drift-diffusion parameters to measures of cognitive effort such as pupillometry is another challenging problem that we are pursuing separately elsewhere.

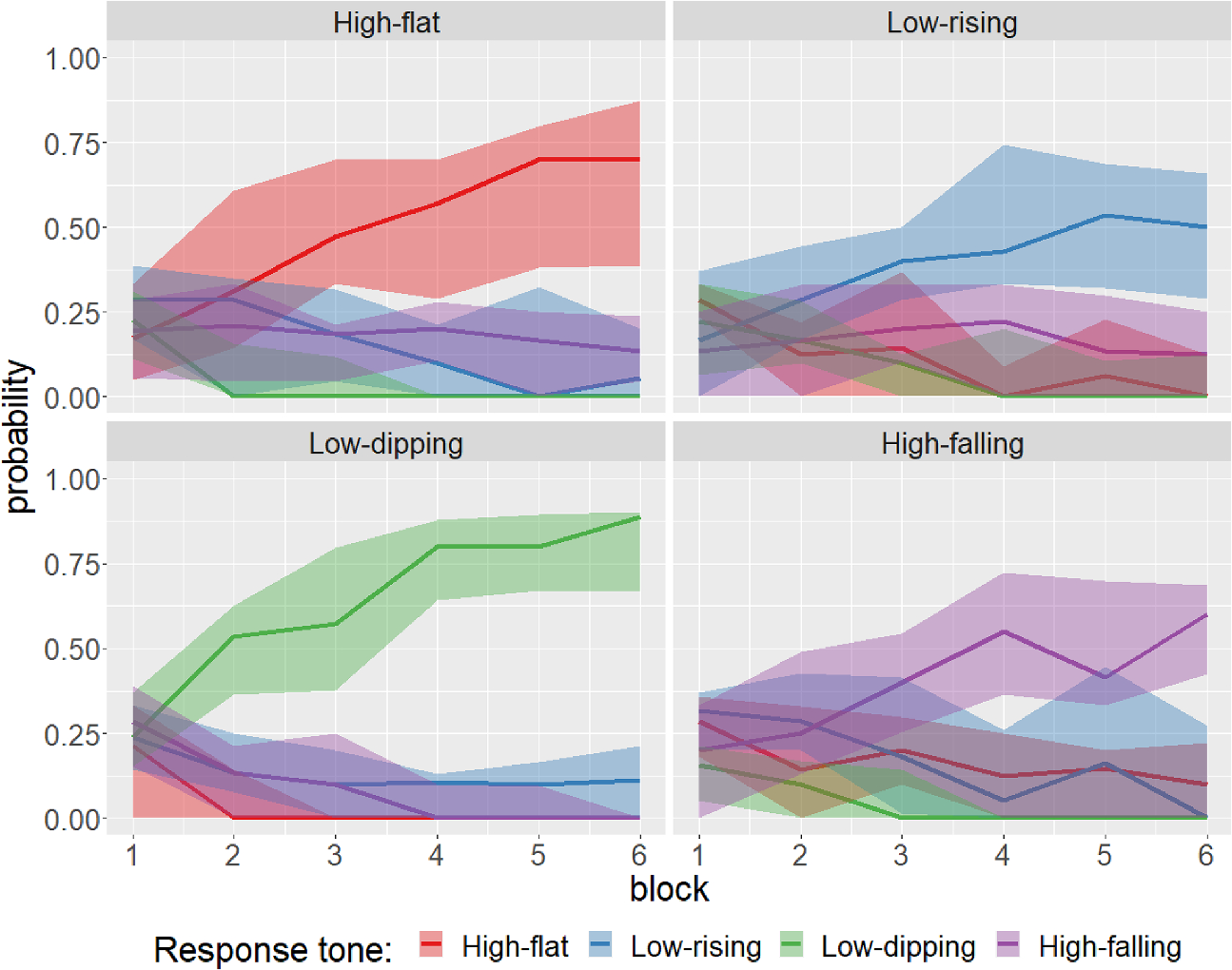

Figure 2 Description of PTC1 data: The proportion of times the response to an input tone was classified into different tone categories over blocks across different subjects, each for the four input tones (indicated in the panel headers). The thick line represents the median performance and the shaded region indicates the corresponding middle 30% quantiles across subjects.

2. Inverse-Probit Model

The starting point for the proposed inverse-probit categorical probability model follows straightforwardly by integrating out the (unobserved) response times from the joint model for response categories and associated response times developed in Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021). The derivation of this original joint model illustrates its latent drift-diffusion process-based underpinnings (Fig. 1a). Later such construction will also be crucial in understanding the diffusion process-based foundations of the marginal categorical probability model modified with identifiability constraints proposed in this article (Fig. 1b). We therefore present the derivation from Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021) ditto here which also keeps the main paper self-contained.

To begin with, a Wiener diffusion process $W\left(\tau \right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$W(\tau )$$\end{document} over domain $\tau \in (0,\infty )$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau \in (0,\infty )$$\end{document} can be specified as $W\left(\tau \right)=\mu \tau +\sigma B\left(\tau \right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$W(\tau ) = \mu \tau + \sigma B(\tau )$$\end{document} , where $B\left(\tau \right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$B(\tau )$$\end{document} is the standard Brownian motion, $\mu$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu $$\end{document} is the drift rate, and $\sigma$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sigma $$\end{document} is the diffusion coefficient (Cox & Miller, Reference Cox and Miller1965; Ross et al., Reference Ross, Kelly, Sullivan, Perry, Mercer, Davis, Washburn, Sager, Boyce and Bristow1996). The process has independent normally distributed increments, i.e., $\Delta W\left(\tau \right)=\{W(\tau +\Delta \tau )-W\left(\tau \right)\}\sim \text{Normal}(\mu \Delta \tau ,{\sigma }^2\Delta \tau )$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Delta W(\tau ) = \{W(\tau +\Delta \tau ) - W(\tau )\} \sim \hbox {Normal}(\mu \Delta \tau ,\sigma ^{2} \Delta \tau )$$\end{document} , independently from $W\left(\tau \right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$W(\tau )$$\end{document} . The first passage time of crossing a threshold b, $\tau =inf\{{\tau }^{\prime }:W\left(0\right)=0,W\left({\tau }^{\prime }\right)\ge b\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau = \inf \{\tau ^{\prime }: W(0)=0, W(\tau ^{\prime }) \ge b\}$$\end{document} , is then distributed according to an inverse Gaussian distribution (Chhikara, Reference Chhikara1988; Lu, Reference Lu1995; Whitmore & Seshadri, Reference Whitmore and Seshadri1987) with mean $b/\mu$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$b/\mu $$\end{document} and variance $b{\sigma }^2/{\mu }^3$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$b\sigma ^2/\mu ^{3}$$\end{document} .

Given a perceptual stimulus s and a set of decision choices $d^{\prime }\in \{1:d_0\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$d^{\prime }\in \{1:d_{0}\}$$\end{document} , the neurons in the brain accumulate evidence in favor of the different alternatives. Modeling this behavior using latent Wiener processes $W_{d^{\prime },s}\left(\tau \right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$W_{d^{\prime },s}(\tau )$$\end{document} with unit variances, assuming that a decision d is made when the decision threshold $b_{d,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$b_{d,s}$$\end{document} for the dth option is crossed first, as illustrated in Fig. 1a, a probability model for the time ${\tau }_d$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{d}$$\end{document} to reach decision d is obtained as

(1) $\begin{array}{c}f({\tau }_d\mid {\delta }_s,{\mu }_{d,s},b_{d,s})=\frac{b_{d,s}}{\sqrt{2\pi }}{({\tau }_d-{\delta }_s)}^{-3/2}exp\left(-,\frac{{\{b_{d,s}-{\mu }_{d,s}({\tau }_d-{\delta }_s)\}}^2}{2({\tau }_d-{\delta }_s)}\right),\end{array}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} f(\tau _{d} \mid \delta _{s},\mu _{d,s}, b_{d,s}) = \frac{b_{d,s}}{ \sqrt{2\pi } } (\tau _{d}-\delta _{s})^{-3/2} \exp \left[ - \frac{\{b_{d,s}-\mu _{d,s} (\tau _{d}-\delta _{s})\}^{2}}{2 (\tau _{d}-\delta _{s})} \right] , \end{aligned}$$\end{document}

where ${\mu }_{d,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d,s}$$\end{document} denotes the rate of accumulation of evidence, $b_{d,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$b_{d,s}$$\end{document} the decision boundaries, and ${\delta }_s$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\delta _{s}$$\end{document} an offset representing time not directly related to the underlying evidence accumulation processes (e.g., the time required to encode the sth signal before evidence accumulation begins, etc.). We let ${\theta }_{d^{\prime },s}={({\delta }_s,{\mu }_{d^{\prime },s},b_{d^{\prime },s})}^{\text{T}}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\theta }_{d^{\prime },s}=(\delta _{s},\mu _{d^{\prime },s},b_{d^{\prime },s})^\textrm{T}$$\end{document} .

Joint model for $(d,\tau )$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d,\tau )$$\end{document} : Since a decision d is reached at response time $\tau$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau $$\end{document} if the corresponding threshold is crossed first, that is when $\{\tau ={\tau }_d\}{\cap }_{d^{\prime }\ne d}\{{\tau }_{d^{\prime }}>{\tau }_d\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{\tau = \tau _{d}\} \cap _{d^{\prime } \ne d} \{\tau _{d^{\prime }} > \tau _{d}\}$$\end{document} , we have $d=arg{min}_{d^{\prime }\in \{1:d_0\}}{\tau }_{d^{\prime }}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$d = \arg \min _{d^{\prime }\in \{1:d_{0}\}} \tau _{d^{\prime }}$$\end{document} . Assuming simultaneous accumulation of evidence for all decision categories, modeled by independent Wiener processes, and termination when the threshold for the observed decision category d is reached, the joint distribution of $(d,\tau )$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d, \tau )$$\end{document} is thus given by

(2) $\begin{array}{c}f(d,\tau \mid s,\theta )=g(\tau \mid {\theta }_{d,s})\prod _{d^{\prime }\ne d}\{1-G(\tau \mid {\theta }_{d^{\prime },s})\},\end{array}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} f(d, \tau \mid s,{\theta }) = g(\tau \mid {\theta }_{d,s}) \prod _{d^{\prime } \ne d} \{1 - G(\tau \mid {\theta }_{d^{\prime },s})\}, \end{aligned}$$\end{document}

where, to distinguish from the generic notation f, we now use $g(·\mid \theta )$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g(\cdot \mid {\theta })$$\end{document} and $G(·\mid \theta )$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$G(\cdot \mid {\theta })$$\end{document} to denote, respectively, the probability density function (pdf) and the cumulative distribution function (cdf) of an inverse Gaussian distribution, as defined in (1).

Marginal model for d: When the response times $\tau$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau $$\end{document} are unobserved, the probability of taking decision d given the stimulus s is thus obtained from (2) by integrating out the $\tau$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau $$\end{document} as

(3) $\begin{array}{c}P(d\mid s,\theta )={\int }_{{\delta }_s}^{\infty }g(\tau \mid {\theta }_{d,s})\prod _{d^{\prime }\ne d}\left(1,-,G,(,\tau ,\mid ,{\theta }_{d^{\prime },s},)\right)d\tau .\end{array}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} P(d \mid s,{\theta }) = \int _{\delta _{s}}^{\infty } g(\tau \mid {\theta }_{d,s}) \prod _{d^{\prime } \ne d} \left\{ 1 - G(\tau \mid {\theta }_{d^{\prime },s})\right\} d\tau . \end{aligned}$$\end{document}

The construction of model (3) is similar to traditional multinomial probit/logit regression models except that the latent variables are now inverse Gaussian distributed as opposed to being normal or extreme-value distributed, and the observed category is associated with the minimum of the latent variables in contrast to being identified with the maximum of the latent variables. We thus refer to this model as a ‘multinomial inverse-probit model’.

With data on both response categories d and response times $\tau$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau $$\end{document} available, the joint model (2) was used to construct the likelihood function in Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021). In the absence of data on the response times $\tau$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau $$\end{document} , however, the inverse-probit model in (3) provides the basic building block for constructing the likelihood function for the observed response categories. As mentioned in the Abstract, discussed in the Introduction, and detailed in Sect. 2.1, the marginal inverse-probit model (3) for observed categories brings in many new identifiability issues and inference challenges not originally encountered for the joint model (2) developed in Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021). Solving these new challenges for the marginal model (3) to infer the underlying drift-diffusion parameters ${\theta }_{d^{\prime },s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\theta }_{d^{\prime },s}$$\end{document} , for all $d^{\prime }$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$d^{\prime }$$\end{document} , is the focus of this current article.

2.2. Our Proposed Approach

In coming up with solutions for these challenges, we take into consideration the complex design of our motivating tone learning experiments, so that our approach is easily extendable to longitudinal mixed model settings, allowing us to (a) estimate the smoothly varying trajectories of the parameters as the participants learn over time, (b) accommodate the heterogeneity between the participants, and (c) compare between the estimates not just within but also crucially between the different panels.

Similar to the sum-to-zero constraint in the multinomial probit model of Burgette et al. (Reference Burgette, Puelz and Hahn2021), we impose a symmetric sum to a constant constraint on the drift parameters ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} to identify our new class of inverse-probit models, although our implementation is quite different from theirs. To conduct inference, we start with an unconstrained prior, then sample from the corresponding unconstrained posterior, and finally project these samples to the constrained space through a minimal distance mapping. Similar ideas have previously been applied to satisfy natural constraints in other contexts. See, e.g., Dunson and Neelon (Reference Dunson and Neelon2003) and Gunn and Dunson (Reference Gunn and Dunson2005).

This approach is significantly advantageous both from a modeling and a computational perspective. On one hand, the basic building blocks are relatively easily extended to complex longitudinal mixed model settings, on the other, posterior computation is facilitated as this allows the use of conjugate priors for the unconstrained parameters. Projection of the drift parameters onto the same space further makes them directly comparable, allowing clustering within and across the panels. The projected drifts can now be interpreted only on a relative scale but such compromises are not avoidable given the challenges we face.

2.2.1. Minimal Distance Mapping

As the drift parameters are positive, the sum to a constant k constraint leads to constrained space $S_k=\{\mu :1^T\mu =k,{\mu }_j>0,j=1,\dots ,d_0\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{k}=\{{\mu }: \textbf{1}^{T} {\mu }=k,\;\mu _{j}>0,\;j=1,\ldots ,d_{0}\}$$\end{document} on which ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} should be projected. The space $S_k$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{k}$$\end{document} is semi-closed, and therefore, the projection of any point $\mu$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }$$\end{document} onto $S_k$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{k}$$\end{document} may not exist. As a simple one dimensional example, let $x=-1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$x=-1$$\end{document} and $S=(0,1]$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mathcal {S}}=(0,1]$$\end{document} , then $arg{min}_{y\in S}|y-x|=0\notin S$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\arg \min _{y\in {\mathcal {S}}}|y-x|=0\notin {\mathcal {S}}$$\end{document} . Further, from a practical perspective, a drift parameter infinitesimally close to zero makes the distribution of the associated response times very flat which is typically not observed in real data. Therefore, we choose a small $\epsilon >0$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\varepsilon >0$$\end{document} and project $\mu$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }$$\end{document} onto $S_{\epsilon ,k}=\{\mu :1^T\mu =k,{\mu }_j\ge \epsilon ,j=1,\dots ,d_0\}.$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ \mathcal{S}_{\varepsilon , k}=\{{\mu }: \textbf{1}^{T} {\mu }=k,\;\mu _{j}\ge \varepsilon ,\;j=1,\ldots ,d_{0}\}.$$\end{document} We then define the projection of a point $\mu$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }$$\end{document} onto $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} through minimal distance mapping as

$\begin{array}{c}{\mu }^{\star }={\text{Proj}}_{S_{\epsilon ,k}}\left(\mu \right):=\left({\text{argmin}}_{\nu },\Vert \mu -\nu \Vert ,:,\nu ,\in ,S_{\epsilon ,k}\right),\end{array}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\mu }^{\star }=\textrm{Proj}_{ \mathcal{S}_{\varepsilon , k}}({\mu }):=\left\{ \textrm{argmin}_{{\nu }} \Vert {\mu }-{\nu }\Vert : {\nu }\in \mathcal{S}_{\varepsilon ,k} \right\} , \end{aligned}$$\end{document}

where $\Vert ·\Vert$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\Vert \cdot \Vert $$\end{document} is the Euclidean norm. Note that for appropriate choices of $(k,\epsilon )$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(k,\varepsilon )$$\end{document} , $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} is non-empty, closed and convex. Therefore, ${\mu }^{\star }$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }^{\star }$$\end{document} exists and is unique by the Hilbert projection theorem (Rudin, Reference Rudin1991). The solution to this projection problem comes from the following result from Beck (Reference Beck2017).

Lemma 2

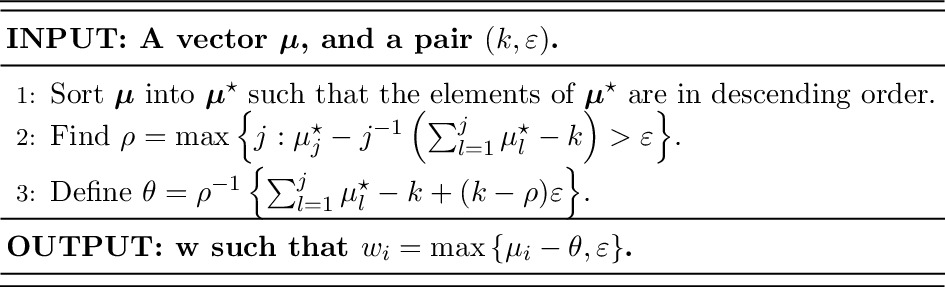

Let $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ \mathcal{S}_{\varepsilon , k}$$\end{document} be as defined above, and $S_{\epsilon }=\left(\mu ,:,{\mu }_j,\ge ,\epsilon ,,,,j,=,1,,,\dots ,,,d_0\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon }=\left\{ {\mu }: \mu _{j}\ge \varepsilon ,\;j=1,\ldots ,d_{0} \right\} $$\end{document} . Then, ${\text{Proj}}_{S_{\epsilon ,k}}\left(\mu \right)={\text{Proj}}_{S_{\epsilon }}(\mu -u^{\star }1)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\textrm{Proj}_{ \mathcal{S}_{\varepsilon , k}}({\mu })=\textrm{Proj}_{ \mathcal{S}_{\varepsilon }}({\mu }- u^{\star } \textbf{1})$$\end{document} , where $u^{\star }$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$u^{\star }$$\end{document} is a solution to the equation $1^T{\text{Proj}}_{S_{\epsilon }}(\mu -u^{\star }1)=k$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ \textbf{1}^{T} \textrm{Proj}_{ \mathcal{S}_{\varepsilon }}({\mu }- u^{\star } \textbf{1})=k $$\end{document} .

Although the analytical form of the solution is not available, as is evident from the above result, the solution mainly relies on finding a root $u^{\star }$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$u^{\star }$$\end{document} of the non-increasing function $\varphi \left(u^{\star }\right)=1^T{\text{Proj}}_{S_{\epsilon }}(\mu -u^{\star }1)-k$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\phi (u^{\star })=\textbf{1}^{T} \textrm{Proj}_{ \mathcal{S}_{\varepsilon }}({\mu }- u^{\star } \textbf{1})-k$$\end{document} . We apply an algorithm based on Duchi et al. (Reference Duchi, Shalev-Shwartz, Singer and Chandra2008) to reach the solution. The algorithm is described in “Appendix C”.

2.2.2. Identifiability Restrictions

The projection approach solves the problem of identifiability and maps the probability vector corresponding to an input tone s to the constraint space of ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} , $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} . The following theorem shows that the mapping from the constrained space of ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} to the probability vector $P\left({\mu }_{1:d_0,s}\right)={\{p_1\left({\mu }_{1:d_0,s}\right),\cdots ,p_{d_0}\left({\mu }_{1:d_0,s}\right)\}}^{\text{T}}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${{\textbf{P}}}({\mu }_{1:d_{0},s})=\{p_{1}({\mu }_{1:d_{0},s}), \dots , p_{d_{0}}({\mu }_{1:d_{0},s}) \}^\textrm{T}$$\end{document} is injective. To keep the ideas simple, we consider the domain of the function to be $S_{0,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{0,k}$$\end{document} (i.e., $\epsilon =0$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\varepsilon =0$$\end{document} ) instead of $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} although a very similar proof would follow if $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} were considered.

Theorem 1

Let $p_d\left({\mu }_{1:d_0,s}\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$p_{d}({\mu }_{1:d_{0},s})$$\end{document} be the probability of observing the output tone d given the input tone s and the drift parameters ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} , as given in (3), for each $d=1:d_0$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$d=1:d_{0}$$\end{document} . Suppose ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} lies on the space $S_{0,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{0,k}$$\end{document} . Then, the function from $S_{0,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{0,k}$$\end{document} to the space of probabilities $\left(p_d,\left({\mu }_{1:d_0,s}\right),;,d,=,1,:,d_0\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\left\{ p_{d}({\mu }_{1:d_{0},s}); d=1:d_{0}\right\} $$\end{document} is injective.

A proof is presented in “Appendix B”.

2.3.3. Conjugate Priors for the Unconstrained Drifts

From (3), given ${\tau }_1,\dots ,{\tau }_{d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1},\ldots ,\tau _{d_{0}}$$\end{document} , such that ${\tau }_d\le min\left({\tau }_1,,,\dots ,,,{\tau }_{d_0}\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{d}\le \min \left\{ \tau _{1},\ldots ,\tau _{d_{0}} \right\} $$\end{document} , the posterior full conditional of ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} is proportional to ${\pi }_{\mu }^{\left(n\right)}\propto \pi \left({\mu }_{1:d_0,s}\right)\times {\prod }_{d^{\prime }=1}^{d_0}g\left({\tau }_{d^{\prime }},,\mid ,{\mu }_{d^{\prime },s}\right),$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\pi _{{\mu }}^{(n)} \propto \pi ( {\mu }_{1:d_{0},s} ) \times \prod _{d^{\prime }=1}^{d_{0}} g\left( \tau _{d^{\prime }} ~ \mid \mu _{d^{\prime },s}\right) ,$$\end{document} where $\pi (·)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\pi (\cdot )$$\end{document} is the prior of ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} . Observe that ${\prod }_{d^{\prime }=1}^{d_0}g\left({\tau }_{d^{\prime }},,\mid ,{\mu }_{d^{\prime },s}\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\prod _{d^{\prime }=1}^{d_{0}} g\left( \tau _{d^{\prime }} ~ \mid \mu _{d^{\prime },s}\right) $$\end{document} is Gaussian in ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} . A Gaussian prior on ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} thus induces a conditional posterior for ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} that is also Gaussian and hence very easy to sample from. Importantly, these benefits also extend naturally to multivariate Gaussian priors for any parameter vector ${\beta }_{d^{\prime },s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\beta }_{d^{\prime },s}$$\end{document} that relates to ${\mu }_{d^{\prime },s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}$$\end{document} linearly. This will be crucial in allowing us to extend the basic building block to longitudinal functional mixed model settings in Sect. 3 next, where we will be modeling time-varying ${\mu }_{d^{\prime },s}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}(t)$$\end{document} as flexible mixtures of B-splines with associated coefficients ${\beta }_{d^{\prime },s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\beta }_{d^{\prime },s}$$\end{document} .

2.2.4. Justification as a Proper Bayesian Procedure

Define the constrained conditional posterior distribution, ${\tilde{\pi }}_{\tilde{\mu }}^{\left(n\right)}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\tilde{\pi }}_{{\tilde{{\mu }}}}^{(n)}$$\end{document} , of the drift parameters $\mu$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }$$\end{document} as

$\begin{array}{c}{\tilde{\pi }}_{\tilde{\mu }}^{\left(n\right)}\left(B,\mid ,\zeta \right)={\pi }_{\mu }^{\left(n\right)}\left(\left(\mu ,:,\text{Proj},\left(,\mu ,\right),\in ,B\right),\mid ,\zeta \right),B\subseteq S_{\epsilon ,k},\end{array}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} {\tilde{\pi }}_{{\tilde{{\mu }}}}^{(n)} \left( B \mid {\zeta }\right) = \pi _{{\mu }}^{(n)} \left( \left\{ {\mu }: \textrm{Proj}( {\mu })\in B \right\} \mid {\zeta }\right) , \quad B \subseteq \mathcal{S}_{\varepsilon ,k}, \end{aligned}$$\end{document}

where ${\pi }_{\mu }^{\left(n\right)}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\pi _{{\mu }}^{(n)}$$\end{document} is the unconstrained conditional posterior of ${\mu }_{1:d_0,s}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}$$\end{document} , given the other variables $\zeta$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\zeta }$$\end{document} . The analytic form of the constrained conditional posterior is not available.

Sen et al. (Reference Sen, Patra and Dunson2018) established a proper Bayesian justification for the posterior projection approach by showing the existence of a prior $\tilde{\pi }\left({\mu }_{1:d_0,s}\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\tilde{\pi }}\left( {\mu }_{1:d_{0},s}\right) $$\end{document} on the constrained space $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} such that the resulting posterior is the same as the projected posterior ${\tilde{\pi }}_{\tilde{\mu }}^{\left(n\right)}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\tilde{\pi }}_{{\tilde{{\mu }}}}^{(n)}$$\end{document} . When $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} is non-empty, closed, and convex, i.e., the projection operator is measurable, such a prior exists if the unconstrained posterior is absolutely continuous with respect to the unconstrained prior (Sen et al., Reference Sen, Patra and Dunson2018, Corollary 1). As the unconstrained induced prior and posterior of the drift parameters are both Gaussian, this result holds in our case as well.

3. Extension to Longitudinal Mixed Models

In this section we adapt the inverse-probit model discussed in Sect. 2 to complex longitudinal design of our motivating PTC1 data set described in the Introduction. Let $s_{i,\ell ,t}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$s_{i,\ell ,t}$$\end{document} denote the input tone for the ith individual in the $\ell$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\ell $$\end{document} th trial of block t. Likewise, let $d_{i,\ell ,t}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$d_{i,\ell ,t}$$\end{document} denote, respectively, the output tone selected by the ith individual in the $\ell$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\ell $$\end{document} th trial of block t. Setting the offsets at zero, and boundary parameters to a fixed constant b, we now have

(4) $\begin{array}{cc}& P\{d_{i,\ell ,t}=d\mid s_{i,\ell ,t}=s,{\mu }_{1:d_0,s}^{\left(i\right)}\left(t\right)\}={\int }_0^{\infty }g\{\tau \mid {\mu }_{d,s}^{\left(i\right)}\left(t\right)\}\prod _{d^{\prime }\ne d}\left(1,-,G,\{,\tau ,\mid ,{\mu }_{d^{\prime },s}^{\left(i\right)},\left(t\right),\}\right)d\tau ,\\ & \text{where}g\{\tau \mid s_{i,\ell ,t}=s,{\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)=\mu \}=\frac{b}{\sqrt{2\pi }{\tau }^{3/2}}exp\left(-,\frac{{\{b-\mu \tau \}}^2}{2\tau }\right).\end{array}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned}&P\{d_{i,\ell ,t} =d \mid s_{i,\ell ,t}=s, {\mu }_{1:d_{0},s}^{(i)}(t)\} = \int _{0}^{\infty } g\{\tau \mid \mu _{d,s}^{(i)}(t)\} \prod _{d^{\prime } \ne d} \left[ 1 - G\{\tau \mid \mu _{d^{\prime },s}^{(i)}(t)\}\right] d\tau , \nonumber \\&\quad \text{ where }\quad g\{\tau \mid s_{i,\ell ,t}=s, \mu _{d^{\prime },s}^{(i)}(t)=\mu \} = \frac{b}{\sqrt{2\pi } \tau ^{3/2}} \exp \left[ - \frac{\{b-\mu \tau \}^{2}}{2 \tau } \right] . \hspace{1 in} \end{aligned}$$\end{document}

The drift rates ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t)$$\end{document} now vary with the blocks t. In addition, we accommodate random effects by allowing ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t)$$\end{document} to also depend on the subject index i. We let $d={\left\{d_{i,\ell ,t}\right\}}_{i,\ell ,t}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${{\textbf{d}}}=\{d_{i,\ell ,t}\}_{i,\ell ,t}$$\end{document} , and $d_0$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$d_{0}$$\end{document} be the number of possible decision categories (T1, T2, $\dots$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\ldots $$\end{document} , T $d_0$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${d_{0}}$$\end{document} ). The likelihood function thus takes the form

$\begin{array}{c}L(d\mid s,\theta )=\prod _{d=1}^{d_0}\prod _{s=1}^{d_0}\prod _{t=1}^T\prod _{i=1}^n\prod _{\ell =1}^L{\left(P,\{,d_{i,\ell ,t},\mid ,s_{i,\ell ,t},,,{\mu }_{1:d_0,s}^{\left(i\right)},\left(t\right),\}\right)}^{1\{d_{i,\ell ,t}=d,s_{i,\ell ,t}=s\}}.\end{array}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{aligned} L({{\textbf{d}}}\mid {{\textbf{s}}}, {\theta }) = \prod _{d=1}^{d_{0}} \prod _{s=1}^{d_{0}} \prod _{t=1}^{T}\prod _{i=1}^{n} \prod _{\ell =1}^{L} \left[ P\{d_{i,\ell ,t} \mid s_{i,\ell ,t}, {\mu }_{1:d_{0},s}^{(i)}(t)\} \right] ^{1\{d_{i,\ell ,t} = d, s_{i,\ell ,t}=s\}}. \end{aligned}$$\end{document}

We reiterate that in deriving the identifiability conditions and designing their implementation strategy in Sect. 2.2, we had to make sure that they would be applicable to the complex multi-subject longitudinal design of the PTC1 data set. Following those ideas, we model the time-varying mixed effects drift parameters ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t)$$\end{document} without any constraints first, then project them to the space satisfying the necessary identifying conditions.

For the unconstrained model, we follow the outline of Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021) with necessary likelihood adjustments. The details are deferred to Section S.1 of the supplementary material. We present here a general outline.

We decompose ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)=f_{d^{\prime },s}\left(t\right)+u_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t) = f_{d^{\prime },s}(t) + u_{d^{\prime },s}^{(i)}(t)$$\end{document} where $f_{d^{\prime },s}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$f_{d^{\prime },s}(t)$$\end{document} and $u_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$u_{d^{\prime },s}^{(i)}(t)$$\end{document} denote, respectively, fixed and random effects components, which are both modeled using flexible mixtures of B-spline bases. This allows us to cluster the fixed effects for different $(d^{\prime },s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d^{\prime },s)$$\end{document} combinations with similar shapes by clustering the corresponding B-spline coefficients.

Given posterior samples of $f_{d^{\prime },s}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$f_{d^{\prime },s}(t)$$\end{document} and $u_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$u_{d^{\prime },s}^{(i)}(t)$$\end{document} , unconstrained samples of ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t)$$\end{document} are obtained. For every input tone s, these unconstrained ${\mu }_{1:d_0,s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\mu }_{1:d_{0},s}^{(i)}(t)$$\end{document} ’s are then projected to the space $S_{\epsilon ,k}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mathcal{S}_{\varepsilon ,k}$$\end{document} following the method described in Sect. 2.2.1.

4. Posterior Inference

Posterior inference for our proposed inverse-probit mixed model is carried out using samples drawn from the posterior using MCMC algorithm. The algorithm carefully exploits the conditional independence relationships encoded in the model as well as the latent variable construction of the model.

Inference can be greatly simplified by sampling the passage times ${\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1:d_{0}}$$\end{document} and then conditioning on them. However, it is not possible to generate ${\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1:d_{0}}$$\end{document} sequentially, e.g., by generating the passage time of the d-th decision choice ${\tau }_d$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{d}$$\end{document} independently, and that of the other decision choices from a truncated inverse-Gaussian distribution, left truncated at ${\tau }_d$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{d}$$\end{document} .Footnote 1

We implement a simple accept-reject sampler instead which generates values from the joint distribution of ${\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1:d_{0}}$$\end{document} and accepts the sample if ${\tau }_d\le {\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{d}\le \tau _{1:d_{0}}$$\end{document} . It is fast and produces a sample from the desired target conditional distribution. We formalize this result in the following lemma.

Lemma 3

Let $g\left({\tau }_{1:d_0},\mid ,{\mu }_{1:d_0}\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$g\left( \tau _{1:d_{0}}\mid \mu _{1:d_{0}} \right) $$\end{document} be the joint distribution of ${\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1:d_{0}}$$\end{document} . Consider the following accept-reject algorithm:

Algorithm 1 Generating the passage times ${\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1:d_{0}}$$\end{document} given $arg{min}_{d^{\prime }\in \{1:d_0\}}{\tau }_{d^{\prime }}=d$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\arg \min _{d^{\prime }\in \{1:d_{0}\}}\tau _{d^{\prime }}=d$$\end{document}

Algorithm 1 generates samples from the conditional joint distribution of ${\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1:d_{0}}$$\end{document} , conditioned on the event ${\tau }_d\le {\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{d}\le \tau _{1:d_{0}}$$\end{document} .

Proof of Lemma 3 is provided in “Appendix D”.

It can be verified that the acceptance ratio of Algorithm 1 is $M^{-1}=P\left({\tau }_d,\le ,{\tau }_{1:d_0}\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M^{-1}=P\left( \tau _{d} \le \tau _{1:d_{0}}\right) $$\end{document} (see Robert & Casella, Reference Robert and Casella2004) which depends on the drift parameters only. If the drift parameters are ordered accordingly, so as to satisfy ${\mu }_d\ge {\mu }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d} \ge \mu _{1:d_{0}}$$\end{document} , the acceptance ratios increase. The algorithm thus becomes faster as the sampler converges.

As noted earlier, sampling the latent inverse-gaussian distributed response times ${\tau }_{1:d_0}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\tau _{1:d_{0}}$$\end{document} greatly simplifies computation. Most of the chosen priors, including the priors on the coefficients $\beta$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\beta }$$\end{document} in the fixed and random effects, are conjugate. Due to space constraints, the details are deferred to Section S.3 in the supplementary material.

5. Simulation Studies

In this section, we discuss the results of a synthetic numerical experiment. We simulate data from a complex longitudinal design that mimics the real PTC1 data set. Our generating model contains fixed effects components attributed to different input-response tone combinations and random components attributed to individuals.

We recall that our main objective here is to identify the similarities and differences between the underlying brain mechanisms associated with different input-response category combinations over time while also assessing their individual heterogeneity, as characterized by latent drift-diffusion processes whose parameters can be biologically interpreted. The estimation of the probability curves for different input-response combinations, while a good indicator of our model’s fit, is not the main purpose of this endeavor. Traditional categorical probability models, such as multinomial probit or logit, are thus not relevant to the scientific problem we are trying to address here. We are also not aware of any other work in the drift-diffusion literature that attempts to estimate the underlying parameters from category response data alone. In view of this, we restrict our focus to evaluating the performance of the proposed biologically meaningful longitudinal inverse-probit mixed model but do not present comparisons with any other model.

Design In designing the simulation scenario, we have tried to mimic our motivating category learning data sets. We chose $n=20$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$n=20$$\end{document} as the number of participants being trained over $T=10$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T=10$$\end{document} blocks to identify $d_0=4$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$d_{0}=4$$\end{document} tones. For each input tone and each block, there are $L=40$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$L=40$$\end{document} trials. We set the true ${\mu }_{d^{\prime },s}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}(t)$$\end{document} values in such a way that they are far from satisfying the constraint ${\sum }_{d^{\prime }=1:d_0}{\mu }_{d^{\prime },s}=k$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\sum _{d^{\prime } =1:d_{0}}\mu _{d^{\prime },s}=k$$\end{document} , and the decision boundary is set to $b=2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$b=2$$\end{document} for all $(d^{\prime },s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d^{\prime },s)$$\end{document} . The true drift parameters and the true probabilities, averaged over the participants of each input-response category combination, are shown in Fig. 3.

There are four true clusters in total, two for correct categorizations, $S_1,S_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{1}, S_{2}$$\end{document} , and two for incorrect categorizations, $M_1,M_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{1}, M_{2}$$\end{document} , as follows: $S_1=\{(1,1),(2,2)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{1}=\{(1,1),(2,2)\}$$\end{document} , $S_2=\{(3,3),(4,4)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{2}=\{(3,3),(4,4)\}$$\end{document} , $M_1=\{(1,2),(1,3),(2,1),(2,3),(3,4),(4,3)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{1}=\{(1,2),(1,3),(2,1),(2,3),(3,4),(4,3)\}$$\end{document} , $M_2=\{(1,4),(2,4),(3,1),(3,2),(4,1),(4,2)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{2}=\{(1,4),(2,4),(3,1),(3,2),(4,1),(4,2)\}$$\end{document} . We may interpret $M_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{1}$$\end{document} as the cluster of difficult alternatives, and $M_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{2}$$\end{document} as the cluster of easy alternatives. Thus, there are similarities in overall trajectories of $\{T_1,T_2\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{T_{1},T_{2}\}$$\end{document} and $\{T_3,T_4\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\{T_{3},T_{4}\}$$\end{document} , differentiating between easy and hard category recognition problems. We experimented with 50 synthetic data sets generated according to this design.

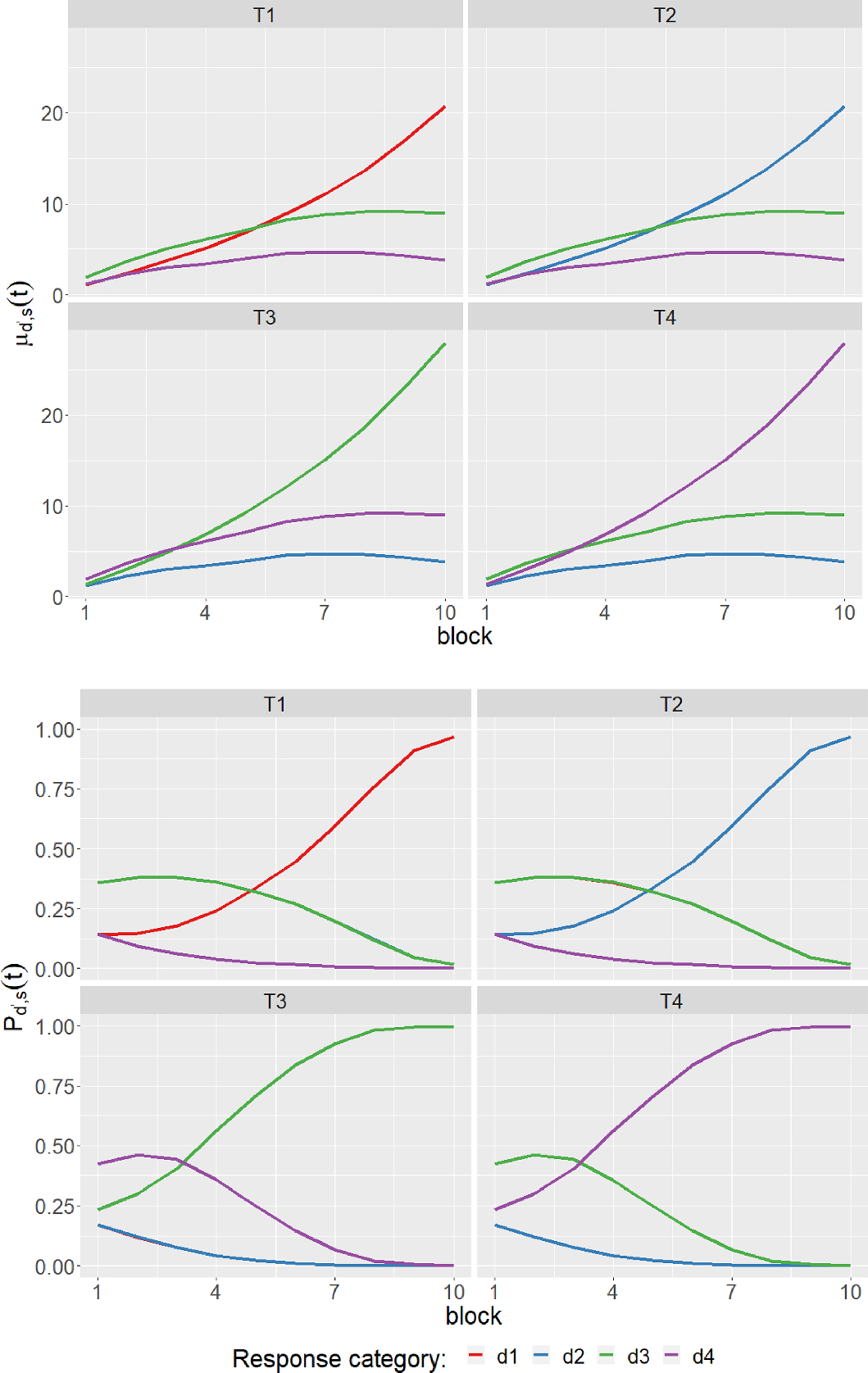

Figure 3 Description of the synthetic data: True values of the drift parameters averaged over the subjects, denoted by ${\mu }_{d^{\prime },s}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}(t)$$\end{document} , and true probabilities $P\{d_{i,\ell ,t}\mid s_{i,\ell ,t},{\mu }_{1:d_0,s}^{\left(i\right)}\left(t\right)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P\{d_{i,\ell ,t} \mid s_{i,\ell ,t}, {\mu }_{1:d_{0},s}^{(i)}(t)\}$$\end{document} averaged over the subjects, denoted here by $P_{d^{\prime },s}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P_{d^{\prime },s}(t)$$\end{document} . Here T1, T2, T3, and T4 represent input categories 1 to 4, respectively. Some of the curves overlap according to the true clustering structure described in Sect. 5.

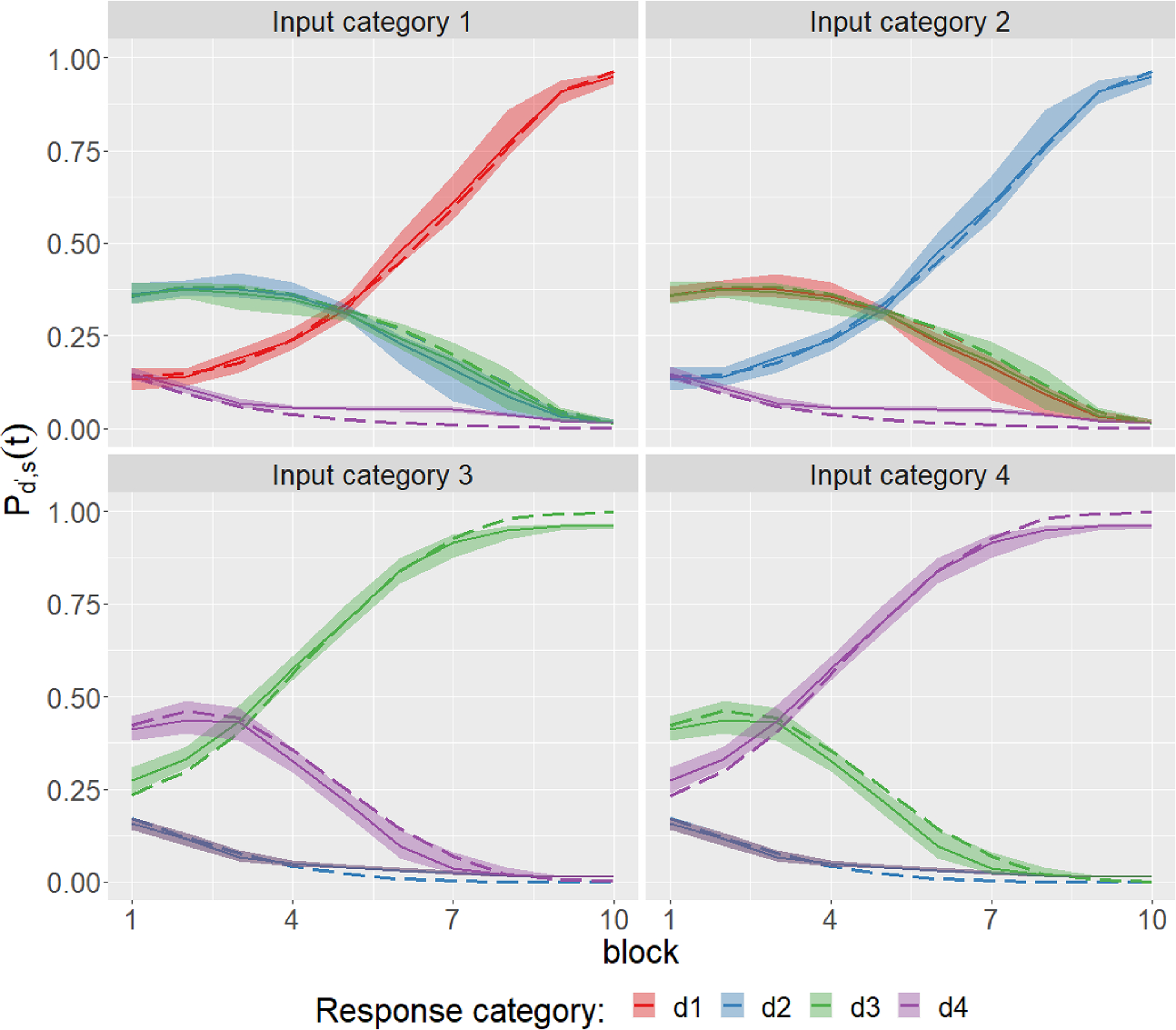

Figure 4 Results for synthetic data: Posterior trajectories of the probabilities for each combination of $(d^{\prime },s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d^{\prime },s)$$\end{document} over blocks estimated by the proposed model. The shaded areas represent the corresponding 95% point-wise credible intervals. The thick dashed lines represent underlying true curves some of which overlap according to the true clustering structure described in Sect. 5.

Results As the true drift parameters themselves do not satisfy the constraint, and the estimated drift parameters are on the constrained space, we cannot validate our method by its predictive performance of the drift parameters. Instead, the proposed method is validated in terms of the estimated probabilities.

Figure 4 shows the estimated posterior probability trajectories along with the 95% credible interval and the underlying true probability curves for every combination $(d^{\prime },s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d^{\prime },s)$$\end{document} in a typical scenario. The credible interval fails to capture the truth in two situations, when the true probability is very close to zero, or it is very close to one. The former case corresponds to classes with very low success probability, resulting in very few observations to estimate. The latter is underestimated as a consequence of the former since the probabilities add up to one.

The results produced by our method are mostly stable and consistent across all synthetic data sets. There are, however, a few cases of incorrect cluster assignments, resulting in some outliers in each boxplot. Note that if an incorrect cluster assignment takes place, the probabilities of all input-response combinations are affected by that. For example, if a component of $M_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$ M_{1}$$\end{document} is wrongly assigned to $M_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{2}$$\end{document} , then not only the probabilities of input–output combinations in $M_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{1}$$\end{document} and $M_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{2}$$\end{document} are affected, since the probabilities add up to one, those of $S_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{1}$$\end{document} and $S_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{2}$$\end{document} are also affected.

In estimating the probabilities, the overall mean squared error, i.e., the mean squared difference of the estimated and the true probabilities taking all combinations of (d, s, i, t) into account, came out to be 0.0028. Figure 5 provides a detailed description of the estimation of the probabilities for two input categories (one from each similarity group). As described for the individual simulation results, there are cases of under-estimation of the probabilities which are close to one, and consequently, over-estimation of the probabilities close to zero. However, the amount of departure from the true probability in each case is very small which can also be seen in the small overall MSE.

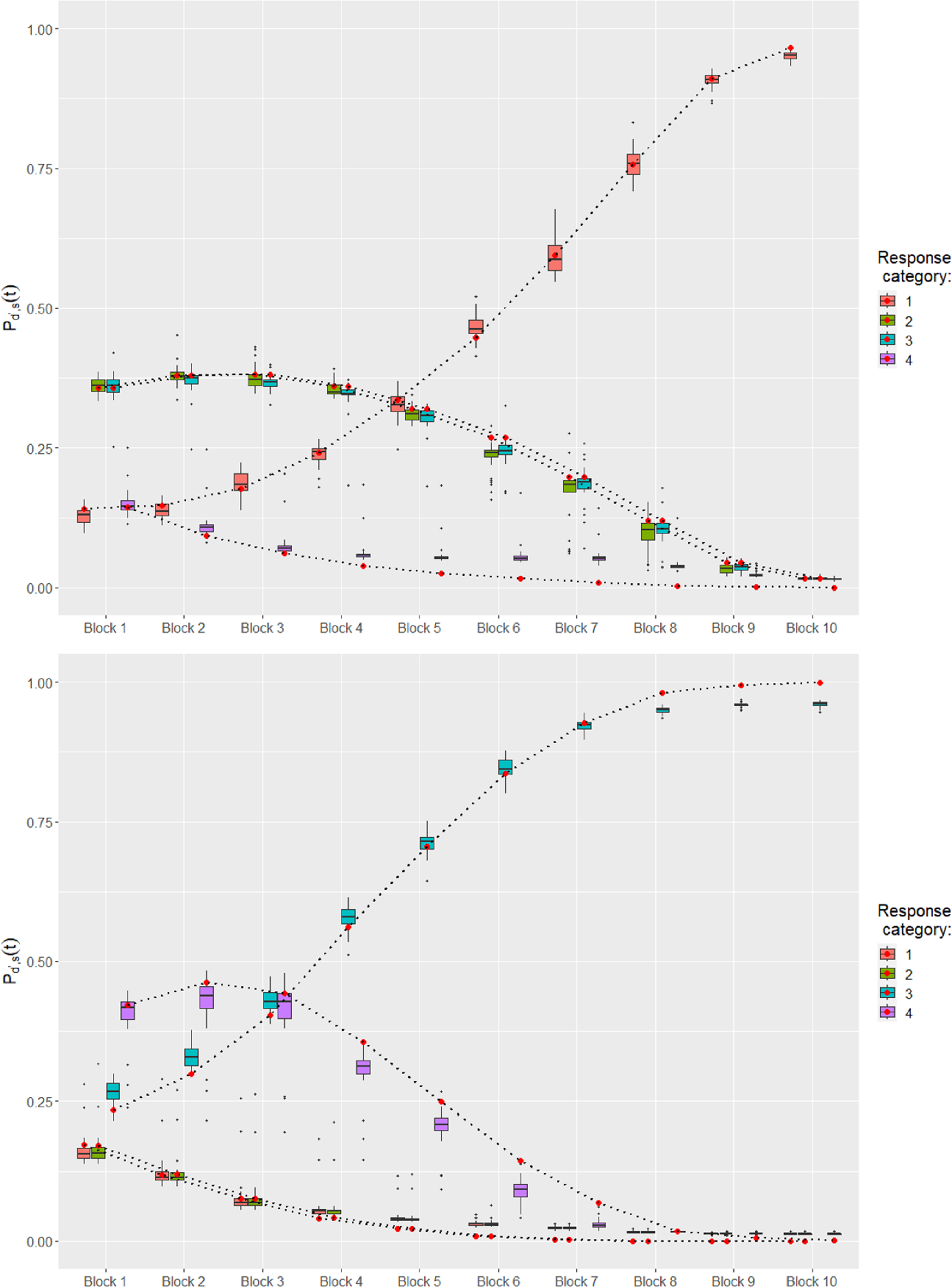

Figure 5 Results of the synthetic data: Boxplots of the estimated probabilities over 50 simulations, and true probabilities (in red dot) of each block and for two panels, one from each similarity group (panel $T_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{1}$$\end{document} in the top and $T_3$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{3}$$\end{document} in the bottom).

Further, the overall efficiency in identifying the true clustering structure is validated using Rand (Rand, Reference Rand1971) and adjusted Rand (Hubert & Arabie, Reference Hubert and Arabie1985) indices. The definitions of Rand and adjusted Rand indices are provided in Section S.6 in the supplementary material. The average Rand and adjusted Rand indices for our proposed method over 50 simulations 0.9105 and 0.8277, respectively, indicating high overall efficacy in correctly clustering the probability curves.

6. Applications

Analysis of the PTC1 Data Set We present here the analysis of the PTC1 data set described in Sect. 1 using our proposed longitudinal inverse-probit mixed model. We first demonstrate the performance of the proposed method in estimating the probabilities associated with different (d, s) pairs. Figure 6 shows the 95% credible intervals for the estimated probabilities for different input tones, along with the average proportions of times an input tone was classified into different tone categories across subjects. The latter serves as the empirical estimate of the probabilities.

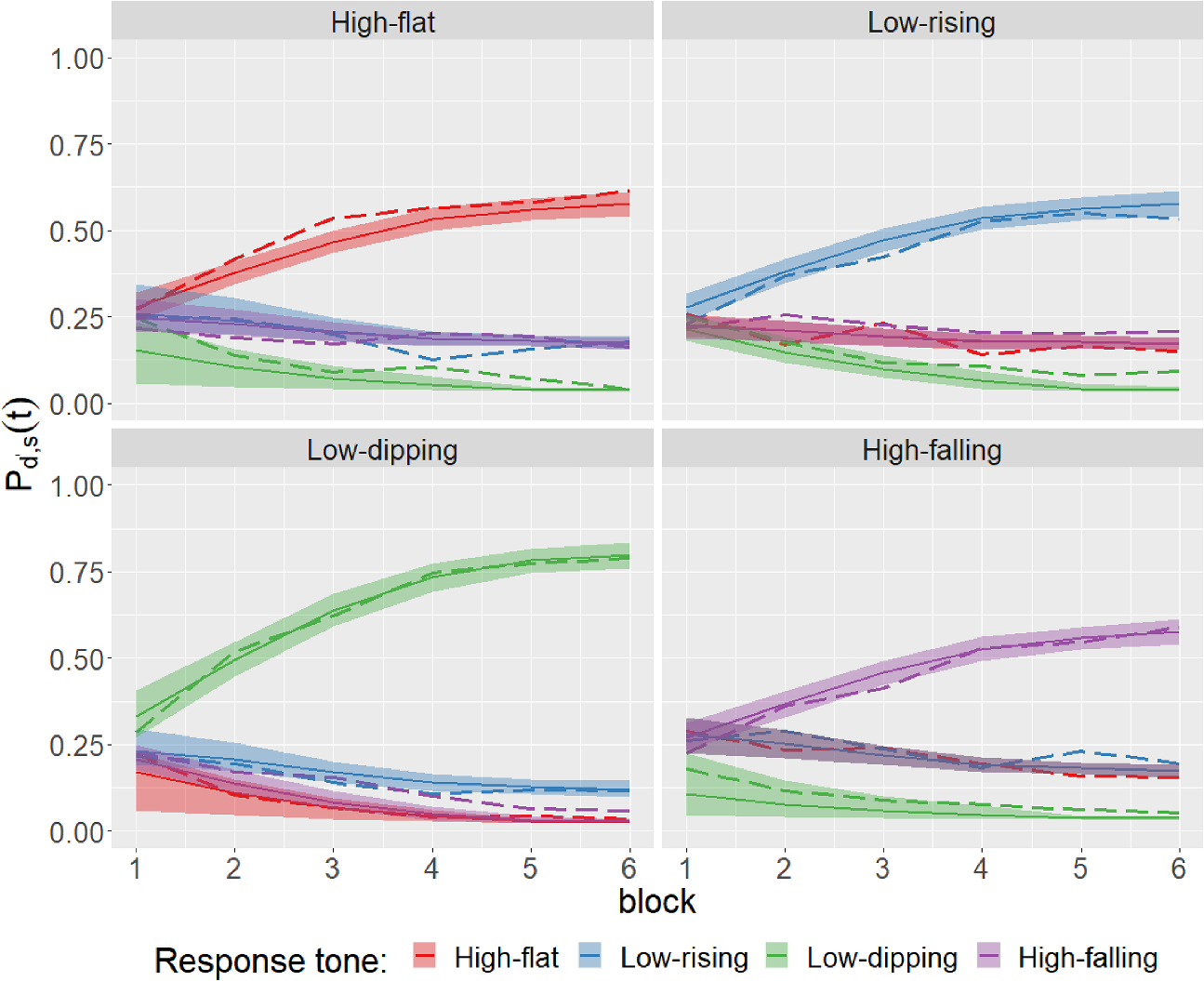

Figure 6 Results for PTC1 data: Estimated probability trajectories compared with average proportions of times an input tone was classified into different tone categories across subjects (in dashed line). The means across subjects are indicated by thick lines and the shaded regions indicate corresponding 95% coverage regions.

We observe that except for the input-response combination (1, 1) in block 3 and some cases with a low number of data points, the 95% credible intervals include the corresponding empirical probabilities. An explanation of the occasional under-performance is given later in this section.

Next, we examine the clusters identified by the proposed model. Apart from the two clusters obtained for the success combinations $(d=s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d=s)$$\end{document} , three clusters are additionally identified in the incorrect input-response combinations $(d\ne s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d\ne s)$$\end{document} . The clusters of success combinations are $S_1=\{(1,1),(2,2),(4,4)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{1}=\{(1,1),(2,2),(4,4)\}$$\end{document} and $S_2=\left\{(3,3)\right\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{2}=\{(3,3)\}$$\end{document} , and of wrong allocations are $M_1=\{(1,2),(1,4),(2,1),(2,4),(3,2),(4,1),(4,2)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{1}=\{(1,2),(1,4),(2,1),(2,4),(3,2),(4,1),(4,2)\}$$\end{document} , $M_2=\{(1,3),(2,3),(3,4),(4,3)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{2}=\{(1,3),(2,3),(3,4),(4,3) \}$$\end{document} , and $M_3=\left\{(3,1)\right\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{3}=\{(3,1)\}$$\end{document} . Figure 7 shows the input-response tone combinations color-coded as per cluster identity, and the proportion of times each pair of input-response tone combinations appeared in the same cluster after burnin. Figure 7 indicates that, while the clusters $S_1,S_2,M_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{1}, S_{2}, M_{1}$$\end{document} are stable, there is some instability among the other two clusters, namely $M_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{2}$$\end{document} and $M_3$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{3}$$\end{document} .

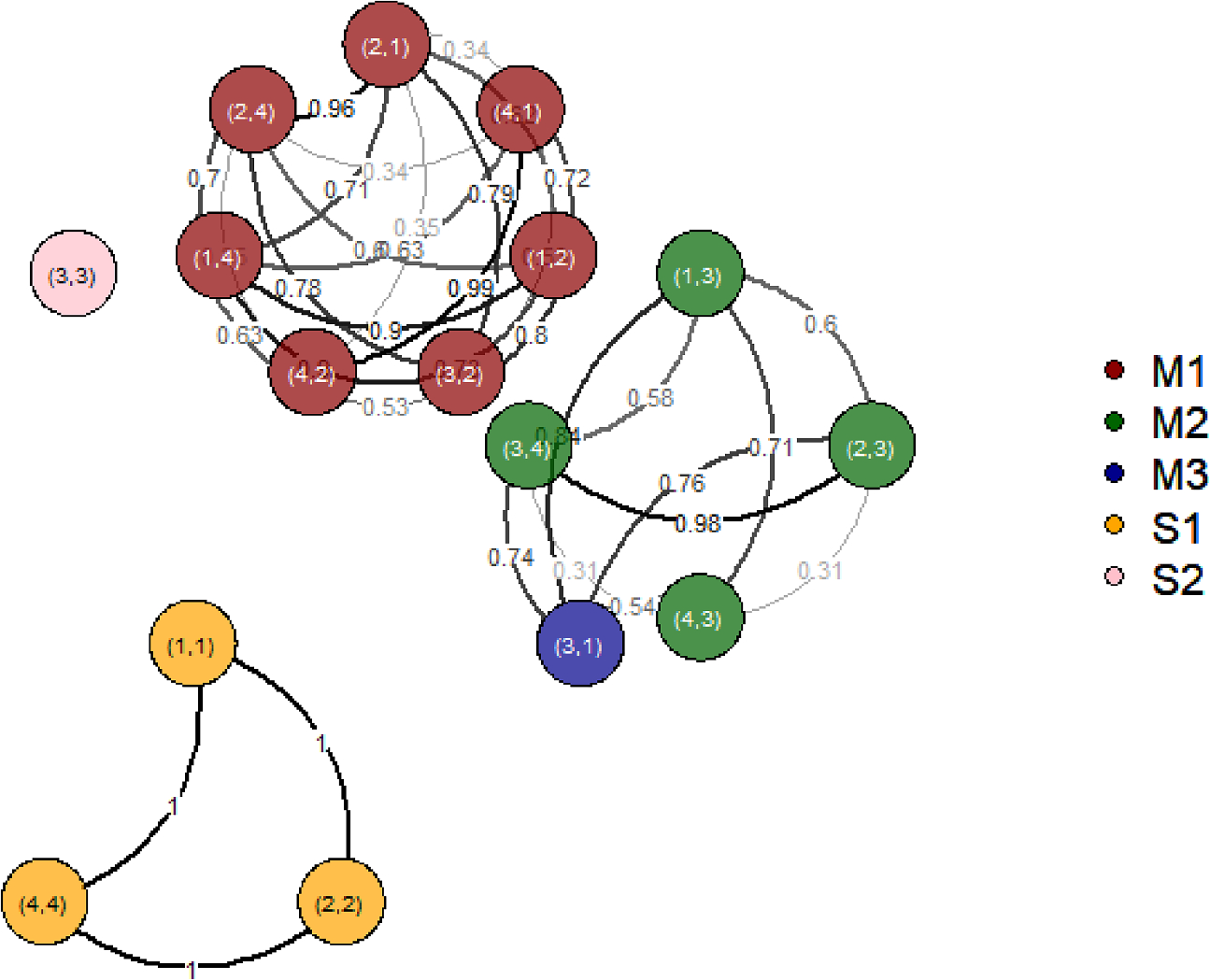

Figure 7 Results for PTC1 data: Network plot of similarity groups showing the intra- and inter-cluster similarities of tone recognition problems. Each node is associated with a pair indicating the input-response tone category, (s, d). The number associated with each edge indicates the proportion of times the pair in the two connecting nodes appeared in the same cluster after burnin.

Key Findings The clustering structure reveals that the low-dipping ( $T_3$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{3}$$\end{document} ) response trajectories are different from the other three response categories. While for correct input–output tone combinations, $S_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{2}$$\end{document} forms a separate singleton cluster, for incorrect combinations, $M_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{2}$$\end{document} contains all the low-dipping trajectories, indicating their similarities across the panels. Also for $T_3$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{3}$$\end{document} , faster increase of the probabilities of correct identification, as well as faster decay of probabilities of incorrect identification indicate that $T_3$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{3}$$\end{document} is easily distinguishable from other alternatives.

On the other hand, the trajectories of high-flat ( $T_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{1}$$\end{document} ), low-rising ( $T_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{2}$$\end{document} ) and high-falling ( $T_4$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{4}$$\end{document} ) response categories are quite similar across panels. While for correct input-response combinations, these three form the cluster $S_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{1}$$\end{document} , the corresponding incorrect tone combinations are clustered in $M_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{1}$$\end{document} . The slower rise of the observed empirical probabilities for the elements in $S_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$S_{1}$$\end{document} and the slower decay of the same for $M_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$M_{1}$$\end{document} indicate that $T_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{1}$$\end{document} , $T_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{2}$$\end{document} and $T_4$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{4}$$\end{document} are difficult to distinguish. However, in block 3 the empirical probabilities of correct input-response combinations differ moderately. While $T_2$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{2}$$\end{document} and $T_4$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{4}$$\end{document} show a relative drop in the empirical probabilities at block 3, $T_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{1}$$\end{document} shows a sudden pick in the same. This local dissimilarity of the trajectories at block 3, leads to a departure of the empirical probability of $T_1$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$T_{1}$$\end{document} from the estimated credible band.

Next, we consider the results concerning the estimation of the drift parameters ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t)$$\end{document} . As discussed in Sect. 2.2, given the identifiability constraints, the estimates of ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t)$$\end{document} can only be interpreted on a relative scale. Figure 8 shows the posterior mean trajectories and associated 95% credible intervals for the projected drift rates.

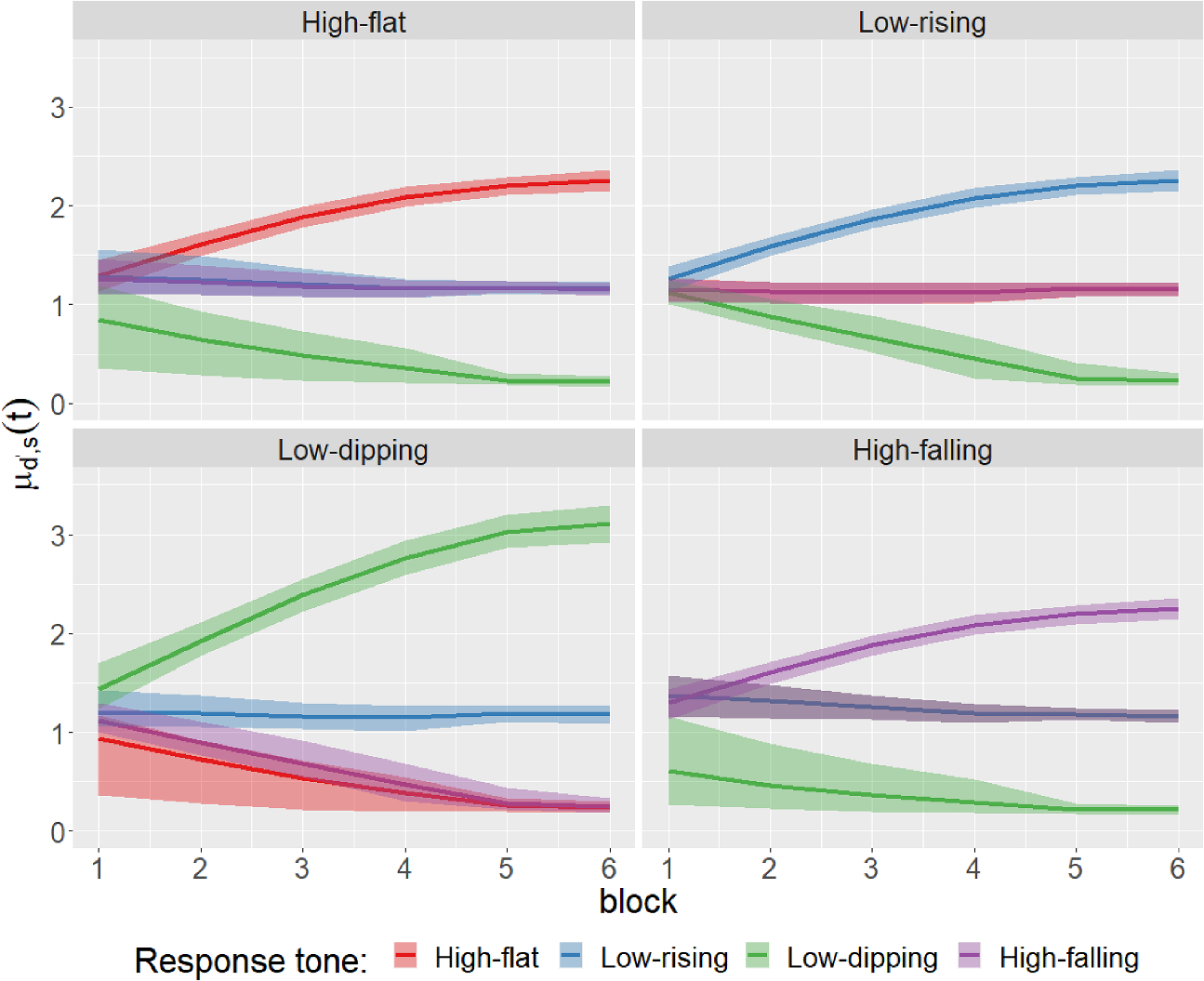

Figure 8 Results for PTC1 data: Estimated posterior mean trajectories of the population level drifts ${\mu }_{d^{\prime },s}\left(t\right)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}(t)$$\end{document} for the proposed model. The shaded areas represent the corresponding 95% point-wise credible intervals.

Importantly, our proposed mixed model also allows us to assess individual-specific parameter trajectories. Figure 9 shows the posterior mean trajectories and the associated 95% credible intervals for the drift rates ${\mu }_{d^{\prime },s}^{\left(i\right)}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}$$\end{document} estimated by our method for the different success combinations $(d^{\prime },s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d^{\prime },s)$$\end{document} for two participants—one with the best accuracy averaged across all blocks, and the other with the worst accuracy averaged across all blocks. These results suggest significant individual-specific heterogeneity. For the well-performing participant, the drift parameters are much higher than those for the poorly performing individual, indicating their ability to more quickly accumulate evidence compared to the poorly performing adult. These differences persisted over all blocks with a small gradual increase over time.

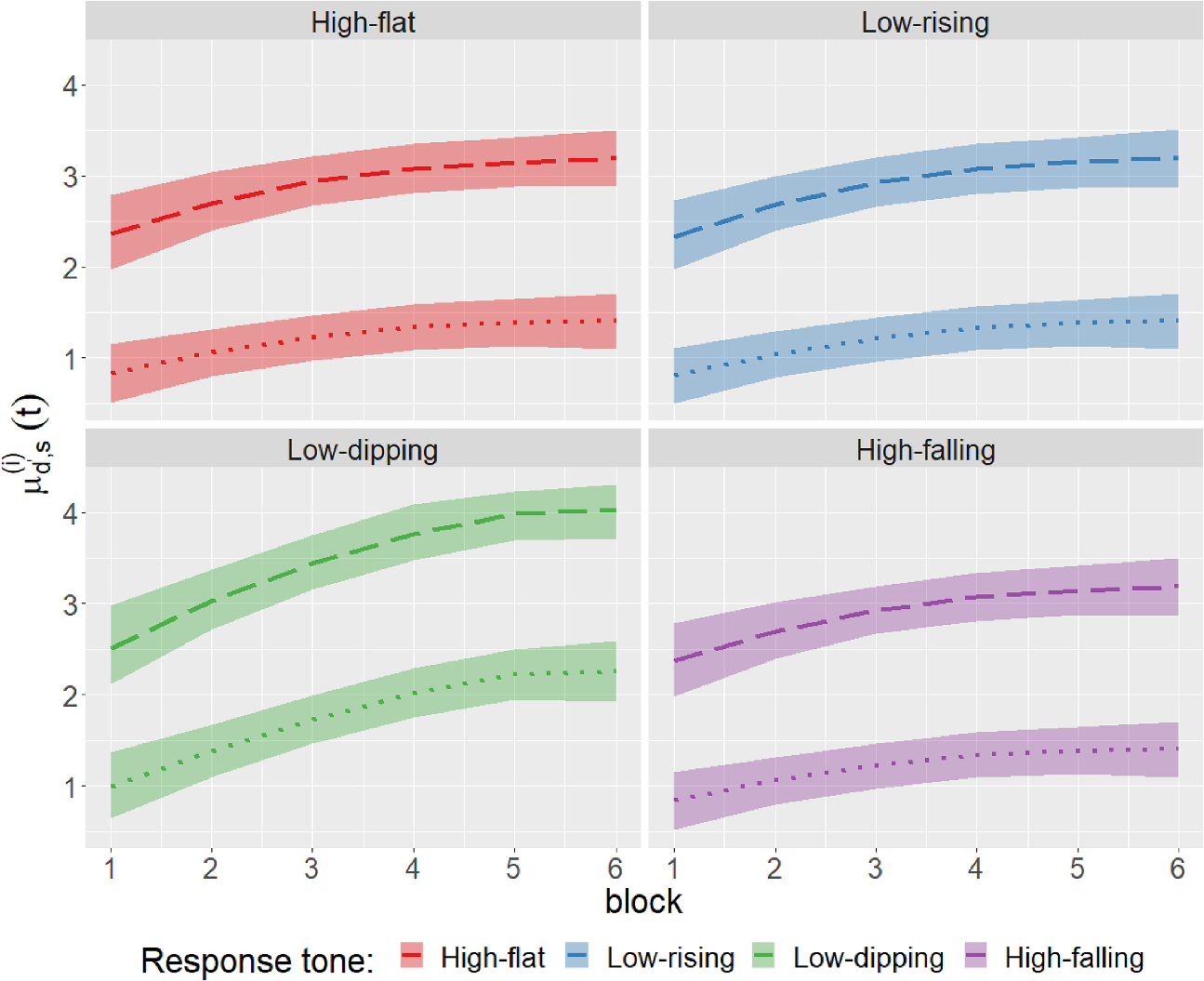

Figure 9 Results for PTC1 data: Estimated posterior mean trajectories for individual specific drifts ${\mu }_{d^{\prime },s}^{\left(i\right)}\left(t\right)=exp\{f_{d^{\prime },s}\left(t\right)+u_C^{\left(i\right)}\left(t\right)\}$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\mu _{d^{\prime },s}^{(i)}(t) = \exp \{ f_{d^{\prime },s}(t) + u_{C}^{(i)}(t) \}$$\end{document} for successful identification $(d^{\prime }=s)$ \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$(d^{\prime }=s)$$\end{document} for two different participants—one performing well (dashed line) and one performing poorly (dotted line). The shaded areas represent the corresponding 95% point-wise credible intervals.

Analysis of Benchmark Data To validate the proposed method, we also analyzed tone learning data which, in addition to response accuracies, included accurate measurements of the response times. It was previously analyzed in Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021) using the drift-diffusion model (2) which allowed inference on both the drift and the boundary parameters. For our analysis with the method proposed here, however, we ignored the response times. We observed that the estimates of the drifts produced by our proposed methodology match well with the estimates obtained by Paulon et al. (Reference Paulon, Llanos, Chandrasekaran and Sarkar2021). A description of this ‘benchmark’ data set and other details of our analyses are provided in Section S.5 of the supplementary material.

7. Discussion, Conclusion, Broader Utility, and Future Work

Summary In this article, we developed a novel longitudinal inverse-probit mixed categorical probability model. Our research was motivated by category learning experiments where scientists are interested in using drift-diffusion models to understand how the decision-making mechanisms evolve as the participants get more training and experience. However, unlike traditional drift-diffusion analyses which require data on both response categories and response times, we only had usable records of response categories but no response times. To our knowledge, biologically interpretable latent drift-diffusion process-based categorical probability models had never been considered for such scenarios in the literature before. We addressed this need. Building on a previous work on longitudinal drift-diffusion mixed joint models for response categories and response times but now integrating out the response times, we obtained a new class of category probability models which we referred to here as the inverse-probit model. We explored parameter recoverability in such models, showing, in particular, that the offset parameters can not be recovered and drifts and boundaries both can not be recovered from data only on response categories. In our analyses, we thus focused on estimating the biologically more important drift parameters but kept the offsets and the boundaries fixed. We showed that with careful domain knowledge informed choices for the boundaries, the general trajectories of the drift parameters can be recovered by our proposed approach even in the complete absence of response times.

Conclusion Overall, when it comes to making scientific inferences about drift-diffusion model parameters in the absence of data on response times, our work implies a mixed promise. On the downside, our work shows that the detailed interplay between drifts and boundaries cannot be captured. On the positive side, our results also suggest that, with our carefully designed model, and the fixed value of the boundary parameters appropriately chosen by experts, the general longitudinal trends in the drifts can still be estimated well from data only on response categories. Caution should still be exercised not to over-interpret the results.

Broader Utility in Auditory Neuroscience The proposed model, we believe, has significant implications for auditory neuroscience. We focused here specifically on a pupillometry study for which the experimental paradigms need to be adapted to prioritize slow pupillary response, rendering the behavioral response times useless. However, as discussed in the Introduction, there could be many other situations where usable data on response times may not be available. The proposed model can be useful in such scenarios to understand the perceptual mechanisms underlying auditory decision-making.

Broader Utility Beyond Auditory Neuroscience While we focused here on studying auditory category learning, the method proposed is applicable to other domains of behavioral neuroscience research studying categorical decision-making when the response times measurements are either not available or not reliable.

Broader Utility in Statistics On the statistical side, the projection-based approach proposed here to impose non-standard identifiability conditions and address clustering problems within and between different panels is not restricted to inverse-probit models introduced here. They can be easily adapted to other classes of generalized linear models such as the widely popular logit and probit models and hence may also be of interest to a much broader statistical audience.

Future Directions The models and the analyses of the PTC1 data set presented here excluded the pupillometry measurements themselves. An important and challenging problem being pursued separately elsewhere is to see how those measurements relate to drift-diffusion model parameters.
