Introduction

For some four decades, seasonal changes of the isotopic composition of deposited snow at polar ice caps have been used to date glacier ice and to determine past climatic conditions. In contrast, there have been few reports about the isotopic composition of snow at alpine temperate glaciers in relation to climatic conditions, principally because of the effects of meltwater percolation on the isotopic stratigraphy (Reference Oeschger, Schotterer, Stauffer, Haeberli and RöthlisbergerOeschger and others, 1978; Reference TangbornTangborn, 1980; Reference Oerter, Baker, Stichler and RauertOerter and others, 1985; Reference PingWang, 1985; Reference Wagenbach, Oeschger and LangwayWagenbach, 1989; Reference Naftz, Michel, Miller, Swart, Lohmann, McKenzie and SavinNaftz and others, 1993; Reference Raben and TheakstoneRaben and Theakstone, 1994, Reference Raben and Theakstone1997). Here, we discuss observations made at Austre Okstindbreen (66°00′ N, 14°16′ E), the largest glacier of the Okstindan area, Norway, which covers about 14 km² at 1700–730 m a.s.l. (Fig. 1). The mean equilibrium-line altitude (ELA) is about 1250 m.

Fig. 1. The glacier Austre Okstindbreen, with the two sampling sites and the location of the automatic weather station at 1350 m. Contours are in metres.

Studies of snowpack chemistry at Austre Okstindbreen have been reported by Reference He and TheakstoneHe and Theakstone (1994) and Reference Raben and TheakstoneRaben and Theakstone (1998). In July 1990, samples of snow and firn were collected at the glacier in an attempt to elucidate problems concerning (1) isotopic variations during snow accumulation on an alpine temperate glacier, and their relations to changes of local climatic conditions, (2) the influence of meltwater percolation on the isotopic composition of snow at different altitudes, and (3) processes of homogenization of the isotopic composition of melting snow and firn. The investigations reported here were made at two sites, one above and one below the equilibrium line (Fig. 1), as part of a programme in which the isotopic composition of snow and firn in different zones was related to climatic conditions (Reference HeHe, 1993). Samples were analyzed at the Geophysical Isotope Laboratory of the University of Copenhagen, Denmark.

The Sampling Programme

Snow accumulation at Austre Okstindbreen during winter 1989/90 was above the normal value: on 5 May 1990, the water-equivalent depth at site 90.1 (1350 m a.s.l.; Fig. 1) was 3.3 m (Reference KnudsenKnudsen, 1991). On 20 July, a pit 1.8 m deep was excavated at the site; the water-equivalent thickness of the snow-pack to the base of the pit was 1.0 m. A core 4.7 m deep was taken from the base of the pit to the underlying glacier ice. Density measurements were not made on all core increments, but the overall thickness of the residual 1989/90 winter snow-pack was estimated as 2.3 m w.e. The 1989 summer surface was identified at a below-surface depth of 4.1 m, where there was a marked change of snow structure; its location was confirmed by extensive snow-depth sounding undertaken as part of the annual mass-balance programme at the glacier (Reference KnudsenKnudsen, 1991). Sixty-five samples, each 0.1 m long, were collected from the pit wall and core. The 6.5 m deep profile (Fig. 2) provided a significant dataset from the glacier’s accumulation area, as it included continuous and detailed data from at least two balance years, 1988/89 and 1989/90.

Fig. 2. Stratigraphic variations of δ¹⁸O values at site 90.1, Austre Okstindbreen, 20 July 1990. The 1989 summer surface was at a depth of 4.1 m.

The isotopic composition of the material at site 90.1 changed at the level of the 1989 summer surface. Above it, there were many variations of δ ¹⁸O values in the snow (Fig. 2). In contrast, the amplitude of δ ¹⁸O fluctuations in the underlying firn was relatively small. There was an abrupt increase of δ ¹⁸O values at the level of the 1989 summer surface, and the upper part of the firn, between 4.1 m and 5.5 m, was characterized by a progressive downward enrichment in the heavy isotope. Isotopic homogenization was particularly evident in the lowest metre of the core, from 5.5 m to 6.5 m. This part of the firn was harder and denser than the overlying material, and the isotopic shift at 5.5 m suggests that it may have formed in an earlier period, possibly in the 1987/88 winter. The mean δ ¹⁸O value of the 1989/90 winter snow was −11.67‰, and that of the underlying firn was −10.96‰.

Site 90.2 was at 1000 m a.s.l. (Fig. 1). A pit 1.89 m deep was excavated to glacier ice on 16 July; 37 samples were collected from the pit wall. The lowest sample was 0.09 m long; the others were 0.05 m long. Variations of δ ¹⁸O values were larger in the uppermost 1.15 m of the snowpack than at greater depth (Fig. 3a). Ten days later, a second set of samples was collected. The thickness of the snowpack had decreased by 0.83 m, principally as a result of melting, although some compaction may have occurred. Ten of the eleven samples collected on 26 July were 0.10 m long; the other sample was 0.06 m long (Fig. 3c). In order to facilitate comparison of the stratigraphic variations on the two dates, average δ ¹⁸O values were calculated for 0.10 m increments on 16 July (Fig. 3b).

Fig. 3. Stratigraphic variations of δ¹⁸O values at site 90.2, Austre Okstindbreen. (a) 0.0.5 m samples, 16 July 1990. (b) 0.10 m increments formed by amalgamating pairs of 0.05 m samples, 16 July 1990. (c) 0.10 m samples, 26 July 1990.

The Climate of the Okstindan Area

The air masses from which precipitation falls at Okstindan normally are controlled by the positions of the Azores high and the Iceland low (Reference RatcliffeRatcliffe, 1990; Reference HeHe, 1993; Reference He and TheakstoneHe and Theakstone, 1994). Precipitation is high when (a) low pressure is centred in the Denmark Strait, between Greenland and Iceland, (b) pressure is high over the western part of Europe and (c) air masses arrive at Okstindan from the southwest, after a very short trajectory from the ocean (Reference Raben, Theakstone and TørsethRaben and others, 2000). Precipitation is monitored on a daily basis at Heggmo (399 m a.s.l.), about 10 km south of Austre Okstindbreen; Tustervatn (439 m a.s.l.), some 25 km southwest of the glacier; Mo i Rana (30 m a.s.l.), about 35 km to the north; and Susendal (265 m a.s.l.), 70 km to the south. The proportions of the total October 1989–May 1990 precipitation which fell in each month at the four stations were broadly similar (Table 1). Accordingly, the isotopic data from Austre Okstindbreen are compared here with precipitation data from Heggmo, the nearest station.

Table 1. Monthly precipitation at four stations as a percentage of the total for the period 1 October-31 May

An automatic weather station was operating close to the western margin of Austre Okstindbreen, at 1350 m a.s.l., from 1 October 1988 to 31 May 1989. Mean daily temperatures there displayed good correlations with data for the same period (243 values) from Susendal (r ² = 0.72). Here, temperature data from Susendal are used in the study of the isotopic data from Austre Okstindbreen. Mean daily temperatures at Susendal for those days on which precipitation was recorded at Heggmo during the 1989/90 winter were used to calculate the mean temperatures (T _mo) associated with successive increments of precipitation (P _mo).

Isotopic Variations in the Snowpack and Local Climate Variations

The δ ¹⁸O values of precipitation during a particular event depend on the history of the air mass involved. They reflect the temperature of condensation, and, as little isotopic exchange occurs between falling snow and atmospheric moisture, they are related to in-cloud conditions. A precise relationship therefore cannot be expected between the isotopic composition of snow accumulating at Austre Okstindbreen and the air temperature measured at a distant station. In the absence of high-elevation temperature data, however, the latter may be useful in examining the general nature of isotopic variations in snow.

Vertical differences of δ ¹⁸O values in the snow–firn profile are influenced by temporal variations of air temperature during precipitation, and subsequently by percolating meltwater and the tendency towards isotopic homogenization. At site 90.2, where the snow thickness decreased by >0.8 m in the 10 days between collection of the two sets of samples, melting and percolation were accompanied by isotopic homogenization of the residual pack (Fig. 3). The maximum and minimum δ ¹⁸O values were −10.79‰ and −15.84‰ on 16 July (Fig. 3a) and −10.34‰ and −12.46‰ on 26 July (Fig. 3c). The decreased variability of δ ¹⁸O values was accompanied by an increase of the mean, from −12.80‰ on 16 July to −11.25‰ on 26 July. However, a comparison of the average δ ¹⁸O values calculated for 10 cm increments on 16 July and the values for 10 cm samples on 26 July (Fig. 3b and c) indicates that the processes associated with percolation and homogenization did not eliminate all the original vertical variations of δ ¹⁸O values.

Some changes of the initial isotope stratigraphy at site 90.1 must have been caused by meltwater percolation before samples were collected on 20 July 1990, when the snowpack was at the melting-point temperature. The liquid-water content was 2–3% to a depth of 1.5 m; below that, to the base of the 1.8 m pit, the liquid-water content was around 1%. Climatic data from Mo i Rana, Susendal, Heggmo and Tustervatn suggest that net accumulation of snow at 1350 m (site 90.1) probably did not begin before the third week of October. Using the mean daily temperature at Susendal and a lapse rate of 0.6°C per 100 m, the onset of winter was calculated to have been on 23 October. Net accumulation of snow at the site probably ceased in late May. Surface melting in June and July is likely to have removed most of the snow which accumulated during the last part of the winter: the thickness of the pack decreased by 1.0 m w.e. between 5 May and 20 July 1990. Although meltwater percolation must have affected the δ ¹⁸O values in the residual pack, striking variations remained on 20 July, and these probably reflect temperature variations during the accumulation season.

Inferred Conditions During Snow Accumulation at Site 90.1

The total precipitation recorded at Heggmo between 23 October 1989 and 31 May 1990 was 1417.6 mm. The highest daily total was 93.2 mm (3 December), and >40 mm fell on two other days (23 and 24 February). In order to facilitate comparison with the snow samples collected at site 90.2 in July, the total precipitation was divided into increments of similar size (about 40 mm). Most of the increments accumulated in periods of 1–5 days, but the dry weather of May 1990 meant that the last periods were longer. Trends of mean temperature (T _mo) associated with each precipitation increment/period (P _mo) were determined from the mean daily temperatures recorded at Susendal. The relation between T _mo and P _mo is plotted in Figure 4, together with the isotopic profile.

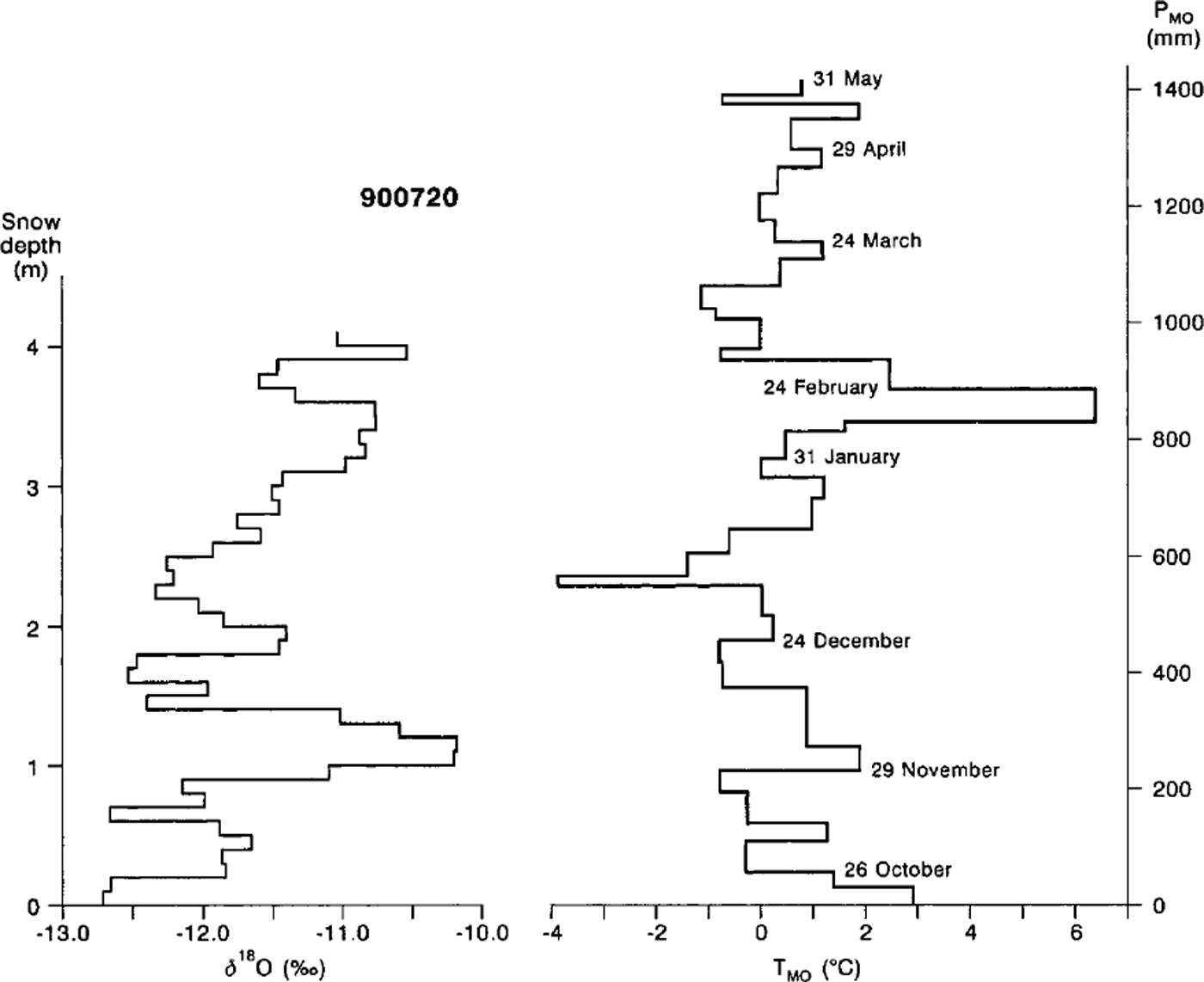

Fig. 4 Variations of air temperature at Susendal (T _mo ) during periods of precipitation at Heggmo (P _mo ), October 1989-May 1990 (right), and the isotopic composition of the residual 1989/90 winter snowpack at site 90.1, 20 July 1990 (left).

133.7 mm of precipitation fell at Heggmo in the first 3 days of December 1989. This was associated with relatively high air temperatures, which were reflected by the δ ¹⁸O values in the site 90.1 snowpack at about 1 m above the 1989 summer surface (Fig. 4). Temperatures were low in mid-January, but then tended to increase generally until late February, a trend reflected in the δ ¹⁸O values about 2.3–3.6 m above the 1989 datum. By 20 July, the snow which had accumulated in the last part of the winter had been removed by surface melting, and the isotopic variations associated with precipitation in March, April and May therefore were no longer present in the pack.

Variations of δ ¹⁸O values in the lowest part of the site 90.1 snowpack at 1350 m in July did not reflect the variations of early winter temperatures. In part, this may have been a result of the more complex climatic situation of October and November, shown by the mean monthly meteorological charts (Reference RatcliffeRatcliffe, 1990). It also is possible that downward percolation of meltwater was hindered by the 1989 summer surface, which was harder than the overlying pack and had a marked dust content. The old summer surface is likely to have provided a preferential path for meltwater moving down-slope from higher elevations, thereby leading to increased isotopic exchange in the lower part of the 1989/90 snowpack.

Discussion

The distribution of δ ¹⁸O values in accumulated snow changes as a result of the processes of meltwater percolation and associated isotopic homogenization (Reference Stichler, Jones and Orville-ThomasStichler, 1987). However, isotopic homogenization is very slight above the ELA at Austre Okstindbreen in late winter, and the major differences survive in the snowpack for several weeks after the onset of surface melting (Reference Raben and TheakstoneRaben and Theakstone, 1994). During the melting phase, the residual snowpack becomes enriched in ¹⁸O (Reference Raben and TheakstoneRaben and Theakstone, 1998). In summer, the river water discharging from the glacier is relatively depleted of the heavy isotope, with a mean δ ¹⁸O value of around −13.2‰ contrasting with that of glacier ice, −11.8‰ (Reference TheakstoneTheakstone, 1988).

The relationship between winter δ ¹⁸O values at Austre Okstindbreen and regional temperature changes is affected by local geographical conditions, such as topography and elevation. Differences between the isotopic signal in the accumulated snow at 1350 m and temperature changes at Susendal are to be expected, because of the differences of altitude and location of the glacier site and the weather station. Nevertheless, variations of 1989/90 winter air temperatures were reflected in the isotopic composition of the snowpack at Austre Okstindbreen. Further work is needed to improve understanding of the relationship between the isotopic record at an alpine glacier and the local climate.

In contrast to the overlying stratigraphy, the variations of δ ¹⁸O values in the firn at 4.1–6.5 m depth at site 90.1 were slight (Fig. 2), clearly indicating the effects of homogenization on old snow at the melting point. This proceeds rapidly at lower altitudes on the glacier, as witnessed by the changes caused by intense ablation in July at site 90.2 (Fig. 3).

Conclusion

Although the relationship between δ ¹⁸O values in the snow-pack and air temperatures during the winter probably was affected by many natural factors, the isotopic variations above the ELA at Austre Okstindbreen provide fundamental information about periodic trends of temperature changes during the period of snow accumulation. Thus, the oxygen isotope record in temperate snow at an alpine glacier can provide an estimate of the approximate trend of local climatic conditions, especially of local temperature variations, although the record is likely to be influenced by more factors than is that at polar glaciers. Isotopic research in the accumulation areas of alpine glaciers can be used as a supplementary method for local climatic analysis when no permanent climatic record exists. The isotopic record present in temperate snow and firn changes during the ablation season as a result of meltwater percolation, but the initial variations of δ ¹⁸O values were not entirely eliminated after 1–2 months of ablation at 1350 m at Austre Okstindbreen in 1990. Isotopic homogenization is pronounced in firn >4 m below the previous summer’s surface, and the degree of homogenization is likely to increase with time. Where ablation rates are relatively high, changes of isotopic composition and associated homogenization are apparent within a very short period of melting.
