1. Introduction
Although Antarctic sea-ice extent and concentration have been routinely monitored since 1979 (Reference Parkinson and CavalieriParkinson and Cavalieri, 2012), the spatial and temporal distribution of sea-ice thickness remains one of the least understood physical components of the global cryosphere (Reference Vaughan and StockerVaughan and others, 2013). Quantification of thickness is of crucial importance, since when combined with areal data it allows the computation of sea-ice volume. Sea-ice volume provides insight into the heat budget of the Antarctic sea-ice system and quantification of freshwater and saltwater fluxes in the Southern Ocean. Due to the scarcity of in situ measurements of Antarctic sea-ice thickness, there is great demand for improved temporal and spatial thickness data through satellite altimeter observations (Reference Zwally, Yi, Kwok and ZhaoZwally and others, 2008; Reference Yi, Zwally and RobbinsYi and others, 2011; Reference Kurtz and MarkusKurtz and Markus, 2012; Reference Xie, Tekeli, Ackley, Yi and ZwallyXie and others, 2013). Such observations support the capability to monitor trends and in turn provide data to model forecasts of future Antarctic sea-ice properties (Reference MassonnetMassonnet and others, 2013; Reference Holland, Bruneau, Enright, Losch, Kurtz and KwokHolland and others, 2014).
The use of satellite altimetry for sea-ice thickness estimation is entirely reliant upon the measurement of freeboard (Fig. 1). Following this, thickness can be estimated based on the assumptions of hydrostatic equilibrium given input of values for the densities of snow, ice, water and snow thickness (Reference Alexandrov, Sandven, Wahlin and JohannessenAlexandrov and others, 2010). The ability to accurately measure freeboard and to include information on snow morphology is vital, as any errors in these input factors are greatly magnified in the eventual sea-ice thickness estimation. The European Space Agency’s (ESA) Synthetic aperture radar Interferometric Radar ALtimeter system (SIRAL) on-board CryoSat-2 (CS-2) is the most advanced satellite radar altimeter instrument for sea-ice freeboard retrieval in operation to date (Reference Drinkwater, Francis, Ratier and WinghamDrinkwater and others, 2004; Reference WinghamWingham and others, 2006), and at the time of writing is improving understanding of the Arctic sea-ice thickness distribution (Reference LaxonLaxon and others, 2013; Reference Kurtz, Galin and StudingerKurtz and others, 2014; Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others, 2014). Given the more heterogeneous and thinner state of Antarctic sea ice, primarily due to its exposed oceanic setting and its highly variable snow distribution and morphology (Reference MassomMassom and others, 2001; Reference Ozsoy-Cicek, Ackely, Xie, Yi and ZwallyOzsoy-Cicek and others, 2013), the uncertainty in resultant thickness estimates from CS-2 in the Southern Ocean is likely to be higher.
Fig. 1. Components relating to the interpretation of CryoSat-2 freeboard data. The reception period is maintained by a range window (RW; 120 m in SIN mode) which is constantly adjusted in the vertical dimension to receive echoes from the surface. The transmitted power (Pt) is subject to interaction at the surface from the air/snow interface, volume of the snow cover and snow/ice interface which all influence the power returned to the satellite (P r). The dominant backscattering surface is variable and is displaced by varying snow depth (sh ), snow layering and snow and ice properties. The retracking procedure is completed, resulting in a range (R) between r1 and r2 over sea ice (r3 over water) dependent upon the assumptions of the respective retracking technique. This range is subtracted from the satellite altitude above the ellipsoid to provide uncorrected height. After application of geophysical corrections, freeboard is obtained by discerning the difference between local sea surface height (SSH) and an interface in the range of the ice freeboard (Fbi) and the snow freeboard (Fbs) as measured by the satellite.
In this study, we validate freeboard measurements from CS-2 over fast ice in McMurdo Sound in 2011 and 2013. The fast ice in this area provides a safe platform for the collation of in situ data (Reference Price, Rack, Langhorne, Haas, Leonard and BarnsdalePrice and others, 2014), and the area has been well investigated (Reference Jeffries, Weeks, Shaw and MorrisJeffries and others, 1993; Reference Gow, Ackley, Govoni, Weeks and JeffriesGow and others, 1998; Reference Leonard, Purdie, Langhorne, Haskell, Williams and FrewLeonard and others, 2006; Reference Dempsey, Langhorne, Robinson, Williams, Haskell and FrewDempsey and others, 2010; Reference MahoneyMahoney and others, 2011; Reference Gough, Mahoney, Langhorne, Williams, Robinson and HaskellGough and others, 2012; Reference Smith, Langhorne, Frew, Vennell and HaskellSmith and others, 2012). The sea ice in McMurdo Sound is largely uniform and level, with smooth gradients in thickness. The complexity in view of satellite validation is significantly reduced in comparison to the more dynamic pack ice conditions. In common with many other coastal Antarctic regions (Reference Fedotov, Cherepanov, Tyshko and JeffriesFedotov and others, 1998; Reference Fraser, Massom, Michael, Galton-Fenzi and LieserFraser and others, 2011) McMurdo Sound harbors extensive areas of fast-ice neighboring coastal polynyas and ice shelves as regions of significant sea-ice production (Reference Massom, Harris, Michael and PotterMassom and others, 1998; Reference Tamura, Ohshima and NihashiTamura and others, 2008). The performance of radar altimeters for freeboard retrieval in these regions of highly variable ocean conditions is yet to be evaluated, specifically with regard to sea-ice/water discrimination over differing surface types (i.e. leads and polynyas of varying sizes).
Compared to ICESat (the Ice, Cloud and land Elevation Satellite; infrared laser shots with 70m footprints every 170 m along track), the CS-2 radar signal penetrates cloud cover but produces a larger footprint of ∼380 m × 1650 m dependent upon orbit parameters and surface geometry (Reference BouzinacBouzinac, 2013). Freeboard retrieval using laser instrumentation is simplified by the fact that the main reflection from the snow surface is well defined. In Ku band (SIRAL center frequency 13.6 GHz) the backscattered radar energy is more susceptible to alteration from surface conditions, but the main reflection is assumed to originate primarily from the snow/ice interface (Reference LaxonLaxon and others, 2013). A recent simulation suggests that the influence of snow on sea ice is not negligible as it can broaden the waveform of the returned signal, thus displacing the tracking point (corresponding to the retrieved surface height) toward the altimeter (Reference KwokKwok, 2014). The influence of snow on the shape of the returned waveform depends on its dielectric properties which are dictated by salinity, liquid water content, density, grain size and temperature (Reference Hallikainen, Ulaby and AbdelrazikHallikainen and others, 1986; Reference Ulaby, Moore and FungUlaby and others, 1986; Reference Barber, Reddan and LedrewBarber and others, 1995).
Given the complex snow stratigraphy and snow microwave interaction, there is no consensus on a dominant backscattering surface. For example, no single dominant backscattering surface was found for stratified snow during in situ investigations using a 10–16 GHz band instrument, but returns from the snow/ice interface dominated when layering in the snow cover was absent (Reference Willatt, Giles, Laxon, Stone-Drake and WorbyWillatt and others, 2010). Surface roughness also influences the freeboard retrieval as it directly affects the shape of the returning radar waveform (Reference DrinkwaterDrinkwater, 1991; Reference BeavenBeaven and others, 1995; Reference Hendricks, Stenseng, Helm and HaasHendricks and others, 2010). Surface roughness may be separated into radar and geometric roughness: the former is associated with small-scale features at length scales comparable to the radar wavelength (in this case 0.02 m), and the latter is concerned with large-scale surface undulations (e.g. ridging and cracks). The bandwidth of the compressed high-intensity radar pulse (chirp) of SIRAL (320 MHz) results in a range resolution of 0.47 m. This can resolve neither the air/snow nor the snow/ice interface, making the identification of surface height highly dependent on the slope of the leading edge of the returned waveform (Fig. 2).
Fig. 2. (a) Typical CryoSat-2 SIN mode waveform over snow-covered sea ice in McMurdo Sound with labelling of characteristics mentioned in the text. (b) An expanded view of the outlined grey area in (a) from range bins 140–170 (1 bin = 0.234 m) and the expected retracking points on the leading edge for the techniques described here: ESAL2 (40–70% orange), WfF (50–90% green) and TFMRA40 (40% blue).
The factors described above exacerbate the accurate localization of a dominant backscattering surface over sea ice, and, in turn, the retracking, a procedure which interprets the waveform to estimate the range to the surface, is complicated (Figs 1 and 2). There are currently two separate approaches using waveform interpretations to establish retracking points: (1) a waveform-fitting approach that takes into account the shape of the returned waveform based on a physical model; and (2) an empirical approach that only considers the leading edge and estimates surface height at a given power threshold. Waveform fitting is the basis for the ESA’s Level 2 product (ESAL2) and the Waveform Fitting (WfF) procedure as described by Reference Kurtz, Galin and StudingerKurtz and others (2014). The Threshold-First-Maximum-Retracker-Algorithm employed at 40% (TFMRA40) is an empirical approach presented by Reference Helm, Humbert and MillerHelm and others (2014) and applied over sea ice by Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others (2014).
In this paper, we assess the assumptions behind the techniques referenced above with a detailed in situ investigation on fast ice in McMurdo Sound. With the addition of Moderate Resolution Imaging Spectroradiometer (MODIS) imagery we undertake a supervised freeboard retrieval procedure in which sea surface height is manually classified on a small number of selected CS-2 tracks. Using this optimal dataset, and additional CS-2 waveform information, we provide insight into the influence of differing surface conditions (snow properties and surface roughness) on the resultant freeboards from each technique: ESAL2, WfF and TFMRA40. This supervised analysis also provides information on the estimated accuracy of CS-2 freeboard retrievals over the fast ice in McMurdo Sound. With information gained in an initial evaluation, we subsequently develop three automatic freeboard retrieval procedures and assess the sea-ice regime in McMurdo Sound for the entirety of 2011 and 2013.
First, we describe the study area of McMurdo Sound and in situ information and provide an overview of CS-2 in Section 2. In Section 3, we describe and discuss the surface height retrieval procedure for CS-2 under each technique. In Section 4, we manually identify sea surface height and complete a supervised freeboard retrieval investigation providing freeboard estimates for each technique and report the findings of these results and their implications. Following this, in Section 5, we describe the three automatic algorithms used to assess the years 2011 and 2013 in a larger area of McMurdo Sound. Results from these automated procedures are then reported and discussed in the final sections.
2. Cryosat-2 Assessment in Mcmurdo Sound
This section describes the study area of McMurdo Sound, the in situ investigation and provides an overview of CS-2. The study area (Fig. 3) is located in the southwestern Ross Sea and occupies an area of ∼6400 km2. McMurdo Sound’s proximity to ice shelves and the outflow of cold ice-shelf water from the ice-shelf cavity contributes to sea-ice formation in this area (Reference Purdie, Langhorne, Leonard and HaskellPurdie and others, 2006; Reference Dempsey, Langhorne, Robinson, Williams, Haskell and FrewDempsey and others, 2010; Reference MahoneyMahoney and others, 2011; Reference Gough, Mahoney, Langhorne, Williams, Robinson and HaskellGough and others, 2012; Reference Price, Rack, Langhorne, Haas, Leonard and BarnsdalePrice and others, 2014). This influence is hypothesized to be present in similar settings around the Antarctic with potential basin-wide implications (Reference HellmerHellmer, 2004; Reference Bintanja, Van Oldenborgh, Drijfhout, Wouters and KatsmanBintanja and others, 2013). At the time of writing, McMurdo Sound harbors a first-year (FY) sea-ice regime with extensive areas of highly homogeneous fast ice in its southern and western extremities and the McMurdo Sound Polynya (MSP) at its center. The MSP undergoes complete freeze-up and breakout events throughout autumn and winter but is typically open water during spring and summer. This open-water area can become intermittently inundated with a cover of sea-ice floes that have drifted south from the Ross Sea.
Fig. 3. (a) Location of the study area within the Antarctic. (b, c) McMurdo Sound and the study area for 2011 (b) and 2013 (c), showing the distribution of CryoSat-2 tracks for those used in the supervised analysis (blue lines), the automatic study period (orange lines) and locations of in situ measurement sites (white dots). The November fast-ice edge is displayed for each year (white line). The full study area for each annual automatic analysis is outlined in green. The validation line in Figure 4 is highlighted by the black rectangle and expanded in (d) to show each in situ measurement point (light blue dots) along the CryoSat-2 track.
2.1. In situ investigations
During two in situ measurement campaigns in November and December 2011 and 2013, sea-ice freeboard, thickness and snow depth/density measurements were made for comparison with CS-2 freeboard retrievals. The locations of in situ measurements within McMurdo Sound are shown in Figure 3. The in situ measurement campaign in 2011 along with an overview of sea-ice conditions in McMurdo Sound is described in Reference Price, Rack, Langhorne, Haas, Leonard and BarnsdalePrice and others (2014), and these same measurement procedures were carried out in 2013. Even though the sea-ice conditions in 2013 were very similar to 2011, it is important to note that surface conditions were slightly different with regard to the snow cover and surface roughness. The first of the differences was related to sea-ice deformation. The sea-ice cover was more deformed in the west in 2013, resulting in higher geometric surface roughness. The second notable difference was in the snow cover. In 2011 the snow was characterized as wind-compacted, with a large variability in hardness, density and grain size. Grain size was generally large near the ice (∼3 mm), and smaller in the upper layers, typically ∼0.5 mm and smaller. Where snow was 0.20 m in thickness we found two to three layers, with densities varying between 330 and 450 kg m–3 with no significant correlation between depth and density. In 2013 a similar situation existed, but both thickness and layering were reduced, while radar roughness was likely higher given a less uniform snow surface at the centimeter scale. In both years the distribution was highly variable, with many different snow types present.
2.2. CryoSat-2
Launched in April 2010, CS-2 operates in a near-circular polar orbit with an inclination of 92° and has a repeat cycle of 369 days with a subcycle of 30 days. Its on-board altimeter, SIRAL, operates at a center frequency of 13.6 GHz and is normal- incidence, with two receiver chains operating in two modes over sea-ice areas (Reference BouzinacBouzinac, 2013). Its dedicated sea-ice mode uses synthetic aperture radar (SAR) processing for height retrievals along-track at an improved spatial resolution. In addition, being pulse-limited across track results in a footprint size of approximately 380m x 1650m, with along-track sampling at ∼300m intervals permitting enhanced along-track ice/water discrimination and higher sampling (Reference BouzinacBouzinac, 2013). In Antarctic coastal regions, SIRAL switches to SAR interferometric (SIN) mode for ice-sheet margin investigation. Interferometric processing discerns the arrival angle of radar returns via phase comparison of the returning signal. This permits them to be correctly positioned on the Earth’s surface, and off-nadir returns to be accurately ranged (Reference WinghamWingham and others, 2006; Reference BouzinacBouzinac, 2013). This is a necessity in complex terrain, where off-nadir reflections can be received by the satellite prior to nadir reflections. The SIN mask extends out to a maximum distance of ∼300 km from the Antarctic coastline and ice-shelf margins. Due to the study area’s proximity to the Antarctic continental coast it falls within the SIN mask. To account for the increased range over which the surface may be encountered by the incident radar beam in complex terrain, a longer tracking window is permitted in SIN mode. At the same time the reduction in burst-repetition frequency decreases the number of resulting measurements by a factor of four compared to SAR mode (Reference WinghamWingham and others, 2006; Reference BouzinacBouzinac, 2013). The measurement range window is segmented into 512 bins providing a range sampling of 1.563 ns (0.234 m in vacuo). A CS-2 SIN mode example waveform with labelling relevant to the text is shown in Figure 2. The surface is maintained in a range window along track, which constantly adjusts to keep the leading edge at a specific point near the center of the window (Reference BouzinacBouzinac, 2013). Energy from the surface that is returned to the satellite builds above the noise level and increases along the leading edge to the peak power. This then decays (the trailing edge) to the end of the tracking window. The retracking procedure is then used to identify the point on the waveform that provides the range to the surface. Multiple methods exist to execute this procedure based on different assumptions about the interaction of radar energy and the surface.
3. Tracking Surface Height from CS-2 Waveforms
We begin our analysis with a description of the respective retracking procedures for each method. The retracking procedure aims to provide the best estimate of range between the satellite center of mass and the dominant backscattering horizon on the Earth’s surface. This is achieved by interrogating ESA’s baseline B Level 1B (SIR_SIN_L1) waveforms. It results in geolocated surface heights (h*) which are referenced to the World Geodetic System 1984 (WGS84) ellipsoid after subtracting retracked range from the satellite’s altitude.
3.1. European Space Agency Level 2 data product (ESAL2)
We utilize ESA baseline B Level 2 SIN mode (SIR_SIN_L2) data which have already undergone a retracking procedure (Reference BouzinacBouzinac, 2013). Using SIR_SIN_L1 the ESA processor applies a model fit to determine heights from waveforms fitted to the model echo shape (Reference Wingham, Phalippou, Mavrocordatos and WallisWingham and others, 2004, Reference Wingham2006). The ESA waveform retracker is described as a ‘customer furnished item’ in the CryoSat Product Handbook (Reference BouzinacBouzinac, 2013), but no further information is provided by ESA at the time of this publication. Using SIR_SIN_L1 and SIR_SIN_L2 data in unison from CS-2 data within our study area, the retracking point is shown to vary on the leading edge over a range of 40–70% of peak power (Fig. 2). Using phase information, a correction for off-nadir scattering is also applied in this product. With the available literature we are unable to conclude with confidence which surface (air/snow or snow/ice) is expected to dominate the backscatter, or what assumptions are made in the model.
3.2. Waveform Fitting procedure data product (WfF)
Reference Kurtz, Galin and StudingerKurtz and others (2014) provide an overview of this product. Surface height is estimated by fitting a physical model to the SIR_SIN_L1 waveforms. The model parameters include the surface roughness, which is assumed to be Gaussian, and the variation of the backscatter with incidence angle.
Dependent upon the parameters described in Reference Kurtz, Galin and StudingerKurtz and others (2014), WfF establishes its retracking point at ∼50– 90% (Fig. 2) of peak power on the leading edge for nonspecular returns and assumes that the dominant back-scattering surface is the ice/snow interface. For specular returns, the model converges to the shape of the compressed transmit pulse and the retracking point is near the point of peak power, but can also be beyond the leading edge due to the finite sampling resolution of the waveform.
For the SIN mode data used in this product, the phase information is used to determine the angle to the point of closest arrival determined by the retracking point. A correction for the retracked height, due to off-nadir scattering, is determined and applied from the phase information using the procedure described by Reference Armitage and DavidsonArmitage and Davidson (2014).
3.3. Threshold- First-Maximum-Retracker-Algorithm 40 (TFMRA40)
This product is based on SIR_SIN_L1 waveforms, but phase information from the returning echo is discarded. The range of the main scattering horizon is obtained by applying a Threshold-First-Maximum retracker to the waveforms. In this study we use a threshold of 40%. The processing follows Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others (2014) by:
-
1. Oversampling of the original waveform by a factor of 10 using linear interpolation.
-
2. Smoothing of the oversampled waveform by applying a running mean with a width of ten range bins to reduce noise.
-
3. Determination of the first maximum by the derivative of the interpolated curve.
-
4. Retrieval of the ellipsoidal elevations by tracking the leading edge of the first maximum at 40% of the peak power (as in Fig. 2).
The main scattering horizon is assumed to be close to the surface, whether this is the air/snow interface or, in the absence of snow cover, the ice/air interface.
3.4. Tracking of sea surface height
The sea surface state at the time of the satellite overpass can alter the shape of the returning waveform. Over leads, given their small fetch, the surface is typically smooth. This provides a uniform surface with a characteristic specular waveform response, an ideal surface for both discrimination of water from sea ice and the use of consistent techniques for tracking the sea surface. However, as the size of the open-water area being referenced is increased so is its susceptibility to wind. This is clearly evident over the polynya area in McMurdo Sound, which does not exhibit the typical specular waveform expected from a lead. This is the first of three issues related to the identification of sea surface height (SSH) noted in this study and is described in more detail below. These areas were observed to hamper the identification of SSH in certain sea conditions. When the significant wave height (SWH) is increased by wind forcing, the slope of the leading edge of the radar waveform is flatter due to increasing off-nadir contributions. In the case of TFMRA40 this influence resulted in insufficient separation of fast-ice elevation retrievals from sea surface retrievals (i.e. SSH was too high relative to the sea-ice surface). Such an influence was not observed on the ESAL2 or WfF techniques that retrack ‘higher’ on the leading edge and attempt to account for physical differences in surface roughness and incidence angle backscatter variations. This emphasizes the need for the inclusion of an additional surface type to the TFMRA40 procedure. The surface type polynya has been added to the original three, ocean, lead and sea ice (Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others, 2014), to accurately record SSH for the open-water area in McMurdo Sound. Over surfaces flagged as polynya the surface is tracked at 60%, as opposed to 40% over leads and sea ice. This increase in the retracking threshold accommodates for the flatter leading edge forced by a higher SWH. This amendment improved agreement between TFRMA40 freeboard retrievals and in situ measured freeboard data.
Secondly, the occurrence of ‘mixed’ surface types within the CS-2 footprint produces noisy waveforms. Regions in which larger open-water areas are intertwined with sea-ice floes and smaller open-water areas, more representative of leads, caused complications with the retracking procedure. These conditions were more prevalent in 2011, when ice floe conditions were more variable in the regions classified as open-water areas. The WfF procedure was influenced by this, which led to SSH retrievals being too low. Slight amendments were applied to attempt to discard noisy waveforms that were causing a delay in range. These amendments, which attempted to remove noisy waveforms by assessing the occurrence of early peaks in power before maximum power, and altering the initial guess of the power to be retracked, resulted in negligible improvements. Further improvement of this procedure is a current research focus.
Thirdly, as the leading edge is not necessarily affected over its entire height in the same manner, this can result in the influence of sea conditions being variable between retrackers that are operating at different positions on the leading edge (Fig. 2). This introduces an inter-retracker bias given the same sea surface conditions. The quantification of these errors is not within the scope of this study given our inability to confidently establish sea surface conditions at the time of data acquisition. Although we are not able to fully resolve all the issues discussed in this section we include them here to provide context for the discussions which follow.
4. Supervised Freeboard Retrieval Procedure
The retrieval of sea-ice freeboard from radar altimetry requires multiple processing steps. These steps remove spurious influences on the height profile, revealing desired variations driven by freeboard.
At this stage the main uncertainties in the CS-2 freeboard retrieval are driven by:
-
1. The ability of an algorithm to distinguish between water and sea ice and therefore accurately establish SSH.
-
2. The availability and accuracy of snow depth information.
-
3. The limited understanding of the reflected waveform as a function of surface and volume scattering.
Here we minimize the uncertainty under point 1 with the use of MODIS optical imagery by undertaking a supervised identification of the sea surface, establishing a more accurate SSH. We greatly reduce the uncertainty from point 2 with available in situ snow depth/density information. We use these additional data sources, and retrieve a supervised freeboard (Fbsup) for six CS-2 tracks, three from each year 2011 and 2013, for the period mid-November to early December (Fig. 3). This places the in situ measurements in near temporal coincidence with the CS-2 data which were acquired between 21 November and 4 December. The uncertainty introduced by point 3 is expanded upon in Section 6.
We begin our analysis using h* estimated for each technique in Section 3, which is first corrected for varying influences on the transmitted radar wave as it propagates through the atmosphere (crt): dry tropospheric, wet tropospheric and ionospheric corrections (Reference BouzinacBouzinac, 2013). The ellipsoidal height is then reduced to a quasi-orthometric height (h) after subtracting geoid height (N) provided by the Earth Gravitational Model 2008 (EGM2008). This approximates mean sea level (MSL). To construct a SSH from this, further information is needed to quantify the sea surface height anomaly, which is the sum of the varying influences of tides (t) and atmospheric pressure and wind (i). No corrections are applied for t at this stage, as the tidal gradient was found to be negligible over the spatial area in the supervised assessment. This was determined through the use of global navigation satellite systems (GNSS) stations deployed on fast ice in McMurdo Sound which showed no tidal gradient across the assessed distances (Reference Price, Rack, Langhorne, Haas, Leonard and BarnsdalePrice and others, 2014). Given the ∼50 km distance, we also expect the influence of i to be negligible. We therefore arrive at h with
Using MODIS imagery we identify open-water areas along each CS-2 track and manually prescribe surface types of water or sea ice to each h value. The construction of SSH requires the removal of surface height outliers over the water surface type. The mean is largely biased by such outliers, so, in this case, where we are confident open water dominates, we use the median to establish the supervised SSH (SSHsup). We sample ∼25 km sections along track, which provides ∼100 individual h values from which to construct SSHsup. Radar freeboard(Fbradar) is then derived by
Given the assumptions about each retracker with regard to snow penetration, we follow Reference Kurtz, Galin and StudingerKurtz and others (2014) and freeboard is then derived with the addition of a correction for the speed of light in snow. This correction (h c) over sea-ice areas is given by
where sh is the snow depth, c the speed of light in a vacuum, and c snow the speed of light in the snowpack following Reference Tiuri, Sihvola, Nyfors and HallikaikenTiuri and others (1984) parameterized as
where ρ s is the snow density (g cm–3) measured as 0.385g cm–3 in McMurdo Sound (Reference Price, Rack, Langhorne, Haas, Leonard and BarnsdalePrice and others, 2014). This value was also measured as the mean snow density from in situ measurements in 2013. sh is provided by the spatial interpolation of in situ snow depth measurements. With regard to snowpack penetration by the incident radar wave we assume full penetration for ESAL2 and WfF and no penetration for TFMRA40. The reduction of c in the snow cover results in an increased range estimate from satellite to surface. This will force a negative bias in the resultant freeboard if uncorrected; we therefore arrive at Fbsup for each respective retracker under the manual assessment over fast ice with
We treat Fbsup outliers by removing any retrieval that deviates by >3 standard deviations from the mean over the sea-ice area. Finally, we ensure datasets are comparable with the manual removal of Fbsup values that are not available for all three products.
4.1. Supervised freeboard retrieval results
In this subsection, we provide results from the supervised analysis of CS-2 derived freeboards from each retracker. We compare these results to in situ freeboard measurements and use this in combination with complementary field and satellite data to relate the effect of surface conditions on the resultant Fbsup values. In situ ice freeboard (F i) and snow freeboard (F s) are provided from the interpolation of in situ measurements and extracted to be spatially coincident with each individual CS-2 Fbsup retrieval (the tracks of which are shown in Fig. 3). This step was undertaken to provide a better spatial comparison between in situ measurements and CS-2. The mean values of the interpolated points extracted at each Fbsup retrieval agree to within 0.01 m of the in situ mean values. The variability introduced by the interpolation is largest with regard to Fbs driven by variations in sh. Leaveone-out cross-validation indicates that a maximum deviation of 0.05 m can be expected (Reference Price, Rack, Langhorne, Haas, Leonard and BarnsdalePrice and others, 2014). Fbsup which are the mean values of the three CS-2 tracks in each year are shown with in situ means in Table 1. The retracking techniques produce Fbsup mean values ranging from 0.17 to 0.36 m, which are in line with the range of in situ measured freeboards in McMurdo Sound of 0.21– 0.33 m. All retrackers provide higher Fbsup estimates in 2011 than in 2013 when the snow was deeper. 2013 Fbsup values for each technique are in agreement with what is expected given the assumptions of the described retrackers (see Fig. 2 and difference in range), WfF the lowest and TFMRA40 the highest. WfF shows closer agreement with F i, while TFMRA40 freeboards are closer to F s. ESAL2 Fbsup is established between F i and F s. Therefore, the trivial relationship between differences in retracked range and resultant freeboard values is maintained in 2013. The comparison is complicated in 2011 with regard to WfF, as its Fbsup value is 0.19 m higher than in 2013, with only a 0.01 m change in F i recorded in situ. The cause of this discrepancy is unclear. It is likely that interference with SSHsup establishment, as alluded to in Section 3.4, played a role in the high freeboard value for WfF, but we also need to consider the influence of the snow cover. The full snow-cover penetration assumption of the WfF method may not be fulfilled given a smooth snow cover can be an effective scatterer of the incident radar energy. When the echo power from the snow/ice interface and that from the air/snow interface have a similar magnitude, a positive freeboard bias may be introduced (Reference Kurtz, Galin and StudingerKurtz and others, 2014; Reference KwokKwok, 2014). This bias is estimated to reach a maximum of 0.04 m for homogeneous snow conditions (Reference Kurtz, Galin and StudingerKurtz and others, 2014). It is likely to have played a more significant role here due to snow stratification and wind crusts at the surface. From the limited information about the retracking procedure for ESAL2 we would expect to see a similar relationship. Such a relationship is observed, with ESAL2 Fbsup 0.05 m higher in 2011 than in 2013.

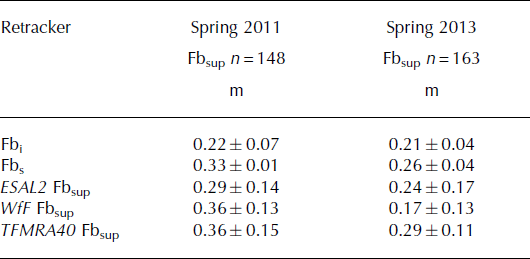

Table 1. Mean freeboard values, standard deviations and sample sizes (n) derived by each retracker by the supervised procedure in austral spring (November and December) 2011 and 2013 and comparison to interpolated in situ mean ice (F i) and snow freeboards (F s). The satellite tracks from which each Fbsup mean is derived are displayed in blue in Figure 3
To provide further insight into the influence of snow cover and ice conditions on the radar signal, we show Fbsup along a coincident in situ validation line on 27 November 2013 (Fig. 4). The validation measurements along this line were temporally coincident to within 3 hours of the CS-2 overpass. It should be noted that due to a satellite orbit maneuver the validation line was ∼1 km east of the CS-2 ground track. Visually we observed no significant changes to the characterized sea-ice surface conditions or snow depth over this distance and therefore find the in situ and CS-2 datasets comparable. The surface conditions on the sea ice varied along the validation line from north to south. Clear differences in Fbsup are displayed between the techniques. Mean Fbsup for WfF shows good agreement with Fi. ESAL2 mean Fbsup is in better agreement with F s, but the response of the height retrievals to surface conditions follows a similar pattern to that observed for WfF. TFMRA40 has a very consistent Fbsup profile which exhibits minimal response to changing surface conditions, producing values that closely agree with F s across the whole profile. We are able to assess the response of each of the retracking techniques to the presence of a homogeneous section of dry snow in segment 4 (Fig. 4). For all techniques, Fbsup appears to track an interface which is in good agreement with measured in situ Fi over segment 4. ESAL2 and WfF record the in situ measured decrease in Fbi in the central part of the segment. Further in support of WfF assumptions, its mean Fbsup value agrees to within 0.01 m of in situ measured Fi with no positive bias as CS-2 passes over this area of relatively homogeneous snow cover (segment 4: mean WfF Fbsup = 0.19 m, in situ Fi = 0.20 m, in situ F s = 0.37 m). However, for the 2011 WfF freeboard, measured when the snow cover was smoother and more layered in comparison to segment 4 in 2013, the mean WfF Fbsup value is 0.36 m, 0.14 m higher than Fi (Table 1). Both ESAL2 and WfF clearly exhibit a large variability in freeboard retrievals over sea ice in response to either snow or ice conditions.
Fig. 4. Comparison of each method along a validation line coincident with a CryoSat-2 overpass on 27 November 2013 for (a) ESAL2, (b) WfF and (c) TFMRA40. In situ measured ice and snow freeboards are shown as blue and grey horizontal lines respectively. Segments 3 (S3) and 4 (S4) in Figure 5 are also shown. Sea surface height was identified using the supervised procedure. The CryoSat-2 height profile begins in the north over open water and progresses south over the fast-ice edge at the beginning of segment 3. The freeboard retrievals for each respective retracker are displayed as orange circles, and the validation line statistics describe the sea-ice area only. S3 and S4 means are also displayed for each technique, along with the ice freeboard and snow freeboard measured in situ.
We attempt to separate the influences of snow and sea-ice conditions using near-coincident TerraSAR-X (X-band) imagery, in situ measurements, and observations. We provide four segments in McMurdo Sound in 2013 over which sea-ice geometric roughness (GR) and radar roughness (RR) varied. Considering the similar wavelengths in X band (∼0.03 m) and Ku band (∼0.02 m), and also assuming the incidence angle dependence of backscattering properties is dominated by surface scattering, a near-inverse relationship between backscattered power between TerraSAR-X (40° incidence angle) and CS-2 (normal incidence) can be expected (Reference Ulaby, Moore and FungUlaby and others, 1982). In the TerraSARX image the relatively bright areas on level sea ice (bounded by a white dotted line in Fig. 5a) are rough with respect to the radar wavelength, and the dark areas are smooth. For the sea-ice area, we assess the differences in CS-2 waveforms that have been averaged and stacked to represent these different segments. The numbers of waveforms averaged to create each representative waveform were between 15 and 28. We identify an area of high GR (segment 1: FY ice that has likely been deformed by storm activity) and low GR (segment 2: older FY ice which was less deformed) over the FY fast-ice area. These were established primarily from field observations, with the TerraSAR-X image as support. Segment 1 (high GR, variable RR, lowest sh ) causes the largest power return, closely followed by segment 2 (low GR, low RR, lowest sh ). It is clear that other variables also influence the signal return, which is evident from comparison of segments 3 and 4. Segment 3 has the lowest power return of the assessed waveforms and exhibits high radar backscatter in the TerraSAR-X image. This indicates that RR is high. These observations are supportive of the fact that RR is the dominant influence on the power returned to the satellite and that GR is playing a secondary role. It is difficult to attribute the influence of volume scattering from snow, as no areas with the same RR are available with large differences in snow depth.
Fig. 5. (a) Segments 1–4 over the first-year sea-ice area (bounded by white dotted line) overlaid upon a TerraSAR-X radar image from 28 November 2013. TerraSAR-X image (courtesy DLR (German Aerospace Center)). (b) Mean waveforms from these segments plotted as power for multiple sea-ice surface conditions with variable geometric roughness (GR), radar roughness (RR) and snow depth (sh ).
In an attempt to assess the influence of snow depth, we look at two tracks in 2011 that exhibited a larger difference in snow depth for which we expect RR to be less variable. For these example tracks, the waveforms retrieved over snow (mean depth 0.20 m) and those retrieved over reduced snow (mean depth 0.07 m) are displayed in Figure 6 with the retracking points for each technique. These waveforms are the mean normalized echo power of ∼50 waveforms and are aligned by peak power to achieve comparativeness between each technique. The mean retracking point for each waveform for each technique is also displayed. It should be noted here that comparison of their absolute range differences cannot be inferred from the available information, only the inter-example variation in the waveform shape. It is shown that in the presence of a snow cover of ∼0.20m the slope of the leading edge becomes shallower, and that the power of the trailing edge is increased along with the overall width of the waveform. This finding is comparable to results of simulations of CS-2 waveform responses to increasing snow cover provided by Reference KwokKwok (2014).
Fig. 6. Mean waveform examples for sea ice in 2011 with significant snow cover (circles and blue fits) and minimal snow cover (crosses and orange fits). The area with significant snow cover had a mean snow depth of 0.20m with consistent coverage. Over the minimal area a mean snow depth of 0.07 m was measured with a patchy distribution. (a) The retracking points for ESAL2 with linear fits between each bin; (b) the retracking points for WfF with respective model fits; and (c) the retracking points for TFMRA40 with interpolated curves.
5. Automatic Freeboard Retrieval Procedure
In this section we develop automatic freeboard retrieval procedures without the prerequisite for coincident satellite imagery for the establishment of SSH. The automatic differentiation of sea ice and water is a fundamental requirement for large-scale altimetric sea-ice freeboard retrieval. Automated methods generally fall into two categories, the first relying on the use of information received in the returning signal from the surface and the second on mathematical generalizations that approximate expected surface conditions, or, a combination of the two. In the case of CS-2, methods currently presented in the literature (Reference LaxonLaxon and others, 2013; Reference Kurtz, Galin and StudingerKurtz and others, 2014; Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others, 2014) fall into the first category, following similar investigative procedures initially demonstrated by Reference Peacock and LaxonPeacock and Laxon (2004). These contemporary methods use the pulse peakiness and stack standard deviation, among other parameters, to differentiate between radar returns from small open-water leads in the sea-ice cover and sea-ice floes. In the second category, the expected amount of water along-track is given a value, and the heights of this lowest percentage are averaged for a certain segment of track, giving a sea surface height (Reference Zwally, Yi, Kwok and ZhaoZwally and others, 2008; Reference Price, Rack, Haas, Langhorne and MarshPrice and others, 2013). This approach, commonly termed along-track filtering, is yet to be examined in the literature with respect to CS-2. The three automatic retrieval procedures used for each retracking method are described in the following subsections.
Following from h established in Section 4, all data undergo the same additional corrections to produce comparable datasets. h is further corrected for t and i to give H:
The influence of i is accounted for using a dynamic atmosphere correction and compensates for the influence of barometric pressure and winds on the sea surface. t is the sum of corrections for ocean tide, long-period equilibrium tide, ocean loading tide, solid earth tide and the geocentric pole tide. Further details on the corrections applied for t and i are given in Reference BouzinacBouzinac (2013). These additional corrections accommodate for the larger geographical region under investigation in the automatic procedure (Fig. 3) over which tidal and atmospheric effects will be influential on the ‘flattening’ of the height profile. Each method then produces its own automatic SSH (SSHauto) to provideFbauto as
No adequate snow depth information is available for the two annual periods assessed by the automatic procedure, so no correction is applied for hc . The procedures for attaining SSHauto for each technique and other relevant amendments are described in the following subsections.
5.1. ESAL2 automatic SSH identification
Measurement quality flags provided in the CS-2 Level 2 record structure were used to improve the quality of the dataset. H values are discarded if the following parameters in the product are flagged as poor: block degraded, orbit error, orbit discontinuity, height error, calibration caveat, back-scatter error, peakiness error, SIN cross-track angle error, SIN receive channel 1 error, SIN receive channel 2 error, mispointing error and delta time error which are given in Reference BouzinacBouzinac (2013). In SIN mode, the off-nadir location of the height retrieval can be determined from phase information of the dominant scattering in the power echo, which over sea-ice areas can be significantly off-nadir (Reference Armitage and DavidsonArmitage and Davidson, 2014). This ability prevents underestimations of ocean elevation as a result of ‘snagging’ from leads located off-nadir, providing a reduction in noise over height profiles. According to the across-track offset computed from the phase difference, open water and level sea-ice areas also produce echoes geolocated off-nadir. From assessment of ∼800 separate elevation retrievals over open water in McMurdo Sound from two tracks in 2013, identified by comparison with near-coincident MODIS imagery, the mean deviation from nadir was 270±70 m. We apply a removal threshold of ±750 m from nadir simply to limit information to the expected nadir footprint area, maintaining comparativeness to the TFMRA40 method and to in situ measurements.
To remove height outliers we apply a vertical threshold of ±2 standard deviations of the mean to each track. Heights outside this threshold are discarded.
We use the Level 2 parameter peakiness (P) to differentiate between three surface types: open water, leads and fast ice. P is suggestive of how sharply peaked the returning waveform is, and is defined as the ratio of the highest bin value to the mean of all bins above the retracking point (Reference BouzinacBouzinac, 2013). P ranges between 0 and 120 in our investigation area (Fig. 7). High P values are indicative of leads, which are geometrically of similar size to the radar footprint and typically have specular surfaces. Low P values are indicative of open-water areas that are geometrically larger than the radar footprint and are typically diffuse surfaces. Fast-ice P values are between these two extremes but are affected by sea-ice surface conditions. We establish thresholds for these surface types after comparison of P values over certain surface types in the study region as indicated by MODIS and TerraSAR-X imagery and knowledge of the sea-ice regime. P has a large standard deviation even when a certain surface type is completely isolated, indicating it is highly sensitive to small changes in surface conditions.
Fig. 7. Surface type discrimination as indicated by Level 2 parameter peakiness (P) displayed as a cumulative percentage. Surface types, open water, fast ice and developing floes are displayed for 2011 (a) and 2013 (b). In 2011, surface conditions made the discrimination of open water and fast ice more difficult. This resulted in a change in the thresholds between the years. The expected inclusion of sea ice in the open-water surface type is indicated by the percentage overlaps.
First we assessed the P threshold for leads. It is very challenging to constrain such a value, due to the difficulty of achieving coincidence between CS-2 measurements and satellite imagery. Therefore, we investigated P values in March when sea ice in McMurdo Sound starts to freeze and the surface is dominated by developing ice floes. At this time, leads are abundant and we take the upper quartile of P values as representative of the leads surface type (P> 90) for both years.
The two remaining surface types require further scrutiny due to overlaps in their P distributions. McMurdo Sound was assessed in February 2013 when it was dominated by open water. In both 2011 and 2013 the majority (>95%) of P values were <15. However, in 2011 the surface types open water and fast ice overlapped, whereas in 2013 a clear separation is achievable (Fig. 7). This is a result of fast-ice surface conditions differing in 2011 that lowered values in the P distribution. We are unable to fully establish the cause of this change. The pulse shape and, thus, P are largely determined by variation of backscatter with incidence angle (Reference WinghamWingham and others, 2006). This is related to RR, and, given the differing conditions over the fast ice between the two years, a change in RR at the dominant backscattering surface was likely the cause. In 2013 it is possible to clearly differentiate and establish open water as P < 15 and fast ice as 15 < P < 90. In 2011 we lowered the threshold for open water to P < 7.5 to reduce the amount of fast ice potentially included in the expected open-water retrievals. 2011 fast ice is therefore given thresholds of 5 < P < 90. We appreciate these thresholds for open water and fast ice overlap, but if a higher bound is taken for the lower limit of P for fast ice in 2011, ∼60% of height retrievals identified as fast ice will be discarded. The fast-ice P distributions were established from assessment of the fast-ice area. The sea-ice growth season in McMurdo Sound begins in March, but fast ice does not become fully established for some time. We are confident that fast ice is fully established by August and derive a P value for this surface type by masking fast-ice area from August to December. We assume the fast-ice area is also representative of P values for ice floes in McMurdo Sound. Finally, due to the discussed overlaps of open water and fast ice (Fig. 7), and potential inclusion of sea ice in expected open-water retrievals, it is necessary to filter H values with regard to their heights. This approach is altered for each year to account for the expected inclusion of ice in the open-water retrievals (Fig. 7; 40% in 2011 and 20% in 2013). We calculate the means of the lowest 60% of H values in 2011 and 80% in 2013 that meet the open-water and lead criteria and establish SSHauto for each track from this.
5.2. WfF automatic SSH identification
We attain SSHauto by using a similar parameter to ESA Level 2 P, the pulse peakiness (PP) as described by Reference Armitage and DavidsonArmitage and Davidson (2014). The assigned values for the discrimination of each surface type were chosen after comparison of PP values over surface types in the study area using the same method as described for ESAL2 in Section 5.1. We flag leads as PP > 0.30 and open water as PP < 0.05. Sea ice is classified as 0.08 < PP < 0.30. Overlaps of sea-ice and open-water surface types were noted as in Section 5.1. To remove this height bias from inclusion of sea ice, we establish SSHauto from the mean of the lowest 60% and 80% of elevations flagged as leads of open water in 2011 and 2013 respectively. Phase information is also used in this product in the same manner as ESAL2. We again remove elevation outliers with application of a vertical threshold of ±2 standard deviations of the mean to the track.
5.3. TFMRA40 automatic SSH identification
We use the algorithm described in Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others (2014) but amend the procedure, as surface conditions differ in the investigation area from those for which the technique has previously been applied. As mentioned in Section 3.4 we maintain the inclusion of the additional surface type, polynya, and its amended 60% retracking threshold. The elevations retrieved for both leads and polynyas in close proximity should be of the same mean value to construct a consistent SSHauto. We compared the elevations of detected leads that were in close proximity to the polynya surface type for several CS-2 tracks and found sufficient agreement using a 60% and 40% threshold for each surface type in conjunction. Track sections with a significantly inaccurate SSHauto, as a consequence of sparse lead/open-water coverage, have been discarded.
5.4. Automatic results
The application of the three retracking techniques produced Fbauto datasets for McMurdo Sound for 2011 and 2013 (Table 2). All techniques show a decrease in freeboard in McMurdo Sound from 2011 to 2013 over the study area as a whole, and the fast-ice area when assessed alone. The magnitude of this change varies between methods. ESAL2 and TFMRA40 both identify the fast-ice area as having a higher freeboard than the mean of the entire study area. WfF does not show such a relationship, with fast-ice mean Fbauto being 0.01 m lower in 2011 and the same value in 2013. A lower mean freeboard is expected for the entire study area, as sea ice in the dynamic MSP area is included. Sea ice in this area is expected to be thinner than the fast ice that has undergone near-continuous and stable growth over winter. This discrepancy may be driven by the identified problems with surface type discrimination. Open-water areas may have been erroneously included as sea ice, lowering the Fbauto averages. Clearly apparent are the large standard deviations of the CS-2 data (Table 2).

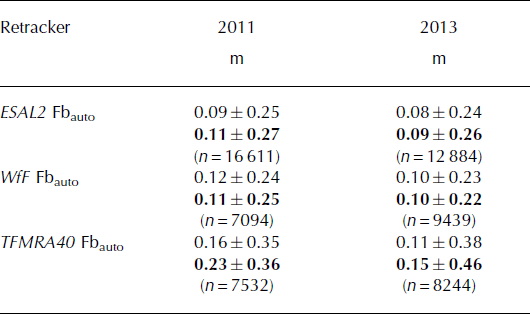

Table 2. Mean automatic procedure freeboard values and standard deviations derived by each technique for each year for the entire study area and fast ice only (bold). The total number of measurements (n) for each year is also displayed. The spatial distribution of the satellite tracks from which the Fbauto means are derived are shown in orange in Figure 3
To investigate the ability of CS-2 further and to minimize the influence of the MSP sea-ice area, we assess the fast-ice area with regard to its seasonal development. The FY fast-ice regime in McMurdo Sound typically breaks out in February, and often in one of every two years (Reference HeineHeine, 1963) leaves McMurdo Sound nearly entirely ice-free. Sea ice begins to form in March when air temperatures are low enough to initiate freezing as indicated by field studies (Reference Leonard, Purdie, Langhorne, Haskell, Williams and FrewLeonard and others, 2006; Reference Purdie, Langhorne, Leonard and HaskellPurdie and others, 2006) and MODIS imagery. This was also the case in 2011 and 2013. The sea ice develops into a fast-ice cover in a coastal band (Fig. 3) around McMurdo Sound, with fast-ice establishment intermittently interrupted by storm events (as indicated by optical and SAR imagery). Sea-ice growth continues until about mid-December (Reference Jeffries, Weeks, Shaw and MorrisJeffries and others, 1993). We use the region of McMurdo Sound that is covered by fast ice at the end of the growth season as a mask for the entire year. We expect to observe a signal in the recorded Fbauto datasets indicative of increasing freeboard from March to December. Such findings are displayed in Figure 8, where we clearly see this development using all three retracking techniques. Fbauto increases through autumn and winter toward Fbi and Fbs in situ measurements in spring. We apply a linear trend from the beginning of March to mid-December to capture the sea-ice growth measured by Fbauto. Using this trend to compare Fbauto results in mid-November (∼day 260 in Fig. 8) to the mean of all in situ measurements in each year, we find ESAL2 Fbauto underestimates Fbi in both years by 0.04 m. In 2011 WfF Fbauto overestimates in situ measured sea-ice freeboard by 0.08 m and in 2013 underestimates it by 0.02 m. TFMRA40 provides a mean Fbauto value of 0.37 ± 0.22 m in 2011, 0.04m lower than Fbs. In 2013 TFMRA40 Fbauto underestimates Fbs by 0.01 m. All techniques also display a decrease in Fbauto after reaching their respective maximums in line with the observed breakout of the fast-ice area in late February/early March of each year. Mean values and standard deviations for each month are displayed in Table 3.
Fig. 8. The development of the McMurdo Sound fast-ice cover from mean automatic procedure freeboard values for each month for 2011 and 2013 over the expected sea-ice growth period (∼day zero = 1 March) for ESAL2 (a), WfF (b) and TFMRA40 (c). A linear fit from the beginning of mid-March (∼day 15) to mid-December (∼day 290) defines the expected sea-ice growth period. Mean in situ measured ice and snow freeboards measured in November/December of each year are shown by the blue and grey lines respectively. The standard deviations for each mean value are provided in Table 3.

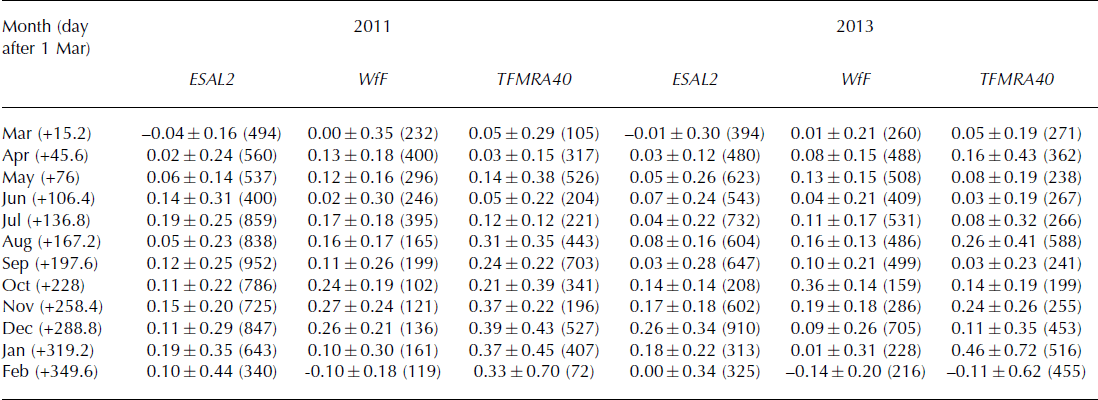

Table 3. Mean automatic procedure freeboard values (m), standard deviations and number of measurements (in parentheses) used to derive the statistics for each technique in each year over the fast-ice area. The data are binned into calendar months. The day corresponding approximately to the middle of each calendar month from the start of the analysis (day zero = 1 March) is also displayed
We are able to evaluate the performance of the automatic procedures by comparison of the CS-2 mean Fbsup over the validation line (Fig. 4) against the Fbauto mean over the same track. With the application of a correction for c in snow, Fbauto overestimates Fbsup by 0.07, 0.05 and 0.01 m for ESAL2, WfF and TFMRA40 respectively. The overestimation of freeboard by Fbauto for ESAL2 and WfF is driven by the applied along-track filtering of H. The filtering assumes a percentage inclusion (20% for 2013) of sea ice within the total sampled area over water along each track. In this case, the open-water area to the north has an ice concentration of zero and therefore SSHauto is established too low, and subsequent Fbauto is too high. This simple comparison showcases the additional error which can be expected by applying fully automatic methods for the identification of SSH which only generalize expected open-water availability.
6. Discussion
We have evaluated the performance of two retracking techniques currently presented in the literature: WfF (Reference Kurtz, Galin and StudingerKurtz and others, 2014) and TFMRA40 (Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others, 2014). The first assumes the surface is retracked at Fbi and the second near Fbs. We also use ESAL2, a product for which we have limited information about its retracking procedure and assumptions therein. Here we discuss the extent to which our in situ observations support the assumptions in view of the mean and standard errors of the measured Fbsup and Fbauto datasets and information provided by the waveform responses to surface conditions.
As expected, the best agreement is found between in situ measurements and CS-2 freeboard retrieval techniques for ESAL2, WfF and TFMRA40 using a supervised SSH identification with the exception of WfF in 2011. For the latter, we attribute the anomalously high freeboard to two sources. The first is a low SSH estimate due to the reduced ability of the technique to establish SSH in the presence of differing surface types over a small segment of the SSH reference area. Secondly the introduction of a positive freeboard bias is noted which is forced by a smoother, thicker and morphologically more complex snow cover in 2011. These findings are supportive of other studies (Reference Kurtz, Galin and StudingerKurtz and others, 2014; Reference KwokKwok, 2014) which also show that snow can introduce a positive elevation bias due to an increase in power returned from above the snow/ice interface. We also observe a higher Fbsup for ESAL2 in 2011 when compared to 2013, and suggest a similar response to the change in snow properties has influenced the retrieval. Our observations show that the snow in the study area has higher mean densities and exhibits distinct layers with varying hardness, density and crystal size, as compared with the simplified assumptions in Reference Kurtz, Galin and StudingerKurtz and others (2014). It is speculated that in combination with the larger grain size and higher salinity near the snow/ice interface, the effective point of scattering is shifted even further away from the ice surface. The only way to quantify what impact the snow cover had on the retrieved freeboards would be to know the backscatter coefficients of the snow and ice. Lacking this information we are limited to more qualitative statements based on comparisons to in situ information. Our ability to convey qualitative information on the waveform interaction at the surface, as suggested in Section 4, is also restricted. In the presence of a snow cover that is fully transparent to the incident Ku-band radar energy, no bias is expected to be observed for retracking procedures. Attaining knowledge of the dominant backscattering surface is crucial to undertake any meaningful time-series assessment of sea-ice freeboard, permitting thickness estimation. Therefore the role of the heterogeneity of the snow cover on CS-2 freeboard retrieval requires further observational study.
Although we observe the influence of the snow cover in the freeboard retrieval, we are unable to fully quantify the error in the SSH identification, even under the supervised assessment. Experiments in which the influence of SSH misidentification is isolated will need to be carried out to completely quantify the positive bias introduced by a snow cover using WfF. In addition, the use of automatic SSH identification procedures can be expected to increase freeboard errors. Direct comparisons between supervised and automatic procedures suggest differences in excess of 0.05 m.
It was not possible to determine the accuracy of the established SSHsup, and we can only evaluate the resulting freeboards. The SSHsup of all three data products was independently assessed without tuning to in situ measured freeboards. However, the characteristics of the study area made it necessary to modify the processing methods for sea surface identification currently used in the Arctic (Reference Kurtz, Galin and StudingerKurtz and others, 2014; Reference Ricker, Hendricks, Helm, Skourup and DavidsonRicker and others, 2014). The surface type polynya was added to the surface classification for TFMRA40 to improve ice–water discrimination. This surface type produces similar waveforms to sea ice, but more diffuse, with a leading edge that is typically flatter. The power threshold for retracking over this surface type was increased to 60%. The fact that larger open-water areas can result in significantly different SSH estimates may introduce a significant inter-retracker difference in SSH establishment due to the inconsistent change along the leading edge. Future improvement of the WfF technique over varying surface types in close proximity (i.e. leads, open water, sea-ice floes within a few hundred meters) is required. These conditions cause noisy waveforms, and improvement of our understanding of the influence of this noise on the retracking procedure is a current research focus. It seems that the more sophisticated approach of WfF is more sensitive to these conditions than TFMRA40, and a more stringent data discard procedure may need to be adopted to reject such waveforms. Further, using automatic surface discrimination algorithms resulted in insufficient separation of sea-ice and water surface types. It may be of benefit to adopt procedures that account for the seasonal change in sea-ice/snow surface conditions which force alteration of surface discriminatory parameters (e.g. P, PP, SSD). This may improve the separation of surface types and Fbauto results, both in this investigation area and when larger regions are considered for assessment.
With the aid of information gained in the supervised freeboard retrieval procedure, we were able to place in context and develop automatic freeboard retrieval procedures for each technique. Our results have shown the ability of CS-2 to record the development of a fast-ice cover in the Antarctic. Although our supervised analysis provides insight into the surface that is tracked with respect to Fbsand Fbi we do not have the confidence to estimate sea-ice thickness with an acceptable error margin. However, we do find the growth rate as recorded by Fbauto over both years for all techniques, of 0.7 mm d–1 (mean of all rates displayed in Fig. 8), is in agreement with other studies of ice growth rates in McMurdo Sound (Reference Purdie, Langhorne, Leonard and HaskellPurdie and others, 2006; Reference Gough, Mahoney, Langhorne, Williams, Robinson and HaskellGough and others, 2012). By April, all retracking techniques identify positive freeboard values. Although we identify the onset and the trend in freeboard growth, we note that standard deviations of Fbauto are typically twice that found over this area when it was assessed using ICESat from 2003 to 2009 (Reference Price, Rack, Haas, Langhorne and MarshPrice and others, 2013). There was an extensive multi-year sea-ice cover in McMurdo Sound from 2003 to 2009. However, we are not aware of any changes to the FY sea-ice surface conditions between the two satellite observation periods that could be responsible for the observed differences in standard deviations, although the CS-2 assessment area is smaller. Therefore, it is appropriate to look to instrumental and methodological sources to explain the observed noise. Findings from CS-2 presented here were attained using SIN mode which acquires data at a reduced (by a factor of four) burst repetition interval compared to SAR mode which is used over the majority of the Antarctic sea-ice pack. The ability to average and reduce measurement noise in the SIN mask which occupies the entire coastal Antarctic, a key area of sea-ice production, is therefore reduced. Assuming normally distributed noise, the values for the standard deviations would reduce by a factor of two if data were acquired in SAR mode. Even with this restriction, there is no evidence that SIN mode is inadequate for sea-ice freeboard retrieval. Other studies (Reference Armitage and DavidsonArmitage and Davidson, 2014) provide evidence in support of its usage, as SIN mode provides phase information which can be used to reduce the impact of snagging on height retrievals. This ability is beneficial, as a less stringent data discard is required to remove off-nadir range estimates which exhibit a positive range bias and subsequently height retrievals that are too low. The standard deviations of Fbauto using TFMRA40 are higher than those from the other two procedures, perhaps an indication of the noise introduced from the range bias as a result of omitting phase information. An additional source of scatter and an increased standard deviation could be introduced to the TFMRA40 procedure, as the slope of the leading edge at the tracking point is typically shallower in comparison to higher thresholds. This could force a higher noise if waveforms change significantly from one measurement to the next. The noise in TFMRA40 heights could also indicate that undulations or roughness of the snow surface was often higher than the ice surface beneath. These factors do not seem to have been influential along the validation line (Fig. 4), where TFMRA40 produced the least noisy Fbsup dataset of the three techniques.
The surface height that is tracked is dependent upon where on the leading edge each processor establishes its retracking point, which is selected on the basis of the assumed dominant backscattering interface (e.g. retracking at 40%, 40–70% or 50–90%). This is a trivial consideration and, in the absence of any alteration of the waveform by surface conditions, these simple differences in range would cause the resultant differences in measured freeboard. Our results show that in McMurdo Sound using the supervised analysis in an optimal scenario, when there is a thin and homogeneous snow cover (mean = 0.05 m), TFMRA40 approximates F s well, WfF approximates Fi well, and ESAL2 identifies a horizon in between Fi and F s. Although we have identified that GR, RR and snow are influential on the leading edge, we cannot separate their influence with any certainty. It is evident from interpretation of the leading edge alone that no separation of the air/snow interface and ice/snow interface is directly achievable, which is expected due to the range resolution of CS-2 (Reference WinghamWingham and others, 2006; Reference BouzinacBouzinac, 2013; Reference Kurtz, Galin and StudingerKurtz and others, 2014; Reference KwokKwok, 2014). However, using a comparison between a snow-covered sea-ice area and an area with significantly less snow, the gradient of the leading edge becomes shallower and the width of the entire waveform is extended in the presence of snow. Based on the model assumptions of WfF, very small changes in the leading edge are expected as a function of surface roughness, and insufficiencies in the fit of the leading edge as shown in Figure 6b indicate a higher than expected influence of roughness and snow cover on the leading edge. This will alter the retracking position on the leading edge for every retracker in a different way. It is therefore reasonable to conclude that not only the trivial relationship of different retracking points is responsible for the observed differences in freeboards between methods, but variations in surface properties were also influential. Further work is required to separate and quantify these influences.
Relating our findings to the development of larger-scale Antarctic assessments outside the coastal band is hindered by the nature of our study area compared to the majority of the Antarctic sea-ice pack. However, the dynamic sea-ice area in the MSP is more representative of the wider Antarctic sea-ice zone. Although this area was not the focus of our assessment, automatic freeboard retrieval procedures which included this area have produced freeboards that are considered reasonable for Antarctic pack ice, i.e. 0.08– 0.16 m (Table 2). We have identified certain issues within our analysis which are applicable at the larger scale which must be addressed in order to develop techniques. Given the abundance of large open-water areas in the Antarctic sea-ice zone which do not exhibit the typical ‘peaky’ response from leads, it is necessary to characterize them. If they are large enough and their sea-ice concentration is low, they can be masked using auxiliary satellite information. However, in regions of high ice concentration where leads are too large to be discernible from radar information, ice– water discrimination may be hindered. At what size a lead becomes too large to exhibit a typical waveform would need to be ascertained to conclude whether open-water areas may be an issue in the Antarctic sea-ice pack. The spatial and temporal heterogeneity of the snow cover, even in our small study area, highlights the challenge presented for freeboard retrieval algorithms to assess larger areas in the Antarctic. Further advances in retracking techniques guided by in situ validation will need to be made in order to attain freeboard measurements with improved accuracy. Further complications will be introduced by snow loading which typically suppresses sea-ice freeboard, resulting in a close to zero ice freeboard condition in the Antarctic sea-ice pack. This issue may be addressed using a combination of different retracking procedures that attempt to identify the air/snow interface as shown to be successful here. In any case, it is clear that data treatment may need to be altered for different regions, in particular retracker algorithms to cater for the variability of the Antarctic sea-ice regime.
7. Conclusion
Our in situ freeboard measurements reveal that retracking techniques based on the fitting of waveforms (ESAL2 and WfF) and a threshold retracker (TFMRA40) can be used to derive freeboard estimates over Antarctic fast ice from CS-2. Although we find that the retrievals capture freeboard heights, the variability is expected to be high as indicated by the large standard deviations of mean freeboard values. In the validation area of McMurdo Sound, which harbors homogeneous fast ice, the results of the three separate techniques used for freeboard retrieval fall within the margins of expected freeboards as indicated by in situ measurements in austral spring 2011 and 2013. Mean freeboard values from ESAL2 are representative of a horizon between the air/snow and snow/ice interface. A smooth snow cover with multiple layers causes a bias of +0.14m away from the ice freeboard using WfF. It should be noted that we are unable to identify any contribution from an inaccurate sea surface height establishment upon this bias. In the absence of such a snow cover, WfF-derived freeboards are 0.04m lower than in situ measured ice freeboard. TFMRA40 produces mean freeboards 0.03 m higher than in situ measured snow freeboard. We observe higher standard deviations in automatic retrieval procedures, which could be reduced by spatial averaging if data at a higher sampling rate (e.g. in SAR mode) were available. Difficulties in the identification of sea surface height were noted for TFMRA40 over larger open-water areas and for WfF over areas inclusive of multiple surface types (e.g. leads, sea ice and open water) within the radar footprint. Automatic algorithms were tested through 2011 and 2013 and recorded the growth of the FY fast-ice cover in McMurdo Sound. The CS-2 trends recorded from each method of 0.7 mm d–1 are in line with sea-ice growth rates measured in situ in the region. Automatic surface type discrimination procedures may benefit from adjustments to account for spatial and temporal variations in snow/ice surface conditions, which could improve ice–water discrimination. In situ validation in the Antarctic pack ice is a fundamental component for the development of CS-2 freeboard retrieval techniques. The uncertainty of CS-2 freeboard datasets is expected to be improved over larger spatial scales than assessed here. We see our results as encouraging in this context, as expansion of spatial scales and further development of retracking techniques will likely improve Antarctic CS-2 freeboard products.
