Introduction
In North America, emergency medical services (EMS) attend 134 cases of out-of-hospital cardiac arrest (OHCA) per 100,000 adult citizens annually, with survival ranging from 3% to 16%.Reference Nichol, Thomas and Callaway 1 , Reference Go, Mozaffarian and Roger 2 Circulatory support with extracorporeal cardiopulmonary resuscitation (ECPR) may improve the survival of select patients with cardiac arrest refractory to conventional resuscitation. ECPR is the incorporation of veno-arterial extracorporeal membranous oxygenation (ECMO) into cardiac arrest resuscitation. This technique has been in use since 1966.Reference Kennedy 3 Recent observational data suggests that ECPR may be a beneficial therapy for select patients with refractory OHCA, with most protocols focusing on younger patients with rapid arrest recognition and CPR initiation.Reference Morimura, Sakamoto and Nagao 4 - Reference Stub, Bernard and Pellegrino 7 Survival rates have been reported up to approximately 50%.Reference Wang, Chou and Becker 5 - Reference Siao, Chiu and Chiu 9
Although ECPR may increase the proportion of survivors in selected OHCA patients, it is a resource-intensive therapy, requiring the attendance of a specially trained team that may include physicians, surgeons, cardiac perfusionists, and skilled nursing staff, as well as specialized protocols, equipment, and hospital resources. The aims of this descriptive study were: (1) to identify patients within our region who fulfilled a hypothetical set of ECPR criteria and estimate the number who would have been candidates for ECPR therapy; and (2) to determine the baseline outcomes of ECPR-eligible patients treated with conventional resuscitation to estimate the potential gains of an ECPR program.
Methods
Study setting
This study took place in a single health region including the cities of Vancouver, Richmond, and North Vancouver, and the district municipalities of North Vancouver and West Vancouver. The total land area is approximately 500 km2, and contains a population of approximately one million, with 73% between the ages of 15 and 65. 10
EMS are organized via a province-wide coordinated 911 service provided by the provincial British Columbia Ambulance Service (BCAS) as well as individual municipal fire departments. BCAS crews consist of two-person basic (BLS) or advanced (ALS) life support teams. ALS paramedics provide advanced cardiopulmonary life support (ACLS),Reference Link, Berkow and Kudenchuk 11 including drug management and endotracheal intubation at the scene, while BLS paramedics provide basic life support resuscitation, including the use of automated external defibrillators (AEDs) and supraglottic airways.Reference Kleinman, Brennan and Goldberger 12 Fire department personnel are trained in cardiopulmonary resuscitation,Reference Kleinman, Brennan and Goldberger 12 including the use of AEDs. BCAS policy dictates which patients must be provided resuscitative treatments (see Appendix 1).
Four hospitals within the region receive patients with OHCA, all affiliated with the University of British Columbia. St. Paul’s Hospital and Vancouver General Hospital have medical, cardiac surgery, and coronary critical care units, interventional cardiology capacity, electrophysiology services, and perform cardiac surgeries with perfusionist support. In addition, St. Paul’s Hospital performs cardiac transplant and left ventricular assist device implantation procedures. Lion’s Gate Hospital and Richmond General Hospital are community hospitals with intensive care and basic cardiology services but no catheterization laboratories. Although St. Paul’s Hospital and Vancouver General Hospital provided ECMO services during the study period, there was no formal ECPR program either regionally or at any single institution.
The institutional review boards and affiliated ethics committees of Providence Health Care, the University of British Columbia, and Vancouver Coastal Health approved this study.
Selection of participants
All consecutive non-traumatic OHCA patients within the region were prospectively identified as part of the Resuscitation Outcomes ConsortiumReference Morrison, Nichol and Rea 13 registry from September 2007 to December 2011. Based on previously published ECPR protocols,Reference Stub, Bernard and Pellegrino 7 , Reference Fagnoul, Taccone and Belhaj 14 , Reference Johnson, Acker and Hsu 15 we constructed a post-hoc hypothetical cohort of “ECPR-eligible” patients from all EMS-treated cases of OHCA in the region with the following set of criteria: (1) age between 17 and 60 years; (2) witnessed arrest; and, (3) bystander CPR (performed by laypersons or EMS if the arrest was EMS-witnessed) or EMS arrival in less than five minutes. Patients who were known to have active malignancy were excluded from this cohort. Study patients who had termination of resuscitation in the pre-hospital or emergency department (ED) setting after full conventional efforts were considered to have refractory cardiac arrest and thereby were classified as potential candidates for ECPR therapy.
Data collection
We designed an electronic data collection tool with variables chosen a priori in consideration of Utstein variables,Reference Jacobs, Nadkarni and Bahr 16 variables with known associations with outcomes in cardiac arrest,Reference Reynolds, Frisch and Rittenberger 17 and variables to describe the patient population. All pre-hospital data, including time-stamped diagnostics, treatments administered, patient characteristics, and pre-hospital outcomes, were prospectively collected from standardized EMS template charting.Reference Morrison, Nichol and Rea 13
Hospital-level data were abstracted through a systematic chart review, adhering to accepted criteria.Reference Gilbert, Lowenstein and Koziol-McLain 18 , Reference Worster, Bledsoe and Cleve 19 We recorded the occurrence of invasive coronary angiography, coronary artery bypass surgery, targeted temperature management, and assessed outcomes at hospital discharge: (1) survival; and (2) neurologic outcome. Cases of missing or conflicting data were noted by each abstractor and prompted a full chart review; if still in question, the primary investigator reviewed the case. We selected 50 random charts via an electronic random number generator for a second independent chart review of outcome at hospital discharge. Cohen’s kappa statistic was used to assess the inter-rater agreement for these 50 patients for the CPC score using a linear weighting scheme.
Outcome measures and variable definitions
The primary outcome was the proportion of patients in the region who were ECPR-eligible and had refractory cardiac arrest, defined as having resuscitative efforts terminated in the pre-hospital setting or the ED, prior to admission to a hospital critical care service. These patients represent the group of those with OHCA for whom ECPR may improve survival. The secondary outcomes were the proportion of ECPR-eligible patients who survived to hospital admission, hospital discharge, and the proportion of those with favourable neurological outcomes (defined as Cerebral Performance Category [CPC] 1-2Reference Jacobs, Nadkarni and Bahr 20 ). All outcomes were also stratified by initial cardiac rhythm: (1) “shockable,” including ventricular fibrillation, pulseless ventricular tachycardia, and unknown rhythms that were shocked with the AED; and (2) “non-shockable,” including pulseless electrical activity, asystole, and unknown rhythms that were not shocked by the AED.
Data analysis
We used Microsoft Excel 2008 (Microsoft Corp., Redmond, WA, USA) for data entry and analysis. Descriptive statistics were used. Dichotomous variables are reported as percentages and 95% confidence intervals. Continuous variables are presented as means with standard deviations (if normally distributed) or medians with interquartile ranges (IQRs).
Results
Characteristics of study subjects
In our health region between September 2007 and December 2011 (inclusive), there were 2,419 cases of OHCA, of whom 1,644 (68%) were treated by EMS. Of EMS-treated cases, 168 (10.2%) fulfilled our ECPR criteria (Figure 1). Inter-rater agreement for CPC score at hospital discharge was excellent with kappa values of 0.99 (95% CI=0.97-1.0).
Figure 1 Study Flow *Subjects excluded sequentially as per order listed.
Main results
Patient characteristics of the hypothetical ECPR-eligible cohort, and groups divided by initial rhythm, are shown in Table 1. There were 54 ECPR-eligible patients with refractory cardiac arrest in the region (3.3% of all EMS-treated cases, 95% CI 2.4%-4.1%; 32% of all ECPR-eligible patients). Termination of resuscitation occurred in the pre-hospital setting in 30 cases (56%) and in the ED in the other 24 (44%), with a median duration of professional efforts of 38.4 minutes (IQR 33.6–46.3 minutes). Among the ECPR-eligible patients, 114 (68%, 95% CI 61%-75%) survived to hospital admission, 70 (42%; 95% CI 34%-49%) survived to hospital discharge, and 59 (35%; 95% CI 28%-42%) had favourable neurological outcomes (Table 2).
Table 1 Characteristics of “ECPR-Eligible” Study Sample, and Stratified by Initial Rhythm
* Three patients who had ROSC prior to first rhythm analysis were excluded from the groups dichotomized by initial rhythm.
† Denominator is those who survived to hospital admission
PMHx, past medical history; ALS, advanced life-support paramedic; EMS, emergency medical services; VF, ventricular fibrillation or pulseless medical services; VF, ventricular fibrillation or pulseless ventricular tachycardia; CABG, coronary artery bypass graft procedure; MTH, mild therapeutic hypothermia.

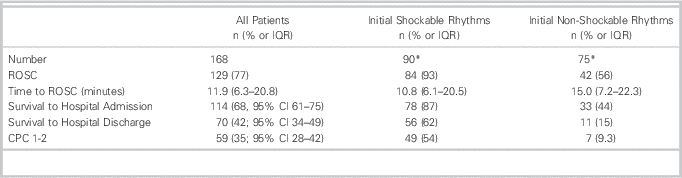

Table 2 Patient outcomes of “ECPR-eligible” cohort
Note: three patients who had ROSC prior to EMS rhythm analysis were not included in the initial rhythm categories.
Of the 165 patients for whom the initial cardiac rhythm was known, 90 patients (55%) had initial shockable rhythms, of whom 78 (87%) survived to hospital admission, 56 (62%) survived to hospital discharge, and 49 (54%) had favourable neurological outcomes (Table 2). For the 75 patients (45%) with a non-shockable initial rhythm, 33 (44%) survived to hospital admission, 11 (15%) survived to hospital discharge, and seven (9.3%) had favourable neurological outcomes.
Discussion
We reported the characteristics and outcomes of patients within our region who fulfilled a hypothetical ECPR criteria, including young patients (<60 yrs of age) with rapid CPR initiation. We then quantified the number of potential ECPR candidates who suffered from cardiac arrest refractory to conventional resuscitation. Within our regional population of approximately one million citizens, 3.3% of EMS-treated OHCA cases fulfilled our ECPR criteria and had refractory cardiac arrest, corresponding to an average of approximately one patient per month. Although patients in our ECPR-eligible cohort overall had a high proportion of positive outcomes,Reference Nichol, Thomas and Callaway 1 survival in this group may be enhanced with an ECPR program. These data can be used to estimate the resource burden and benefit an ECPR program may have in a region.
Several ECPR programs for OHCA have reported outcomes, with survival rates up to approximately 50% in select patients with persistent refractory cardiac arrest.Reference Wang, Chou and Becker 5 - Reference Siao, Chiu and Chiu 9 While no prospective randomized studies have been completed examining the outcomes of ECPR-treated patients in comparison to conventional resuscitation, ECPR for OHCA is typically initiated between 45 and 75 minutes after the initial cardiac arrest,Reference Leick, Liebetrau and Szardien 6 , Reference Stub, Bernard and Pellegrino 7 an elapsed duration of resuscitation at which survival with conventional resuscitation appears to be rare.Reference Reynolds, Frisch and Rittenberger 17 The Alfred Hospital and Victorian EMS system in Melbourne, Australia, which provides similar hospital and pre-hospital services to those in our region, recently described the results of an ECPR protocol, demonstrating 56% neurologically intact survival in a carefully selected group of patients with refractory OHCA treated with ECPR.Reference Stub, Bernard and Pellegrino 7 Based on these data and other similar studies, assuming a survival rate of 30%-55% of those in refractory cardiac arrest treated with ECPR,Reference Leick, Liebetrau and Szardien 6 - Reference Bellezzo, Shinar and Davis 8 among the 54 potential ECPR candidates in our cohort who remained pulseless after conventional resuscitation, it is possible that an additional 16-30 patients (four to seven per year) might have survived neurologically intact with an ECPR protocol, increasing the overall survival rate of ECPR-eligible patients to 51%-60%.
Several studies have reported the number of patients treated with individual ECPR protocols, with patients included at the discretion of treating clinicians;Reference Wang, Chou and Becker 5 , Reference Leick, Liebetrau and Szardien 6 , Reference Haneya, Philipp and Diez 21 - Reference Kim, Jung and Park 26 however, the denominator and outcomes of potentially eligible patients within these regions is unknown. Poppe and colleagues examined a cohort of OHCA cases, and applied the following criteria for which paramedics should “load [the patient] and go” to hospital for ECPR management: adult patients <75 years old with a witnessed arrest, bystander CPR performed, an initial shockable rhythm, and no sustained return of spontaneous circulation (ROSC) within 15 minutes of EMS resuscitation.Reference Poppe, Schober and Weiser 27 Of 864 OHCA, 55 (6.4%) met this standard. Despite methodological differences, this is comparable with our results in demonstrating a low proportion of patients with refractory arrest within our region who would be candidates for ECPR therapy.
The primary limiting factor of the quantity of eligible patients for ECPR is distance to hospital, with survivors rare if ECPR is initiated after 75 minutes.Reference Wang, Chou and Becker 5 , Reference Haneya, Philipp and Diez 21 , Reference Le Guen, Nicolas-Robin and Carreira 23 For this reason and based on established practice,Reference Stub, Bernard and Pellegrino 7 we limited our hypothetical ECPR treatment catchment to our health region, for which the transport times for an ambulance to an ECPR-capable centre would be approximately 20 minutes or less. Although population density and demographics will vary, the time-dependent nature of ECPR therapy will likely limit the volume of ECPR programs in other regions to similar quantities.
Although some ECPR protocols have focused solely on patients with initial shockable rhythms,Reference Stub, Bernard and Pellegrino 7 , Reference Sakamoto, Morimura and Nagao 28 other protocols have shown promising results in non-shockable patients, reporting survival to discharge in 29%-35%Reference Leick, Liebetrau and Szardien 6 , Reference Stub, Bernard and Pellegrino 7 , Reference Haneya, Philipp and Diez 21 . It is unclear whether the benefit of ECPR therapy for those with initial non-shockable rhythms differs from those with initial shockable rhythms. It is well established that patients with initial shockable rhythms treated with conventional resuscitation have a higher chance of achieving ROSC, thereby allowing the possibility of survival.Reference Nichol, Thomas and Callaway 1 , Reference Andrew, Nehme and Lijovic 29 , Reference Wibrandt, Norsted and Schmidt 30 However, in resuscitations unable to achieve ROSC, regardless of initial cardiac rhythm, the benefit of achieving artificial circulation through ECPR may be similar. Nearly 90% of the patients in our cohort with initial shockable rhythms survived to hospital admission, twice the proportion of those with initial non-shockable rhythms. Whereas patients with shockable rhythms fulfilling our ECPR criteria already demonstrate excellent outcomes, patients with initial non-shockable rhythms may in fact be the group for which an ECPR program may have a much larger impact on survival. One must also consider that there may systematic differences in patient characteristics between those with initial shockable and non-shockable rhythms, such as the etiologies of the arrest, which may affect outcomes. Further research is required to identify the best candidates for ECPR initiation and the outcomes of patients with non-shockable rhythms treated with ECPR.
The complexities of developing regional invasive OHCA resuscitation programs in systems with high existing rates of survival,Reference Nichol, Thomas and Callaway 1 with the hope of further improving outcomes, are extensive. Regional coordination, highly skilled paramedics, a strategy to maintain CPR quality during transport, physicians or surgeons to place cannulas and perfusionists to initiate ECMO immediately upon patient arrival, and sufficient patient volumes to maintain institutional competency are all important components. The creation and maintenance of such as system would require significant resources, and thus prospective studies (with comparator groups) examining the effectiveness and cost-effectiveness of coordinated regional ECPR programs are required; this is especially relevant for single-payer healthcare systems. Finally, over half of those with refractory cardiac arrest had termination of resuscitation in the pre-hospital setting. With the addition of ECPR management into the resuscitation algorithm, practices for intra-arrest transport may have to be adapted, including recognition of safety hazards for EMS providers during transport.Reference Kahn, Pirrallo and Kuhn 31
The study site was one urban Canadian region; population characteristics and medical management may vary in different settings. Whereas pre-hospital resuscitation and protocolized hospital care followed AHA guidelines,Reference Link, Berkow and Kudenchuk 11 , Reference Kleinman, Brennan and Goldberger 12 , Reference Callaway, Donnino and Fink 32 we cannot account for individual patient treatment. It is possible that characteristics not represented in our set of ECPR criteria may be of benefit in further defining the ideal ECPR candidate. There were three patients within our ECPR group who regained a pulse prior to the first rhythm analysis, precluding inclusion in the rhythm subgroup analysis, and thus resulting in a lower proportion of favorable outcomes in one or both groups.
Conclusion
In our region, 10% of EMS-treated patients fulfilled our set of ECPR criteria, one-third of whom had resuscitation terminated prior to hospital admission (an average of 12 patients per year) and may have benefited from ECPR. The addition of an ECPR program to a high-performing system of care may have a small but clinically important effect on patient outcomes.
Competing Interests: None declared.
Supplementary Material
To view supplementary material for this article, please visit http://dx.doi.org/10.1017/cem.2016.8
