II. VIDEO BUFFER DYNAMICS

In video compression standards, such as MPEG-2, H.264/ MPEG-4 advanced video coding (AVC), and H.265/MPEG-H high-efficiency video coding (HEVC), a hypothetical reference decoder or a video buffer verifier [Reference Chen1,Reference Sun, Chen and Chiang2] is specified for modeling the transmission of compressed video data from the video encoder to the video decoder. A video buffer model usually imposes constraints on the variations in bit rate over time in a compressed bit stream regarding timing and buffering. Such a model has been particularly important in the past for carrier-grade video transmission, e.g., digital video broadcasting via cable and satellite.

Consider a digital video with the picture time (or the frame time) $t \grave{o} T=\{T_{0},T_{1},\ldots,T_{N-1}\}$ with $T_{i+1} = T_{i} + 1/f$, where f is the video frame rate (or the picture rate), e.g., 30 frames per second. For delivering carrier-grade compressed digital video, the video buffer manager in an encoder or a video server provides a mechanism to prevent decoder buffer underflow and/or overflow. In [Reference Chen1,Reference Sun, Chen and Chiang2], this has been extensively analyzed for digital video broadcasting. The high-level system model used in [Reference Chen1,Reference Sun, Chen and Chiang2] can be shown in Fig. 1.

Fig. 1. Video encoder and decoder buffer model for digital video broadcasting.

In this buffer model, a video encoder generates a sequence of compressed pictures and then puts these pictures into the encoder buffer for transmission. The video buffers are characterized by the following set of parametersFootnote ¹:

• • $B_{E}^{MAX}:$ The encoder buffer size.

• • $P_{E}^{j}:$ The size of the jth compressed picture.

• • $\bar{B}^{j}_{E}:$ The encoder buffer level immediately before the jth compressed picture is inserted into the encoder buffer, and $P_{E}^{j} +\bar{B}_{E}^{j} \leq B_{E}^{MAX}$.

• • $R_{e}^{MAX}:$ The maximum encoder buffer output data rate.

• • $\bar{R}_{e}(t):$ The encoder buffer output data rate function and $\bar{R}_{e}(t)\leq R_{e}^{MAX}$.

• • R _d (t): The decoder buffer input data rate function and $R_{d} (t)=\bar{R}_{e}(t)$.

• • $\bar{B}_{D}^{MAX}:$ The decoder buffer size.

• • $\bar{B}^{j}_{D}:$ The decoder buffer level immediately before the jth compressed picture is inserted into the encoder buffer, and $\bar{B}^{j}_{D} \leq \bar{B}_{D}^{MAX}$.

• • t _{e, j}: The encoding time of the jth picture, which is the time immediately before the jth compressed picture is inserted into the encoder buffer and $t_{e,j} \grave{o} T$.

• • t _{d, j}: The decoding time of the jth picture, which is the time immediately before the jth compressed picture is removed from the decoder buffer and $t_{d,j} \grave{o} T$.

Note that we do not make any assumption on resolutions of the video.

Assume that the video delivery system preserves the original video frame rate, i.e., neither inserting nor dropping pictures. Then, the encoding and decoding times satisfy the following equations:

(1)$$t_{e,j+1} -t_{e,j} = {1 \over f},\, \forall j,$$

(2)$$ t_{d,j+1} -t_{d,j} = {1 \over f},\, \forall j.$$

And, if there is no network delay [Reference Chen1,Reference Sun, Chen and Chiang2],

(3)$$t_{d,j} -t_{e,j} = {c \over f},\, \forall j,$$

where c≥1 is a constant. Without loss of generality, assume c≥1 is an integer. Note that if c is not an integer, we can use c. Equation (3) implies that after a picture is (instantaneously) placed into the encoder buffer, it will take c/f seconds before it is instantaneously removed from the decoder buffer. Note that there are c compressed pictures residing in the encoder and decoder buffers at the time t _{e, j}, i.e., $\bar{B}^{j}_{E} + \bar{B}^{j}_{D}$ are data of c consecutive compressed pictures. In this case, we can define:

(4)$$\bar{B}_D^{MAX} \triangleq {c \over f}\cdot R^{MAX}_e.$$

For this video buffer model, a set of necessary and sufficient conditions for preventing decoder buffer underflow and overflow have been proven in [Reference Chen1,Reference Sun, Chen and Chiang2].

In this paper, we will generalize the buffer dynamics described in [Reference Chen1,Reference Sun, Chen and Chiang2] to generic IP video distribution cases. First, we will determine some general conditions for preventing decoder buffer underflow and/or overflow.

Consider an IP video delivery system where a compressed video stream is transmitted sequentially, picture-by-picture, from an encoder or video server to multiple decoders in the network as shown in Fig. 2. For a high-level mathematical model of such system shown in Fig. 3, the video buffers can be characterized with the following additional set of parametersFootnote ²:

• • $B_{E}^{j}:$ The encoder buffer level immediately before the jth compressed picture is inserted into the encoder buffer. Note that this can be the same as $\bar{B}^{j}_{E}$ in the buffer model for digital video broadcasting (Fig. 1), i.e., $B_{E}^{j} =\bar{B}^{j}_{E}$.

• • $B_{D,k}^{MAX}:$ The decoder buffer size of the kth video path.

• • $B_{D,k}^{j}:$ The decoder buffer level of the kth video path immediately before the jth compressed picture is inserted into the encoder buffer, and $B_{D,k}^{j} \le B_{D,k}^{MAX}$.

• • $B_{N,k}^{j}:$ The total network buffer level of the kth video path immediately before the jth compressed picture is inserted into the encoder buffer.

• • t _{d, j, k}: The decoding time of the jth picture for the kth video path, which is the time immediately before the jth compressed picture is removed from the decoder buffer and $t_{d,j,k} \grave{o} T$.

• • R _e (t): The encoder buffer output data rate function.

• • R _{d, k} (t): The decoder buffer input data rate function of the kth video path for the video transmission.

Fig. 2. An IP video delivery system.

Fig. 3. End-to-end kth video path.

Assume that the end-to-end IP video data transmission has no loss and is in first-in-first-out (FIFO) order in both the encoder and decoder buffers. Also, for simplicity, assume that the network buffers along each video path are represented by an aggregate network buffer B _{N, k} and that compressed pictures are transmitted along any video path as individual impulsesFootnote ³; these two assumptions will be relaxed in Section 6. With these assumptions, the end-to-end kth video path from the encoder to the decoder is shown in Fig. 3. Now we have:

(5)$$t_{d,j,k} -t_{e,j} \ge {c \over f},\, \forall j,$$

i.e.,

(6)$$t_{d,j,k} - t_{e,j} = {c + \sigma_k \over f},\, \forall j,$$

where j is the compressed-picture index, $\sigma_{k} \ge 0$ is a constant, and σ_k/f is the network buffer delay for the kth video path. Without loss of generality, assume σ_k is an integer for the kth video path. Note that if σ_k is not an integer, we can use σ_k.

To ensure correct picture timing for video coding and transmission, the following conditions must be satisfied:

Theorem 1

for the video transmission system described in Fig. 3, the decoder buffer for the kth video path will not underflow, if and only if

(7)$$P_E^j + B_E^j + B_{N,k}^j \le \int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} (t)dt, \forall j.$$

Proof: In order to avoid decoder buffer underflow, it requires that for all j, all the compressed data in the encoder and the network buffers up to and including picture j, i.e., $P_{E}^{j} +B_{E}^{j} +B_{N,k}^{j}$ be completely transmitted to the decoder buffer before the required decoding time t _{d, j, k}. Therefore, inequality equation (7) follows.

However, if there exists j such that $P_{E}^{j} +B_{E}^{j} +B_{N,k}^{j} \gt \int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} (t)dt$, then the data of $P_{E}^{j} $ will not have completely arrived at the decoder buffer since the data transmission is in FIFO order; that is, the decoder buffer will underflow. This completes the proof.□

Theorem 2

for the video transmission system described in Fig. 3, the decoder buffer for the kth video path will not overflow, if and only if

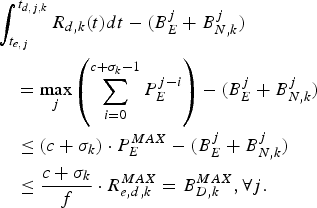

(8)$$\int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} (t)dt-(B_E^j +B_{N,k}^j)\le B_{D,k}^{MAX},\forall j.$$

Proof: In order to avoid decoder buffer overflow, it requires that for all j, the decoder buffer fullness at time t _{d, j, k} (immediately before the jth compressed picture is removed from the decoder buffer) must be less than or equal to $B_{D,k}^{MAX}$. From the time t _{e, j} to t _{d, j, k}, the number of bits arriving at the decoder buffer will be $\int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} (t) dt $ and the number of bits removed from the decoder buffer will be all the compressed video data before the jth picture in the encoder buffer, the network buffer, and the decoder buffer at time t _{e, j}, i.e., $B_{E}^{j} +B_{N,k}^{j} +B_{D,k}^{j} $. Thus, the decoder buffer fullness at time t _{d, j, k} satisfies:

(9)$$\left(\int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} (t)dt + B_{D,k}^j \right) - (B_E^j +B_{N,k}^j +B_{D,k}^j)\le B_{D,k}^{MAX}.$$

Therefore, the inequality equation (8) follows. However, if there exists j, such that $\int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} (t)dt-(B_{E}^{j} +B_{N,k}^{j}) \gt B_{D,k}^{MAX}$, then some data in $P_{E}^{j}$ will be lost before it is removed from the decoder buffer for decoding since the data transmission is in FIFO order, i.e., the decoder buffer will overflow. This completes the proof.□

Note that there are c+σ_k compressed pictures residing in the encoder buffer, the network buffer, and the decoder buffer at the time t _{e, j}, i.e., $B_{E}^{j} +B_{N,k}^{j} +B_{D,k}^{j} $ are data of c+σ_k consecutive compressed pictures. In this case, we can now define:

(10)$$B_{D,k}^{MAX} \triangleq {c+\sigma_k \over f}\cdot R_{e,d,k}^{MAX},$$

where $R_{e,d,k}^{MAX} = \mathop{\max}\nolimits_{j,t_{e,j} \le t\le t_{d,j,k}} (R_{e} (t),R_{d,k} (t))$. As can be seen from equation (10), the decoder buffer size is a network-delay-dependent parameter.

For a constant-delay network, as shown in Fig. 4, where the delay between the output of the encoder buffer and the input of the decoder buffer is a constant, we can obtain the following simplified conditions on video buffer dynamics with the decoder buffer size being independent of the network-delay. Without loss of generality, assume that the constant delay Δ_k is an integer (if it is not, Δ_k can be used).

Fig. 4. Network link for the kth video path with a fixed delay Δ_k/f.

Corollary 1 (Appendix for proof) provides a set of conditions on the video bit rate, frame rate, encoding/decoding time, video buffers, and network delay for the system model given in Fig. 4. These conditions ensure correct video timing for end-to-end video transmission. This system is applicable to live digital video broadcasting services, e.g., today's cable and satellite live pay-TV broadcasting services. If Δ_k=0, then the conditions provided by inequalities equations (11) and (12) for preventing decoder buffer underflow and overflow are the same as those for the system model shown in Fig. 1.

Corollary 1 also gives the fact that, for a constant-delay network path k, the actual decoder buffer size is independent of the network-delay parameter Δ_k. However, if such a network path has a maximum jitter integer parameter $\delta_{k} \ge 0$, i.e., the network-delay will vary between Δ_k/f and $\Delta_{k} +\delta_{k} /f$, we will have a system model as shown in Fig. 5. Without loss of generality, assume δ_k is an integer (again, if δ_k is not an integer, δ_k can be used). We can prove the following corollary (Appendix for proof).

Fig. 5. Network link for the kth video path with a fixed delay Δ_k/f and a maximum jitter δ_k/f.

Corollary 2 provides a set of sufficient conditions on video buffer dynamics for the system model given in Fig. 5 to ensure correct video timing for end-to-end video transmission. This system model is applicable to end-to-end IP video transmission systems, e.g., live IP pay-TV services for any generic IP video clients.

A variation of Corollary 2 is to construct a video transmission system model, as shown in Fig. 6, by inserting a dejitter buffer B _{d, k} with the size $B_{\delta_{k}} =\delta_{k} /f\cdot R_{e}^{MAX} $ before the decoder buffer B _{D, k} with the size $\bar{B}_{D}^{MAX}=c/f \cdot R^{MAX}_{e}$. In this system model, the video data transmitted from the input of the aggregate network buffer B _{N, k} to the output of the dejitter buffer B _{d, k} have a fixed delay $\Delta_{k} +\delta_{k} /f$. This results in the following corollary (Appendix for proof):

Fig. 6. Video transmission system model with a dejitter buffer.

Corollary 3 provides a set of buffer conditions for the system model constructed in Fig. 6. This system is applicable to digital video services with a hybrid network of live broadcasting, time-shifting with digital video recording (DVR), and home IP video networking, e.g., today's cable and satellite live pay-TV services to home gateway/DVR server and then to operators’ IP video clients (e.g., MoCAFootnote ⁴ or WiFi clients).

Actually, the network jitter can be compensated either in the dejitter buffer as shown in Fig. 6 or in the decoder buffer itself, i.e., the dejitter buffer function can be merged with the decoder buffer as shown in Fig. 5. In the case of Fig. 6, the compensation can be more efficient (i.e., the network resynchronization delay is minimal) because it can exploit timing information about the network. In the case of Fig. 5, the system provides more robustness against incorrect sizing of the buffers, because the network jitter and processing delay can sometimes compensate each other.

III. VIDEO TRAFFIC OVER THE TOKEN-BUCKET REGULATOR

We now analyze the buffer, rate, and delay constraints of an IP video transmission system. For this analysis, the general model in Section 2 is restricted to the linear-bounded arrival process (LBAP) model [Reference Procissi, Garg, Gerla and Sanadidi3–Reference Cruz5].

An LBAP-regulated stream constrains the video traffic data produced over any time interval τ by an affine function of this time interval. More specifically, if we denote A(τ) as the traffic data transmitted over the time interval τ, the traffic is said to be LBAP if there exists a pair (ρ, b) for ρ≥0 and b≥0, such that

(18)$$A(\tau) \le \rho \tau + b,\forall \tau \gt 0,$$

where ρ represents the long-term average rate of the source and b is the maximum burst. The source is allowed to transmit in any time interval of length τ.

When the maximum rate of the source is known, a more useful arrival process model $\lpar \rho ,b,\rho_{MAX} \rpar $, which relates to the LBAP, is:

$$A\lpar \tau \rpar \le \min (\rho \tau + b, \rho_{MAX} \tau) \forall \tau \gt 0,$$

where $\rho_{MAX}$ is the maximum rate of the source [Reference Alam, Atiquzzaman and Karim8].

Operationally, the above two arrival process models can be obtained by using the token bucket regulators: LBAP maps to a single token bucket (ρ, b), while the maximum rate LBAP maps to a dual token bucket model $(\rho ,b, \rho_{MAX})$ [Reference Alam, Atiquzzaman and Karim8]. In the token bucket method, a counter builds up tokens of fixed size, e.g., 1 byte each, at a constant rate of ρ in a fixed bucket of size b. This size b is often referred to as the token depth. In a (ρ,b) regulator, each time a packet is offered, the value of the counter is compared with the size of the offered packet (e.g., in bytes). If the counter value is greater than or equal to the packet size, then the counter is decremented by the packet size and the packet is admitted to the network. Otherwise, the packet is buffered for later transmission.

It has already been shown [Reference Stiliadis and Varma4,Reference Cruz5] that an arbitrary network of $(\rho_{i} ,b_{i}), \,i=1,2,\ldots ,m$ regulators can be analyzed simply by considering an equivalent single (ρ, b) regulator. Specifically, the worst-case network behavior of $(\rho_{i} ,b_{i}),\break i=1,2,\ldots ,m$ regulators can be modeled by studying the behavior of an equivalent single (ρ, b) regulator. For example, the rate of the equivalent single (ρ, b) regulator is equal to the lowest among the allocated rates for the $(\rho_{i}, b_{i}), i = 1,2,\ldots, m$ regulators in the serial path of the transmission, and the latency is equal to the sum of their latencies.

In the following sections, we look at various behavior of compressed video pictures transmitted over the (ρ, b) regulator as shown in Fig. 7. We derive the required buffer size and the desired rate for the (ρ, b) regulator. We also analyze the total equivalent video picture latency and jitter of the (ρ, b) regulator.

Fig. 7. Illustration of (ρ, b) regulators connected in series from the video encoder buffer to the video decoder buffer.

IV. VIDEO DATA BURSTINESS

First, we analyze the burstiness of video data transmitted over the leaky bucket (ρ, b). Consider the compressed video output from the encoder buffer being regulated by a leaky bucket, as shown in Fig. 7, for each picture time interval $\lsqb t^{\prime}, t^{\prime} +1/f\rsqb $, i.e.,

(19)$$\int_{t \prime}^{t^{\prime} + 1/f} R_e (t)dt \le {\rho \over f} + b.$$

Let us denote the following picture parameters:

• • $P_{E}^{MAX}:$ The largest size of a compressed picture within the video sequence (e.g., a movie).

• • $P_{E}^{AVG}:$ The average size of a compressed picture within the video sequence (e.g., a movie).

Assume that

(20)$$R_e^{MAX} \ge P_E^{MAX} \cdot f$$

and the largest compressed picture $P_{E}^{MAX}$ of the video sequence can be transmitted within a picture time interval 1/f from the encoder buffer. Note that this assumption is for deriving a lower bound on the token depth of the leaky bucket (ρ, b). However, in practice, this is a general requirement for some video applications.

Theorem 3

The token depth b of the leaky bucket (ρ, b) needs to satisfy:

(21)$$b \ge P_E^{MAX} - {\rho \over f}.$$

Proof: Since the largest compressed picture $P_{E}^{MAX}$ of the video sequence can be transmitted within a picture time interval 1/f from the encoder buffer, there exists R _e (t) at the transmitting time t ^′ of the largest compressed picture such that

$$P_E^{MAX} \le \int_{t^{\prime}}^{t^{\prime} +{1 \over f}} R_e (t)dt.$$

Thus, it follows from equation (22) that

$$P_E^{MAX} \le {\rho \over f} + b.$$

Therefore, the inequality equation (21) follows. This completes the proof. □

If the rate ρ is allocated to be equal to the average rate of the compressed video sequence, i.e.,

(22)$$\rho = \rho_{avg} \triangleq P_E^{AVG} \cdot f,$$

then

(23)$$b\ge P_E^{MAX} - P_E^{AVG}$$

and the entire video (e.g., a movie) can be transmitted within the (time) length of the video.

Inequality equation (21) shows that the required token depth b can be as large as the maximum size of a compressed picture. Inequality equation (23) implies that the burstiness of a compressed video sequence depends not only on the largest compressed picture size, but also on the average compressed picture size.

Traffic shaping is used at the network boundary to provide an average bandwidth between the server and the receiver(s) while keeping the burstiness below a predetermined level. In the following analysis, we will assume that b always satisfies equation (21) and the rate $R_{e} (t)\le R_{e}^{MAX}$.

We use $P_{E}^{MAX} -P_{E}^{AVG}$ as the metric to measure the burstiness of a video stream coded by a given codec, and apply this metric to compare the burstiness levels of three generations of standard video codecs: MPEG-2/H.262, H.264/MPEG-4 AVC, and H.265/MPEG-H HEVC. In particular, we apply this metric to answer the following specific question:

With compression ratios progressively increased and picture sizes (both average and maximum) reduced from MPEG-2 to AVC and from AVC to HEVC, is the worst-case video burstiness also reduced?

Toward answering this question, we make some assumptions about the relative sizes of $P_{E}^{MAX}$ and $P_{E}^{AVG}$ for these three codecs, as summarized in Table 1.

Table 1. Burstiness-metric comparisons of MPEG-2, AVC, and HEVC.

In the analysis, MPEG-2 is used as the baseline and compared with AVC and HEVC in terms of burstiness of coded video. For this comparison, it is assumed that, on average,

• • The ratio of the maximum MPEG-2 picture size to the average MPEG-2 picture size is a factor α.

• • The ratio of the average AVC picture size to the average MPEG-2 picture size is a factor β.

• • The ratio of the maximum AVC picture size to the maximum MPEG-2 picture size is a factor γ.

• • The ratio of the average HEVC picture size to the average AVC picture size is a factor μ.

• • The ratio of the maximum HEVC picture size to the maximum AVC picture size is a factor θ.

The plots in the following diagrams compare the burstiness metric with respect to different values of α, β, γ, θ, and μ. The red and blue lines represent the ratios of HEVC's metric to that of AVC and AVC's metric to that of MPEG-2, respectively.

From Figs 8 and 9, it can be seen that even though the burstiness may be reduced (i.e., burstiness-metric ratio less than 1) for some combinations of α, β, γ, θ, and μ (e.g., with β=μ=0.5, γ=θ=0.6, and α ranging between 2 and 6), the burstiness is barely decreased and even increased (i.e., burstiness-metric ratio larger than 1) for other combinations, e.g., with β=μ=0.5, γ=θ=0.9, and α ranging between 2 and 6. Note that, on average, this combination assumes AVC is 50% more efficient than MPEG-2 and HEVC is 50% more efficient than AVC. However, the efficiency improvement for the largest pictures (e.g., some I-pictures) is only 10%.

Fig. 8. Burstiness-metric comparison (β=μ=0.5, γ=θ=0.6).

Fig. 9. Burstiness-metric comparison (β=μ=0.5, γ=θ=0.9).

The above analysis provides a negative answer to the question posed earlier.

V. RATE

Next, we analyze the service rate offered to a compressed video sequence by a network of $\lpar \rho_{i} ,b_{i}\rpar , \,i = 1,2,\ldots, m$ regulators in the system shown in Fig. 7. For the system given in Fig. 3, consider all the compressed data in the encoder and the network buffers up to and including picture j right after the time t _{e, j}, i.e., the aggregate buffer fullness is $P_{E}^{j} +B_{E}^{j} +B_{N,k}^{j} $. If the equivalent single (ρ^(k),b)-regulator is used in the kth video path (as the regulator connected before the decoder buffer shown in Fig. 7), then the rate ρ^(k) must satisfy:

(24)$$\rho^{(k)} \ge r_k^{(j)} \triangleq {f \over c + \sigma_k} \cdot \lpar P_E^j +B_E^j + B_{N,k}^j \rpar , \forall j$$

to allow all data $P_{E}^{j} + B_{E}^{j} + B_{N,k}^{j}$ to be transmitted to the decoder buffer before the required decoding time t _{d, j, k}. σ_k is the integer given in equation (6).

Lemma 1

The decoder buffer for the kth video path will not underflow if the rate ρ^(k) of its input equivalent (ρ^(k),b)-regulator satisfies equation (24).

Proof: It can be seen from equations (6) and (24) that

$$P_E^j + B_E^j + B_{N,k}^j = \int_{t_{e,j}}^{t_{d,j,k}} r_k^{(j)} dt = {c + \sigma_k \over f} \cdot r_k^{(j)}.$$

If we allocate a fixed rate $R_{d,k} \lpar t \rpar = \rho^{(k)} \ge r_{k}^{(j)} $ for all j, then

$$P_E^j +B_E^j +B_{N,k}^j \le \int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} (t)dt.$$

From Theorem 1, this is a sufficient condition for preventing the decoder buffer for the kth video path to underflow. This completes the proof.□

To ensure better network bandwidth utilization, a smaller rate ρ^(k) is desirable. To satisfy equation (24), the allocated rate ρ^(k) can be as small as

(25)$$\rho^{(k)} = \max\limits_j \lpar r_k^{(j)} \rpar = \max\limits_j \left({f \over c + \sigma_k} \cdot \lpar P_E^j +B_E^j +B_{N,k}^j\rpar \right).$$

However, this is impractical to calculate.

It is known from the earlier discussion that, for the kth video path, there are c+σ_k compressed pictures residing in the encoder buffer B _E, the network buffer B _{N, k} and the decoder buffer B _{D, k} at the time t _{e, j} for all j, i.e., $B_{E}^{j},B_{N,k}^{j}$, and $B_{D,k}^{j}$ contain exactly c+σ_k consecutive compressed pictures for all j. Thus, the encoding time t _{e, j} of the jth picture is the decoding time of the $\lpar j-\lpar c+\sigma_{k} \rpar \rpar $-th picture. Since the decoder buffer does not underflow at the decoding time of the $\lpar j-\lpar c+\sigma_{k}\rpar \rpar $-th picture, $B_{D,k}^{j} $ must contain at least one picture, i.e., the $\lpar j-\lpar c+\sigma_{k} \rpar \rpar $-th picture. Therefore, $B_{E}^{j} +B_{N,k}^{j} $ must contain, at most, $c+\sigma_{k} -1$ pictures, and

$${f \over c + \sigma_k} \lpar P_E^j + B_E^j + B_{N,k}^j \rpar \le {f \over c + \sigma_k} \cdot \sum_{i = 0}^{c + \sigma_k - 1} P_E^{j-i} ,\forall j.$$

Therefore, we can allocate the rate ρ^(k) for the kth video path to be

(26)$$\eqalign{\rho^{(k)}& = r_k (c) \triangleq \max_j \left({f \over c+\sigma_k} \cdot \sum_{i = 0}^{c + \sigma_k - 1} P_E^{j-i}\right) \cr & = {f \over c + \sigma_k} \cdot \max_j \left(\sum_{i = 0}^{c + \sigma_k -1} P_E^{j-i} \right),}$$

i.e., the allocated rate $\rho^{(k)}=r_{k} (c)$ is the maximum value of the average rates of a sliding window of c+σ_k consecutive compressed pictures of the video sequence. Note that $r_{k} \lpar c \rpar $ is not only dependent on the video sequence parameters (i.e., compressed sizes P _Eⁱ and the picture rate f), but also the network delay parameter σ_k.

Lemma 2

The decoder buffer for the kth video path will not overflow if the rate ρ^(k) of its input equivalent (ρ^(k),b) regulator satisfies equation (26).

Proof: For the rate ρ^(k) satisfies equation (29), we can have $R_{d,k} (t)=\rho^{(k)}$. From equations (8), (10), (18), and (26), we obtain

$$\eqalign{&\int_{t_{e,j}}^{t_{d,j,k}} R_{d,k} \lpar t \rpar dt - (B_E^j +B_{N,k}^j) \cr &\quad = \max_j \left(\sum_{i = 0}^{c + \sigma_k -1} P_E^{j - i} \right) - (B_E^j + B_{N,k}^j) \cr &\quad \le \lpar c + \sigma_k \rpar \cdot P_E^{MAX} - (B_E^j + B_{N,k}^j) \cr &\quad \le {c + \sigma_k \over f} \cdot R_{e,d,k}^{MAX} = B_{D,k}^{MAX} ,\forall j.}$$

From Theorem 2, this is a sufficient condition for preventing the decoder buffer for the kth video path to overflow. This completes the proof. □

The following main result follows from Lemmas 1 and 2:

Note: Comparing with ρ_avg in equation (22), the rate ρ^(k) in equation (26) is a different result. While the rate ρ_avg implies that the entire video can be sent over the (time) length of the video, the rate ρ^(k) ensures any c+σ_k consecutive compressed pictures can be transmitted over the c+σ_k picture time interval $c + \sigma_{k} /f$.

For the system model given in Fig. 5, i.e., the network link for the kth video path between the output of the encoder buffer and the input of the decoder buffer has a fixed delay Δ_k/f with a jitter δ_k/f, we can prove the following theorem.

Theorem 5

For the video transmission system model given in Fig. 5, the decoder buffer with a size $\bar{B}_{D}^{MAX}(\delta_{k})$ given in equation (15) for the kth video path will neither underflow nor overflow if the rate ρ of its input equivalent (ρ, b) regulator satisfies $\rho = {f \over c} \cdot \max_{j} \left(\sum\nolimits_{i=0}^{c-1} P_{E}^{j-i} \right)$.

Proof: Follows directly from equations (6), (13–15), and (20),

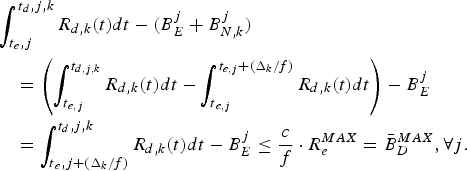

$$\eqalign{\int_{t_{e,j} + (\Delta_k + \delta_k /f)}^{t_{d,j,k}} R_{d,k} (t)dt & = \int_{t_{e,j} + (\Delta_k + \delta_k /f)}^{t_{d,j,k}} \rho dt \cr & = \max_j \left(\sum_{i=0}^{c-1} P_E^{j-i} \right) \cr &\ge \sum_{i = 0}^{c - 1} P_E^{j - i} \ge P_E^j +B_E^j, \cr \int_{t_{e,j} +(\Delta_k +\delta_k /f)}^{t_{d,j,k}} R_{d,k} (t)dt &= \int_{t_{e,j} + (\Delta_k + \delta_k /f)}^{t_{d,j,k}} \rho dt \cr & = \max_j \left(\sum_{i = 0}^{c - 1} P_E^{j - i} \right) \cr &\ge \sum_{i = 0}^{c - 1} P_E^{j - i} \ge P_E^j + B_E^j,}$$

and

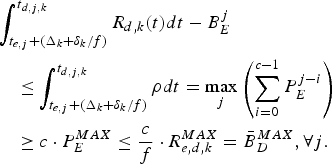

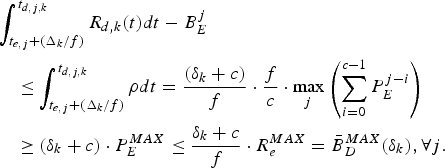

$$\eqalign{&\int_{t_{e,j} +(\Delta_k /f)}^{t_{d,j,k}} R_{d,k} \lpar t \rpar dt-B_E^j\cr &\quad \le \int_{t_{e,j} +(\Delta_k /f)}^{t_{d,j,k}} \rho dt={\lpar \delta_k +c \rpar \over f}\cdot {f \over c}\cdot \max_j \left( \sum_{i=0}^{c-1} P_E^{j-i}\right) \cr &\quad \ge \lpar \delta_k +c \rpar \cdot P_E^{MAX} \le {\delta_k +c \over f}\cdot R_e^{MAX} =\bar{B}_D^{MAX}(\delta_k), \forall j.}$$

Therefore, from Corollary 2, the decoder buffer for the kth video path will neither underflow nor overflow. This completes the proof. □

Note: The rate $\rho = f/c \cdot \max_{j} \left(\sum\nolimits_{i = 0}^{c - 1} P_{E}^{j - i}\right)$ is now only a function of the video parameters, and is independent of network delay and jitter of the kth video path. However, the decoder buffer size is a jitter-dependent parameter for the kth video path.

For the video transmission system model given in Fig. 6, we can derive the following theorem.

Theorem 6

For the video transmission system model given in Fig. 6, the decoder buffer for the kth video path will neither underflow nor overflow if the rate ρ of its input equivalent (ρ, b) regulator satisfies $\rho = f/c\cdot \max_{j} \left(\sum\nolimits_{i = 0}^{c - 1} P_{E}^{j - i} \right)$.

Proof: Follows directly from equations (4), (16), (17), and (20),

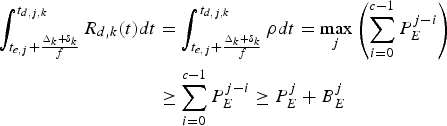

$$\eqalign{\int_{t_{e,j} + {\Delta_k +\delta_k \over f}}^{t_{d,j,k}} R_{d,k} (t) dt &= \int_{t_{e,j} + {\Delta_k +\delta_k \over f}}^{t_{d,j,k}} \rho dt = \max_j \left(\sum_{i = 0}^{c - 1} P_E^{j - i} \right) \cr &\ge \sum_{i = 0}^{c - 1} P_E^{j - i} \ge P_E^j + B_E^j}$$

and

$$\eqalign{&\int_{t_{e,j} +(\Delta_k +\delta_k /f)}^{t_{d,j,k}} R_{d,k} (t)dt-B_E^j \cr &\quad \le \int_{t_{e,j} +(\Delta_k +\delta_k /f)}^{t_{d,j,k}} \rho dt = \max_j \left(\sum_{i = 0}^{c - 1} P_E^{j - i}\right) \cr &\quad \ge c \cdot P_E^{MAX} \le {c \over f} \cdot R_{e,d,k}^{MAX} = \bar{B}_D^{MAX}, \forall j.}$$

Therefore, from Corollary 3, the decoder buffer for the kth video path will neither underflow nor overflow. This completes the proof. □

It can be seen that, from the perspective of decoding time and total buffer sizes, Theorem 5 is equivalent to Theorem 6. Also the system model shown in Fig. 4 is a special case of the system model given in Fig. 6 with δ_k=0. It is easy to verify that $\rho = f/c \cdot \max_{j} \left(\sum\nolimits_{i = 0}^{c - 1} P_{E}^{j - i} \right)$ given in Theorem 6 also satisfies the rate conditions of Corollary 1. Thus, we have

Once again, the rate $\rho = f/c \cdot \max_{j} \left(\sum\nolimits_{i = 0}^{c - 1} P_{E}^{j - i} \right)$ is only a function of the video parameters, and is independent of network delay and jitter of the kth video path. In this case, the actual decoder buffer size is now independent of network jitter.

VI. END-TO-END TRANSMISSION DELAY AND NETWORK JITTER

In the analysis so far, it is assumed that each compressed picture is a single integral entity (e.g., modeled as an impulse function) when it traverses the IP network. With this assumption, there is no ambiguity about picture-related timings. In this section, we relax the above assumption with respect to the practical IP networks, where each video picture is transmitted as a sequence of packets (e.g., Ehternet frames). We define the picture-related timings for packetized video transmission. Furthermore, we establish the delay and jitter bounds for a class of IP networks.

In practice, before the video stream is transmitted to the IP network, the pictures are first packetized on the encoder side. The video packets are then transmitted over the IP network, which in general, consists of a series of routers and switches. On the decoder side, the received video packets, which may be out of order during transit, are reordered and depacketized to reassemble original compressed pictures as the input to the decoder bufferFootnote ⁵. Figure 10 represents a given video path in Fig. 2.

Fig. 10. Transmission of packetized video pictures.

As shown in Fig. 11, on the encoder side, the pictures are modeled as impulse functions at both the input and output of the encoder buffer. The picture $P_{E}^{j} $ is packetized and transmitted to the IP network as a sequence of N _j packets of sizes $L_{j,1} ,L_{j,2}, \ldots, L_{j,N_{j}} $ at instances $T_{e,j,1} ,T_{e,j,2} ,\ldots, T_{e,j,N_{j}}$, respectively, where $T_{e,j,1} \le T_{e,j,2} \le \cdots \le T_{e,j,N_{j}}$. Assume that the packetizer starts the packetization of the first packet of the picture $P_{E}^{j}$ at instance $T_{e,j,0} \lt T_{e,j,1}$. After traversing the IP network, these packets are received on the decoder side at instances $T_{d,j,1} ,T_{d,j,2} , \ldots, T_{d,j,N_{j}}$, probably out of order. They are then reordered and depacketized into the original picture $P_{E}^{j}$, which is pushed into the decoder buffer before being decoded for display at t _{d, j, k}.

Fig. 11. Timings for the transmission of packetized video pictures.

In the following, we first establish the general delay and jitter bounds for the pictures transmitted over the above IP network.

On the encoder side, we assume that the packetization of a video picture starts immediately after the picture is input to the packetizer and that the transmission of the first packet of a video picture takes place once the packet is available to the transmitter. Therefore, the time at which the jth picture is output from the encoder buffer, $t_{e,j}^{\prime} $, coincides with the time when the first packet of the picture starts to be packetized, T _{e, j, 0}; that is,

(27)$$t_{e,j}^{\prime} = \min_{0\le i\le N_j} \lcub T_{e,j,i} \rcub = T_{e,j,0}.$$

On the decoder side, we assume that when the last packet of the picture j is received and made available to the depacketizer, the reordering and depacketization of the picture will be completed immediately. Therefore, the time at which the jth picture is input into the decoder buffer coincides with the time at which the last packet of the picture is received from the IP network; that is,

(28)$$t_{d,j,k}^{\prime} = \max_{1\le i\le N_j} \{T_{d,j,i} \}.$$

Then, the end-to-end delay of the jth picture for the kth video path across the IP network can be denoted as

(29)$$D_{j,k}^{e2e} \triangleq t_{d,j,k}^{\prime} - t_{e,j}^{\prime}.$$

Assume that the maximum latency for any picture to go through the Packetizer and Transmitter is T _p; that is,

$$T_p \triangleq \max_j \{T_{e,j,N_j} - T_{e,j,0} \}.$$

Then, for any j and any i with 1≤i≤N _j,

(30)$$T_{e,j,i} - T_{e,j,0} \le T_{p}.$$

Furthermore, assume that the maximum delay for any video packet to traverse the kth video path of the IP network is D _k; that is,

$$D_k \triangleq \max_j \lcub \max_{1\le i\le N_j} \lcub T_{d,j,i} -T_{e,j,i} \rcub \rcub .$$

Thus, for any j and any i with 1≤i≤N _j,

(31)$$T_{d,j,i} \le T_{e,j,i} +D_{k}.$$

Then we have the following result:

Lemma 3

The maximum end-to-end delay of video pictures across kth video path of the IP network is upper-bounded as follows:

(32)$$D_k^{e2e} \triangleq \max_j \lcub D_{j,k}^{e2e} \rcub \le T_p +D_{k}.$$

Proof: From the definitions of $D_{k}^{e2e}$ in equation (32) and $D_{j,k}^{e2e}$ given in equation (29),

$$\eqalign{D_k^{e2e} &= \max_j \lcub D_{j,k}^{e2e} \rcub = \max_j \lcub t^{\prime}_{d,j,k} -t^{\prime}_{e,j} \rcub \cr &= \max_j \lcub \max_{1\le i\le N_j} \{T_{d,j,i} \} - T_{e,j,0} \rcub \cr & = \max_j \lcub \max_{1\le i\le N_j} \{T_{d,j,i} - T_{e,j,0} \} \rcub \cr &\le \max_j \lcub \max_{1\le i\le N_j} \lcub \{T_{e,j,i} +D_k \} - T_{e,j,0} \rcub \rcub \quad (\hbox{from} (31)) \cr &= \max_j \lcub \max_{1\le i\le N_j } \lcub T_{e,j,i} +D_k -T_{e,j,0} \rcub \rcub \cr &=\max_j \lcub \max_{1\le i\le N_j } \lcub (T_{e,j,i} -T_{e,j,0} )+D_k \rcub \rcub \cr &\le T_p +D_k \quad (\hbox{from} (30)).}$$

This completes the proof. □

Note that the above theorem holds even for the cases where packet reordering is performed by the Receiver and Depacketizer.

In [Reference Stiliadis and Varma4], the latency of a general class of routers is modeled and analyzed in detail. Here, we will apply the result obtained from [Reference Stiliadis and Varma4] to derive a delay upper bound for our video transmission model.

For the kth video path, if the input video stream is (ρ, b)-regulated, the maximum delay D _k incurred by a packet traversing an IP network that consists of s _k routersFootnote ⁶ is upper-bounded by

(33)$$D_k \le {b \over \rho} + \sum_{i = 1}^{s_k} \Theta_{i,k} + \sum_{i = 1}^{s_k} p_{i,k},$$

where Θ_{i, k} is the latency of the ith router along the kth video path and p _{i, k} is the propagation delay between the ith router and its next neighboring node along the kth video path. Each router has the rate at least ρ.

To make the analysis concrete, consider the cases where each router along the video path is modeled as a Weighted Fair Queuing (WFQ) system. Such cases exist in practice, since many deployed routers indeed support WFQ for their rate shaping and scheduling functions [11,12]. A high-level diagram for a WFQ system is illustrated in Fig. 12, where the incoming packets are classified into their corresponding queues that represent different data streams and multiple WFQ queues, and a non-WFQ queue share the bandwidth of the output port. Usually, the WFQ queues are guaranteed by the scheduler a minimum percentage (e.g., 70%) of the total output port bandwidth, and in turn, the scheduler guarantees a given average data rate for each WFQ queue based on its weight. The average data rate for each WFQ queue can be dynamically configured via a QoS-negotiation protocol such as Resource Reservation Protocol.

Fig. 12. IP Router Modeled as WFQ.

As shown in [Reference Stiliadis and Varma4], if the ith router (i<s _k) can be modeled as a WFQ system, then its latency is given by

(34)$$\Theta_{i,k} =\left({L_{k,max} \over \rho} + {L_{max,i} \over r_i} \right),$$

where $L_{k,max}$ is the maximum packet size of the kth video stream (which is sent along the kth video path), $L_{max,i}$ is the maximum packet size among all streams sent to the ith router, and r _i is the total bandwidth of the output port of the ith router. For the last router (the s _k -th), if it can be modeled as a WFQ system, its latency is given by [Reference Stiliadis and Varma4]

(35)$$\Theta_{s_{k}, k} = {L_{max,s_k} \over r_{s_k}}.$$

If all s _k routers in Fig. 10 can be modeled as WFQ systems, from equations (33), (34), and (35), the total delay incurred by a packet of the kth stream across this network, D _k, is upper-bounded as

(36)$$D_k \le {b \over \rho} + \lpar s_k - 1 \rpar \times {L_{k,max} \over \rho} + \sum_{i = 1}^{s_k} {L_{max,i} \over r_i} + \sum_{i = 1}^{s_k} p_{i,k}.$$

Thus, Lemma 4 and Theorem 7 directly follow from Lemma 3, equations (36) and (6).

Lemma 4

For an IP network with the (ρ, b)-regulated video input and s _k WFQ routers along the kth video path, the maximum end-to-end delay of video pictures across the video path is bounded by

(37)$$\eqalign{& D_{j,k}^{e2e} \le T_p + D_k \le T_p \cr & \quad + \left[{b \over \rho} + \lpar s_k - 1 \rpar \times {L_{k,max} \over \rho} + \sum_{i = 1}^{s_k} {L_{max,i} \over r_i} + \sum_{i = 1}^{s_k} p_{i,k} \right].}$$

Theorem 7

For an IP network with the (ρ, b)-regulated video input and s _k WFQ routers along the k-th video path, the network buffer delay parameter σ_k defined in equation (6) can be set to

(38)$$\eqalign{\sigma_k & = \left\lceil f \cdot \left(T_p + \left[{b \over \rho} + \lpar s_k - 1 \rpar \times {L_{k,max} \over \rho} \right. \right. \right. \cr &\left. \left. \left. \quad + \sum_{i = 1}^{s_k} {L_{max,i} \over r_i} + \sum_{i = 1}^{s_k} p_{i,k} \right] \right) \right\rceil,}$$

where $\lceil. \rceil $ denotes the ceiling function.

We can also split the network buffer delay parameter σ_k into a fixed delay parameter Δ_k and a maximum jitter parameter δ_k, as exemplified in the corollary below.

Corollary 5

For an IP network with the (ρ, b)-regulated video input and s _k WFQ routers along the kth video path, the network buffer delay parameter σ_k may be set to $\sigma_{k} = \Delta_{k} +\delta_{k}$ with

(39)$$\Delta_k = \left\lfloor f \cdot \left( \lpar s_k - 1 \rpar \times {L_{k,min} \over \rho} + \sum_{i = 1}^{s_k} p_{i,k} \right) \right\rfloor,$$

where $\lfloor. \rfloor$ denotes the floor function and L _{k, min} is the minimum packet size of the video being sent along the kth video path, and

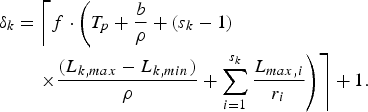

(40)$$\eqalign{\delta_k & = \left\lceil f\cdot \left(T_p + {b \over \rho} + \lpar s_k - 1 \rpar \right. \right. \cr &\left. \left. \quad \times {(L_{k,max} - L_{k,min}) \over \rho } + \sum_{i = 1}^{s_k} {L_{max,i} \over r_i} \right) \right\rceil + 1.}$$

It is easy to show that the network buffer delay parameter σ_k in Corollary 5 is larger than or equal to the one in Theorem 7.

As one can see from equations (39) and (40), the fixed delay parameter Δ_k is determined by the overall minimum packet latency over routers in the kth video path and the total propagation delay, while the maximum jitter parameter δ_k is determined by the latency from video stream burstiness (over the transmission rate), the latency from packetization and serialization, and the overall packet jitter over routers in the kth video path caused by all streams.

In the following examples, Δ_k and δ_k are calculated for a video transmitted in its average rates ρ_avg defined in equation (22) and ρ^* set according to Theorem 5.

1) Packetization and serialization latency T _p

This represents the latency incurred by a video picture going through the Packetizer and Transmitter. It is measured between the time when the video picture is made available to the packetizer (the time that the packetization of the first packet of the picture starts) and the time when the last packet of the picture is completely transmitted to the IP network. Thus, it includes the latency of the packetization process as well as the latency for the serialized transmission of packets.

2) Video burst duration

The ratio of maximum burst size b and the average data rate ρ represents the burst duration when the video is transmitted across an IP network. From Theorem 3 and equation (26), we can use $(P_{E}^{MAX} -P_{E}^{AVG})$ to approximate the maximum burst size b. For the choice of the average data rate ρ, we have two options: (a) the data rate ρ_avg defined in equation (22); (b) the data rate ρ* that is set according to Theorem 5. The video burst duration is then calculated by $(P_{E}^{MAX} - P_{E}^{AVG})/\rho_{avg} = (P_{E}^{MAX} - P_{E}^{AVG})/(P_{E}^{AVG} \times f)$ and $(P_{E}^{MAX} - P_{E}^{AVG})/\rho^{\ast}$, for the two options of average data rate, respectively. Following the same method of determining the relative sizes of maximum and average pictures with respect to different codecs as in Table 1, we compare the video burst durations for MPEG-2, AVC and HEVC in Table 2, with the assumption that $\rho^{\ast} = \rho_{avg} \times \omega$, for a factor ω.

Table 2. Burst-duration comparisons of MPEG-2, AVC, and HEVC.

The burst durations of MPEG-2, AVC, and HEVC are plotted in Figs 13 and 14 with respect to different values of α for $\beta = \mu = 0.5,\;\gamma = \theta = 0.9,$ and ω=1.2. Figures 13 and 14 are for options (a) and (b) of average data rate, respectively.

Fig. 13. Burst duration comparisons of MPEG-2, AVC, HEVC (β=μ=0.5, γ=θ=0.9).

Fig. 14. Burst-duration comparisons of MPEG-2, AVC, HEVC (β=μ=0.5, γ=θ=0.9, ω=1.2).

As can be seen from the plots, MPEG-2, AVC, and HEVC have progressively higher burst durations, for both options of average data rate.

3) Router queuing delay

This delay is represented by $\lpar s_{k} -1\rpar \times L_{k,max} /\rho _{k} + \sum\nolimits_{i = 1}^{s_{k}} L_{max,i} /r_{i}$ and depends on the average data rate of the video stream (ρ_k), the number of routers (i.e., hops) along the kth video path (s _k), the maximum packet size of the kth stream $(L_{k,max})$, the maximum packet size among all streams $(L_{max,i})$ and the total bandwidth of the output port (r _i) for the ith router. A typical hop count for an Internet connection within U.S. domains is 14 [Reference Fei, Pei, Liu and Zhang13]. The maximum Ethernet packet size is 1518 bytes; so we can set both $L_{k,max}$ and $L_{max,i}$ to be 1518 bytes. Then, with the assumptions that $\rho_{k} = 20\,\hbox{Mbps}$ (e.g., for 4 K HEVC video) and r _i=100 Mbps, the router queuing delay is $\lpar s_{k} - 1\rpar \times L_{k,max} /\rho_{k} +\sum_{i = 1}^{s_{k}} L_{max,i} /r_{i} = \lpar 14 - 1 \rpar \times {1518 \times 8 \over 20 \times 1000} + 14\times {1518\times 8 \over 100 \times 1000} = 7.9 + 1.7 \approx 10\,\hbox{ms}$.

4) Total propagation delay

This delay depends on the distances and media types of the links connecting all routers along the video path. For terrestrial fiber links totaling 4800 km (roughly the coast-to-coast continental U.S. distance), the total propagation delay is 4800/(300×0.7)≈23 ms, assuming a light speed of 300 km/ms and a velocity factor of 0.7 for optical fiber. Similarly, for MEO and GEO satellite links of 18 000 and 74 000 km, the corresponding delays are 60 and 247 ms, respectively.

The following table summarizes some examples for Δ_k and δ_k.

In the above table, it is assumed that

$$\eqalign{f&=30\,\hbox{fps,}\cr T_p &=150\,\hbox{ms,}\cr P_E^{MAX} &=6\,\hbox{Mbits,} \cr P_E^{AVG} &=0.8\,\hbox{Mbits,}\cr \rho &=20\,\hbox{Mbps}, \cr s_k & = 14, \cr L_{k,max} & = L_{max,i} = 1518\,\hbox{bytes}, \hbox{for all} i \cr L_{k,min} & = 64\,\hbox{bytes}.}$$

Fiber links U.S.-to-U.S.: 4800 km fiber links with velocity factor of 0.7

Fiber links U.S.-to-China: 11 500 km fiber links with velocity factor of 0.7

MEO Satellite: 18 000 km, with terrestrial segment of the propagation delay ignored

GEO Satellite: 74 000 km, with terrestrial segment of the propagation delay ignored

In the above examples, the dominating component of the fixed delay $(\Delta _{k} /f)$ is the total propagation delay, and the dominating components of the maximum jitter $(\delta_{k} /f)$ are the packetization and serialization latency and the burst duration. In comparison, the contribution of router queuing to the fixed delay and the maximum jitter is relatively very small. As can be seen from Figs 13 and 14, MPEG-2, AVC, and HEVC have progressively higher burst durations, with the burst duration almost doubling from one generation of video codec to the next. Therefore, for a given video data path, the maximum jitter can be substantially increased across the streams (or programs) that are coded with these three generations of video codecs. This can potentially impact the user's channel-changing experience (e.g., when the user switches between a Standard Definition program coded with MPEG-2 and the same program of High Definition coded with AVC).

VII. SYSTEM TIMING

We have analyzed several models of video transmission systems and proved theorems and corollaries for these models regarding the required conditions for video network transmission rates, buffer dynamics, and picture coding times. To ensure the encoder and the decoder operate properly in these models, we must also have an appropriate clock to drive the system timing. In this section, we will discuss the processes of generating system timing and their impacts on video transmission over the network and derivation of various picture timing parameters, such as t _{d, j, k}.

There are two primary approaches to provide the system timing: the encoder clock and the global clock.

A) Encoder clock

The encoder clock is a time source in the encoder that serves as the master timing source for the encoder, and is also used for generating slave timing sources for the network and the decoder(s). For example, in MPEG-2 systems, the 27 MHz System Time Clock (STC) drives the encoding process and is also used as a “master clock” for the entire video transmission system. At the encoder end, the Decode Time Stamp (DTS) and the Presentation Time Stamp (PTS) are created from the STC and carried together with the video packets. The DTS tells the decoder when to decode the picture, while the PTS tells the decoder when to display the picture.

In addition to knowing the time decoding and presentation should occur, the STC clock samples are also embedded, to allow a time reference to be created. The Program Clock Reference (PCR) in MPEG-2 Transport Stream (TS) provides 27 MHz clock recovery information. PCR is a clock recovery mechanism for MPEG programs. In MPEG-2 TS, when a video is encoded, a 27 MHz STC drives the encoding process. When the program is decoded (or re-multiplexed), the decoding process is driven by a clock that is locked to the encoder's STC.

The decoder uses the PCR to regenerate a local 27 MHz clock. As mentioned above, when a compressed video is inserted into the MPEG-2 TS, a 27 MHz PCR timestamp is embedded. At the decoder end, it uses a Voltage Controlled Oscillator (VCXO) to generate a 27 MHz clock. When a PCR is received, it is compared to a local counter, which is driven by the VCXO, and the difference is used to correct the frequency of the VCXO, so that the 27 MHz clock is locked to the PCR. Then, the decoding and presentation processes happen at the mature DTS and PTS times, respectively.

In this approach, all time stamps (including the clock reference) are carried with the video packets and transmitted from the encoder end to the decoder end. Thus, we don't need to know the exact network delay to generate these time stamps since the clock is locked to the encoder clock and the actual decoding time has counted for the DTS packets network delay, e.g., $t_{d,j,k} = \Delta_{k} /f + DTS_{j}$ for the system given in Fig. 4, and

(41)$$t_{d,j,k} = {\Delta_k + \delta_k \over f} + DTS_j$$

for the system given in Fig. 6. However, this approach requires that the network has a constant delay at the time stamp extraction point. Therefore, this approach is clearly suitable to the video transmission systems given by Figs 4 and 6, but would not work correctly for the system shown in Fig. 5.

VIII. VIDEO SERVICE TYPES

We will discuss three video service types here: unicast, broadcast, and multicast.

B) Video broadcast

Video broadcast is a network communication where a video is sent from one point to all other service points. In this case, there is just one server, but the video is sent to all connected receivers for the service. Video broadcast examples include cable and satellite digital Pay-TV broadcasting services. Today, these service examples are still the predominant forms of high-quality and carrier-grade video services to hundreds of millions of homes. Broadcast transmission is supported on most of IP networks. Network layer protocols, such as IPv4, support a form of broadcast that allows the same packet to be sent to every system in a logical network (in IPv4, this consists of the IP network ID and an all 1’s host number).

In the traditional cable and satellite video broadcast services, the transmission propagation delay differences among all receivers are usually negligible. Thus, if we consider the system model given in Fig. 4, the delay is the same for all video paths, i.e., $\Delta = \Delta_{k} = \hbox{constant}$ for all k. Therefore, in this case, the decoding time for each picture is the same for receivers on all video paths, i.e., $t_{d,j} = \Delta /f+ {DTS}_{j}$.

When video programs are streaming over an IP network, the transmission delays are different for each receiver due to network delay differences at various nodes. However, it can be seen from the example in Table 3 that, for the system models given in Figs 5 and 6, the decoding time t _{d, j, k} differences among different video paths, i.e., receivers at different network nodes, may not be significant enough to cause user-experience issues for some real-time video programs, e.g., real-time sport events.

Table 3. Examples on various delays and fixed delay parameter and maximum jitter parameter.

If the service aims to achieve the same decoding time, then a DTS offset would need to be added at each decoding path. In the systems given by Figs 5 and 6, for example, we can use $\bar{\Delta} = \max_{k} \lpar \Delta_{k} +\delta_{k} \rpar $ for all receivers in the service network. We can also use $\overline{\bar{B}}_{D}^{MAX} =\max_{k} \lpar \bar{B}_{D}^{MAX}\rpar $ for the system given by Fig. 5, and use $B_{\delta} =\max_{k} \lpar B_{\delta_{k}} \rpar $ for the system model given by Fig. 6. For the kth video path, the DTS offsite is $DTS_{offset}^{k} = \bar \Delta - \Delta_{k} - \delta_{k}$. Now, the decoding time $t_{d,j} = \bar{\Delta} /f + DTS_{j}$ is the same for receivers on all video paths. However, the decoder buffer fullness for the receiver on each video path may be different at t _{d, j}.
