A) Overview of the voice conversion system

An overview of a typical voice conversion system, including both the training phase and the conversion phaseis shown in Fig. 1. Overall, in the training phase a conversion function f( · ) is learned to map the source feature vector x to the target feature vector y. Then, during the conversion phase, the feature vector x of a new source utterance is built and subsequently transformed by $\hat{\bi y} = f({\bi x})$, which are finally used to synthesize the converted utterance in the target speaker's voice. In machine learning terminology, such voice conversion is a regression problem, but it is generally a challenging process due to that fact that speech quality and converted-to-target conversion similarity are usually two contradictory goals and a proper balance must be achieved [Reference Helander and Virtanen15]. In the subsections below, corresponding to the blocks in Fig. 1, we describe speech modeling for speech analysis, feature construction, and conversion function learning separately.

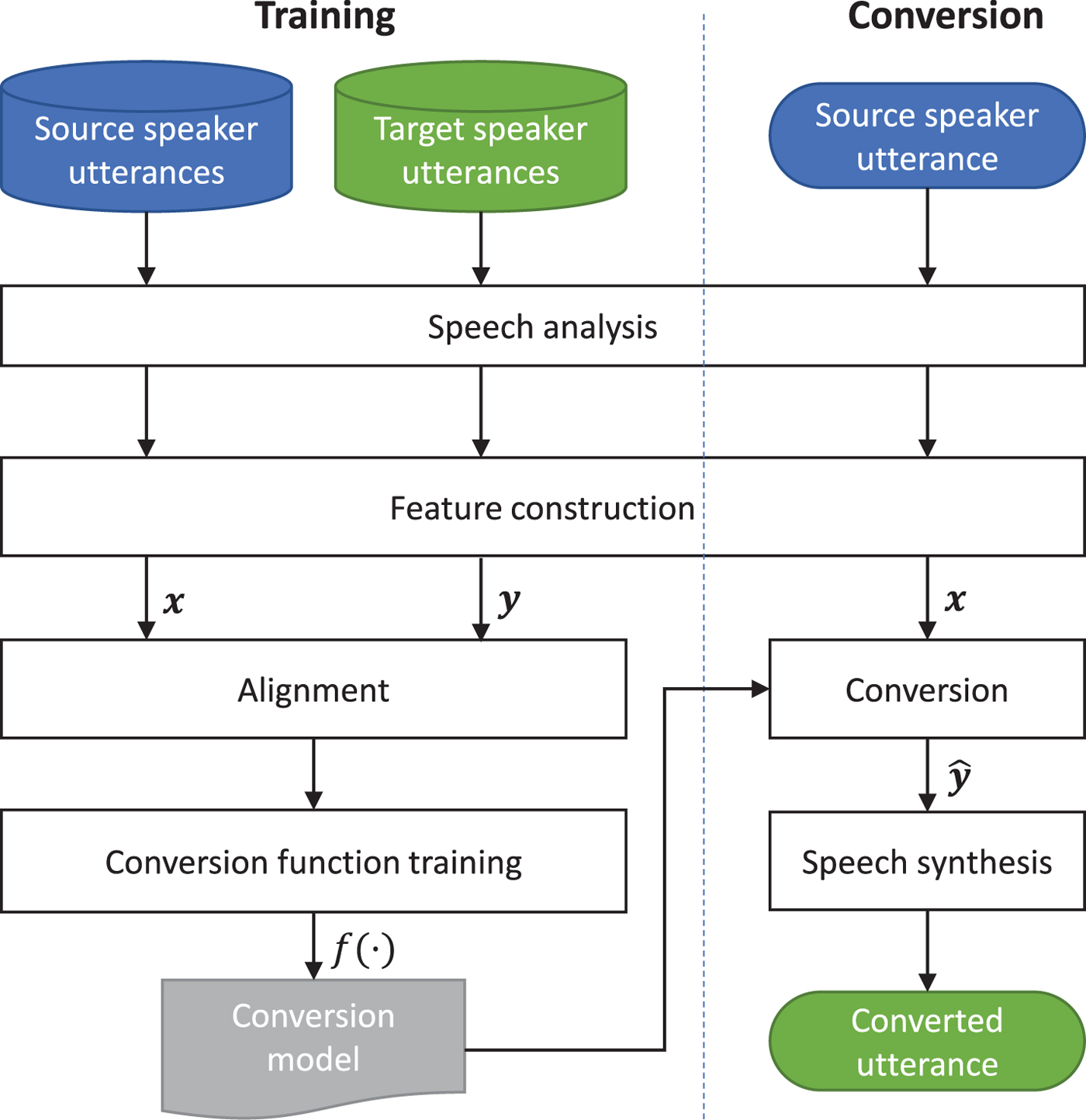

Fig. 1. General architecture of a typical voice conversion system.

B) Deterministic plus stochastic model

In a voice conversion system, a speech model should first be good for synthesis purposes, i.e., when a speech signal is reconstructed from the model parameters, it should preserve fidelity to be perceptually indistinguishable from the original one. The aforementioned TD-PSOLA is a powerful method for speech synthesis [Reference Moulines and Charpentier11]. However, it is not suitable for voice conversion because it assumes no model for the speech signal and consequently no spectral manipulation can be easily applied. Therefore, our system uses the deterministic plus stochastic model based on the sinusoidal decomposition of speech [Reference Erro, Moreno and Bonafonte39]. Similar to the classic HNM [Reference Stylianou, Laroche and Moulines12], this model represents the speech signal s as a sum of a set of sinusoids with time-varying parameters and a noise-like component denoting the residual

(1)$$ s[n] = \sum_{j=1}^{J} A_j [n] cos (\theta_j [n]) + e[n],$$

where the deterministic part appears only in the voiced fragments and the stochastic part contains the remaining non-sinusoidal signal components, such as friction and breathing noise. Though the model parameters are time-varying globally, they can be considered stable within short intervals, making it reasonable and easier to analyze the signal locally by frames, where each frame corresponds to a constant number of speech samples, say N, in a time interval of 10 ms in our case.

After the amplitudes and phases are detected [Reference Depalle and Helie40] for each measurement point k corresponding to the time instant kN, k ≥ 1, the deterministic waveform is interpolated at every time instant by

(2)$$A_j [kN + m] = A_j^{(k)} + \displaystyle{A_j^{(k+1)} - A_j^{(k)} \over N} m,$$

for m = 0, 1, …, N − 1, where A _j^(k) represents the amplitude of the jth harmonic at point k. The phases and the frequencies are interpolated together by a 3rd order polynomial as follows,

(3)$$\theta_j [kN + m] = am^3 + bm^2 + cm+d,$$

where the parameters a,  b,  c,  d are chosen in an optimal manner [Reference Erro and Moreno41]. Now with the sinusoids available, we can obtain the complete deterministic part d[n] according to equation (1), and the stochastic component e[n] can be subsequently isolated as follows,

(4)$$\eqalign{d[n] &= \sum_{j=1}^{J^{(k)}} A_j [n] {\rm cos} (\theta_j [n]),\cr e[n] &= s[n] - d[n],}$$

where J ^(k) is the number of harmonics in the kth frame.

The remaining work is to analyze the magnitude spectral shape of the residual with the linear predicative coding (LPC) method. After we acquire the deterministic plus stochastic model (1), prosodies including the duration and pitch can be modified straightly, which are detailed in [Reference Erro and Moreno41].

To reconstruct the signal from the measured parameters, the overlap-add (OLA) technique can be used to rebuild the deterministic part, where a frame of 2N samples is built at each measurement point k, described by

(5)$$\eqalign{&d[kN + m] = \sum_{j = 1}^{J^{(k)}} \left(A_j^{(k)} \cos \left(w_j^{(k)}m + \phi_j^{(k)} \right) \displaystyle{N - m \over N} \right. \cr &\left. \quad + A_j^{(k+1)} \cos \left(w_j^{(k+1)} (m - N) + \phi_j^{(k + 1)} \right) \displaystyle{m \over N} \right).}$$

Next, the N-length frames of white Gaussian noise are shaped in the frequency domain by previously calculated LPC filters to generate the stochastic component. By this means, the speech signal can be successfully synthesized from model parameters. Experimental results show that the system output is perceptually indistinguishable from the original speech [Reference Erro and Moreno41].

C) Line spectral frequencies feature construction

Though we have built a harmonic plus stochastic model, it should be noted that converting voices directly from these model parameters is quite difficult, because the amplitudes and the phases do not provide a suitable parameterization of the harmonic spectral envelope for the purpose of voice conversion. This is mainly caused by the fact that the number of harmonics is variable and generally high, which makes conversion quite complicated. Thus, as shown in Fig. 1, a further feature construction step is needed to allow better representation of speech for conversion purpose. In this study, the line spectral frequencies (LSF) coefficients, which have better quantization and interpolation properties [Reference Paliwal42], are used as the features to estimate the parameters {α_i,  μ_i,  Σ_i} of the Gaussian mixture model, which is introduced in the next subsection.

Given a pth order all-pole representation of the spectrum, 1/A(z), the LSF coefficients are the roots of the (p + 1)th order polynomials given by

(6)$$\eqalign{P(z) &= A(z) + z^{-(p+1)}A(z^{-1}),\cr Q(z) &= A(z) - z^{-(p+1)}A(z^{-1}),}$$

where P is a palindromic polynomial and Q an anti-palindromic polynomial. Note that the roots of P(z) and Q(z) are located in symmetric pairs on the unit circle, which means they can be completely characterized by the frequencies corresponding to the roots locations and only p/2 frequencies need to be stored for each polynomial. Thus, the LSF feature has p attributes in total.

Regarding practical implementation, the all-pole modeling (DAP) iterative technique is used since it leads to less distortion and thus provides better perceptual quality than its predecessors [Reference El-Jaroudi and Makhoul43]. In determining the optimal order for the harmonic all-pole filters, a trade-off must be made because high-order filters provide higher resolution and higher quality, while low-order filters can be converted more reliably. Through trial and error, p = 14th order all-pole filters are found to provide the best results.

D) Voice conversion via weighted frequency warping

From the given training set, i.e., a parallel corpus including the source speaker's and the target speaker's utterances, the final LSF feature vector can be acquired as x and y, respectively. After time alignment, it is common to use a GMM to represent the feature distribution. We can use an augmented vector z = [x^T,  y^T]^T to build a joint GMM with m components,

(7)$$p({\bi z}) = \sum_{i=1}^{m}\alpha_i {\cal N}({\bi z}; {\bi \mu}_i, {\bi \Sigma}_i),$$

where μ_i and Σ_i are, respectively, the mean vector and the covariance matrix for the ith Gaussian component and {α_i} are positive adding up to 1. μ_i and Σ_i can be partitioned into a block-wise form corresponding to x and y given by

(8)$${\bi \mu}_i = \left[\matrix{{\bi \mu}^x_i \cr {\bi \mu}^y_i} \right], \quad {\bi \Sigma}_i = \left[\matrix{{\bi \Sigma}_i^{xx} & {\bi \Sigma}_i^{xy} \cr {\bi \Sigma}_i^{yx} & {\bi \Sigma}_i^{yy}}\right],$$

which can be estimated from data using the Expectation-Maximization (EM) technique.

During conversion, for a source input vector x_t from the frame t, the conditional distribution of y_t given x_t is again modeled with mixed Gaussian distribution, and we can use the mean vector as the predicted target output vector $\hat{\bi y}_t$. Thus, the classic conversion function of GMM [Reference Helander and Virtanen15] is formulated as follows,

(9)$$ F({\bi x}_t) = \sum_{i=1}^{m} \omega_i ({\bi x}_t) \left[{\bi \mu}_i^y + {\bi \Sigma}_i^{yx} ({\bi \Sigma}^{xx}_i)^{-1} ({\bi x}_t - {\bi \mu}_i^x) \right]$$

where ω_i(x_t) is the posterior probability that the given LSF vector x_t belongs to the ith Gaussian, defined by

(10)$$\omega_i({\bi x}_t) = \displaystyle{\alpha_i {\cal N}({\bi x}_t; {\bi \mu}_i^x, {\bi \Sigma}_i^{xx}) \over \sum_{j=1}^{m} \alpha_j {\cal N}({\bi x}_t; {\bi \mu}_j^x, {\bi \Sigma}_j^{xx}) }.$$

Though the traditional GMM method described above can achieve good similarity for voice conversion, the quality of the converted speech is still unsatisfactory mainly due to the over-smoothing effect [Reference Helander and Virtanen15]. By contrast, frequency-warping-based methods can avoid significant loss of speech quality since the degree of modification is limited [Reference Nguyen, Lee, Tian, Dong and Chng35]. Therefore, we adopted the method originally proposed in [Reference Erro and Moreno36], which aims to obtain high converted-to-target similarity while preserving the speech quality, by combining GMM and frequency warping. The main inspiration is that the mean LSF vectors of each acoustic class corresponding to each Gaussian component in GMM, μ_i^x and μ_i^y, have a very similar formant structure. Following this observation, a piecewise linear frequency-warping function W _i(f) is developed using the position of these formants for each acoustic class, and the frequency-warping function for the complete frame including m acoustic classes is obtained by

(11)$$ W(f) = \sum_{i=1}^{m} w_i({\bi x})W_i(f).$$

With the established W(f), supposing A(f) and θ(f) are the magnitude and phase estimators of the current frame's spectrum, spectral modifications can be made by warping the source envelopes as follows,

(12)$$A_w(f) = A(W^{-1}(f)), \quad \theta_w(f) = \theta(W^{-1}(f)).$$

Even after we obtain the warped spectrum of the current frame S _w(f) as above, the energy distribution still differs from the one of the actual target voice, because the intensity, bandwidth, and spectral tilt remain almost unchanged. The GMM transformation function (9) is used here to obtain a new version of the target spectrum S _g(f) from the transformed LSF vector F(x). The final converted spectrum for the current frame is obtained by

(13)$$ S^{\prime}(f)=G(f) S_w(f),$$

where the energy correction filter G(f) is given by

(14)$$G(f) = \left\vert \displaystyle{S_g(f) \over S_w(f)} \right\vert \ast B(f),$$

which uses a smoothing window function B(f) to do convolution (the * operator). The B(f) function can control the balance between similarity and quality of the converted speech by adjusting its shape. A triangular smoothing function is commonly used in practice [Reference Erro, Moreno and Bonafonte26].

To change the magnitude of the formants, the all-pole envelope of the converted $\hat{\bi y} = F({\bi x})$ can be acquired and the energy at certain bands of interest can be measured. The energy of the converted speech frame in each band is simply corrected with constant multiplicative factors.

An important prosodic feature, the fundamental frequency f ₀, is modified by the simple but popular mean-variance global transformation [Reference Nguyen, Lee, Tian, Dong and Chng35]. Since f ₀ follows a log-normal distribution, the mean $\mu_{f_0}$ and the variance $\sigma_{f_0}$ of log f ₀ can be computed during training. Then, f ₀ of the converted speech signal can be linearly scaled by

(15)$$\log f_0^{(c)} = \mu^{(t)}_{f_0} + \displaystyle{\sigma^{(t)}_{f_0} \over \sigma^{(s)}_{f_0}} \left( \log f_0^{(s)} - \mu_{f_0}^{(s)}\right),$$

where the superscripts (s) and (t) represent the source and target respectively, and f ₀^(c) is the fundamental frequency of the converted speech.

As for the stochastic component in equation (1), its conversion is known to be not as relevant as the harmonic/deterministic conversion [Reference Stylianou, Cappé and Moulines13]. Nevertheless, it is better to predict the stochastic component for the target speaker using the vocal tract LSF parameters in voiced frames, as detailed in [Reference Erro and Moreno36]. At this point, we have finished the description of the underlying voice conversion theory for our system. In the following section, we will detail the highly efficient implementation of such algorithms.

A) Multi-core parallel computing

Today, it is almost standard practice for smart phones to ship a multi-core CPU, even for low-end smart phones. As an example, iPhone 7, released in September 2016, uses the Apple A10 Fusion 64-bit system-on-chip (SoC), which consists of two low-power cores and two high-power cores. As another example, the low-end Redmi 5 Android phone, released on December 2017 by Xiaomi, is equipped with a Snapdragon 450 SoC carrying 8 cores. Therefore, to make full use of the computational capacity of mobile phones, especially the multi-core processors widely available on smart phones, our system must be parallelized to work on multiple cores for real-time conversion performance.

Parallel computing is a type of computation in which many calculations or the execution of process are carried out simultaneously on multiple cores. In simple words, a large complicated problem can be decomposed into smaller and easier ones, which can be allocated to different cores to be solved simultaneously, and thereby reduce the total computation time required [Reference Kalva, Colic, Garcia and Furht44]. Due to the physical constraints preventing frequency scaling, parallel computing has gained broader interest and has become the dominant paradigm in computer architecture, as shown by the popularity of multi-core processors [Reference Asanovic45]. For example, the multi-core processors have been exploited to efficiently decode videos [Reference Corrales-Garcia, Martinez, Fernandez-Escribano and Quiles46]. In our voice conversion system, the computation is parallelized in mainly two spots, the speech modeling and analysis phase during both training and conversion, which is illustrated in Fig. 2.

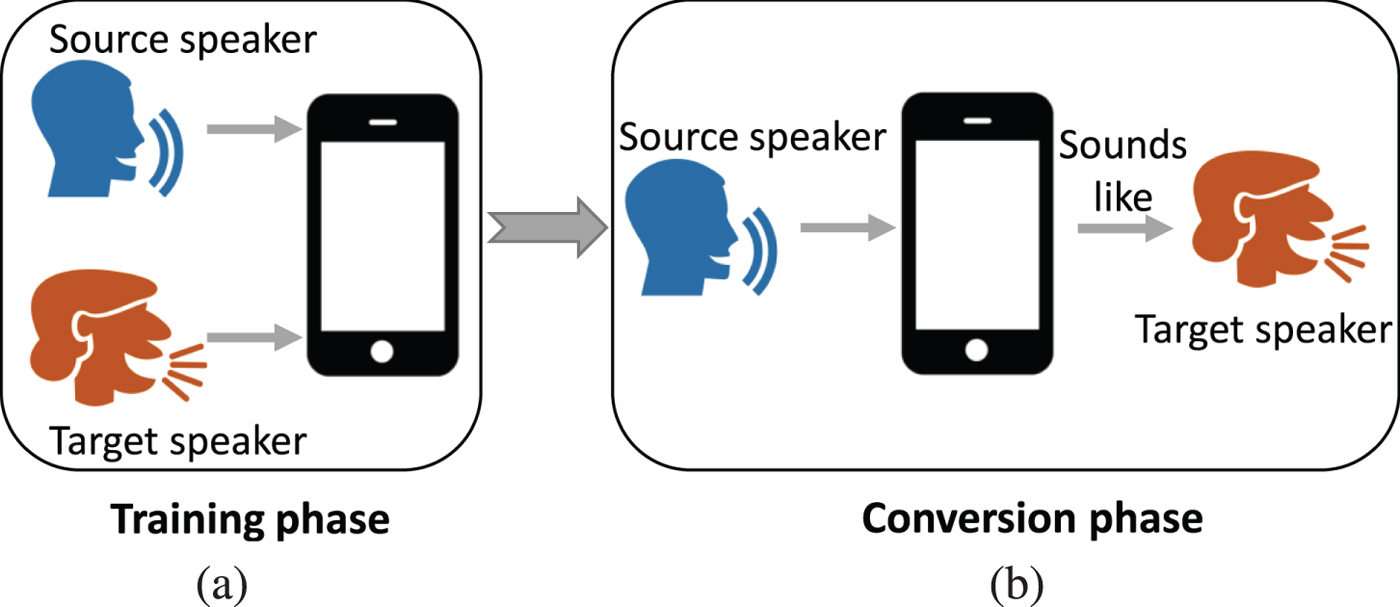

Fig. 2. Parallel computation during training and conversion phases.

The parallelization during the training phase is obvious and straightforward, as illustrated on the left side of Fig. 2 since the speech analysis and feature construction of each utterance sample is independent. Therefore, we can distribute the total 2M samples from both the source speaker and target speaker on the C cores by creating a thread t _i on each core. In such a way, ideally, C audio samples can be processed at the same time without interfering each other. Therefore, the total running time is greatly reduced because the time consumed by speech analysis and feature engineering occupies a large portion of the entire time cost.

It is more subtle to parallelize the conversion phase. The average duration of sentences in the corpus is about 4 or 5 s, similar to the ones we speak everyday. Given an utterance input from the source speaker to be converted, we first split it into a group of continuous partitions p _i,  i = 1, 2, …, K, whose lengths are approximatively equal, say, around t _p seconds. Then, similarly to the training phase, we again allocate these short partitions to different cores for simultaneous processing, as shown on the right-hand side in Fig. 2. To compensate the possible artifacts introduced in the segment boundary, there is an additional overlapping region of t _o seconds' duration on each side of the segmentation point, shown in Fig. 3(a). After each partition p _i is converted into p _i^c, we merge these segments into a complete converted speech using a logistic function to achievea smooth transition around the partition point. The logistic function used for smooth transition here is given by

(16)$$ \phi(x) = \displaystyle{1 \over 1 + e^{-kx}},$$

where k adjusts the steepness of the curve.

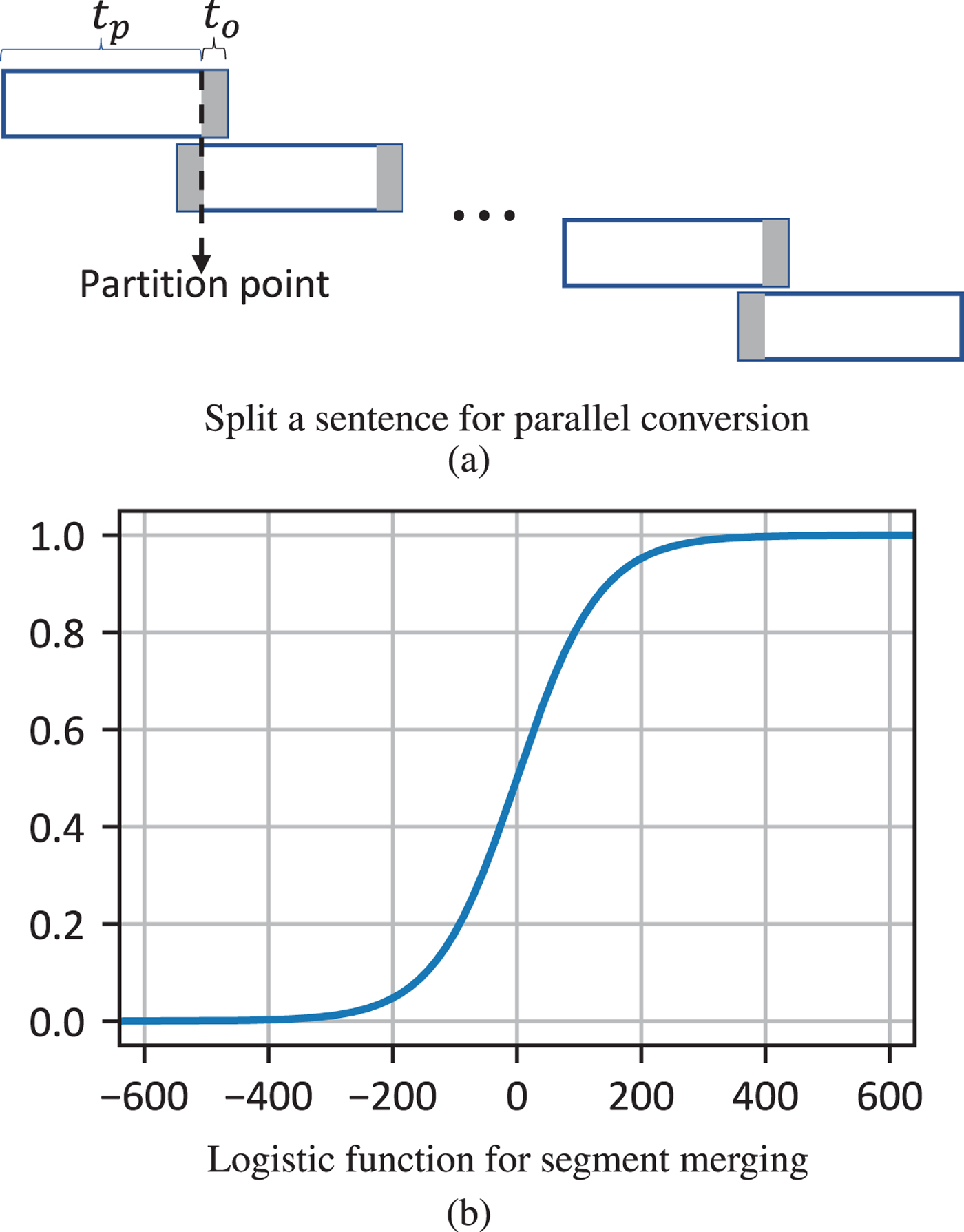

Fig. 3. Multi-core parallelism in the conversion phase. First, an input sentence is partitioned into multiple segments and those segments are converted simultaneously; then, the converted segments are merged smoothly using a logistic function for weighted sum. (a) Split a sentence for parallel conversion (b) Logistic function for segment merging.

In our current implementation, the overlapping length is 40 ms, i.e., about 640 samples. Supposing we index the two overlapping regions around the partition point from − 640 to 640 and choose k=0.015 in the logistic function (16), shown in Fig. 3(b), the sample at index i merges the corresponding two samples, s _i^l in the left partition and s _i^r in the right partition, by

(17)$$s_i = (1 - \phi(i))s_i^{l} + \phi(i) s_i^{r}.$$

Though in current implementation we mainly parallelize the speech analysis, feature construction, and frame alignment steps due to their high time consumption, it should be noted that more parallelization can still be applied to the subsequent steps such as the estimation of GMM parameters in equation (8). For example, in the work of Wojciech Kwedlo [Reference Kwedlo47], a shared memory parallelization of the standard EM algorithm based on data decomposition is proposed to learn the GMM parameters on a multi-core system for higher performance. Thus, we are planning to implement such features to further accelerate our voice conversion system in its next version.

B) Vectorization via SIMD

After the computation work is spread on multiple cores, our next target is to make the single-core throughput as high as possible. Again, we need to explore and take full advantage of the hardware's capacity, especially in-core parallelism for operations on arrays (vectors) of data, due to the heavy use of matrices in the underlying algorithms. On modern mobile phones, in-core parallelism, or vectorization, is mainly supported by SIMD widely available on today's processors [Reference Kalva, Colic, Garcia and Furht44,Reference Mitra, Johnston, Rendell, McCreath and Zhou48].

Most mobile processors, including those from both iPhone and Android phones, are designed with the ARM architectures. For example, iPhone 7 uses the Apple A10 Fusion 64-bit system-on-chip, which is based on the ARMv8-A architecture with 64-bit instructions support. Particularly, modern ARM mobile processors, such as all of the Cortex-A8 series, usually support the Advanced SIMD extensions, known as NEON, which is a combined 64- and 128-bit SIMD instruction set that provides standardized acceleration for media and signal processing applications [Reference Mitra, Johnston, Rendell, McCreath and Zhou48]. NEON can support 8-, 16-, 32-, and 64-bit integer and single-precision (32-bit) floating-point data and provide SIMD operations up to 16 operations at the same time. In a study on digital image stabilization for mobile devices, the motion vector projection and the FFT calculations are accelerated using the Neon SIMD engine available on the ARM CPU, and the global motion vector for each frame can be calculated in <20 ms [Reference Ha, Park and Han49]. As its counterpart, in x86/64 architectures commonly adopted for PCs, the processors usually provide SSE or AVX-based SIMD instruction set.

In brief, SIMD performs the same operation on multiple data elements of the same type aligned in a vector simultaneously. Theoretically, if we can process q data elements as a whole with a single SIMD, then the speedup is close to q compared with sequential processing via scalar instructions, though the actual speedup is potentially limited by the memory bandwidth. Fig. 4 illustrates a common operation in multimedia processing, where the same value is being added to a large number of data elements, implemented with scalar instructions and SIMD instructions separately for comparison purpose. In the context of audio processing, audio data usually comes in 16-bit integer types. Supposing we are using the 64-bit NEON registers for vectorization, we can pack four 16-bit integers into this single register at the same time, as shown in Fig. 4(b). The process using only scalar instructions is depicted in Fig. 4(a). To perform a single addition, two load operations (LD) are first executed to read two numbers A and B from memory. Then, an addition (ADD) is instructed to get the result C. Finally, the sum C is written back to memory with a store (ST) instruction. By contrast, SIMD enhanced load, add and store instructions can perform on four integers simultaneously, which is highlighted in Fig. 4(b). Therefore, in total, 16 scalar instructions are reduced to onlyfour instructions via SIMD vectorization, which yields a theoretical speedup of four.

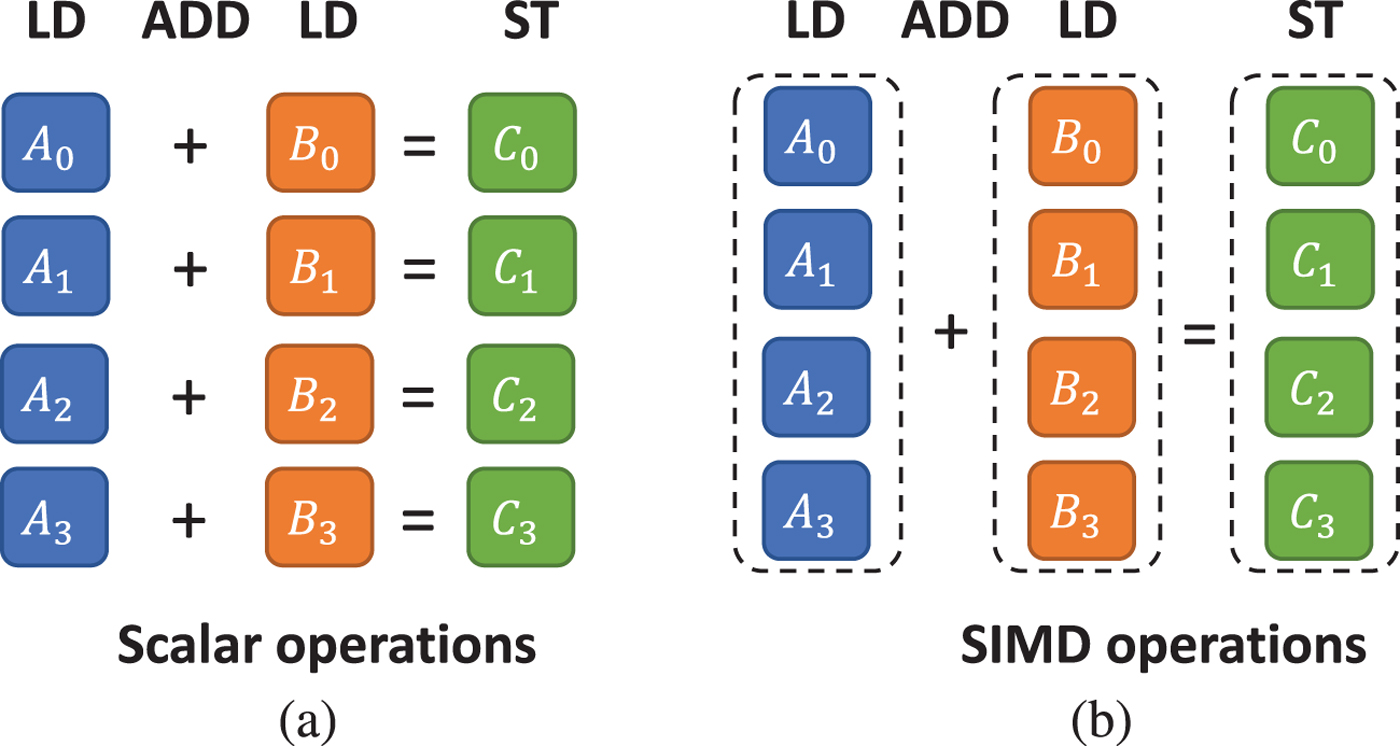

Fig. 4. Scalar vs. SIMD operation for multiple additions.

To make use of SIMD in practical programming and software development, there are mainly three ways: (1) coding in low-level assembly instructions directly; (2) using intrinsic functions with C interfaces which internally wrap assembly codes; and (3) leveraging auto-vectorization if supported by compilers [Reference Mitra, Johnston, Rendell, McCreath and Zhou48]. Generally, programming in the assembly language directly is labor-intensive and highly error-prone, despite their possibly extreme performance. On the other hand, auto-vectorization can be completely conducted by a compiler itself with no need of human intervention. However, at present even state-of-art compilers are not smart enough, and consequently, only a small portion of codes can be vectorized automatically. Therefore, our study relies on intrinsic functions as a trade-off between system performance and manual labor.

It is worth pointing out that, ina real implementation, dependence on intrinsic functions does not necessarily mean we have to call them directly in programming by ourselves. Notably, the major part of the speech analysis and conversion algorithms are formulated into matrix computations. Therefore, we can resort to some mature linear algebra libraries, which expose high-level interfaces to facilitate application development while internally making use of intrinsic functions to vectorize matrix/array computation as much as possible. That is, the internal utilization of SIMD instructions is almost transparent to users. Relevant details are described in the next subsection.

C) C++ implementation

In the above two subsections, we have described core-level and instruction-level parallelism to accelerate the core algorithms for voice conversion. The objective of this study is to develop an efficient voice conversion system on mobile devices, not limited to a specific device type like iPhone, iPad or Android phones. Though the GUI development kits differ greatly from each other on different mobile operation systems, such as iOS for iPhone and Android for most of the other smart phones, we want the core algorithm implementation of this system to be platform independent such that this crucial part can be easily ported across multiple platforms with minimum modifications. Hence, we separate the core functionality and the GUI in our system architecture. To satisfy both platform neutrality and high-efficiency demands, the C++ programming language is the best candidate for coding the core algorithms. As a general-purpose language, C++ highlights performance, efficiency, and flexibility, i.e., it allows low-level memory manipulation while still providing high-level abstractions in an object-oriented manner. Below we briefly outline how to achieve multi-core and SIMD-based parallelism in C++.

To apply thread-based parallelism for multi-core computation, that is, multi-thread programming in C++, the simplest way is to use the standard OpenMP API, which supports multi-platform shared-memory parallel programming in C and C++ [Reference Dagum and Menon50] by only using straightforward directives. However, OpenMP is still poorly supported on iOS, the mobile operation system of iPhone or iPad. Instead, as Apple recommends, we should use Grand Central Dispatch (GCD) technology for task parallelism, which is specially designed and highly optimized for iOS. In short, those simple parallelism frameworks are still somewhat platform dependent. Fortunately, this portability problem can be solved with the new C++ 11 standard published in 2011, which adds support for multi-threading programming by introducing a new thread library. In simple words, we can create a new thread by instantiating the std::thread class by passing a function representing the work to be done in this thread. Special attentions should be paid to avoiding data races in such multi-threaded programs by using synchronization primitives like std::mutex and std::lock to protect shared data. Interested readers may refer to this excellent book [Reference Williams51] for more details on multi-thread programming in C++.

As for vectorization on each core using SIMD instructions, we lean upon the well-known Eigen library, a high-performance C++ template library for linear algebra, which has been used in many industrial projects [Reference Guennebaud52]. We choose Eigen particularly because it supports all matrix sizes and provides common algorithms for matrix decomposition, numerical equation solvers and other related algorithms such as fast Fourier transform (FFT). More importantly, Eigen is fast enough by performing explicit vectorization internally for SSE, AVX, and ARM NEON instruction sets while hiding this complexity from users. That is, we can achieve instruction-level parallelism as much as possible by simply implementing the algorithms using matrices and linear algebra operations provided by Eigen. As a side benefit, Eigen provides interfaces similar to MATLAB, which can simplify programming and make the codes more readable especially for engineers.

Now we can give a bird's-eye view of the software architecture of our voice conversion system shown in Fig. 5. It is clear that our system splits the core algorithms (compute engine) and the graphical user interface (GUI) to maximize platform portability. Ideally, no modifications of the core algorithms' source codes are required when ported to another platform, and we just need to recompile the C++ codes with the platform specific compilers for deployment. On the contrary, generally, the GUI part is tightly coupled to specific platforms, such as iOS, Android and Windows, and cannot be migrated. For example, on iOS, we construct the GUI with the UIKit framework using either the Swift or Objective-C language, while Android provides its own UI components accessible by the Java or Kotlin language. One pitfall of the C++ based computing kernel is that C++ only supports poor or even no interoperability with some languages including Swift, the main language for iOS development. Thus, we decide to wrap the input/output interfaces of core algorithms using the C programming language, which can interact with all mainstream languages quite easily. In the complete mobile application, the GUI communicates with the core algorithms by passing information mainly through the train and convert functions provided as C interfaces. In such a way, the computational engine, i.e., the core algorithms, can work well on all the four operation systems shown in Fig. 5 as we have tested, two for mobile devices and two for PCs, thus realizing our objective of platform independence.

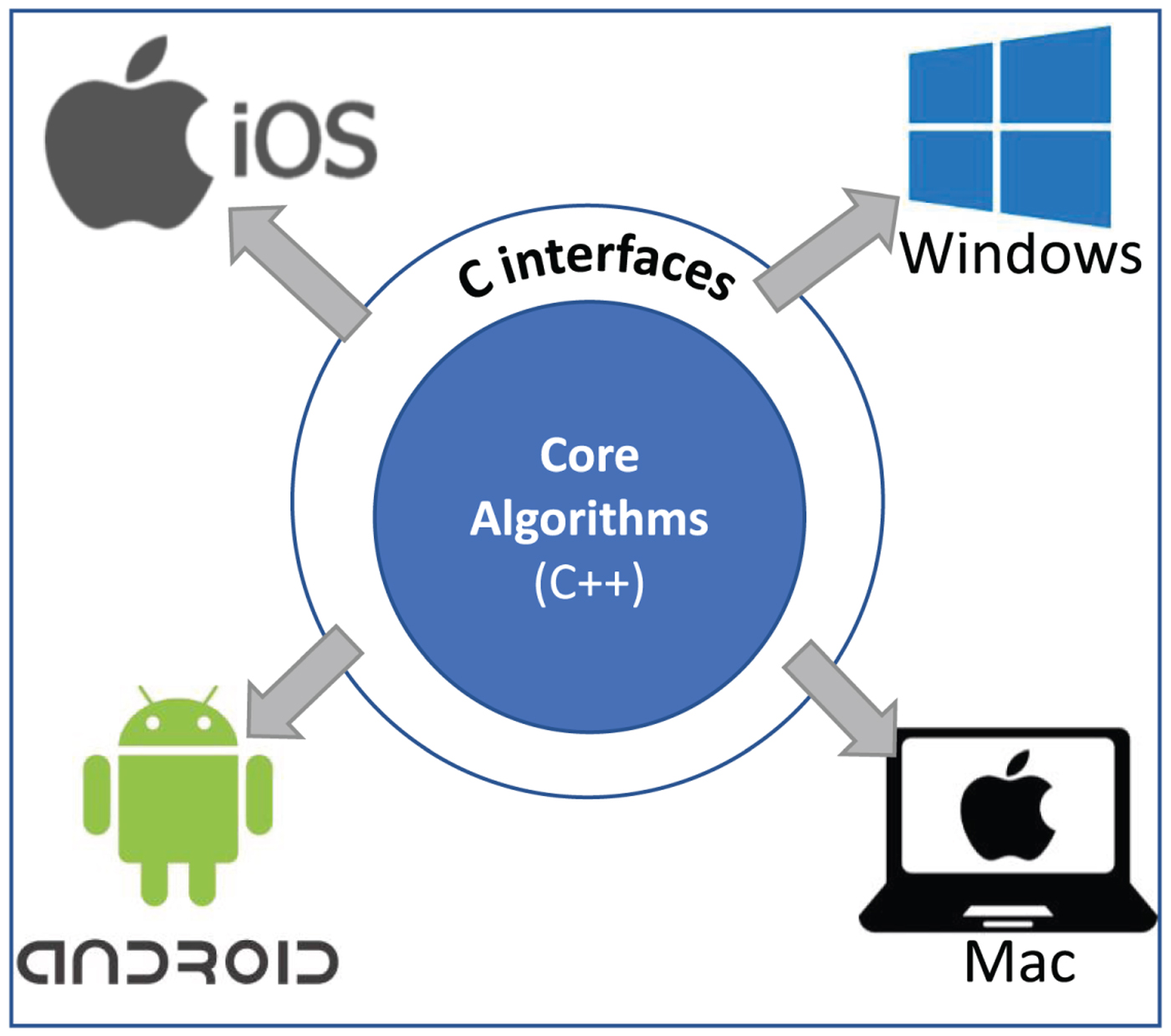

Fig. 5. Overview of software architecture. The core algorithms (compute engine) are implemented in C++ for portability. The graphical user interface (GUI) sits on top of the engine and may be built with different languages/libraries on various platforms. The engine exposes C interfaces to be used by GUI on four common operation systems: iOS, Android, Windows, and Mac.

A) Overview of the functional modules

In software engineering, it is well known that modularization is a fundamental principle for large-scale software development. The main modules in our system are exhibited in Fig. 7. To manage the user accounts, including registration, login and logout, we store the user information in a light-weight mobile database such as SQLite, whose access is mediated by the iOS Core Data framework to simplify coding. Similarly, for one source speaker (i.e., the user), multiple target speakers can be trained, and the association between the source speaker and the target speaker are also recorded into the database. Most of the hard disk storage of this app is occupied by the corpus built for voice conversion training. We provide text materials each containing about 20 normal sentences to be read by a pair of source speaker and target speaker. While a speaker is reading the transcript, his/her voice can be easily recorded by our app (Fig. 6) and saved as monophonic WAV files with a sampling frequency of 16 kHz, with support from the iOS Core Audio framework.

Fig. 7. Outline of the modules in the iOS application.

At last, it should be noticed from Fig. 7 that currently in our system the interaction between the GUI layer and the compute engine, i.e., the core algorithms implemented in C++, is quite clear and concise. During training, the GUI layer only needs to tell the engine what are the WAV files composing the training set, and the engine will produce a model file corresponding to the conversion function. Similarly, at the point of conversion, the GUI layer notifies the engine about the audio file from the source speaker to be converted, and the engine will finally store the finished converted speech in a new WAV file and inform the GUI layer of the file path. We can hear the converted voice by simply playing this audio file. Besides, it can also be set to be played automatically when finished.

B) Specific design issues

It is a very challenging task to develop a well-performing iOS application, which involves UI design, business logic modeling, coding with Swift/Objective-C, debugging with XCode, and many other tedious works. Here, details are omitted to conserve space. In the following, we only list and address two specific design concerns about the app development as representatives of the whole process.

1) MVC design pattern for the user interface

In developing GUI-based applications, a well-known best practice is to separate the data from its presentation, because the presentation may vary a lot according to specific requirements, e.g., in a chart or in a table. Since the first release of iOS, Apple has recommended to adopt the Model-View-Controller (MVC) design pattern to emphasize this best practice, which is delineated in Fig. 8. Generally, model objects hold the data or knowledge we have, and view represents something visible in the user interface dedicated to displaying the data. However, the model and the view cannot communicate directly in order to reduce coupling. Instead, they are mediated by the controller object, typically through the delegate pattern.

Fig. 8. Model-View-Control(MVC) design pattern.

In practice, we define a model object to access the data stored in the database or the file system, as shown in Fig. 7. When there is a proper change in the data, the model notifies the controller object, and subsequently, the controller attempts to update the view according to the changed data. In the other direction, when the user interacts with the view, his/her action is passed to the controller, which further informs the model about the user intention, e.g., updating or deleting data. Despite its simplicity, the layers of a typical GUI application can be cleanly decoupled by the MVC pattern to encourage better organization and to promote code reuse. In our app, each window is constructed with the MVC pattern described above.

A) Core algorithm speedup test results

To evaluate the efficiency of our implementation making full use of parallelism, we tested the engine performance with various environment configurations. For simplicity, we conducted the tests on a Windows 10 PC with an Intel Core i7 CPU carrying 4 hardware cores, since the algorithms were first developed and tested with the powerful Visual Studio IDE on Windows 10. This also demonstrates that our core algorithm implementation is indeed platform agnostic, since we can run the same code on iOS (iPhone 7) with no changes at all. In each test measuring the running time listed below, the experiments were repeated for 10 times for more accurate estimation.

1) Overall performance

We timed the training process for 20 utterances, each with a duration of 4.5 s on average, from both the source speaker and target speaker, which is the default configuration of our mobile application. In this test, the number of Gaussian components used in the model (7) is chosen as m=4. As the baseline, we also measured the running time of the original MATLAB code on the same PC. It should be reminded here that many built-in functions of MATLAB are in fact highly optimized C or Fortran routines, which may be well implemented in a parallel manner internally. Thus, it is common that a naive C++ numerical program cannot beat its counterpart in MATLAB in time efficiency. The statistics of the measured running time is illustrated in Fig. 9. Additionally, we should note that the frequency warping method only transforms the voiced frames. Thus, the number of voiced frames in the utterances may be of more interest. In our training set including 20 utterances, the average number of voiced frames in each utterance is 302.6 and the frame shift is 8 ms (128 samples). Thus, the average length of the voiced signal in the training set is only 2.42  s. Similarly, we can count the average number of voiced frames in the test set for conversion, which is about 297.5, corresponding to an average duration of 2.38 s if we only consider the voiced segments.

Fig. 9. Running time of the training phase with different configurations (95% confidence interval). From left to right, S+NV: single-threaded C++ with no vectorization, S+V: single-threaded C++ with vectorization, M+NV: multi-threaded C++ without vectorization, M+V: multi-threaded C++ with vectorization, MATLAB: 64-bit MATLAB 2016 with default settings.

As is shown in Fig. 9, the C++ program enhanced by both vectorization and multi-core parallelism can even outperform the one in MATLAB, which is already quite fast due to its highly optimized built-in functions and specific toolboxes devoted to signal processing. This result also demonstrates the inherent efficiency of C++ as well as the high performance of Eigen. Obviously, when we make the most of the hardware characteristics to parallelize the program, including both multi-core and vectorization-based parallelism, the running time is reduced to a minimum around 25 s. Of course, the precise running time on mobile phones will be longer than the one on PC due to the limited power of mobile devices. However, the acceleration effects of hardware-enabled parallelism on system performance are similar, indicating the necessity of parallelizing the core algorithms for truly efficient implementation on mobile phones.

2) Profiling of each stage

In the current implementation of the training phase, the first two stages including speech analysis, feature construction, and frame alignment (see Fig. 1) are parallelized over multiple cores. Ideally, each utterance or pair of source-target utterances (for frame alignment) can be processed independently and simultaneously on separate cores. To further inspect the workload distribution, we measured the running time of each stage during training with 20 parallel training samples, each with a duration of about 4.5 s on average. The results are plotted in Fig. 10(a).

Fig. 10. Running time of each stage during the training phase with different configurations (95% confidence interval). S ₁: speech analysis and feature construction; S ₂: frame alignment of parallel corpus; S ₃: conversion function training. Vectorization is enabled for all conditions.

Clearly, it is shown that the first stage, i.e., speech analysis and feature construction, takes most of the time (about 84%). By contrast, the second stage of training, i.e., frame alignment only takes a negligible proportion of the total time for the current training set. As for the final stage, conversion function training, though it takes a non-negligible amount of computation time, it is not straightforward to parallelize this stage, because it requires all the data as a whole. Furthermore, since the last stage takes much less time compared with the first two stages, we choose to only implement the first two stages through multi-core parallelism for now. By distributing the workload of the first two stages to four cores using four threads, the running time of these two stages is greatly reduced to about 35.2% and the total running time is reduced to about 44.8% of the time needed on a single core, which is demonstrated in Fig. 10(b). Finally, we want to emphasize that, though the time spent by the frame alignment stage (S2 in Fig. 10) seems to be minor, it is still necessary to parallelize this stage, because its theoretical time complexity is quadratic due to the use of dynamic time warping [Reference Berndt and Clifford53], while the other two stages only demonstrate linear time complexity empirically.

3) Effect of number of cores

To further analyze the speedup effect brought by multi-core parallelism, we measured the training time for the training set composed of 20 parallel utterances of average duration about 4.5 s as well as the conversion time of a 5-s source input utterance. Since there are in total 4 cores in the CPU of our PC, the program was configured to use a different number of cores ranging from 1 to 4 for parallelism. The running time with respect to the number of cores allowed is reported in Fig. 11. Since only the first two stages of the training phase benefit from multi-core parallelism, that is, about 84% of the program can be parallelized (Fig. 10(a)), the acceleration effect exhibited in Fig. 11 is indeed consistent with the Amdahl's law, which is often used in parallel computing to predict the theoretical speedup when using multiple processors [Reference Hill and Marty54]. Specifically, with four cores available, the speedup of the training phase is about 2.3 times, while Amdahl's law predicts a theoretical speedup of at most 2.7 times. Overall, according to the relationship between running time and the number of cores shown in Fig. 11, this voice conversion system is characterized by sublinear speedup when multi-core parallelism is applied.

Fig. 11. Running time of the training phase (top) and the conversion phase (bottom) when a different number of CPU cores are used for multi-core parallelism (95% confidence interval). There are four cores in total in the CPU under investigation. Vectorization is enabled.

We further investigated the scalability of multi-core parallelism in our system by increasing the training set size proportionally to the number of cores used. Results are shown in Fig. 12. Obviously, the average time required for 10 training samples per core increases as the total problem size enlarges. This is due to the fact that not all the parts of the algorithm framework are parallelized (Fig. 10). Nevertheless, the utilization of multi-core parallelism in our system is still scalable, since the running time can be greatly reduced for a fixed problem size when more cores are available (Fig. 11). From a practical perspective, it should be noted that though in principle we can use as many threads as we like when implementing multithreading based parallelism, the speedup cannot be further enhanced once there are more threads than cores on a single CPU. For example, in our case the training phase of our system is CPU-intensive, and thus at most four threads can be executed simultaneously on a 4-core CPU.

Fig. 12. Training time of various training set sizes and numbers of cores (95% confidence interval). On average, each core corresponds to a training set of 10 utterances. A label n-k means n utterances in the training set and k cores. Vectorization is enabled.

B) Demonstration of the application

The mobile application we have developed for iPhone 7, Voichap, has six windows in total, whose screen shots are shown in Fig. 13, which correspond closely to the various modules in Fig. 7. The most important actions are performed in Figs 13(d) and 13(f), where the training and conversion take place. We have provided some transcripts to be read by both the source speaker and the target speaker to build a parallel corpus for training purpose, as shown in Fig. 13(d), where we can also edit the target speaker information, including his/her name and a short description. More specifically, in the context of Voichap, the source speaker actually refers to the user. Hence, the user only needs to read these sentences once and the saved audios can be reused to match all target speakers for training in the future. Afterward, the user can ask the target speaker, e.g., his/her friend, to read these sentences again to the phone and the utterances are recorded by this app to create the training corpus.

Fig. 13. User interface of the Voichap application on iPhone 7. (a) Login and sign up (b) Recorded audios list (c) Select the target speaker (d) Speaker info & training (e) Source and targets management (f) Speak here.

As previously illustrated in Fig. 7, the speaker information is stored in a light-weight database and the taped audios are organized in a specific directory for each speaker in the iOS local file system. After we finish the recording, the Train button in Fig. 13(d) can be touched to start the training process, and at the end, a conversion model file is generated corresponding to the given source-target pair. Note that the model file contains all the necessary information required to quickly restore the conversion function f( · ) when needed (Fig. 1). Now, it is time to play with real-time voice conversion highlighted by the Speak here screen in Fig. 13(f). Just simply press and hold down the microphone button, and say anything you like. Once the microphone button is released, the conversion phase starts automatically and immediately. After a short while, you can hear what you have just spoken being repeated, but in the voice of the target speaker.

As a side note, our Voichap application can also be fed with audio files directly aside from recording improvizational utterances by ourselves. This support can make the application much more interesting. As aforementioned in the introduction section, currently, there are some paid apps available on Google Play or Apple Store regarding voice changing, which can mimic a celebrity's voice though generally the performance is poor. However, with our Voichap app, you can transform your voice into the one of any celebrity once you can get some training utterances from him/her. Of course, it is impractical to really ask a celebrity to read the specified text to our phone. However, we can easily download their public speeches from websites like YouTube and then extract the audios and break them into sentences as the training materials of the target speaker. The remaining work is to speak the same sentences and record our utterances as the source speaker's training data. This process is shown in Fig. 14, where we take President Trump as an example. In short, a new target is first created and the audio files are loaded, which we grabbed from YouTube. After the model is trained, we can speak words like ‘make America great again’ as if we were President Trump while the voice conversion system modifies the voice individuality and makes it as if it was really spoken by President Trump.

Fig. 14. A typical usage scenario: how to make yourself sound like President Trump?.

C) Experimental evaluations of the voice conversion system

The effectiveness and real-time performance of our mobile voice conversion system, Voichap, were evaluated with voice conversion among both male and female speakers. Unlike the traditional benchmarking of voice conversion, which is always pursuing better transformation similarity or speech quality regardless of the computational cost, as a practical mobile app, Voichap attempts to achieve good but not necessarily the best performance yet in an acceptable period of time. Our ultimate objective is to develop a real-time voice conversion system on mobile phones for daily use and the user experience matters most. Obviously, it does not make much sense in this situation if a user has to wait for half an hour to get the converted speech even if the conversion quality is extremely high.

Four candidates ranging in age from 20 to 30 were chosen as speakers in the following tests, including one male and one female as the source and the same setting for the target. Thus, four speaker pairs are examined in total: male-to-male (M--M), male-to-female (M--F), female-to-male (F--M), and female-to-female (F--F).

1) Parameter tuning and time efficiency

The two major parameters of our voice conversion system are the number of training sentences and the number of Gaussian components in the GMM model, i.e., m in equation (7). According to a survey of multiple users, we found that it is a good choice to build a transcription collection of 20 sentences with a duration around 4 or 5 s for the purpose of training. Though generally a larger training set can contribute to better performance, it may make the user get bored to read a lot of sentences and can also lead to an overlong training time. To determine the best option of m, we mainly need to balance the running time and the conversion performance. By testing various values of m, we summarize the training time with respect to each m in Fig. 15.

Fig. 15. Measured running time of the training phase with respect to different number of Gaussian components (95% confidence interval). The training set contains 20 sentences of average length around 4.5 s and the running time is measured by repeating 10 times. Vectorization and 4-core parallelism are enabled.

Clearly, the training phase will take a longer time if more Gaussian components are adopted. Besides, we see that the total training time exhibits a nonlinear relation with respect to the number of Gaussian components m. On the other hand, the average training time for the training set including 20 utterances ranges from 20 to 55 s for various m's. Most importantly, through a subjective listening test of the converted speech in terms of converted-to-target similarity and speech quality, which is illustrated in Fig. 16, we find that the overall improvement is minor once m>4 and consequently the listeners give comparable opinions on the similarity and quality of the converted speeches generated by various m values above this threshold. Therefore, from Figs 15 and 16, it is sensible to choose m=4 as the default parameter value of our system, which can help greatly reduce the running time yet without significantly deteriorating the converted speech quality and similarity from the aspect of human perception. In the following objective and subjective evaluations, we all set m=4.

Fig. 16. Subjective evaluation of the voice conversion system with respect to the number of Gaussian components m in GMM. 10 listeners were asked to evaluate the speech similarity and quality. Here it shows the average score of the four possible source-target conversion directions.

Let's return back to the mobile application Voichap now. Using the same training set and test set, the running time of the app with both multi-core and multi-thread parallelism enabled on iPhone 7 was measured as follows:

• • The training phase of a parallel corpus containing 20 sentences of average length about 4 s takes approximately 36.5 s.

• • The conversion phase for a 4.6-s sentence from the source speaker takes about 0.85 s.

This result meets our expectations on the basis of Figs 9 and 15. Note that compared with a PC, the computational ability of an iPhone device is relatively poor, which inevitably leads to a longer running time than the one measured with MATLAB on a Windows 10 PC.

2) Objective evaluation of voice conversion

Usually, two kinds of evaluations can be used to score the performance of a voice conversion system: objective evaluation and subjective evaluation. For objective evaluation, the most widely used measure in literature is the Mel-cepstral distortion (MCD) between the converted speech and the original target speech [Reference Mohammadi and Kain9,Reference Helander and Virtanen15,Reference Toda, Black and Tokuda18]. The MCD is calculated by

(18)$$ {\rm MCD[dB]} = \displaystyle{10 \over \log10}\sqrt{2\sum_{i=1}^{24} (c_i - \hat{c}_i) ^ 2},$$

where c _i and $\hat{c}_i$ are the ith coefficients of the target and converted Mel-cepstral coefficients (MCCs). For each pair of target-converted utterances, the MCD is calculated frame-by-frame after alignment and then averaged over all paired frames. For comparison, we also reported the MCD for the traditional GMM method [Reference Kain and Macon17]. The results are listed in Table 1.

Table 1. The MCD of the unconverted source, the traditional GMM and the weighted frequency warping (WFW) method

Generally, a lower MCD indicates smaller spectral distortion, i.e., higher conversion accuracy. Table 1 shows that the MCD of WFW is only slightly larger than the one of GMM. This result illustrates one of the design goals of WFW, that is, it aims to improve the quality of the converted speech without decreasing the conversion similarity. In particular, this merit is largely attributed the GMM-based energy correction filter given in (14), which can slightly correct the gross details of the spectral shape such as the spectral tilt and energy distribution but without altering the small details in the wrapped spectrum [Reference Erro, Moreno and Bonafonte26].

As aforementioned, the WFW used in our system is a combination of GMM and frequency warping. Compared with the statistical transformations like GMM, frequency warping can achieve good scores on conversion quality by overcoming the over-smoothing effect in traditional GMM. To show that WFW can contribute to more natural voice conversion, though in the last step GMM transformations are applied to correct the energy of the warped spectra, we evaluated the global variance (GV) of the converted speech, defined as follows [Reference Toda, Black and Tokuda18],

(19)$$\eqalign{{\bi v}({\bi y}) &= [v(1), v(2), \ldots, v(D)] ^ T,\cr v(d) &= \displaystyle{1 \over T} \sum_{t=1}^{T} \left(y_t(d) - \displaystyle{1 \over T} \sum_{t=1}^{T}y_t(d) \right)^2,}$$

where y _t(d) is the dth component of the target static feature vector at frame t. Similar to the MCD index (18), the Mel-ceptral coefficients are used here. The GV is calculated for each utterance and the average values are reported in Fig. 17 to compare the WFW and GMM methods.

Fig. 17. Global variances for the natural speech and the converted speeches via GMM and WFW.

Obviously, we see that the GV obtained by the conventional GMM approach is significantly smaller than the natural speech, indicating that the converted Mel-cepstra are excessively smoothed. On the other hand, the GV produced by the WFW method is clearly larger than the one of GMM and is closer to the GV of natural speech. This comparison shows that WFW can effectively alleviate the over-smoothing problem present in GMM by introducing frequency warping and thus the output speech is less muffled. Overall, the GV results imply that WFW can lead to more natural speech conversion than GMM, which is further verified in the subjective evaluation below.

3) Subjective evaluation of voice conversion

In the objective evaluation, we have measured and compared the MCD and the GV indices. However, it is known that the MCD metric may correlate poorly with human perception in reality, i.e., a small MCD value does not necessarily indicate a better result when evaluated by human listeners. This is known as the perceptual deficiency problem, which states the reduction in the mean square error between the converted and the original speech parameters may not lead to better-perceived speech [Reference Yang, Xie, Chen, Lou, Huang and Li55]. Thus, currently, the objective criterion like MCD is only suitable for defining the training objective and validation purpose, but not for evaluating the final system [Reference Mohammadi and Kain9]. Thus, to evaluate the true performance of Voichap on iPhone 7, we invited 10 volunteers to participate in a subjective evaluation test focusing on the following two aspects.

• • Speech quality. This quantifies the quality of the converted speech in terms of naturalness, intelligibility, and presence of audible artifacts with a 5-point scale from 1 (very bad) to 5 (excellent).

• • Speech similarity. Subjects are given a pair of speeches in random order including the original one and the converted one, and they need to score the similarity using a 5-point scale, from 1 (very different) to 5 (identical).

For this subjective evaluation, the training set contains 20 utterances of average length about 4 s and the number of Gaussian components is set to m=4. In total, we performed four tests including two intra-gender conversions (F--F, M--M) and two cross-gender ones (F--M, M--F). The evaluation results from 10 listeners with a 95% confidence interval are shown in Fig. 18. It is not supervising that intra-gender conversions usually give better performance than cross-gender ones due to the greater difference between female and male voices. Besides, we also see that the perceptual score depends largely on individual listeners [Reference Mohammadi and Kain9], as indicated by the large variance in Fig. 18. Comparing GMM and WFW, we see that there is only a small gap between the similarity scores of the two methods. However, there is a significant increase in quality from GMM to WFW, which shows the effectiveness of frequency warping in improving conversion quality. This quality enhancement is consistent with the higher GV in Fig. 17. It should be noted that in WFW by tuning the smoothing-in-frequency window in the energy correction filter (14), different balance between quality and similarity can be achieved to meet the practical performance expectation.

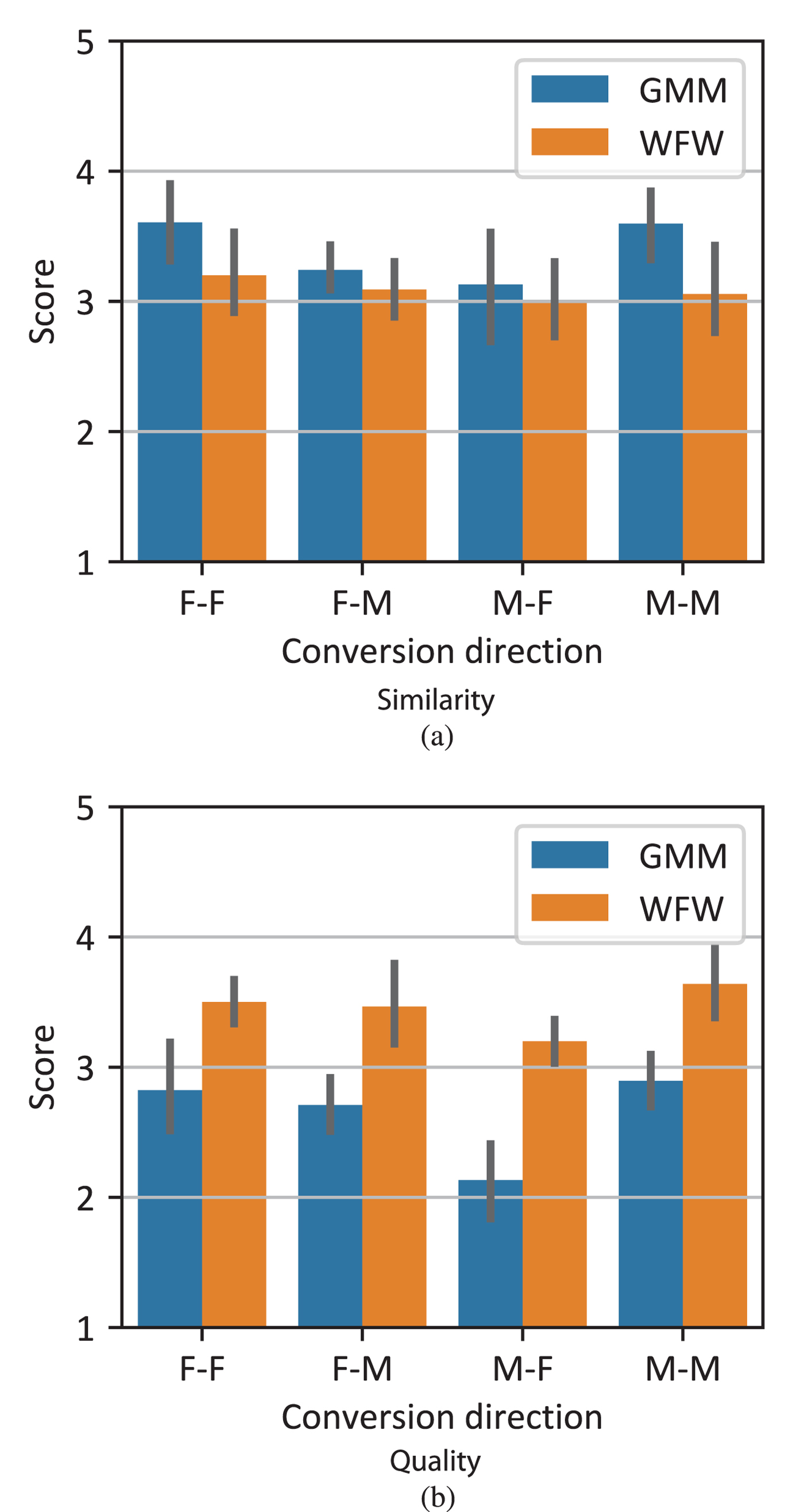

Fig. 18. Subjective evaluation of the voice conversion system Voichap on iPhone 7 in terms of converted speech quality and similarity (95% confidence interval). There are 10 volunteer listeners participating in these tests and the 5-point scale is used for scoring. (a) Similarity (b) Quality.

In general, an average score of 3 represents an acceptable level of speech quality and similarity for voice conversion. In view of the small training set in these tests, it is reasonable to conclude that we have verified the feasibility of real-time voice conversion on mobile phones. Besides, thanks to the time efficiency of this app, the user experience is also positive. Particularly, the conversion phase for a sentence of a normal length only takes <1 s, which can be considered close to real-time conversion on mobile phones.
