Tappeh Asiab is an Early Neolithic site situated on the outskirts of Kermanshah, in the central Zagros Mountains, of Iran (Figure 1). The site was found during Robert Braidwood's ‘Iranian Prehistory’ Project, and was briefly excavated early in 1960 under the direction of Bruce Howe (Braidwood & Howe Reference Braidwood and Howe1960; Braidwood et al. Reference Braidwood, Howe and Reed1961; Howe Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983). Asiab was one of the first Early Neolithic sites excavated in the central Zagros, and although the excavations at the site were never comprehensively published, it has played an important role in shaping our understanding of the Early Neolithic in this region (Nashli & Matthews Reference Nashli, Matthews, Matthews and Nashli2013; Darabi Reference Darabi2015).

Figure 1. Location of key Early Neolithic sites in south-west Asia, including Asiab.

Howe described the deposits at Asiab as “a chaotic jumble of animal bones, freshwater clam shells, coprolites, flintworking and other artefactual debris, rocks and traces of fire and ash, as well as numerous debris-filled pits”, covering an area of 20000m², of which 130m² was excavated (Howe Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983: 115). At the bottom of the main excavation area, Howe discovered “the vestige of a large shallow-basined oval excavation into virgin soil that suggested a refuse pit or possibly man-made semi-subterranean structure” (Howe Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983: 115; Figure 2). Two burials were found just above this structure in the debris (Howe Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983: 115). Based on the techno-typology of the chipped stone artefacts and radiocarbon dates, Howe placed the occupation at Asiab at around 8000 BC or later (Howe Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983: 115). Sadly, Howe's brief Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983 article, which lacks a site plan or accompanying photographs, is the most detailed description of his excavations, leaving questions concerning the chronology, site function and economy of the site unanswered.

Figure 2. Photograph of Bruce Howe's main excavation area in early 1960, showing part of the large shallow-basined oval excavation into virgin soil (courtesy of Frank Hole)

The lack of published information about Asiab, as well as the considerable methodological advances in archaeological fieldwork methods made in the last 50 years, led us to initiate new excavations at Asiab in 2016, as part of the ‘Tracking Cultural and Environmental Change: the Late Epipalaeolithic and Early Neolithic in the Seimarreh RiverValley’ (TCEC) project (www.tcec.ku.dk). Our excavations aimed to relocate and record Howe's main excavation area in order to determine the character of the shallow-basined oval feature that he reported, to record a detailed stratigraphic sequence for the site and to obtain samples of sediment and other finds from stratified deposits to facilitate the reconstruction of the environment, economy and chronology of Asiab.

Asiab is situated on a Pleistocene alluvial terrace of the Kara Su River, to the east of Kermanshah and south of the modern village of Bijaneh (Figure 3). A lithic scatter extends approximately 0.36ha across the top of the terrace. Our first step was to locate Howe's Reference Braidwood and Howe1960 excavation area, and in particular, the large, deep trench visible in site photographs, which measured approximately 6 × 8m with a depth of approximately 2.5–3m. In 2016 we therefore opened three new excavation areas at Asiab (areas I–III). After removing the topsoil across a considerable area, Howe's old main excavation area was located in area III (Figure 4). Our excavations then focused on re-excavating Howe's main trench, as well as excavating a new 5 × 5m area adjacent to it in order to obtain stratified samples of finds and deposits.

Figure 3. Digital elevation model of the Asiab terrace showing the 2016 excavation areas.

Figure 4. 3D photogrammetry of the 2016 Asiab excavations showing Bruce Howe's Reference Braidwood and Howe1960 area on the right, as well as the new TCEC excavation area on the left.

The re-excavation of Howe's area exposed two rectangular cuts measuring 2 × 1m in the north-west and south-west corners. These appear to be sondages dug by Howe to determine the presence of anthropogenic deposits. The sondage in the north-west corner truncated archaeological deposits, and hence Howe appears to have expanded his main trench out from these two sondages. Removal of the backfill revealed the shallow-basined oval feature described by Howe (Figure 4). Inside this feature we found several post- and stake-holes. Their precise stratigraphic relationship with the circular cut is unknown, as Howe excavated almost the entire area down to the underlying natural sediment. A long, shallow, oval-profiled pit, apparently unnoticed or left unexcavated by Howe, was found to contain a cache of wild boar crania, which were tightly packed and neatly arranged in an east–west alignment.

The stratigraphic sections in Howe's old excavation confirmed his observation of two main layers, the upper of which was grey, while the lower one was tan in colour (Howe Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983: 115). Inspection also revealed disturbance related to vertical funnels, resulting from collapsed entryways to animal burrows visible at the base of the sequence (Figure 5). Whilesome in situ deposits remained, most of the stratigraphic sequence at Asiab was heavily disturbed by animals. Nevertheless, we were able to record two floor layers immediately above the natural clay, visible in the northern and eastern baulks of Howe's area (Figure 6). The circular cut was then filled in by an approximately 1.5m-thick midden.

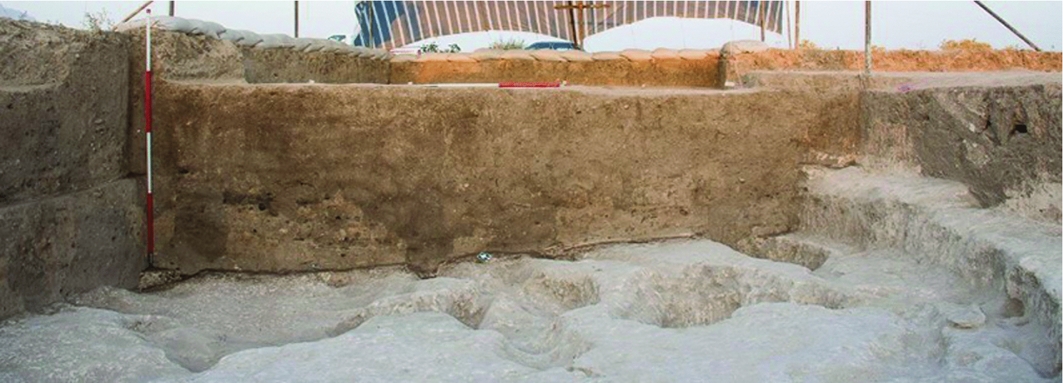

Figure 5. Animal burrows visible in the east section of Howe's excavation area (photograph by the excavation team; copyright University of Copenhagen and Razi University).

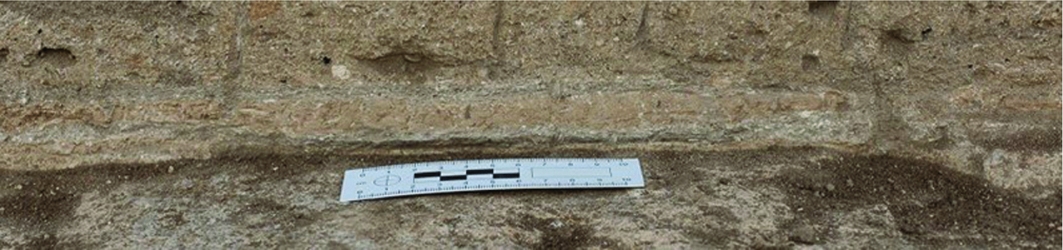

Figure 6. Close-up view of the two successive floors in the east section of Howe's excavation area. These floors would have covered the interior of Howe's oval feature, indicating that this was in fact a building (photograph by the excavation team; copyright University of Copenhagen and Razi University).

In the new 5 × 5m area adjacent to Howe's trench, we exposed the continuation of the circular feature exposed at the bottom of the 1960 excavation area. The feature was filled by midden deposits to a depth of 1.6m and was cut into the subsoil immediately below the ploughzone. In Howe's trench, this cut appeared to be truncated upwards from a depth of 0.35m, which suggests that Howe removed most of the upper part of the feature during his excavation. Inside the feature we exposed a trampled floor layer. Along the edge of the cut, the remnants of a pisé wall became visible. This mud wall probably stood much higher originally. One area of the floor was shaped into a shallow depression and painted with red pigment. A cattle horn core was placed in the depression (Figure 7). Two caches of antlers were found: one inside the pisé wall, and the second lying on another part of the floor in the northern part of the trench.

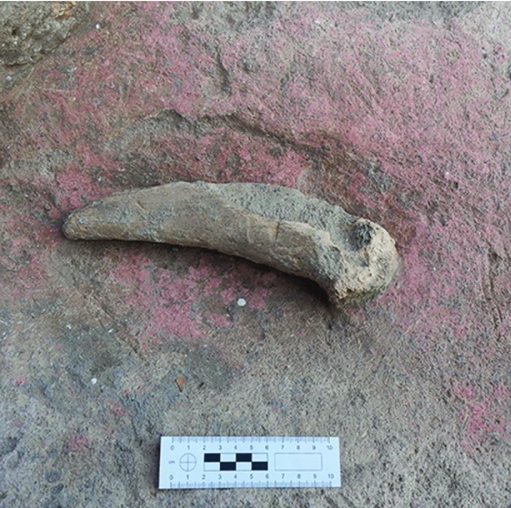

Figure 7. Cattle horn core placed in a shallow, ochre-painted depression on the floor of the large circular building at Asiab (photograph by the excavation team; copyright University of Copenhagen and Razi University).

Analysis of the recovered finds and samples is ongoing, but we are already able to draw some preliminary conclusions. The “refuse pit or possibly man-made semi-subterranean structure” that Howe (Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983: 115) exposed was indeed a building with a probable exterior pisé wall, post-holes and well-defined floors. Much of this structure apparently went unrecognised by Howe. His excavation truncated the construction cut and the pisé wall, and it completely removed the floor. The anthropogenic sediments at Asiab are extremely disturbed by animal burrows, and their full extent was not recognised during the original excavations. In light of this, much of the previous data obtained from Asiab must therefore be considered problematic in terms of provenance. The deep construction cut, the remains of the building set within it and the midden filling of the pit appear to be the only remnants of Neolithic settlement at Asiab. While the remaining building was subterranean, the majority of the Neolithic settlement was located on the Neolithic land surface, which has since eroded away. Although a surface scatter of lithic artefacts extends around 0.38ha across the terrace, this is displaced residual material that does not reflect the original size of the settlement. In any case, there is no evidence to suggest that the site originally measured 2ha in size as Howe originally suggested (Howe Reference Howe, Braidwood, Braidwood, Howe, Reed and Watson1983). Revisiting Asiab has shed important new light on one of the few known Early Neolithic sites in the central Zagros. Our work has already suggested that the site is quite different to its original characterisation. Future analyses of the finds and samples from the excavations will further illuminate the true nature of this Early Neolithic settlement.
